USER MANUAL 303352 Brandson

Tower Fan, Remote Control

Mod.-Nr.: 303349

Mod.-Nr.: 303350

Mod.-Nr.: 303351

Mod.-Nr.: 303352

Mod.-Nr.: 303803

Mod.-Nr.: 303818

Mod.-Nr.: 303819

Table of contents

1. Deutsch .... 3
2. English 15
3. Français 27
4. Italiano 39
5. Español....51

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Diagram showing a vertical cylindrical device with internal grid pattern being placed into a tilted rectangular panel (no text or symbols)

7. Reinigung

Important safety guidelines for this device

• Use the device for the private and intended purpose only. This product is not intended for commercial use. Do not use it outdoors and keep it away from heat and direct sunlight.
• Please do not keep the device in the immediate vicinity of water sources such as a bathtub, shower, washbasin or swimming pool.
• Do not use this device with wet hands.

• If the product becomes moist or wet, pull out the power plug immediately. Ensure your own safety and do not touch any conductive material on the device.

• Protect the product against humidity, sharp edges, or large sources of dust. It should never be immersed in liquids.

• Do not keep the device in the immediate vicinity of heat sources (e.g., ovens or heating system).
• Keep it on an suitable surface so that it does not tip over.
• Unplug the power plug when the device is not in use, during transport or during cleaning.
• Never keep the fan machine unattended; keep it out of reach of animals and children wherever you use or store it.
• Operate the product only with the volt-

age specified on the type plate of the device.

- This device can be used by children above the age of 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by a person responsible for their safety or have been instructed by the person concerning the safe use of the device and understand the hazards involved.

- Children should not play with the device.

- For the safety of your children, keep packaging parts out of their reach (plastic bag, foils, carton or polystyrene).

• Do not allow small children to play with the foil or plastic bags! Danger of suffocation!
• While operating the device, ensure that the protective cage is closed.
• The fan, rotary knob and switches should not be blocked.
• It is not allowed to remove the cage for cleaning purposes once the fan is mounted.
• Never insert your body parts (e.g., fingers) or objects through the protective cage.
• Ensure that your hair is not within the range of the protective cage. It may get caught in the air current.

- If the power cable of this device is damaged, it should be replaced by the manufacturer, his after-sales service personnel, or by an equally qualified person, so as to prevent any risk.

- Children may carry out cleaning and maintenance work only when supervised.

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product that you have purchased. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• Fan
• Fan pedestal
• Remote control
• User manual

2. Technical data

Input voltage 220-240V AC /	50-60Hz, 45W, safety class II
Noise emission Workplace related emission value less than 63 dB(A)
Oscillation Approx. 65° can be enabled / disabled
Dimensions • Height approx	108 cm, ø approx. 31cm• Pedestal ∅ approx. 31cm, device ∅ approx. 13.3cm
Features • Remote control	• Timer function• Oscillation• 4 operating modes

3. Functions

The Brandon tower fan has a powerful motor which ensures optimum ventilation even on hot days. Thanks to the three speed levels, four different ventilation modes and oscillation function, you can adapt the fan to your individual requirements.

4. Assembly

Take the fan out of the package and check the device as well as the specified scope of delivery. Please contact the supplier if any part is missing or has been damaged.

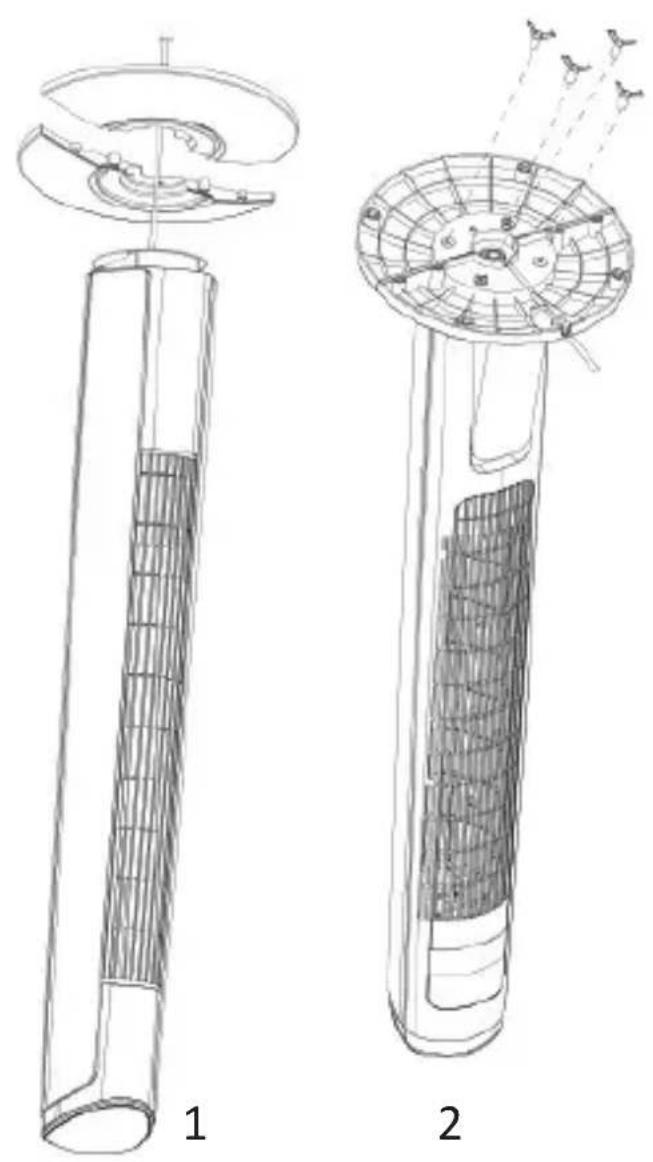

First assemble the pedestal. Make sure that you route the cable through the cable-entry and place it in the cable guide.

Then fix the pedestal to the fan using the mounting screws.

5. Usage

Keep the fan in an appropriate location and connect the device to a properly installed power socket.

Remove the safety strip from the battery compartment of the remote control. Press the "OSC" button on the remote control or on the fan to enable the oscillation.

Press the "POWER" button on the remote control or on the fan, to switch the fan on.

Press the "SPEED" button on the remote control to adjust the speed of the fan.

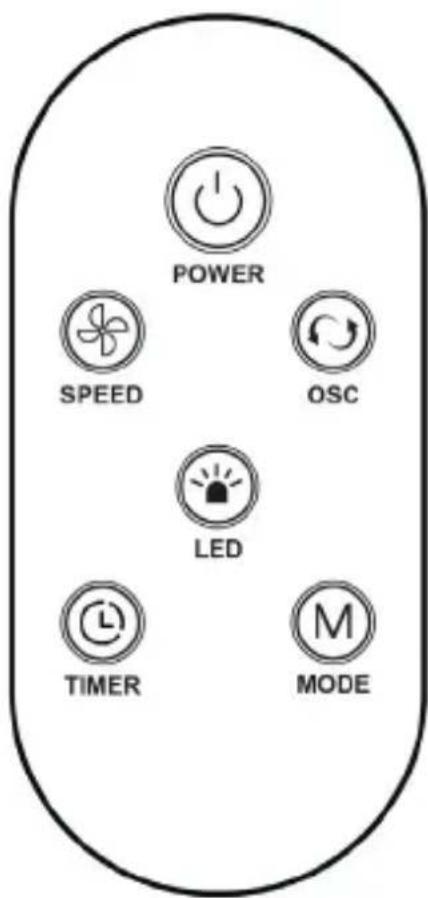

POWER SPEED OSC LED TIMER MODE

Button Function

POWER Switches the device on/off

SPEED Changes the speed level of the fan

OSC Enables the Oscillation

TIMER Turns the timer function on

MODE Changes the mode of the fan

LED Switches the display on/off

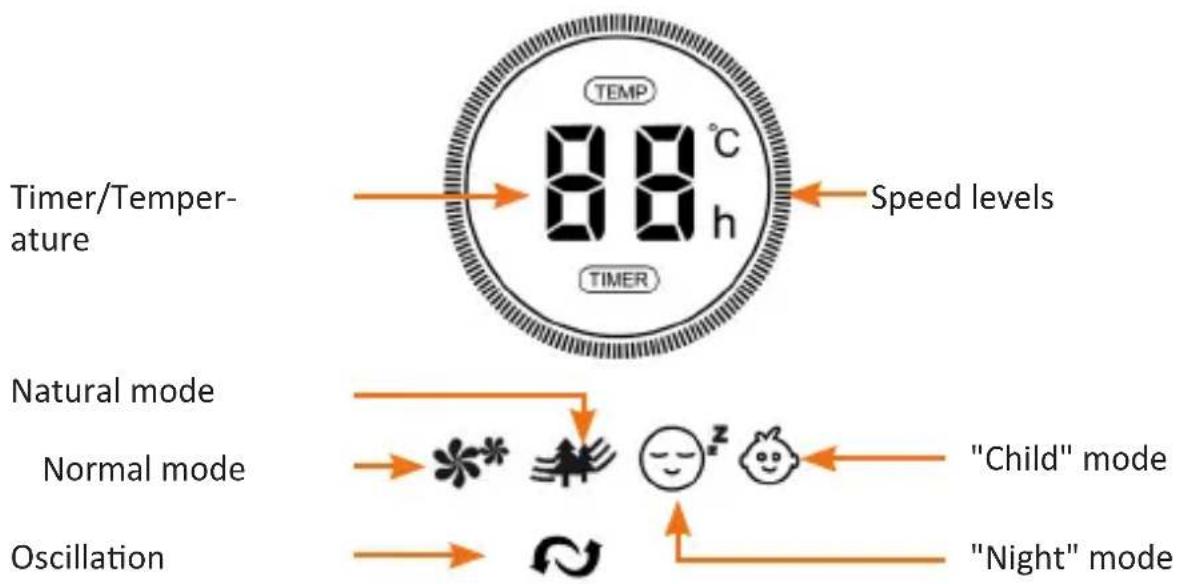

TEMP 88°C h Timer/Temperature Speed levels Natur mode Normal mode "Child" mode Oscillation "Night" mode

The fan has 12 different timer levels that can be set up to a maximum duration of 12 hours in one-hour steps. For this purpose, press the "Timer" button on the remote control or the operating panel of the fan. To increase the duration of the timer, press the button again. Press the "Mode" button to set the fan mode.

You can here choose between three different modes.

Mode Functions in the respective speed levels
Normal	The fan runs in standard mode.
Natural	The fan simulates a “natural wind breeze”. The device will change the speed level in Low Medium High in different sequences. The intensity depends on the previously selected speed level. The oscillation can be switched on or off optionally.
Child	Depending on the adjusted speed (in this example level 3 - maximum level), the fan operates for 30 minutes at high speed, changes to medium speed for 30 minutes and finally switches over to low speed, until the fan stops turning by itself. Optionally, the oscillation can be switched on and off.Is used as ventilation function in children's rooms. When this function is selected, the fan is automatically set to a timer of 3 hours. The oscillation and the maximum speed level of 3 is additionally enabled for this timer. The oscillation can be switched off using the "Oscillation" button. The speed is maintained for 15 minutes, then changes to level 2 for another 15 minutes, and then to level 1 until the fan switches off by itself once the timer reaches zero.

6. Tilting function

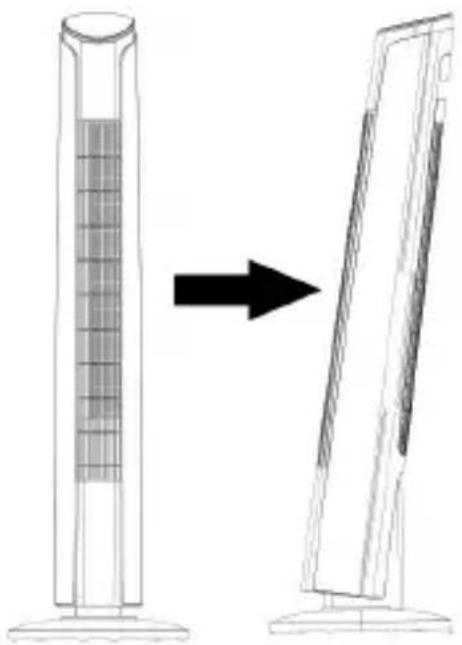

You can tilt the fan by 10% by pushing the device back with a little force until it clicks into place (see figure).

Diagram showing a vertical cylindrical device with internal grid structure being processed by an arrow (no text or symbols present)

7. Cleaning

Caution! Pull out the power plug from the socket before starting the cleaning process!

Use a slightly moist cloth for cleaning (wetted with water). For cleaning, never immerse the device into water! This could lead to electric shock or fire!

8. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow.

Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without prior notification.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303349/303350/303351/303352/303803/303818/303819 complies with the fundamental requirements and the other relevant stipulations of the directive. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://downloads.ganzeinfach.de/
