USER MANUAL RCC688WH2 COMFEE

Line drawing of a rectangular battery with two compartments (no text or symbols)

RCC688WH2

Warning:

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

CONTENTS

1 Safety warnings

1.1 Warning ....1
1.2 Meaning of safety warning symbols ......3
1.3 Electricity-related matters....3
1.4 Matters related to use....4
1.5 Matters relating to the placement of items 5
1.6Warnings for energy....5
1.7 Matters related to disposal 5

2 The correct usage of freezer

2.1 Names of each component ....6
2.2 Temperature control panel....7
2.3 Placement 7
2.4 Changing the light (optional) 8
2.5 Start....8
2.6 Energy saving tips 8

3 Maintenance and service of freezer

3.1 Cleaning 9
3.2 Defrost....9
3.3 When out of use 9

4 Trouble shooting.... 10

DEAR CUSTOMER:

Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any freezer equipment please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purpose.

Safety warnings1

Warning1.1

Warning sign depicting a flame symbol in a yellow triangle with black border

Warning: risk of fire/flammable materials

THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

CHILDREN should be supervised to ensure that they do not play with the appliance.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance. THE appliance has to be unplugged after use and before carrying out user maintenance on the

appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded two prong adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the

installation of accessory.

REFRIGERANT

and cyclopentane foaming material used for the appliance are flammable.

Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

THE necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

FOR EU standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

TO avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
• One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

FOR a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

ANY replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. (See chapter 2.4 for lamp replacement)

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance WARNING: Connect to potable water supply only. (Suitable for ice making machine)

TO Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator). (Suitable for products with locks)

Meaning of safety warning symbols1.2

Prohibition symbol

This symbol indicates prohibited matters which the behaviors related to must be prohibited. Failure to follow instructions may result in damage to the product or endanger the user's personal safety.

Warning symbol

This symbol indicates matters that must be complied with and which the behaviors related to must be carried out in strict accordance with the required operation.

Failure to follow instructions may result in damage to the product or endanger the user's personal safety.

Note symbol

This symbol indicates matters requiring attention, which the behaviors related to require special attention. If left unguarded, this could result in minor or moderate injuries or product damage.

This Manual contains a lot of important safety information, please be sure to follow all of it.

Electricity-related matters1.3

Electrical safety diagram showing three installation methods: switch, power socket, and plug-in socket with checkmark and no symbol.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a room interior with a monitor and keyboard (no text or symbols)

Diagram of a battery with warning symbol and warning label, showing electrical hazard and safety warning

• Do not pull on the power line when unplugging the freezer. Be sure to hold the plug firmly and pull it straight out of the socket.
• For safe use, do not damage the power line at any time, and do not use the power line when it is broken or the plug is worn.
• If the power line is worn or damaged, it must be replaced at the manufacturer's designated service point.

- The power line plug should be kept in firm contact with the socket, otherwise it may cause a fire. Please ensure that the grounding electrode of the socket should have a reliable ground wire.

- When flammable gases, such as coal gas, leak, you should first close the valve that causes the gas leak, and then open the doors and windows. At this time, do not pull out the plugs of electrical appliances, such as freezer, so as to avoid electric sparks causing a fire.

- For safety, it is recommended that electrical sockets, voltage stabilizers, rice cookers, microwave ovens, and other appliances are not placed on top of the freezer; and that appliances are not used in the food storage room of the appliance, except for the type recommended for use by the manufacturer.

Matters related to use1.4

Diagram showing a box with a magnified view and a prohibition symbol, indicating no protection or disapproval.

- It is strictly prohibited to privately disassemble and remodel the freezer, and to damage the refrigeration pipeline, and the maintenance of the freezer must be carried out by professional personnel. - To avoid danger, if the supply cord is damaged, it must be replaced by the manufacturer, its maintenance department, and relevant professionals.

Simple line drawing of a box with starburst marks and an exclamation mark (no text or symbols)

- There are small gaps between the doors and between the door and the freezer case, so be careful not to put your hand in these areas to prevent squeezing your fingers. When opening and closing the freezer door, do not use excessive force to prevent items from falling. - After the freezer starts running, do not reach for food or containers in the freezer with wet hands, especially metal containers, to avoid frostbite on your hands.

Illustration of a child climbing inside a cube with a sad face, marked by an exclamation mark (no text or symbols on the diagram itself)

- Do not allow children to enter or climb on the freezer to avoid sealing children into the freezer or the freezer falling down, which may cause injury to children. - Do not spray or rinse the freezer with water, and do not place the freezer in a damp, easily splashed place, and do not fill or load the freezer with water to avoid affecting the electrical insulation of the freezer, which may even lead to electric shock, fire and other accidents.

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or symbols on the character itself)

Please do not place heavy objects on the top of the freezer, as it is easy to cause the objects to fall down when closing the door, resulting in accidental damage.

Matters relating to the placement of items1.5

Illustration showing hands holding a tray with labeled items including a bottle, boxes, and a cross symbol, with an exclamation mark and a warning icon.

• Please do not place flammable, explosive, volatile and highly corrosive items into the freezer, so as not to cause product damage or fire and other accidents.
• Do not place or use combustible items near the freezer to avoid a fire.

Blood Drugs Intestinal extracts

- This product is a household refrigeration appliance, and according to national standards, it is only suitable for storing food, and cannot be used for other purposes, such as storing blood, medicines and biological products.

Illustration showing a hand holding a beer mug with stacked cups, indicating a warning or warning about the beer.

- Please do not put bottled or closed containers of fluid items such as bottled beer, drinks, etc. into the freezer to avoid freezing and cracking, which may cause other losses.

1.6 Warnings for energy

• Freezer might not operate consistently when sited for an extended period of time below the cold end of the range of temperatures for which the freezer appliance is designed.
• The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
• The need to not exceed the storage time recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
• The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
• The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
• The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the freezer appliance, in order to prevent children from being locked inside.

Matters related to disposal1.7

The refrigerant and cyclopentane foaming material used in this freezer are flammable materials, and the used freezer should be isolated from sources of ignition and cannot be burned for disposal.

Please hand over to qualified professional recycling company for disposal to avoid harming the environment or causing other dangers.

When the freezer is abandoned and not in use, please remove the door of the freezer, and remove the door seal and shelf basket, and place the door and shelf basket in a suitable position, so as to avoid children from entering and playing, which may cause accidents.

Properly dispose of the product:

This symbol means that throughout the European Union, this product is not suitable to be disposed of with other household waste. To avoid causing potential danger to environment or human health because of uncontrolled waste treatment, recycle the waste to promote the sustainable reuse of material. In order to recycle the used devices, please use the recycle system or collecting system, or contact the product retailers. They can guarantee that the recycling process is environmental friendly and safe.

The correct usage of freezer2

Names of each component2.1

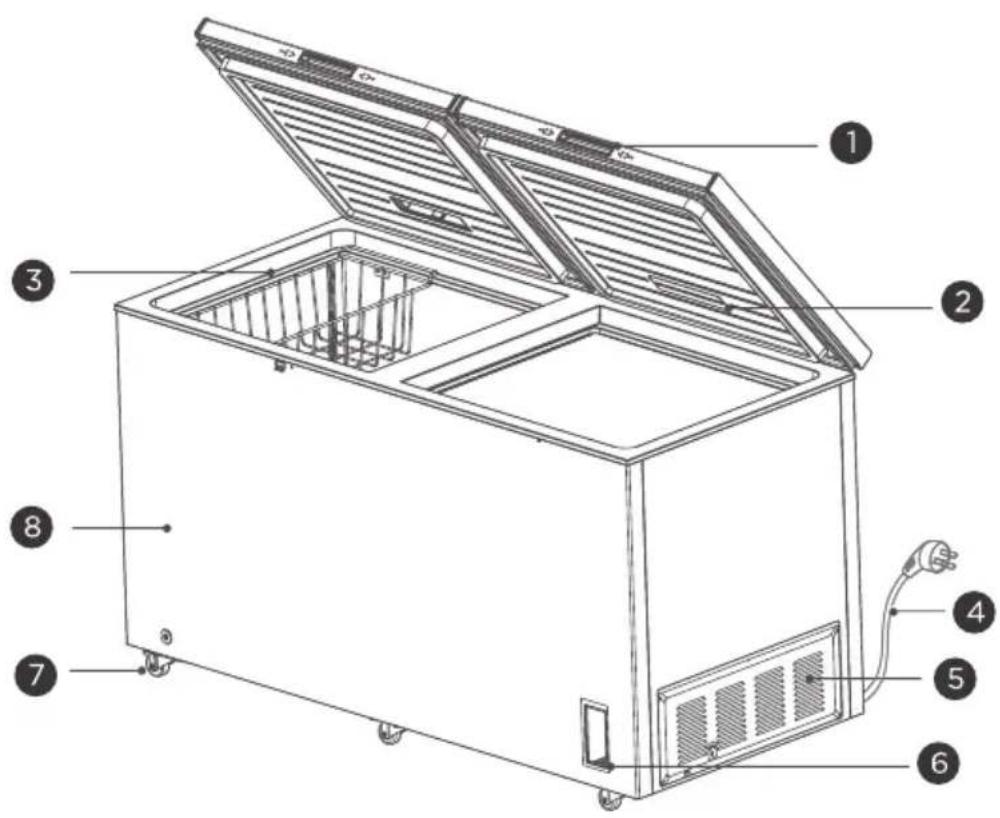

Technical diagram of an open refrigerator with numbered parts labeled for identification.

1	Door handle	5	Shutter
2	Lamp (optional)	6	Temperature control panel
3	Shelving basket	7	Foot wheel
4	Power cord	8	Cabinet

(The above pictures are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

• The freezer can maintain the freshness of food for a long time at low temperatures. It is mainly used for storing frozen food and making ice cubes.
• The freezer is suitable for storing meat, fish, shrimp, and pastries that are not to be consumed in the short term. It is not suitable for storing fluids in bottled or sealed containers, such as bottled beer or beverages.
• Please note that the food should be consumed by its expiration date.
• The freezing speed of the product depends on the amount of food stored and the ambient temperature. If too much food at room temperature is placed at once, it is recommended to set the temperature controller to the maximum level and operate it for 24 hours in advance or use ice cubes for cooling. Moreover, large pieces of food should be divided into small pieces and stored separately to ensure proper freezing. Otherwise, certain parts of large or excessive food may not freeze properly, leading to potential spoilage.

Reminder:

Due to the wear and tear of the hinge during long-term opening and closing, the hinge's service life could be affected and noise may occur. It is recommended that users regularly apply lubricating oil to the hinges for maintenance, which can effectively eliminate noise and extend the service life of the hinges.

2.2 Temperature control panel

control panel with indicator light :

Recommended gear COOLING Recommended gear POWER

• After power on the "POWER" indicator light will be light( green ).
• The area where the temperature controller knob points to "COOLING" is the refrigeration area, and "FREEZING" is the frozen area;
• When the temperature controller knob is turned clockwise, the temperature inside the freezer decreases;
• When the temperature controller knob is turned counterclockwise, the temperature inside the freezer increases;
• Please refer to the schematic diagram to identify the "recommended gear".

(The above pictures are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

2.3 Placement

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

- Before using the freezer, please remove all the package, which includes the base pad, the foam cushion block in the freezer and adhesive tape, etc. And tear off the protective film on the door body and case.

Simple line drawing of a box and a door (no text or symbols)

- Place the freezer in a well-ventilated indoor area with a flat and sturdy ground.

Cartoon illustration of a sad cube with a frowning face and a potted plant, next to a sun (no text or symbols)

- Select the place that is far away from the heat source and direct sunlight Do not place it in damp or watery areas to prevent rusting or weakening the insulation effect.

30mm 20mm 30mm

- The top space of the freezer should be greater than 70cm and the distance between the sides and back of the freezer and the wall should be greater than 20cm, so as to facilitate the opening and closing of the freezer door and heat dissipation.

2.4 Changing the light (optional)

The LED light must be replaced by a professional from the manufacturer, its maintenance department or other similar departments.

(The above are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

2.5 Start

Simple line drawing of a box with a smiley face and a small plug attached to the side (no text or symbols)

- After transportation, please let the freezer stand for at least 2 hours before connecting to the power supply, otherwise it may cause performance degradation or damage to the freezer.

Before storing fresh or frozen food in the freezer, run the freezer for 2 to 3 hours; in hot summer days, users should run the freezer for 4 hours in advance.

During the power cut or cleaning, users should pull the plug off and plug in again after a 5-minute interval in case the continuous start damage the compressor.

(The above are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

2.6 Energy saving tips

- The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Maintenance and service of freezer3

3.1 Cleaning

- Please clean the dust behind and around the freezer on time to improve heat dissipation and save energy.

- Regularly inspect the door seal to ensure it is clean and free of debris. Clean the door seal with a soft cloth dipped in soapy water or diluted cleaning agent.

- The interior of the freezer should be regularly cleaned to avoid odor.

- Before cleaning the interior of the freezer, please turn the power off, take out all the food, hanging baskets and containers.

- Please use a soft cloth or sponge to clean the inner liner of the freezer. You can use two tablespoons of baking soda and one quart of warm water solution to clean it first, then clean it with clean water and wipe it clean. After cleaning, open the door and let it dry naturally before connecting to the power supply.

Illustration of various household items including a gas container, spray bottle, alcohol lamp, kettle, and a prohibition symbol (no text or labels)

• For areas inside the freezer that are not easy to clean (e.g. gaps or corners), it is recommended to use soft cloths, soft brushes, etc. and some necessary aids (e.g. thin sticks, etc.) to carry out regular cleaning to ensure that there are no accumulation of pollutants or bacteria.
• Do not use soaps, detergents, spray cleaners, etc. to clean the liner as these may create odors or contamination.
• Clean the hanging basket with a soft cloth dipped in soapy water or diluted cleaning agent, and then dry it with a soft cloth or air dry naturally.
• Wipe the outside surface of the freezer with a soft cloth moistened with soapy water, detergent, etc., and then dry with a soft cloth.
• Do not use hard hairbrush, steel wire ball, steel wire brush, abrasive (such as toothpaste), organic solvent (such as alcohol, acetone, isoamyl acetate, etc.), boiling water, or acidic or alkaline substances during cleaning, as it may damage the surface and inner liner of the freezer. Organic solvents such as boiling water and benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuit or affecting electrical

insulation performance after soaking.

When defrosting and cleaning the freezer, unplug the power supply first.

3.2 Defrost

• Freezers need to be manually defrosted:

When defrosting, please unplug the power plug first, open the freezer door, and take out indoor food, hanging baskets, etc.; Open the drain hole and outlet hole (and place a water container at the outlet hole) to allow the indoor ice and frost to naturally melt, and dry the defrosting water with a dry soft cloth. Once the frost softens, you can use an ice shovel to speed up deicing.

- When defrosting, please keep the removed food in a cool place before removing the accessories.

Do not use mechanical devices or other means of acceleration other than those recommended by the manufacturer. The refrigeration circuit must not be damaged.

3.3 When out of use

• In case of power failure: Even in the summer, food can still be stored for several hours; During this period, the number of opening door should be reduced, and fresh food should not be put in.
• When not in use for a long period of time: unplug the power supply, then clean the freezer and keep the freezer door open to prevent the freezer from generating odors.
• When moving the freezer: Do not invert, transport horizontally, or vibrate the freezer during transportation. The inclination angle during transportation should not exceed 45^ . Do not grab the door or hinge while moving.

Once the freezer is activated, it is best to use it continuously, and under normal circumstances, do not stop using the freezer, so as not to affect the service life.

Trouble shooting4

For some of the following simple problems, you can try to solve them by yourself. If there is no improvement, please call the after-sales service department.

The freezer does not work	Whether the power supply is connected and the plug is firmly inserted Whether the voltage is too low Whether the temperature control knob is in the work area Is there a power outage or partial circuit tripping
The freezer smells bad	Odorous food should be tightly packed Check for rotten food The interior of the freezer needs to be cleaned
Long term operation of the compressor	It is normal for freezers to work for a long time due to high temperatures in summer Do not put too much food into the freezer at one time. Put the food into the freezer after it has cooled down Open the freezer door too often The frost layer of the freezer is too thick (defrosting is required at this time)
The freezer light does not light up	Whether the freezer is powered on and whether the indicator light is damaged
The freezer door cannot be closed correctly	The food package is jammed so the door cannot be closed Too much food has been put in Freezer tilts
Loud noise	Whether the ground is flat and the freezer is placed stably Whether the accessories of the freezer are placed in the normal position
It is difficult to open the freezer for a short time	After the refrigeration of the freezer, there is a pressure difference between the inside and outside of the case, which can cause a temporary difficulty in opening the door. This is a normal physical phenomenon.
Case emits heat External condensation	When the freezer is running, the outer shell of the case will generate heat, even generating more heat in the early stages of operation and summer. This is caused by the heat dissipation of the condenser and is a normal phenomenon. When the environmental humidity is high, there may be condensation on the surface of the case and the door seal, which is a normal phenomenon. Wipe dry with a dry towel.
Airflow sound Buzzing sound Clattering sound	The refrigerant circulating in the refrigeration pipeline will produce an eruption sound and a grunt sound, which is a normal sound and will not affect the cooling effect. The compressor produces a buzzing sound during operation, and the sound is loud when starting or stopping. The electromagnetic valve or electric switching valve will make a clattering sound, which is a normal phenomenon and will not affect its use.

Table 1 Climate classes

Class	Symbol	Ambient temperature range ^
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’;

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

If the wine cooler operates outside the climate class(ambient temperature range)for which it is rated then it may not be able to maintain satisfactory ieternal temperatures.

Special for new European standard

- The ordered parts in the following table can be acquired from channel _.

		Minimum Time Required forProvisionProvided by
Thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
Door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
Trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
Baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
Door gaskets	Professional repairers and final users	At least 7 years after the last model is launched on the market

• The shortest period for providing after-sales spare parts is 15 working days.
• The model information and model identification in the product database can be obtained by scanning the web link on the QR code (if any) on the product energy efficiency label.

Dear customer:

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

TABLE DES MATIÈRES

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing three electrical installation methods: switch, power socket, and plug-in socket with checkmarks indicating disassembly.

Simple line drawing of a plug with a cable, next to an exclamation mark (no text or symbols on the plug itself)

Simple line drawing of a room interior with a cabinet and monitor, no text or symbols present

Simple line drawing of a box with a small object on top and a warning symbol below (no text or labels)

Diagram showing a box with a sad face and a broken rectangle, accompanied by a prohibition symbol.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

Illustration of a child climbing inside a cube with a worm-like creature visible inside (no text or symbols)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle labeled 'Zanamix', a cross, and an icon indicating warning or caution.

Blood Dress Animal juice

Diagram showing a hand holding a beer bottle with a cross symbol, next to stacked bottles and a warning icon.

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a box next to an open door (no text or symbols)

Cartoon illustration of a sad cube with flames and sun, next to a potted plant (no text or symbols)

Simple line drawing of a cube with vertical lines and measurement annotations (no text or symbols)

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Illustration showing various chemical products including a glass bottle, alcohol spray bottle, and a kettle with a warning symbol

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing three electrical installation methods: one using a switch, another with a bulb, and a third with a bulb.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a monitor and counter (no text or symbols)

Simple line drawing of a box with a small object on top and warning symbols (no text or labels)

Diagram showing a box with a warning symbol and directional arrows, including a cross and a prohibition sign.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

Simple line drawing of a child climbing inside a cube with a falling object and warning symbol (no text or labels)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle, a cross symbol, and a product box, with an exclamation mark and a warning icon.

Blood Blood filled

Diagram showing a hand holding a beer bottle with a cross symbol, next to stacked bottles and a warning sign.

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a box next to a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, next to a sun (no text or symbols)

Diagram showing a 3D cube with labeled dimensions and directional arrows, likely illustrating a geometric or physical concept.

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Warning sign depicting a flame symbol in yellow and black on white background

Electrical safety instructions showing three steps: switch, power plug, and plug-in circuit with checkmark and no symbol.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen interior with a refrigerator and stove (no text or symbols)

Simple line drawing of a box with a small object on top and warning symbols (no text or labels)

Diagram showing a box with a warning symbol and directional arrows, including a cross and a prohibition sign.

Simple line drawing of a box with a starburst on top and an exclamation mark in the corner (no text or symbols)

Simple line drawing of a child climbing inside a cube with a falling object, no text or symbols present

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or symbols on the character itself)

Illustration showing a hand holding a tray with a bottle, a cross symbol, and an eraser, alongside a warning symbol.

Blood Dress Animal juice

Diagram showing a hand holding a beer bottle with a cross symbol, next to stacked bottles and a warning icon.

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a cube and a cabinet (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, under a sun (no text or symbols)

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Illustration showing various chemical products including gas, alcohol, and water bottles with a warning symbol

Warning sign depicting a flame symbol in yellow and black on white background

Electrical safety diagram showing three installation methods: switch, power socket, and plug-in socket with checkmark and no symbol.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a kitchen appliance with a monitor and fan (no text or symbols)

Diagram of a box with a small object on top and warning symbols at the bottom, including an exclamation mark.

Diagram showing a box with a warning symbol and directional arrows, including a cross and a prohibition sign.

Simple line drawing of a box with a starburst on top and an exclamation mark in the corner (no text or symbols)

Simple line drawing of a child climbing inside a cube with a falling object, no text or symbols present

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or symbols on the character itself)

Illustration showing a hand holding a tray with a bottle labeled 'Zanamoy', a cross, and an icon indicating warning or caution.

Blood Drought Bacterial impact !

Diagram showing a hand holding a beer bottle with a cross symbol, next to stacked cylindrical objects and a warning symbol.

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a cube and a door with a lid (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, under a sun (no text or symbols)

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Hand-drawn sketch showing various chemical and beverage items including bottles, containers, a kettle, and a stop sign symbol.

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing three electrical installation methods: switch, power socket, and plug-in socket with prohibition symbols.

Simple line drawing of a plug with a cable, next to an exclamation mark (no text or symbols on the plug itself)

Simple line drawing of a room interior with a monitor and equipment, no text or symbols present

Simple line drawing of a box with a small object on top and a warning symbol below (no text or labels)

Diagram showing a box with a warning symbol and directional arrows, including a crossed-out circle and a prohibition sign.

Simple line drawing of a box with a starburst and warning symbol (no text or labels)

Illustration of a child climbing inside a cube with a falling object and warning symbol (no text or labels)

Cartoon character with sad expression, carrying a stack of boxes, with warning symbols (no text or labels)

Illustration showing a hand holding a tray with a bottle, a cross symbol, and a warning icon with an exclamation mark.

Blood Dress Bacterial impact

Diagram showing a hand holding a beer bottle with stacked bottles and a warning symbol, likely illustrating a safety or safety hazard.

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a cube and a door with a lid (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, under a sun (no text or symbols)

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Warning sign depicting a flame symbol in yellow and black on white background

Electrical safety instructions showing installation of a switch and plug with checkmarks and no symbols

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen interior with a refrigerator and a shower (no text or symbols)

Simple line drawing of a box with a small object on top and a warning symbol below (no text or labels)

Diagram showing a box with a sad face and a broken rectangle, accompanied by a prohibition symbol.

Simple line drawing of a box with a starburst on top and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a cube with a worm-like creature visible inside (no text or symbols)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle, a cross symbol, and a warning icon with an exclamation mark.

Blood Dress Bacterialized

Diagram showing a hand holding a beer mug with stacked cans, indicating a warning or warning about the beer.

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

Simple line drawing of a box next to a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, next to a sun (no text or symbols)

Diagram showing a 3D cube with labeled dimensions and directional arrows indicating measurements.

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Warning sign depicting a flame symbol in yellow and black on white background

Electrical installation diagram showing three steps: switch, power socket, and plug-in socket with checkmark and no symbol indicators.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a monitor and drawer, no text or symbols present

Diagram of a box with a small object on top and warning symbols at the bottom, including an exclamation mark.

Diagram showing a box with a magnified view and a warning symbol, indicating no change or absence of an unknown object.

Simple line drawing of a box with a starburst on top and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a cube with falling objects and a warning symbol (no text or labels)

Cartoon character with a sad expression, carrying a stack of bricks (no text or symbols)

Illustration showing a hand holding a tray with a bottle, a cross symbol, and a product labeled 'Zanamoy' and an exclamation mark.

Diagram showing a hand holding a beer bottle with stacked bottles and a warning symbol, likely illustrating a safety or safety hazard.

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a box and a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, emitting sun (no text or symbols)

Diagram showing a cube with labeled dimensions and arrows indicating measurements or directions.

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Warning sign depicting a flame symbol in yellow and black on white background

Electrical safety instructions showing three steps: switch, power plug, and plug with checkmark and no symbol.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a monitor and fan (no text or symbols)

Diagram of a box with a warning sign and warning symbol, showing a warning label and warning icon.

Illustration showing a hand holding a tray with a bottle, a cube, and a cross symbol, alongside a warning icon.

Bread Beech milk

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a cube and a door with a lid (no text or symbols)

Cartoon illustration of a sad refrigerator with sun and potted plant nearby (no text or symbols)

245mm 245mm

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Gas Alcohol Sprout Barelli. No

Warning sign depicting a flame symbol in yellow and black on white background

Electrical installation diagram showing three steps: switch, power plug, and socket with no protection symbols

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a kitchen appliance with a monitor and drawer, no text or symbols present

Diagram of a box with a labeled component and warning symbol, including an exclamation mark.

Diagram showing a box with a magnified view and a warning symbol, including a crossed-out circle and a broken rectangle.

Simple line drawing of a box with a starburst symbol and an exclamation mark (no text or symbols on the box itself)

Illustration of a child climbing inside a cube with falling objects and a warning symbol (no text or labels)

Cartoon character with a sad expression, carrying a stack of bricks (no text or symbols)

Diagram showing a hand holding a tray with a bottle, a cross symbol, and a rectangular object, with an exclamation mark and a warning symbol nearby.

B-let Cough Bilament milk

Technical diagram of an open refrigerator with numbered parts labeled for identification.

1 Kľučka dverí 5 Uzávierka
2 Svetidlo (voliteľné) 6 Ovládací panel teploty
3 Policový kôš 7 Nožné koliesko
4 Napájací kábel 8 Skrinka

Illustration of a person lifting a large cardboard box (no text or symbols present)

Simple line drawing of a box next to an open door with a musical note (no text or symbols)

Cartoon illustration of a sad cube with flames and sun, next to a potted plant (no text or symbols)

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

Illustration showing various chemical and beverage items including gas, alcohol, spray bottles, and a kettle with a prohibition symbol
