Product Type	Digital Infrared Food Thermometer
Brand	Ooni
Model	Digital Infrared Thermometer
Power Supply	2 AAA batteries
Measurement Technology	Non-contact Infrared
Laser Class	Class 2 (IEC/EN 60825-1:2014)
Laser Wavelength	635 - 665 nm
Laser Beam Divergence	5.725° (horizontal and vertical)
Maximum Laser Power	< 1 mW
Operating Temperature	0 °C to +40 °C
Operating Humidity	< 80%
Package Contents	1 thermometer, 1 user manual, 2 AAA batteries
Care and Cleaning	Do not immerse in water. Clean with a dry cloth.
Laser Safety	Do not look directly into the beam. Do not point at people or animals.
Repairability	Do not repair yourself. Refer to Ooni or a qualified person.
Recycling	Do not dispose of with household waste. Dispose of batteries at a collection point.

Frequently Asked Questions - Digital Infrared Thermometer OONI

How to use the Ooni infrared thermometer?

Point the device at the surface to measure and press the trigger. The laser beam indicates the measurement area. Read the temperature on the display.

What are the laser safety precautions?

Never look directly into the laser beam and do not point it at people or animals. It is a Class 2 laser.

How to change the batteries?

Open the battery compartment, remove the used batteries and insert two new AAA batteries, respecting polarity.

How to clean the device?

Clean the device with a dry cloth. Do not immerse it in water or use water to clean it.

What to do if the device does not turn on?

Check that the batteries are correctly installed and not depleted. Replace them if necessary.

Is the device waterproof?

No, the device is not waterproof. It must not be immersed in water or cleaned with water.

Can I measure the temperature of an oven with this thermometer?

Yes, but only from outside the oven. The thermometer measures surface temperature by infrared, not the internal air temperature.

What does the laser beam divergence mean?

The divergence of 5.725° indicates that the measurement area widens with distance. The farther you are, the larger the measured area.

How to recycle the device at end of life?

Do not throw the device with household waste. Use collection systems or return it to the retailer for proper recycling.

Is the device suitable for food measurements?

Yes, it is designed to measure the temperature of food without contact, ideal for pizzas, grills, etc.

USER MANUAL Digital Infrared Thermometer OONI

Digital Infrared Thermometer

Manual & Safety Instructions

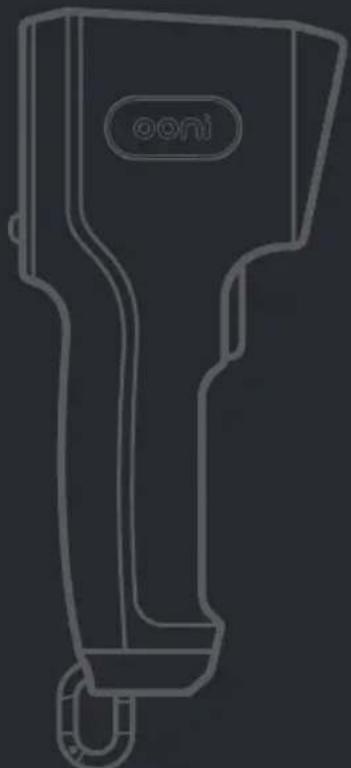

Line drawing of a handheld device with a label 'oeni' on the handle (no other text or symbols)

QR code image containing encoded data, no visible human-readable text

Icon of a person reading a book inside a circle (no text or symbols)

Solid dark gray rectangle with no visible text, symbols, or features

Warnings

This is a Class 2 laser product in accordance with IEC/EN 60825-1:2014.

The radiation pattern emitted from this product:

Wavelength: 635-665 nm

Beam divergence:

$$ X = 5. 7 2 5 ^ {\circ} $$

$$ Y = 5. 7 2 5 ^ {\circ} $$

Pulse duration: Continuous

Maximum power or energy output: <1mW

A visible laser beam emerges from the front of the product.

Do not stare directly into the laser beam or direct it towards other people or animals.

Do not submerge in water or use water to clean.

Store out of reach of children.

Do not place fingers inside the product.

Handle with care.

Use environment:

Operating temperature: 0 to +40°C

Operating humidity: <80%

Do not repair this product. Repair must be performed by Ooni or a suitably qualified person.

This product should not be disposed with other household wastes throughout the EU and UK. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly and promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

Batteries must not be disposed of in the domestic waste as they contain substances which can be damaging to the environment and health.

Please dispose of batteries in designated collection points.

What's in the box

1 x Ooni Digital Infrared Thermometer

1 x User Manual & Safety Instructions

2 x AAA Batteries

_ | _ | _

- | - | -

Contents

English....2

العربية 4

Български ....5

Čeština....6

Dansk....7

Deutsch 8

Ελληνικα....9

Español....10

Eesti 11

Suomi 12

Français....13

Diagram of a handheld device with labeled parts and exploded view, showing internal components and assembly steps.

2 a b c oeni d

3 a b 888 c d f Min. °C Max. 888 °F 888 e

4 a 403 Min. °C Max. 387 438 b 403 Δ ≡ ℃/F Δ ≡ ℃/F

5 95 5s °C/F

D : S = 10 : 1 Ø 30mm @ 500mm Ø 20mm @ 900mm Ø 150mm @ 1500mm Ø 1.2° @ 12° Ø 5.6° @ 36° Ø 5° @ 50° S D

Instructions

The Ooni Digital Infrared Thermometer is used for measuring the temperature of cooking surfaces within your pizza oven. Direct the laser at your cooking surface to check the temperature readings from -30^ > 550^ and -22^ > 999^ .

To cook Neapolitan-style pizzas, aim for 842°F (450°C) in the centre of the baking stone.

Display

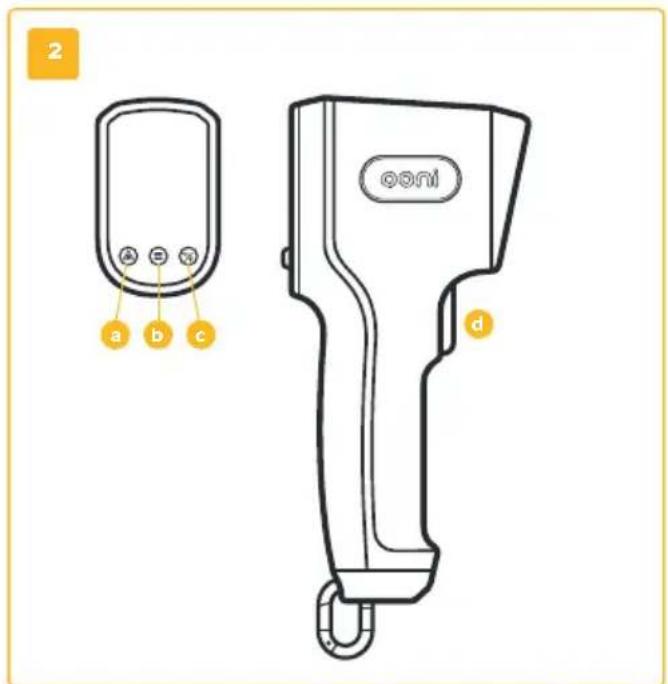

2 Buttons

a. Ⓐ Laser on/off button

b. Mode button

c. Ⓧ Unit button

d. Trigger button

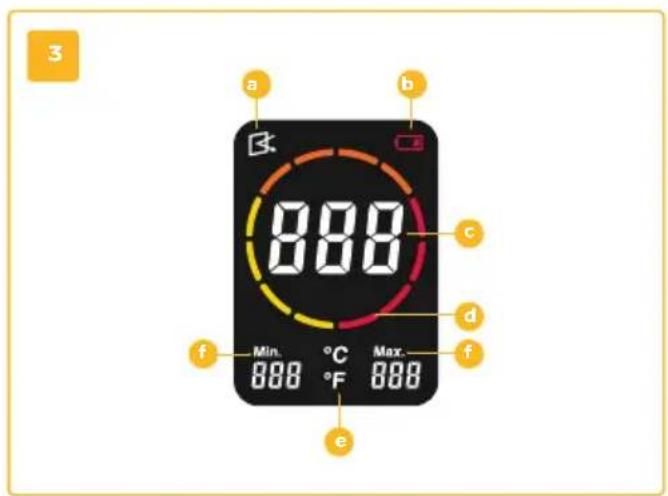

3 Screen

a. Emissivity mode symbol

b. Battery symbol

c. Main reading

d. Temperature ring

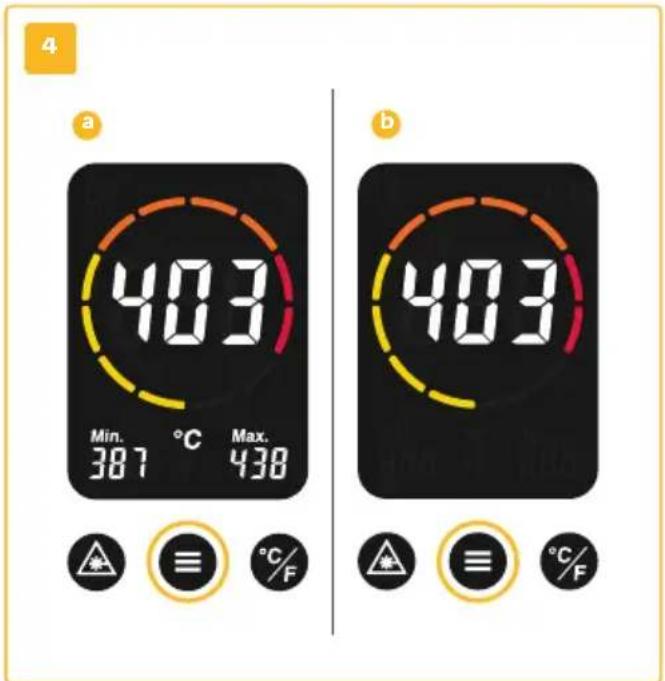

Press the Mode button to toggle between Standard View and Essentials View.

a. Standard View

b. Essentials View

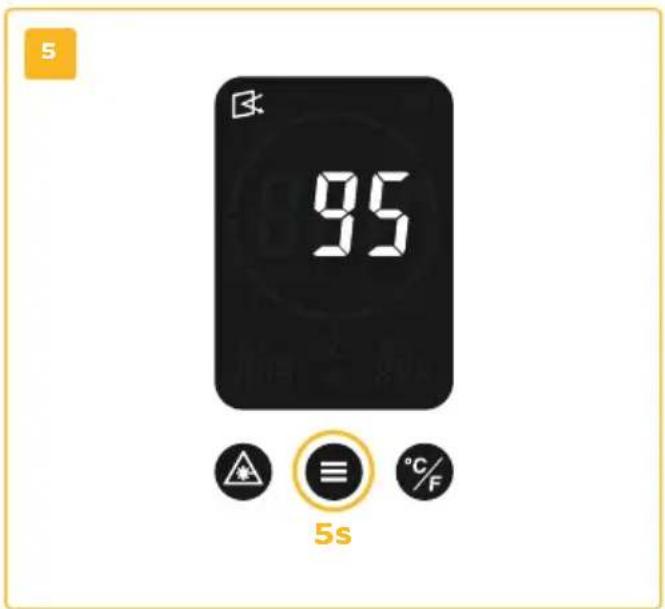

5 Emissivity Mode (区

Emissivity measures the amount of energy radiated from a material's surface. In the case of this Digital Infrared Thermometer, it measures thermal energy. Emissivity mode will help bakers adjust their thermometer's settings to get accurate temperature readings off different kinds of materials like a rough baking stone versus a smooth pizza steel.

The Digital Infrared Thermometer is pre-set at an emissivity of 0.95 which is standard for most organic materials and is optimised with all Ooni Baking Stones.

To change the emissivity, press and hold the Mode button for five seconds. Once in Emissivity Mode, use the Unit button to cycle through the numerical values. To select a new value and exit Emissivity Mode, press and hold the Mode button for five seconds. The new value will not be saved if the trigger is pressed or your thermometer automatically powers off while in Emissivity Mode.

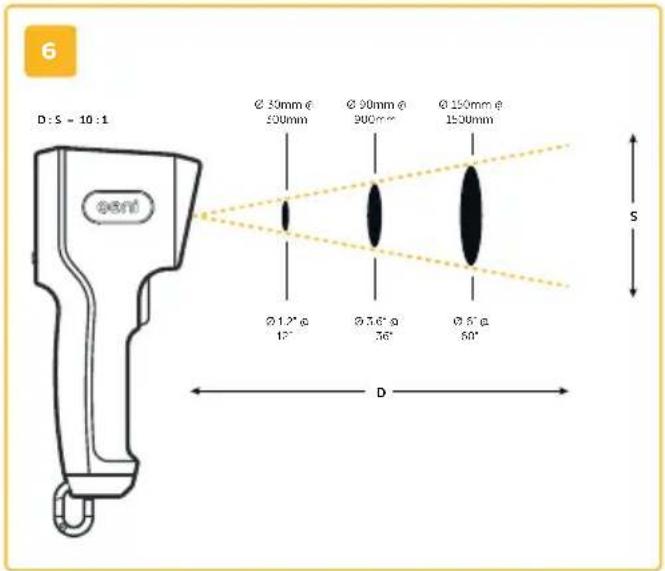

6 How to measure temperature

For most accurate temperature readings, Ooni recommends a measuring distance 'D' of 30cm-50cm from the measurement surface.

WARNING! The front of all Ooni ovens can become extremely hot. Always measure from outside of the oven entrance. Never insert the product into the oven.

Point the laser at the middle of the measurement surface for an accurate reading. Press the trigger to measure. The reading will stay on the screen until the trigger is pushed again or your thermometer automatically powers off. To scan a surface such as your pizza stone and determine if there are hot or cold areas before you launch your pizza, simply pull and hold the trigger and move the laser across the surface. As you move, the thermometer will display the minimum and maximum temperatures on the surface.

Maintenance & cleaning

To keep your readings accurate, the lens must be clear of dirt, dust, moisture, fog, smoke and debris. To clean the lens, blow off loose particles using clean compressed air. Gently brush any remaining debris away with a moist cotton cloth. Clean the body of the product with a damp sponge or cloth and mild soap. Store your thermometer inside and for extended periods without use, remove the battery to prolong battery life.

Switching off

The Digital Infrared Thermometer will switch off automatically after an extended period of inactivity.

Low Power (☐)

When the battery symbol appears, the remaining power is less than 20%.

When the battery symbol flashes, the remaining power is less than 10%.

When the remaining power is less than 5%, only the battery symbol will show. At this point, replace the product with new batteries.
