USER MANUAL WBP912IP BeamZ

150.780, 150.782, 152.784 V1.4

WBP SERIES PAR

USER MANUAL

INDEX

ENGLISH

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION 4

POWERSUPPLY 4

RIGGING 4

DMX512 CONTROL 5

REMOTE CONTROLLER....5

TIMER FUNCTION 6

WIRELESS DMX 7

PROTECTION CLASS IP65 7

MAINTENACE....7

TROUBLE SHOOTING 8

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 9

UITPAKKEN....10

AANSLUITSPANNING....10

RIGGING 10

DMX BEDIENING 11

AFSTANDSBEDIENING....11

TIMER FUNCTIE 12

DRAADLOOS DMX....13

BESCHERMINGSKLASSE IP65....13

ONDERHOUD....13

PROBLEMEN OPLOSSEN 14

DEUTSCH

SCHUTZKLASSE IP65....19

PFLEGE....19

FEHLERSUCHE 20

ESPAÑOL

KLASA OCHRONY IP65 37

KONSERWACJA 37

ROZWIAZYWANIE PROBLEMÓW 38

TECHNICAL DETAILS

CONTROL MENU 39

DMX CHANNELS 41

TECHNICAL SPECIFICATIONS 42

SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between 0^ and +40^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the unit is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5mm^2 . The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

RIGGING

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!

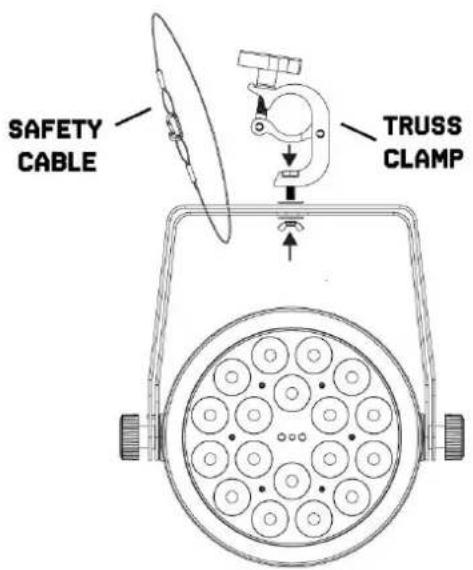

SAFETY CABLE TRUSS CLAMP

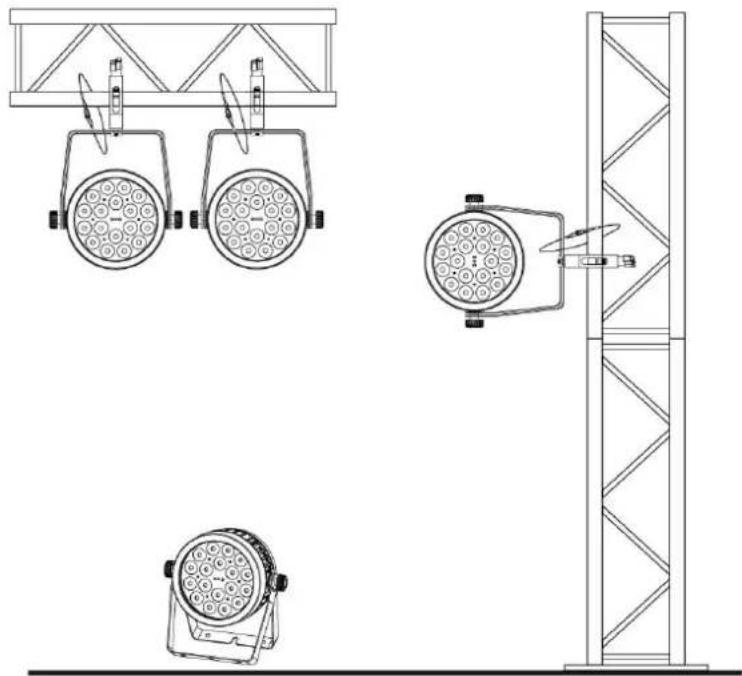

Technical line drawing of three different lighting fixtures with circular light bulbs mounted on a truss structure (no text or symbols)

DMX512 CONTROL

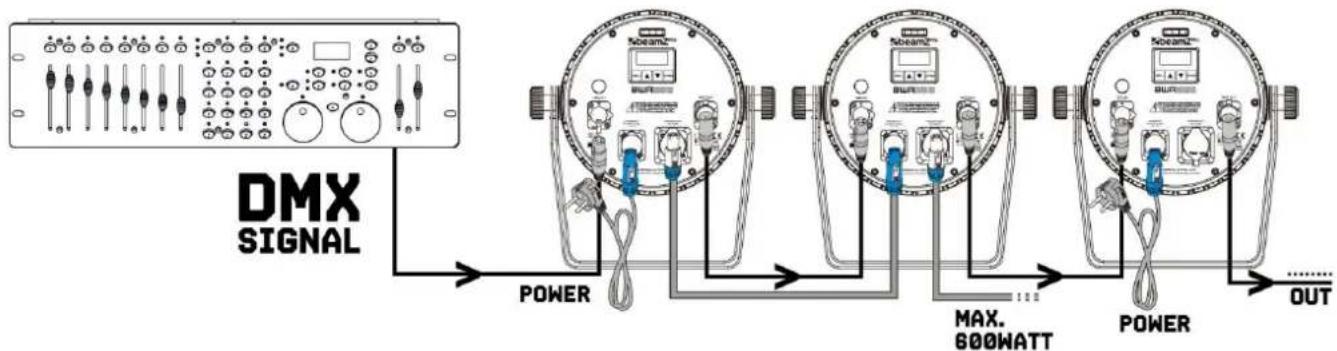

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

DMX SIGNAL POWER MAX. 600WATT POWER OUT

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

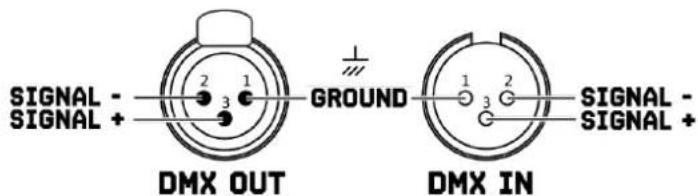

SIGNAL - SIGNAL + DMX OUT GROUND 1 2 3 1 2 SIGNAL - SIGNAL + DMX IN

1 2 3 120 OHM TERMINATOR

POWER SWITCH

TURN ON OR OFF

Press the POWER ON/OFF button shortly to switch on the fixture. Switching off can be done by pressing and holding POWER ON/OFF for a longer time. As soon as the green LED starts blinking release the POWER ON/OFF

DMX UNIVERSE

As soon as the fixture has started up, you can switch between the DMX universe by shortly pressing POWER ON/OFF

FACTORY SETTINGS

To restore factory settings, press the POWER ON/OFF seconds.

REMOTE CONTROLLER

BLACK OUT

Press to clear the remote control settings and turn off lights

AUTO

1. Press to turn on the color jumping effect.
2. Press to turn off the color jumping effect.

SOUND

1. Press to turn on Sound-Active mode
2. Press to turn off Sound-Active mode

SENSITIVITY

1. Press < SENSITIVITY > on the remote controller.
2. Press or < - > to adjust sound sensitivity.

SPEED

Adjust the speed of color jump/fade/pluse effects

1. Press on the remote controller.
2. Press or < - > to adjust color effects speed

STROBE

1. Press < STROBE > on the remote controller.
2. Press or < - > to either increase or decrease the speed of the program.
3. Press to turn off the strobe.

%

1. Press <%> to turn on the color pluse effect.
2. Press to turn off the color pluse effect

FADE

1. Press to turn on the color fading effect.
2. Press to turn off the color fading effect.

MANUAL

Press active preset colors, It has two mode:

Mode A :

Press the button at first, then Press , , , , or (red, green, blue, white, amber, UV) to choose your wanted colour;

Press the 1st time, it is 20% brightness;

Press the 2nd time, it is 40% birghtness;

Press the 3rd time, it is 60% birghtness;

Press the 4th time, it is 80% birghtness;

Press the 5th time, it is 100% bightness

Mode B:

Press the button again, then Press , , , , or (red, green, blue, white, amber, UV) to choose your wanted colour; Press <+> or <- > to either increase or decrease the brightness.

NUMBER 0-9

1. Press digit <0> to <9> to select preset color mode
2. Press or to either increase or decrease the brightness.
3. Press to turn off the selected preset color.

CAUTION! The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control is not possible.

If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

1 2

TIMER FUNCTION

The fixture has a s built-in timer function. The fixture can show the pre-programmed preset, colour or chase at certain times and dates.

STEP 1 Adjust the battery turn of level on between 5-10%

• Press MENU
• Select .p SETTINGS
• Select, pGENERAL
• Select.pPOWEROFF BATT
• Select percentage between 5 and 10% with the up and down buttons.
• Press to ENTER.

STEP 2 Set the current date and time

• Press MENU
• Select ,p SETTINGS
• Select.p@DATENTIME
• Select , print enter.
• Select the year with Up/Down buttons, press enter to select the month with Up/Down buttons, press enter to select the day with Up/Down buttons.
• Press to ENTER.
• Select ,preTIMenter.
• Select the hours with Up/Down buttons, press enter to select the minutes with Up/Down buttons, press enter to select the seconds with Up/Down buttons.
• Press to ENTER.

STEP 3 Set automatic turn On time

• Press MENU
• Select ,p SETTINGS
• Select.plassenterTIME
• Select , pRONEReON
• Select the hours with Up/Down buttons, press enter to select the minutes with Up/Down buttons, press enter to select the seconds with Up/Down buttons.
• Press to ENTER.

STEP 4 Set automatic turn Off time

• Press MENU
• Select ,pBETTINGS
• Select , p#esenterTIME
• Select , pRONEROFF
• Select the hours with Up/Down buttons, press enter to select the Minutes with Up/Down buttons, press enter to select the seconds with Up/Down buttons.
• Press to ENTER.

STEP 5 Select the preset, colour or chase program.

• Press MENU
• Select.pSETTINGS
• Select, pGENERAL
• Select ,pPOWERdUP
• Select one of the preset, colour or chase program which you want as soon as the fixture starts up.
• Press to ENTER.

WIRELESS DMX

This fixture has a wireless DMX transmission on board which operates on 2.4Ghz frequency band. The fixture acts as a receiver and needs a transmitter (item 154.077 BPP Wireless DMX Transmitter).

DMX UNIVERSE	COLOUR	DMX CHANNELS
1	Red	1 - 512
2	Green	1 - 512
3	Yellow	1 - 512
4	Blue	1 - 512
5	Magenta	1 - 512
6	Cyan	1 - 512
7	White	1 - 512

PROTECTION CLASS IP65

Units with protection class IP65 are dust-tight and completely protected against contact (first code number). They are also protected against splash water from any angle (second code digit). That is why this unit can also be used out- doors. Events units are generally only designed for temporary use however (event lighting) and not for permanent use outdoors. The specified protection class does not make a statement about the weather resistance of the units (resistance to changing ambient conditions as well as against the effects of sunlight and UV rays). The seals and screw connections of the units must be checked regularly to ensure a fault-free operation.

MAINTENACE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.

Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

• Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.
• Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.
• Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.
• Check the mechanically moving parts, these must not show any signs of wear or fatigue.
• Check the electrical power and signal cables, they must not show any damage or fatigue.
• Do not use solvents, abrasives or other aggressive products to clean the unit.
• Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
  • Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained.Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

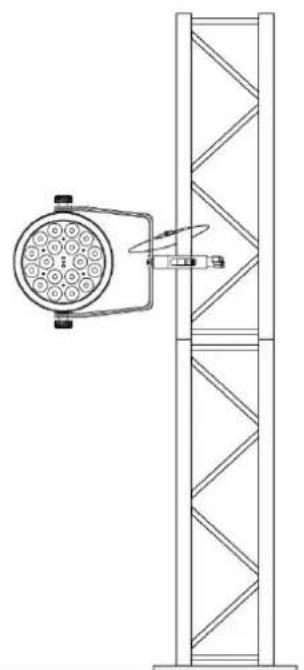

Diagram of two circular lighting fixtures mounted on a truss structure (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and a sensor mounted on a vertical structural frame (no text or symbols)

DMX BEDIENING

- Selecteer, dGENERAL.

- Selecteer, dPOWERUP.

BESCHERMINGSKLASSE IP65

SETTINGS	General	Power-up	Preset	0-39	Selectable effects
			Colour	0-63	Selectable effects
			Chase	0-20	Selectable effects
			Last set
		Battery Mode	Bright / Normal / Life
		Dim Response	LEDs / Fast / Less fast / Middle / Slow
		Dimming curve	Linear / LOG / S Curve / Exp
		RDM Enable	On / Off
		RF Enable	On / Off
		Power Off BAT	0-50 %
		Top Temp	25-85 degrees
	Password	Password	On / Off
		Set Password	Please enter the factory password first: MENU -UP-ENTER-DOWN, Then enter your new password.
	Time	Time	Enter the actual time
		Power ON	Switch on fixture on time, start
		Power OFF	Switch off fixture on time
	Load Factory	MENU	Cancel
		ENTER	Reset
STATUS	LED Current	Master	0-100
		Red	0-100
		Green	0-100
		Blue	0-100
		White	0-100
		Amber	0-100
		UV	0-100
	Temperature
	Battery Voltage
	DMX Channel
	RDM UIDI
	RDM UID2
	Software : BAT-6S02
	Version: MAY 04 2022

DMX CHANNELS

D001

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Colour	000-255	Red, 0-100%
2		000-255	Green, 0-100%
3		000-255	Blue, 0-100%
4		000-255	White, 0-100%
5		000-255	Amber, 0-100%
6		000-255	UV, 0-100%

A001

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Master	000-255	Master dimmer, 0-100%
2	Colour	000-255	Red, 0-100%
3		000-255	Green, 0-100%
4		000-255	Blue, 0-100%
5		000-255	White, 0-100%
6		000-255	Amber, 0-100%
7		000-255	UV, 0-100%
8	Strobe	000-005	No function
		006-255	Strobe, from slow to fast
9	Preset colours	000-010	No function
		011-127	40 preset colours
		128-129	No function
		130-255	64 factory colours
10	Mode	000-019	No function
		020-079	18 Chases
		080-127	Custom chases
		128-159	63 Colour fade
		128-159	63 Colour fade
		160-191	63 Colour jump
		192-223	63 Colour pulse
		224-255	Sound control
11	Speed	000-255	Speed, from slow to fast
12	Dimmer curve	000-005	No function
		006-055	Dimmer response, LEDs
		056-105	Dimmer response, Fast
		106-155	Dimmer response, Less fast
		156-205	Dimmer response, Middle
		206-255	Dimmer response, Slow

TECHNICAL SPECIFICATIONS

	WBP612IP150.780	WBP912IP150.782	WBP1212IP150.784
Rated voltage :	100-240VAC, 50-60Hz, 0.4-0.2A	100-240VAC, 50-60Hz, 0.7-0.35A	100-240VAC, 50-60Hz, 05-0.3A
LED :	6x 12Watt, 6-in-1 LED	9x 12Watt, 6-in-1 LED	12x 12Watt, 6-in-1 LED
LED Colour :	Red, Green, Blue, Amber, White and Ultra Violet
Beam angle :	25-44°	17-39°	18-39°
Illuminance :	8.140lx @1m	7.563lx @1m	13.000lx @1m
DMX Channels :		6, 12
IP classification :		IP65
Built-in battery :	Lithium battery 10.4Ah/12.6Volt	Lithium battery 16Ah/12.6Volt	Lithium battery 19.2Ah/12.6Volt
Functions :	DMX, Automatic programs, Sound to light and Master-Slave
Dimensions per unit :	170 x 230 x 210mm	215 x 280 x 235mm	270 x 140 x 280mm
Weight (per unit) :	3,80kg	5,15kg	5,15kg

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

BEAMZ

offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!
