USER MANUAL MD120UI AVer

MD120UI Tracking Camera

— User Manual —

How to Clean and Disinfect

Warning Risk of personal injury	Do not use cleaning agents containing phenol, as phenol may cause skin burns if not rinsed thoroughly and does not contain sufficient cleaning or disinfectant properties.
Caution	1. The camera is designed for easy cleaning and disinfection. 2. Before cleaning the camera, disconnect it from the power source. 3. Cleaning procedures should only be carried out by personnel familiar with camera operation. 4. Do not spray cleaning fluid, especially water, into any internal electrical equipment or parts of the camera to avoid possible short circuits, corrosion, malfunction and electrical shock hazards to users or service personnel. 5. Corrosive cleaning agents may cause discoloration or damage the camera. Before using any cleaning agent, test it in an inconspicuous area.
When	Clean the camera before and after use.
Steps	1. Disconnect the camera from a power source. 2. Cleaning personnel must wear cleaning gloves. 3. Before using cleaning alcohol, make sure it has not expired. 4. Use a cleaning cloth dampened with cleaning alcohol (75%). 5. Wipe any surface that may come into contact with the camera. 6. After wiping the camera, avoid contact with bare hands.
Frequency	No regular cleaning is required. Clean before and after use.

Symbols on this Product

The symbols on this product, including the accessories, represent the following.

The WEEE symbol. This symbol indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where to drop off your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product.
CE	The CE compliance logo. This logo indicates that the product conforms to the relevant guidelines/standards for the European Union harmonization legislation.
FC	The FCC compliance logo. This logo indicates that the product conforms to Federal Communications Commission compliance standards.
UKCA	The UKCA (UK Conformity Assessed) symbol. This symbol indicates that a product placed on the Great Britain market meets the UKCA Marking requirements.
	The RCM compliance logo. This logo indicates that the product conforms with Australian RCM guidelines.
	This logo is intended to alert the users to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	This logo is intended to alert the users to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
10	The China RoHS symbol. The figure of this symbol represents the number of years during which no hazardous substances would leak or mutate under normal conditions of use.
~	The alternating current symbol. This symbol indicates that the power input/output for the product is alternating current.
---	The direct current symbol. This symbol indicates that the power input/output for the product is direct current.

Federal Communications Commission

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-ride reasonable protection against harmful interference when the equipment is operate din a commercial environment. This equipment generates, uses, and can radiate radiofrequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Caution

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

DISCLAIMER

No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.

In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

TRADEMARKS

"AVer" is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

COPYRIGHT

© 2023 AVer Information Inc. All rights reserved. | December 20, 2023

All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

More Help

For FAQs, technical support, software and user manual download, please visit:

Headquarters

Download Center: https://www.aver.com/download-center

Technical Support: https://www.aver.com/technical-support

USA Branch Office

Download Center: https://www.averusa.com/pro-av/support

Technical Support: https://averusa.force.com/support/s/contactsupport

Europe Branch Office

Download Center: https://www.aveurope.com/download-center

Technical Support: https://www.aveurope.com/technical-support

Contact Information

Headquarters

AVer Information Inc.

https://www.aver.com

8F, No.157, Da-An Rd., Tucheng Dist., New Taipei City 23673, Taiwan

Tel: [phone]

USA Branch Office

AVer Information Inc., Americas

https://www.averusa.com

668 Mission Ct., Fremont, CA 94539, USA

Tel: [phone]

Toll-free: [phone]

Technical support: [e-mail]

Europe Branch Office

AVer Information Europe B.V.

https://www.aveurope.com

Westblaak 134, 3012 KM, Rotterdam, The Netherlands

Tel: [phone]

Technical support: [e-mail]

Japan Branch Office

ABAI·INFAMEN株式会社

https://jp.aver.com

Vietnam Branch Office

Cong ty TNHH AVer Information (Viet Nam)

Tang 5, 596 Nguyen Dinh Chieu, P.3, Quan 3,

Thanh pho Ho Chi Minh 700000, Viet Nam

Tel: [phone]

Contents

How to Clean and Disinfect 2

Overview 1

Package Contents 1

Optional Accessories 1

Parts Info 2

Privacy Indicator 2

LED Indicator 2

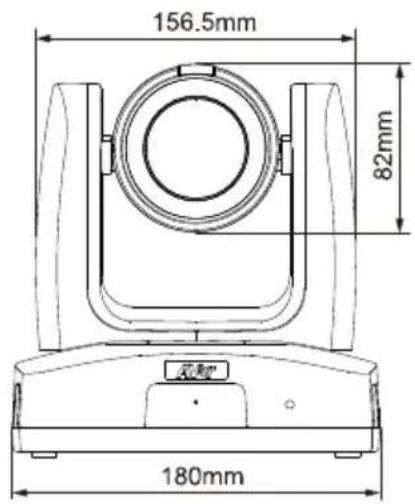

Dimensions 3

Ceiling Mount 4

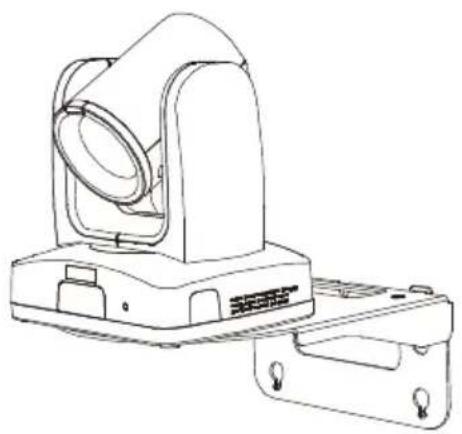

Wall Mount 5

Pan and Tilt Angle 5

Remote Control 6

Shortcuts. 7

Installation 8

Cable Fixing Plate 8

Ceiling Mount. 9

Device Connection 10

Set up Your Camera 13

OSD Menu 13

IP Address Setup 13

Static IP 13

DHCP 14

OSD Menu Tree 15

Web Interface 18

Access the Web Interface 18

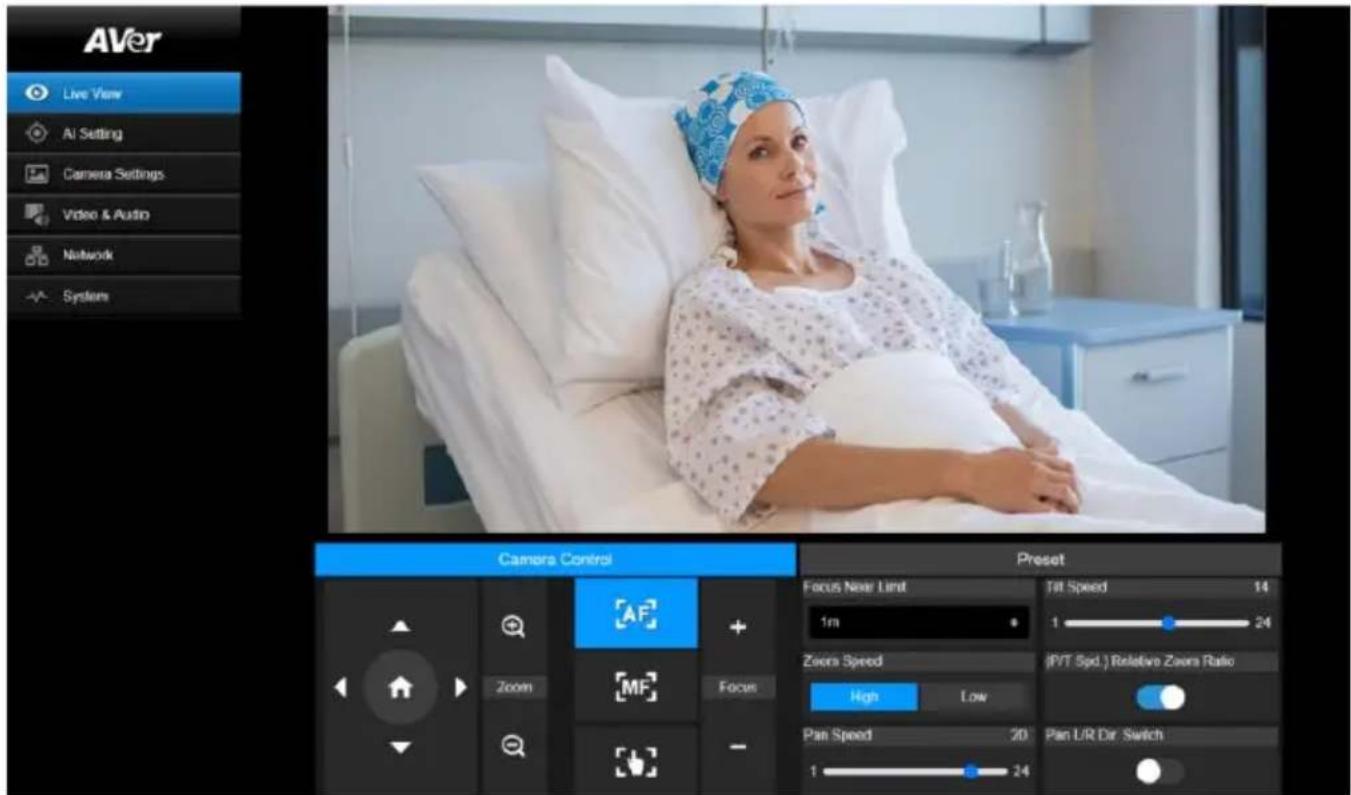

Live View 20

Camera Control. 20

Preset 21

AI Setting 22
Eyes Tracking 22
AI Video Detection 23
Camera Settings 24
Exposure. 24

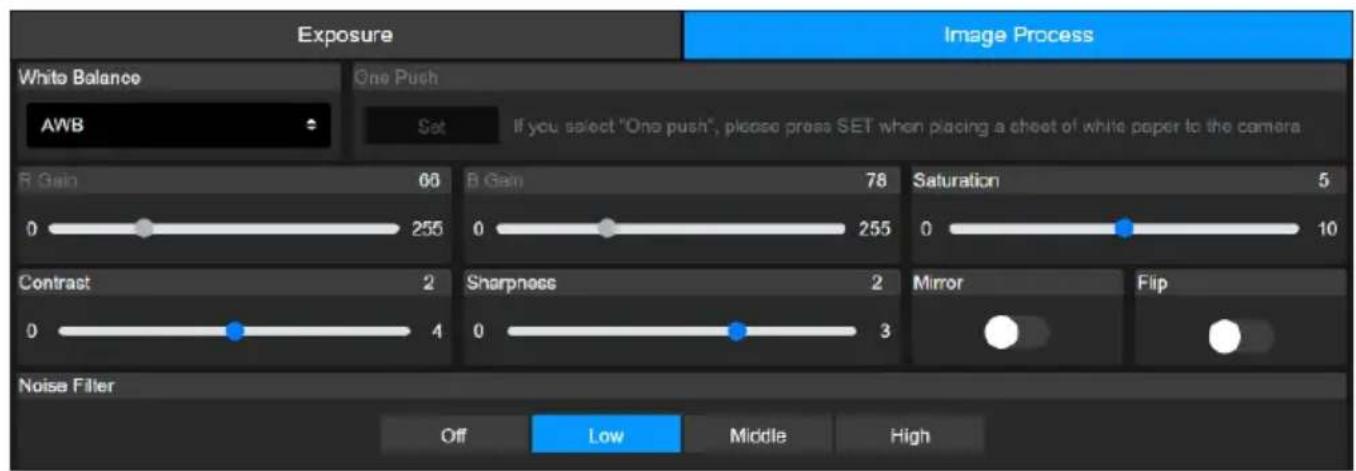

Image Process 25

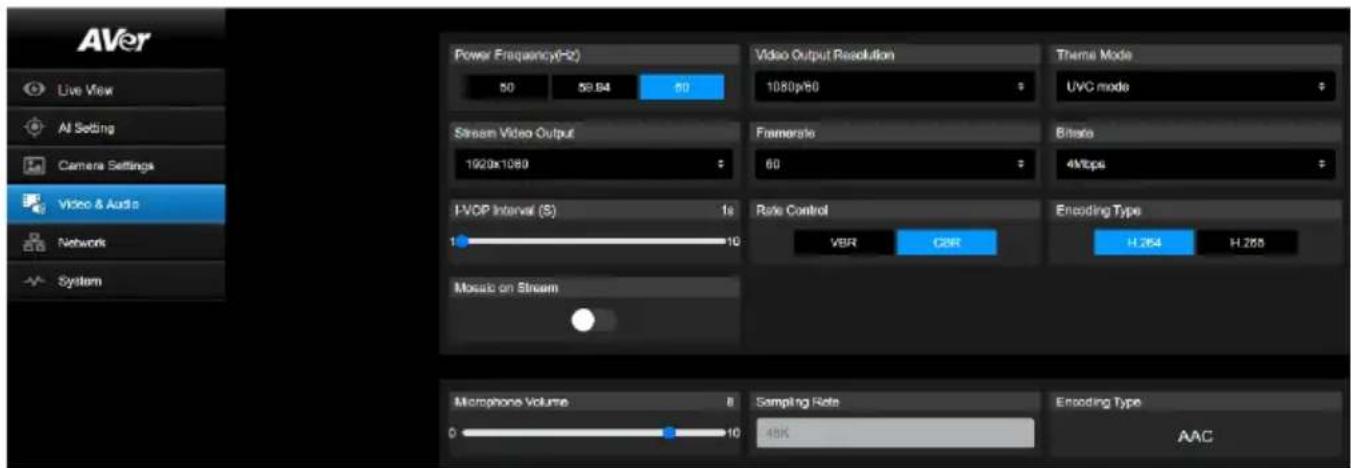

Video & Audio 26
Network 27
System 29
AVerCamera Setting Tool 31
Specifications 32
Troubleshooting 35
Appendix 36
VISCA RS-232 Command Table 36
VISCA over IP Settings. 43
Pelco-D Command 45
Pelco-P Command 47
CGI Command 48

Overview

The MD120UI Tracking Camera is a medical grade camera designed for patient monitoring. It features infrared night vision and UV-resistant casing.

Package Contents

Camera

Power Adapter & Power Cord

Remote Control

USB 3.0 Type-B to Type-A Cable (1.5m)

Cable Fixing Plate

Cable Tie (x4)

Ceiling Mount Bracket (x2)

Drill Template

M2 x 4mm
Screw (x3)

M3 x 6mm
Screw (x3)

1/4"-20 L=6.5mm Screw (x2)

Quick Start Guide

Optional Accessories

Wall Mount Bracket

Camera Controller (CL01)

Parts Info

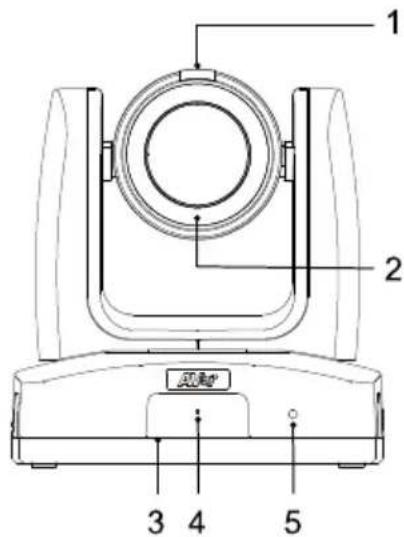

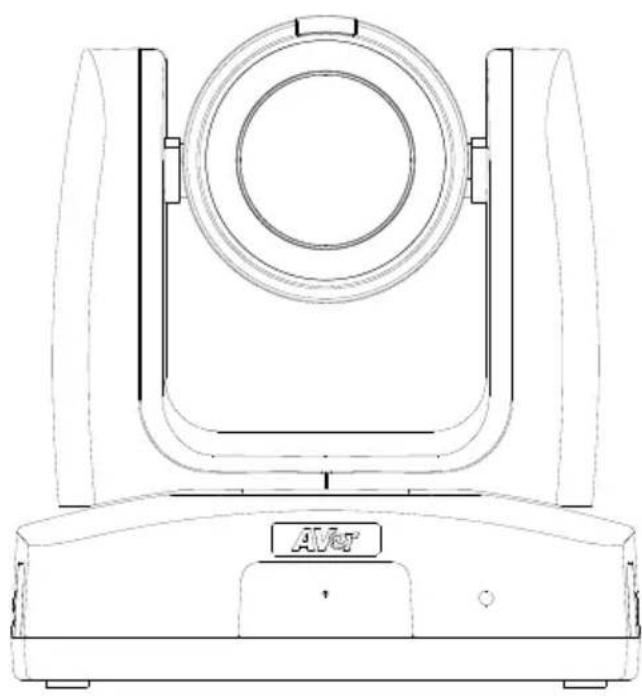

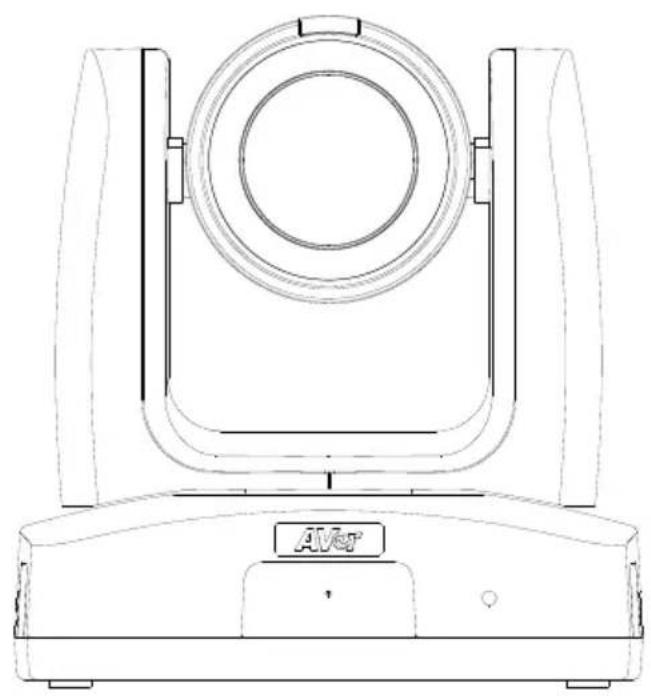

Front

1. Privacy Indicator
2. Infrared Night Vision LED*
3. IR Sensor
4. Microphone
5. LED Indicator

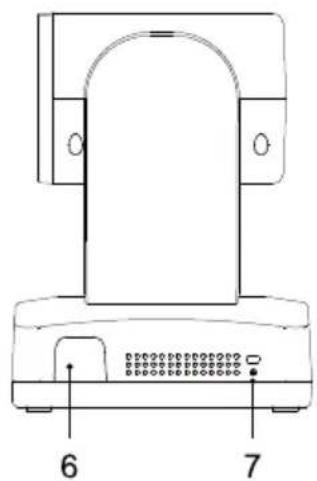

Side

1. IR Sensor
2. Kensington Lock

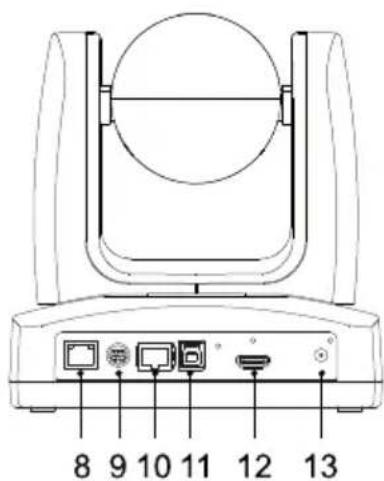

Back

1. PoE+ Port**
2. RS-232 Port
3. RS-422 Port
4. USB 3.1 Type-B Port
   12.HDMI Port
5. DC Power Jack

To avoid infrared radiation hazards, keep a distance of over 1 meter between IR LED and human eyes when using Night Mode.
*The PoE+ port is to be connected only to PoE networks without routing to the outside plant.

Privacy Indicator

Color	Status
Solid green	Monitoring patient
No light	Privacy Mode / power off

LED Indicator

Color	Status
Solid blue	Normal
Flashing blue	Tracking is turned on
Solid orange	Standby
Flashing orange	Starting up
Solid purple	OSD menu is turned on
Flashing purple	Updating firmware

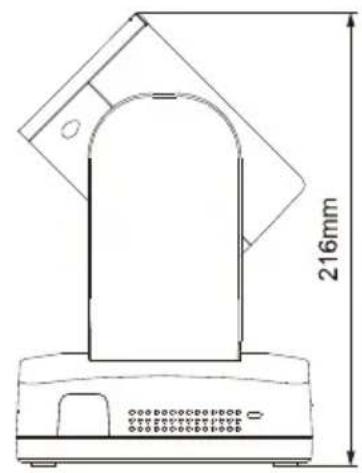

Dimensions

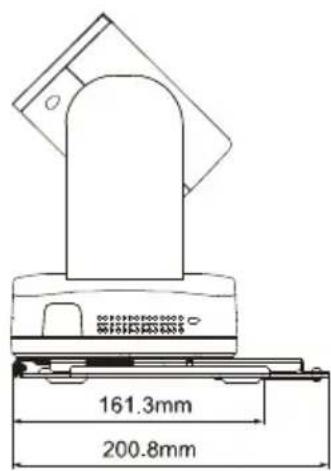

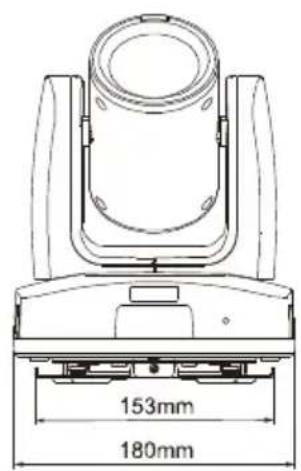

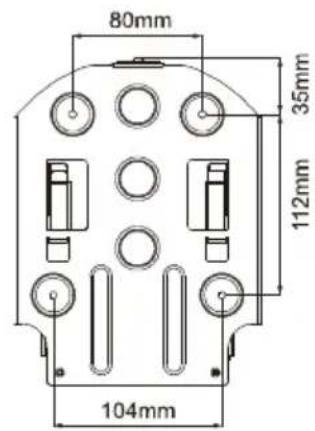

Ceiling Mount

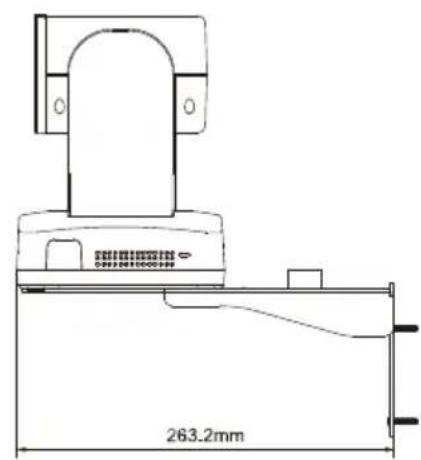

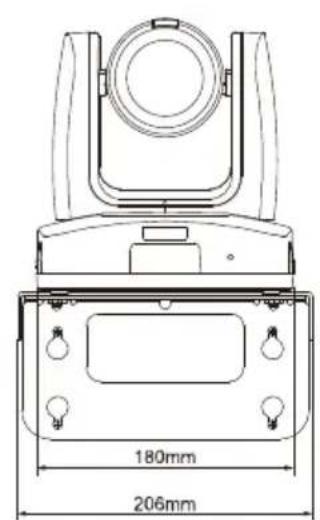

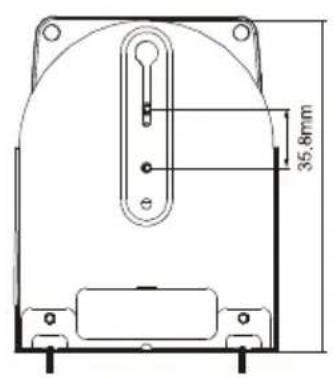

Wall Mount

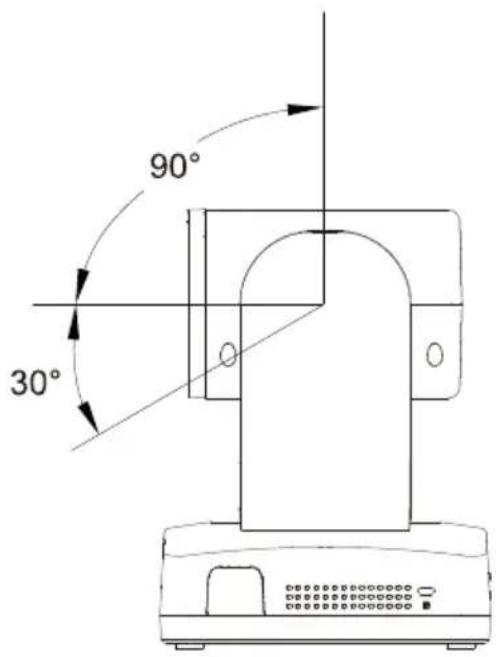

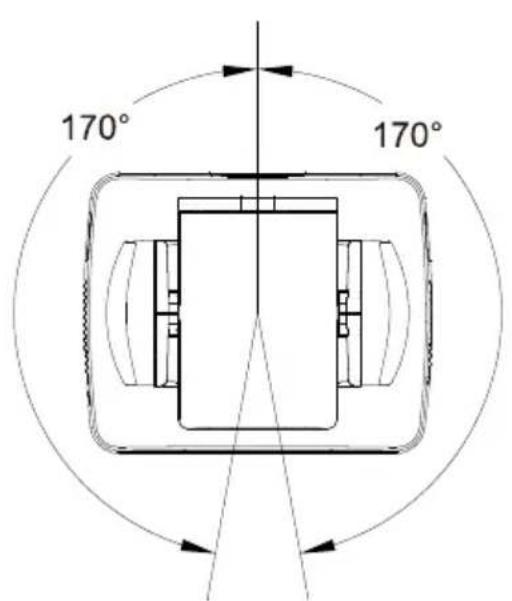

Pan and Tilt Angle

Remote Control

To open the OSD menu, press and hold Menu 3 seconds.
- To disable remote control, open the OSD menu or the web interface, go to System > Camera Selector > Disable Remote.
- To resume remote control, open the web interface, go to System > Camera Selector > All Channel or assign a number (1, 2, 3, 4) to your camera.

Model: LY033
AAA batteries (x2)

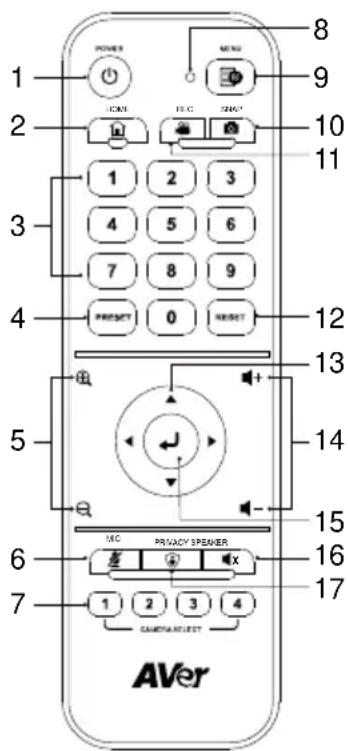

Name	Function
1. Power	Short press to turn on/off Standby Mode.
2. Home	Move the camera to the Home position.
3. Number Pad	Press buttons 0~9 to move the camera to the pre-configure preset positions. Use the buttons to set up preset positions 0~9.

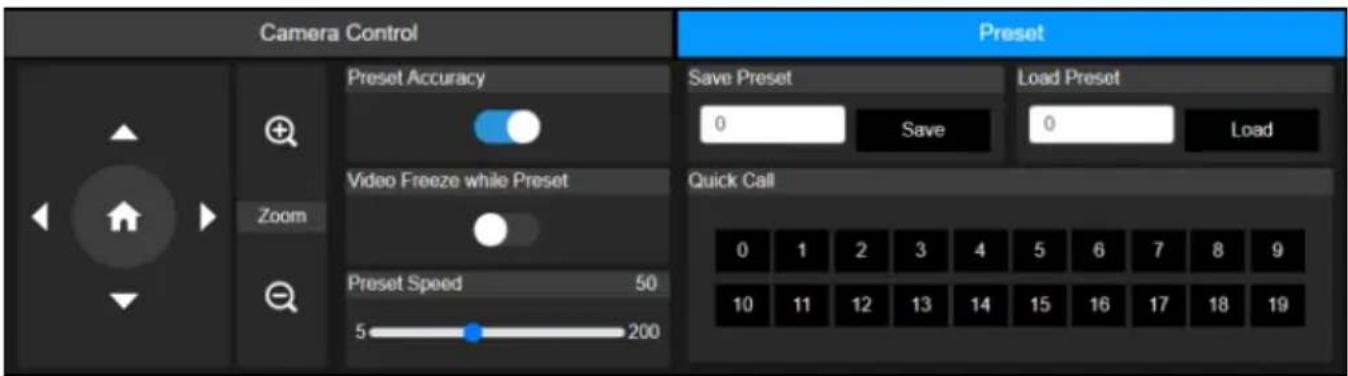

4. Preset	Use the Preset, Number and Direction Buttons to set up preset positions: 1. Use the Direction Buttons to navigate a position. Optionally use the “Zoom +” or “Zoom -” buttons to zoom in/out the image. 2. Press and hold Preset, then press the Number Buttons (0~9) to save this preset position.
5. Zoom +/-	Press to zoom in or zoom out the images.
6. MIC	Press to mute the microphone. Press again to unmute.
7. Camera Select	Select a camera to operate. Specify a number in the OSD menu: System > Camera Selector.
8. Remote Control LED	When pressing the buttons on the remote control, the LED will light red.
9. Menu	Press and hold for 3 seconds to open the OSD menu. Edit this setting in the OSD menu: System > Trigger OSD.
10. Snap	N/A
11. Rec	N/A
12. Reset	Use the Reset and Number Buttons to cancel a pre-configured preset position. Press and hold Reset, then press the Number Buttons (0~9).
13. Direction	Use the Direction Buttons to navigate the live view.
14. Volume +/-	N/A
15. Enter	When camera is on: Press Enter to adjust focus once. When accessing the OSD menu: Press Enter to confirm the selection or make a selection.
16. Speaker	N/A
17. Privacy	Press to enter the Privacy mode. The camera will move to the Privacy position and microphone will be off.

Shortcuts

Press	To
Menu 3 seconds	Open the OSD menu.
Menu	Close the OSD menu.
Home	Close the OSD menu and return the camera to the Home position.
Menu Zoom	Switch between Day mode and Night mode.
Menu Zoom	Switch between Day mode and Auto mode.
5 five times (55555)	Turn on DHCP.
6 six times (666666)	Reset the camera to factory default settings.
8 eight times (88888888)	Set the camera's static IP address to 192.168.1.168.

Installation

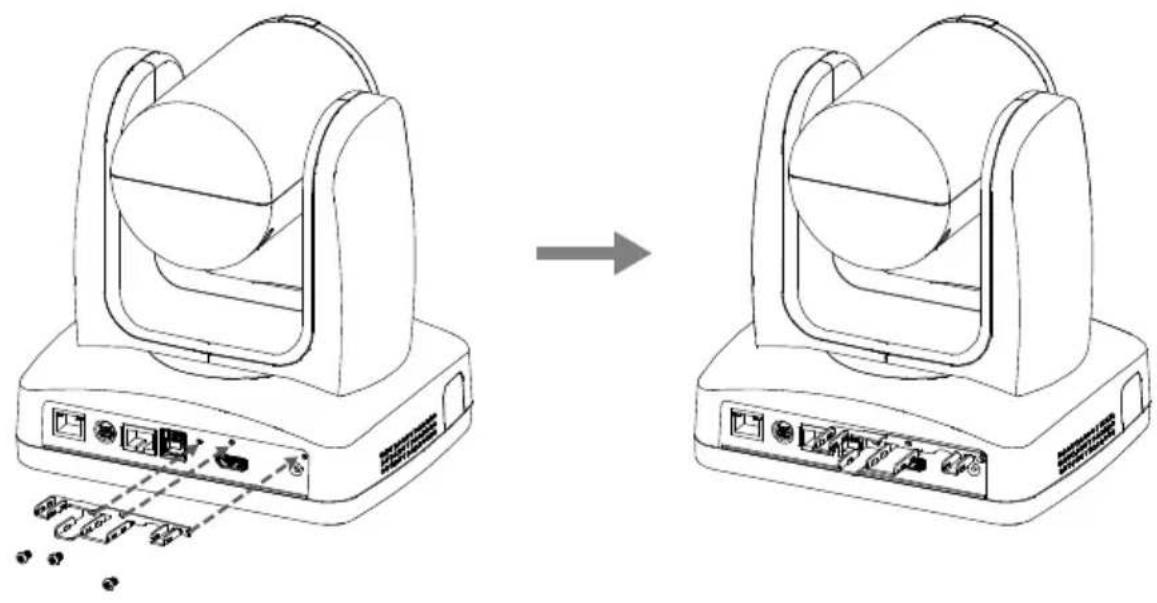

Cable Fixing Plate

1. Secure the cable fixing plate using the included M2 x 4mm screws.

1. Connect the cables.

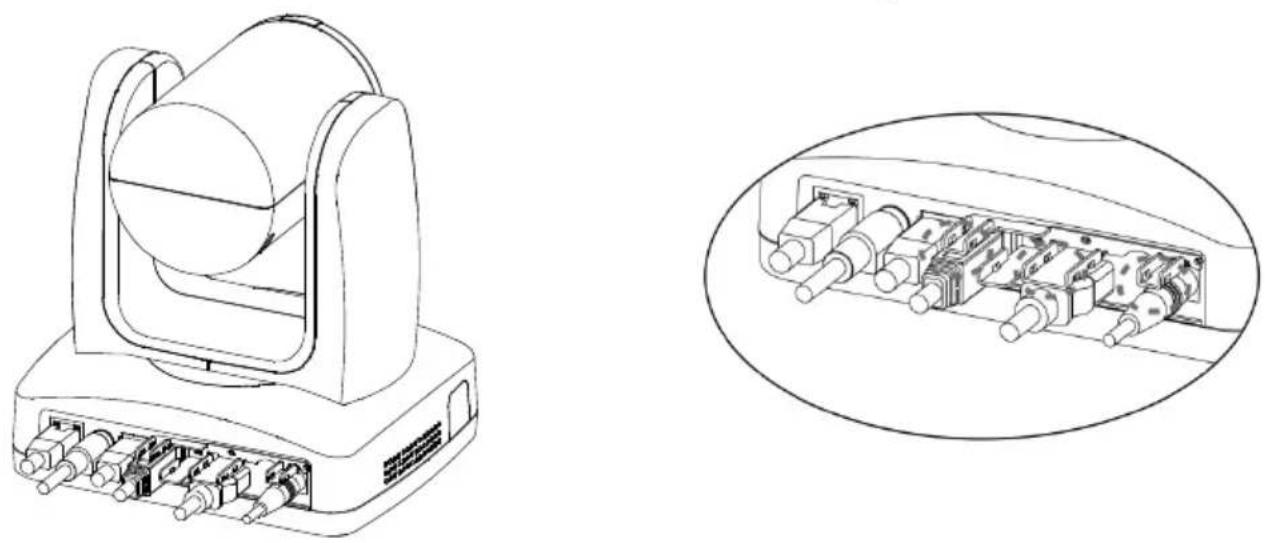

1. Fix the cables to the cable fixing plate with cable ties through the slots.

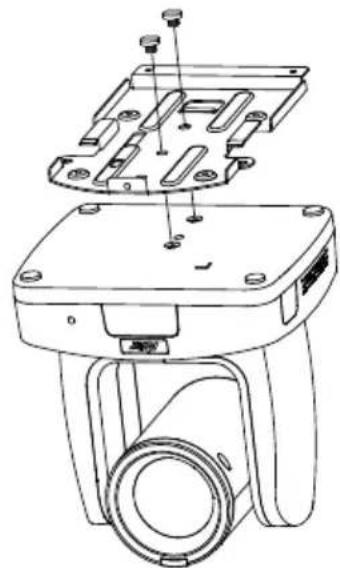

Ceiling Mount

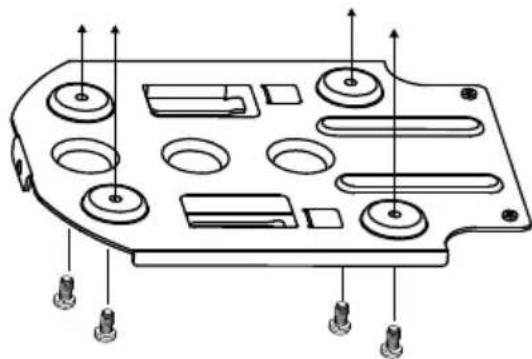

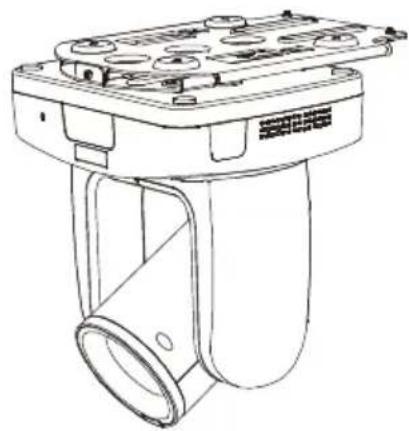

1. Secure the bracket to the ceiling. Screw: 4 screws, M4 x 10mm (not Included)

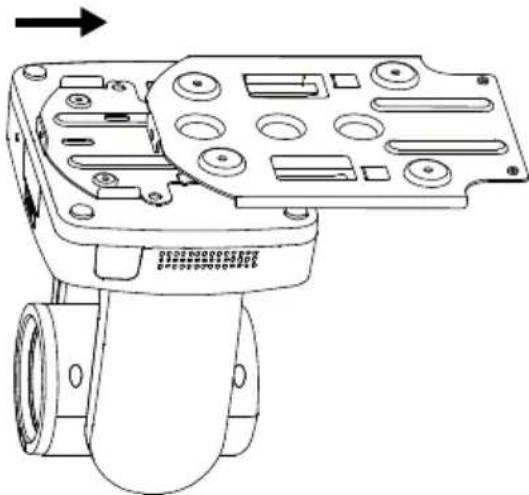

1. Slide the bracket with the camera into the bracket secured to the ceiling. And connect the cables.

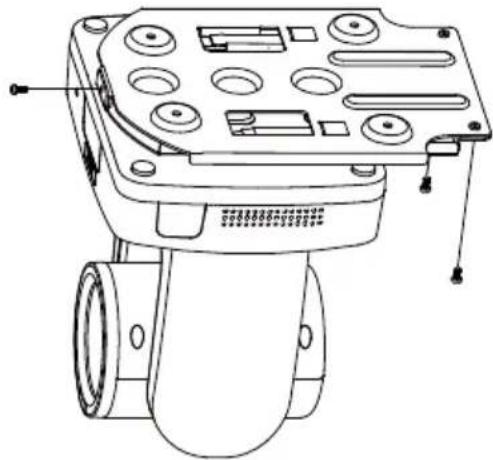

1. Secure the bracket to the camera. Screw: 2 screws, 1/4" -20 L=6.5mm (included)

1. Fix the brackets with screws. Screw: 3 screws, M3 x 6mm (included)

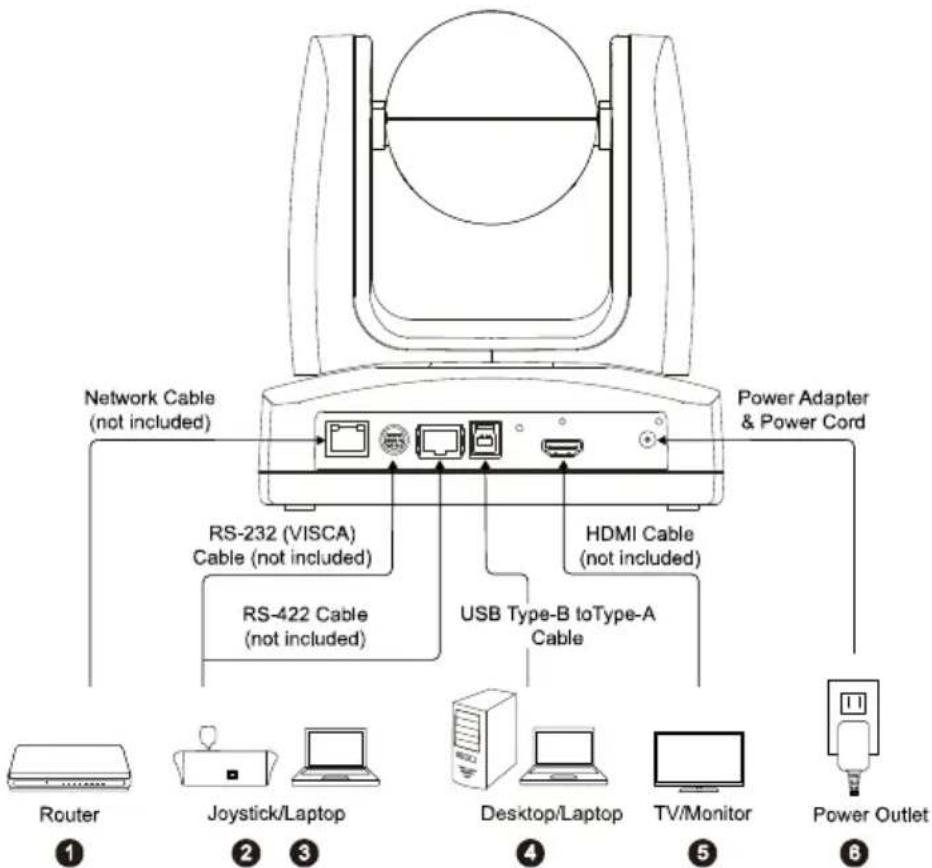

Device Connection

1. LAN: Connect the camera to an IP route (Note).
2. RS-232: Connect the camera to a Joystick or laptop to control the camera. You can optionally purchase the RS-232 Adapter. The PIN definition is shown as below (Note).

Pin Definition

Function	Mini DIN9 PIN #	I/O Type	Signal	Description
VISCA IN	1	Output	DTR	Data Terminal Ready
	2	Input	DSR	Data Set Ready
	3	Output	TXD	Transmit Data
	6	Input	RXD	Receiver Data
VISCA OUT	7	Output	DTR	Data Terminal Ready
	4	Input	DSR	Data Set Ready
	8	Output	TXD	Transmit Data
	9	Input	RXD	Receiver Data
	5	Input	I/O	Detect DIN8/DIN9
---	Shield	---	GND	Ground

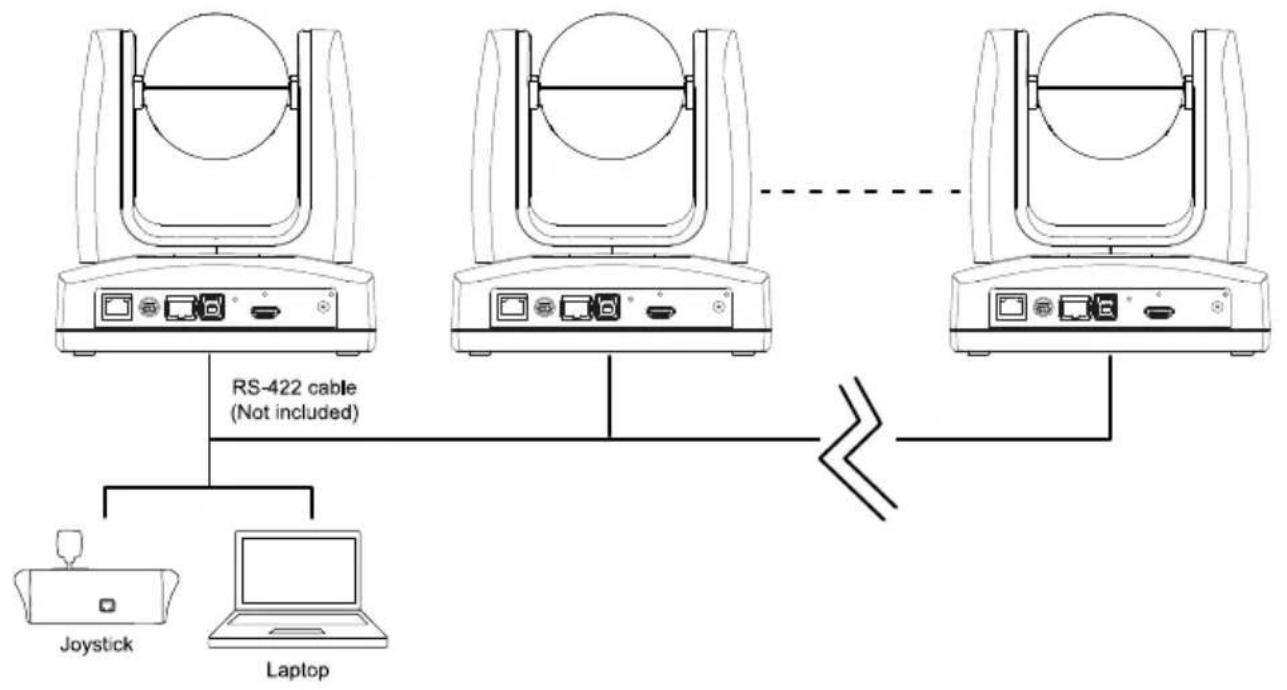

1. RS-422: Connect the camera to a Joystick or laptop to control the camera. Use a CAT5e splitter for multi-camera connection.

Pin Definition

1 8	No.	Pin	No.	Pin
	1	TX+	5	TX-
	2	TX-	6	RX-
	3	RX+	7	RX+
	4	TX+	8	RX-

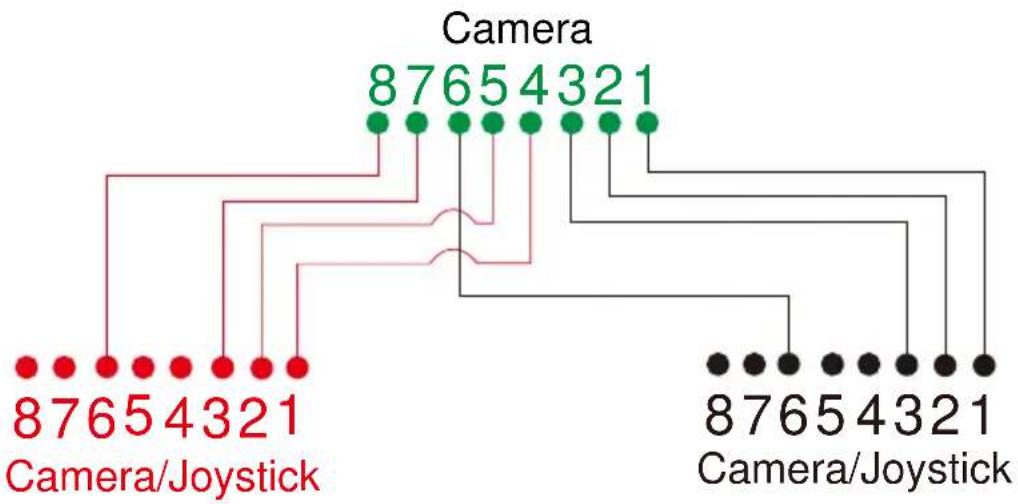

• CAT5e Splitter Pin Assignment

1. USB Type-B: Connect the camera to a desktop or laptop for video transmission when using third-party video conferencing software such as Skype or Teams (Note).
2. HDMI: Connect the camera to a TV or a monitor to display video output. The camera and the connected TV or monitor must have grounding design. (Note).
3. Power: The camera and the connected TV or monitor must have grounding design. Use the supplied power adapter and power cord to connect the camera to a power outlet and make sure the power cord of the TV or monitor supports the grounding plug.

Note:

Accessory equipment connected to the analog and digital interfaces must be in compliance with the respective nationally harmonized IEC standards (i.e. IEC 60950 for data processing equipment, IEC 60065 for video equipment, IEC 61010-1 for laboratory equipment, and IEC 60601-1 for medical equipment.) Furthermore all configurations shall comply with the requirements of the system in standard IEC 60601-1. Everybody who connects additional equipment to the signal input part or signal output part configures a medical system, and is therefore, responsible that the system complies with the requirements of the system in standard IEC 60601-1. The unit is for exclusive interconnection with IEC 60601-1 certified equipment in the patient environment and IEC 60XXX certified equipment outside of the patient environment. If in doubt, consult the technical services department or your local representative.

Setup Your Camera

Configure camera settings through the OSD menu or the web interface.

OSD Menu

To access the OSD menu, connect the camera to a monitor or TV using an HDMI cable, and then use the supplied remote control to operate the OSD menu.

Press and hold Menu 3 seconds to open the OSD menu. Use directional buttons to select and press Enter to confirm settings.

IP Address Setup

Static IP

1. Press and hold Menu 3 seconds on the remote control to open the OSD menu.
2. Go to Network > Static IP.

[Note] Turn the DHCP off before setting up static IP (Network > DHCP > OFF).

1. Select the IP Address, Gateway, Netmask, and DNS to configure. Press Enter and use the number buttons to enter the value.

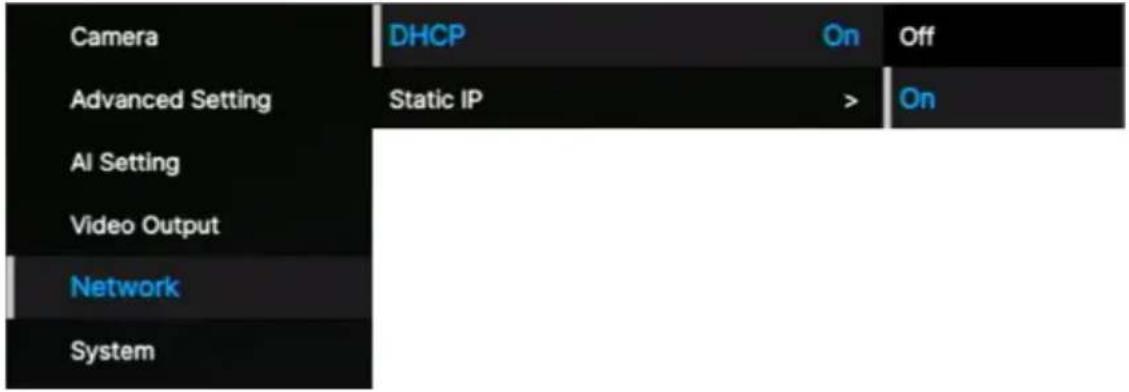

DHCP

1. Press and hold Menu 3 seconds on the remote control to open the OSD menu.
2. Select Network > DHCP > On.
3. Press Enter confirm setting.

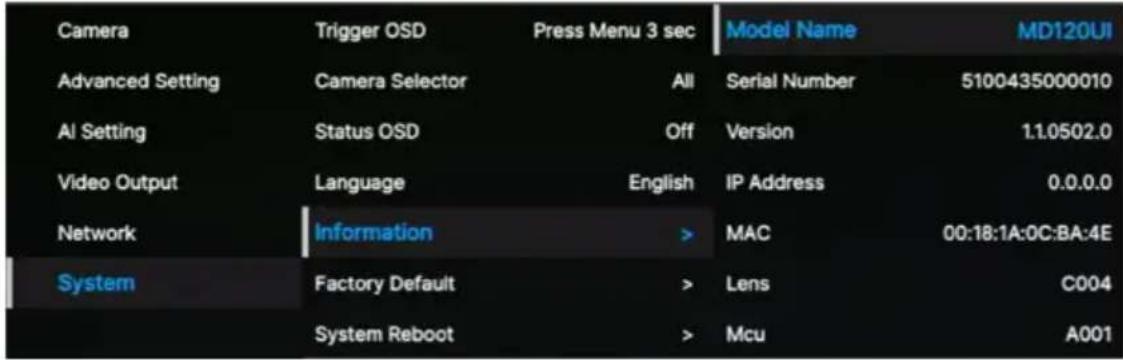

1. After turning the DHCP on, you can go to System > Information to view the IP address.

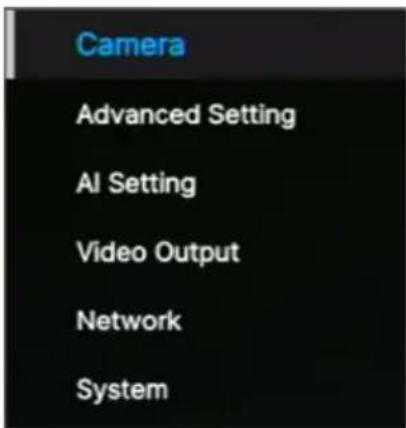

OSD Menu Tree

1stLevel	2ndLevel	3rdLevel	4thLevel

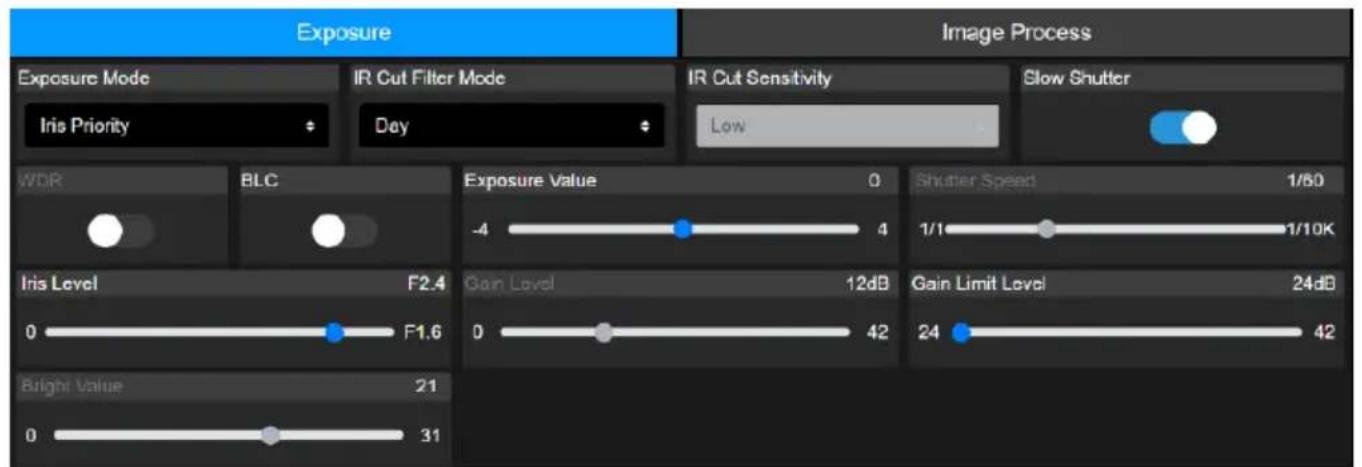

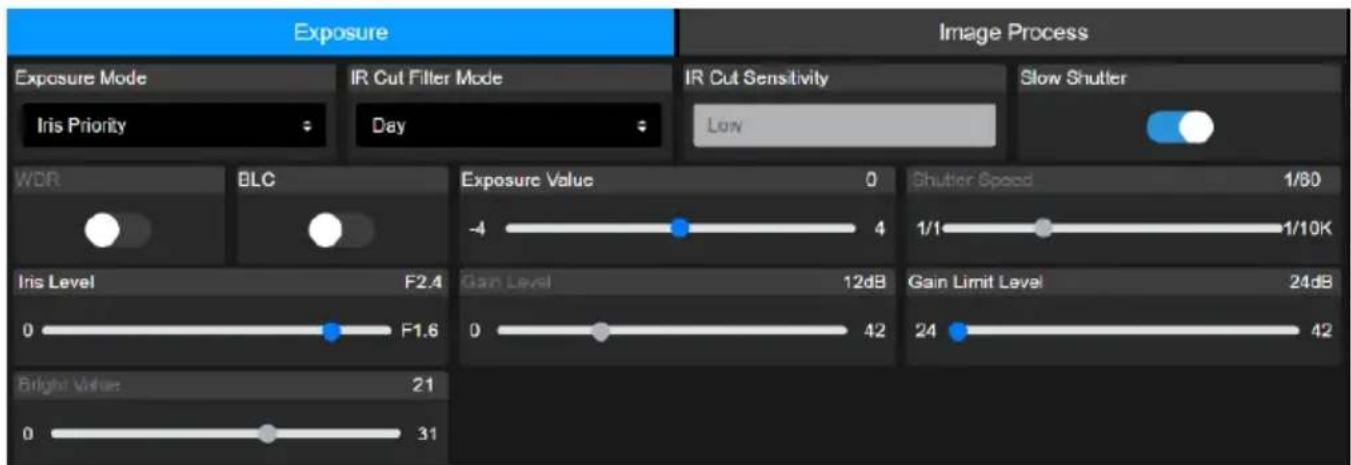

Camera	Exposure Mode	Full Auto	Exposure Value
			Gain Limit Level
			Slow Shutter
			BLC
			WDR
		Shutter Priority	Exposure Value
			Shutter Speed
			Gain Limit Level
		Iris Priority	Exposure Value
			Iris Level
			Gain Limit Level
			Slow Shutter
		Manual	Iris Level
			Shutter Speed
			Gain Level
		Bright mode	Bright value
	White Balance	Auto
		ATW
		Indoor
		Outdoor
		One push trigger
		Manual	R gain
			B gain
	Pan Tilt Zoom	Preset Speed	5, 25, 50, 100, 150, 200
		Preset Accuracy	Off / On
		Pan Speed	1~24
		Tilt Speed	1~24
		Zoom Speed	Low / High
		P/T Spd. Relative Z Ratio	Off / On
		Pan L/R Dir. Switch	Off / On
		Focus Mode	Manual / Auto
	Noise filter	Off / Low / Middle / High
	Saturation	0 1 2 3 4 5 6 7 8 9 10
	Contrast	0 1 2 3 4
	Sharpness	0 1 2 3
	Mirror	OFF / ON
	Flip	OFF / ON
Advanced Setting	Audio	Audio Volume	0~10
	Control	Type	RS232 / RS422
		Protocol	VISCA / PELCO D/PELCO P
		Camera Address	1 2 3 4 5 6 7
		Baud Rate	4800 / 9600 / 38400
	IR Cut Filter	Auto / Day / Night
	IR Cut Sensitivity	Low / Middle / High
	Mosaic on Stream	OFF / ON

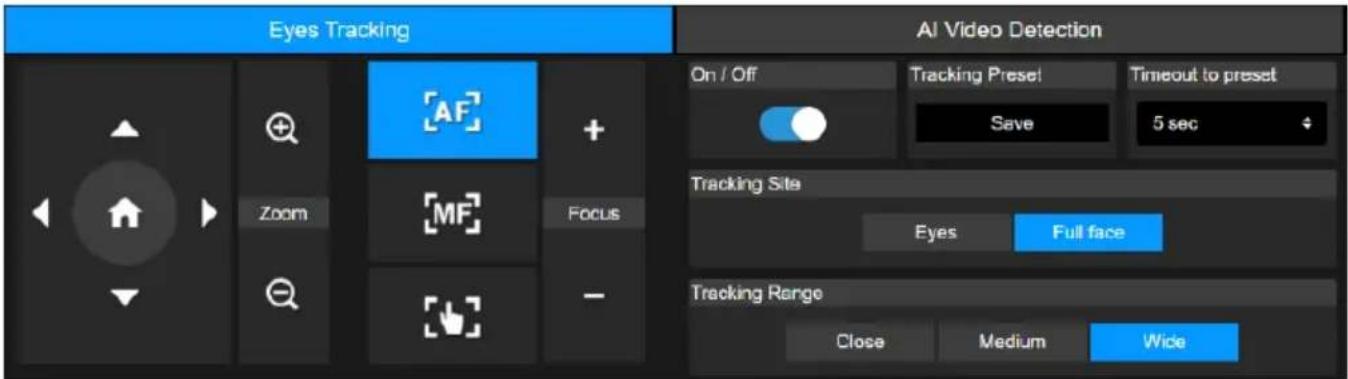

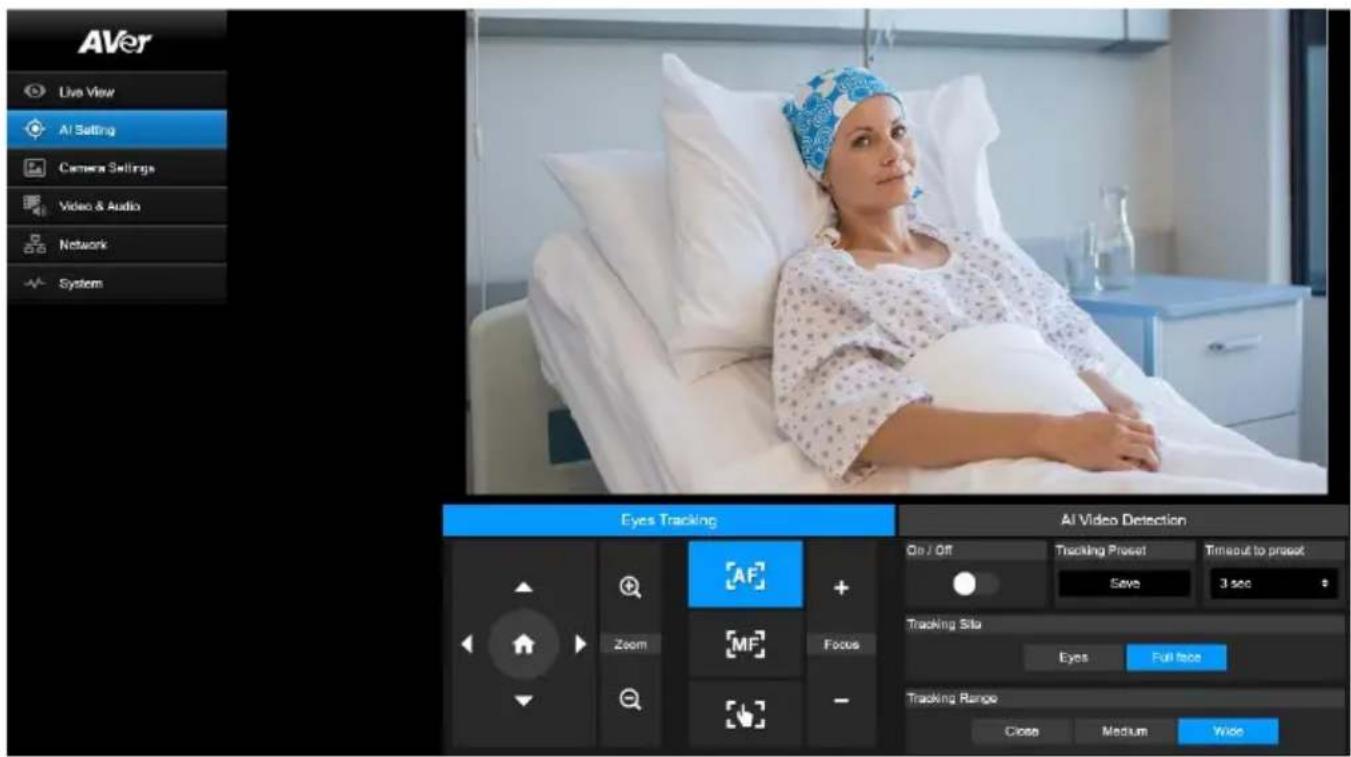

AI Setting	Facial Tracking	Eyes Tracking	On/Off
		Tracking Preset	Save
		Tracking Site	Face/Eyes
		Tracking Range	Close / Medium / Wide
		Timeout to Preset	3/5/7/10 sec

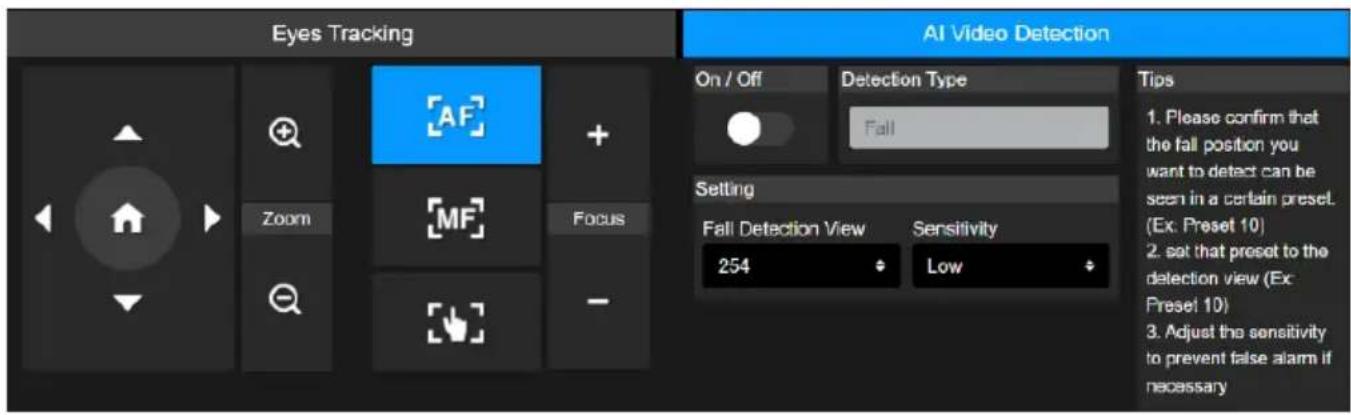

	AI Video Detection	AI Video Detection	On/Off
		Detection Type	Fall
Video Output	Theme Mode	HDMI / UVC
	Frequency	60
		59.94
		50
	Resolution	2160p60
		2160p59
		2160p50
		2160p30
		2160p29
		2160p25
		1080p60
		1080p59
		1080p50
		1080p30
		1080p29
		1080p25
		1080i60
		1080i59
		1080i50
		720p60
		720p59
		720p50

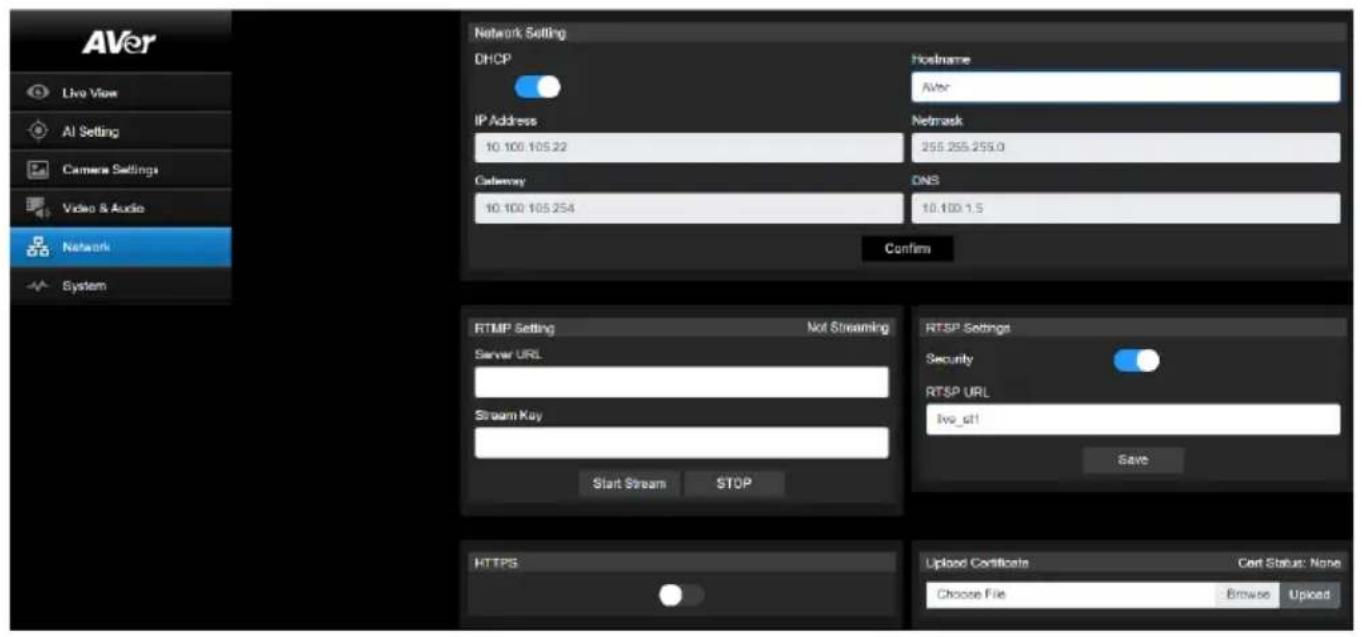

Network	DHCP	OFF
		ON
	Static IP	IP Address	192.168.1.168
		Gateway	192.168.1.254
		Mask	255.255.255.0
		DNS	8.8.8.8
System	Trigger OSD	Click Menu to open,Press Menu 3 sec
	Camera Selector	1,2,3,4,All channel,Disable Remote
	Status OSD	OFF
		ON
	Language	English/中文/日本語
	Information	Model Name	MD120UI
		Serial number	xxxxxxxxxx
		Firmware Version	0.0.0000.00
		IP	192.168.1.168
		MAC	00:18:1a:04:9e:81
		Lens	xxxx
		Mcu	xxxx
	Factory Default	Off/On
	System Reboot	Off/On

Web Interface

Connect the camera from a remote site through the internet.

Access the Web Interface

To access the Web interface of the camera, you have to find the IP address of the camera using AVer IPCam Utility or AVer PTZ Management software.

- AVer IPCam Utility

To find the IP address of your cameras using the IPCam Utility installer, follow the steps below.

1. Download the IPCam Utility from https://www.aver.com/download-center and run the IPCam Utility.
2. Click Search, and all available devices will be listed on the screen.
3. Select a camera from the list, the camera info will be displayed in the Settings field. [Note] The default network of the camera is Static IP (192.168.1.168) and default ID/Password are admin/admin. If you want to configure the network to DHCP, input the ID/Password in the Login field, select the "camera model" on the list, select "DHCP" and then click the Apply button.

1. To access the Web interface, double-click on the IP address in the IPv4 Address column. For the first-time user, you will be prompted with a Login window to change the ID and password.

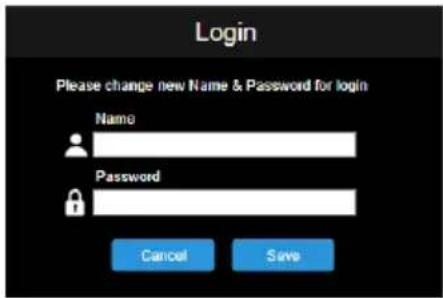

1. Login with the new ID/Password, the Web interface of the camera will be displayed (Chrome browser). Please refer to the chapter for more details.

[Note] If IPCam utility cannot find the camera, please check following:

1. Please make sure the Ethernet connection of camera is well connected.
2. The camera and PC (IPCam Utility) are in the same LAN segment.

- AVer PTZ Management

To find the IP address of your cameras using the AVer PTZ Management, follow the steps below.

1. Download the AVer PTZ Management software from https://www.aver.com/download-center
2. Download the Windows program and install it.

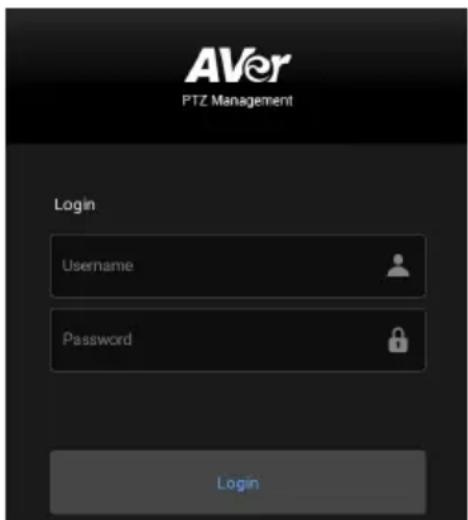

3. After setting up the user ID and password, log in to the software (default User Name/Password: admin/admin).

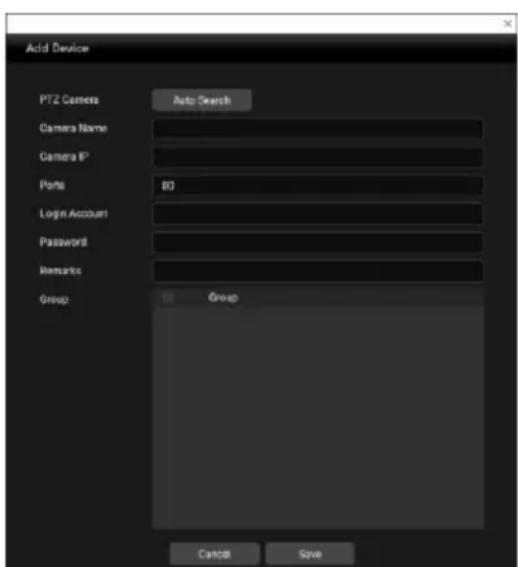

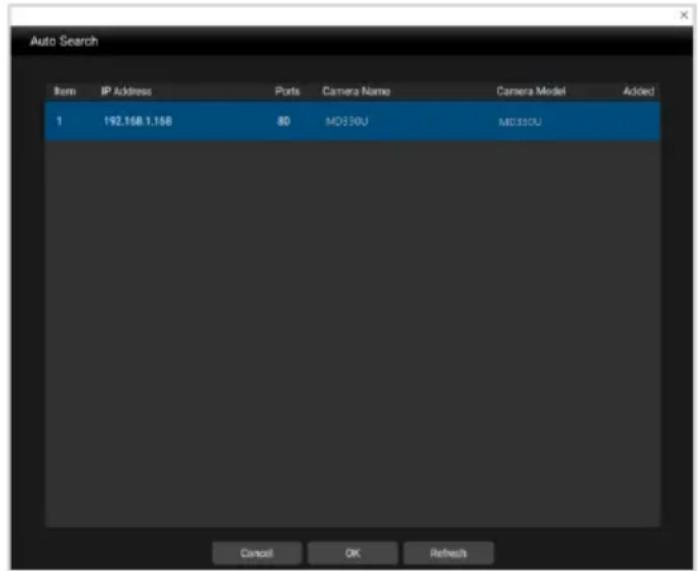

1. On the Main page of PTZ Management, click Setup > Add and then click Auto Search. The cameras connected on the same LAN with the computer will be displayed.

1. Click on the camera and input the camera ID and Password to add the camera to the device list (default ID/Password are admin/admin). Click the Go to Web button to access the Web interface of the camera.

Live View

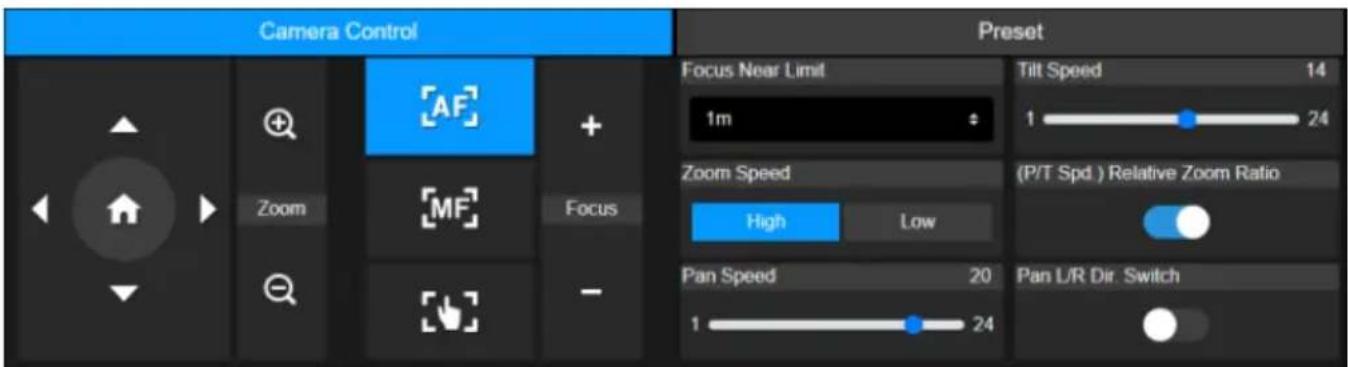

Camera Control

Item	Description
Pan and Tilt Controls	Position the camera. • Drag the slider to adjust Pan Speed and Tilt Speed. • Turn on Pan L/R Dir. Switch to invert panning direction. • Turn on P/T Spd. Relative Z Ratio to automatically adjust pan and tilt speeds based on the zoom ratio. You can also turn it on in the OSD menu: Camera > Pan Tilt Zoom > P/T Spd. Relative Z Ratio.
Home Position	Move the camera to the Home position.
Zoom	Zoom in or zoom out the live view and select Zoom Speed.
Focus +/-	● Auto Focus: Click to automatically focus.
	● Manual Focus: Click to manually focus. Adjust the focus with + - buttons.
	● One Push Focus: Click to automatically focus once.
	● Focus Near Limit: Set up the nearest focus limit.

Preset

Item	Description
Save Preset	1. Position the camera using pan, tilt and zoom controls. 2. Enter a preset number (0~255) in the Save Preset field and click Save.
Load Preset	1. Enter a preset number (0~255) in the Load Preset field and click Load. 2. Or click a preset number (0~19) in the Quick Call section.
Preset Accuracy	Turn on to improve the accuracy of moving to presets.
Video Freeze while Preset	Turn on to display only the live view from presets. The live view from the moving path will not be displayed.
Preset Speed	Adjust the camera speed when moving to presets.

AI Setting

Eyes Tracking

Manually adjusting pan, tilt and zoom controls during Eyes Tracking will turn off the function.

1. Position the camera using pan, tilt and zoom controls and then click Save to save a Tracking Preset. The default is the Home position.
2. From the Timeout to preset drop-down list, select an interval before the camera returns to the tracking preset when no one is in view. The default is 3 seconds.

3. Click the On/Off toggle to turn on Eyes Tracking when a face is in view.

4. One person: The camera will automatically track and zoom in on the face.

5. Multiple people: The camera will mark faces in squares. Select a face to automatically track and zoom in on by clicking a square.

6. Choose the Tracking Site and Tracking Range.

AI Video Detection

To set up fall detection:

1. Please confirm that the fall position you want to detect can be seen in a certain preset (Ex: Preset 10).
2. Set that preset to the detection view (Ex: Preset 10).
3. Adjust the sensitivity to prevent false alarm if necessary.

DISCLAIMER

Learn about the accuracy and limitations of the fall detection

The fall detection is an advanced technology designed to enhance patient safety in hospital environments.

Limited Accuracy

The ability of the fall detection to accurately identify a fall event was tested in a controlled environment. This does not guarantee the successful identification and alarms for all fall events in real world use. Many factors can affect the performance of the fall detection, such as an obstructed field of view or restricted view angle.

Dose not Replace Caregivers

The fall detection is intended as an assistive tool and must not be used as the replacement for caregivers. Frameworks which mandate periodic checks by a trained professional to ensure patient safety and which relate to clinical diagnosis, patient care or treatment must remain in place. If fall detection fails to respond as described, take appropriate action immediately.

The fall detection is intended as an assistive tool and is not part of a medical device. It is not a patient monitor and cannot be used to make a medical or clinical decision.

Camera Settings

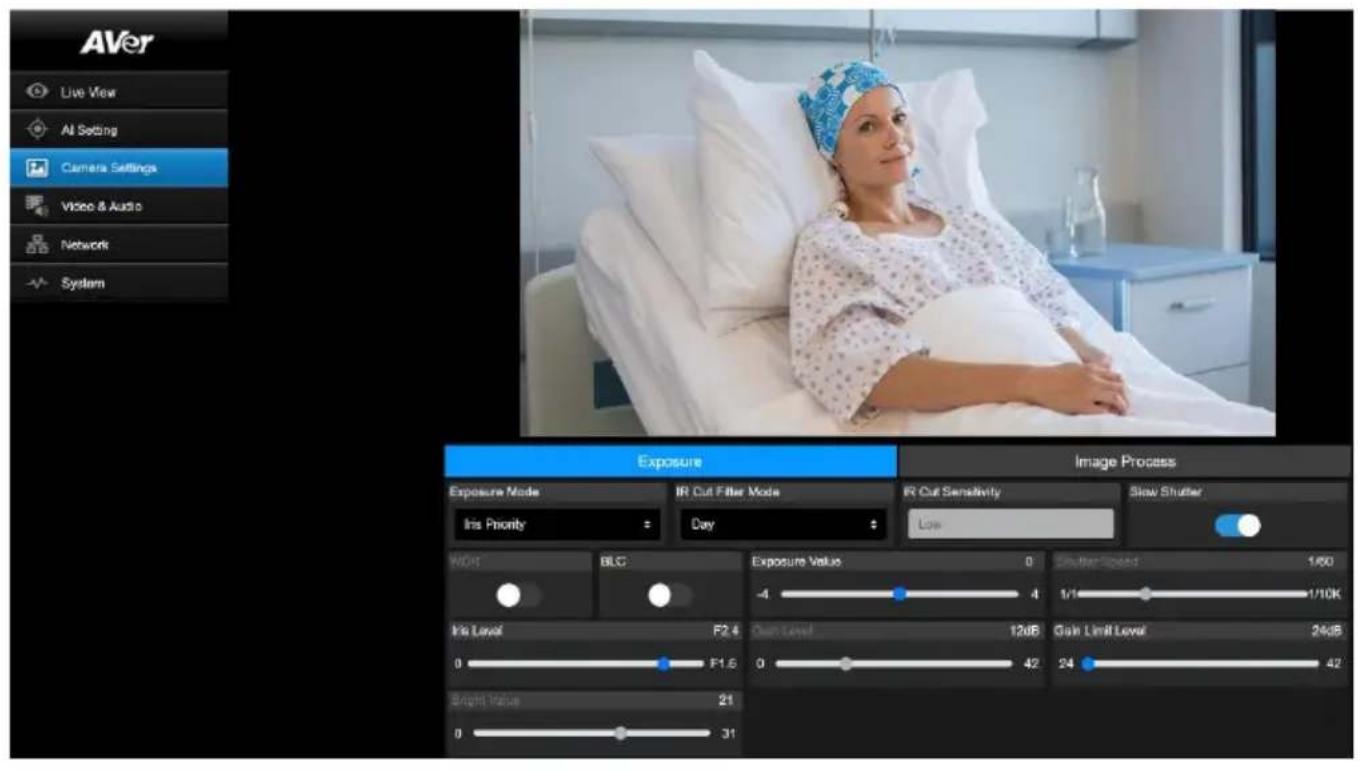

Exposure

Item	Description
Exposure Mode	Select an exposure mode.
WDR	Turn WDR or BLC on or off.
BLC
Exposure Value	Adjust exposure, shutter, iris and gain.
Shutter Speed
Iris Level
Gain Level
Gain Limit Level
IR Cut Filter Mode	Select Day mode, Night mode to switch infrared night vision on or off., Or select Auto mode and adjust IR Cut Sensitivity.
Slow Shutter	Turn Slow Shutter on or off.
Bright Value	Adjust brightness.

Image Process

Item	Description
White Balance	Select a white balance mode. When Manual is selected, you can also adjust the R Gain and B Gain. When One Push is selected, place a piece of white paper in front of the camera lens and click Set to calibrate white balance.
Saturation	Adjust saturation, contrast and sharpness.
Contrast
Sharpness
Mirror	Turn Mirror or Flip on or off.
Flip
Noise Filter	Select a noise filtering level.

Video & Audio

Video Setting

Item	Description
Power Frequency (Hz)	Select 50Hz, 59.94Hz or 60Hz based on your country or region.
Video Out Resolution	Select a video output. resolution RTSP: Max. 4K/60fps HDMI: Max. 4K 60Hz
Theme Mode	Select a video overlay to prioritize UVC or HDMI output.
Stream Video Output	Select a streaming output resolution for the live view.
Framerate	Select a framerate
Bitrate	Select a bitrate.
I-VOP Interval (S)	● Drag the slider to choose how often I-VOPs appear in a video stream. ● Shorter I-VOP intervals result in higher video quality but also larger file sizes.
Rate Control	Select VBR or CBR.
Encoding Type	Select H.264 or H.265.
Mosaic on Stream	Turn on to pixelate the face or body on an RTSP stream for privacy.

Audio Setting

Item	Description
Microphone Volume	Drag the slider to adjust the microphone volume.
Sampling Rate	48K
Encoding Type	AAC

Network

Item	Description
Hostname	The default hostname is AVer. Change the hostname to be displayed on devices such as an IP router.
DHCP	Set the network to DHCP or Static IP.DHCP: Turn on DHCP and click Confirm to save the setting. The camera will be assigned IP settings automaticallySTATIC IP: Turn off DHCP, enter IP Address, Netmask, Gateway and DNS, and click Confirm to save the settings.
RTMP Setting	Stream live video to a video platform such as YouTube.1. Enter the Server URL and Stream Key of your video platform.Please refer to the instruction of your platform to obtain the server URL and stream key.2. Click Start Stream to start streaming, Stop to stop streaming.
RTSP Settings	Protect your video stream on media players such as VLC, PotPlayer and QuickTime by ensuring that only authorized users can access it.When Security is turned off:1. Enter your camera's RTSP URL into the media player.2. RTSP URL: rtsp://[camera IP address]/live_st1Example: rtsp://192.168.1.100/live_st1When Security is turned on:1. Enter your camera's RTSP URL and username/password into the media player.2. RTSP URL: rtsp://[username-password]@[camera IP address]/live_st1
	Example: rtsp://1:1@192.168.1.100/live_st1 3. username/password: camera's username/password (web interface login)
HTTPS	Enable HTTPS to establish a secure connection between your browser and your camera. To enable HTTPS access on your camera: 1. Obtain a SSL certificate for encryption and decryption in base-64 encoded format and use a private key in PKCS#8 format (unencrypted). 2. Package the required certificate content into PEM format. The SSL certificate uploaded to the camera must be in PEM format. 3. Click Browse to select the certificate file, and then click Upload. 4. Turn on HTTPS.

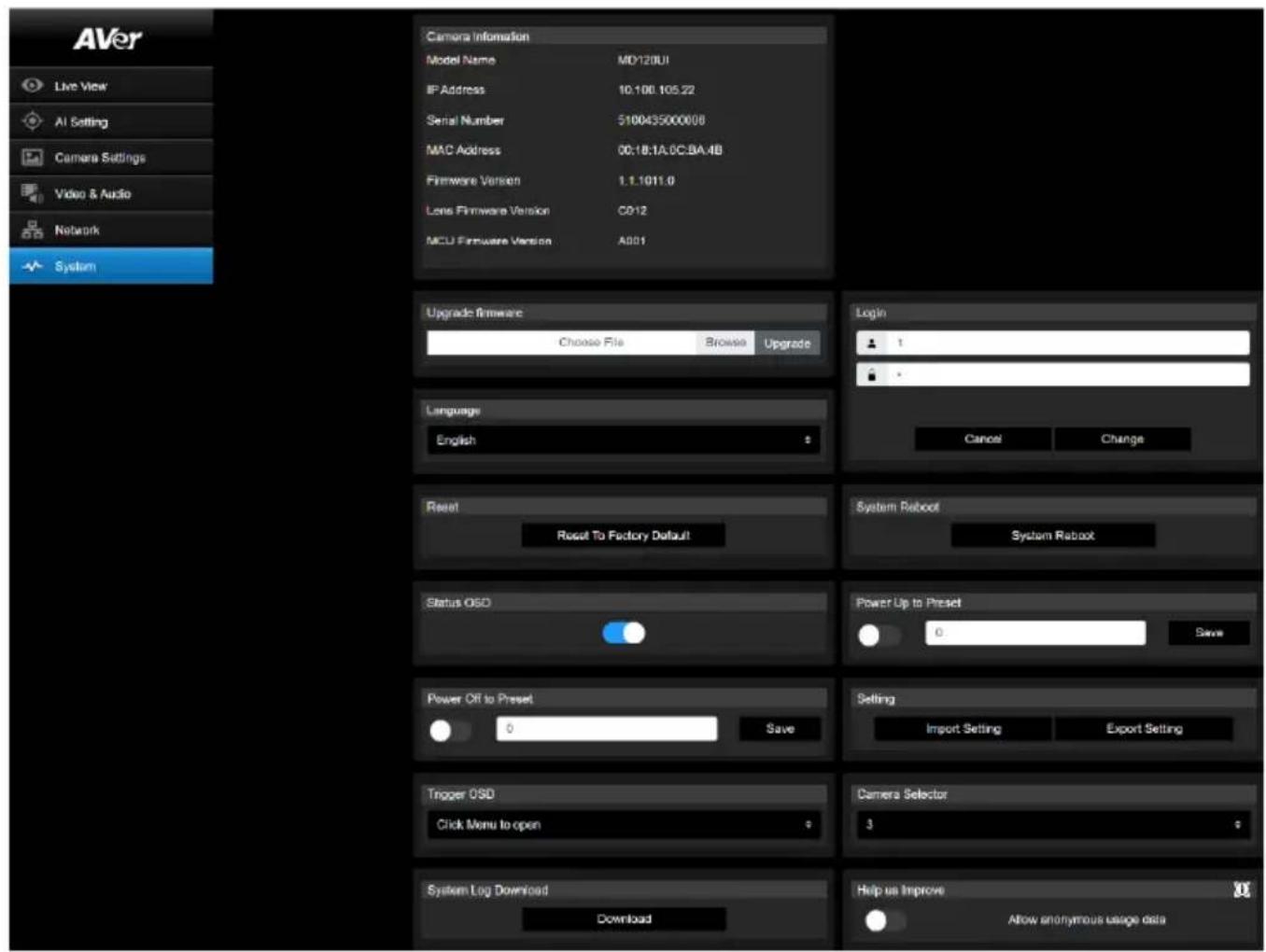

System

Item	Description
Camera Information	Display camera information.
Upgrade Firmware	Follow these steps to upgrade the firmware:1. Download the latest firmware from the AVer Download Center (https://www.aver.com/download-center/).2. On the Web page, go to System > Upgrade firmware.3. Click Browse to select the firmware.4. Click Upgrade to start upgrading the firmware.5. Refresh the browser after the upgrade process is complete.[Note] Keep your camera connected to a power source during firmware upgrade. Network connection will be lost during the process and camera will reboot automatically after upgrading.
Login	The default username/password is admin/admin. To change the username/password, enter the new username/password and click Change.
Language	Change the web interface language.
Reset	Reset the camera to factory default settings.
System Reboot	Restart your camera.
Status OSD	Enable to display preset status on the HDMI output during functions such as saving, loading and canceling presets.
Power Up to Preset	When enabled, the camera will move to the defined position after powering on. ● Click the toggle to turn on > enter a preset number > click Save. ● Make sure the preset number has been defined before enabling this function.
Power Off to Preset	When enabled, the camera will move to the defined position before powering off. ● Click the toggle to turn on > enter a preset number > click Save. ● Make sure the preset number has been defined before enabling this function.
Setting	Import or export your camera settings.
Trigger OSD	Select how the OSD menu is opened with the remote control.
Camera Selector	Assign a number to your camera that corresponds to the Camera Select buttons on the remote control. When All Channel is selected, no selection is required on the remote control to operate your camera
System Log Download	Click to download system log.
Help Us Improve	Opt-in or opt-out of providing anonymous usage data.

AVerCamera Setting Tool

AVerCamera Setting Tool is an application software that supports the operation of AVer PTZ cameras when you stream to a third-party software. It enables users to configure image, audio and video settings without a remote control, as well as connect the camera via USB.

• Download AVerCamera Setting Tool from the AVer website:

(https://www.aver.com/Downloads/search?q=AVer%20Camera%20Setting%20Tool).

For details on settings, see in the user manual for CaptureShare.

Specifications

Camera
Image Sensor	1/2.8" CMOS
Effective Picture Elements	8 Megapixels
Output Resolutions	Resolution: 4K/1080p/720p Frame Rate: 60/59.94/50/30/29.97/25
Minimum Illumination	0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)
S/N Ratio	≥ 50dB
Gain	Auto, Manual
TV Lines	1000 (center/wide)
Shutter Speed	1/1 to 1/10,000 sec
Exposure Control	Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance	Auto, Manual
Optical Zoom	20X
Digital Zoom	1X
Total Zoom	20X
Viewing Angles	DFOV: 69.2° (Wide) to 4.1° (Tele) HFOV: 62.3° (Wide) to 3.6° (Tele) VFOV: 37.3° (Wide) to 2.1° (Tele)
Focal Length	f = 4.5 mm (Wide) to 90 mm (Tele)
Aperture (Iris)	F = 1.8 (Wide) to 4.7 (Tele)

General
Power Requirement	12V
Power Consumption	24W
PoE	PoE+ (IEEE802.3at)
Dimension (W x H x D)	180(W) x 145(D) x 183.5(H) mm
Net Weight	1.7±0.1 kg
Application	Indoor
Tally Lamp	Yes
Security	Kensington Slot
IR Remote Control	Yes
Operating Conditions	Temperature: 0 °C to +40 °CHumidity: 20% to 80%
Storage Conditions	Temperature: -20 °C to +60 °CHumidity: 20% to 95%
Audio
Channels	2ch Stereo
CODECs	AAC-LC (48K)
Interface
Video Outputs	HDMI, IP, USB
Audio Outputs	HDMI, IP, USB
Audio Inputs	N/A
IP Streaming
Resolution	4K 60fps
Network Video Compress Formats	H.264, H.265, MJPEG
Maximum Frame Rate	4K 60fps
Bit-Rate Control Modes	VBR, CBR
Range of Bit-Rate	512Kbps ~ 64Mbps
Network interfaces	10 / 100 / 1000 Base-T
Multi-Stream Capability	2 (RTSP/Web page), MAX: 4K 60fps
Network Protocols	IPv6,IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP
USB
Connector	USB3.0 (Type-B)
Video Formats	MJPEG
Maximum Video	2160p
USB Video Class (UVC)	UVC1.1
USB Audio Class (UAC)	UAC 1.0
Web UI
Live Video Preview	Yes
Camera PTZ Control	Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image	Exposure, White Balance, Image Process
Network Configuration	DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
IP Search and Configuration Tool	Support Windows® 7 or later
PTZ Management	Support Windows® 7 or later
PTZ Control Panel	Supports iOS & iPadOS® 11 or later
Camera Setting Tool	Supports Windows® 7 or later, macOS® 10.14 or later

Specifications are subject to change without prior notice.

Troubleshooting

The image is distorted or blurry.

• On the web interface, go to Live View > Camera Control and click Auto Focus.
• On the remote control, press and hold Menu for 3 seconds > Factory Default > On to return all settings to factory default.

How to open the on-screen display (OSD) menu?

1. Make sure the HDMI cable is connected to your camera and display.
2. On the remote control, press and hold Menu for 3 seconds to open the OSD menu.
3. A solid purple light on the LED indicator will indicate that the OSD menu is turned on.

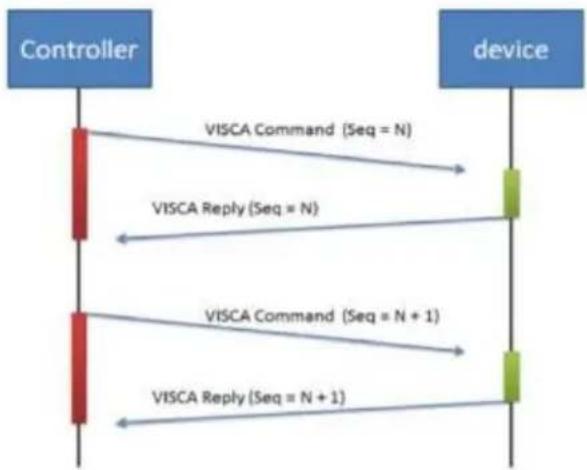

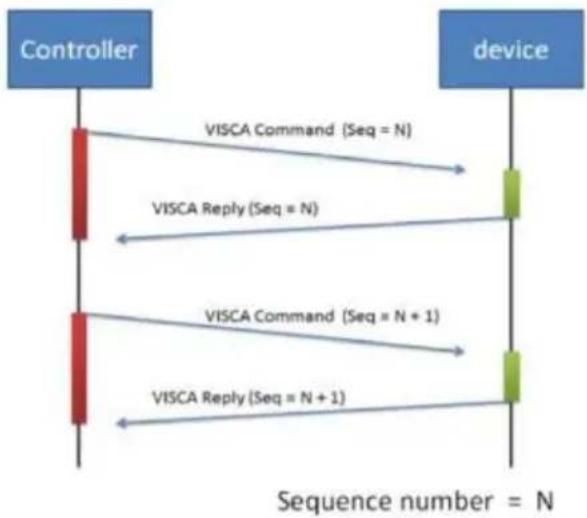

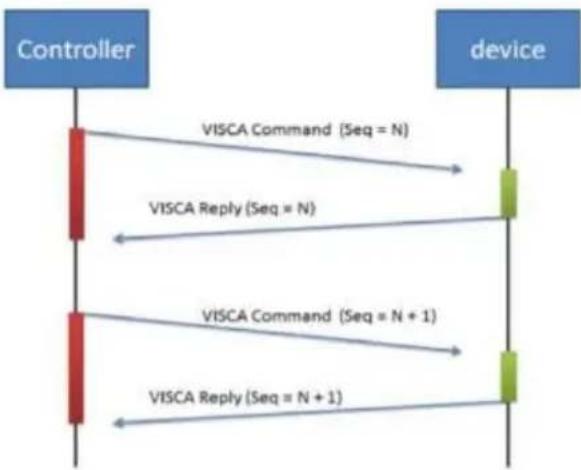

VISCA RS-232 Command Table

Command Set	Command	Command Packet	Comments
IF_Clear	Broadcast	88 01 00 01 FF	I/F Clear (Clear Visca connection & command buffer queue)
CommandCancel	--	8x 2p FF	p: Socket No. (=1or2)
CAM_Power	On	8x 01 04 00 02 FF	Power OFF to Standby mode
	Off	8x 01 04 00 03 FF	Power ON supported in Standby mode only
CAM_Zoom	Stop	8x 01 04 07 00 FF	Zoom Control
	Tele(Standard)	8x 01 04 07 02 FF
	Wide(Standard)	8x 01 04 07 03 FF
	Tele(Variable)	8x 01 04 07 2p FF	p=0 (Low) to 7 (High)
	Wide(Variable)	8x 01 04 07 3p FF
	Direct	8x 01 04 47 0p 0q 0r 0s FF	pqrs: Zoom Position. MD120UI: 0x00F0 (x1) ~ 0x5370 (x20)
CAM_Focus	Stop	8x 01 04 08 00 FF	Focus Control
	Far (Standard)	8x 01 04 08 02 FF	Each 'Far/Near' needs a 'stop'
	Near (Standard)	8x 01 04 08 03 FF
	Far (Variable)	8x 01 04 08 2p FF	p=0 (Low) to 7 (High)
	Near (Variable)	8x 01 04 08 3p FF
	Auto Focus	8x 01 04 38 02 FF	AF ON/OFF
	Manual Focus	8x 01 04 38 03 FF
	Auto/Manual	8x 01 04 38 10 FF
	One Push	8x 01 04 18 01 FF
	Direct	8x 01 04 48 0p 0q 0r 0s FF	pqrs: Focus Position, MD120UI: 0x0000(wide) ~ 0x4000(tele)
	Near Limit	8x 01 04 28 0p 0q 0r 0s FF	pqrs: Focus Near Limit Position 0001: 0.3m 0002: 1m 0003: 1.5m 0004: 2m 0005: 3m 0006: 6m 0007: 10m
CAM_AFMode	Normal AF	8x 01 04 57 00 FF	Continuous AF ON
	Zoom Trigger AF	8x 01 04 57 02 FF	Continuous AF OFF, only trigger AF after PTZ done
CAM_WB	Auto	8x 01 04 35 00 FF	Normal Auto
	ATW	8x 01 04 35 04 FF
	Indoor	8x 01 04 35 01 FF
	Outdoor	8x 01 04 35 02 FF
	One Push WB	8x 01 04 35 03 FF	One Push WB mode
	Manual	8x 01 04 35 05 FF	Manual Control mode
	One Push Trigger	8x 01 04 10 05 FF	One Push WB Trigger
CAM_RGain	Reset	8x 01 04 03 00 FF	Return to 80 (128) value
	Up	8x 01 04 03 02 FF	Manual Control of R Gain
	Down	8x 01 04 03 03 FF
	Direct	8x 01 04 43 00 00 0p 0q FF	pq: R Gain 00(0) to FF(255)
CAM_BGain	Reset	8x 01 04 04 00 FF	Return to 80 (128) value
	Up	8x 01 04 04 02 FF	Manual Control of B Gain
	Down	8x 01 04 04 03 FF
	Direct	8x 01 04 44 00 00 0p 0q FF	pq: B Gain 00(0) to FF(255)
CAM_AE	Full Auto	8x 01 04 39 00 FF	Automatic Exposure mode
	Manual	8x 01 04 39 03 FF	Manual Control mode
	Shutter Priority	8x 01 04 39 0A FF	Shutter Priority Automatic Exposure mode
	Iris Priority	8x 01 04 39 0B FF	Iris Priority Automatic Exposure mode
CAM_SlowShutter	Auto	8x 01 04 5A 02 FF	Auto Slow Shutter ON/OFF
	Manual	8x 01 04 5A 03 FF
CAM_Shutter	Reset	8x 01 04 0A 00 FF	Shutter Setting
	Up	8x 01 04 0A 02 FF
	Down	8x 01 04 0A 03 FF
	Direct	8x 01 04 4A 00 00 0p 0q FF	pq: Shutter Position
CAM_Iris	Reset	8x 01 04 0B 00 FF	Iris Setting
	Up	8x 01 04 0B 02 FF
	Down	8x 01 04 0B 03 FF
	Direct	8x 01 04 4B 00 00 0p 0q FF	pq: Iris Position
CAM_Gain	Reset	8x 01 04 0C 00 FF	Gain Setting
	Up	8x 01 04 0C 02 FF
	Down	8x 01 04 0C 03 FF
	Direct	8x 01 04 4C 00 00 0p 0q FF	pq: Gain Position
	AE Gain Limit	8x 01 04 2C 0p FF	p: Gain Position (8 to E: 24db~42db)
CAM_Bright	Up	8x 01 04 0D 02 FF	--
	Down	8x 01 04 0D 03 FF
	Direct	8x 01 04 4D 00 00 0p 0q FF	pq: Bright Position
CAM_ExpComp	Reset	8x 01 04 0E 00 FF	Exposure Comp Amount Setting
	Up	8x 01 04 0E 02 FF
	Down	8x 01 04 0E 03 FF
	Direct	8x 01 04 4E 00 00 0p 0q FF	pq: ExpComp Position
CAM_Backlight	On	8x 01 04 33 02 FF	Back Light Compensation ON/OFF
	Off	8x 01 04 33 03 FF
CAM_LR_Reverse	On	8x 01 04 61 02 FF	Mirror Image ON/OFF
	Off	8x 01 04 61 03 FF
CAM_Flip	On	8x 01 04 66 02 FF	Flip ON/OFF
	Off	8x 01 04 66 03 FF
CAM_Preset	Reset	8x 01 04 3F 00 pp FF	Preset Cancel. pp: Preset Number 0x00~0xFF
	Set	8x 01 04 3F 01 pp FF	Preset Save.
	Recall	8x 01 04 3F 02 pp FF	Preset Load.
CAM_Menu	On	8x 01 06 06 02 FF	Menu Display ON/OFF
	Off	8x 01 06 06 03 FF
	On/Off	8x 01 06 06 10 FF
CAM_MenuEnter	--	8x 01 7E 01 02 00 01 FF	Enter Submenu
CAM_NR	--	8x 01 04 53 0p FF	p: Image NR Setting (0:OFF, Level1 to 3)
CAM_WDR	On	8x 01 04 3D 02 FF	Wdr ON/OFF
	Off	8x 01 04 3D 03 FF
CAM_ICR	On	8x 01 04 01 02 FF	Infrared Mode ON (Night)
	Off	8x 01 04 01 03 FF	Infrared Mode OFF (Day)
CAM_AutoICR	On	8x 01 04 51 02 FF	Auto Infrared mode ON/OFF
	Off	8x 01 04 51 03 FF
	Threshold	8x 01 04 21 00 00 0p 0q FF	pq: ICR OFF(Day) ->ON(Night) threshold level 00: Low; 01: Middle; 02: High
CAM_IDWrite	--	8x 01 04 22 0p 0q 0r 0s FF	pqrs: Camera ID (=0000 to FFFF)
Video Format Change	--	8x 01 7E 01 1E 0p 0q FF	pq
			0x02: 1920x1080P/60
			0x03: 1920x1080P/59.94
			0x04: 1920x1080P/30
			0x05: 1920x1080P/29.97
			0x08: 1920x1080I/60
			0x0A: 1920x1080I/59.94
			0x0B: 1280x720P/60
			0x0C: 1280x720P/59.94
			0x0D: 1920x1080P/50
			0x18: 1920x1080P/25
			0x22: 1920x1080I/50
			0x26: 1280x720P/50
			0x30: 3840x2160P/60
			0x31: 3840x2160P/59.94
			0x32: 3840x2160P/50
			0x33: 3840x2160P/30
			0x34: 3840x2160P/29.97
			0x35: 3840x2160P/25
IR_Receive	On	8x 01 06 08 02 FF	Infrared remote commander reception ON
Pan-tilt Drive	Up	8x 01 06 01 VV WW 03 01 FF	VV: Pan speed setting 0x01 (low speed) to 0x18 (high speed) WW: Tilt speed setting 0x01 (low speed) to 0x18 (high speed)
	Down	8x 01 06 01 VV WW 03 02 FF
	Left	8x 01 06 01 VV WW 01 03 FF
	Right	8x 01 06 01 VV WW 02 03 FF	YYYY: Pan Position 7FFF(170°) to 8000(-170°) (Normalized, CENTER 0000)
	UpLeft	8x 01 06 01 VV WW 01 01 FF	ZZZZ: Tilt Position 7FFF(90°) to 8000(-30°)
	UpRight	8x 01 06 01 VV WW 02 01 FF	(Image Flip: OFF) (Normalized, CENTER 0000)
	DownLeft	8x 01 06 01 VV WW 01
		02 FF
	DownRight	8x 01 06 01 VV WW 02 02 FF
	Stop	8x 01 06 01 VV WW 03 03 FF
	AbsolutePosition	8x 01 06 02 VV WW 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
	RelativePosition	8x 01 06 03 VV WW 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
	Home	8x 01 06 04 FF
	Reset	8x 01 06 05 FF
Freeze	Freeze On	8x 01 04 62 02 FF	Freeze On Immediately
	Freeze Off	8x 01 04 62 03 FF	Freeze Off Immediately
	Preset Freeze On	8x 01 04 62 22 FF	Freeze On When Running Preset
	Preset Freeze Off	8x 01 04 62 23 FF	Freeze Off When Running Preset
RTMP	On	8x 01 04 A2 02 FF	RTMP ON/OFF
	Off	8x 01 04 A2 03 FF
Reboot	On	8x 01 04 A4 FF	System reboot
P/T Spd. Relative Zoom Ratio	On	8x 01 04 A6 02 FF	P/T Speed Relative Zoom Ratio ON/OFF
	Off	8x 01 04 A6 03 FF
Factory Reset	System Factory Reset	8x 01 04 3F 03 00 FF
Preset Speed	Set Preset Speed	8x 01 06 20 0p FF	p=1 (Low) to 6 (High)
Facial Tracking	On	8x 01 04 7D 02 FF	AI Facial Tracking ON/OFF
	Off	8x 01 04 7D 03 FF
Inquiry Command	Inquiry Packet	Reply Packet	Comments
CAM_Powerlnq	8x 09 04 00 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_ZoomPoslnq	8x 09 04 47 FF	y0 50 0p 0q 0r 0s FF	pqrs: Zoom Position
CAM_FocusModellnq	8x 09 04 38 FF	y0 50 02 FF	Auto Focus
		y0 50 03 FF	Manual Focus
CAM_FocusPoslnq	8x 09 04 48 FF	y0 50 0p 0q 0r 0s FF	pqrs: Focus Position
CAM_FocusNearLimitlnq	8x 09 04 28 FF	y0 50 0p 0q 0r 0s FF	pqrs: Focus Near Limit Position
CAM_AFModellnq	8x 09 04 57 FF	y0 50 00 FF	Continuous AF ON
		y0 50 02 FF	Continuous AF OFF, only trigger AF after PTZ done
CAM_WBModellnq	8x 09 04 35 FF	y0 55 00 FF	Auto
		y0 55 04 FF	ATW
		y0 55 01 FF	Indoor
		y0 55 02 FF	Outdoor
		y0 55 03 FF	One Push WB
		y0 55 05 FF	Manual
CAM_RGainlnq	8x 09 04 43 FF	y0 50 00 00 0p 0q FF	pq: R Gain
CAM_BGainlnq	8x 09 04 44 FF	y0 50 00 00 0p 0q FF	pq: B Gain
CAM_AEModellnq	8x 09 04 39 FF	y0 50 00 FF	Full Auto
		y0 50 03 FF	Manual
		y0 50 0A FF	Shutter Priority
		y0 50 0B FF	Iris Priority
		y0 50 0D FF	Bright
CAM_SlowShutterModellnq	8x 09 04 5A FF	y0 50 02 FF	Auto
		y0 50 03 FF	Manual
CAM_ShutterPoslnq	8x 09 04 4A FF	y0 50 00 00 0p 0q FF	pq: Shutter Position
CAM_IrisPoslnq	8x 09 04 4B FF	y0 50 00 00 0p 0q FF	pq: Iris Position
CAM_GainPoslnq	8x 09 04 4C FF	y0 50 00 00 0p 0q FF	pq: Gain Position
CAM_GainLimitlnq	8x 09 04 2C FF	y0 50 0q FF	p: Gain Limit
CAM_BrightPoslnq	8x 09 04 4D FF	y0 50 00 00 0p 0q FF	pq: Bright Position
CAM_ExpCompPoslnq	8x 09 04 4E FF	y0 50 00 00 0p 0q FF	pq: ExpComp Position
CAM_BacklightModeInq	8x 09 04 33 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_LR_Reverse_Iq	8x 09 04 61 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_Flip_Inq	8x 09 04 66 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_NRInq	8x 09 04 53 FF	y0 50 0p FF	p: NR Level
CAM_WDRInq	8x 09 04 3D FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_ICRModelInq	8x 09 04 01 FF	y0 50 02 FF	On (Night)
		y0 50 03 FF	Off (Day)
CAM_AutoICRModelInq	8x 09 04 51 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_AutoICRThres holdInq	8x 09 04 21 FF	y0 50 00 00 0p 0q FF	pq: ICR OFF(Day)->ON(Night) threshold level
			00: Low; 01: Middle; 02: High
CAM_IDInq	8x 09 04 22 FF	y0 50 0p 0q 0r 0s FF	pqrs: Camera ID
CAM VersionInq	8x 09 00 02 FF	y0 50 ab cdmn pqrs tu vw FF	abcd: Vendor Code, AVer: 2574mnpq: Model Code, MD120UI: 0565rstu: Firmware version (ex: 4025 for1.1.4025.0)vw: Socket Number (=02)
CAM MenuModelInq	8x 09 06 06 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
Video Format Inq	8x 09 06 23 FF	y0 50 02 FF	1920x1080P/60
		y0 50 03 FF	1920x1080P/59.94
		y0 50 04 FF	1920x1080P/30
		y0 50 05 FF	1920x1080P/29.97
		y0 50 08 FF	1920x1080I/60
		y0 50 0A FF	1920x1080I/59.94
		y0 50 0B FF	1280x720P/60
		y0 50 0C FF	1280x720P/59.94
		y0 50 0D FF	1920x1080P/50
		y0 50 18 FF	1920x1080P/25
		y0 50 22 FF	1920x1080I/50
		y0 50 26 FF	1280x720P/50
		y0 50 30 FF	3840x2160P/60
		y0 50 31 FF	3840x2160P/59.94
		y0 50 32 FF	3840x2160P/50
		y0 50 33 FF	3840x2160P/30
		y0 50 34 FF	3840x2160P/29.97
		y0 50 35 FF	3840x2160P/25
IR_Receive	8x 09 06 08 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
Pan-tiltPosInq	8x 09 06 12 FF	y0 50 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF	YYYY: Pan Position 7FFF(170°) to8000 (-170°)(Normalized, CENTER 0000)ZZZZ: Tilt Position 7FFF(90°) to8000(-30°)(Image Flip: OFF) (Normalized,CENTER 0000)
CAM_Preset_Inq	8x 09 04 3F FF	y0 50 pp FF	Return the last preset number whichhas beenoperated pp:01-FF
Pan-tiltMaxSpeedInq	8x 09 06 11 FF	y0 50 ww zzz FF	ww = Pan Max Speed zzz = Tilt MaxSpeed
Freeze_Mode_Inq	8x 09 04 62 01 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
Preset_Freeze_Inq	8x 09 04 62 02 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
RTMP_Inq	8x 09 04 A2 FF	y0 50 02 FF	On
		y0 50 03 FF	Off
Preset_Speed_Inq	8x 09 06 20 FF	y0 50 0p FF	p=1 (Low) to 6 (High)
Firmware version	8x 09 36 69 04 FF	y0 50 0p 0q 0r 0s 0t 0u 0v0w FF	fw_ver: p.q.rstu.vw
Facial Tracking Inq	8x 09 04 7D FF	y0 50 02 FF	On
		y0 50 03 FF	Off
CAM_Hdmi_Port Inq	8x 09 7E 04 79 00 FF	y0 50 00 00 00 00 00 00 00 00 00 00 00 00 0p 0q 0r 0s FF	pqrs: Source physical address (See HDMI VSDB) p:data[A], q:data[B], r:data[C], s:data[D]
USB Status Inq	8x 09 36 69 05 FF	y0 50 0p FF	p=0: OFF, p=1: ON
UVC Status Inq	8x 09 36 69 06 FF	y0 50 0p FF	p=0: OFF, p=1: ON

VISCA over IP Settings

PORT

Internet protocol	IPv4
Transport protocol	UDP
Port address	52381

FORMAT

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8 ~ ~ byte 23
func	Payload type		Payload Length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16(0x0001~0x0010)		0x00000000 ~ 0xFFFFFFF				VISCA Packet (see page VISCA)

Payload type

Name	Value1	Value2	Description
VISCA command	0x01	0x00	Stores the VISCA command.
VISCA inquiry	0x01	0x10	Stores the VISCA inquiry.
VISCA reply	0x01	0x11	Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command
VISCA device setting command	0x01	0x20	Stores the VISCA device setting command.
Control command	0x02	0x00	Stores the control command
Control reply	0x02	0x01	Stores the reply for the control command.

Sequence number

Sequence number =

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8 ~ ~ ~byte 23
func	Payload type		Payload Length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16(0x0001~0x0010)		0x00000000 ~ 0xFFFFFFF				VISCA Packet (see page VISCA)
CMD:Power Off	0x01	0x00	0x00	0x06	0x00	0x00	0x00	0x01	81 01 04 00 03FF
reply ACK	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 41 FF
replyCOMPLETE	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 51 FF

INQ: Power	0x01	0x10	0x00	0x05	0x00	0x00	0x00	0x02	81 09 04 00 FF
INQ reply	0x01	0x11	0x00	0x04	0x00	0x00	0x00	0x02	90 50 03 FF

VISCA Zoom Table

Zoom position and zoom ratio (MD120UI)
Parameter	Zoom ratio
00F0	x1
1C60	x2
2938	x3
3130	x4
36D8	x5
3B50	x6
3EC8	x7
41A8	x8
4430	x9
4660	x10
4828	x11
49F0	x12
4B80	x13
4CF0	x14
4E48	x15
4F78	x16
5090	x17
51A0	x18
5290	x19
5370	x20

Pelco-D Command

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func	SYNC	ADDR	cmd 1	cmd 2	data1	data2	checksum
data	0xFF	1~8	cmd 1	cmd 2	Pan speed	Tilt speed	2~6 SUM

note : speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
SENSE ON	NA	NA	NA	CAM ON/OFF	NA	NA	NA

note : power off : byte3.7 = 0 & byte3.3 = 1 (0x08)
note : power on : byte3.7 = 1 & byte3.3 = 1 (0x88)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

		byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func		SYNC	ADDR	data1	data2	data3	data4	checksum
Set Preset XX		0xFF	1~8	0x00	0x03	0x00	Preset #	2~6 SUM
Clear Preset XX		0xFF	1~8	0x00	0x05	0x00	Preset #	2~6 SUM
Go To Preset XX		0xFF	1~8	0x00	0x07	0x00	Preset #	2~6 SUM
Track ON		0xFF	1~8	0x00	0x65	0x00	0x00	2~6 SUM
Track OFF		0xFF	1~8	0x00	0x67	0x00	0x00	2~6 SUM

note : Preset # : 0x01 ~ 0xFF

Pelco-P Command

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
data	0xA0	0~7F	cmd 1	cmd 2	Pan speed	Tilt speed	0xEF	1~7 XOR

note: speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	CAM ON	NA	CAM ON/OFF	NA	NA	NA	NA

note : power off : byte3.6 = 0 & byte3.4 = 1 (0x10)
note : power on : byte3.6 = 1 & byte3.4 = 1 (0x50)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
Set Preset XX	0xA0	0~7	0x00	0x03	0x00	Preset #	0xEF	1~7 XOR
Clear Preset XX	0xA0	0~7	0x00	0x05	0x00	Preset #	0xEF	1~7 XOR
Go To Preset XX	0xA0	0~7	0x00	0x07	0x00	Preset #	0xEF	1~7 XOR
Track ON	0xA0	0~7	0x00	0x65	0x00	0x00	0xEF	1~7 XOR
Track OFF	0xA0	0~7	0x00	0x67	0x00	0x00	0xEF	1~7 XOR

note : Preset # : 0x01 ~ 0xFF

CGI Command

CGI List for Video Transmission
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280x720 jpg
Get 4K JPEG	/cgi-bin?OnePush=n				Step 1: requestet 4k snapshot
	/snapshot?res=4k				Step 2: get 3840x2160 jpg
Set RTSP URL	/cgi-bin?SetString=	sys_rtsp stm1_url,rtspurl			Set RTSP URL to rtsp_url
Get RTSP URL	/cgi-bin?GetString=	sys_rtsp stm1_url			Reply RTSP URL example:sys_rtsp stm1_url="live_st1"
Get RTSP stream	rtsp://ip/rtsp_url				Default RTSP url: live_st1rtsp://ip/live_st1

CGI List for Camera Control
CGI item name	URL	Command	Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1
up end	/cgi-bin?SetPtzf=	1,0,2
down start	/cgi-bin?SetPtzf=	1,1,1
down end	/cgi-bin?SetPtzf=	1,1,2
left start	/cgi-bin?SetPtzf=	0,1,1
left end	/cgi-bin?SetPtzf=	0,1,2
right start	/cgi-bin?SetPtzf=	0,0,1
right end	/cgi-bin?SetPtzf=	0,0,2
zoom_in start	/cgi-bin?SetPtzf=	2,0,1
zoom_in end	/cgi-bin?SetPtzf=	2,0,2
zoom_out start	/cgi-bin?SetPtzf=	2,1,1
zoom_out end	/cgi-bin?SetPtzf=	2,1,2
set preset:	/cgi-bin?ActPreset=	1,N			N : position
load preset:	/cgi-bin?ActPreset=	0,N			N : position

CGI List for Various Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
exposure value	/cgi-bin?Set=	img_expo_expo,3,N	value	1 ~ 9	N : value
saturation	/cgi-bin?Set=	img_saturation,3,N	value	0 ~ 10	N : value
contrast	/cgi-bin?Set=	img Contrast,3,N	value	0 ~ 4	N : value
Tracking on:	/cgi-bin?Set=	trk_tracking_on,3,1
Tracking off:	/cgi-bin?Set=	trk_tracking_on,3,0
Reboot	GET(BasicAuthentication)	/cgi-bin?OnePush=!
Factory Reset	GET(BasicAuthentication)	/cgi-bin?OnePush=d
RTMP Startstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,1
RTMP Stopstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,0
Status get (Model name & mac & FW_VER)	/cgi-bin?GetString=	sys_name&net_MAC&sys_fw_version		http://10.100.105.110/cgi-bin?ToString=sys_name&net_MAC&sys_fw_vversion
Serial No. get	/cgi-bin?GetSerialNumber			http://10.100.105.110/cgi-bin?GetSerialNumber
oneclick	/cgi-bin?Set=	ptz_oneclick_x,3,N1&ptz_oneclick_y,3,N2&ptz_one.click_spd,3,N3		ptz_one.click_spd 1~24	N1, N2 = X, Y coordinates(1080P, 0,0 at top left)N3=moving speed
IR Cut Filter	/cgi-bin?Set=	img_ircut_filter,3,N		0 ~ 2	0 = Day, 1 = Night, 2 = Auto
IR Cut Filter Sensitivity	/cgi-bin?Set=	img_ircut_sensitivity,3,N		0 ~ 2	0 = Low, 1 = Middle, 2 = High

CGI List for Video Stream
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Video Stream Resolution	/cgi-bin?Set=	vdo_net stm_res,3,N	value	1 ~ 6	1 = 1920x1080;2 = 1280x720;3 = 960x540;4 = 640x480;5 = 640x360;6 = 3840x2160
Video Stream Framerate	/cgi-bin?Set=	vdo_net stm_fr,3,N	value	1 / 5 / 15 / 20 / 30 / 60	frames per second
Video Stream Bitrate	/cgi-bin?Set=	vdo_net stm_bitrate,3,N	value	0 ~ 8	0 = 512 Kbps;1 = 1 Mbps;2 = 2 Mbps;
					3 = 4 Mbps;4 = 8 Mbps;5 = 16 Mbps;6 = 32 Mbps;7 = 64 Mbps;8 = Auto;
Video StreamI-VOP Interval (S)	/cgi-bin?Set=	vdo_net stm_intvl,3,N	value	1 ~ 10	I-VOP Intervalin seconds
Video Stream RateControl	/cgi-bin?Set=	vdo_net stm_ratectrl,3,N	value	0 / 1	0: CBR;1: VBR
Video StreamEncoding Type	/cgi-bin?Set=	vdo_net stm_Codec,3,N	value	1 ~ 2	1: H.264;2: H.265
Mosaic on StreamOn/Off(Mosaic onStream, EyesTracking andAI Video Detectionare mutuallyexclusive.)	/cgi-bin?Set=	vdo_net stm_mosaic,3,N	value	0 / 1	0: OFF; 1: ON

CGI List for Audio
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Audio In Volume	/cgi-bin?Set=	ado_vol,3,N		0 ~10	0 ~ 10 volume

CGI List for AI Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Eyes Tracking On/Off(Mosaic onStream, EyesTracking and AI Video Detection aremutuallyexclusive.)	/cgi-bin?Set=	trk_tracking_on,3,N	value	0 / 1	0: OFF; 1: ON
Tracking Preset	/cgi-bin?ActPrreset=1,255				Save current pos. for eye tracking preset point.
Timeout to preset	/cgi-bin?Set=	trk_lost_time,3, N	value	3 / 5 / 7 / 10	timeout in seconds
Tracking Site	/cgi-bin?Set=	trk_mode,3,N	value	0 / 1	0: Full face; 1: Eyes
Tracking Range	/cgi-bin?Set=	trk_sensitivity,3,N	value	0 ~ 2	0: Close; 1: Medium; 2:
					Wide
Eyes Tracking On/Off Get	/cgi-bin?Get=trk_tracking_on
	- Reply	On trk_tracking_on=1 Off trk_tracking_on=0
Get detect zone(target frame) number	/cgi-bin?Get=trkdetect_num
	- Reply	trkdetect_num=X	X: number of target frames, 50 max.
Get detect zone(target frame) info	/cgi-bin?GetGr oup=trkdetect Zones
	- Reply	trkdetect Zones="trk_num:02:focus:-1-zone[00]:76 0,09,222,300,zone[01]:66 0,540,16,22."	focus - current target frame index. zone[NN]: x,y,w,h - 1080P based	(0,0) at top left of video. X,Y,W(width),H (height) is based on the top left of the target frame. "focus:" is followed by the current tracking target frame index. Example: "-1" indicates no target is being tracked. If 3 targets are being detected, "focus:" should be followed by either 0,1,or 2.
AI Video Detection On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually	/cgi-bin?Set=	vdo_DET alarm,3,N	value	0 / 1	0: OFF; 1: ON
exclusive.)
Fall Detection View	/cgi-bin?Set=	vdo_DET_fall_down_preset ,3,N	value	0 ~ 255	Fall Detection View preset point
Fall Detection Sensitivity	/cgi-bin?Set=	vdo_DET_fall_down_sensiti vity,3,N	value	0 ~ 2	0: Low; 1: Medium; 2:High
Select Tracking Target	/cgi-bin?SetStr i n g=	TrackingFocusZone,x,y,w,h		x, y: coordinates, w: width, h: height, (0,0 at top left)	Based on the result of trkdetectzones, select tracking target. ex: x=343, y=373, w=213, h=310 /cgi-bin?SetString=TrackingFocusZone,343,373,213, 310

MD120UI 摄影機

一 使用手册 一

如何清潔和消毒

https://www.aver.com/download-center

常見問題、技術支援，請到下面網址：

https://www.aver.com/technical-support

連絡資訊

圆展科技股份有限公司

https://www.aver.com

Name	Value1	Value2	Description
VISCA command	0x01	0x00	Stores the VISCA command.
VISCA inquiry	0x01	0x10	Stores the VISCA inquiry.
VISCA reply	0x01	0x11	Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command
VISCA device setting command	0x01	0x20	Stores the VISCA device setting command.
Control command	0x02	0x00	Stores the control command
Control reply	0x02	0x01	Stores the reply for the control command.

Sequence number

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8 ~ ~ ~byte 23
func	Payload type		Payload Length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16(0x0001~0x0010)		0x00000000 ~ 0xFFFFFFF				VISCA Packet (see page VISCA)
CMD:Power Off	0x01	0x00	0x00	0x06	0x00	0x00	0x00	0x01	81 01 04 00 03 FF
reply ACK	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 41 FF
replyCOMPLETE	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 51 FF

INQ: Power	0x01	0x10	0x00	0x05	0x00	0x00	0x00	0x02	81 09 04 00 FF
INQ reply	0x01	0x11	0x00	0x04	0x00	0x00	0x00	0x02	90 50 03 FF

VISCA 变焦倍率表

Zoom position and zoom ratio (MD120UI)
Parameter	Zoom ratio
00F0	x1
1C60	x2
2938	x3
3130	x4
36D8	x5
3B50	x6
3EC8	x7
41A8	x8
4430	x9
4660	x10
4828	x11
49F0	x12
4B80	x13
4CF0	x14
4E48	x15
4F78	x16
5090	x17
51A0	x18
5290	x19
5370	x20

Pelco-D 指令

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func	SYNC	ADDR	cmd 1	cmd 2	data1	data2	checksum
data	0xFF	1~8	cmd 1	cmd 2	Pan speed	Tilt speed	2~6 SUM

note : speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
SENSE ON	NA	NA	NA	CAM ON/OFF	NA	NA	NA

note : power off : byte3.7 = 0 & byte3.3 = 1 (0x08)
note : power on : byte3.7 = 1 & byte3.3 = 1 (0x88)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

		byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func		SYNC	ADDR	data1	data2	data3	data4	checksum
Set Preset XX		0xFF	1~8	0x00	0x03	0x00	Preset #	2~6 SUM
Clear Preset XX		0xFF	1~8	0x00	0x05	0x00	Preset #	2~6 SUM
Go To Preset XX		0xFF	1~8	0x00	0x07	0x00	Preset #	2~6 SUM
Track ON		0xFF	1~8	0x00	0x65	0x00	0x00	2~6 SUM
Track OFF		0xFF	1~8	0x00	0x67	0x00	0x00	2~6 SUM

note : Preset # : 0x01 ~ 0xFF

Pelco-P指令

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
data	0xA0	0~7F	cmd 1	cmd 2	Pan speed	Tilt speed	0xEF	1~7 XOR

note: speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	CAM ON	NA	CAM ON/OFF	NA	NA	NA	NA

note : power off : byte3.6 = 0 & byte3.4 = 1 (0x10)
note : power on : byte3.6 = 1 & byte3.4 = 1 (0x50)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
Set Preset XX	0xA0	0~7	0x00	0x03	0x00	Preset #	0xEF	1~7 XOR
Clear Preset XX	0xA0	0~7	0x00	0x05	0x00	Preset #	0xEF	1~7 XOR
Go To Preset XX	0xA0	0~7	0x00	0x07	0x00	Preset #	0xEF	1~7 XOR
Track ON	0xA0	0~7	0x00	0x65	0x00	0x00	0xEF	1~7 XOR
Track OFF	0xA0	0~7	0x00	0x67	0x00	0x00	0xEF	1~7 XOR

note : Preset # : 0x01 ~ 0xFF

CGI List for Video Transmission
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280x720 jpg
Get 4K JPEG	/cgi-bin?OnePush=n				Step 1: request 4k snapshot
	/snapshot?res=4k				Step 2: get 3840x2160 jpg
Set RTSP URL	/cgi-bin?String =	sys_rtsp stm1_url,rtsp_url			Set RTSP URL to rtsp_url
Get RTSP URL	/cgi-bin?String =	sys_rtsp stm1_url			Reply RTSP URL example: sys_rtsp stm1_url="live_st1"
Get RTSP stream	rtsp://ip/rtsp_url				Default RTSP url: live_st1rtsp://ip/live_st1

CGI List for Camera Control
CGI item name	URL	Command	Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1
up end	/cgi-bin?SetPtzf=	1,0,2
down start	/cgi-bin?SetPtzf=	1,1,1
down end	/cgi-bin?SetPtzf=	1,1,2
left start	/cgi-bin?SetPtzf=	0,1,1
left end	/cgi-bin?SetPtzf=	0,1,2
right start	/cgi-bin?SetPtzf=	0,0,1
right end	/cgi-bin?SetPtzf=	0,0,2
zoom_in start	/cgi-bin?SetPtzf=	2,0,1
zoom_in end	/cgi-bin?SetPtzf=	2,0,2
zoom_out start	/cgi-bin?SetPtzf=	2,1,1
zoom_out end	/cgi-bin?SetPtzf=	2,1,2
set preset:	/cgi-bin?ActPreset=	1,N			N : position
load preset:	/cgi-bin?ActPreset=	0,N			N : position

CGI List for Various Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
exposure value	/cgi-bin?Set=	img_expo_expo,3,N	value	1 ~ 9	N : value
saturation	/cgi-bin?Set=	img_saturation,3,N	value	0 ~ 10	N : value
contrast	/cgi-bin?Set=	img Contrast,3,N	value	0 ~ 4	N : value
Tracking on:	/cgi-bin?Set=	trk_tracking_on,3,1
Tracking off:	/cgi-bin?Set=	trk_tracking_on,3,0
Reboot	GET(BasicAuthentication)	/cgi-bin?OnePush=!
Factory Reset	GET(BasicAuthentication)	/cgi-bin?OnePush=d
RTMP Startstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,1
RTMP Stopstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,0
Status get (Model name & mac & FW_VER)	/cgi-bin?GetString=	sys_name&net_MAC&sys_fw_version		http://10.100.105.110/cgi-bin?GetString=sys_name&net_MAC&sys_fw_vversion
Serial No. get	/cgi-bin?GetSerialNumber			http://10.100.105.110/cgi-bin?GetSerialNumber
oneclick	/cgi-bin?Set=	ptz_oneclick_x,3,N1&ptz_oneclick_y,3,N2&ptz_one.click_spd,3,N3		ptz_one.click_spd 1~24	N1, N2 = X, Y coordinates(1080P, 0,0 at top left)N3=moving speed
IR Cut Filter	/cgi-bin?Set=	img_ircut_filter,3,N		0 ~ 2	0 = Day, 1 = Night, 2 = Auto
IR Cut Filter Sensitivity	/cgi-bin?Set=	img_ircut_sensitivity,3,N		0 ~ 2	0 = Low, 1 = Middle, 2 = High

CGI List for Video Stream
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Video Stream Resolution	/cgi-bin?Set=	vdo_net stm_res,3,N	value	1 ~ 6	1 = 1920x1080;2 = 1280x720;3 = 960x540;4 = 640x480;5 = 640x360;6 = 3840x2160
Video Stream Framerate	/cgi-bin?Set=	vdo_net stm_fr,3,N	value	1 / 5 / 15 / 20 / 30 / 60	frames per second
Video Stream Bitrate	/cgi-bin?Set=	vdo_net stm_bitrate,3,N	value	0 ~ 8	0 = 512 Kbps;1 = 1 Mbps;
					2 = 2 Mbps;3 = 4 Mbps;4 = 8 Mbps;5 = 16 Mbps;6 = 32 Mbps;7 = 64 Mbps;8 = Auto;
Video StreamI-VOP Interval (S)	/cgi-bin?Set=	vdo_net stm_intvl,3,N	value	1 ~ 10	I-VOP Intervalin seconds
Video Stream RateControl	/cgi-bin?Set=	vdo_net stm_ratectrl,3,N	value	0 / 1	0: CBR;1: VBR
Video StreamEncoding Type	/cgi-bin?Set=	vdo_net stm_codec,3,N	value	1 ~ 2	1: H.264;2: H.265
Mosaic on StreamOn/Off(Mosaic onStream, EyesTracking andAI Video Detectionare mutuallyexclusive.)	/cgi-bin?Set=	vdo_net stm_mosaic,3,N	value	0 / 1	0: OFF; 1: ON

CGI List for Audio
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Audio In Volume	/cgi-bin?Set=	ado_vol,3,N		0 ~10	0 ~ 10 volume

CGI List for AI Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Eyes Tracking On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually exclusive.)	/cgi-bin?Set=	trk_tracking_on,3,N	value	0 / 1	0: OFF; 1: ON
Tracking Preset	/cgi-bin?ActPr eset=1,255				Save current pos. for eye tracking preset point.
Timeout to preset	/cgi-bin?Set=	trk_lost_time,3, N	value	3 / 5 / 7 / 10	timeout in seconds
Tracking Site	/cgi-bin?Set=	trk_mode,3,N	value	0 / 1	0: Full face; 1: Eyes
Tracking Range	/cgi-bin?Set=	trk_sensitivity,3,N	value	0 ~ 2	0: Close; 1: Medium; 2: Wide
Eyes Tracking On/Off Get	/cgi-bin?Get=trk_tracking_on
	- Reply	On trk_tracking_on=1 Off trk_tracking_on=0
Get detect zone(target frame) number	/cgi-bin?Get=trkdetect_num
	- Reply	trkdetect_num=X	X: number of target frames, 50 max.
Get detect zone(target frame) info	/cgi-bin?GetGr oup=trkdetect Zones
	- Reply	trkdetect Zones="trk_num:02:focus:-1-zone[00]:76 0,09,222,300-zone[01]:66 0,540,16,22."	focus - current target frame index. zone[NN]: x,y,w,h - 1080P based	(0,0) at top left of video. X,Y,W(width),H (height) is based on the top left of the target frame. "focus:" is followed by the current tracking target frame index. Example: "-1" indicates no target is being tracked. If 3 targets are being detected, "focus:" should be followed by either 0, 1, or 2.
AI Video Detection On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are	/cgi-bin?Set=	vdo_DET_alarm,3,N	value	0 / 1	0: OFF; 1: ON
mutually exclusive.)
Fall Detection View	/cgi-bin?Set=	vdo_DET_fall_down_preset,3,N	value	0 ~ 255	Fall Detection View preset point
Fall Detection Sensitivity	/cgi-bin?Set=	vdo_DET_fall_downSENSITY,3,N	value	0 ~ 2	0: Low; 1: Medium; 2:High
Select Tracking Target	/cgi-bin?SetStr ing=	TrackingFocusZone,x,y,w,h		x, y: coordinates, w: width, h: height, (0,0 at top left)	Based on the result of trkdetect Zones, select tracking target. ex: x=343, y=373, w=213, h=310 /cgi-bin?SetString=TrackingFocusZone,343,373,213, 310

MD120UI 追尾力メラ

一 一

清掃と消毒の方法

警告 個人のけがの危険性のはんだ	フローを含む清掃剤は、十分にすなない场合に皮膚のやけを引か起ごす可能性のはんだたて使用くださいますようお願いいたします。
注意事項	1. 力ムは、簡單に清掃と消毒�能するよう設計いたします。 2. 力ムを清掃する前に、電源を切断して付けます。 3. 清掃作業は、力ム操作に精通した人員のみが行うようお願いいたします。 4. 内部の電気機器や力ムの部品に、清掃液、特別水を吹き付けないようお願いいたします。二歳以下、短絡、腐食、故障、EUーダーやサイバー担当者に電気シャックの危険が生じる可能性,NoisyPleasepleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePlease PleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePlease请勿使用後に、現状態はリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフローはリフ臼はリフローはリフローはリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ発はリフ臼はリフ発はリフ臼はリフ発はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ臼はリフ圏はリフ臼はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圏はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圞はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圲はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圳はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圧はリフ圬はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圬はリフ圧はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圭はリフ圬はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圭はリフ圬はリフ圭はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圫はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圬はリフ圛はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圦はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圫はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ在はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圪はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圩はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圇はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圡はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圧はリフ圹はリフ圧はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圩はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圉はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圳はリフ圹はリフ圳はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圩はリフ圹はリフ圩はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圩はリフ圹はリフ圩はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圹はリフ圩はリフ圹はリフ圹はリフ圩はリフ圹はリフ圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリIF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリ F圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリF圹はリ(F圹はリF圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(F圹はリ(5. 用前の状態を分析し、分析結果を提供。
いつ	使用前と使用後の状態を清潔に不限ります。
手順	1. 力ムを電源から切断して付けます。 2. 清掃作業員は、清掃用手袋を着用する必要,NoisyPleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePlease請勿使用後に、現状態を通過技術上ご任任何方式使用。
頻度	定期の清掃は必要,NoisyPleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePleasePlease请勿使用后に、現状態を通過技術上ご任任何方式使用。

製品印字の記号

ルフSenた一:https://jp.aver.com/technical-support

お問い合わせ先

アバーニングフロメーニン株式会社

HP: https://jp.aver.com

(https://www.aver.com/Downloads/search?q=AVer%20Camera%20Setting%20Tool).

Name	Value1	Value2	Description
VISCA command	0x01	0x00	Stores the VISCA command.
VISCA inquiry	0x01	0x10	Stores the VISCA inquiry.
VISCA reply	0x01	0x11	Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command
VISCA device setting command	0x01	0x20	Stores the VISCA device setting command.
Control command	0x02	0x00	Stores the control command
Control reply	0x02	0x01	Stores the reply for the control command.

Sequence number

Sequence number =

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8 ~ ~ ~byte 23
func	Payload type		Payload Length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16(0x0001~0x0010)		0x00000000 ~ 0xFFFFFFF				VISCA Packet (see page VISCA)
CMD:Power Off	0x01	0x00	0x00	0x06	0x00	0x00	0x00	0x01	81 01 04 00 03 FF
reply ACK	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 41 FF
replyCOMPLETE	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 51 FF

INQ: Power	0x01	0x10	0x00	0x05	0x00	0x00	0x00	0x02	81 09 04 00 FF
INQ reply	0x01	0x11	0x00	0x04	0x00	0x00	0x00	0x02	90 50 03 FF

VISCA ZEUMテープル

Zoom position and zoom ratio (MD120UI)
Parameter	Zoom ratio
00F0	x1
1C60	x2
2938	x3
3130	x4
36D8	x5
3B50	x6
3EC8	x7
41A8	x8
4430	x9
4660	x10
4828	x11
49F0	x12
4B80	x13
4CF0	x14
4E48	x15
4F78	x16
5090	x17
51A0	x18
5290	x19
5370	x20

Pelco-D ヨマンド

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func	SYNC	ADDR	cmd 1	cmd 2	data1	data2	checksum
data	0xFF	1~8	cmd 1	cmd 2	Pan speed	Tilt speed	2~6 SUM

note : speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
SENSE ON	NA	NA	NA	CAM ON/OFF	NA	NA	NA

note : power off : byte3.7 = 0 & byte3.3 = 1 (0x08)
note : power on : byte3.7 = 1 & byte3.3 = 1 (0x88)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

		byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func		SYNC	ADDR	data1	data2	data3	data4	checksum
Set Preset XX		0xFF	1~8	0x00	0x03	0x00	Preset #	2~6 SUM
Clear Preset XX		0xFF	1~8	0x00	0x05	0x00	Preset #	2~6 SUM
Go To Preset XX		0xFF	1~8	0x00	0x07	0x00	Preset #	2~6 SUM
Track ON		0xFF	1~8	0x00	0x65	0x00	0x00	2~6 SUM
Track OFF		0xFF	1~8	0x00	0x67	0x00	0x00	2~6 SUM

note : Preset # : 0x01 ~ 0xFF

Pelco-P ヨマンド

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
data	0xA0	0~7F	cmd 1	cmd 2	Pan speed	Tilt speed	0xEF	1~7 XOR

note: speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	CAM ON	NA	CAM ON/OFF	NA	NA	NA	NA

note : power off : byte3.6 = 0 & byte3.4 = 1 (0x10)
note : power on : byte3.6 = 1 & byte3.4 = 1 (0x50)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
Set Preset XX	0xA0	0~7	0x00	0x03	0x00	Preset #	0xEF	1~7 XOR
Clear Preset XX	0xA0	0~7	0x00	0x05	0x00	Preset #	0xEF	1~7 XOR
Go To Preset XX	0xA0	0~7	0x00	0x07	0x00	Preset #	0xEF	1~7 XOR
Track ON	0xA0	0~7	0x00	0x65	0x00	0x00	0xEF	1~7 XOR
Track OFF	0xA0	0~7	0x00	0x67	0x00	0x00	0xEF	1~7 XOR

note : Preset # : 0x01 ~ 0xFF

CGI List for Video Transmission
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280x720 jpg
Get 4K JPEG	/cgi-bin?OnePush=n				Step 1: requestet 4k snapshot
	/snapshot?res=4k				Step 2: get 3840x2160 jpg
Set RTSP URL	/cgi-bin?SetString=	sys_rtsp stm1_url,rtsp_url			Set RTSP URL to rtsp_url
Get RTSP URL	/cgi-bin?String=	sys_rtsp stm1_url			Reply RTSP URL example: sys_rtsp stm1_url="live_st1"
Get RTSP stream	rtsp://ip/rtsp_url				Default RTSP url: live_st1rtsp://ip/live_st1

CGI List for Camera Control
CGI item name	URL	Command	Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1
up end	/cgi-bin?SetPtzf=	1,0,2
down start	/cgi-bin?SetPtzf=	1,1,1
down end	/cgi-bin?SetPtzf=	1,1,2
left start	/cgi-bin?SetPtzf=	0,1,1
left end	/cgi-bin?SetPtzf=	0,1,2
right start	/cgi-bin?SetPtzf=	0,0,1
right end	/cgi-bin?SetPtzf=	0,0,2
zoom_in start	/cgi-bin?SetPtzf=	2,0,1
zoom_in end	/cgi-bin?SetPtzf=	2,0,2
zoom_out start	/cgi-bin?SetPtzf=	2,1,1
zoom_out end	/cgi-bin?SetPtzf=	2,1,2
set preset:	/cgi-bin?ActPreset=	1,N			N : position
load preset:	/cgi-bin?ActPreset=	0,N			N : position

CGI List for Various Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
exposure value	/cgi-bin?Set=	img_expo_expo,3,N	value	1 ~ 9	N : value
saturation	/cgi-bin?Set=	img_saturation,3,N	value	0 ~ 10	N : value
contrast	/cgi-bin?Set=	img Contrast,3,N	value	0 ~ 4	N : value
Tracking on:	/cgi-bin?Set=	trk_tracking_on,3,1
Tracking off:	/cgi-bin?Set=	trk_tracking_on,3,0
Reboot	GET(BasicAuthentication)	/cgi-bin?OnePush=!
Factory Reset	GET(BasicAuthentication)	/cgi-bin?OnePush=d
RTMP Start streaming	/cgi-bin?Set=	vdo_rtmp_enable,3,1
RTMP Stop streaming	/cgi-bin?Set=	vdo_rtmp_enable,3,0
Status get (Model name & mac & FW_VER)	/cgi-bin?GetString =	sys_name&net_MAC&sys_fw_version		http://10.100.105.110/cgi-bin ?QueryString=sy s_name&net_ mac&sys_fw_v ersion
Serial No. get	/cgi-bin?GetSerial Number			http://10.100.105.110/cgi-bin ?GetSerialNumber
oneclick	/cgi-bin?Set=	ptz_oneclick_x,3,N1&ptz_oneclick_y,3,N2&ptz_one.click_sp d,3,N3		ptz_one.click_spd 1~24	N1, N2 = X, Y coordinates (1080P, 0,0 at top left) N3=moving speed
IR Cut Filter	/cgi-bin?Set=	img_ircut_filter,3,N		0 ~ 2	0 = Day, 1 = Night, 2 = Auto
IR Cut Filter Sensitivity	/cgi-bin?Set=	img_ircut_sensitivity,3,N		0 ~ 2	0 = Low, 1 = Middle, 2 = High

CGI List for Video Stream
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Video Stream Resolution	/cgi-bin?Set=	vdo_net stm_res,3,N	value	1 ~ 6	1 = 1920x1080;2 = 1280x720;3 = 960x540;4 = 640x480;5 = 640x360;6 = 3840x2160
Video Stream Framerate	/cgi-bin?Set=	vdo_net stm_fr,3,N	value	1 / 5 / 15 / 20 / 30 / 60	frames per second
Video Stream Bitrate	/cgi-bin?Set=	vdo_net stm_bitrate,3,N	value	0 ~ 8	0 = 512 Kbps;1 = 1 Mbps;2 = 2 Mbps;
					3 = 4 Mbps;4 = 8 Mbps;5 = 16 Mbps;6 = 32 Mbps;7 = 64 Mbps;8 = Auto;
Video StreamI-VOP Interval (S)	/cgi-bin?Set=	vdo_net stm_intvl,3,N	value	1 ~ 10	I-VOP Intervalin seconds
Video Stream RateControl	/cgi-bin?Set=	vdo_net stm_ratectrl,3,N	value	0 / 1	0: CBR;1: VBR
Video StreamEncoding Type	/cgi-bin?Set=	vdo_net stm_codec,3,N	value	1 ~ 2	1: H.264;2: H.265
Mosaic on StreamOn/Off(Mosaic onStream, EyesTracking andAI Video Detectionare mutuallyexclusive.)	/cgi-bin?Set=	vdo_net stm_mosaic,3,N	value	0 / 1	0: OFF; 1: ON

CGI List for Audio
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Audio In Volume	/cgi-bin?Set=	ado_vol,3,N		0 ~10	0 ~ 10 volume

CGI List for AI Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Eyes Tracking On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually exclusive.)	/cgi-bin?Set=	trk_tracking_on,3,N	value	0 / 1	0: OFF; 1: ON
Tracking Preset	/cgi-bin?ActPr eset=1,255				Save current pos. for eye tracking preset point.
Timeout to preset	/cgi-bin?Set=	trk_last_time,3, N	value	3 / 5 / 7 / 10	timeout in seconds
Tracking Site	/cgi-bin?Set=	trk_mode,3,N	value	0 / 1	0: Full face; 1: Eyes
Tracking Range	/cgi-bin?Set=	trk_sensitivity,3,N	value	0 ~ 2	0: Close; 1: Medium; 2:
					Wide
Eyes Tracking On/Off Get	/cgi-bin?Get=trk_tracking_on
	- Reply	On trk_tracking_on=1 Off trk_tracking_on=0
Get detect zone(target frame) number	/cgi-bin?Get=trkdetect_num
	- Reply	trkdetect_num=X	X: number of target frames, 50 max.
Get detect zone(target frame) info	/cgi-bin?GetGr oup=trkdetect Zones
	- Reply	trkdetect Zones="trk_num:02:focus:-1zone[00]:76 0,09,222,300zone[01]:66 0,540,16,22."	focus - current target frame index. zone[NN]: x,y,w,h - 1080P based	(0,0) at top left of video. X,Y,W(width),H (height) is based on the top left of the target frame. "focus:" is followed by the current tracking target frame index. Example: "-1" indicates no target is being tracked. If 3 targets are being detected, "focus:" should be followed by either 0, 1, or 2.
AI Video Detection On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually	/cgi-bin?Set=	vdo_DET_alarm,3,N	value	0 / 1	0: OFF; 1: ON
exclusive.)
Fall Detection View	/cgi-bin?Set=	vdo_DET_fall_down_preset ,3,N	value	0 ~ 255	Fall Detection View preset point
Fall Detection Sensitivity	/cgi-bin?Set=	vdo_DET_fall_downSENSITIy,3,N	value	0 ~ 2	0: Low; 1: Medium; 2:High
Select Tracking Target	/cgi-bin?SetStr i ng=	TrackingFocusZone,x,y,w,h		x, y: coordinates, w: width, h: height, (0,0 at top left)	Based on the result of trkdetectzones, select tracking target. ex: x=343, y=373, w=213, h=310 /cgi-bin?SetString=TrackingFocusZone,343,373,213, 310

MD120UI Tracking-Kamera

Bedienungsanleitung

Download Center: https://www.aveurope.com/download-center

Technischer Support: https://www.aveurope.com/technical-support

Name	Value1	Value2	Description
VISCA command	0x01	0x00	Stores the VISCA command.
VISCA inquiry	0x01	0x10	Stores the VISCA inquiry.
VISCA reply	0x01	0x11	Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command
VISCA device setting command	0x01	0x20	Stores the VISCA device setting command.
Control command	0x02	0x00	Stores the control command
Control reply	0x02	0x01	Stores the reply for the control command.

Sequence number

Sequence number = N

Example

Address locked to "X = 1" for VISCA over IP

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8 ~ ~ ~byte 23
func	Payload type		Payload Length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16(0x0001~0x0010)		0x00000000 ~ 0xFFFFFFF				VISCA Packet (see page VISCA)
CMD:Power Off	0x01	0x00	0x00	0x06	0x00	0x00	0x00	0x01	81 01 04 00 03 FF
reply ACK	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 41 FF
replyCOMPLETE	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 51 FF

INQ: Power	0x01	0x10	0x00	0x05	0x00	0x00	0x00	0x02	81 09 04 00 FF
INQ reply	0x01	0x11	0x00	0x04	0x00	0x00	0x00	0x02	90 50 03 FF

VISCA-Zoom-Tabelle

Zoom position and zoom ratio (MD120UI)
Parameter	Zoom ratio
00F0	x1
1C60	x2
2938	x3
3130	x4
36D8	x5
3B50	x6
3EC8	x7
41A8	x8
4430	x9
4660	x10
4828	x11
49F0	x12
4B80	x13
4CF0	x14
4E48	x15
4F78	x16
5090	x17
51A0	x18
5290	x19
5370	x20

Pelco-D-Befehl

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func	SYNC	ADDR	cmd 1	cmd 2	data1	data2	checksum
data	0xFF	1~8	cmd 1	cmd 2	Pan speed	Tilt speed	2~6 SUM

note : speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
SENSE ON	NA	NA	NA	CAM ON/OFF	NA	NA	NA

note : power off : byte3.7 = 0 & byte3.3 = 1 (0x08)
note : power on : byte3.7 = 1 & byte3.3 = 1 (0x88)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

		byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func		SYNC	ADDR	data1	data2	data3	data4	checksum
Set Preset XX		0xFF	1~8	0x00	0x03	0x00	Preset #	2~6 SUM
Clear Preset XX		0xFF	1~8	0x00	0x05	0x00	Preset #	2~6 SUM
Go To Preset XX		0xFF	1~8	0x00	0x07	0x00	Preset #	2~6 SUM
Track ON		0xFF	1~8	0x00	0x65	0x00	0x00	2~6 SUM
Track OFF		0xFF	1~8	0x00	0x67	0x00	0x00	2~6 SUM

note : Preset # : 0x01 ~ 0xFF

Pelco-P-Befehl

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
data	0xA0	0~7F	cmd 1	cmd 2	Pan speed	Tilt speed	0xEF	1~7 XOR

note: speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	CAM ON	NA	CAM ON/OFF	NA	NA	NA	NA

note : power off : byte3.6 = 0 & byte3.4 = 1 (0x10)
note : power on : byte3.6 = 1 & byte3.4 = 1 (0x50)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
Set Preset XX	0xA0	0~7	0x00	0x03	0x00	Preset #	0xEF	1~7 XOR
Clear Preset XX	0xA0	0~7	0x00	0x05	0x00	Preset #	0xEF	1~7 XOR
Go To Preset XX	0xA0	0~7	0x00	0x07	0x00	Preset #	0xEF	1~7 XOR
Track ON	0xA0	0~7	0x00	0x65	0x00	0x00	0xEF	1~7 XOR
Track OFF	0xA0	0~7	0x00	0x67	0x00	0x00	0xEF	1~7 XOR

note : Preset # : 0x01 ~ 0xFF

CGI-Befehl

CGI List for Video Transmission
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280x720 jpg
Get 4K JPEG	/cgi-bin?OnePush=n				Step 1: requestet 4k snapshot
	/snapshot?res=4k				Step 2: get 3840x2160 jpg
Set RTSP URL	/cgi-bin?SetString=	sys_rtsp stm1_url,rtsp_url			Set RTSP URL to rtsp_url
Get RTSP URL	/cgi-bin?GetString=	sys_rtsp stm1_url			Reply RTSP URL example: sys_rtsp stm1_url="live_st1"
Get RTSP stream	rtsp://ip/rtsp_url				Default RTSP url: live_st1rtsp://ip/live_st1

CGI List for Camera Control
CGI item name	URL	Command	Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1
up end	/cgi-bin?SetPtzf=	1,0,2
down start	/cgi-bin?SetPtzf=	1,1,1
down end	/cgi-bin?SetPtzf=	1,1,2
left start	/cgi-bin?SetPtzf=	0,1,1
left end	/cgi-bin?SetPtzf=	0,1,2
right start	/cgi-bin?SetPtzf=	0,0,1
right end	/cgi-bin?SetPtzf=	0,0,2
zoom_in start	/cgi-bin?SetPtzf=	2,0,1
zoom_in end	/cgi-bin?SetPtzf=	2,0,2
zoom_out start	/cgi-bin?SetPtzf=	2,1,1
zoom_out end	/cgi-bin?SetPtzf=	2,1,2
set preset:	/cgi-bin?ActPreset=	1,N			N : position
load preset:	/cgi-bin?ActPreset=	0,N			N : position

CGI List for Various Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
exposure value	/cgi-bin?Set=	img_expo_expo,3,N	value	1 ~ 9	N : value
saturation	/cgi-bin?Set=	img_saturation,3,N	value	0 ~ 10	N : value
contrast	/cgi-bin?Set=	img Contrast,3,N	value	0 ~ 4	N : value
Tracking on:	/cgi-bin?Set=	trk_tracking_on,3,1
Tracking off:	/cgi-bin?Set=	trk_tracking_on,3,0
Reboot	GET(BasicAuthentication)	/cgi-bin?OnePush=!
Factory Reset	GET(BasicAuthentication)	/cgi-bin?OnePush=d
RTMP Startstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,1
RTMP Stopstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,0
Status get (Model name & mac & FW_VER)	/cgi-bin?GetString=	sys_name&net_mac&sys_fw_version		http://10.100.105.110/cgi-bin?QueryString=sy s_name&net_ mac&sys_fw_v ersion
Serial No. get	/cgi-bin?GetSerial Number			http://10.100.105.110/cgi-bin?QueryString
oneclick	/cgi-bin?Set=	ptz_oneclick_x,3,N1&ptz_oneclick_y,3,N2&ptz_one.click_sp d,3,N3		ptz_oneclick_spd 1~24	N1, N2 = X, Y coordinates (1080P, 0,0 at top left) N3=moving speed
IR Cut Filter	/cgi-bin?Set=	img_ircut_filter,3,N		0 ~ 2	0 = Day, 1 = Night, 2 = Auto
IR Cut Filter Sensitivity	/cgi-bin?Set=	img_ircut_sensitivity,3,N		0 ~ 2	0 = Low, 1 = Middle, 2 = High

CGI List for Video Stream
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Video Stream Resolution	/cgi-bin?Set=	vdo_net stm_res,3,N	value	1 ~ 6	1 = 1920x1080;2 = 1280x720;3 = 960x540;4 = 640x480;5 = 640x360;6 = 3840x2160
Video Stream Framerate	/cgi-bin?Set=	vdo_net stm_fr,3,N	value	1 / 5 / 15 / 20 / 30 / 60	frames per second
Video Stream	/cgi-bin?Set=	vdo_net stm_bitrate,3,N	value	0 ~ 8	0 = 512 Kbps;
Bitrate					1 = 1 Mbps;2 = 2 Mbps;3 = 4 Mbps;4 = 8 Mbps;5 = 16 Mbps;6 = 32 Mbps;7 = 64 Mbps;8 = Auto;
Video StreamI-VOP Interval (S)	/cgi-bin?Set=	vdo_net stm_intvl,3,N	value	1 ~ 10	I-VOP Intervalin seconds
Video Stream RateControl	/cgi-bin?Set=	vdo_net stm_ratectrl,3,N	value	0 / 1	0: CBR;1: VBR
Video StreamEncoding Type	/cgi-bin?Set=	vdo_net stm_codec,3,N	value	1 ~ 2	1: H.264;2: H.265
Mosaic on StreamOn/Off(Mosaic onStream, EyesTracking andAI Video Detectionare mutuallyexclusive.)	/cgi-bin?Set=	vdo_net stm_mosaic,3,N	value	0 / 1	0: OFF; 1: ON

CGI List for Audio
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Audio In Volume	/cgi-bin?Set=	ado_vol,3,N		0 ~10	0 ~ 10 volume

CGI List for AI Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Eyes Tracking On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually exclusive.)	/cgi-bin?Set=	trk_tracking_on,3,N	value	0 / 1	0: OFF; 1: ON
Tracking Preset	/cgi-bin?ActPr eset=1,255				Save current pos. for eye tracking preset point.
Timeout to preset	/cgi-bin?Set=	trk_last_time,3,N	value	3 / 5 / 7 / 10	timeout in seconds
Tracking Site	/cgi-bin?Set=	trk_mode,3,N	value	0 / 1	0: Full face; 1: Eyes
Tracking Range	/cgi-bin?Set=	trk_sensitivity,3,N	value	0 ~ 2	0: Close; 1: Medium; 2: Wide
Eyes Tracking On/Off Get	/cgi-bin?Get=trk_tracking_on
	- Reply	On trk_tracking_on=1 Off trk_tracking_on=0
Get detect zone(target frame) number	/cgi-bin?Get=trkdetect_num
	- Reply	trkdetect_num=X	X: number of target frames, 50 max.
Get detect zone(target frame) info	/cgi-bin?GetGroup=trkdetect Zones
	- Reply	trkdetect Zones="trk_num:02:focus:-1zone[00]:760,09,222,300zone[01]:660,540,16,22."	focus - current target frame index. zone[NN]: x,y,w,h - 1080P based	(0,0) at top left of video. X,Y,W(width),H (height) is based on the top left of the target frame. "focus:" is followed by the current tracking target frame index. Example: "-1" indicates no target is being tracked. If 3 targets are being detected, "focus:" should be followed by either 0, 1, or 2.
AI Video Detection On/Off (Mosaic on Stream, Eyes)	/cgi-bin?Set=	vdo_DET_alarm,3,N	value	0 / 1	0: OFF; 1: ON
Tracking and AI Video Detection are mutually exclusive.)
Fall Detection View	/cgi-bin?Set=	vdo DET fall down preset ,3,N	value	0 ~ 255	Fall Detection View preset point
Fall Detection Sensitivity	/cgi-bin?Set=	vdo DET fall down sensiti vity,3,N	value	0 ~ 2	0: Low; 1: Medium; 2:High
Select Tracking Target	/cgi-bin?SetStr i n g=	TrackingFocusZone,x,y,w,h		x, y: coordinates, w: width, h: height, (0,0 at top left)	Based on the result of trkdetect Zones, select tracking target. ex: x=343, y=373, w=213, h=310 /cgi-bin?SetString=TrackingFocusZone,343,373,213, 310

Assistance Technique: https://www.aveereurope.com/technical-support

Exposition (Exposure)

Name	Value1	Value2	Description
VISCA command	0x01	0x00	Stores the VISCA command.
VISCA inquiry	0x01	0x10	Stores the VISCA inquiry.
VISCA reply	0x01	0x11	Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command
VISCA device setting command	0x01	0x20	Stores the VISCA device setting command.
Control command	0x02	0x00	Stores the control command
Control reply	0x02	0x01	Stores the reply for the control command.

Sequence number

Sequence number =

Example

Address locked to "X = 1" for VISCA over IP

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8 ~ ~ ~byte 23
func	Payload type		Payload Length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16(0x0001~0x0010)		0x00000000 ~ 0xFFFFFFF				VISCA Packet (see page VISCA)
CMD:Power Off	0x01	0x00	0x00	0x06	0x00	0x00	0x00	0x01	81 01 04 00 03 FF
reply ACK	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 41 FF
replyCOMPLETE	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 51 FF

INQ: Power	0x01	0x10	0x00	0x05	0x00	0x00	0x00	0x02	81 09 04 00 FF
INQ reply	0x01	0x11	0x00	0x04	0x00	0x00	0x00	0x02	90 50 03 FF

VISCA Zoom Table

Zoom position and zoom ratio (MD120UI)
Parameter	Zoom ratio
00F0	x1
1C60	x2
2938	x3
3130	x4
36D8	x5
3B50	x6
3EC8	x7
41A8	x8
4430	x9
4660	x10
4828	x11
49F0	x12
4B80	x13
4CF0	x14
4E48	x15
4F78	x16
5090	x17
51A0	x18
5290	x19
5370	x20

Pelco-D Command

PAN AND TILT COMMANDS

P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func	SYNC	ADDR	cmd 1	cmd 2	data1	data2	checksum
data	0xFF	1~8	cmd 1	cmd 2	Pan speed	Tilt speed	2~6 SUM

note : speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
SENSE ON	NA	NA	NA	CAM ON/OFF	NA	NA	NA

note : power off : byte3.7 = 0 & byte3.3 = 1 (0x08)
note : power on : byte3.7 = 1 & byte3.3 = 1 (0x88)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

		byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func		SYNC	ADDR	data1	data2	data3	data4	checksum
Set Preset XX		0xFF	1~8	0x00	0x03	0x00	Preset #	2~6 SUM
Clear Preset XX		0xFF	1~8	0x00	0x05	0x00	Preset #	2~6 SUM
Go To Preset XX		0xFF	1~8	0x00	0x07	0x00	Preset #	2~6 SUM
Track ON		0xFF	1~8	0x00	0x65	0x00	0x00	2~6 SUM
Track OFF		0xFF	1~8	0x00	0x67	0x00	0x00	2~6 SUM

note : Preset # : 0x01 ~ 0xFF

Pelco-P Command

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
data	0xA0	0~7F	cmd 1	cmd 2	Pan speed	Tilt speed	0xEF	1~7 XOR

note: speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	CAM ON	NA	CAM ON/OFF	NA	NA	NA	NA

note : power off : byte3.6 = 0 & byte3.4 = 1 (0x10)
note : power on : byte3.6 = 1 & byte3.4 = 1 (0x50)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
Set Preset XX	0xA0	0~7	0x00	0x03	0x00	Preset #	0xEF	1~7 XOR
Clear Preset XX	0xA0	0~7	0x00	0x05	0x00	Preset #	0xEF	1~7 XOR
Go To Preset XX	0xA0	0~7	0x00	0x07	0x00	Preset #	0xEF	1~7 XOR
Track ON	0xA0	0~7	0x00	0x65	0x00	0x00	0xEF	1~7 XOR
Track OFF	0xA0	0~7	0x00	0x67	0x00	0x00	0xEF	1~7 XOR

note : Preset # : 0x01 ~ 0xFF

Commande CGI

CGI List for Video Transmission
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280x720 jpg
Get 4K JPEG	/cgi-bin?OnePush=n				Step 1: requestet 4k snapshot
	/snapshot?res=4k				Step 2: get 3840x2160 jpg
Set RTSP URL	/cgi-bin?SetString=	sys_rtsp stm1_url,rtsp_url			Set RTSP URL to rtsp_url
Get RTSP URL	/cgi-bin?GetString=	sys_rtsp stm1_url			Reply RTSP URL example: sys_rtsp stm1_url="live_st1"
Get RTSP stream	rtsp://ip/rtsp_url				Default RTSP url: live_st1rtsp://ip/live_st1

CGI List for Camera Control
CGI item name	URL	Command	Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1
up end	/cgi-bin?SetPtzf=	1,0,2
down start	/cgi-bin?SetPtzf=	1,1,1
down end	/cgi-bin?SetPtzf=	1,1,2
left start	/cgi-bin?SetPtzf=	0,1,1
left end	/cgi-bin?SetPtzf=	0,1,2
right start	/cgi-bin?SetPtzf=	0,0,1
right end	/cgi-bin?SetPtzf=	0,0,2
zoom_in start	/cgi-bin?SetPtzf=	2,0,1
zoom_in end	/cgi-bin?SetPtzf=	2,0,2
zoom_out start	/cgi-bin?SetPtzf=	2,1,1
zoom_out end	/cgi-bin?SetPtzf=	2,1,2
set preset:	/cgi-bin?ActPreset=	1,N			N : position
load preset:	/cgi-bin?ActPreset=	0,N			N : position

CGI List for Various Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
exposure value	/cgi-bin?Set=	img_expo_expo,3,N	value	1 ~ 9	N : value
saturation	/cgi-bin?Set=	img_saturation,3,N	value	0 ~ 10	N : value
contrast	/cgi-bin?Set=	img Contrast,3,N	value	0 ~ 4	N : value
Tracking on:	/cgi-bin?Set=	trk_tracking_on,3,1
Tracking off:	/cgi-bin?Set=	trk_tracking_on,3,0
Reboot	GET(BasicAuthentication)	/cgi-bin?OnePush=!
Factory Reset	GET(BasicAuthentication)	/cgi-bin?OnePush=d
RTMP Start streaming	/cgi-bin?Set=	vdo_rtmp_enable,3,1
RTMP Stop streaming	/cgi-bin?Set=	vdo_rtmp_enable,3,0
Status get (Model name & mac & FW_VER)	/cgi-bin?GetString =	sys_name&net_MAC&sys_fw_version		http://10.100.105.110/cgi-bin ?QueryString=sy s_name&net_ mac&sys_fw_v ersion
Serial No. get	/cgi-bin?GetSerial Number			http://10.100.105.110/cgi-bin ?GetSerialNumber
oneclick	/cgi-bin?Set=	ptz_oneclick_x,3,N1&ptz_oneclick_y,3,N2&ptz_one.click_sp d,3,N3		ptz_one.click_spd 1~24	N1, N2 = X, Y coordinates (1080P, 0,0 at top left) N3=moving speed
IR Cut Filter	/cgi-bin?Set=	img_ircut_filter,3,N		0 ~ 2	0 = Day, 1 = Night, 2 = Auto
IR Cut Filter Sensitivity	/cgi-bin?Set=	img_ircut_sensitivity,3,N		0 ~ 2	0 = Low, 1 = Middle, 2 = High

CGI List for Video Stream
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Video Stream Resolution	/cgi-bin?Set=	vdo_net stm_res,3,N	value	1 ~ 6	1 = 1920x1080;2 = 1280x720;3 = 960x540;4 = 640x480;5 = 640x360;6 = 3840x2160
Video Stream Framerate	/cgi-bin?Set=	vdo_net stm_fr,3,N	value	1 / 5 / 15 / 20 / 30 / 60	frames per second
Video Stream Bitrate	/cgi-bin?Set=	vdo_net stm_bitrate,3,N	value	0 ~ 8	0 = 512 Kbps;1 = 1 Mbps;2 = 2 Mbps;
					3 = 4 Mbps;4 = 8 Mbps;5 = 16 Mbps;6 = 32 Mbps;7 = 64 Mbps;8 = Auto;
Video StreamI-VOP Interval (S)	/cgi-bin?Set=	vdo_net stm_intvl,3,N	value	1 ~ 10	I-VOP Intervalin seconds
Video Stream RateControl	/cgi-bin?Set=	vdo_net stm_ratectrl,3,N	value	0 / 1	0: CBR;1: VBR
Video StreamEncoding Type	/cgi-bin?Set=	vdo_net stm_codec,3,N	value	1 ~ 2	1: H.264;2: H.265
Mosaic on StreamOn/Off(Mosaic onStream, EyesTracking andAI Video Detectionare mutuallyexclusive.)	/cgi-bin?Set=	vdo_net stm_mosaic,3,N	value	0 / 1	0: OFF; 1: ON

CGI List for Audio

CGI item name	URL	Command	Paramete r Name	Parameter value	Description
Audio In Volume	/cgi-bin?Set=	ado_vol,3,N		0 ~10	0 ~ 10 volume

CGI List for AI Settings

CGI item name	URL	Command	Paramete r Name	Parameter value	Description
Eyes Tracking On/Off(Mosaic onStream, Eyes Tracking and AI Video Detection are mutually exclusive.)	/cgi-bin?Set=	trk_tracking_on,3,N	value	0 / 1	0: OFF; 1: ON
Tracking Preset	/cgi-bin?ActPr eset=1,255				Save current pos. for eye tracking preset point.
Timeout to preset	/cgi-bin?Set=	trk_last_time,3, N	value	3 / 5 / 7 / 10	timeout in seconds
Tracking Site	/cgi-bin?Set=	trk_mode,3,N	value	0 / 1	0: Full face; 1: Eyes
Tracking Range	/cgi-bin?Set=	trk_sensitivity,3,N	value	0 ~ 2	0: Close; 1: Medium; 2:
					Wide
Eyes Tracking On/Off Get	/cgi-bin?Get=trk_tracking_on
	- Reply	On trk_tracking_on=1 Off trk_tracking_on=0
Get detect zone(target frame) number	/cgi-bin?Get=trkdetect_num
	- Reply	trkdetect_num=X	X: number of target frames, 50 max.
Get detect zone(target frame) info	/cgi-bin?GetGr oup=trkdetect Zones
	- Reply	trkdetect Zones="trk_num:02:focus:-1-zone[00]:76 0,09,222,300zone[01]:66 0,540,16,22."	focus - current target frame index. zone[NN]: x,y,w,h - 1080P based	(0,0) at top left of video. X,Y,W(width),H (height) is based on the top left of the target frame. "focus:" is followed by the current tracking target frame index. Example: "-1" indicates no target is being tracked. If 3 targets are being detected, "focus:" should be followed by either 0, 1, or 2.
AI Video Detection On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually	/cgi-bin?Set=	vdo_DET_alarm,3,N	value	0 / 1	0: OFF; 1: ON
exclusive.)
Fall Detection View	/cgi-bin?Set=	vdo_DET_fall_down_preset ,3,N	value	0 ~ 255	Fall Detection View preset point
Fall Detection Sensitivity	/cgi-bin?Set=	vdo_DET_fall_downSENSITY,3,N	value	0 ~ 2	0: Low; 1: Medium; 2:High
Select Tracking Target	/cgi-bin?SetStr ing=	TrackingFocusZone,x,y,w,h		x, y: coordinates, w: width, h: height, (0,0 at top left)	Based on the result of trkdetect Zones, select tracking target. ex: x=343, y=373, w=213, h=310 /cgi-bin?SetString=TrackingFocusZone,343,373,213, 310

(https://www.aver.com/Downloads/search?q=AVer%20Camera%20Setting%20Tool).

Name	Value1	Value2	Description
VISCA command	0x01	0x00	Stores the VISCA command.
VISCA inquiry	0x01	0x10	Stores the VISCA inquiry.
VISCA reply	0x01	0x11	Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command
VISCA device setting command	0x01	0x20	Stores the VISCA device setting command.
Control command	0x02	0x00	Stores the control command
Control reply	0x02	0x01	Stores the reply for the control command.

Sequence number

Sequence number =

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8 ~ ~ ~byte 23
func	Payload type		Payload Length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16(0x0001~0x0010)		0x00000000 ~ 0xFFFFFFF				VISCA Packet (see page VISCA)
CMD:Power Off	0x01	0x00	0x00	0x06	0x00	0x00	0x00	0x01	81 01 04 00 03 FF
reply ACK	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 41 FF
replyCOMPLETE	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 51 FF

INQ: Power	0x01	0x10	0x00	0x05	0x00	0x00	0x00	0x02	81 09 04 00 FF
INQ reply	0x01	0x11	0x00	0x04	0x00	0x00	0x00	0x02	90 50 03 FF

Tabla de Zoom VISCA

Zoom position and zoom ratio (MD120UI)
Parameter	Zoom ratio
00F0	x1
1C60	x2
2938	x3
3130	x4
36D8	x5
3B50	x6
3EC8	x7
41A8	x8
4430	x9
4660	x10
4828	x11
49F0	x12
4B80	x13
4CF0	x14
4E48	x15
4F78	x16
5090	x17
51A0	x18
5290	x19
5370	x20

Comando de Pelco-D

PAN AND TILT COMMANDS

P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func	SYNC	ADDR	cmd 1	cmd 2	data1	data2	checksum
data	0xFF	1~8	cmd 1	cmd 2	Pan speed	Tilt speed	2~6 SUM

note : speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
SENSE ON	NA	NA	NA	CAM ON/OFF	NA	NA	NA

note : power off : byte3.7 = 0 & byte3.3 = 1 (0x08)
note : power on : byte3.7 = 1 & byte3.3 = 1 (0x88)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

		byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func		SYNC	ADDR	data1	data2	data3	data4	checksum
Set Preset XX		0xFF	1~8	0x00	0x03	0x00	Preset #	2~6 SUM
Clear Preset XX		0xFF	1~8	0x00	0x05	0x00	Preset #	2~6 SUM
Go To Preset XX		0xFF	1~8	0x00	0x07	0x00	Preset #	2~6 SUM
Track ON		0xFF	1~8	0x00	0x65	0x00	0x00	2~6 SUM
Track OFF		0xFF	1~8	0x00	0x67	0x00	0x00	2~6 SUM

note : Preset # : 0x01 ~ 0xFF

Comando de Pelco-P

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
data	0xA0	0~7F	cmd 1	cmd 2	Pan speed	Tilt speed	0xEF	1~7 XOR

note: speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	CAM ON	NA	CAM ON/OFF	NA	NA	NA	NA

note : power off : byte3.6 = 0 & byte3.4 = 1 (0x10)
note : power on : byte3.6 = 1 & byte3.4 = 1 (0x50)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
Set Preset XX	0xA0	0~7	0x00	0x03	0x00	Preset #	0xEF	1~7 XOR
Clear Preset XX	0xA0	0~7	0x00	0x05	0x00	Preset #	0xEF	1~7 XOR
Go To Preset XX	0xA0	0~7	0x00	0x07	0x00	Preset #	0xEF	1~7 XOR
Track ON	0xA0	0~7	0x00	0x65	0x00	0x00	0xEF	1~7 XOR
Track OFF	0xA0	0~7	0x00	0x67	0x00	0x00	0xEF	1~7 XOR

note : Preset # : 0x01 ~ 0xFF

Comando de CGI

CGI List for Video Transmission
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280x720 jpg
Get 4K JPEG	/cgi-bin?OnePush=n				Step 1: requestet 4k snapshot
	/snapshot?res=4k				Step 2: get 3840x2160 jpg
Set RTSP URL	/cgi-bin?SetString=	sys_rtsp stm1_url,rtsp_url			Set RTSP URL to rtsp_url
Get RTSP URL	/cgi-bin?GetString=	sys_rtsp stm1_url			Reply RTSP URL example: sys_rtsp stm1_url="live_st1"
Get RTSP stream	rtsp://ip/rtsp_url				Default RTSP url: live_st1rtsp://ip/live_st1

CGI List for Camera Control
CGI item name	URL	Command	Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1
up end	/cgi-bin?SetPtzf=	1,0,2
down start	/cgi-bin?SetPtzf=	1,1,1
down end	/cgi-bin?SetPtzf=	1,1,2
left start	/cgi-bin?SetPtzf=	0,1,1
left end	/cgi-bin?SetPtzf=	0,1,2
right start	/cgi-bin?SetPtzf=	0,0,1
right end	/cgi-bin?SetPtzf=	0,0,2
zoom_in start	/cgi-bin?SetPtzf=	2,0,1
zoom_in end	/cgi-bin?SetPtzf=	2,0,2
zoom_out start	/cgi-bin?SetPtzf=	2,1,1
zoom_out end	/cgi-bin?SetPtzf=	2,1,2
set preset:	/cgi-bin?ActPreset=	1,N			N : position
load preset:	/cgi-bin?ActPreset=	0,N			N : position

CGI List for Various Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
exposure value	/cgi-bin?Set=	img_expo_expo,3,N	value	1 ~ 9	N : value
saturation	/cgi-bin?Set=	img_saturation,3,N	value	0 ~ 10	N : value
contrast	/cgi-bin?Set=	img Contrast,3,N	value	0 ~ 4	N : value
Tracking on:	/cgi-bin?Set=	trk_tracking_on,3,1
Tracking off:	/cgi-bin?Set=	trk_tracking_on,3,0
Reboot	GET(BasicAuthentication)	/cgi-bin?OnePush=!
Factory Reset	GET(BasicAuthentication)	/cgi-bin?OnePush=d
RTMP Startstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,1
RTMP Stopstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,0
Status get (Model name & mac & FW_VER)	/cgi-bin?GetString=	sys_name&net_MAC&sys_fw_version		http://10.100.105.110/cgi-bin?ToString=sys_name&netmac&sys_fw_vversion
Serial No. get	/cgi-bin?GetSerialNumber			http://10.100.105.110/cgi-bin?GetSerialNumber
oneclick	/cgi-bin?Set=	ptz_oneclick_x,3,N1&ptz_oneclick_y,3,N2&ptz_one.click_spd,3,N3		ptz_one.click_spd 1~24	N1, N2 = X, Y coordinates(1080P, 0,0 at top left)N3=moving speed
IR Cut Filter	/cgi-bin?Set=	img_ircut_filter,3,N		0 ~ 2	0 = Day, 1 = Night, 2 = Auto
IR Cut Filter Sensitivity	/cgi-bin?Set=	img_ircut_sensitivity,3,N		0 ~ 2	0 = Low, 1 = Middle, 2 = High

CGI List for Video Stream
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Video Stream Resolution	/cgi-bin?Set=	vdo_net stm_res,3,N	value	1 ~ 6	1 = 1920x1080;2 = 1280x720;3 = 960x540;4 = 640x480;5 = 640x360;6 = 3840x2160
Video Stream Framerate	/cgi-bin?Set=	vdo_net stm_fr,3,N	value	1 / 5 / 15 / 20 / 30 / 60	frames per second
Video Stream Bitrate	/cgi-bin?Set=	vdo_net stm_bitrate,3,N	value	0 ~ 8	0 = 512 Kbps;1 = 1 Mbps;2 = 2 Mbps;
					3 = 4 Mbps;4 = 8 Mbps;5 = 16 Mbps;6 = 32 Mbps;7 = 64 Mbps;8 = Auto;
Video StreamI-VOP Interval (S)	/cgi-bin?Set=	vdo_net stm_intvl,3,N	value	1 ~ 10	I-VOP Intervalin seconds
Video Stream RateControl	/cgi-bin?Set=	vdo_net stm_ratectrl,3,N	value	0 / 1	0: CBR;1: VBR
Video StreamEncoding Type	/cgi-bin?Set=	vdo_net stm_codec,3,N	value	1 ~ 2	1: H.264;2: H.265
Mosaic on StreamOn/Off(Mosaic onStream, EyesTracking andAI Video Detectionare mutuallyexclusive.)	/cgi-bin?Set=	vdo_net stm_mosaic,3,N	value	0 / 1	0: OFF; 1: ON

CGI List for Audio
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Audio In Volume	/cgi-bin?Set=	ado_vol,3,N		0 ~10	0 ~ 10 volume

CGI List for AI Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Eyes Tracking On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually exclusive.)	/cgi-bin?Set=	trk_tracking_on,3,N	value	0 / 1	0: OFF; 1: ON
Tracking Preset	/cgi-bin?ActPr eset=1,255				Save current pos. for eye tracking preset point.
Timeout to preset	/cgi-bin?Set=	trk_last_time,3, N	value	3 / 5 / 7 / 10	timeout in seconds
Tracking Site	/cgi-bin?Set=	trk_mode,3,N	value	0 / 1	0: Full face; 1: Eyes
Tracking Range	/cgi-bin?Set=	trk_sensitivity,3,N	value	0 ~ 2	0: Close; 1: Medium; 2:
					Wide
Eyes Tracking On/Off Get	/cgi-bin?Get=trk_tracking_on
	- Reply	On trk_tracking_on=1 Off trk_tracking_on=0
Get detect zone(target frame) number	/cgi-bin?Get=trkdetect_num
	- Reply	trkdetect_num=X	X: number of target frames, 50 max.
Get detect zone(target frame) info	/cgi-bin?GetGr oup=trkdetect Zones
	- Reply	trkdetect Zones="trk_num:02:focus:-1zone[00]:76 0,09,222,300zone[01]:66 0,540,16,22."	focus - current target frame index. zone[NN]: x,y,w,h - 1080P based	(0,0) at top left of video. X,Y,W(width),H (height) is based on the top left of the target frame. "focus:" is followed by the current tracking target frame index. Example: "-1" indicates no target is being tracked. If 3 targets are being detected, "focus:" should be followed by either 0, 1, or 2.
AI Video Detection On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually	/cgi-bin?Set=	vdo_DET_alarm,3,N	value	0 / 1	0: OFF; 1: ON
exclusive.)
Fall Detection View	/cgi-bin?Set=	vdo_DET_fall_down_preset ,3,N	value	0 ~ 255	Fall Detection View preset point
Fall Detection Sensitivity	/cgi-bin?Set=	vdo_DET_fall_down_sensiti vity,3,N	value	0 ~ 2	0: Low; 1: Medium; 2:High
Select Tracking Target	/cgi-bin?SetStr ing=	TrackingFocusZone,x,y,w,h		x, y: coordinates, w: width, h: height, (0,0 at top left)	Based on the result of trkdetect Zones, select tracking target. ex: x=343, y=373, w=213, h=310 /cgi-bin?SetString=TrackingFocusZone,343,373,213, 310

Centro download: https://www.aveurope.com/download-center

Assistenza tecnica: https://www.aveurope.com/technical-support

Accessory equipment connected to the analog and digital interfaces must be in compliance with the respective nationally harmonized IEC standards (i.e. IEC 60950 for data processing equipment, IEC 60065 for video equipment, IEC 61010-1 for laboratory equipment, and IEC 60601-1 for medical equipment.) Furthermore all configurations shall comply with the requirements of the system in standard IEC 60601-1. Everybody who connects additional equipment to the signal input part or signal output part configures a medical system, and is therefore, responsible that the system complies with the requirements of the system in standard IEC 60601-1. The unit is for exclusive interconnection with IEC 60601-1 certified equipment in the patient environment and IEC 60XXX certified equipment outside of the patient environment. If in doubt, consult the technical services department or your local representative.

Configurare la telecamera

Name	Value1	Value2	Description
VISCA command	0x01	0x00	Stores the VISCA command.
VISCA inquiry	0x01	0x10	Stores the VISCA inquiry.
VISCA reply	0x01	0x11	Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command
VISCA device setting command	0x01	0x20	Stores the VISCA device setting command.
Control command	0x02	0x00	Stores the control command
Control reply	0x02	0x01	Stores the reply for the control command.

Sequence number

Sequence number =

	byte 0	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8 ~ ~ ~byte 23
func	Payload type		Payload Length		Sequence number				Payload (1 to 16 bytes)
data	Value1	Value2	1~16(0x0001~0x0010)		0x00000000 ~ 0xFFFFFFF				VISCA Packet (see page VISCA)
CMD:Power Off	0x01	0x00	0x00	0x06	0x00	0x00	0x00	0x01	81 01 04 00 03FF
reply ACK	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 41 FF
replyCOMPLETE	0x01	0x11	0x00	0x03	0x00	0x00	0x00	0x01	90 51 FF

INQ: Power	0x01	0x10	0x00	0x05	0x00	0x00	0x00	0x02	81 09 04 00 FF
INQ reply	0x01	0x11	0x00	0x04	0x00	0x00	0x00	0x02	90 50 03 FF

Tabella Zoom VISCA

Zoom position and zoom ratio (MD120UI)
Parameter	Zoom ratio
00F0	x1
1C60	x2
2938	x3
3130	x4
36D8	x5
3B50	x6
3EC8	x7
41A8	x8
4430	x9
4660	x10
4828	x11
49F0	x12
4B80	x13
4CF0	x14
4E48	x15
4F78	x16
5090	x17
51A0	x18
5290	x19
5370	x20

Comando Pelco-D

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func	SYNC	ADDR	cmd 1	cmd 2	data1	data2	checksum
data	0xFF	1~8	cmd 1	cmd 2	Pan speed	Tilt speed	2~6 SUM

note : speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
SENSE ON	NA	NA	NA	CAM ON/OFF	NA	NA	NA

note : power off : byte3.7 = 0 & byte3.3 = 1 (0x08)
note : power on : byte3.7 = 1 & byte3.3 = 1 (0x88)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bitbyte4.0) = 1

		byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7
func		SYNC	ADDR	data1	data2	data3	data4	checksum
Set Preset XX		0xFF	1~8	0x00	0x03	0x00	Preset #	2~6 SUM
Clear Preset XX		0xFF	1~8	0x00	0x05	0x00	Preset #	2~6 SUM
Go To Preset XX		0xFF	1~8	0x00	0x07	0x00	Preset #	2~6 SUM
Track ON		0xFF	1~8	0x00	0x65	0x00	0x00	2~6 SUM
Track OFF		0xFF	1~8	0x00	0x67	0x00	0x00	2~6 SUM

note : Preset # : 0x01 ~ 0xFF

Comando Pelco-P

PAN AND TILT COMMANDS P/T bit(byte4.0) = 0

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
data	0xA0	0~7F	cmd 1	cmd 2	Pan speed	Tilt speed	0xEF	1~7 XOR

note: speed = 0x00~0x17

byte3: command 1

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	CAM ON	NA	CAM ON/OFF	NA	NA	NA	NA

note : power off : byte3.6 = 0 & byte3.4 = 1 (0x10)
note : power on : byte3.6 = 1 & byte3.4 = 1 (0x50)

byte4: command 2

bit 7	bit 6	bit 5	bit 4	bit 3	bit 2	bit 1	bit 0
NA	ZOOM Wide	ZOOM Tele	TILT Down	TILT Up	PAN Left	PAN Right	P/T bit 0(always)

EXTENDED COMMAND SET P/T bit(byte4.0) = 1

	byte 1	byte 2	byte 3	byte 4	byte 5	byte 6	byte 7	byte 8
func	STX	ADDR	data1	data2	data3	data4	ETX	checksum
Set Preset XX	0xA0	0~7	0x00	0x03	0x00	Preset #	0xEF	1~7 XOR
Clear Preset XX	0xA0	0~7	0x00	0x05	0x00	Preset #	0xEF	1~7 XOR
Go To Preset XX	0xA0	0~7	0x00	0x07	0x00	Preset #	0xEF	1~7 XOR
Track ON	0xA0	0~7	0x00	0x65	0x00	0x00	0xEF	1~7 XOR
Track OFF	0xA0	0~7	0x00	0x67	0x00	0x00	0xEF	1~7 XOR

note : Preset # : 0x01 ~ 0xFF

Comando CGI

CGI List for Video Transmission
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280x720 jpg
Get 4K JPEG	/cgi-bin?OnePush=n				Step 1: requestet 4k snapshot
	/snapshot?res=4k				Step 2: get 3840x2160 jpg
Set RTSP URL	/cgi-bin?SetString=	sys_rtsp stm1_url,rtspurl			Set RTSP URL to rtsp_url
Get RTSP URL	/cgi-bin?GetString=	sys_rtsp stm1_url			Reply RTSP URL example: sys_rtsp stm1_url="live_st1"
Get RTSP stream	rtsp://ip/rtsp_url				Default RTSP url: live_st1rtsp://ip/live_st1

CGI List for Camera Control
CGI item name	URL	Command	Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1
up end	/cgi-bin?SetPtzf=	1,0,2
down start	/cgi-bin?SetPtzf=	1,1,1
down end	/cgi-bin?SetPtzf=	1,1,2
left start	/cgi-bin?SetPtzf=	0,1,1
left end	/cgi-bin?SetPtzf=	0,1,2
right start	/cgi-bin?SetPtzf=	0,0,1
right end	/cgi-bin?SetPtzf=	0,0,2
zoom_in start	/cgi-bin?SetPtzf=	2,0,1
zoom_in end	/cgi-bin?SetPtzf=	2,0,2
zoom_out start	/cgi-bin?SetPtzf=	2,1,1
zoom_out end	/cgi-bin?SetPtzf=	2,1,2
set preset:	/cgi-bin?ActPreset=	1,N			N : position
load preset:	/cgi-bin?ActPreset=	0,N			N : position

CGI List for Various Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
exposure value	/cgi-bin?Set=	img_expo_expo,3,N	value	1 ~ 9	N : value
saturation	/cgi-bin?Set=	img_saturation,3,N	value	0 ~ 10	N : value
contrast	/cgi-bin?Set=	img Contrast,3,N	value	0 ~ 4	N : value
Tracking on:	/cgi-bin?Set=	trk_tracking_on,3,1
Tracking off:	/cgi-bin?Set=	trk_tracking_on,3,0
Reboot	GET(BasicAuthentication)	/cgi-bin?OnePush=!
Factory Reset	GET(BasicAuthentication)	/cgi-bin?OnePush=d
RTMP Startstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,1
RTMP Stopstreamming	/cgi-bin?Set=	vdo_rtmp_enable,3,0
Status get (Model name & mac & FW_VER)	/cgi-bin?GetString=	sys_name&net_MAC&sys_fw_version		http://10.100.105.110/cgi-bin?QueryString=sy s_name&net_ mac&sys_fw_v ersion
Serial No. get	/cgi-bin?GetSerial Number			http://10.100.105.110/cgi-bin?GetSerialNumber
oneclick	/cgi-bin?Set=	ptz_oneclick_x,3,N1&ptz_oneclick_y,3,N2&ptz_one.click_sp d,3,N3		ptz_one.click_spd 1~24	N1, N2 = X, Y coordinates (1080P, 0,0 at top left) N3=moving speed
IR Cut Filter	/cgi-bin?Set=	img_ircut_filter,3,N		0 ~ 2	0 = Day, 1 = Night, 2 = Auto
IR Cut Filter Sensitivity	/cgi-bin?Set=	img_ircut_sensitivity,3,N		0 ~ 2	0 = Low, 1 = Middle, 2 = High

CGI List for Video Stream
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Video Stream Resolution	/cgi-bin?Set=	vdo_net stm_res,3,N	value	1 ~ 6	1 = 1920x1080;2 = 1280x720;3 = 960x540;4 = 640x480;5 = 640x360;6 = 3840x2160
Video Stream Framerate	/cgi-bin?Set=	vdo_net stm_fr,3,N	value	1 / 5 / 15 / 20 / 30 / 60	frames per second
Video Stream Bitrate	/cgi-bin?Set=	vdo_net stm_bitrate,3,N	value	0 ~ 8	0 = 512 Kbps;1 = 1 Mbps;2 = 2 Mbps;
					3 = 4 Mbps;4 = 8 Mbps;5 = 16 Mbps;6 = 32 Mbps;7 = 64 Mbps;8 = Auto;
Video StreamI-VOP Interval (S)	/cgi-bin?Set=	vdo_net stm_intvl,3,N	value	1 ~ 10	I-VOP Intervalin seconds
Video Stream RateControl	/cgi-bin?Set=	vdo_net stm_ratectrl,3,N	value	0 / 1	0: CBR;1: VBR
Video StreamEncoding Type	/cgi-bin?Set=	vdo_net stm_Codec,3,N	value	1 ~ 2	1: H.264;2: H.265
Mosaic on StreamOn/Off(Mosaic onStream, EyesTracking andAI Video Detectionare mutuallyexclusive.)	/cgi-bin?Set=	vdo_net stm_mosaic,3,N	value	0 / 1	0: OFF; 1: ON

CGI List for Audio
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Audio In Volume	/cgi-bin?Set=	ado_vol,3,N		0 ~10	0 ~ 10 volume

CGI List for AI Settings
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Eyes Tracking On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually exclusive.)	/cgi-bin?Set=	trk_tracking_on,3,N	value	0 / 1	0: OFF; 1: ON
Tracking Preset	/cgi-bin?ActPr eset=1,255				Save current pos. for eye tracking preset point.
Timeout to preset	/cgi-bin?Set=	trk_lost_time,3, N	value	3 / 5 / 7 / 10	timeout in seconds
Tracking Site	/cgi-bin?Set=	trk_mode,3,N	value	0 / 1	0: Full face; 1: Eyes
Tracking Range	/cgi-bin?Set=	trk_sensitivity,3,N	value	0 ~ 2	0: Close; 1: Medium; 2:
					Wide
Eyes Tracking On/Off Get	/cgi-bin?Get=trk_tracking_on
	- Reply	On trk_tracking_on=1 Off trk_tracking_on=0
Get detect zone(target frame) number	/cgi-bin?Get=trkdetect_num
	- Reply	trkdetect_num=X	X: number of target frames, 50 max.
Get detect zone(target frame) info	/cgi-bin?GetGr oup=trkdetect Zones
	- Reply	trkdetect Zones="trk_num:02:focus:-1-zone[00]:76 0,09,222,300,zone[01]:66 0,540,16,22."	focus - current target frame index. zone[NN]: x,y,w,h - 1080P based	(0,0) at top left of video. X,Y,W(width),H (height) is based on the top left of the target frame. "focus:" is followed by the current tracking target frame index. Example: "-1" indicates no target is being tracked. If 3 targets are being detected, "focus:" should be followed by either 0,1,or 2.
AI Video Detection On/Off (Mosaic on Stream, Eyes Tracking and AI Video Detection are mutually	/cgi-bin?Set=	vdo_DET alarm,3,N	value	0 / 1	0: OFF; 1: ON
exclusive.)
Fall Detection View	/cgi-bin?Set=	vdo_DET_fall_down_preset ,3,N	value	0 ~ 255	Fall Detection View preset point
Fall Detection Sensitivity	/cgi-bin?Set=	vdo_DET_fall_downSENSITI TY,3,N	value	0 ~ 2	0: Low; 1: Medium; 2:High
Select Tracking Target	/cgi-bin?SetStr i ng=	TrackingFocusZone,x,y,w,h		x, y: coordinates, w: width, h: height, (0,0 at top left)	Based on the result of trkdetectzones, select tracking target. ex: x=343, y=373, w=213, h=310 /cgi-bin?SetString=TrackingFocusZone,343,373,213, 310
