USER MANUAL MHL1915 BeamZ
GEBRUIKSAANWIJZING
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSŁUGI
ENGLISH
Congratulations to the purchase of this Beamz product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.
- Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
- The unit contains voltage carrying parts. Therefore do NOT open the housing.
- Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
- Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
- The product is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
- When unplugging the product from a mains outlet, always pull the plug, never the lead.
- Do not plug or unplug the unit with wet hands.
- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
- If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
- To avoid fire and shock hazard, do not expose the product to rain and moisture.
- All repairs should be carried out by a qualified technician only.
- Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
- If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
- Never use the product in humid rooms or outdoors.
-
During operation, the housing becomes very hot. Do not touch it during operation and immediately after.
-
To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
- Secure the product with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
- This product contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
- Do not repeatedly switch the product on and off. This shortens the life time.
- Keep the unit out of the reach of children. Do not leave the unit unattended.
- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
- Only operate the product with clean hands.
- Do not force the controls.
- If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
- Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
- Keep away from electronic equipment that may cause interference.
- Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
- Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
- Keep the original packing material so that you can transport the product in safe conditions
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.
DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.
The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/ 41^ F and 35^ C/ 95^ F.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Beamz cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
UNPACKING INSTRUCTION
CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

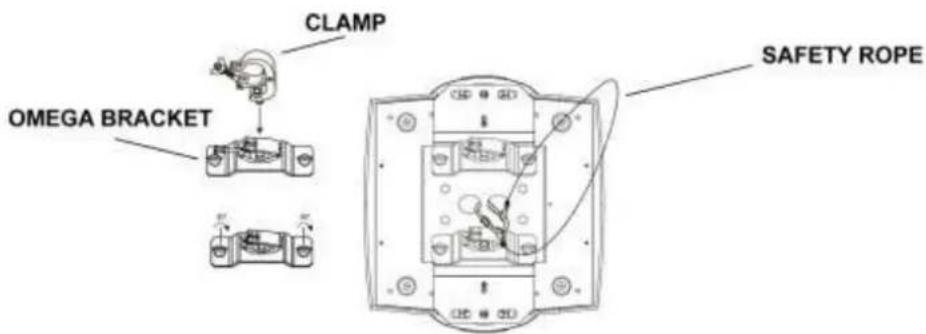

INSTALLATION
CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!
Attention:
- The installation of the product has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
- The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing. - The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
- The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
- The fixture should be installed in the position where persons cannot reach and where persons may walk by or be seated.
CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 20inch / 0.5 meter.
Press the Enter-button in order to select the desired menu.
You can change the selection by pressing Up or Down. Confirm every selection by pressing the Enter-button.
You can leave every mode by pressing the Mode-button. The functions provided are described later in this manual.

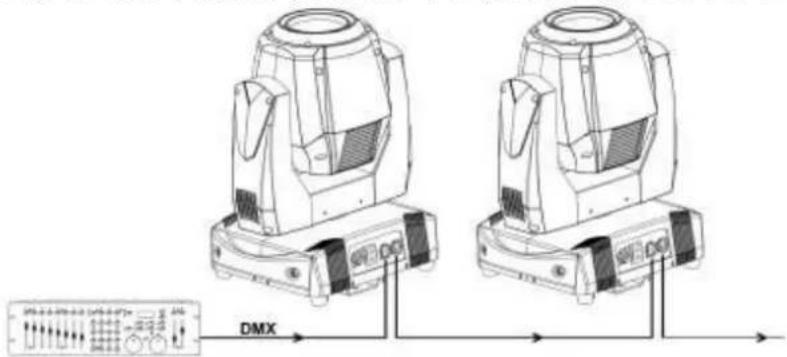

DMX-512 CONNECTION
If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.
Some manufactures use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used. The chart below details a proper cable conversion.
| 3-Pin XLR to 5-Pin XLR Conversion | ||
| Conductor | 3-Pin XLR Female (Out) | 5-Pin XLR Male (In) |
| Ground/Shield | Pin 1 | Pin 1 |
| Data Compliment (- signal) | Pin 2 | Pin 2 |
| Data True (+ signal) | Pin 3 | Pin 3 |
| Not Used | Pin 4 – Do Not Use | |
| Not Used | Pin 5 – Do Not Use | |
At the last fixture, the DMX cable has to be terminated. Solder a 120 Ohm resistor between signal (-) and signal (+) into a 3-pin XLR connector and plug this into the DMX output of the last fixture in the chain.
REPLACING THE FUSE
If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Open the fuse holder on the rear panel.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.
TROUBLESHOOTING
This section describes a few common problems that may occur during operation and provides some suggestions for easy troubleshooting:
| Symptom | Potential cause | Remedies |
| No light from fixture, or fans not working. | Power supply issue, such as blown fuse, faulty connector or damaged cable. | Check whether fixture's power indicator LED is lit.Check all power connections and cables.Replace fixture fuse. |
| Fixture does not react to music beat | Sound activation disabled.Sound activation sensitivity too low for music source. | Ensure that fixture is not connected to a DMX signal.Adjust sound activation microphone sensitivity.Tap microphone to check correct functionality. The fixture should react when in sound activation mode. |
| One of the control channels is unresponsive or only responds intermittently. | DMX setup or DMX link fault.Damaged step motor or cable connection between head and body. | See next section.Contact your Beamz by Tronios authorized distributor or service center for assistance. |
| Fixture does not respond to DMX control. | Incorrect DMX addressing.Fault on DMX link due to damaged connector or cable, or potential interference from proximity to a high voltage installation. | Ensure that fixture's DMX address matches address set on DMX control device.Check that fixture DMX check all DMX cables and connections.Ensure that DMX link is terminated.Check that all components on DMX link use standard DMX polarity.Attempt to control the fixture with another DMX control device.Move or shield link if it is close to an unshielded high-voltage installation. |
FIXTURE CLEANING
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.
• Make sure the area below the installation place is free from unwanted persons during servicing.
• Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation.
- The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
- In order to protect the fixture from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
- The interior of the fixture should be cleaned annually using a vacuum cleaner or air-jet.
- Clean with soft cloth using normal glass cleaning fluid.
• Always dry the parts carefully.
- Clean the external optics at least every month. Clean the internal optics at least every 30/60 days.
ATTENTION: We strongly recommend internal cleaning to be carried out by qualified worker!
NEDERLANDS
5-polige XLR connector.
| 3-Pin XLR to 5-Pin XLR Conversion | ||
| Conductor | 3-Pin XLR Female (Out) | 5-Pin XLR Male (In) |
| Ground/Shield | Pin 1 | Pin 1 |
| Data Compliment (- signal) | Pin 2 | Pin 2 |
| Data True (+ signal) | Pin 3 | Pin 3 |
| Not Used | Pin 4 – Do Not Use | |
| Not Used | Pin 5 – Do Not Use | |
REPLACEMENT DU FUSIBLE
Note: When you will no fade time you must strobe channel default on 96 \~ 127
| Mode | Program | Description |
| Address | 001-512 | Address setting |
| Run | DMX 512 | DMX mode |
| Auto 1 | Auto mode | |
| Auto 2 | ||
| Sound 1 | Sound mode | |
| Sound 2 | ||
| DMX Mode | Mode 1 | 37 Channels |
| Mode 2 | 21 Channels | |
| Mode 3 | 15 Channels | |
| Mode 4 | 10 Channels | |
| Mode 5 | 10 Channels | |
| Test | All | Complete system |
| Motor | Pan/Tilt | |
| LED | All LEDs | |
| Set | Disp setting | Shutoff time 02-60m |
| Flip display (ON / OFF) | ||
| Key lock (ON / OFF) | ||
| Disp flash (ON / OFF) | ||
| Pan | Normal | |
| Reverse | ||
| Tilt | Normal | |
| Reverse | ||
| Language | English | |
| Chinese | ||
| Info | Time info | Power on time |
| Ttl life Hrs | ||
| Last Run Hrs | ||
| Software V. | V1.00 | |
| Manual | Pan | 000-255 |
| Tilt | 000-255 | |
| Speed | 000-255 | |
| Functions | 000-255 | |
| Red | 000-255 | |
| Green | 000-255 | |
| Blue | 000-255 | |
| White | 000-255 | |
| Colours | 000-255 | |
| Zoom | 000-255 | |
| Strobe | 000-255 | |
| Dimmer | 000-255 | |
| Reset | All reset | YES / NO |
TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCH DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA
Rated voltage : AC100\~240V 50/60Hz
Rated power : 300W
LED : 19x 15W 4-in-1 LEDs RGBW
Fuse : Fuse 5A
DMX Channels : 37, 21, 15 or 10 Channels
Function : DMX, Auto, Sound active and Master-Slave.
Dimensions per unit : 390 x 300 x 460mm
Weight (per unit) : 7.74 kg
The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Sound & Light
CE Declaration of Conformity
Manufacturer: Tronios B.V.
Product Description: MHL1915 Zoom moving head
Trade Name: BEAMZ PROFESSIONAL
Regulatory Requirement: EN 55103-1:2009+A1:2012
EN 55103-2:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 60598-2-17:1989+A2:1991
EN 60598-1:2015
EN 62493:2010
EN 62471:2008
IEC 61000-4-2:2008, IEC 61000-4-3-2010, IEC 61000-4-4:2012
IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004
IEC 62321-5:2013
IEC 62321-4:2013
IEC 62321:2008
IEC 62321-6:2015
EN 14374:2004
I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.
Almelo,
18-05-2017
Name : M. Velders
Signature :
www.tronios.com
Copyright © 2017 by TRONIOS the Netherlands
