USER MANUAL ASCM18-4 Fein

Exterior view of a precision drill press with a black drill bit and a gray base (no visible text or symbols)

3 41 01 393 06 0

2024-01-31

ASC M18-4 QM AS (**) ASCM18-4 QMP AS (**)
		7 116 15 ... 7 116 16 ...
UV 18 18	==
n_0
1.\	/min, min ^-1 , rpm, r/min 0 - 430 0 - 430
/2.	/min, min ^-1 , rpm, r/min 0 - 850 0 - 850
3.\	/min, min ^-1 , rpm, r/min 0 - 2000 0 - 2000
/4.	/min, min ^-1 , rpm, r/min 0 - 4000	0 - 4000
/4.	/min, min ^-1 , rpm, r/min 0 - 2000 0 - 2000
n_S
1.\	/min, min ^-1 , rpm, r/min	-	0 - 6450
/2.	/min, min ^-1 , rpm, r/min	-	0 - 12750
3.\	/min, min ^-1 , rpm, r/min	-	0 - 30000
/4.	/min, min ^-1 , rpm, r/min	-	0 - 60000
M...	Nm	130/70/50	130/70/50
	kg	1,3	1,4
	kg	0,31	0,31
	mm	13 13
	mm	60 60
	mm	- 13
	mm	1,5 - 13	1,5 - 13
	mm	10 10
L_pA	dB	75,9	93,9
K_pA	dB	5	3
L_wA	dB	83,9	101,9
K_wA	dB	5	3
L_pCpeak	dB	90,6	113,4
K_pCpeak	dB	5	3
a_h,D	m/s ^2	0,9	0,8
a_h,ID	m/s ^2	-	11,4
a_h	m/s ^2	0,6	0,5
K_a	m/s ^2	1,5	1,5

		GBA 18V2 Ah	GBA 18V4 Ah	GBA 18V5 Ah	ProCORE 18V4 Ah	ProCORE 18V8 Ah	ProCORE 18V12 Ah
	kg	0,35	0,60	0,60	0,52	0,96	1,35
							Lithium Ion
UV 18	---
T_CHARGE	°C						0 ... +35
						GAL 1880 CV, GAL 18V-160

4

de

17

pt

60

tr

102

sl

145

et

190

th

231

en

25

el

67

hu

109

SR

152

It

197

ja

239

fr

32

da

75

CS

116

hr

159

lv

204

hi

246

it

39

no

82

sk

123

ru

166

zh(

211

ar

259

nl

46

SV

89

pl

130

uk

174

zh(

218

[Non-Text]

广力云智慧零售收银系统

es

53

fi

95

ro

138

bg

182

ko

224

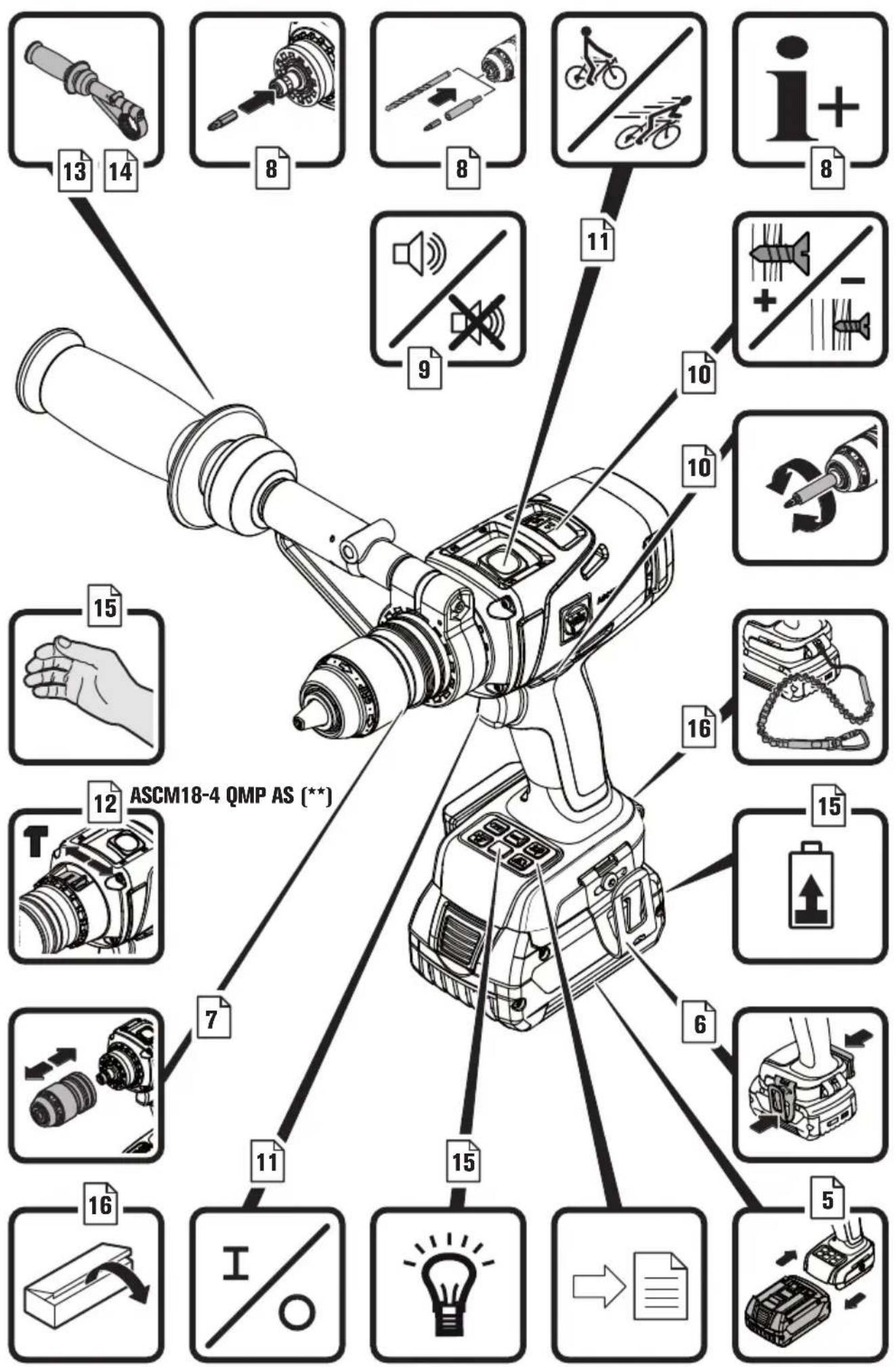

13 14 8 8 i+ 8 9 11 10 10 15 12 ASCM18-4 QMP AS (**) 7 6 15 15 16 16 I O

1. >3 s 2. = 2. = <|ns| →

Technical line drawing of a camera with no visible text or symbols

ASCM18-4 QMP AS (**)

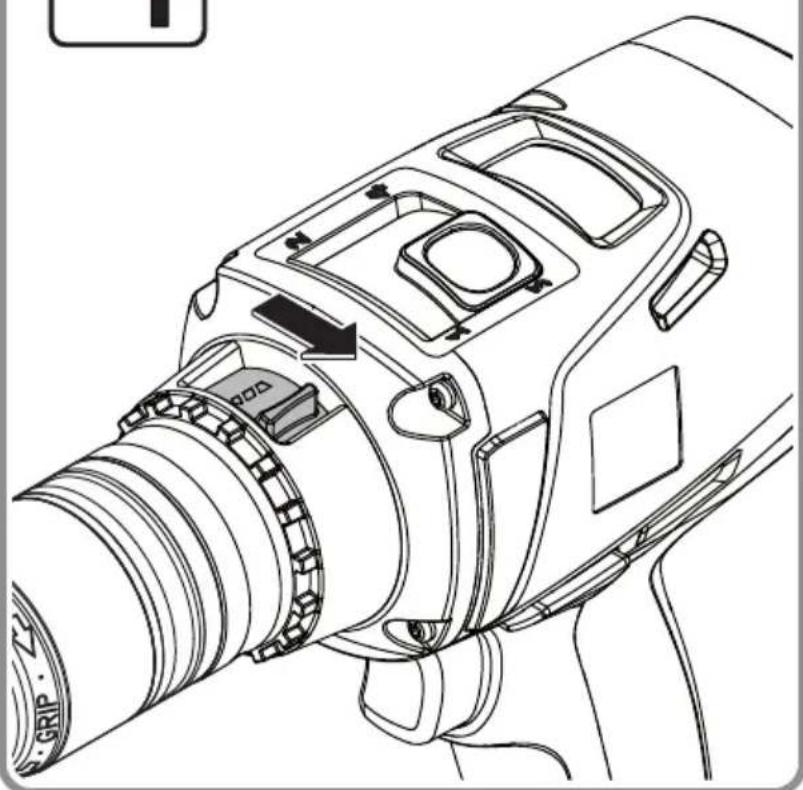

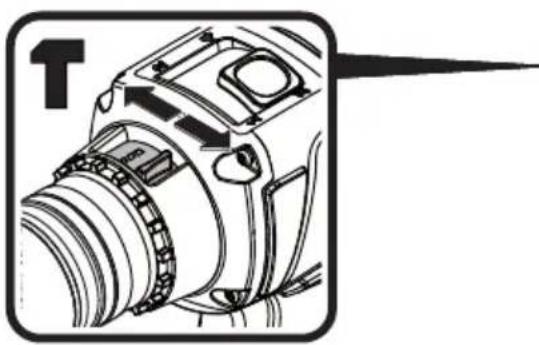

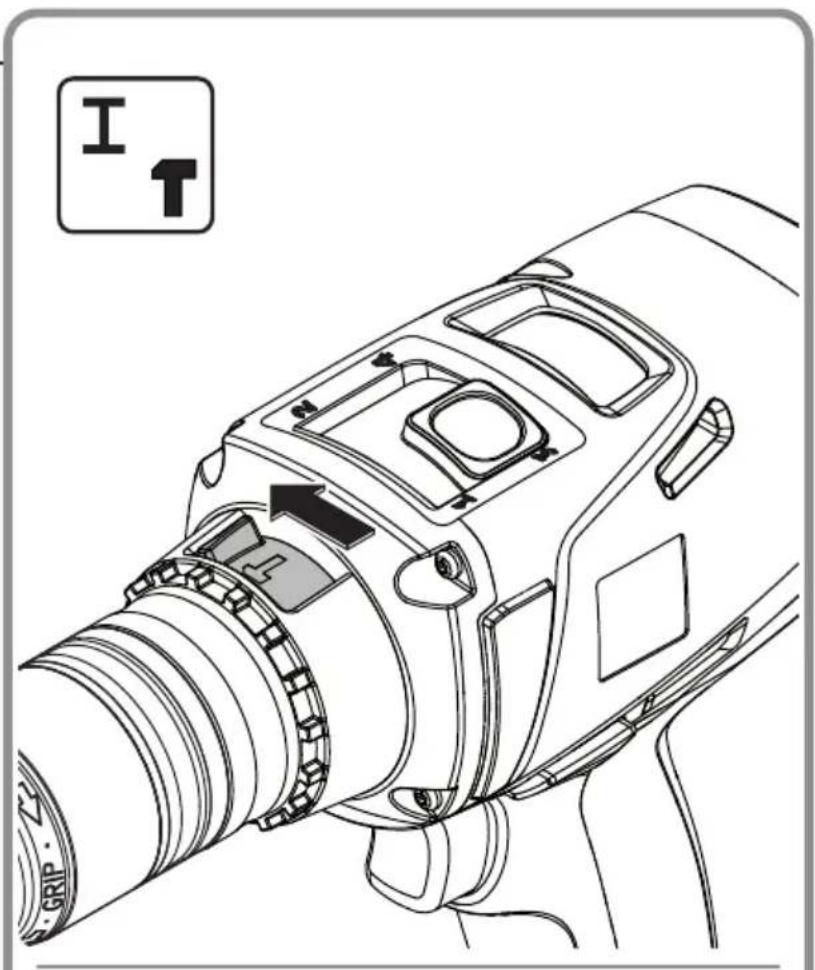

I T N: GRIP

Technical line drawing of a DSLR camera with no visible text or symbols

Grid of six safety and warning icons with Chinese labels, including signal, traffic, warning, lightbulb, and warning sign.

(6) (5) (4)

(1) Bohren

Translation of the Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Do not touch the rotating parts of the power tool.
	Observe the instructions in the text or graphic opposite!
	Observe the information in the adjacent text!
	General prohibition sign. This action is prohibited.
	AMPShare is the shared battery system that lets you run many tools from many pro brands on just one battery.
	Before commencing this working step, remove the battery from the power tool. Otherwise there may be danger of injury caused by unintentional starting of the power tool.
[2YAS]	Use eye protection during operation.
	Use ear protection during operation.
	Use protective gloves during operation.
	Do not charge damaged batteries.
	Protect the battery against heat, e.g., against continuous intense sunlight, fire, debris, water, and moisture.
	Additional information.
	Gripping surface
	Switching on
	Switching off
	Clockwise rotation
	Anticlockwise rotation
	Caution: Do not view into the switched-on lamp!
	Confirms the conformity of the power tool with the directives of the European Community.
[ZWS4]	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
	Confirms the conformity of the power tool with the national technical regulations of the Customs Union (Belarus, Russia, Kyrgyzstan, Kazakhstan and Armenia).
	This symbol confirms the certification of this product for the USA and Canada.
WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Recycling symbol: designates recyclable materials
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Identifies recyclable packaging and products that must be collected and disposed of separately.
	Battery type
	Charger type
/2. 3. /4.	1. gear/2. gear/3. gear/4. gear
Fe	Drilling diameter, steel
	Drilling diameter, wood
	Drilling diameter, stone
	Chuck clamping range
	Screw diameter
	Weight according to EPTA-Procedure 01
	Low speed
	High speed
	Reduce torque
	Increase torque
* The torque is dependent of the battery being used. The specified values apply for the ProCORE 18V 8 Ah battery.
(**) May contain numbers and letters
(Ax - Zx) Marking for internal purposes

Character Unit of measurement, international		Explanation
UV	--D	C v o
fHz Frequency
n_0	/min, min ^-1 , rpm, r/min No-load speed (with fully charged battery)
n_S	/min, min ^-1	Impact rate
M...	Nm Torque (maximal/hard/soft)*
T_CHARGE	°C Allowable ambient temperature when charging
∅ mm Diameter of a round part
L_pA	dB Sound pressure level
L_wA	dB Sound power level
L_pCpeak	dB Peak sound pressure level
K...		Uncertainty
a	m/s ^2	Vibrational emission value according to EN 62841 (vector sum of three directions)
a_h,D	m/s ^2	Mean vibrational value for drilling in metal
a_h,ID	m/s ^2	Mean vibrational value for impact drilling in concrete
a_h	m/s ^2	Arithmetic mean value of the vibration total values
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool.

The hand-held cordless drill/driver is intended for screwing in and unscrewing screws and nuts, and for drilling and screwdriving in metal, wood and plastic as well as for impact drilling in stone (ASCM18-4 QMP AS (**) in weather-protected environments without water supply using the application tools and accessories recommended by FEIN.

In environments subject to interference, a reduction of the operating quality is possible; this can include temporary failure, temporary reduction of the function or the intended operating behaviour, for the correction of which intervention by the operator is required.

Drill safety warnings.

Safety instructions for all operations.

Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.

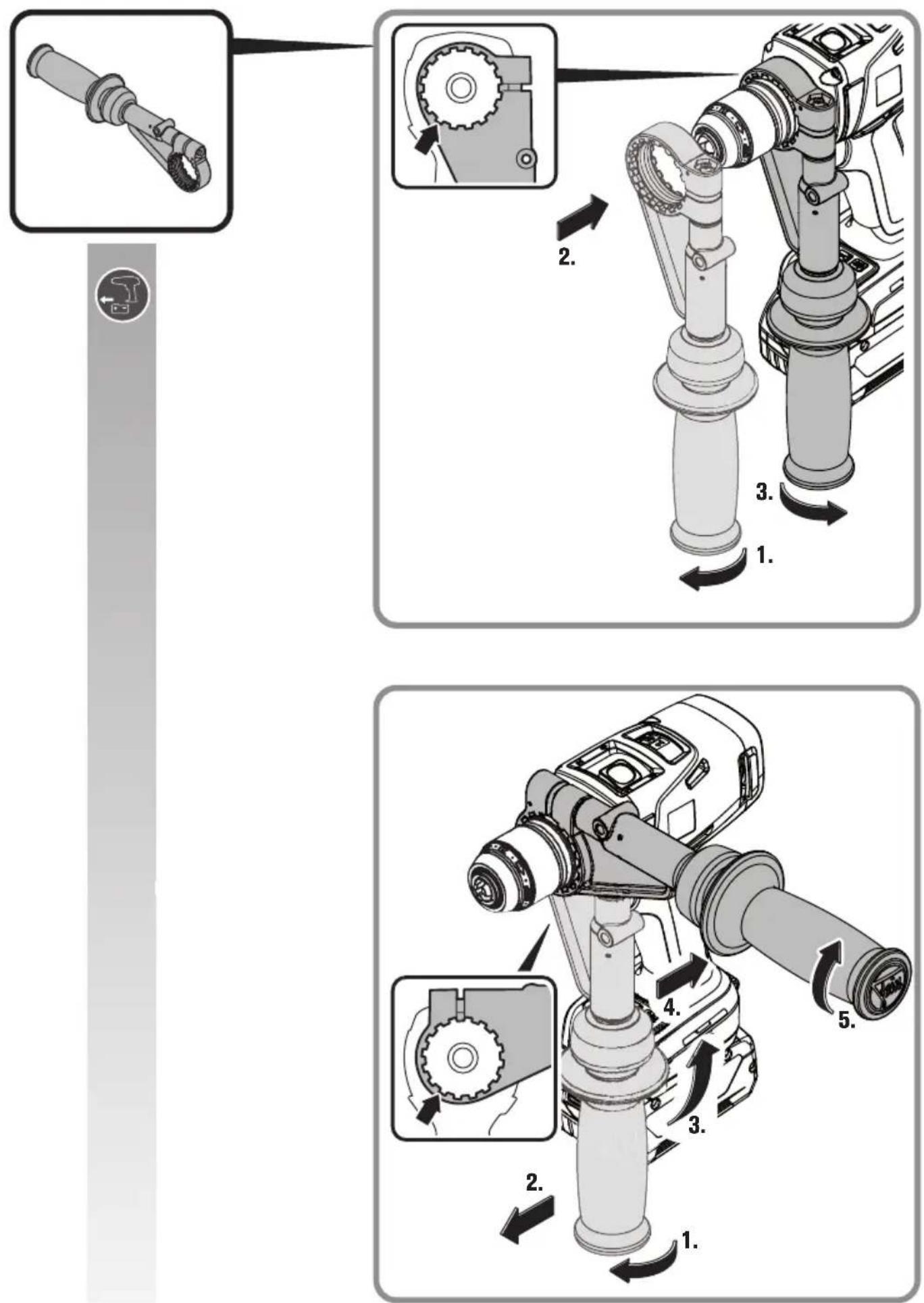

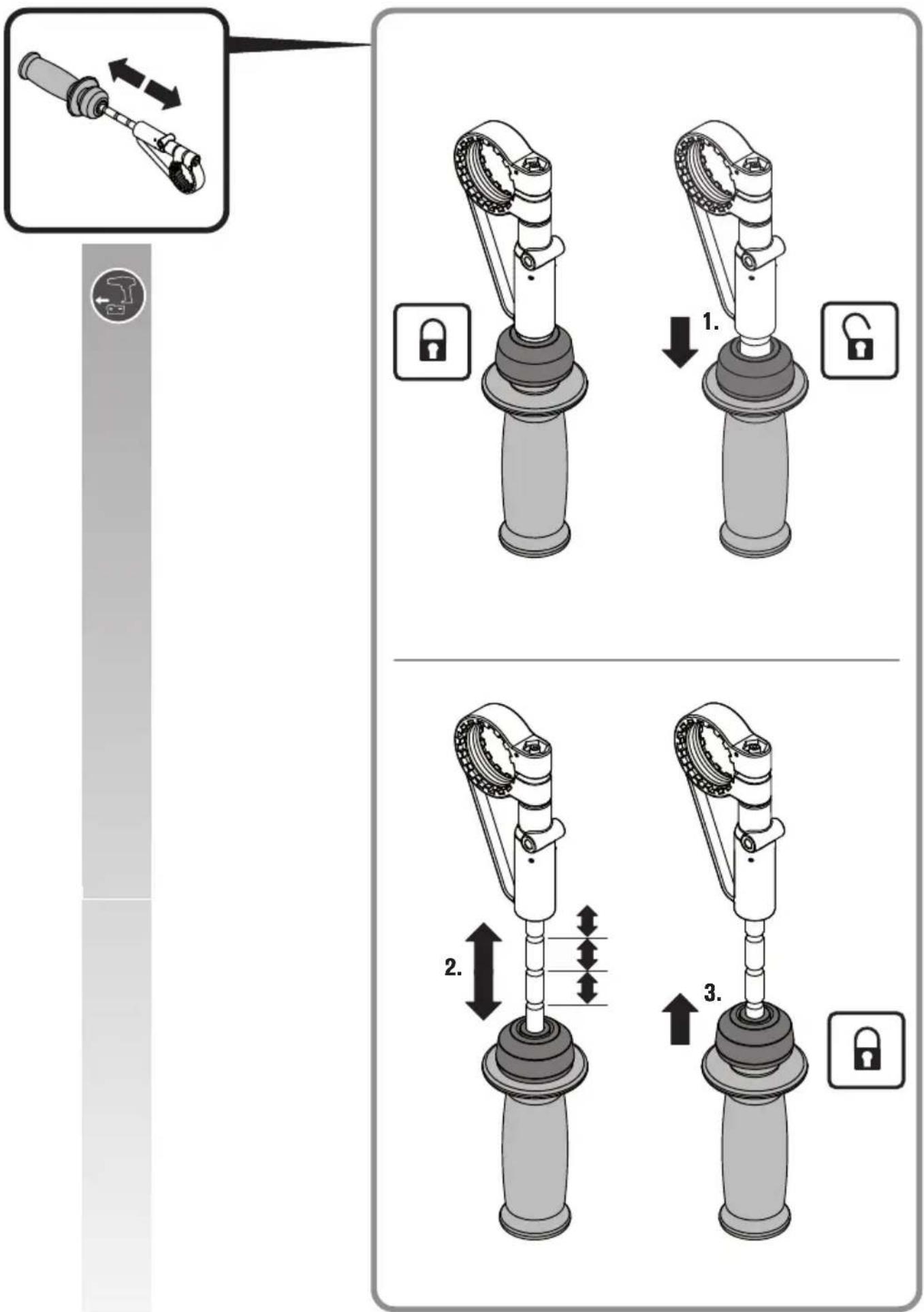

Use the auxiliary handle(s). Loss of control can cause personal injury.

Hold the power tool by the insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Safety instructions when using long drill bits.

Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

Special safety instructions.

Do not use a damaged power tool. Before each use of the power tool, check the housing and other components for damage such as cracks or breakage.

Only use approved batteries. When using non-compatible batteries, the power tool will not start.

Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e.g. with a metal detector.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

When working at height, block off the area below the work area and always secure the power tool and the workpiece against falling.

Only use the power tool on a stable work surface and ensure a secure footing.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

Hold the power tool firmly. High reaction torque can briefly occur.

Do not work with materials containing magnesium. Danger of fire.

Do not work with CFRP (carbon-fiber-reinforced polymer) and materials containing asbestos. These materials are considered carcinogenic.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Never look or stare into the light of the power tool's lamp from a short distance. Never point the light of the lamp into the eyes of other persons in close vicinity.

The radiation produced by the lamp can be harmful for the eye.

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp or hot application tools.

Use and handling of the battery (battery pack).

These safety warnings apply only for 18V FEIN AMP-Share Li-ion batteries.

Use the battery only in AMPShare partner products. 18V batteries marked with AMPShare are fully compatible with the following products:

- All products of the FEIN-18V-AMPShare system - All 18V products from AMPShare partners.

When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Observe the battery recommendations in the operating instructions for your product. Only in this way can the battery and the product be operated safely, and the batteries are protected from dangerous overload.

Only charge the batteries with chargers recommended by FEIN or one of the AMPShare partners. A charger that is suitable one type of battery pack may create a risk of fire when used with another battery pack.

The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.

Store batteries out of the reach of children.

Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

In case of skin contact with battery fluid, rinse immediately with plenty of water. In case of eye contact with battery fluid, wash out the eye with clean water and immediately seek a doctor for treatment!

When the battery fluid has come into contact with objects close by, check the respective components.

Avoid skin contact by wearing protective gloves. Clean the parts with dry household paper or replace the parts if necessary. Escaping vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

Do not short-circuit the battery. Keep the battery not being used away from paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

The battery can be damaged by sharp objects such as nails or screwdrivers or by external force. An internal short-circuit may occur and the battery can burn, smoke, explode or overheat.

Never maintain damaged batteries. Any maintenance of batteries should be performed only by the manufacturer or by authorised after-sales service centers.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, debris, water, and moisture. Danger of explosion and short-circuiting.

Operate and store the battery only at ambient temperatures between -20 °C and +50 °C. As an example, do not leave the battery in a vehicle in summer. At temperatures < 0 °C, machine-specific performance restrictions are possible.

Charge the battery only at ambient temperatures between 0 °C and +35 °C. Charge the battery via USB connection only at ambient temperatures between +10 °C and +35 °C. Charging the battery outside the temperature range may damage the battery or increase the risk of fire.

Handle discharged batteries with care. Batteries are a source of danger, as they can cause a very high short-circuit current. Even when Li-ion batteries appear to be in a discharged state, they never fully discharge.

Do not immerse the battery in liquids, such as (salt) water or beverages. Contact with liquids can damage the battery. This may result in heat build-up, smoke generation, ignition or explosion of the battery. Do not continue to use the battery and contact an after-sales service authorized by FEIN.

Do not use a damaged battery. The use of a battery must be stopped immediately as soon as abnormal properties, such as odour development, heat, discolouration or deformation occur. Continued operation can cause the battery to generate heat and smoke, ignite or explode.

Do not open, crush, overheat or set fire to the battery. Non-observance of this warning may result in burns and fire. Follow the manufacturer's instructions.

Extinguish burning Li-ion batteries with water, sand or a fire blanket.

Avoid physical blows/impact. Impact and penetration of objects can damage batteries. This may result in leakage, heat build-up, smoke generation, ignition or explosion of the battery.

Never charge the battery unattended overnight. Fire and explosion hazards can result in case of non-observance.

Do not remove the battery from its original packaging until it is going to be used.

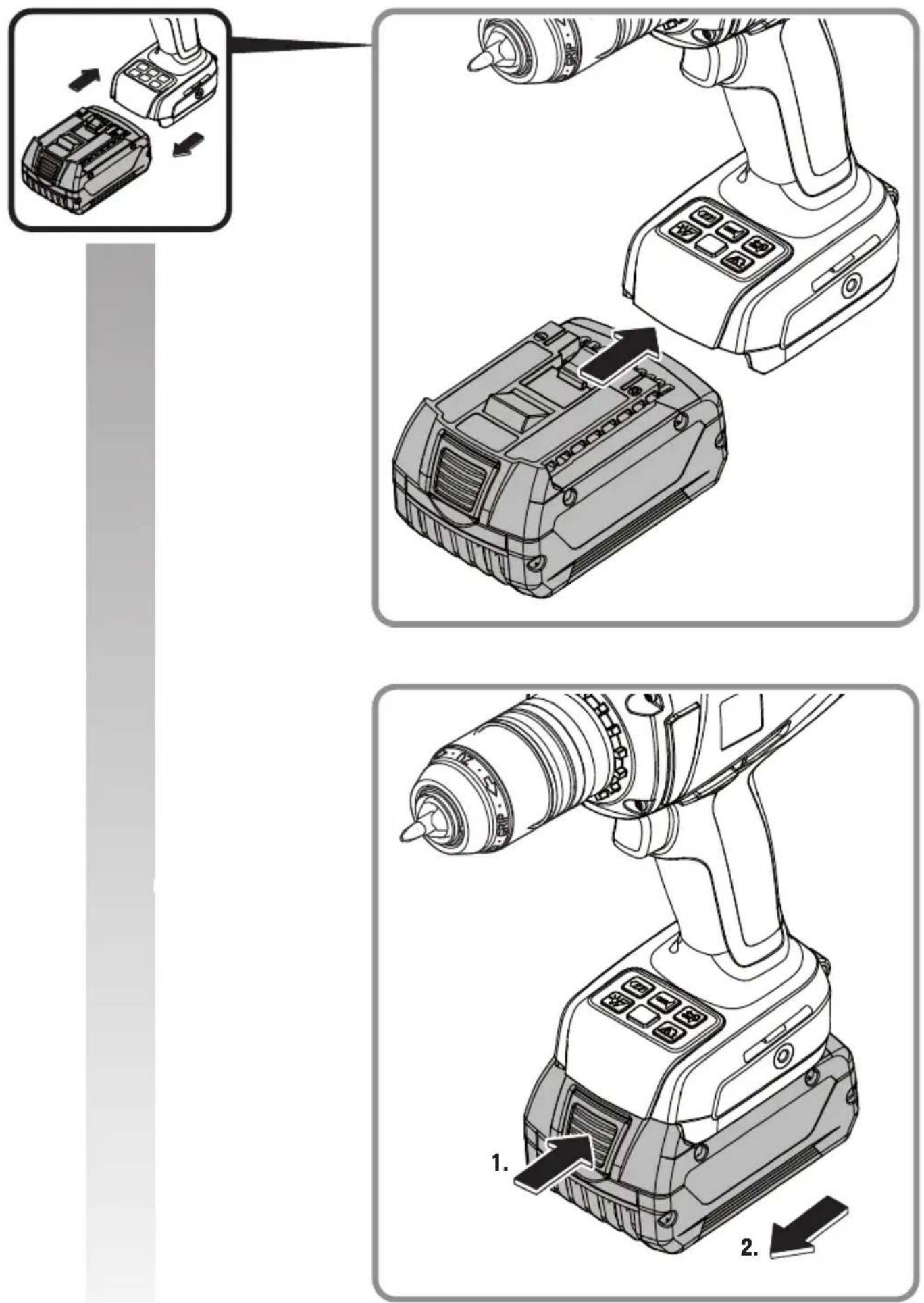

Remove the battery only when the power tool is switched off.

Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.

Protect the battery against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.

Remove the battery when transporting and storing the power tool.

Observe the safety instructions in the manuals of the chargers from FEIN or the AMPShare partners.

Vibration and noise emission values

The vibration and noise emission values given in these instructions have been measured according to a measurement method standardised in EN 62841 and can be used to compare power tools with each other. They are also suitable for a preliminary assessment of vibration and noise exposure.

The given vibration and noise emission values represent the main applications of the power tool.

However, if the power tool is used for other applications, with deviating application tools or insufficient maintenance, the overall vibration values and the noise emission values may differ. This can significantly increase the vibration and noise exposure over the total working period.

For an accurate estimation of vibration and noise exposure, the durations when the equipment is switched off or running but not actually in use should also be taken into account. This may significantly reduce the vibration and noise exposure over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise such as: Maintain the power tool and the accessories, keep the hands warm, organization of work patterns.

Handling hazardous dusts

For work procedures with this product where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e.g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, anti-fouling paints for vessels, can trigger allergic reactions to the operator or bystanders or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment. Provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of sanding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the product and the materials being sanded. Empty the dust collector in good time. Observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Starting Operation.

Carry out the following steps each time before using the product.

- Check the proper condition and operation of the product.

- Check the tight seating of the application tool.

Operation.

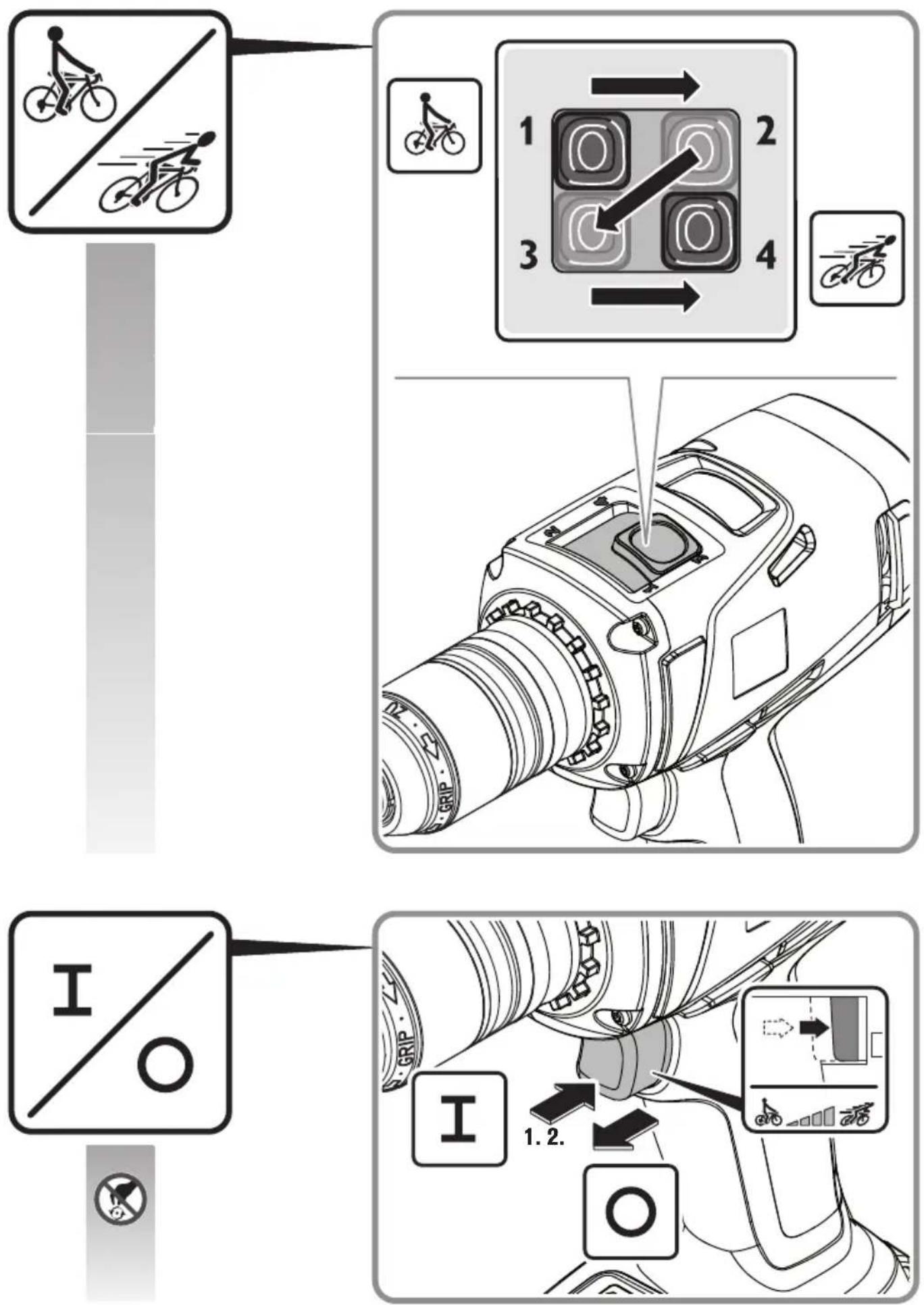

Adjust the rotational direction switch and the gear switch only when the machine is at a complete stop.

Always push the gear switch through to the stop. Otherwise, the machine can become damaged.

Overloading of the power tool is indicated by the work area lamp flashing for 5 seconds.

In case of overload, the machine switches off.

To avoid accidental starting, e. g., during transport, set the rotation selector switch to the centre position.

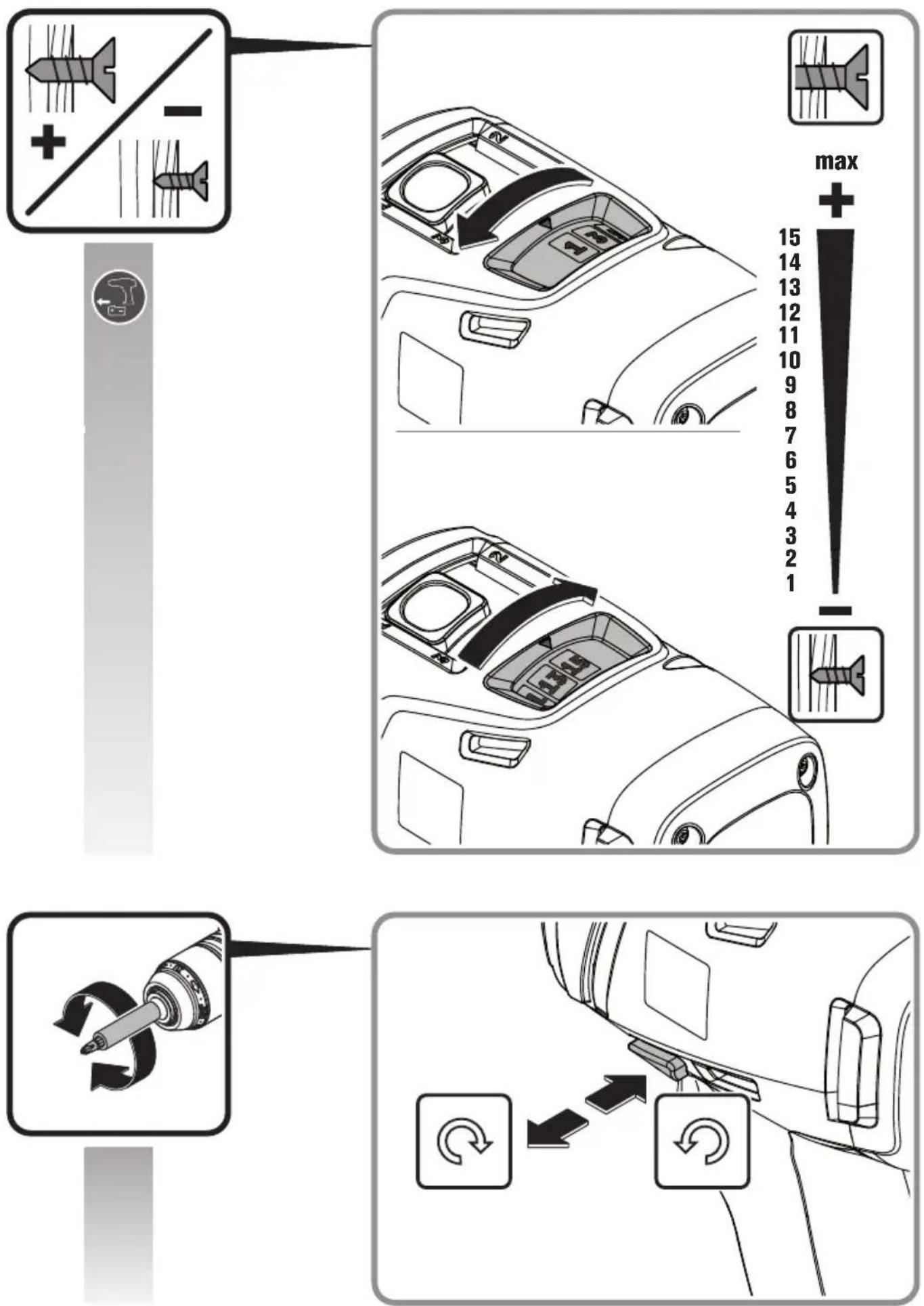

Electronic torque shut-off (see pages 10-11).

Adjust the torque only when the machine is at a complete stop.

The torque shut-off depends on the selected torque characteristic (see operating unit).

The motor switches off when reaching the set torque and an audio signal sounds (if activated). After the shut-off has taken place, release the on/off switch and press it again for the next screwdriving operation.

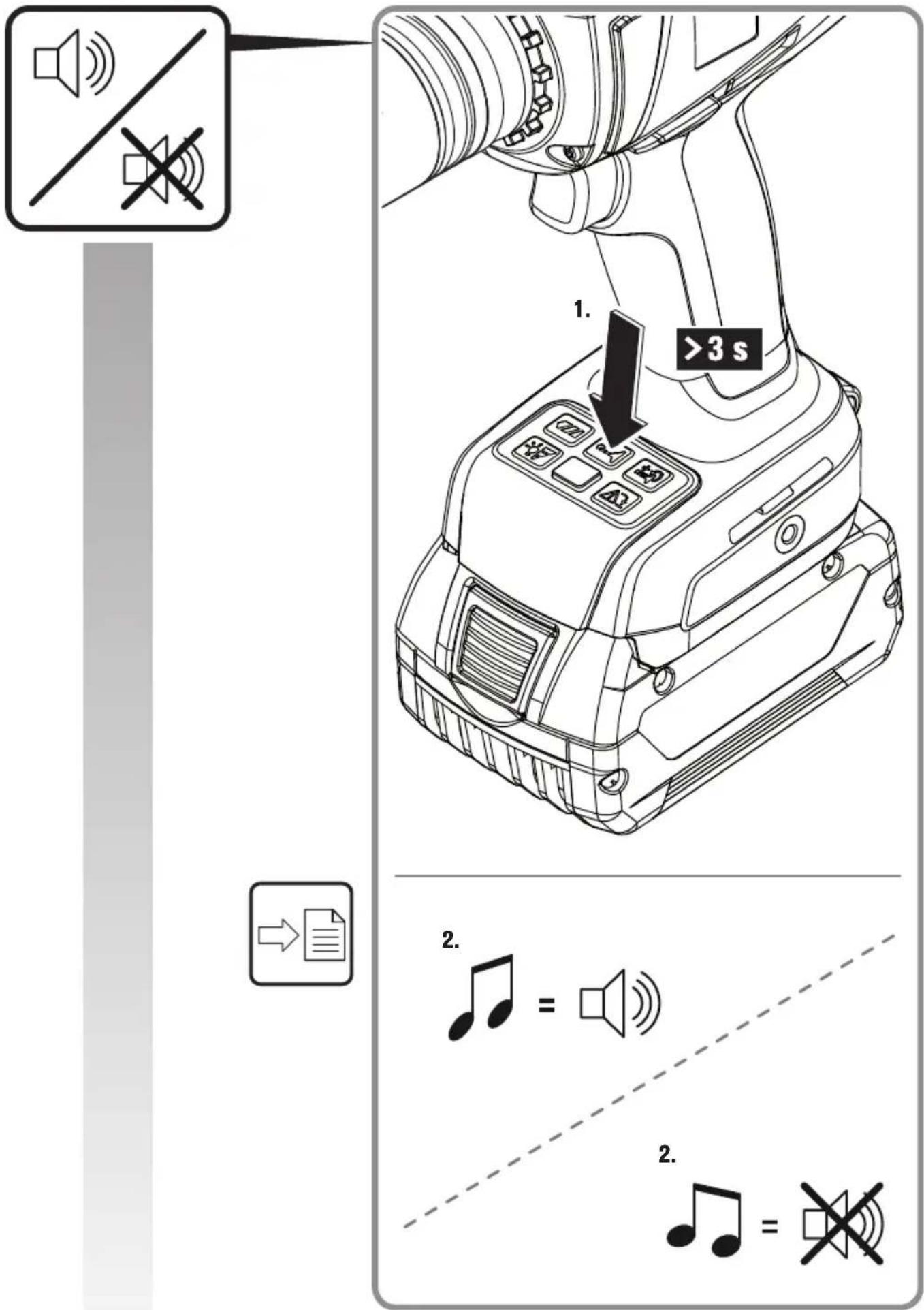

The audio signal can be switched on and off.

When working in the “” mode, there is no torque shut-off.

To achieve good working results, press the power tool with sufficient force against the screw.

The maximum speed is reduced in the lower torque levels.

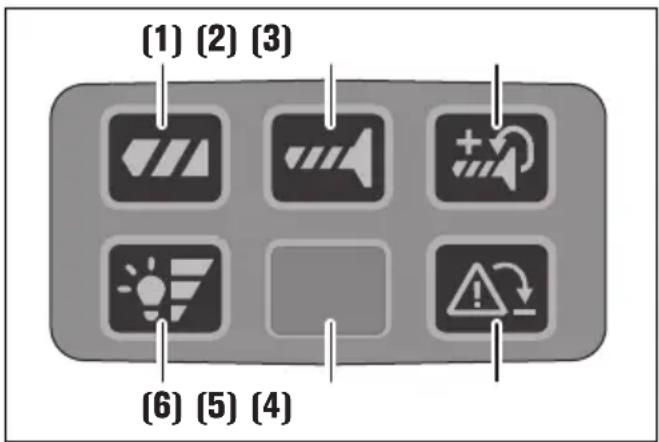

Operating unit

Buttons (1), (2) and (3) are used for setting the operation mode or selecting the torque characteristic.

The selected button lights up green. An audio signal sounds when pressing a button. Pressing button (2) for longer than 3 seconds switches the audio signal on or off.

(1) (2) (3) (6) (5) (4)

(1) Drilling

The torque shut-off is deactivated.

(2) Screwdriving

The torque shut-off is activated.

The motor switches off after reaching the set torque.

(3) Screwdriving with resetting

Torque shut-off with resetting is activated.

After reaching the set torque, the motor continues to rotate at reduced speed.

(4) Kickback monitoring

The button is used for one-time deactivation of the kickback monitoring.

At the next start-up of the product, the kickback monitoring is active again.

- Button lights up green: Kickback monitoring is active (basic setting)

- Button lights up red: Kickback monitoring is switched off or defective.

If the kickback monitoring is defective, the button continuously lights up red and is non-functional.

The power tool can continue to be operated without this function. Have the power tool repaired promptly through a qualified repair person and only using original replacement parts.

- Button flashes red (5 seconds): Application tool is blocked

(5) Work area lamp

(6) Brightness adjustment of work area light

The button is used for brightness adjustment of the work area light.

Gradations 0-1-2-3-0

Securing cable

For working aloft, FEIN offers suitable securing cables for the product as accessories.

WARNING

Do not exceed the maximum load specified on the securing cable.

Otherwise, serious or fatal injuries may result.

Observe the safety and operating instructions enclosed with the securing cable.

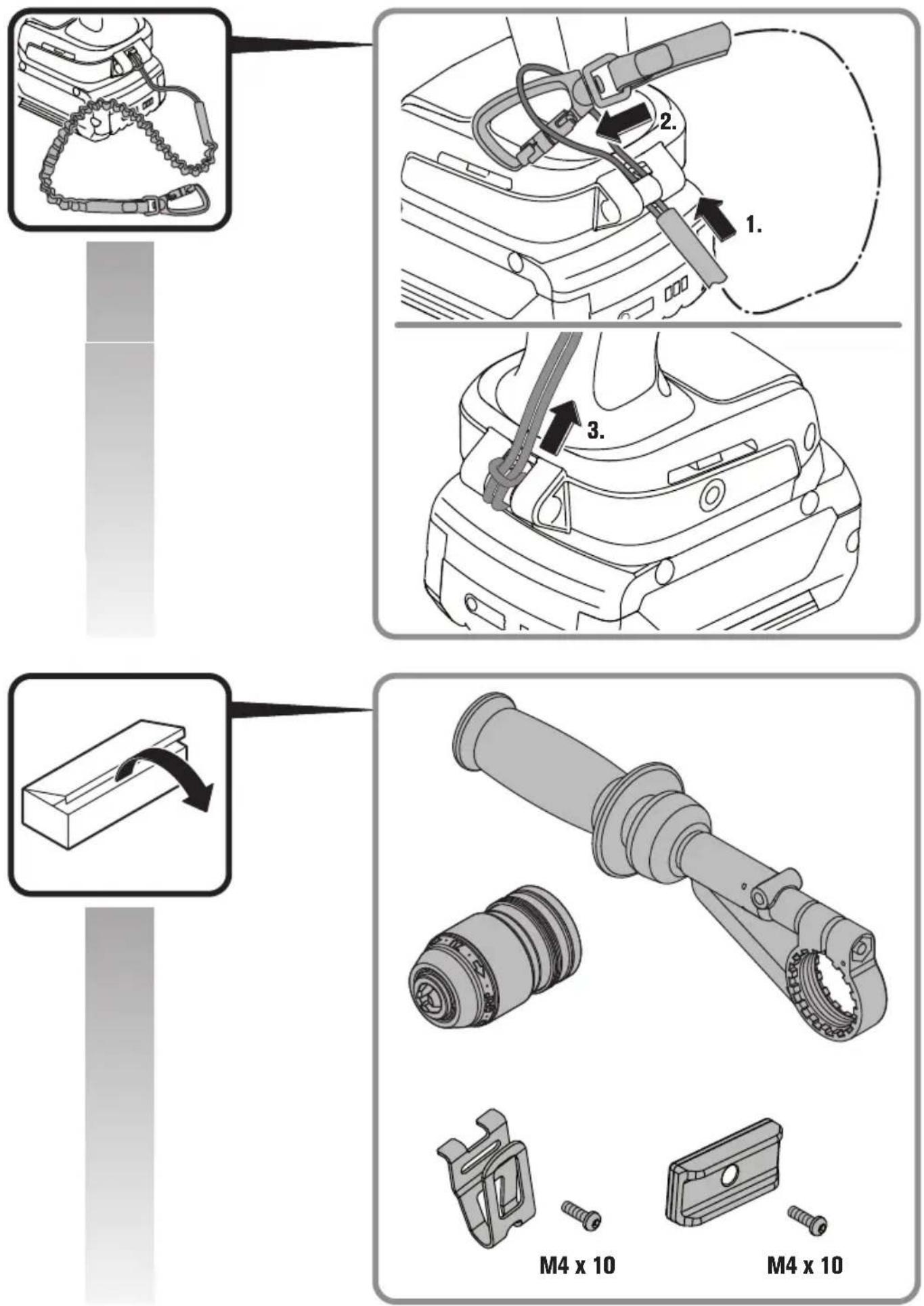

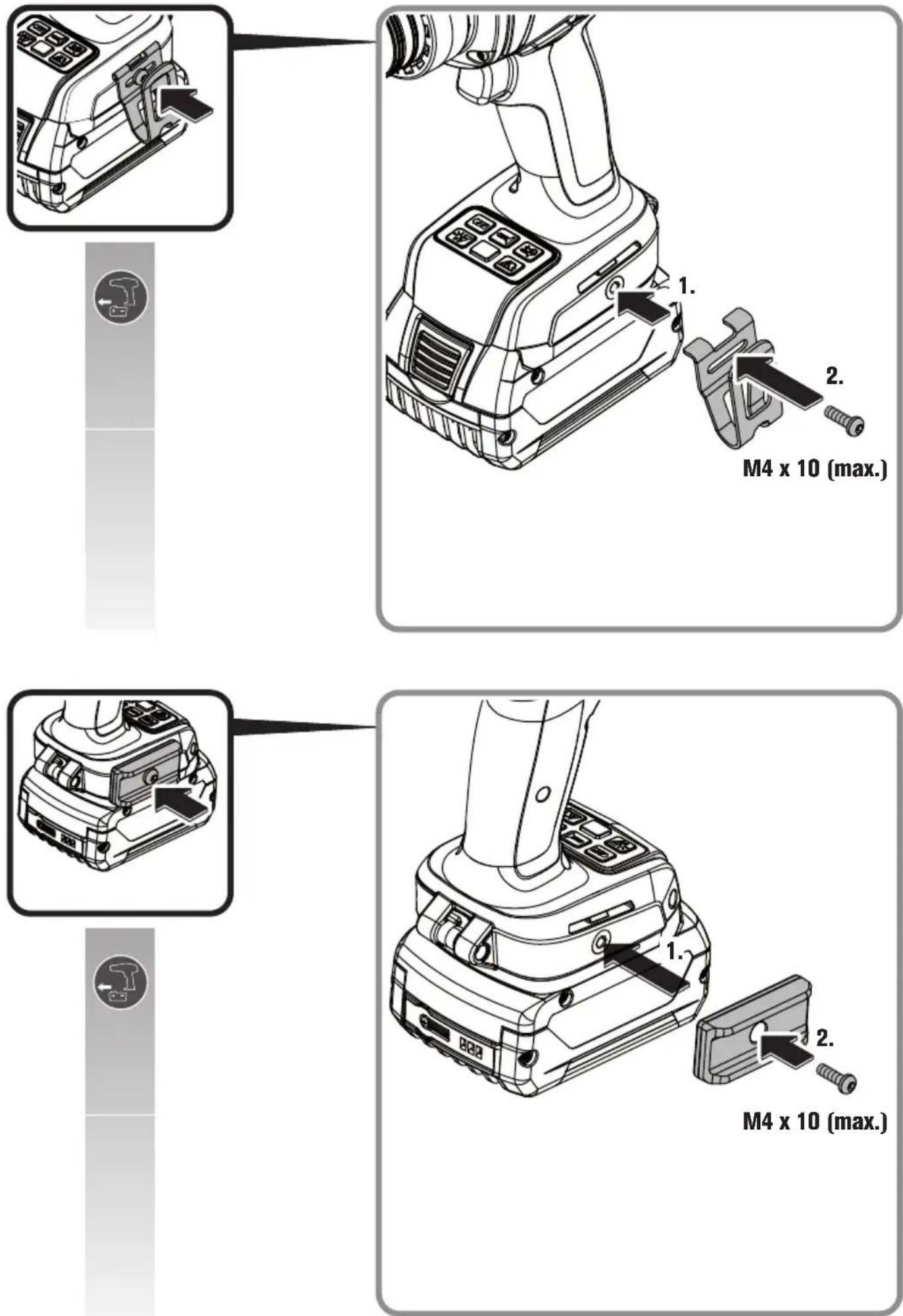

Connect the securing cable to the intended fastening point of the power tool only as shown (see page 16).

Handling the battery.

Charge the battery only at a temperature range from 0 ^ ... 35 ^ ( 32 ^ ... 95 ^ ). At the beginning of the charging procedure, the battery temperature must be within the battery operating-temperature range.

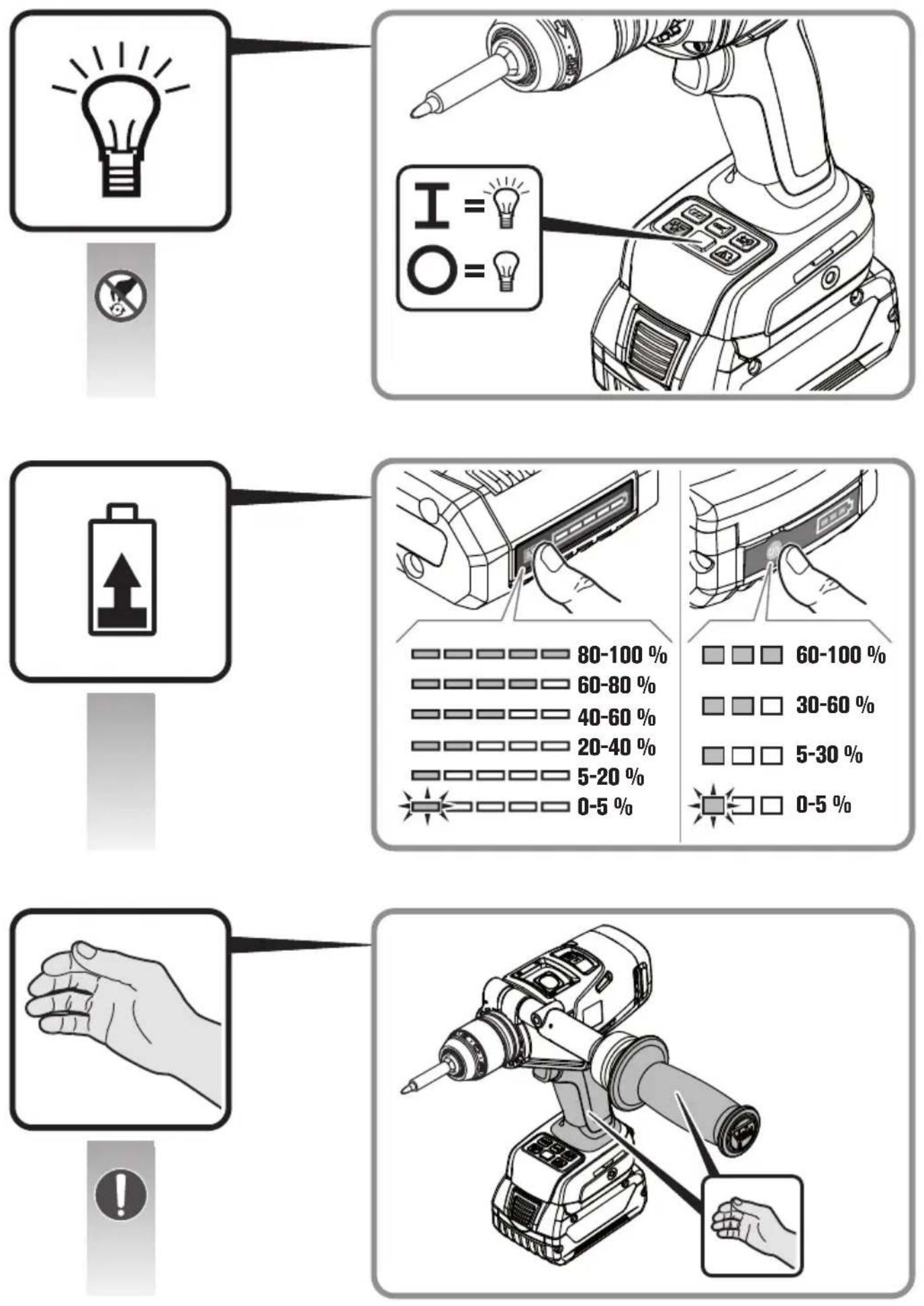

Charge-control Indicator on the Battery (see page 15).

The charge condition can be indicated by the green LEDs of the charge-control indicator on the battery.

Press the charge-control indicator button or to indicate the charge condition.

When no LED lights up after pressing the charge-control indicator button, the battery is defective and must be replaced.

Transport.

The Li-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Maintenance and Service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the product.

Blow out the interior of the product via the ventilation openings frequently with dry and oil-free compressed air.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

For products and accessories from FEIN that require repair, contact the FEIN Service at www.fein.com.

Renew stickers and warning indications on the product when aged and worn.

Use only original spare parts from FEIN. The current spare parts list for the product can be found at www.fein.com.

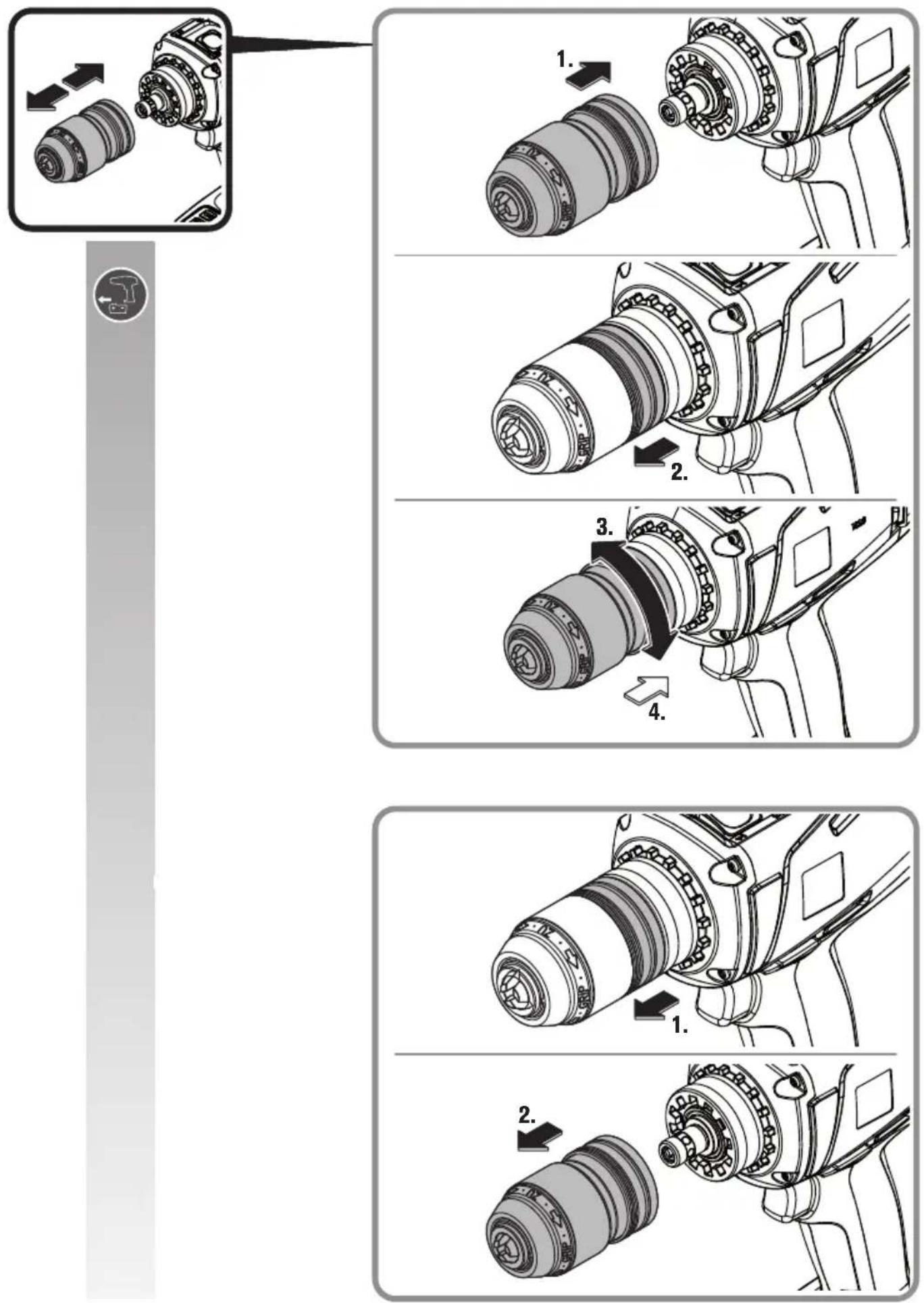

If required, you can change the following parts yourself:

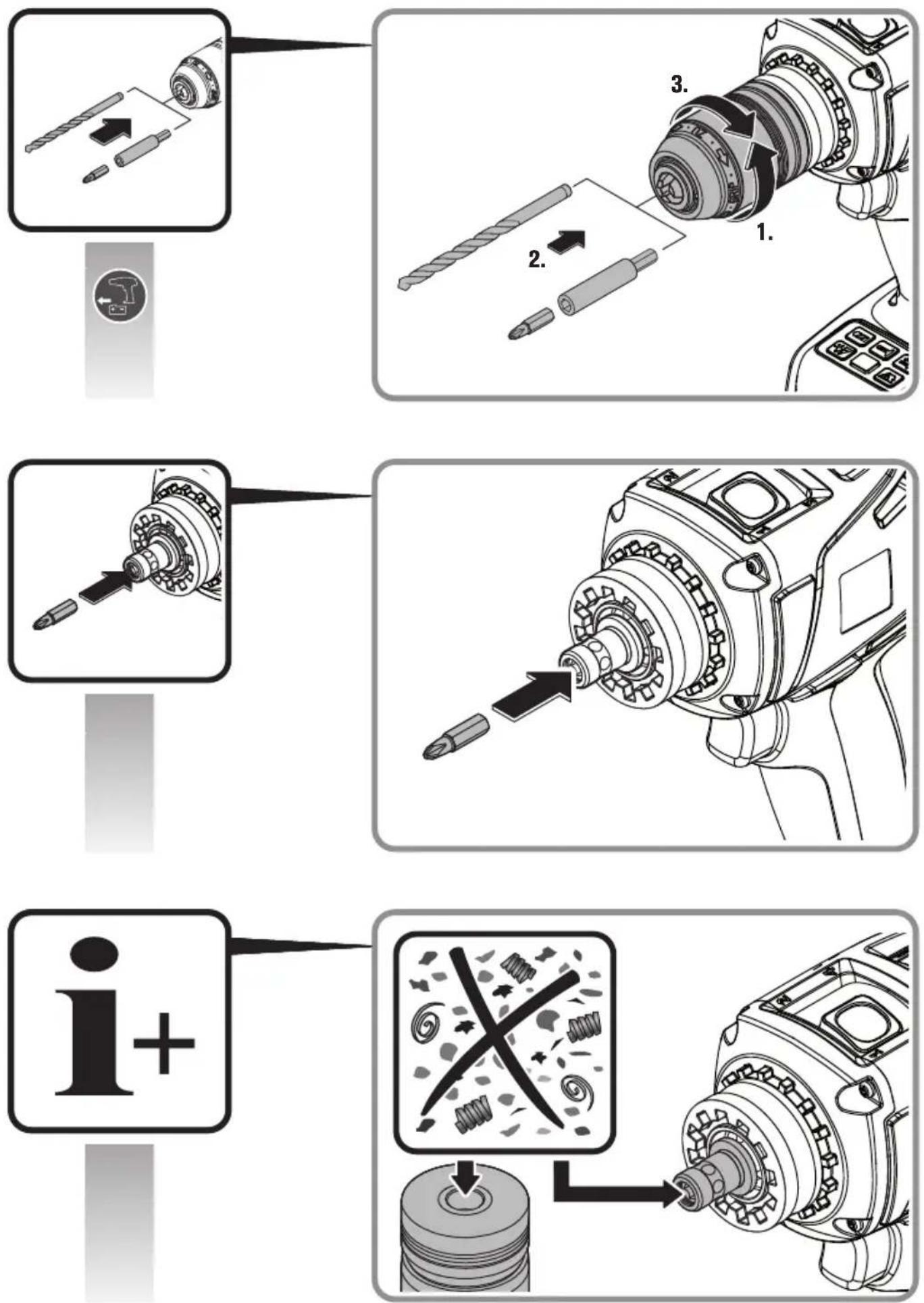

application tools, battery

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of the product may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market.

After placing the product on the Great Britain market the CE mark loses its mark validity.

Putting out of operation.

1. Disconnect the product from the power supply or remove the battery.
2. Remove any application tools and accessories mounted on the product.

Environmental protection, disposal.

Do not dispose of the batteries into household-waste!

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged.

For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.

Only for EC countries:

According to the European Guideline 2002/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally-correct manner.

Accessories.

Only use original accessories from FEIN intended for the product. Approved accessories for the product can be found at www.fein.com.

Image displaying six gray rectangular icons with corresponding symbols: battery, speaker, traffic light, sun, warning sign, and alert symbol.

(6) (5) (4)

(1) Perçage

Image displaying six gray rectangular icons with corresponding symbols: battery, speaker, traffic light, sun, warning sign, and alert symbol.

(6) (5) (4)

(1) Boren

Image displaying six gray rectangular icons with corresponding symbols: battery, speaker, traffic light, sun, warning sign, and alert symbol.

(6) (5) (4)

(1) Taladrar

Image displaying six gray rectangular icons with corresponding symbols: battery, speaker, traffic light, light warning, and warning sign.

[6] [5] [4]

(1) Furar

Diagram showing six labeled icons representing signal, speaker, refresh, lightbulb, warning sign, and alert symbols

(6) (5) (4)

(1) Διάτρηση

Gray-scale icon set with six labeled buttons or symbols: battery, speaker, refresh, lightbulb, warning sign, and alert arrow.

(6) (5) (4)

(1) Boring

Grid of six gray icons representing safety and warning symbols, including battery, speaker, traffic light, lightbulb, warning sign, and alert.

(6) (5) (4)

(1) Borrning

Grid of six gray icons representing safety and warning symbols, including battery, speaker, traffic light, sun, warning sign, and alert.

(6) (5) (4)

(1) Poraus

Gray-scale icon set with six labeled buttons or symbols: battery, speaker, traffic light, solar panel, warning sign, and alert symbol.

(6) (5) (4)

(1) Vrtání

Gray-scale icon set with six labeled buttons or symbols: battery, speaker, traffic light, lightbulb, warning sign, and alert arrow.

[6] [5] [4]

(2) Skrutkovanie

Six gray rectangular icons with icons representing signal, speaker, refresh, lightbulb, and warning sign (no text or symbols)

(6) (5) (4)

(1) Wiercenie

Image displaying six gray rectangular icons with corresponding symbols: battery, speaker, traffic light, sun, warning sign, and alert symbol.

(6) (5) (4)

(1) Găurire

Gray-scale icon set with six labeled buttons or symbols: signal, speaker, refresh, lightbulb, warning sign, and alert arrow.

(6) (5) (4)

(1) Свердлення

Grid of six gray icons representing various safety and traffic symbols, including battery, speaker, traffic light, warning sign, light bulb, and warning triangle.

(6) (5) (4)

(1) Grężimas

China RoHS Status Certificate

中国 RoHS 认证概况

Table of Toxic and Hazardous Substances/Elements and their Content

as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表

Gray-scale icon set with six labeled safety and warning symbols including battery, speaker, signal, lightbulb, warning sign, and alert.

(6) (5) (4)

(1) การเจาะ

Six gray rounded rectangular icons with white symbols, no text or numbers present

(6) (5) (4)

(1) 穴あけ

トルクカットオフ機能がオフになります。

(2) ネジ締め

トルクカットオフ機能がオンになります。

Six gray rectangular icons with white symbols representing signal, speaker, traffic, lightbulb, warning sign, and alert symbol (no text or numbers)

[6]

(2)

(5)

(3)

(4)

(1) डिल करना

Gray-scale icon set with six labeled buttons or symbols: battery, speaker, refresh, lightbulb, warning sign, and alert arrow.

(6)(5)(4)

[1] تقب
