302631 - Battery charger Aplic - Free user manual and instructions

Product type	Battery charger
Brand	Aplic
Model	302631
Power supply	DC 4.7-5.5 V / 0.5-2 A (micro-USB input)
Max charging current	Up to 2 x 1000 mA (depending on source)
Adjustable charging current	500 mA or 1000 mA per bay
Compatible battery types	Rechargeable Li-ion: 26650, 18650, 18500, 18350, 17670, 16340, 14500, 10440
Number of bays	2
Display	LCD screen with blue backlight
Indicators	Charge status (visual and %), current, voltage, charging time
Protection	Battery reverse polarity protection
Operating temperature	0 °C to +40 °C
Usage	Indoor use only
Cleaning	Soft dry cloth, no harsh cleaners
Safety	Never open the device, use only compatible rechargeable batteries
Package contents	Charger, micro-USB cable, instruction manual
Manufacturer	WD Plus GmbH, Wohlenbergstr. 16, 30179 Hanover, Germany
Recycling	Compliant with WEEE directive 2012/19/EU (registration no. DE: 67896761)

Frequently Asked Questions - 302631 Aplic

What types of batteries can I charge with the Aplic 302631 charger?

The charger is compatible with rechargeable Li-ion batteries of types: 26650, 18650, 18500, 18350, 17670, 16340, 14500 and 10440. Never charge other types of batteries.

How do I adjust the charging current on the Aplic 302631 charger?

Briefly press the « MODE » button to toggle between 500 mA and 1000 mA per bay. The selected current is displayed on the screen.

What to do if an inserted battery does not charge?

Check that the battery is compatible and inserted in the correct orientation (polarity). Ensure the power source is connected and provides at least 500 mA. If the problem persists, try a different battery.

Can I use the charger with non-rechargeable batteries?

No, the charger is designed only for rechargeable Li-ion batteries. Using non-rechargeable batteries can cause overheating, leakage, or explosion.

How to clean the Aplic 302631 charger?

Unplug the charger and wipe it with a soft, dry cloth. Do not use harsh cleaners or liquids.

What is the required input voltage for the charger?

The charger requires a DC power supply of 4.7 to 5.5 V with a current of 0.5 to 2 A, supplied via the micro-USB cable.

Can the charger be used in a car?

Yes, you can use a car USB adapter as input, provided it supplies a voltage of 5 V and at least 1 A for optimal operation.

What do the information displayed on the LCD screen mean?

The screen displays: charging status (visual and percentage), current charging current, battery voltage, and elapsed charging time. It turns off automatically when the battery is fully charged.

What to do in case of charging problem or malfunction?

Check the power source, connections, and battery condition. If the problem persists, do not attempt to repair the device yourself. Contact customer service or the manufacturer.

Where can I get the declaration of conformity for this charger?

The declaration of conformity can be obtained by contacting the manufacturer: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany.

USER MANUAL 302631 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or partial circle (no text or symbols)

aplic

2-Bay Battery Charger

Thank you for choosing an aplic product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• 2-Bay battery charger
- microUSB cable
- User manual

2 Technical data

Operating voltage DC 4.7-5.5 V / 0.5-2A
Output 2 charging slots up	to 2 x 1000mA (depending on the connected power source)
Battery types Rechargeable Li-ion
Compatible battery types	26650 / 18650 / 18500 / 18350 / 17670 / 16340/14500 / 10440
Charging current (can be configured)	1 x / 2 x 500 mA(per slot/assembly)	1 x / 2 x 1000mA(per slot/assembly)
Mode Charging
Features • LCD display	Backlight (blue)Battery status display visually and in percentageCharging-current displayActual voltage (display)Charging time (elapsed time)Battery reverse polarity protection5V input (can be operated using car USB adapter)

3 Important safety instructions for this device!

• Use only the compatible battery types that are listed in the table on the previous page! Never charge batteries that are not listed in the table!
  • The device should only be used in dry rooms!
• Do not drop the product or place any heavy objects on the charger.
• Keep the device out of the reach of children.
  • This product is not a toy.
• Use it only within the permissible working temperature from 0^ C to +40^ C.
• Do not use or store the charger in direct sunlight, or in places where it is very hot.

3 Product details

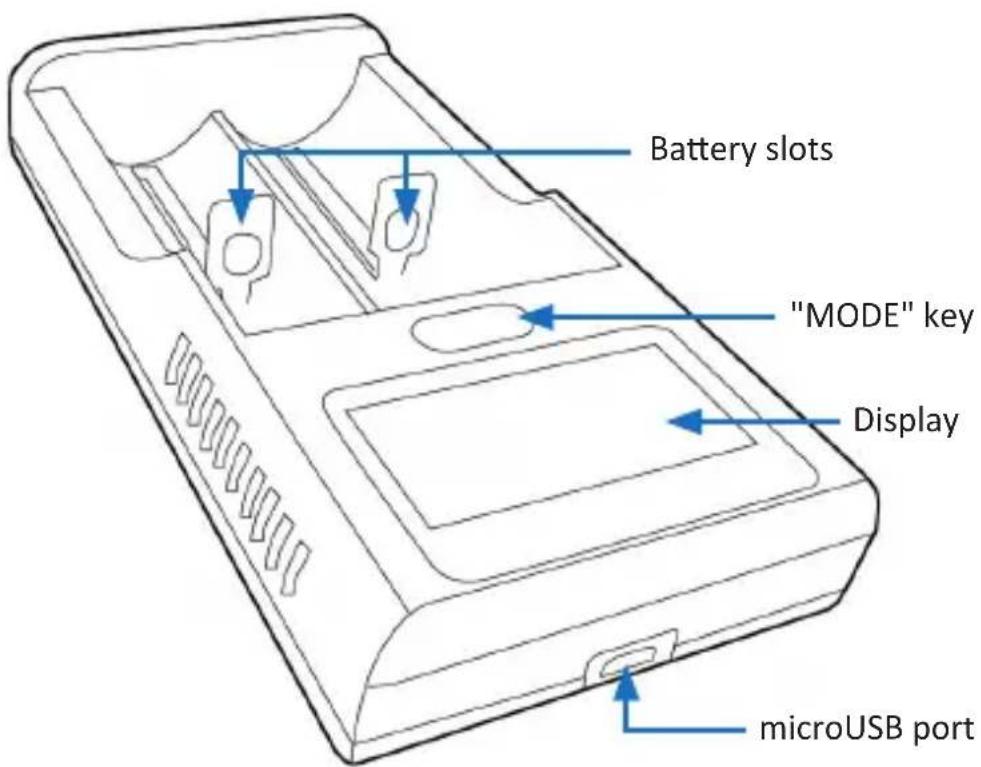

Battery slots "MODE" key Display microUSB port

1 2 3 8.88v 18.8% 0.5A 1.0A 8:88 8.88v 18.8% 0:88 4 5 6

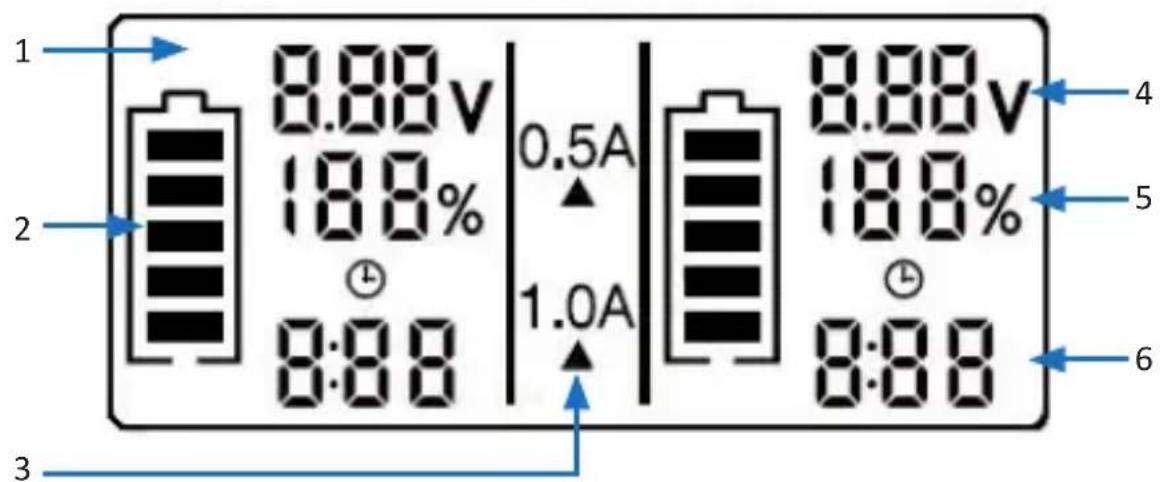

1 LCD display

2 Charging status display

3 Charging current display

4 Battery voltage display

5 Battery charging status in percentage

6 Charging time (automatically displays the charging time and stops incrementing as soon as the battery is fully charged)

4 Function

The aplic charger is intended for charging lithium-ion batteries (types: 26650, 18650, 18500, 18350, 17670, 16340, 14500, 10440). The two charging slots can accommodate batteries and control them. The large, easy-to-read display shows information like charging current, battery status or the actual charging time separately for each charging slot. Batteries are not subject to any capacity limits and can be charged with a charging current of 500mA or 1000mA.

4.1 Key functions

"MODE" key Function
keep it pressed Switching the display on and off (charging process continues)
press briefly Alternate between 500mA and 1A charging current

5 Power supply

Use only a power supply, which meets the specifications of this device (DC 4.7-5.5V / 0.5-2A). Please note that the maximum charging current depends on the capacity of the power supply.

6 Setting up

Take the device out of the package and remove all the packaging material. Attach the supplied USB to microUSB cable to a properly connected power source (e.g. power adapter of your mobile phone or your computer's USB port) and to the battery charger. You can then insert the desired type of battery into the charger.

Caution! Charge only rechargeable batteries. Please do not use non-rechargeable batteries!

Various data such as the charging time, actual voltage and the charging status, is shown in the display as soon as a battery is inserted. The actual charging current is shown in the middle of the display. This can be adjusted between 500mA and 1000mA. Briefly press the "MODE" button to configure.

If you want to charge completely discharged batteries, it may be that the charging process is more effective if you charge them using a lower charging current.

7 Cleaning and Maintenance

Disconnect the device from the mains and make sure that it is not carrying any current. Wipe it using a dry and soft cloth. Please do not use aggressive cleaning agents.

8 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly.

As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302631/20171012SZ183 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
