USER MANUAL DW875 DEWALT

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

A

16 17 13 14 15 18 C

19 23 21 22 20 D

Dansk 1

Deutsch 6

English 12

Español 17

Français 22

Italiano 27

Nederlands 32

Norsk 37

Português42

Suomi 47

Svenska 52

Ελληνικα 57

METALSAV DW875

Tillykke!

You have chosen a DEWALT Power Tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional Power Tool users.

Table of contents

Technical data en - 1

Declaration of conformity en - 1

Safety instructions en - 2

Package contents en - 3

Description en - 3

Electrical safety en - 3

Mains plug replacement (U.K. & Ireland only) en - 3

Using an extension cable en - 3

Assembly and adjustment en - 4

Instructions for use en - 4

Maintenance en - 5

Guarantee en - 5

Technical data

		DW875
Voltage V 220
(U.K. & Ireland only) V 240/115
(Latin America only)	V 120
Power input	W 2,000
No load speed	min^-1	3.900
Wheel diameter	mm	355
Weight	kg 13
Fuses:
Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	240 V tools	13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Declaration of conformity

DW875

DeWALT declares that these Power Tools have been designed in compliance with: 89/392/EEC, 89/336/EEC, 73/23/EEC, EN 61029, EN 55104, EN 55014, EN 61000-3-2 & EN 61000-3-3.

Level of sound pressure according to 86/188/EEC & 89/392/EEC, measured according to DIN 45635:

			DW875
L_pA	(sound pressure)	dB(A)*	100.6
L_wA	(acoustic power)	dB(A)	108.6

* at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to DIN 45675:

	DW875
	1.99 m/s2

Director Engineering and Product Development Horst Großmann

X. fopmann

DEWALT, Idstein, Germany

Safety instructions

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product.

Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of inflammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Keep all people away from the work area.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Always check that the workpiece is properly secured.

11 Avoid overloading the machine

Excessive pressure or workpiece feed may cause machine overload. The tool will do the job better and safer at the rate for which it was intended.

12 Warning!

Do not release or remove the guard.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is laid down in this instruction manual. If in doubt, contact DEWALT. The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Do not use the supply cable to pull out the plug from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards

or other defective parts repaired or replaced as instructed.

Do not use the tool if the switch is defective.

Have the switch replaced by an authorized

DEWALT repair agent.

20 Have your tool repaired by an authorized DEWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Package contents

The package contains:

1 Chopsaw
1 Quick adjusting material clamp
1 Cutting disc
1 Spanner
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
  • Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your professional DEWALT Chopsaw is a high precision Power Tool for (angular) cutting of steel, aluminium, synthetic materials and stone.

1 ON/OFF-switch
2 Control handle
3 Carrying handle
4 Guard
5 Spindle lock
6 Quick adjusting material clamp
7 Motor housing
8 Chain
9 Cutting table

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

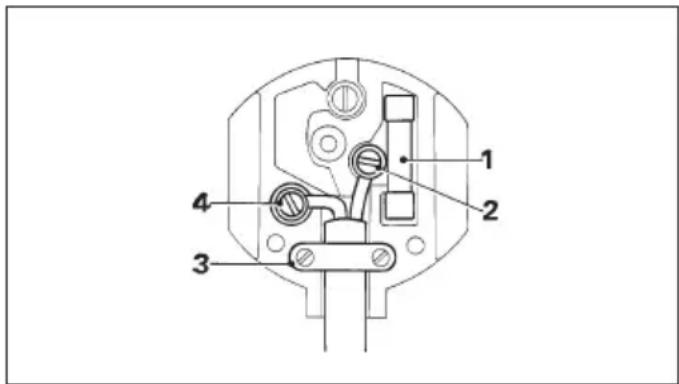

Mains plug replacement (U.K. & Ireland only)

- Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.

- Disconnect the plug from the supply.

- Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.

- Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).

- The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).

- Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

1 2 3 4

For 115 V tools, use plugs in conformity with BS4343.

Never use a light socket.

Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

For 115 V tools, use plugs to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm^2 .

When using a cable reel, always unwind the cable completely.

Also refer to the table on the next page.

Conductor size (mm ^2 ) Cable rating (Amperes)

0.75 6

1.00 10

1.50 15

2.50 20

4.00 25

Cable length (m)
7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
1	1	5	0	-	2	.	0	6	6	6
		2.1 -	3.4	6	6	6	6	15	15
		3.5 -	5.0	6	6	10	15	20	20
		5.1 -	7.0	10	10	15	20	20	25
		7.1 -	12.0	15	15	20	25	25	-
		12.1 -	20.0	20	20	25	-	-	-
220/240		0 -	2.0	6	6	6	6	6	6
		2.1 -	3.4	6	6	6	6	6	6
		3.5 -	5.0	6	6	6	6	6	10	15
		5.1 -	7.0	10	10	10	10	15	15
		7.1 -	12.0	15	15	15	15	20	20
		12.1 -	20.0	20	20	20	20	20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

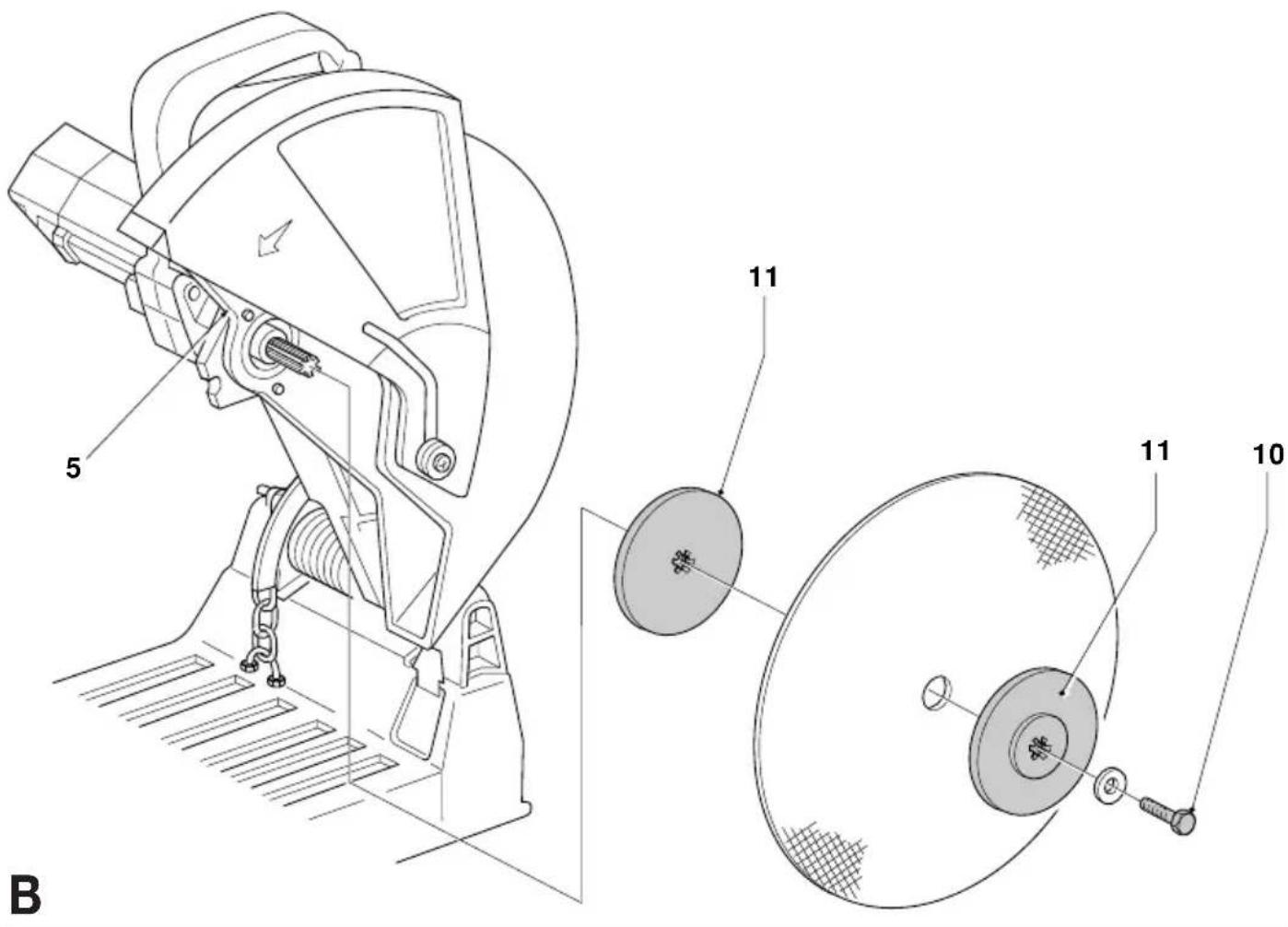

Removing and fitting a cutting disc (fig. B)

Cutting discs with a bore of 25,4 mm (standard)

• Press and hold down the spindle lock (5).
• Rotate the cutting disc until it locks.
• Using the spanner supplied, release the disc retaining bolt (10) and remove it completely with the outer retaining flange (11).
• Release the spindle lock (5).
• Replace the cutting disc and secure it with the outer retaining flange (11) and the disc retaining bolt (10).

Clamping the workpiece in position (fig. A)

Your DEWALT chopsaw is equipped with a quick-adjusting material clamp (6).

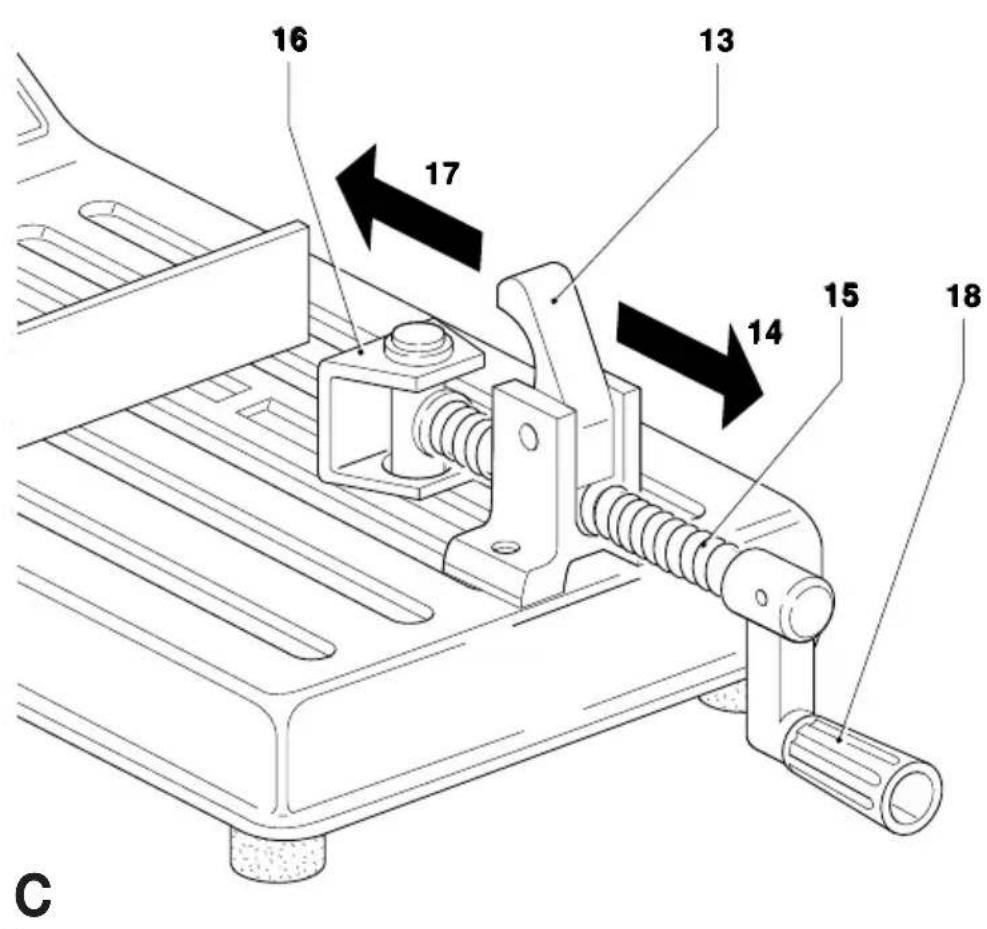

Clamping materials with a maximum width of 110 mm (fig. C)

• Pull lever (13) in the direction of arrow (14).

• Push the clamp shaft (15) forward until jaw (16) is almost touching the workpiece to be cut.

• Press lever (13) in the direction of arrow (17) until it engages with the clamp shaft (15).

• Rotate the handle (18) clockwise and clamp the workpiece securely.
• To release the workpiece, rotate the handle (18) counterclockwise.

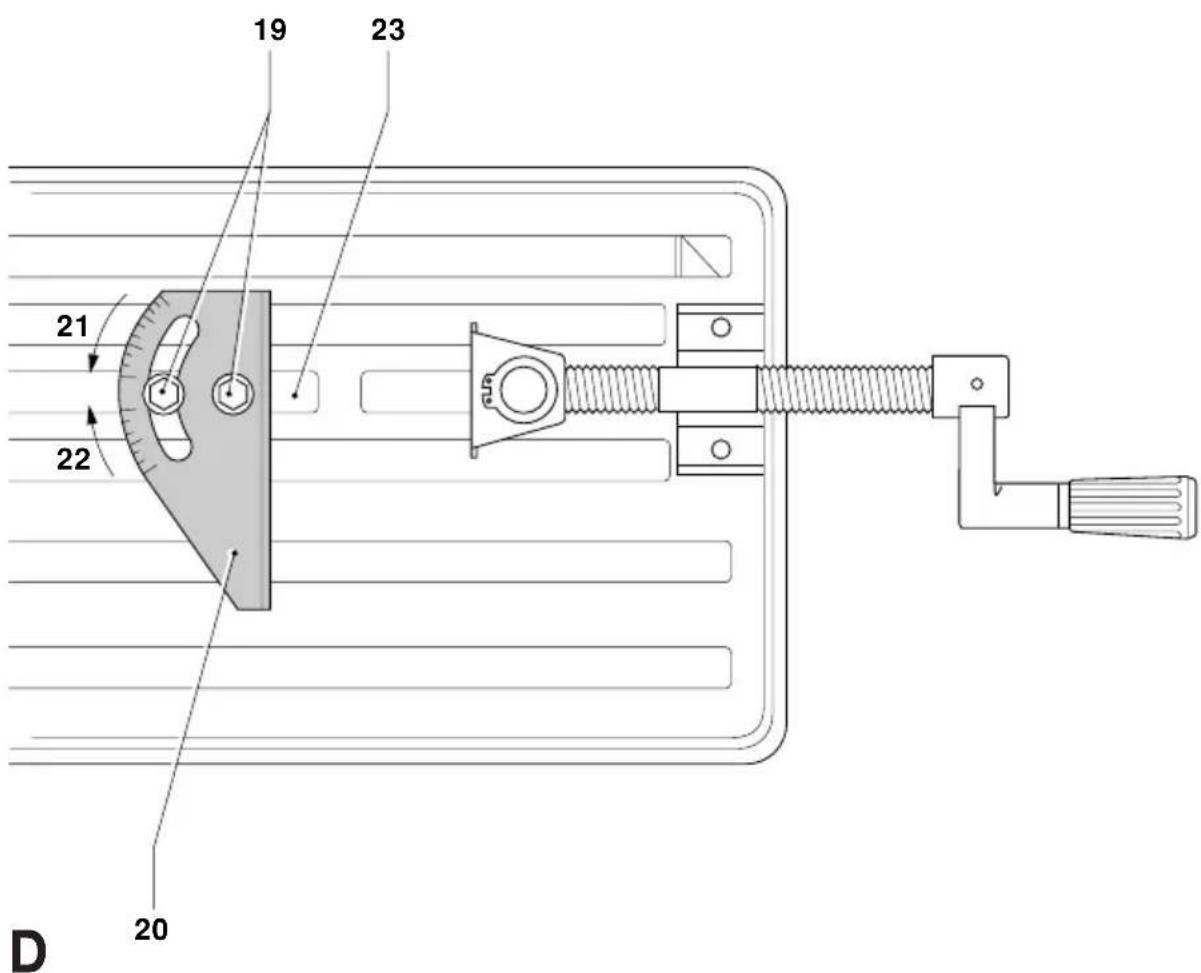

Clamping materials with a maximum width of 230 mm (fig. D)

6 • Loosen the two bolts (19) using the spanner supplied with the tool.
- Slide fence (20) as far as necessary.
- Tighten the two bolts (19).

When cutting square or rectangular section material, position the material slightly off-centre towards the rear of the tool.

Adjusting the angle of cut (fig. D)

This DEWALT chopsaw can be used for left and right mitre cuts up to 45°.

• Loosen the two bolts (19) using the spanner supplied with the tool.
• Adjust the fence (20) to the required angle. When turning the fence in the direction of arrow (21), line up the scale with the right-hand side of the slot (23). When turning the fence in the direction of arrow (22), line up the scale with the left-hand side of the slot (23).
• Tighten the two bolts (19) and clamp the workpiece securely.

Instructions for use

• Always observe the safety instructions and applicable regulations.
- Do not apply excessive pressure to the tool.
- Avoid overloading. Should the tool become hot, let it run a few minutes under no load condition.

Prior to operation:

- Install the appropriate cutting disc. Do not use excessively worn discs. The maximum rotation speed of the tool must not exceed that of the cutting disc.

• Make sure the disc rotates in the direction of the arrows on the accessory and the tool.
• Secure the workpiece.

Switching ON and OFF (fig. A)

The ON/OFF-switch (1) of your Chopsaw is mounted in the control handle (2).

• To run the tool, press the ON/OFF-switch.
• Keep the ON/OFF switch depressed while pulling down the control handle (2) to cut the workpiece.
• To stop the tool, release the ON/OFF-switch. The tool will automatically travel to its rest position.

Do not switch the tool ON or OFF when under load.

Consult your dealer for further information on the appropriate accessories.

Transport (fig. A)

Your DeWALT Power Tool is equipped with a chain (8) which locks the tool in closed-down position for carrying.

• Lower the guard (4) onto the cutting table (9) and secure the Power Tool in this position by hooking the chain link over the pin.
• Transport the Power Tool using the carrying handle (3).
• To release the tool, press the guard (4) down onto the cutting table (9) and release the chain (8).

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your Power Tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Unwanted tools and the environment

Take your tool to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to a participating Dealer, or an authorized DEWALT repair agent, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
• Proof of purchase date is produced.
- This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual.
