USER MANUAL DW0822 DEWALT

Icon of a person reading a book inside a circle (no text or symbols)

Instruction Manual

Guide D'utilisation

1 Battery compartment cover
2 Indicator lights
3 Horizontal laser line on/off button
4 Vertical laser line on/off button
5 Plumb laser spots on/off button
6 Lock/Power-Unlock
7 Magnetic pivot bracket
8 Keyhole slot
9 Laser window
10 Spot laser windows
11 Laser label location
12 Magnets

Composants

Technical diagram of a mechanical component with numbered parts labeled 7 and 8

Fig. I

12

Fig. J

>4° AVERAGE

FLASHING FLASHING

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

Contents

• Laser Information
• User Safety
• Batteries
• Operating Tips
• Turning the Laser ON
• Checking Laser Accuracy
  • Field Calibration Check
  • Using the Laser
• Maintenance
• Troubleshooting
• Accessories
  • Service and Repairs
• Warranty
• Specifications

LASER INFORMATION

The DW0822 and DW0822CG Laser Levels are Class 2 laser products and comply with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice No. 56, dated May 8, 2019.

The DW0822 and DW0822CG lasers are self-leveling laser tool that can be used inside and outside for horizontal (level), vertical, and plumb alignment projects.

Conforms to UL STDS 61010-1 & 2595

Certified to CSA STD C22.2 No. 61010-1

Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information

Unique Identifier: DW0822, DW0822CG

Responsible Party – U.S. Contact Information

English

DEWALT

701 East Joppa Road

Towson, Maryland 21286

www.DEWALT.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ISED Compliance Statement

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

USER SAFETY

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(### without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

If you have any questions or comments about

this or any DEWALT tool,

call 1-800-4-DEWALT (1-800-433-9258)

or go to www.DEWALT.com.

WARNING: Never modify the tool or any part of it. Damage to the laser or personal injury could result.

WARNING: Read and understand all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE THESE INSTRUCTIONS

WARNING: Laser Radiation Exposure. Do not disassemble or modify the laser level. There are no user serviceable parts inside. Serious eye injury could result.

WARNING: Hazardous Radiation. Use of controls or adjustments or performance or procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION: Keep fingers clear of the back plate and stud when mounting with magnets. Fingers may become pinched.

CAUTION: Do not stand underneath the laser when it is mounted with the magnet bracket. Serious personal injury or damage to the laser may result if the laser falls.

The label on your laser may include the following symbols.

Symbol Meaning
V Volts
mW Milliwatts
	Laser Warning
nm Wavelength in nanometers
2 Class 2 Laser

English

Warning Labels

For your convenience and safety, the following labels are on your laser.

WARNING: To reduce the risk of injury, user must read instruction manual.

WARNING: LASER RADIATION. DO NOT STARE INTO BEAM. Class 2 Laser Product.

WARNING: Keep clear of magnet. Magnet hazard can disturb pacemaker operation and result in serious injury or death.

DEWALT CROSS LINE/PLUMB SPOT COMBINATION LASER DW0822 TYPE 1 UK CE NOM IP54 LASER 2 ≤1 mW @ 630nm-680nm IEC 60825-1:2014 COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR CONFORMANCE WITH IEC 60825-1 ED.3., AS DESCRIBED IN LASER NOTICE 56, DATED MAY 8, 2019

DEWALT. CROSS LINE / PLUMB SPOT DW0822CG COMBINATION LASER TYPE 1 UK CE NOM IP54 LASER 2 ≤1 mW @ 510nm-530nm IEC 60825-1:2014 COMPLIES WITH 21CFR 1040.10 AND 1040.11 EXCEPT FOR CONFORMANCE WITH IEC 60825-1 ED.3., AS DESCRIBED IN LASER NOTICE 56, DATED MAY 8, 2019

• If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
• Do not operate the laser in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. This tool may create sparks which may ignite the dust or fumes.

English

• Store an idle laser out of reach of children and other untrained persons. Lasers are dangerous in the hands of untrained users.
• Tool service MUST be performed by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in injury. To locate your nearest DEWALT service center go to www.DEWALT.com.
• Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye injury could result.
• Do not place the laser in a position which may cause anyone to intentionally or unintentionally stare into the laser beam. Serious eye injury could result.
• Do not position the laser near a reflective surface which may reflect the laser beam toward anyone's eyes. Serious eye injury could result.
• Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring into the laser beam.
• Do not modify the laser in any way. Modifying the tool may result in hazardous laser radiation exposure.
• Do not operate the laser around children or allow children to operate the laser. Serious eye injury may result.
• Do not remove or deface warning labels. If labels are removed, the user or others may inadvertently expose themselves to radiation.
• Position the laser securely on a level surface. If the laser falls, damage to the laser or serious injury could result.

Personal Safety

• Stay alert, watch what you are doing, and use common sense when operating the laser. Do not use the laser when you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the laser may result in serious personal injury.
• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
• Use personal protective equipment. Always wear eye protection. Depending on the work conditions, wearing protective equipment such as a dust mask, non-skid safety shoes, hard hat, and hearing protection will reduce personal injury.

Tool Use and Care

- Do not use the laser if the Power/Transport Lock switch does not turn the laser on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.

ENGLISH

• Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one laser, may create a risk of injury when used on another laser.

Battery

This tool is powered by three 1.5V AA size alkaline (LR6) batteries.

To install batteries (Fig. B)

1. Lift up the battery compartment cover 1.
2. Insert three fresh AA alkaline (LR6) batteries in the compartment, placing the batteries according to (+) and (−) on the inside of the battery door.

WARNING: Batteries can explode, or leak, and can cause injury or fire. To reduce this risk:

• Use battery operated tool only with the specifically designed batteries. Use of any other batteries may create a risk of fire.
• Carefully follow all instructions and warnings on the battery label and package.
• Always insert batteries correctly with regard to polarity (+ and –), marked on the battery and the equipment.
• Do not short battery terminals.
• Do not charge batteries.
• Do not mix old and new batteries. Replace all of them at the same time with new batteries of the same brand and type.
• Remove dead batteries immediately and dispose of per local codes.
• Do not dispose of batteries in fire.
• Keep batteries out of reach of children.
• Remove batteries if the device will not be used for several months.

Low Battery Indication

The lasers are equipped with indicator lights 2. The indicator lights are located to the right of the on/off buttons 3, 4 and 5.

A flashing indicator lights indicates the batteries are low and need to be replaced. The laser may continue to operate for a short time while the batteries continue to drain, but the beam(s) will quickly dim. After fresh batteries are installed and the laser is turned on again, the laser beam(s) will return to full brightness and the indicator lights will stay off. (A flashing laser beam is not caused by low batteries; see Out of Tilt Range Indicator.)

OPERATING TIPS

• To extend battery life, turn the laser off when it is not in use.
• To ensure the accuracy of your work, check the laser calibration often. Refer to Checking Laser Accuracy.
• Before attempting to use the laser, make sure it is positioned securely, on a smooth, flat stable surface that is level in both directions.

CAUTION: To reduce the risk of serious injury, never stare directly into the laser beam with or without these glasses. Refer to Accessories for important information.

• Always mark the center of the beam created by the laser.
- Extreme temperature changes can cause movement or shifting of building structures, metal tripods, equipment, etc., which can effect accuracy. Check your accuracy often while working.
- If the laser has been dropped, check to make sure your laser is still calibrated. Refer to Checking Laser Accuracy.

To Turn the Laser On and Off (Fig. C, D)

1. Unlock unit by sliding Lock/Power-Unlock bar 6 to the right.
2. With the laser off, place it on a flat surface. This model has three ON/OFF buttons, one for a horizontal laser line 3, one for a vertical laser line 4, and one for the plumb laser spots 5.

Checking Laser Accuracy

The laser tools are sealed and calibrated at the factory. It is recommended that you perform an accuracy check prior to using the laser for the first time (in case the laser was exposed to extreme temperatures) and then regularly to ensure the accuracy of your work. When performing any of the accuracy checks listed in this manual, follow these guidelines:

• Use the largest area/distance possible, closest to the operating distance. The greater the area/distance, the easier to measure the accuracy of the laser.
• Place the laser on a smooth, flat, stable surface that is level in both directions.
  • Mark the center of the laser beam.

Field Calibration Check

Checking Accuracy - Horizontal Beam, Scan Direction (Fig. E)

Checking the horizontal scan calibration of the laser requires two walls at least 30' (9 m) apart. It is important to conduct a calibration check using a distance no shorter than the distance of the applications for which the tool will be used.

1. Attach the laser to a wall using its pivot bracket. Make sure the laser is facing straight ahead.
2. Turn on the laser's horizontal beam and pivot the laser approximately 45^ so that the right-most end of the laser line is striking the opposing wall at a distance of at least 30' (9 m). Mark the center of the beam (a).
3. Pivot the laser approximately 90^ to bring the left-most end of the laser line around to the mark made in Step 2. Mark the center of the beam (b).
4. Measure the vertical distance between the marks.

- If the measurement is greater than the values shown below, the laser must be serviced at an authorized service center.

Distance Between Walls	Allowable Distance Between a and b
30' 1/8"
40' 5/32"
50' 7/32"

Distance Between Walls	Allowable Distance Between a and b
9.0 m 3.1 mm
12.0 m 4.2 mm
15.0 m 5.2 mm

Checking Accuracy - Horizontal Beam, Pitch Direction (Fig. F)

Checking the horizontal pitch calibration of the laser requires a single wall at least 30' (9 m) long. It is important to conduct a calibration check using a distance no shorter than the distance of the applications for which the tool will be used.

1. Attach the laser to one end of a wall using its pivot bracket.
2. Turn on the laser's horizontal beam and pivot the laser toward the opposite end of the wall and approximately parallel to the adjacent wall.

3. Mark the center of the beam at two locations (a, b) at least 30' (9m) apart.

4. Reposition the laser to the opposite end of the wall.

5. Turn on the laser's horizontal beam and pivot the laser back toward the first end of the wall and approximately parallel to the adjacent wall.
6. Adjust the height of the laser so that the center of the beam is aligned with the nearest mark (b).
7. Mark the center of the beam (c) directly above or below the farthest mark (a).
8. Measure the distance between these two marks (a, c).

- If the measurement is greater than the values shown below, the laser must be serviced at an authorized service center.

Distance Between Walls	Allowable Distance Between a and b
30' 1/4"
40' 5/16"
50' 13/32"

Distance Between Walls	Allowable Distance Between a and b
9.0 m 6.2 mm
12.0 m 8.3 mm
15.0 m 10.4 mm

Checking Accuracy - Vertical Beam (Fig. G)

Checking the vertical (plumb) calibration of the laser can be most accurately done when there is a substantial amount of vertical height available, ideally 20' (6 m), with one person on the floor positioning the laser and another person near a ceiling to mark the position of the beam. It is important to conduct a calibration check using a distance no shorter than the distance of the applications for which the tool will be used.

1. Start by marking a 5' (1.5 m) line on the floor.
2. Turn on the laser's vertical beam and position the unit at one end of the line, facing the line.
3. Adjust the unit so its beam is aligned and centered on the line on the floor.
4. Mark the position of the laser beam on the ceiling (a). Mark the center of the laser beam directly over the midpoint of the line on the floor.
5. Reposition the laser at the other end of the line on the floor. Adjust the unit once again so its beam is aligned and centered on the line on the floor.

ENGLISH

1. Mark the position of the laser beam on the ceiling (b), directly beside the first mark (a).
2. Measure the distance between these two marks.

- If the measurement is greater than the values shown below, the laser must be serviced at an authorized service center.

Distance Between Walls	Allowable Distance Between a and b
8' 1/8"
10' 3/16"
14' 1/4"
20' 3/8"

Distance Between Walls	Allowable Distance Between a and b
2.5 m 3.4 mm
3.0 m 4.2 mm
4.0 m 5.5 mm
6.0 m 8.2 mm

Using the Laser

Leveling the Laser

As long as the laser is properly calibrated, the laser is self-leveling. Each laser is calibrated at the factory to find level as long as it is positioned on a flat surface within average ±4^ of level. No manual adjustments are required.

If the laser has been tilted so much that it cannot self-level ( > 4^ ), the laser beam will flash. When the beams flash THE LASER IS NOT LEVEL (OR PLUMB) AND SHOULD NOT BE USED FOR DETERMINING OR MARKING LEVEL OR PLUMB. Try repositioning the laser on a more level surface.

Using the Pivot Bracket (Fig. H, I)

The laser has a magnetic pivot bracket 7 permanently attached to the unit.

WARNING: Position the laser and/or wall mount on a stable surface. Serious personal injury or damage to the laser may result if the laser falls.

- The bracket has a keyhole slot 8 so it can be hung from a nail or screw on any kind of surface.

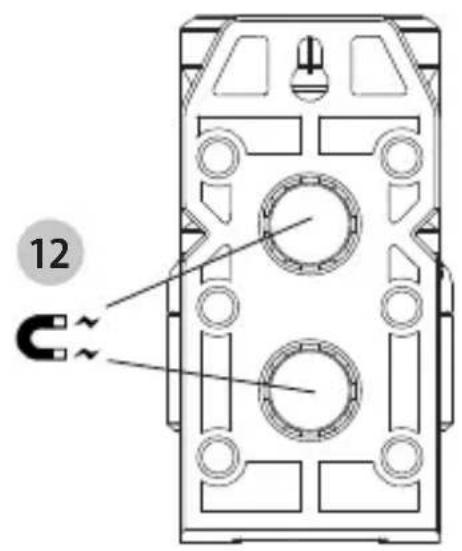

- The bracket has magnets 12 which allow the unit to be mounted to most upright surfaces made of steel or iron. Common examples of suitable surfaces include steel framing studs, steel door frames, and structural steel beams.

Using the Lasers with Accessories

The lasers are equipped with a 1/4" x 20 female thread on the bottom of the unit. This thread is to accommodate current or future DEWALT accessories. Only use DEWALT accessories specified for use with this product. Follow the directions included with the accessory.

CAUTION: The use of any other accessory not recommended for use with this tool could be hazardous.

If you need any assistance in locating any accessory, please contact DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286 or call 1–800–4-DEWALT (1–800–433–9258). See our catalog on the World Wide Web at www.DEWALT.com.

Maintenance

• To maintain the accuracy of your work, check the laser often to make sure it is properly calibrated. See Field Calibration Check.
• Calibration checks and other maintenance repairs may be performed by DEWALT service centers.
• When not in use, store the laser in the kit box provided. Do not store your laser at temperatures below -5 °F (-20 °C or above 140 °F (60 °C).
• Do not store your laser in the kit box if the laser is wet. The laser should be dried first with a soft dry cloth prior to storage.

Cleaning

Exterior plastic parts may be cleaned with a damp cloth. Although these parts are solvent resistant, NEVER use solvents. Use a soft, dry cloth to remove moisture from the tool before storage.

Troubleshooting

The Laser Does Not Turn On

- Remove the batteries and replace with fresh batteries. Ensure the battery contacts are free of corrosion.

English

- If the laser unit is heated above 120 °F (50 °C), the unit will not turn on. If the laser has been stored in extremely hot temperatures, allow it to cool. The laser level will not be damaged by pressing the on/off button before cooling to its proper operating temperature.

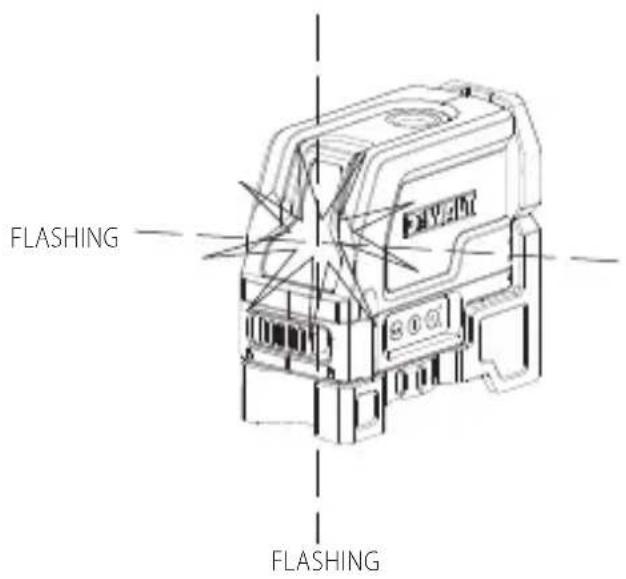

The Laser Beams Flash (Fig. J)

The lasers are designed to self-level up to an average of 4^ in all directions. If the laser is tilted so much that the internal mechanism cannot level itself, the laser beams will flash indicating that the tilt range has been exceeded. THE FLASHING BEAMS CREATED BY THE LASER ARE NOT LEVEL OR PLUMB AND SHOULD NOT BE USED FOR DETERMINING OR MARKING LEVEL OR PLUMB. Try repositioning the laser on a more level surface.

The Laser Beams Will Not Stop Moving

The laser is a precision instrument. Therefore, if it is not positioned on a stable (and motionless) surface, the laser will continue to try to find level. If the beam will not stop moving, try placing the laser on a more stable surface. Also, try to make sure that the surface is relatively flat, so that the laser is stable.

Service and Repairs

nOTE: Disassembling the laser level(s) will void all warranties on the product.

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers. Service or maintenance performed by unqualified personnel may result in a risk of injury. To locate your nearest DEWALT service center call 1-800-4-DEWALT (1-800-433-9258) or go to www.DEWALT.com.

Warranty

Go to www.DEWALT.com for the latest warranty information.

sPECiFiCATiOns

	DW0822 DW0822CG
Light Source Semiconductor	laser diodes Semiconductor	laser diodes
Laser Wavelength 630 -	680 nm visible 510 - 530 nm visible
Laser Power <1 mW (each beam)	CLASS II(2) LASER PRODUCT	<1 mW (each beam) CLASS II(2) LASER PRODUCT
Working Range 100' (30m)	165' (50m) with detector	100' (30m)230' (70m) with detector
Accuracy (Plumb) ±1/8" per 30'(±3.1 mm per 9 m)		±1/8" per 30'(±3.1 mm per 9 m)
Accuracy (Level) ±1/8" per 30'(±3.1 mm per 9 m)		±1/8" per 30'(±3.1 mm per 9 m)
Battery Low Flashing battery indicator on product		Flashing battery indicator on product
Indicators Flashing Laser: tilt range exceeded		Flashing Laser: tilt range exceeded
Power Source 3x AA alkaline (LR6) batteries 3x AA alkaline (LR6) batteries
Operating Temperature	20 °F to 115 °F (-10 °C to 45 °C)	20 °F to 115 °F (-10 °C to 45 °C)
Storage Temperature	-5 °F to 140 °F (-20 °C to 60 °C)	-5 °F to 140 °F (-20 °C to 60 °C)
Environmental	IP54	IP54

Towson, Maryland 21286

www.DEWALT.com

Towson, Maryland 21286

www.DEWALT.com

WARNING: Batteries can explode, or leak, and can cause injury or fire. To reduce this risk:

• Use la herramienta operada por baterías únicamente con baterías diseñadas específicamente. El uso de cualquiera otras baterías puede crear un riesgo de incendio.
• Carefully follow all instructions and warnings on the battery label and package.
• Always insert batteries correctly with regard to polarity (+ and –), marked on the battery and the equipment.
• Do not short battery terminals.
• Do not charge batteries.
• Do not mix old and new batteries. Replace all of them at the same time with new batteries of the same brand and type.
• Remove dead batteries immediately and dispose of per local codes.
• Do not dispose of batteries in fire.
• Keep batteries out of reach of children.
• Remove batteries if the device will not be used for several months.

DEWALT Industrial Tool Co. 701 East Joppa Road, Towson, MD 21286

Copyright © 2022

The following are trademarks for one or more DEWALT power tools: the yellow and black color scheme, the "D" shaped air intake grill, the array of pyramids on the handgrip, the kit box configuration, and the array of lozenge-shaped humps on the surface of the tool.

NA162109 04/22
