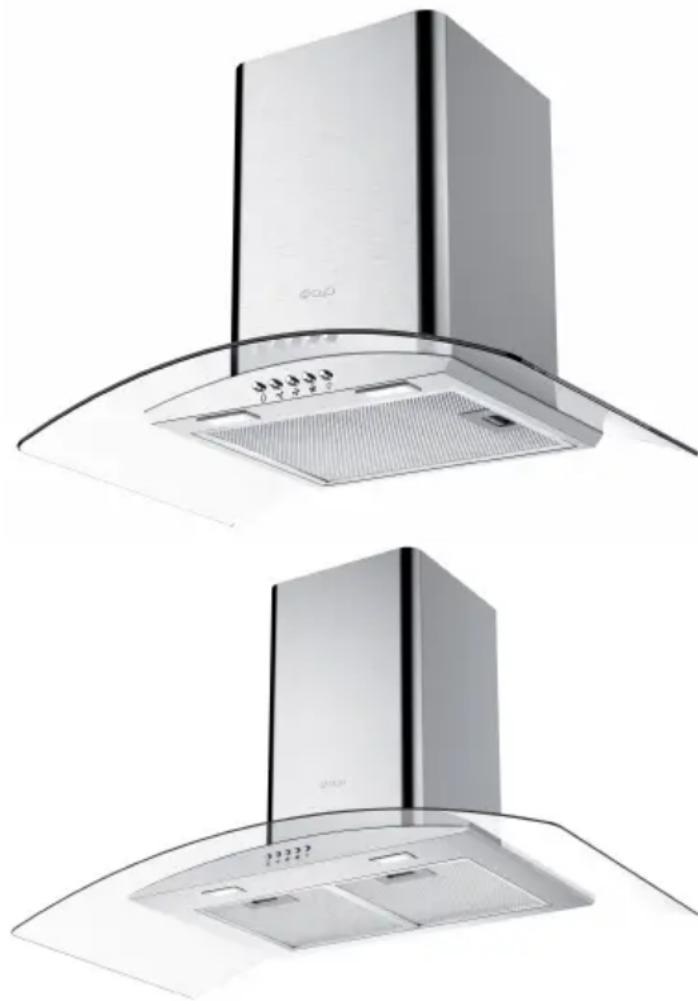

Two identical views of a stainless steel kitchen fan with ventilation grilles and ventilation ducts, shown from different angles (no text or symbols visible)

HOTTE DECORATIVE

TABLE DES MATIERES

CONSIGNES DE SECURITE IMPORTANTES -1-

DESCRIPTION DE L'APPAREIL -10-

INSTRUCTIONS DU MONTAGE MURAL -13-

UTILISATION DE L'APPAREIL -19-

NETTOYAGE ET ENTRETIEN -20-

GUIDE DE DEPANNAGE -22-

Symbolic icon of a person walking with arrows indicating cycle (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Illustration of hands holding a cable with an open electrical outlet, no text or symbols present

Diagram of a brick wall corner with an attached structure and pipe fittings (no text or symbols)

FR-14

Diagram of a kitchen appliance with a cylindrical lid and a base, showing internal components and a downward arrow (no text or symbols)

Simple line drawing of a rectangular box with a smaller 3D cube below, showing internal lines and arrows (no text or symbols)

Diagram of a brick wall with diagonal bracing and upward arrows indicating direction (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Two-step diagram showing hand positioning and folding of a rectangular object, no text or symbols present

Technical diagram showing two views of a solar panel with labeled components A and B, including internal structure and component assembly.

Technical diagram of a mechanical or architectural component with labeled sections and grid lines

0 0 0 0 0

Line drawing of a kitchen chimney with ventilation grilles and a curved base (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Two identical views of a stainless steel kitchen chimney with ventilation grilles and ventilation ducts (no text or symbols visible)

COOKER HOOD

DIRECTORY

IMPORTANT SAFETY INSTRUCTIONS -1-

PARTS & DESCRIPTIONS -8-

WALL MOUNTING INSTALLATION -11-

OPERATION -17-

MAINTENANCE -18-

TROUBLE SHOOTING -20-

TECHNICAL SPECIFICATIONS -21-

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

Before using the appliance for the first time, remove all packaging and protective polythene film.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precaution should always be followed, including the following:

• These instructions are for your safety. Please read through them thoroughly prior to installation.
• This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.
• All installation work must be carried out by a competent person or qualified electrician.
• This appliance must be installed correctly by a

suitably qualified person, strictly following the manufacturer's instructions.

• Accessible parts may become hot during use.
• Young children should be kept away. Care should be taken to avoid touching the appliance.
• The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children withoutsupervision.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. An all-pole disconnection switch having a contact separation of at least 3 mm in all poles should be connected in fixed wiring.

- Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not allow the electric cables to touch the hot parts of the appliance.

- Make sure that the power cord is not caught under or in the appliance and avoid damage to the powercable.

- Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.

- Do not use flammable sprays in close vicinity to the appliance.

- Please dispose of the packing material carefully.

- Do not use flammable sprays in close vicinity to the appliance.

- We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for

this appliance carefully.

• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of external timeror separated remote-control system.

Warning: Consult local regulations regarding fumes outlets. Do not connect the hood to a fume, ventilation or hot air duct. Confirm that room ventilation is appropriate with the local authorities.

Make sure the maximum air extraction flow rate for the appliances in the room does not exceed 4 Pa (0.04 mbar). The room must have adequate ventilation if an extractor hood is used simultaneously with appliances that run on gas or otherfuels.

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Regulations regarding air extraction must be complied with.

Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the

appliance nameplate.

Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.

• To avoid the risk of fire, clean the metal filter regularly and closely watch and regulate pans containing hot oil.
• Do not use the hood if it shows signs of damage or imperfection. Contact customer services.
• Flambe cooking must not be carried out underneath this appliance.
• When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

Gas hobs: 750mm.
Electric hobs: 650mm.

Warning There is a risk of electric shock and fire if cleaning is not carried out in accordance with the instructions.

Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

LAMP

The available lamps and the correspondence ILCOS D codes and lamp pictures:

Use type lamp (or use in alternative type lamp) DSS-1.5-S-55(ILCOS D code in according to standard IEC 61231).

• Self-ballasted fluorescent reflector lamp – Integral induction type ballast
• Max wattage: 1.5 W
• Voltage range: 12V DC
• Dimensions:60mm

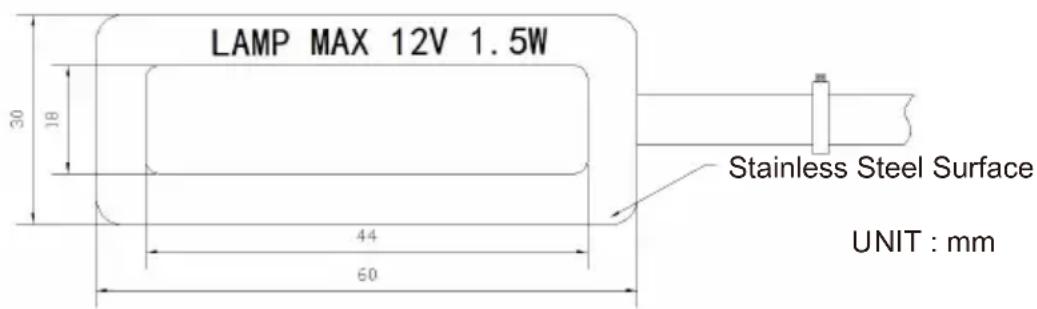

LAMP MAX 12V 1.5W 30 18 44 60 Stainless Steel Surface UNIT : mm

PARTS & DESCRIPTIONS

Part	Diagram Pieces
Main Body		1
Plastic Duct		1
Cooker hood bracket		1
Upper Chimney Bracket		1
Lower Chimney Bracket		1
Screw (4x30mm)		9 (2 for spare use)
Screw (4 x 8mm)		6 (2 for spare use)
Wall Plug		9 (2 for spare use)
Carbon Filter		1
Chimney		2

Installation drawing(Line Drawing)

MODEL: AHDG6X/3

266 259 543-923 70 595 400

Installation drawing(Line Drawing)

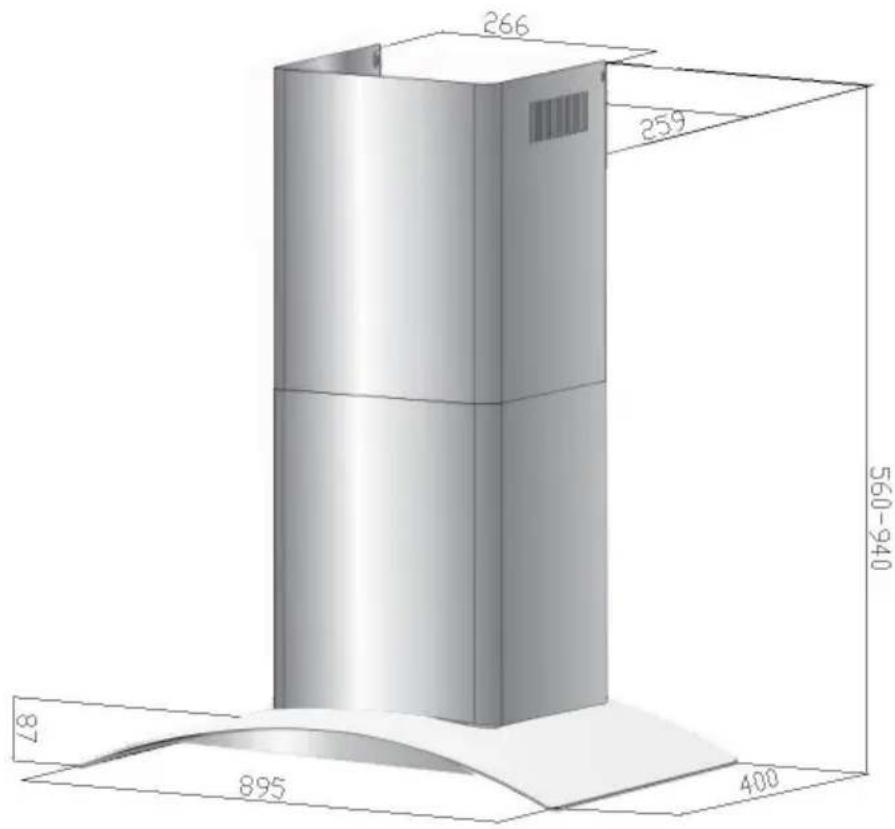

MODEL: AHDG9X/3

266 259 560-940 87 895 400

Prepare for installation:

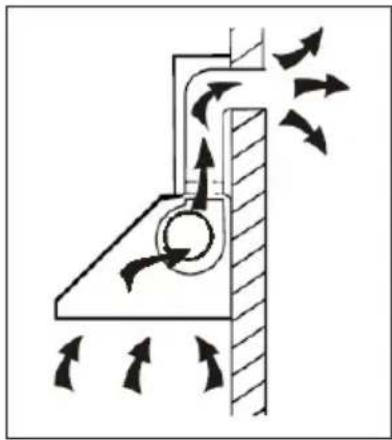

1. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior

diameter of 150mm)

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

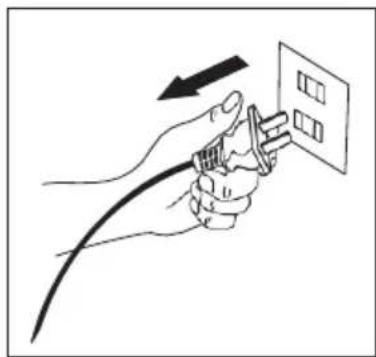

1. Before installation, turn the unit off and unplug it from the outlet.

Illustration of hands holding a cable with an arrow indicating direction (no text or symbols)

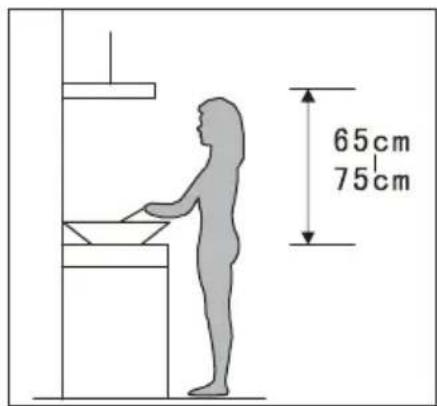

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

65cm 75cm

EN-11

Installation (Vent outside):

Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room.

When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar)

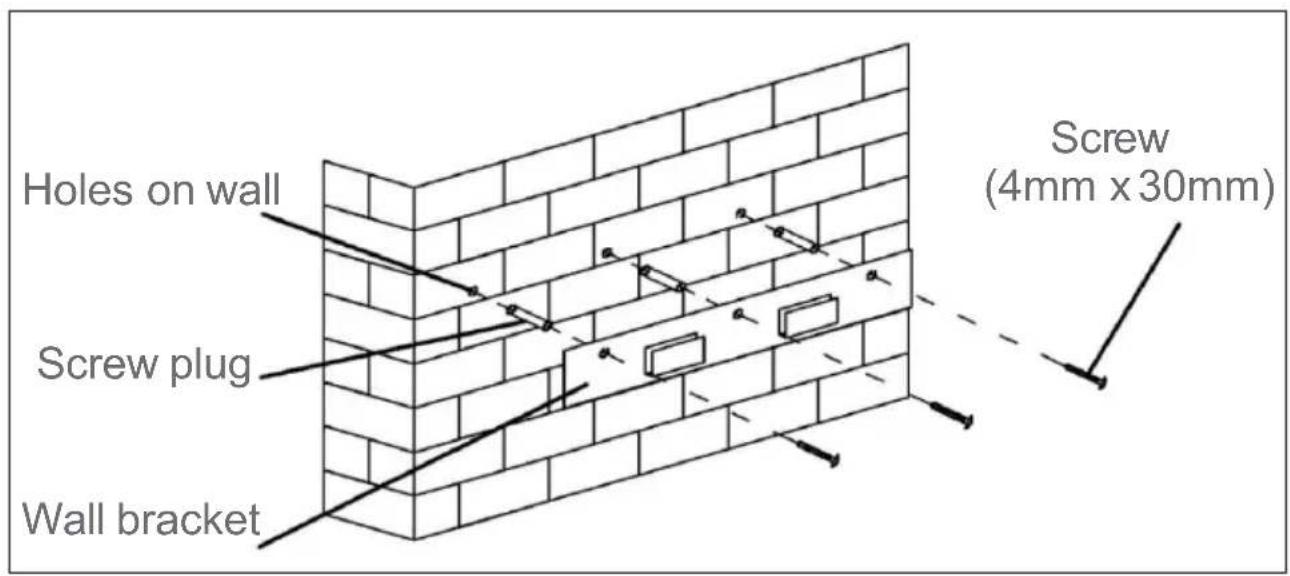

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws & screw plugs provided.

Holes on wall Screw plug Wall bracket Screw (4mm x 30mm)

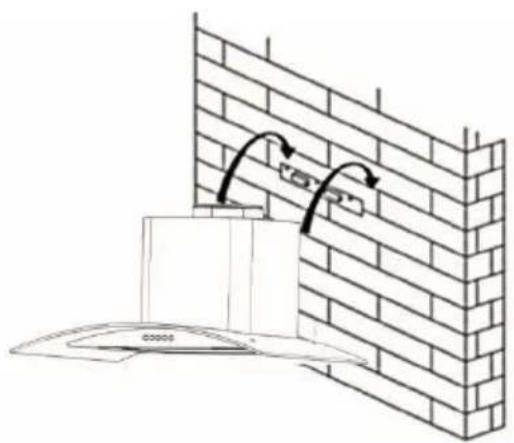

1. Offer up the cooker hood and hang onto the wall bracket hook.

Diagram of a brick wall corner with an attached structure and pipe connection (no text or symbols)

EN-12

1. Place the plastic duct on the cooker hood.

Diagram showing a cylindrical device being lifted by an arrow, with a base and fan base (no text or symbols)

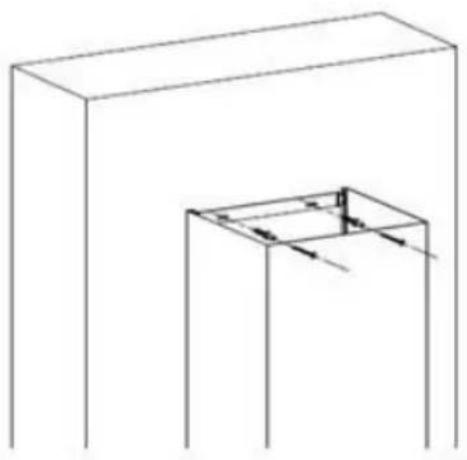

1. The lower chimney bracket is used to fix the upper decorative chimney and lower decorative chimney.

Use 2pcs 4x8mm screws to attach lower chimney and lower chimney bracket together. Put the lower chimney on the cooker hood and mark the location of lower chimney bracket fixing holes on the wall.

Noted: Do not fasten screws too much, make sure upper decorative chimney can be telescopically adjusted after assembled.

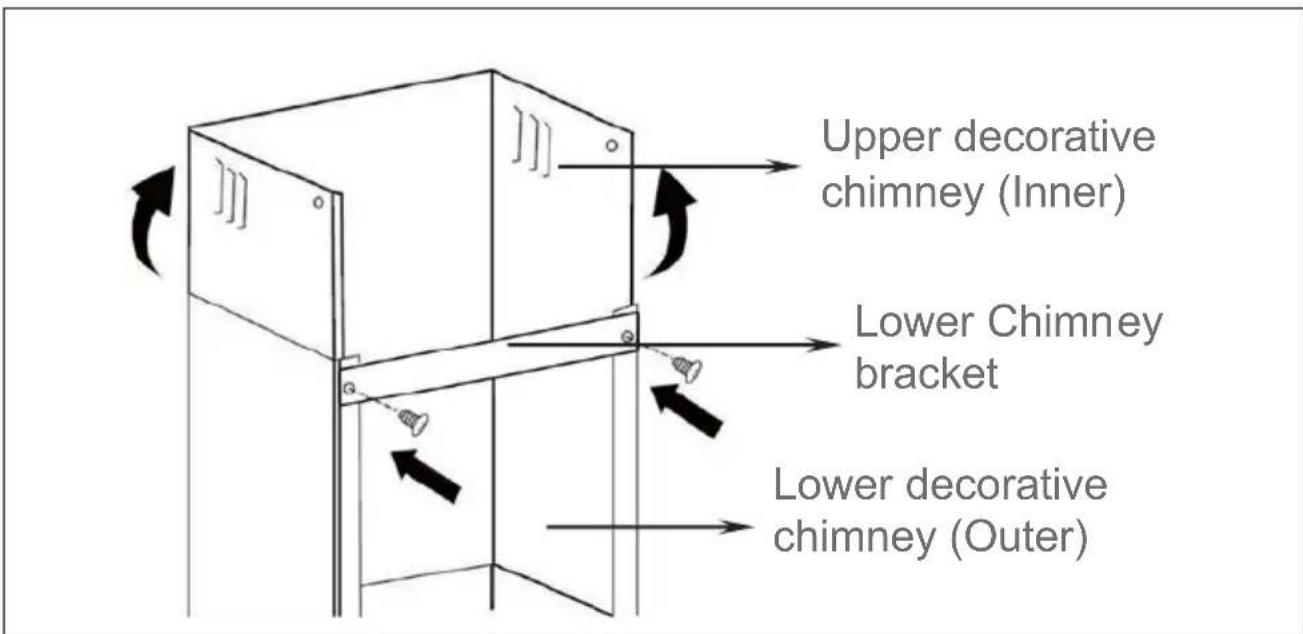

Upper decorative chimney (Inner) Lower Chimney bracket Lower decorative chimney (Outer)

Put the chimney on the cooker hood. Fix the lower chimney bracket on the wall by 2 screws (4mm x30mm).

Simple line drawing of a rectangular frame with a smaller internal structure, no text or symbols present.

Then pulling out the upper chimney upwards to the target height. Adjust to reach the height required.

Fix the upper chimney on the upper chimney bracket by 2 screws (4x8mm). Then fix the upper chimney bracket on the wall. Before

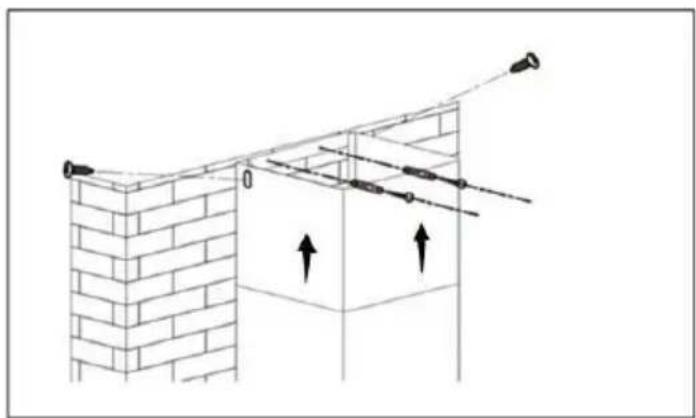

fixing the bracket on the wall, you can decide the upper chimney bracket fixing holes for installation.

Diagram of a brick wall with two upward-pointing arrows indicating direction, no text or symbols present

Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

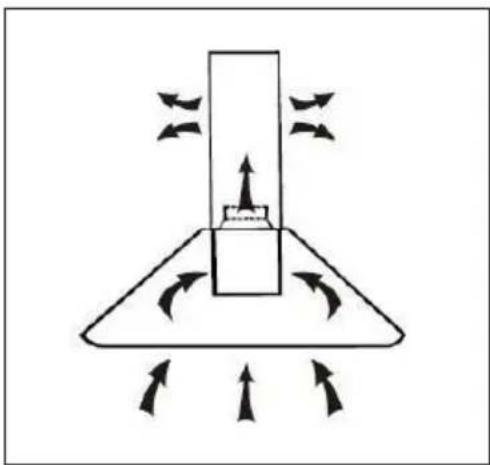

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Activated carbon filter can be used to trap odors.

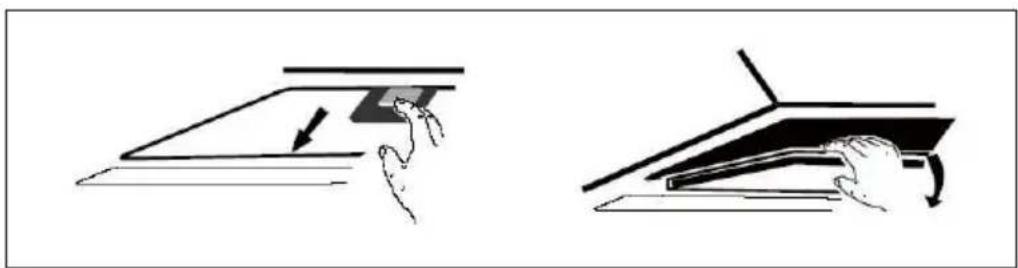

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Two-step diagram showing a hand pressing down on a flat surface, with no text or symbols present.

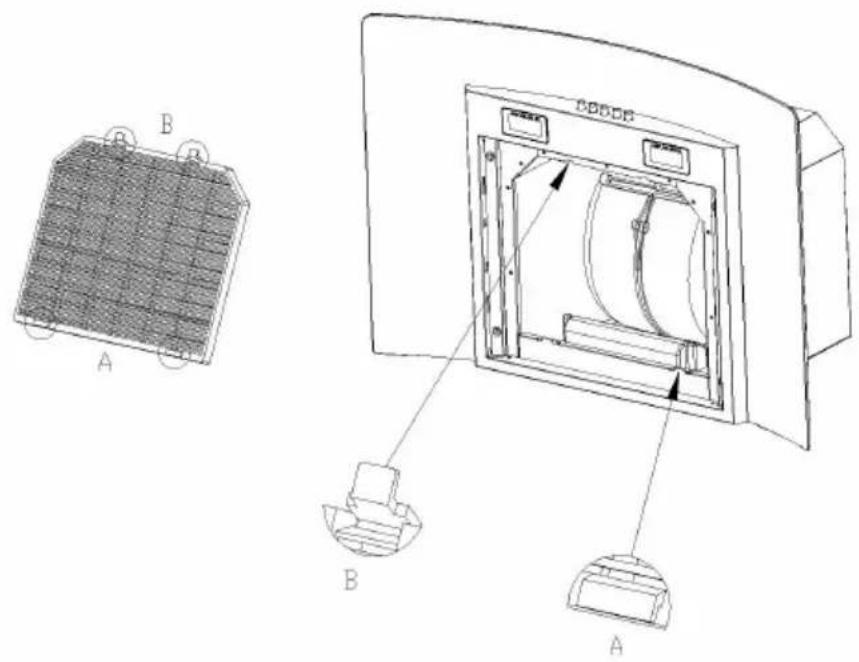

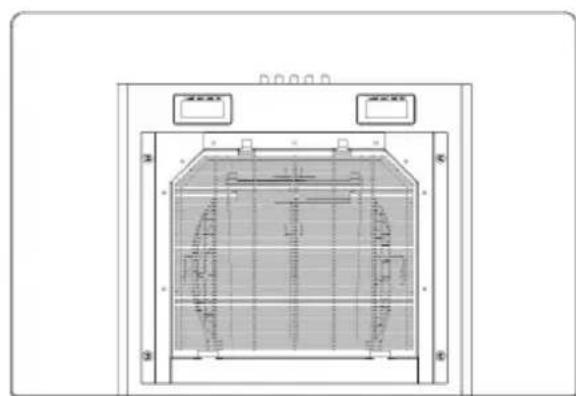

Assemble the carbon filter: The A part of the carbon filter match the rear bar, the B part match the front.

Technical diagram showing two views of a solar panel installation with labeled components A and B

After assembly, the carbon filter would show as below:

Technical diagram of a mechanical or electrical enclosure with labeled components and dimensions

NOTE:

oMake sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. oWhen activated carbon filter attached, the suction power will be lower.

0 ○ ○ ○ ○ ○ ✿ ✿ ✿ ✿

0 On/Off button It's used for turning on/off the fan.

Low Speed button It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button Airflow speed is ideally for ventilation in standard cooking operation.

Low Speed button hen high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

Regarding the instructions for the replacement of the bulb, cleaning and maintenance of the appliance, please refer to below paragraphs of this manual.

Attention! Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside).

This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

IV. Bulb Replacement

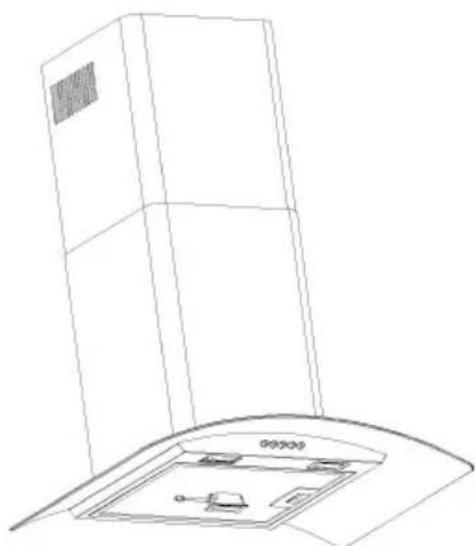

1. Switch the unit off and unplug the appliance.
2. Remove the lamp cover by unscrewing the 2 screws.
3. Unscrew the incandescent bulb
4. Replace with the same type and rated bulb/lamp

Line drawing of a kitchen air conditioner unit with a curved top and front panel (no text or symbols)

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch of the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Model	AHDG6X/3 / AHDG9X/3
Voltage / Frequency	220-240V~50-60Hz
Rated motor input power	100W
Illumination	≤2×1.5W
Rated input power	103W
Air flow	≤456m3/h
Noise	≤56dB

	Symbol Valeur		Un it
Model identification	—	AHDG6X/3 AHDG9X/3	—
Annual Energy Consumption	AEC_hood	50.5	kWh/a
Time increase factor	f	1.4	—
Fluid Dynamic Efficiency	FDE_hood	16.3	—
Energy Efficiency Index	EEI_hood	73.3	—
Measured airflow rate at the best efficiency	Q_BEP	230.3	m3/h
Measured air pressure at best efficiency point	P_BEP	24 1	P a
Maximum airflow	Q_max	45 6	m3/h
Measured electric power input at best efficiency point	W_BEP	94.5	W
Nominal power of the lighting system	W_L	3	W
Average illumination of the lighting system on the Cooking surface	Emiddle	60cm:88 90cm:78	lu x
Measured power consumption on standby mode	P_S	—	W
Measured power consumption on off mode	P_O	0	W
Sound power level	L_WA	5 6	d B
Light Efficiency	LE_hood	60cm:29.3 90cm:26	Lu x/w

- The above table indicate the information for the cooker hood. The test result is done as per the relevant requirement of EU No 65/2014 and EU No 66 / 2014.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

ENVIRONMENTAL PROTECTION:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.

For more information, please contact your local or regional authorities.

Note :

a. In order to reduce the environmental impact (e.g. energy use) of the cooking process, please be sure that your product is installed according to the user manual, keep the operation place ventilated, keep the extraction duct be direct and short as possible as it can be.

b. For the product with manual operation mode, we suggest switch the motor off within 10 minutes after finishing the cooking process.

c. Please be sure to dismantle related components according to the user manual when maintaining for non-destructive, protect the parts to make the re- installed work can be favoring and avoid damage.
