USER MANUAL RB18DC HiKOKI

Technical line drawing of a mechanical device with a cylindrical shaft and housing (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this blower/vacuum cleaner can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the blower/vacuum cleaner. Please keep this manual available for other users and owners before they use the blower/vacuum cleaner. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

⚠️ AVERTISSEMENT

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this blower/vacuum cleaner.

Most accidents that result from blower/vacuum cleaner operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the blower/vacuum cleaner and in this Instruction Manual.

NEVER use this blower/vacuum cleaner in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)

WARNING

To reduce the risk of fire, electric shock injury:

1. Use indoors only.
   Do not use outdoors or on wet surfaces.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
3. Use only as described in this manual. Use only manufacturer's recommended attachments.
4. Do not handle appliance with wet hands.
5. Use extra care when cleaning on stairs.
6. Do not operate blower/vacuum cleaner in explosive atmospheres, such as in the presence of flammable or combustible liquids, 11. gasses or dust.

,Domot use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

1. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
2. Never use when the temperature is below 23^ F ( -5^ C) or above 104^ F ( 40^ C).

3. Do not put any object into openings.
   Do not use with any opening blocked; keep free of dust, line, hair, and anything that may reduce air flow.
   Keep hair, loose clothing, fingers, and all parts of body away from openings and moving.

4. Do not charge the unit outdoors.

5. Use only the charger supplied by the manufacturer to recharge.
6. Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.

GENERAL SAFETY RULES

SAVE THESE INSTRUCTIONS

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate blower/vacuum cleaner in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Motor of blower/vacuum cleaner may create sparks which may ignite the dust of fumes.

c) Keep children and bystanders away while operating a blower/vacuum cleaner.

Distractions can cause you to lose control.

2) Electrical safety

a) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

b) Do not expose blower/vacuum cleaner to wet conditions.

Water entering a blower/vacuum cleaner will increase the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a blower/vacuum cleaner.

Do not use a blower/vacuum cleaner while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating blower/vacuum cleaner may result in serious personal injury.

b) Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Dress properly. Do not wear loose clothing or jewellery. Keep you loose clothing, fingers and all parts of body away from openings and moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

4) Blower/vacuum cleaner use and care

a) Disconnect the battery pack from the blower/vacuum cleaner before making any adjustments, changing accessories, or storing blower/vacuum cleaner.

Such preventive safety measures reduce the risk of starting the blower/vacuum cleaner accidentally.

b) Store idle blower/vacuum cleaner out of the reach of children and do not allow persons unfamiliar with the blower/vacuum cleaner or these instructions to operate the blower/vacuum cleaner.

Blower/vacuum cleaner are dangerous in the hands of untrained users.

c) Maintain blower/vacuum cleaner. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the blower/vacuum cleaner operation. If damaged, have the blower/vacuum cleaner repaired before use.

Many accidents are caused by poorly maintained blower/vacuum cleaner.

d) Use the blower/vacuum cleaner, accessories, in accordance with these instructions and in the manner intended for the particular type of blower/vacuum cleaner, taking into account the working conditions and the work to be performed.

Use of the blower/vacuum cleaner for operations different from intended could result in a hazardous situation.

5) Battery powered blower/vacuum cleaner use and care

a) Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into blower/vacuum cleaner that have the switch on invites accidents.

b) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

c) Use blower/vacuum cleaner only with specifi cally designated battery packs.

Use of any other battery packs may create a risk of injury and fi re.

d) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

e) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your blower/vacuum cleaner serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the blower/vacuum cleaner is maintained.

b) If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Do not put your hands or face near the blower/vacuum cleaner's blast port or suction port during use.

Doing so might lead to injuries.

1. Do not block the blast port and/or suction port. Also, do not allow dust to accumulate in the suction port.

Blocking the blast port or suction port will abnormally speed up the motor's rotation which may damage the fan within the blower/vacuum cleaner and cause the motor to excessively heat up.

1. Do not use the blower/vacuum cleaner to fill a balloon or swim ring with air.

2. Do not use in locations where inflammable materials such as lacquer, paint, benzene, thinner or gasoline are present. Also do not let items such as lighted cigarette butts be suctioned inside at such locations.

Explosion or fires might result.

1. Do not use near objects generating high heat such as stoves; do not blow at lit cigarette butts; and do not stoke or extinguish fl ames.

Fires might occur if used near such locations.

1. If you notice that the unit is generating unusually high temperatures, operating poorly, or making abnormal noises, immediately stop using and shut off the power switch. Request an inspection and repair from the dealer where you purchased the unit or a metabo HPT Authorized Service Center.

Continuing to use while operating abnormally might cause injuries.

1. If the unit is mistakenly dropped or strikes another object, make a thorough check of the unit for cracks, breakage or deformation, etc.

Injuries might occur if the unit has cracks, breakage or deformation.

1. Do not place objects such as screws inside the suction port or blast port.

Failure to do so may damage the interior parts of the tool.

1. For blowing operation, mount the nozzle to the blast port. For dust collection, mount the nozzle to the suction port and mount the dust bag on the blast port.

2. Do not use the tool to suction liquid such as water or wet dust particles, or items such as bits of glass, cutting tools, nails, screws, pebbles, or lit cigarette butts.

3. Do not use industrial oil or grease (cutting oil, lubricant, etc.), or in the vicinity of chemicals.
   Doing so may cause parts to deteriorate or cause damage.

4. Make a thorough inspection if using the blower/vacuum cleaner to blow or clean viscous powder or dust particles.
   Powder or dust particles might be suctioned in and adhere internally, causing the vanes to break or injuries to occur.
5. ALWAYS wear ear protectors when using the blower/vacuum cleaner for extended periods.

Prolonged exposure to high intensity noise can cause hearing loss.

1. NEVER touch moving parts.
   NEVER place your hands, fingers or other body parts near the blower/vacuum cleaner's moving parts.
2. NEVER leave tool running unattended. Turn power off.

Don't leave tool until it comes to a complete stop.

1. When working at elevated locations, clear the area of all other people and be aware of conditions below you.
2. Be careful when blowing large amounts of fi ne dust in a dry environment as it can cause an accumulation of static electricity which can result in an unexpected electric discharge.
3. NEVER point toward people or animals. The machine blows small objects at a high velocity and can cause injury.
4. NEVER operate from an unstable footing, such as when on a ladder or step ladder.

Doing so may cause an injury.

1. Do not strike the tool with other objects; avoid strong impacts such as dropping the tool; and do not allow the tool to get wet.
   Any one of these can damage the built-in precision parts and result in malfunction.
2. Before operation, remove any objects in the area that may cause injury or accident.
3. Do not peep into the blast port during operation.

4. Keep the suction port away from your body to avoid sucking in your work clothes.

5. If any foreign material enters the suction port and stops the blast of air, immediately switch off the tool, remove the battery and then extract the foreign material.

6. Precautions during transport

7. Release the switch on the body of the machine and remove the battery.

8. Carry the machine by the handle on its body.

9. When transporting it via vehicle, take appropriate steps to prevent it from falling over or being damaged.

10. NEVER use a blower/vacuum cleaner for applications other than those specified.

NEVER use a blower/vacuum cleaner for applications other than those specified in the Instruction Manual.
27. Handle blower/vacuum cleaner correctly.

Operate the blower/vacuum cleaner according to the instructions provided herein. Do not drop or throw the blower/vacuum cleaner.

NEVER allow the blower/vacuum cleaner to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.
   Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.
2. Do not use blower/vacuum cleaner if the plastic housing or handle is cracked.

Cracks in the blower/vacuum cleaner's housing or handle can lead to electric shock. Such blower/vacuum cleaner should not be used until repaired.

1. NEVER use a blower/vacuum cleaner which is defective or operating abnormally.

If the blower/vacuum cleaner appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

1. Carefully handle blower/vacuum cleaner.

Should a blower/vacuum cleaner be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

33. ALWAYS

wear eye protection that meets the requirement of the latest revision of ANSI Standard Z87.1.

1. Defi nitions for symbols used on this blower/vacuum cleaner

V ......volts

— ......direct current

no ......no load speed

---/min ..... revolutions or reciprocation per minute

1. Do not use the product if the tool or the battery terminals (battery mount) are deformed.

Installing the battery could cause a short circuit that could result in smoke emission or ignition.

1. Keep the tool's terminals (battery mount) free of swarf and dust.

○ Prior to use, make sure that swarf and dust have not collected in the area of the terminals.

During use, try to avoid swarf or dust on the tool from falling on the battery.

When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust.

Doing so could cause a short circuit that could result in smoke emission or ignition.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC18YSL3.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. To reduce risk of injury, charge metabo HPT rechargeable battery model BSL36A18. Other models of batteries may burst causing personal injury and damage.
4. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
5. To reduce risk of damage to electric plug an cord, pull by plug when disconnecting battery charger.
6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
7. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.

If extension cord must be used make sure:

a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
b. That extension cord is properly wired and in good electrical condition; and
c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes*		AWG Size of Cord
Equal to or greater than	but less than	Length of Cord, Feet (Meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by the wattage rating by the voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC18YSL3 battery charger, be sure to read all instructions cautionary statements on it, the battery and in this manual.

CAUTION

USE ONLY metabo HPT BATTERY MODEL BSL36A18. OTHER MODELS OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER use the battery or the tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

3. NEVER modify or attempt to repair the tool or the battery except as indicated in the finding instructions for use and care.

4. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
5. NEVER short-circuit the battery.
6. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
7. NEVER expose the battery or the tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may cause a dual-lifted explosion.
8. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
9. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C).
10. NEVER connect two battery chargers together.
11. NEVER insert foreign objects into the hole for the battery or the battery charger.
12. NEVER use a booster transformer when charging.
13. NEVER use DC power to charge.
14. NEVER store the tool, the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C) such as inside metal box or car.

NEVER expose the battery or battery charger to rain or wet conditions.

1. ALWAYS use the tool and the battery at temperature of between -5^ and 40^ .
2. ALWAYS follow all charging instructions and do not charge the battery outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
3. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
4. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
5. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.

In such case, charge it up immediately.

1. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

2. If the battery is overheated under overload work, the battery power may stop.

In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.

○ During work make sure that swarf and dust do not fall on the battery.

○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

○ Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

1. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

2. Do not use an apparently damaged or deformed battery.

3. Do not use the battery in reverse polarity.

4. Do not connect directly to an electrical outlets or car cigarette lighter sockets.

5. Do not use the battery for a purpose other than those specified.

6. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.

7. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
8. Keep away from fire immediately when leakage or foul odor are detected.
9. Do not use in a location where strong static electricity generates.
10. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
11. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

○ Either install the battery in the power tool or store by securely press battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 3).

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

● Lithium-ion batteries that exceed a power output of 100 Wh are considered to the freight classification of Dangerous Goods and will require special application procedures.
- For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

n gPowertOutput e

2 to 3 digit number

面角(2mm)

Fig. 1

USB DEVICE CONNECTION PRECAUTIONS

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost.

Always make sure to back up any data contained in the USB device prior to use with this product.

Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO OTHER USERS AND

OWNERS OF THIS BLOWER/VACUUM CLEANER!

FUNCTIONAL DESCRIPTION

NOTE

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the blower/vacuum cleaner.

NEVER operate, or attempt any maintenance on the blower/vacuum cleaner unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own blower/vacuum cleaner.

NAME OF PARTS

1. Cordless Blower/Vacuum Cleaner (RB18DC)

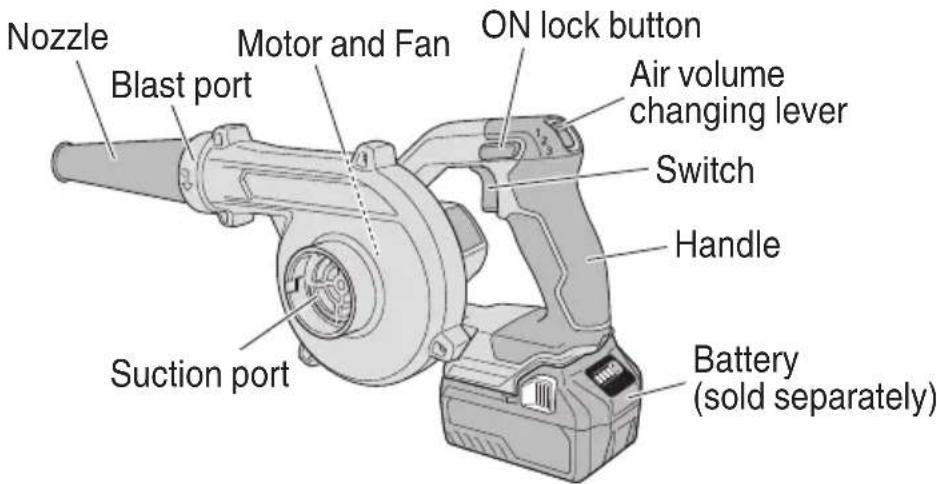

Nozzle Blast port Motor and Fan ON lock button Air volume changing lever Switch Handle Battery (sold separately) Suction port

Fig. 2

2. Battery

(optional accessories...sold separately)

Battery cover Ventilation holes Battery Latch Terminals

Fig. 3

3. Battery Charger

(optional accessories...sold separately)

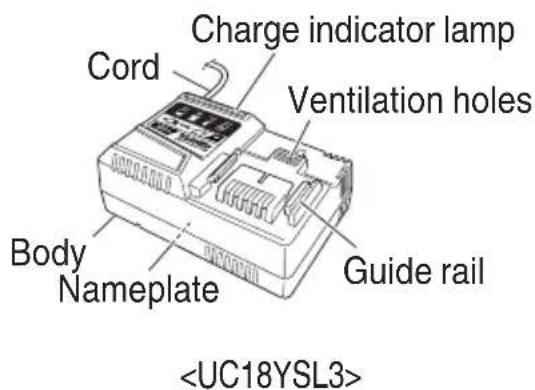

Charge indicator lamp Cord Ventilation holes Guide rail Body Nameplate

Fig. 4

SPECIFICATIONS

1. Cordless Blower/Vacuum Cleaner

Model RB18DC
Motor DC motor
No-load speed*1		0-20,000 /min
Air velocity	Maximum*2	0-212 MPH (0-95 m/s)
	Average*2	0-174 MPH (0-78 m/s)
Air volume*3		0-124 CFM (0-3.5 m3/min)
Continuous operating time*4		3: Approximately 20 minutes2: Approximately 55 minutes1: Approximately 130 minutes
Battery*5	Model BSL36A18 (18 V, 5.0 Ah)
	Type Li-ion battery
	Voltage DC 18 V (BSL36A18: DC 36 V / 18 V)
Weight 4.0 lbs. (1.8 kg) (BSL36A18 attached)

*1 BSL36A18, when fully charged

*2 With nozzle

*3 Without nozzle

*4 For guidance purposes only. Results will differ according to situations such as operating environment and battery condition.

*5 Existing batteries (BSL3660/3620/3626, etc.) cannot be used with this tool.

1. Battery Charger

Model	UC18YSL3
Input power source	Single phase: AC 120 V 60 Hz
Charging time (At a temperature of 68°F (20°C))	BSL36A18 : Approx. 32 min
Charging voltage DC 14.4–18 V
Charging current	DC 8.0 A
Weight	1.3 lbs. (0.6 kg)

NOTE: The charging time may vary according to temperature and power source voltage.

ASSEMBLY AND OPERATION

APPLICATIONS

○ Cleaning house etc.
○ Blowing operation.

REMOVAL AND INSTALLATION METHOD OF BATTERY

○ How to install the battery.

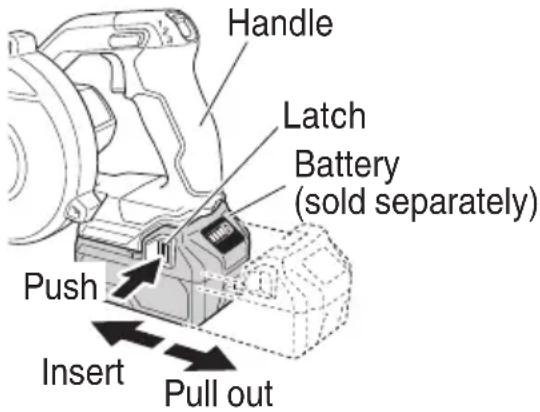

Align the battery with the groove in blower/vacuum cleaner handle and slip it into place.

Always insert it all the way until it locks in place with a little click, If not, it may accidentally fall out of the blower/vacuum cleaner, causing injury to you or someone around you (Fig. 5).
○ How to remove the battery.

Withdraw battery from the blower/vacuum cleaner handle while pressing the latch (2 pcs) of the battery (Fig. 5).

Handle Latch Battery (sold separately) Push Insert Pull out

Fig. 5

CHARGING METHOD

NOTE

Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING

Do not charge at voltage higher than indicated on the nameplate.

If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charge indicator lamp will blink in red. (At 1-second intervals)

WARNING

Do not use the electrical cord if damaged. Have it repaired immediately.

1. Insert the battery to the battery charger.

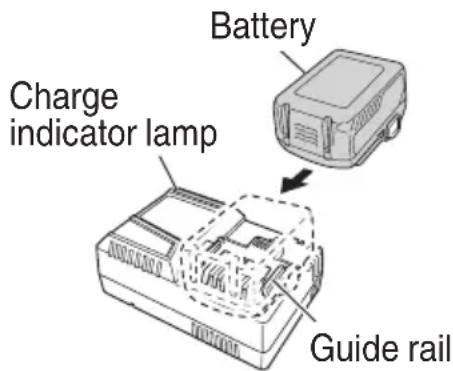

Firmly Insert the battery into the battery charger as shown in Fig. 6.

Battery Charge indicator lamp Guide rail

Fig. 6

1. Charging

When inserting a battery in the charger, the charge indicator lamp will blink in blue.

When the battery becomes fully recharged, the charge indicator lamp will light up in green.(See Table 2)

(1) Charge indicator lamp indication

The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the battery charger or the battery.

Table 2

Indications of the charge indicator lamp
Charge indicator lamp (RED / BLUE / GREEN / PURPLE)	Before charging	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)	Plugged into power source
	While charging	Blinks (BLUE)	Lights for 0.5 seconds. Does not light for 1 second. (off for 1 second)	Battery capacity at less than 50%
		Blinks (BLUE)	Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds)	Battery capacity at less than 80%
		Lights (BLUE)	Lights continuously	Battery capacity at more than 80%
	Charging complete	Lights (GREEN)	Lights continuously(Continuous buzzer sound: about 6 seconds)
	Overheat standby	Blinks (RED)	Lights for 0.3 seconds. Does not light for 0.3 seconds. (off for 0.3 seconds)	Battery overheated. Unable to charge.(Charging will commence when battery cools)
	Charging impossible	Flickers (PURPLE)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)(Intermittent buzzer sound: about 2 seconds)	Malfunction in the battery or the charger

(2) Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged.

Table 3

Rechargeable batteries	Temperatures at which the battery can be recharged
BSL36A18	32°F–122°F(0°C–50°C)

(3) Regarding recharging time (At 68°F (20°C))

Table 4 Charging time

Battery\Charger	UC18YSL3
BSL36A18	Approx. 32 min

NOTE

The recharging time may vary according to the ambient temperature.

1. Disconnect battery charger from the receptacle.

CAUTION

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

NOTE

Be sure to pull out the battery from the battery charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not ad the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

- If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sun because the battery has just been used, the charge indicator lamp of the charger lights for 0.3 seconds, does not light for 0.3 seconds (off for 0.3 seconds). In such a case, fi rst let the battery cool, then start charging.

- When the charge indicator lamp flickers (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

HOW TO RECHARGE USB DEVICE

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost.

Always make sure to back up any data contained in the USB device prior to use with this product.

Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

WARNING

○ Prior to use, check the connecting USB cable for any defect or damage.

Using a defective or damaged USB cable can cause smoke emission or ignition.

When the product is not being used, cover the USB port with the rubber cover.

Buildup of dust etc. in the USB port can cause smoke emission or ignition.

NOTE

☐ The time required for charging will be longer when a USB device and battery are being simultaneously charged.
There may be an occasional pause during USB recharging.
When a USB device is not being charged, turn the USB power switch OFF and remove the USB device from the charger.

Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents.

(1) Select a charging method

Depending on the charge method selected, either the battery is inserted into the charger or the power cord is plugged into an outlet.

○ Charging a USB device by battery (Fig. 7-a)
○ Charging a USB device from a electrical outlet (Fig. 7-b)
○ Charging a USB device and battery from a electrical outlet (Fig. 7-c)

Simple line drawing of a device with a bulb, power outlet, and cable (no text or symbols)

a

Simple line drawing of a device with a plug and cable, no text or symbols present

b

Simple line drawing of a device with a top component and cable, no text or symbols present

C
Fig. 7

(2) Turn the USB power switch ON (Fig. 8)

When you turn the USB power switch ON, the USB power indicator lamp will light up.

Rubber cover USB cable USB port USB power indicator lamp USB power switch

Fig. 8

(3) Connect the USB cable. (Fig. 8)

Pull back the rubber cover and firmly plug in a commercially available USB cable (appropriate to the device being charged) into the USB port.

When the power cord is not plugged into an outlet and the battery runs out of power, power output will stop and the USB power indicator lamp will shut off.
When the USB power indicator lamp goes out, change the battery or plug the power cord into an electrical outlet.

(4) When charging is completed

The USB power indicator lamp will not go out when a USB device has been completely charged.

To verify charge status, check the USB device.

Turn the USB power switch OFF and unplug the power cord from the electrical outlet. (Fig. 8)
○ Remove the battery from the charger and place the rubber cover over the USB port.

ABOUT REMAINING BATTERY INDICATOR

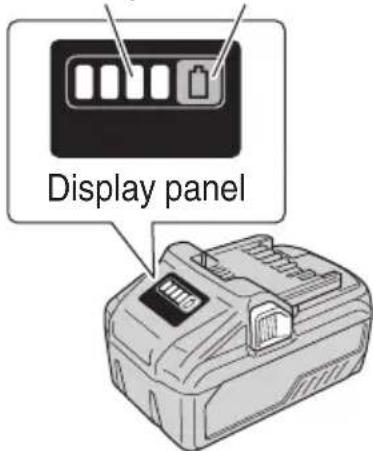

You can check the battery's remaining capacity by pressing the remaining battery indicator switch to light the indicator lamp. (Fig. 9, Table 5)

The indicator will shut off approximately 3 seconds after the remaining battery indicator switch is pressed.

It is best to use the remaining battery indicator as a guide since there are slight differences such as ambient temperature and the condition of the battery. Also, the remaining battery indicator may vary from those equipped to a tool or charger.

Remaining battery indicator lamp Remaining battery indicator switch

Display panel

Fig. 9

Table 5

State of lamp B	Battery Remaining Power
	Lights;The battery remaining power is over 75%.
	Lights;The battery remaining power is 50%-75%.
	Lights;The battery remaining power is 25%-50%.
	Lights;The battery remaining power is less than 25%.
	Blinks;The battery remaining power is nearly empty. Recharge the battery soonest possible
	Blinks;Output suspended due to high temperature. Remove the battery from the tool and allow it to fully cool down.
	Blinks;Output suspended due to failure or malfunction. The problem may be the battery so please contact your dealer.

As the remaining battery indicator shows somewhat differently depending on ambient temperature and battery characteristics, read it as a reference.

NOTE

Do not give a strong shock to the display panel or break it. It may lead to a trouble.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

MOUNTING AND DISMOUNTING THE NOZZLE AND DUST BAG

WARNING

To avoid serious accident, ensure the switch is in the OFF position, and pull out the battery.

1. Mounting the Nozzle

Insert the pin located outside the nozzle into the groove provided on the blast port, and fully turn the nozzle toward the arrow in Fig. 10 until a click is heard.

To dismount the nozzle, follow the above procedures in reverse.

Nozzle Pin Groove Blast port

Fig. 10

NOTE

Before conducting a blowing operation, blow out air in a location where there is nobody nearby to make sure the tool is fre residue.

2. When using the Blower/Vacuum Cleaner for dust collection

(1) Mounting the Dust Bag

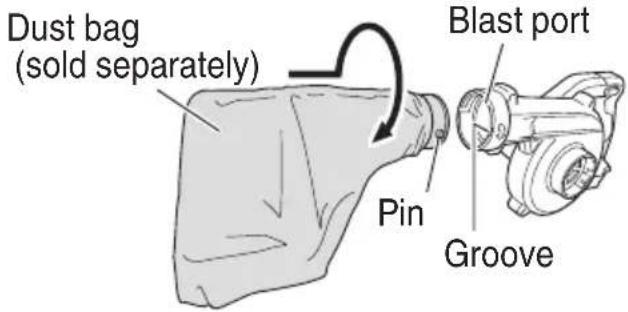

Mount the dust bag on the blast port, following the same procedure described above for mounting of the nozzle (Fig. 11).

Dust bag (sold separately) Pin Blast port Groove

Fig. 11

(2) Mounting the Nozzle

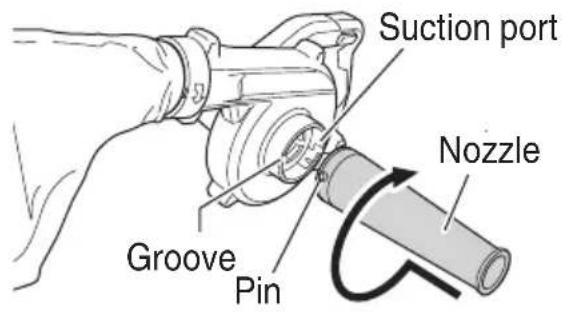

Insert the pin located outside the nozzle into the groove provided on the suction port, and fully turn the nozzle toward the arrow in Fig. 12 until a click is heard.

Suction port Nozzle Groove Pin

Fig. 12

SWITCH AND AIR VOLUME CONTROL

○ Switch operation (Fig. 13).

When the switch is depressed, the blower/vacuum cleaner rotates. When the switch is released, the blower/vacuum cleaner stops.

The volume can be adjusted for a variable amount depending on how much the switch is drawn in.

○ Continuous operation (Fig. 13)

Draw the switch as far as it goes and press the ON lock button to lock in place the operatin state of the tool for continuous operation.

The ON lock button can be activated by pressing either side of the switch.

To discontinue operation, draw the switch in once again to release the ON lock button.

ON lock button Switch

Fig. 13

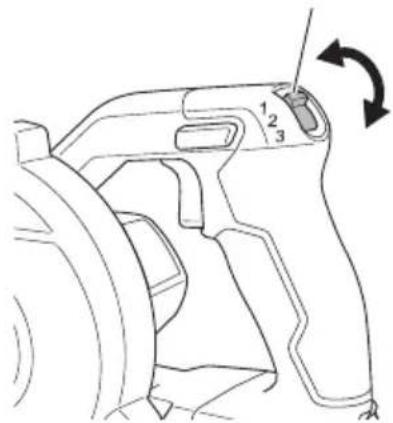

○ Air volume control function (Fig. 14)

When the switch is fully drawn, the air volume can be adjusted to High, Medium, or Low.

Lever position	Air volume
3	High
2	Medium
1	Low

Air volume changing lever

Technical line drawing of a mechanical device with numbered components and rotation arrow (no text or symbols)

Fig. 14

NOTE

During operation, the unit can generate static electricity which may cause the motor to stop.

This is a protective feature and not a malfunction. Draw the switch in once again to restart the motor.

MAINTENANCE AND INSPECTION

WARNING

Be sure to turn off the switch and pull out the battery before doing any inspection or maintenance.

1. Check the Screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

WARNING

Using this blower/vacuum cleaner with loosened, screws is extremely dangerous.

1. Maintenance of the motor

The motor unit winding is the most important part of the blower/vacuum cleaner.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals.

On occasion check prior, during and after operation.

CAUTION

Remove any swarf or dust which may have collected on the terminals.

Failure to do so may result in malfunction.

5. Disposal of the exhausted battery

WARNING

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

NOTE

Storing lithium-ion batteries

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

1. Service and repairs

All quality blower/vacuum cleaner will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

CAUTION

In the operation and maintenance of blower/vacuum cleaner, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the metabo HPT cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

TROUBLESHOOTING GUIDE

WARNING

● To avoid injury from an accidental start, turn the switch OFF and remove the plug from the power source or remove the battery from the main body before making any adjustments.
● All electrical or mechanical repairs should be done only by qualified service technicians. Contact metabo HPT Authorized Service Center.

1. Power tool

Symptom Possible cause Remedy
Tool doesn’t run No remaining battery power Charge the battery.
Tool suddenly stopped The battery is overheated. Let the battery cool down.
Poor suction	Dust bag is full.	Dispose the dust.
	Nozzle is plugged.	Remove the obstruction.
	Nozzle is cracked or damaged.	Exchange the unit with a new one.
Battery cannot be installed	Attempting to install a battery other than that specified for the tool.	Please install BSL36A18.

1. Charger

Problem	Possible Cause	Possible Solution
The charge indicator lamp rapidly flickers purple, and battery charging doesn’t begin.	The battery is not inserted all the way.	Insert the battery firmly.
	There is foreign matter in the battery terminal or where the battery is attached.	Remove the foreign matter.
The charge indicator lamp blinks red, and battery charging doesn’t begin.	The battery is not inserted all the way.	Insert the battery firmly.
	The battery is overheated.	If left alone, the battery will automatically begin charging if its temperature decreases, but this may reduce battery life. It is recommended that the battery be cooled in a well-ventilated location away from direct sunlight before charging it.
Battery usage time is short even though the battery is fully charged.	The battery’s life is depleted.	Replace the battery with a new one.
The battery takes a long time to charge.	The temperature of the battery, the charger, or the surrounding environment is extremely low.	Charge the battery indoors or in another warmer environment.
	The charger’s vents are blocked, causing its internal components to overheat.	Avoid blocking the vents.
	The cooling fan is not running.	Contact a metabo HPT Authorized Service Center for repairs.
Problem Possible	Cause Possible Solution
The USB power lamp has switched off and the USB device has stopped charging.	The battery's capacity has become low.	Replace the battery with one that has capacity remaining.
		Plug the charger's power plug into an electric socket.
USB power lamp does not switch off even though the USB device has fi nished charging.	The USB power lamp lights up green to indicate that USB charging is possible.	This is not a malfunction.
It is unclear what the charging status of a USB device is, or whether its charging is complete.	The USB power lamp does not switch off even when charging is complete.	Examine the USB device that is charging to confi rm its charging status.
Charging of a USB device pauses midway.	The charger was plugged into an electrical socket while the USB device was being charged using the battery as the power source.	This is not a malfunction.The charger pauses USB charging for about 5 seconds when it is differentiating between power sources.
	A battery was inserted into the charger while the USB device was being charged using a power socket as the power source.
Charging of the USB device pauses midway when the battery and the USB device are being charged at the same time.	The battery has become fully charged.	This is not a malfunction.The charger pauses USB charging for about 5 seconds while it checks whether the battery has successfully completed charging.
Charging of the USB device doesn't start when the battery and the USB device are being charged at the same time.	The remaining battery capacity is extremely low.	This is not a malfunction.When the battery capacity reaches a certain level, USB charging automatically begins.

ACCESSORIES

WARNING

ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this blower/vacuum cleaner. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your blower/vacuum cleaner.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE

Accessories are subject to change without any obligation on the part of the metabo HPT.

STANDARD ACCESSORIES

RB18DC(NN)

(1) Nozzle (Code No. 323582)......1Battery, Battery charger and Battery cover are not contained.

OPTIONAL ACCESSORIES.....sold separately

(1) Battery (BSL36A18)
(2) Battery charger (UC18YSL3)
(3) Battery cover (Code No. 329897)
(4) Dust bag (Code No. 323587)

NOTE

Specifications are subject to change without any obligaiton on the part of the metabo HPT.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

no......vitesse sans charge

Simple diagram of a gas collection device with a pump and power outlet (no text or symbols)

a

Diagram of a device with a plug and cable, showing internal components (no text or symbols)

b

Simple line drawing of a device with a battery and cable, no text or symbols present

C
Fig. 7

Technical line drawing of a mechanical device with labeled parts and rotation arrow (no text or symbols beyond basic labels)

Fig. 14

REMARQUE

Simple line drawing of a device with a bulb, power outlet, and cable (no text or symbols)

a

Diagram of a device with a plug and cable, showing internal components (no text or symbols)

b

Simple line drawing of a device with a bulb and cable, no text or symbols present

C
Fig. 7

Technical line drawing of a mechanical device with numbered parts and directional arrow (no text or symbols)

Fig. 14

NOTA

Please contact Koki Holdings America Ltd. at 1-800-59-TOOLS (toll free), or metabo HPT AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter Koki Holdings America Ltd. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR metabo HPT.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6
