TRB24EAP - Blower HiKOKI - Free user manual and instructions

Brand	HiKOKI
Model	TRB24EAP
Product type	Thermal blower
Engine displacement	23.9 ml (1.46 in³)
Spark plug	NGK BMR7A
Dry weight	3.9 kg (8.6 lb)
Fuel tank capacity	0.52 L (17.6 fl oz)
Sound pressure level (LpA)	87 dB(A) (according to CEN)
Sound power level (LwA)	109 dB(A) (according to 2000/14/EC)
Vibration level	12 m/s²
Fuel	2-stroke oil-gas mixture (ratio 25:1 to 50:1)
Engine type	2-stroke, air-cooled
Idle speed	2,800 – 3,200 rpm
Included nozzles	Straight nozzle and tapered nozzle
Blowing functions	Variable speed, power adapted for leaves, grass, gravel
Safety	Engine stop, debris protection, marked hot surfaces
Air filter maintenance	Clean with soapy water, replace if damaged
Spark plug maintenance	Clean and adjust gap to 0.6 mm, replace after 100 h
Spare parts	Available at Tanaka dealers
Recommended use	Outdoors, reasonable hours (9 AM-5 PM)

Frequently Asked Questions - TRB24EAP HiKOKI

How to start the TRB24EAP blower?

Make sure the switch is ON. Press the primer bulb about 10 times. Set the choke to closed. Pull the starter cord vigorously. At the first sputter, move the choke to open and pull again.

What type of fuel to use?

Use a mixture of unleaded gasoline (octane rating 89) and 2-stroke engine oil (JASO FC or ISO EGC quality) at a ratio of 25:1 to 50:1. For California, 50:1 ratio only.

How to adjust idle speed?

Adjustment is done with the carburetor T screw. Turn it clockwise to increase speed or counterclockwise to decrease. Normal idle is 2,800 to 3,200 rpm. Call a professional if needed.

How to clean the air filter?

Remove the filter cover by pushing the tab. Wash the filter in warm soapy water, rinse and dry completely before reinstalling. Replace if damaged or very dirty.

How to replace the spark plug?

Disconnect the spark plug wire. Use a spark plug wrench to remove it. Check the electrode gap: 0.6 mm. Replace with a NGK BMR7A or equivalent spark plug. Tighten by hand then 1/4 turn.

What safety precautions to take?

Wear safety glasses, helmet and hearing protection. Keep people at least 15 m away. Do not direct the blast at people. Do not touch hot surfaces. Use outdoors only.

How to assemble the blower tubes?

Align the tab of the straight tube with the groove of the housing, push in and turn clockwise to lock. For the tapered tube, align its groove with the tab of the straight tube and turn to secure.

What to do if the engine does not start?

Check the switch (ON position), fuel (correct mixture), spark plug (clean and gap), air filter (clean). If the engine stalls, let it cool for a few minutes before trying again.

How to store the unit?

Empty the fuel tank. Let the engine cool. Clean the unit. Store in a dry place, out of reach of children. Make sure the switch is on STOP.

What is the sound power of the blower?

The sound power level (LwA) is 109 dB(A) according to directive 2000/14/EC. The sound pressure level (LpA) is 87 dB(A) according to CEN standard.

USER MANUAL TRB24EAP HiKOKI

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

NOTE: Some units do not carry them.

	Symbols⚠ WARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.
	It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury.		WARNING 4DANGERHot surfaces; The muffl er and surrounding cover may become extremely hot.Always keep clear of exhaust and muffl er area, otherwise serious personal injury may occur.
	Read, understand and follow all warnings and instructions in this manual and on the unit.		Keep all children, bystanders and helpers 50 ft (15 m) away from the unit. If anyone approaches you, stop the engine immediately.
	Always wear eye, head and ear protectors when using this unit.		Use anti-slip and sturdy footwear.
	WARNING 4DANGERKeep hands off from rotating fan.		Be careful because the blower may throw objects at high velocity that can ricochet and hit the operator.

Contents

WHAT IS WHAT 3

WARNINGS AND SAFETY INSTRUCTIONS ..... 4

SPECIFICATIONS....6

ASSEMBLY PROCEDURES 6

OPERATING PROCEDURES 7

MAINTENANCE 9

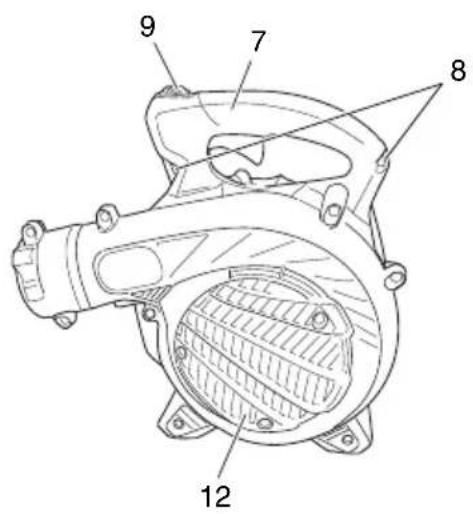

WHAT IS WHAT

Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.

1. Fuel cap
2. Throttle trigger
3. Starter handle
4. Fuel tank
5. Carburetor
6. Air cleaner
7. Handle
8. Suspension eyelet
9. Ignition switch
10. Straightpipe
11. Conicpipe
    12.Guardnet
    13.Sparkplug
12. Chokeknob
13. Primingbulb
    16.Recoilstarter
14. Handling instructions

Technical diagram of a handheld device with numbered parts for identification

9 7 8 12

WARNINGS AND SAFETY INSTRUCTIONS

Operator safety

○ A dust filter mask should be worn during operation.
○ Always wear a safety face shield or goggles.
○ Always wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
○ Do not operate this tool when you are tired, ill or under the influence of alcohol, drugs or medication.
○ Never let a child or inexperienced person operate the machine.
○ Wear hearing protection. Pay attention to your surroundings. Be aware of any bystanders who may be signaling a problem. Remove safety equipment immediately upon shutting off engine.
○ Wear head protection.
○ Never start or run the engine inside a closed room or building. Breathing exhaust fumes can kill.
○ Keep handles free of oil and fuel.
○ Keep hands away from moving part or heated area.
○ Do not grab or hold the unit by the blow pipe.
○ When the unit is turned off make sure the engine has stopped before the unit is set down.
When operation is prolonged, take a break from time to time so that you may avoid possible Hand-Arm Vibration Syndrome (HAVS) which is caused by vibration.

WARNING

- Antivibration systems do not guarantee that you will not sustain Hand-Arm Vibration Syndrome (HAVS) or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fingers. If any symptoms of the above appear, seek medical advice immediately.

● This unit/machine is intended for occasional use.

- If you are using any medical electric/electronic devices such as a pacemaker, consult your physician as well as the device manufacturer prior to operating any power equipment.

Unit/machine safety

○ Inspect the entire unit/machine before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely tightened.
○ Replace parts that are cracked, chipped or damaged in any way before using the unit/machine.
○ Make sure the safety guard is properly attached.
- Keep others away when making carburetor adjustments.
○ Use only accessories as recommended for this unit/machine by the manufacturer.

WARNING

Never modify the unit/machine in any way. Do not use your unit/machine for any job except that for which it is intended.

Fuel safety

○ Empty the fuel tank before storing the tool. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
☐ Fuel contains highly flammable and it is possible to get the serious personal injury when inhaling or spilling on your body. Always pay attention when handling fuel. Always have good ventilation when handling fuel inside building.
○ Mix and pour fuel outdoors and where there are no sparks or flames.
○ Use a container approved for fuel.
☐ Do not smoke or allow smoking near fuel or the unit/machine or while using the unit/machine.
○ Wipe up all fuel spills before starting engine.
○ Move at least 10 ft (3 m) away from fueling site before starting engine.
○ Stop engine before removing fuel cap.
○ Store unit/machine and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces. etc.

WARNING

Fuel is easy to ignite or get explosion or inhale fumes, so that pay special attention when handling or fi lling fuel.

Blowing safety

○ Operate unit/machine only at reasonable hours-not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 a.m. to 5:00 p.m., Monday through Saturday.
Never direct discharge of air toward bystanders nor allow anyone near the area of operation. Use care in directing discharge to avoid glass enclosures, automobiles, etc.

○ Stay alert for uneven sidewalks, holes in terrain or other unstable condition when using the tool.
○ Take all possible precautions when leaving the tool unattended such as stopping the engine.
○ Never operate the tool without guards, blow pipes or other protective device in place. (If so equipped.)
Keep others including children, animals, bystanders and helpers outside the 50 ft (15 m) hazard zone. Stop the engine immediately if you are approached.
○ Always keep the engine on the right side of your body.
○ Keep firm footing and balance. Do not overreach.
○ Keep all parts of your body away from the muffler.
○ Always carry a first-aid kit when operating any power equipment.
Never start or run the engine inside a closed room or building and/or near infl ammable liquids. Breathing exhaust fumes can kill.

WARNING

Work from ladders or high place (such as roofs) is prohibited and could result in severe injury.

Maintenance safety

○ Maintain the unit/machine according to recommended procedures.
○ Disconnect the spark plug before performing maintenance except for carburetor adjustments.
- Keep others away when making carburetor adjustments.
○ Use only genuine Tanaka replacement parts as recommended by the manufacturer.

CAUTION

Do not disassemble the recoil starter. You may get a possibility of personal injury with recoil spring.

Transport and storage

○ Carry the unit/machine by hand with the engine stopped and the muffler away from your body.
○ Allow the engine to cool, empty the fuel tank, and secure the unit/machine before storing or transporting in a vehicle.
○ Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
○ Store unit/machine out of the reach of children.
○ Clean and maintain the unit carefully and store it in a dry place.
○ Make sure engine switch is off when transporting or storing.

If situations occur which are not covered in this manual, take care and use common sense. Contact your Tanaka dealer if you need assistance. Pay special attention to statements preceded by the following words:

WARNING

Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.

CAUTION

Indicates a possibility of personal injury or equipment damage, if instructions are not followed.

NOTE

Helpful information for correct function and use.

SPECIFICATIONS

MODEL TRB24EAP
Engine Size (cu. in.) 1.46 (23.9 ml)
Spark Plug NGK BMR7A
Dry Weight (lbs) 8.6 (3.9 kg)
Fuel Tank Capacity (fl . oz) 17.6 (0.52 l)
Sound pressure levelLpA (dB (A))by ISO22868Uncertainty (dB (A))	By ANSI 69^*2 By CEN 87^*1 1.8^*1
Sound power levelLw measured (dB (A))by ISO22868Sound power level LwA (dB (A))by 2000/14/EC	107^*1 109^*1
Vibration level ( m/s^2 )by ISO22867Uncertainty ( m/s^2 )	121.0

*1: Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution: 1/7 Idle, 6/7 racing.
*2: ANSI B175.2
* All data subject to change without notice.

ASSEMBLY PROCEDURES

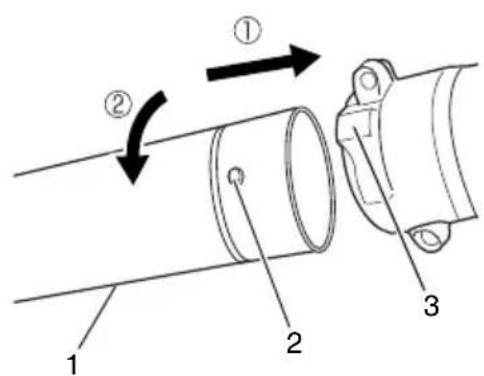

Blow pipes to main body (Fig. 1)

Inspect the main body and accessories.

Connect straight pipe (1) securely. Align projection (2) in straight pipe with groove (3) on blower housing and slide the pipe into the blower housing.

Rotate the pipe clockwise to lock it into place.

Technical diagram showing pipe connection with labeled components and directional arrows

Fig. 1

Conic pipe to straight pipe (Fig. 2)

○ Align groove (5) on the conic pipe (6) and projection (4) on straight pipe (1) and rotate the conic pipe in place.

① ② ③ 5 6 4 1

Fig. 2

OPERATING PROCEDURES

Fuel (Fig. 3)

A 25-50 B 1

Fig. 3

WARNING

● This unit is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil.

Provide good ventilation, when fueling or handling fuel.

● Fuel contains highly flammable and it is possible to get the serious personal injury when inhaling or spilling on your body. Always pay attention when handling fuel. Always have good ventilation when handling fuel inside building.

Fuel

○ Always use branded 89 octane unleaded gasoline.
○ Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult the oil bottle for the ratio or Tanaka dealer.
○ Only for the state of California at 50:1.
If genuine oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW (2-stroke water-cooling type) mixed oil.
○ Never use for four-stroke engine oil or waste oil.
○ Always mix fuel and oil in a separate clean container.

Always start by fi ling half the amount of fuel, which is to be used. Then add the whole amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of fuel.

Mix (shake) the fuel-mix thoroughly before filling the fuel tank.

Fueling

WARNING

● Always shut off the engine and let it cool for a few minutes before refueling.

● Slowly open the fuel tank, when filling up with fuel, so that possible over pressure disappears.
● Tighten the fuel cap carefully, after fueling.
● Always move the unit at least 10 ft (3 m) from the fueling area before starting.
- Do not smoke and/or allow flames or sparks near fuel when handling or fi lling fuel.
● Always wash any spilled fuel from clothing immediately with soap.
● Be sure to check for any fuel leaking after refueling.

Before fueling, clean the tank cap area carefully, to ensure that no dirt falls into the tank. Make sure that the fuel is well mixed by shaking the container, before fueling.

Starting

CAUTION

Do not start if the pipe and guard net is obstructed.

1. Check the switch (7) to ON position. (Fig. 4)

7 ON

Fig. 4

* Push priming bulb (8) about ten times so that fuel flows into carburetor. (Fig. 5)

8

Fig. 5

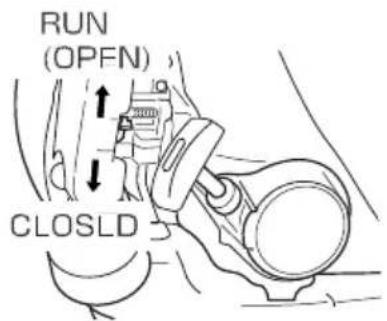

1. Set choke lever to CLOSED position. (Fig. 6)

RUN (OPEN) CLOSLD

Fig. 6

1. Pull recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 7)

Line drawing of a hand using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols present)

Fig. 7

1. When you hear the engine want to start, return choke lever to RUN position (open). Then pull recoil starter briskly again.

WARNING

● Never start or run the engine inside a closed room or building and/or near the infl ammable liquid. Breathing exhaust fumes can kill.
- Do not allow the rope to snap back in and always hold the unit fi rmly.

NOTE

If engine does not start, repeat procedures from 2 to 4.

1. After starting engine, allow the engine about 2–3 minutes to warm up before subjecting it to any load. * If the engine stops and is hard to restart straightaway, allow it to cool before trying again.

Operating blower (Fig. 8)

○ A low speed should be used to blow leaves and dry grass.
○ A medium speed should be used to clean wet leaves and grass.

○ A high speed should be used when moving gravel, dirt or other heavy materials.

Line drawing of a worker using a handheld power tool to clean or exhaust air (no text or symbols)

Fig. 8

WARNING

● Do not direct discharge of air toward people or pet.
● The unit should be operated in a well ventilated area.
● Never perform assembly or disassembly procedures with engine running or serious personal injury may result.
● Never touch muffler, spark plug, or other metallic parts while engine is in running or immediately after shutting off engine.

CAUTION

This blower has been designed and adjusted to be used with all blowing pipes attached. It must never be operated without the straight pipe, and blow head.

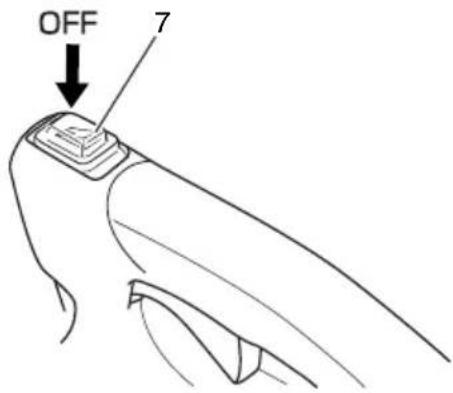

Stopping (Fig. 9)

Decrease engine speed and run at an idle for a few minutes, then turn off ignition switch and keep the pressed until the engine comes to a complete stop.

OFF 7

Fig. 9

MAINTENANCE

MAINTENANCE, REPLACEMENT OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NONROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment (Fig. 10)

In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the carburetor is basically adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility:

T = Idle speed adjustment screw.

T

Fig. 10

Idle speed adjustment (T)

Check that the air fi Iter is clean. If adjustment is required, turn IDLE speed Adjustment Screw (T) close (clockwise) to increase engine speed, open (counterclockwise) to decrease engine speed. Standard Idle rpm is 2800-3200rpm.

RECOMMENDATION:

CARBURETOR ADJUSTMENT NEEDS THE SKILL OF EXPERIENCED OR WELL TRAINED PEOPLE, IR IS RECOMMENDED TO TAKE THE UNIT TO Tanaka DEALER.

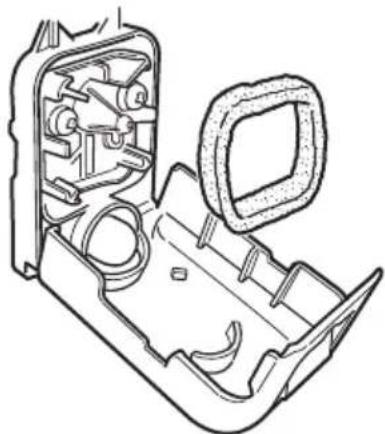

Air fi Iter (Fig. 11)

The air fi lter must be cleaned from dust and dirt in order to avoid:

○ Carburetor malfunctions
○ Starting problems
○ Engine power reduction
○ Unnecessary wear on the engine parts
○ Abnormal fuel consumption

Remove the air cleaner cover by pushing and pulling back the tab on the top.

Clean the air fi lter daily or more often if working in exceptionally dusty areas.

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Fig. 11

Cleaning the air fi Iter

Open the air filter cover and the filter. Rinse it in warm soap suds. Check that the fi liter is dry before reassembly. An air fi liter that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced with a new one. A damaged fi liter must always be replaced.

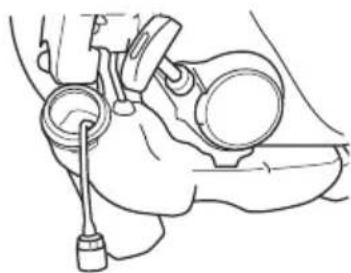

Fuel fi Iter (Fig. 12)

Drain all fuel from fuel tank and pull fuel fi lter line from tank. Pull fi lter element out of holder assembly and rinse element in warm water with detergent.

Rinse thoroughly until all traces of detergent are eliminated. Squeeze, do not wring, away excess water and allow element to air dry.

Medical illustration showing a mechanical procedure with a piston and valve (no text or labels)

Fig. 12

NOTE

If element is hard due to excessive dirt buildup, replace it.

Spark plug (Fig. 13)

The spark plug condition is influenced by:

○ An incorrect carburetor setting
○ Wrong fuel mixture (too much oil in the gasoline)
○ A dirty air fi Iter
○ Hard running conditions (such as cold weather)

These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting diffi culties. If the engine is low on power, diffi cult to start or runs poorly at idling speed, always check the spark plug fi rst. If the spark plug is dirty, clean it and check the electrode gap. Re-adjust if necessary. The correct gap is 0.024" (0.6 mm). The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

0.024" (0.6 mm)

Fig. 13

NOTE

In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

Maintenance schedule

Below you will find some general maintenance instructions. For further information please contact your Tanaka dealer.

Daily maintenance

○ Clean the exterior of the unit.
○ Check the dust cover for damage or cracks. Change the cover in case of impacts or cracks.
○ Check that nuts and screws are sufficiently tightened.

Weekly maintenance

○ Check the starter, especially the cord.
○ Clean the exterior of the spark plug.
○ Remove the spark plug and check the electrode gap. Adjust it to 0.024" (0.6 mm), or change the spark plug.
○ Clean the air filter.

Monthly maintenance

○ Rinse the fuel tank with gasoline, and clean fuel filter.
○ Clean the exterior of the carburetor and the space around it.

Quarterly maintenance

○ Clean the cooling fins on the cylinder.
○ Clean the fan and the space around it.
○ Clean the muffler of carbon.

CAUTION

Cleaning of cylinder fins, fan and muffler shall be done by a Tanaka Authorized Service Center.

SIGNIFICATION DES SYMBOLES

Technical diagram of a mechanical device with numbered parts for identification

9 7 8 12

PRÉCAUTIONS ET CONSIGNES DE SÉCURITÉ

Technical diagram showing pipe connection with labeled parts 1, 2, 3 and directional arrows indicating movement or flow.

Fig. 1

RUN (OP_N) CLOS D

Fig. 6

Line drawing of a hand operating a mechanical tool with an arrow indicating direction (no text or symbols)

Fig. 7

Line drawing of a worker using a handheld power tool to clean or exhaust air (no text or symbols)

Fig. 8

ATTENTION

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Fig. 11

Anatomical illustration of a human pelvic region with a device inserted, showing no text or labels.

Fig. 12

REMARQUE

0.024" (0.6 mm)

Fig. 13

REMARQUE

Technical diagram of a mechanical device with numbered parts for identification

7 8 9 12

Technical diagram showing pipe connection with labeled parts and directional arrows indicating motion or movement.

Fig. 1

RUN (OP_N) CLOSED

Fig. 6

Line drawing of a hand operating a mechanical tool with a pointed tip, showing motion direction (no text or symbols)

Fig. 7

Line drawing of a person using a handheld power tool to clean or exhaust air (no text or symbols)

Fig. 8

ADVERTENCIA

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

Fig. 11

Line drawing of a mechanical assembly with no visible text or symbols

Fig. 12

NOTA

0.024" (0.6 mm)

Fig. 13

NOTA

Line drawing of a quill pen with inkwell (no text or symbols)

WARNING:

The engine exhaust from this product contains chemical known to the State of California to cause cancer, birth defects or other reproductive harm.

⚠ AVERTISSEMENT:

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6
