USER MANUAL DO9253IB DOMO

Exterior view of a modern stainless steel water ice cream maker (no visible text or symbols)

DO9253IB

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

ADD WATER ICE FULL ICE ON OFF 10 11 12 13

1 2 3 4 5

6 7 8 9

Close-up of a mechanical component with a central circular feature and attached wires (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

ADD WATER ICE FULL ICE ON/OFF 10 11 12 13

6 7 8 9

AVANT LA PREMIÈRE UTILISATION

Illustration of a trash bin with an upward arrow, no text or symbols present

Close-up of a kitchen appliance with water being poured into it (no visible text or symbols)

Illustration of a stylized open book with a pen and a downward arrow, symbolizing download or write-down (no text or symbols present)

ON/OFF

Close-up of a hand placing ice into a white appliance with a metal tray (no text or symbols visible)

Close-up of a mechanical component with a central circular feature and attached wires (no visible text or symbols)

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

ADD WATER ICE FULL ICE ON OFF 10 11 12 13

1 2 3 4 5

6 7 8 9

Close-up of a mechanical component with a central hub and multiple circular ports (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
  · Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
  · All repairs should be carried out by the manufacturer or its aftersales service.
  · Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Do not tilt the appliance over 45^ .
• Place the appliance at least 15 cm away from other objects to ensure a proper ventilation around the appliance.
• Do not switch the appliance on and off too frequently. Always wait for at least 5 minutes to prevent damage to the compressor.

Caution: risk of fire / flammable materials

This appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

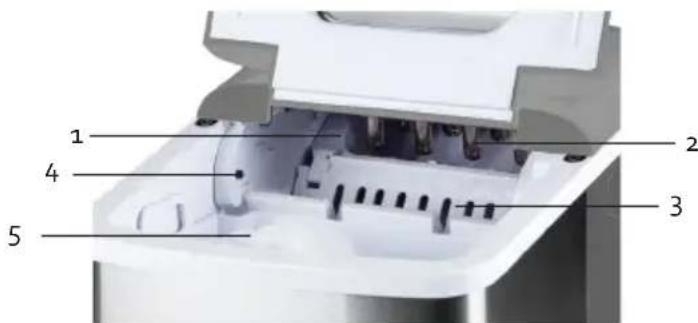

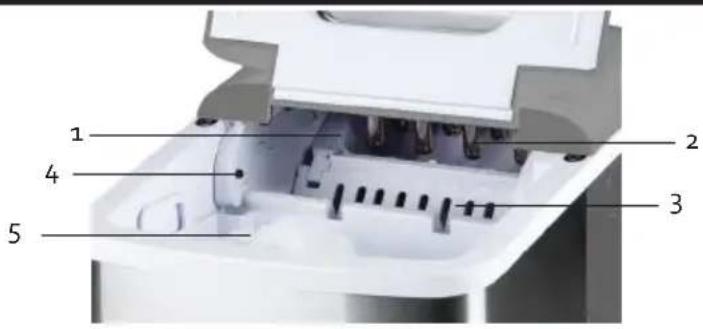

PARTS

1. Water tray
2. Freeze fingers
3. Ice shovel
4. Full basket sensor
5. Ice basket
6. Control panel
7. Ventilation opening
8. Drain hole with plug
9. Scoop

1 2 3 4 5

CONTROL PANEL

1. Indicator light 'water reservoir empty'
2. Indicator light 'ice basket full'
3. Indicator light 'in operation'
4. On/off button

ADD WATER ICE FULL ICE ON OFF 10 11 12 13

6 7 8 9

BEFORE THE FIRST USE

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
• Before using the ice cube maker for the first time: wait 2 hours after putting the appliance in place and leave the lid open for at least 2 hours.
• Place the ice cube maker on a flat and stable surface and make sure that the ventilation openings are not blocked.
• Clean the device according to the instructions in the 'Cleaning and maintenance' section.

USE

1. Place the ice cube maker on a flat and stable surface and make sure that the ventilation openings are not blocked.
2. Open the lid and take out the ice basket so you can pour water into the water tank. It is recommended to use spring water or mineral water.

Caution: Make sure that the water level is lower than the maximum indication. If the water tank is filled above the MAX indication, drain the excess water through the drain hole at the bottom of the ice cube maker. Open the drainage hole on the underside of the appliance above a collecting container or a sink. Always ensure that the opening is closed properly before use.

Use water at room temperature. The recommended temperature is between 8°C and 25°C.

1. Place the basket back into the appliance and close the lid.
2. Plug the power cord into a socket. The 'in operation' indicator light will start flashing. Press the on/off button on the appliance to turn it on. The indicator light comes on and the ice-making cycle starts.
3. When the cycle is over, the ice cubes fall from the cold fingers and are pushed by the ice scoop into the ice basket. The following cycle starts automatically. If you do not remove the ice cubes from the ice basket, they will gradually melt. The meltwater is captured in the water reservoir for reuse.
4. When the desired amount of ice is ready, you can switch off the device by pressing the on/off button. Unplug the power cord after use.
5. Clean the appliance after each use. Empty the water reservoir before storing the appliance. Open the drainage hole on the underside of the appliance above a collecting container or a sink.

During the first 3 cycles, the ice cubes may be smaller and more irregular in size. When the ice basket is full, immediately remove the ice from the ice basket.

Illustration of a trash bin with an open lid and upward arrow (no text or symbols)

Close-up of a hand pouring liquid into a white stainless steel kitchen appliance (no text or symbols visible)

Illustration of a stylized folder with a pen and a trash bin icon, no text or symbols present

ON/OFF

Hand placing ice into a white appliance with a lid (no text or symbols visible)

If the 'water reservoir empty' indicator lamp lights up, there is not enough water left in the water reservoir. Fill the water reservoir with water and press the on/off button to restart the machine. If you do not press the on/off button after the reservoir is full, the device will automatically restart after 30 minutes.

If the 'ice basket full' indicator light flashes, the machine will stop working. Empty the ice basket. If there is no more ice near the sensor, the appliance will restart automatically.

CLEANING AND MAINTENANCE

⚠️ Never immerse the appliance, the cord or the plug in water or any other liquid.

• Switch off the appliance and unplug before cleaning. Also remove all ice cubes.
• Drain all water from the water tank through the drain hole at the bottom of the ice cube maker. Open the drainage hole on the underside of the appliance above a collecting container or a sink.

- Regularly clean the ice basket, the water tank, the water tray, the freeze fingers and the ice shovel. Use a damp cloth, maybe with a little mild detergent, to clean the inside and the outside of the ice cube maker. Rinse thoroughly before using the appliance again.

Close-up of a mechanical component with a central circular feature and attached wires (no visible text or symbols)

· Do not use any chemical products or products containing acids, gasoline or oil.

· Do not use any mechanical appliances or other aids to speed up the freezing process.

- Replace the water in the water tank at least once a day to guarantee clean ice cubes. When not using the appliance, always drain the water from the water tank. Always use clean water when using the ice cube maker.

DESCALING

Descale the appliance regularly to avoid calcification and to maintain a well operating appliance. Use a descaling product for example coffee makers, or use a solution of 1/2 vinegar and 1/2 water.

Fill the water tank with the product/solution (do not exceed the maximum level) and switch on the appliance. The appliance will now pump water into the ice tray. Wait until the tray is filled with water (the supply of water to the tray will stop) and immediately press the ON/OFF button. The appliance switches off and will release the product/solution from the ice tray. Repeat this cycle a few times with the descaling product/solution. Afterwards, fill the water tank with clean water and repeat the procedure until the smell of the descaling product/solution has disappeared completely.

POSSIBLE PROBLEMS AND THEIR SOLUTIONS

PROBLEM POSSIBLE SOLUTION
The compressor makes a lot of noise. · Check	that the voltage indicated on the appliance corresponds to the voltage of the electricity grid in your home.
Indicator lamp 'water reservoir empty' (ADD WATER) lights up.	· Is the water reservoir empty? Fill the water reservoir with water.· There's air in the pump. Restart the appliance with the on/off button.
There are no indicator lights on. · There is no	power applied to the appliance. Check the plug is placed in the socket.· Make sure the fuse is not broken.
The ice is too big and there are bits of broken ice sticking to it.	· It is possible that ice from a previous cycle has ended up in the water reservoir. Turn off the appliance and remove the ice from the water reservoir.· Make sure the water in the reservoir is not too warm or cold. The recommended water temperature is between 8°C and 25°C.
The appliance goes through the cycle, but no ice comes out.	· The compressor or the ventilation motor is broken. Contact the after-sales service.· There is insufficient coolant in the appliance. Contact the after-sales service.· The ambient temperature is too warm. The device will not work as desired with temperatures higher than 32°C.
All indicator lights flash simultaneously.	· The water reservoir is blocked by ice cubes. Pull the plug out of the socket, remove the ice from the water reservoir. Plug the power cord back in and press the on/off button. The appliance will restart after 3 minutes.
The appliance works, but the water gets warm.	· Contact the after-sales service.
The ice basket is full, but the indicator light is not lit.	· The sensor is broken. Contact the after-sales service.
The appliance and the air around the appliance become warm.	· This is normal. The temperature of the compressor can be up to 90°C.
Indicator lamp ‘ice basket full’ (ICE FULL) lit.	· The ice basket is full. Remove the ice from the basket.· The sensor is dirty. Clean the sensor.· The sensor is broken. Contact the after-sales service.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.
