USER MANUAL CPW 02120 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Scan this QR code in order to access to more information about this ceiling fan, including installation details. Or enter www.orbegozo.com and look for the model number in the website.

Para cambiar bombilla led

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance

must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.

12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

13. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

1. The method of disconnection from the mains supply must incorporate a switch or isolator with a minimum contact separation of 3 mm.on all poles.
   2.Make sure that when the fan is fitted in the chosen position, there is no possibility of the rotating blades coming into contact with any object. Blades should be at least 2.30m from floor when fan is hung.
2. If you are installing more than one ceiling fan make sure that you do not mix fan blade sets, even though they are from the same ceiling fan model.
3. Before beginning, disconnect power by removing fuse or turning off circuit breaker.
4. Once fan installation is completed make sure that all connections are secure to prevent fan from falling.
5. Fan must be turned off and stopped before reversing fan direction.

7. Check that the means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation. (Minimum 50Kg.).

OPERATING IN WARM WEATHER ("Forward")

Fan blows air downward. Medium speed for maximum effectiveness. In warm weather, this allows you to reduce the use of your air conditioner, keeping the air circulating, which will help you to keep cool.

OPERATING IN COLD WEATHER ("Reverse")

Low to medium speed.

In cold weather air flows upward reducing the air current while it moves warm air off the ceiling. The exact speed depends on the size of the room, number of fans, ceiling height, etc. This should be fast enough to break the air stratification, but not too slow as no breeze will be generated.

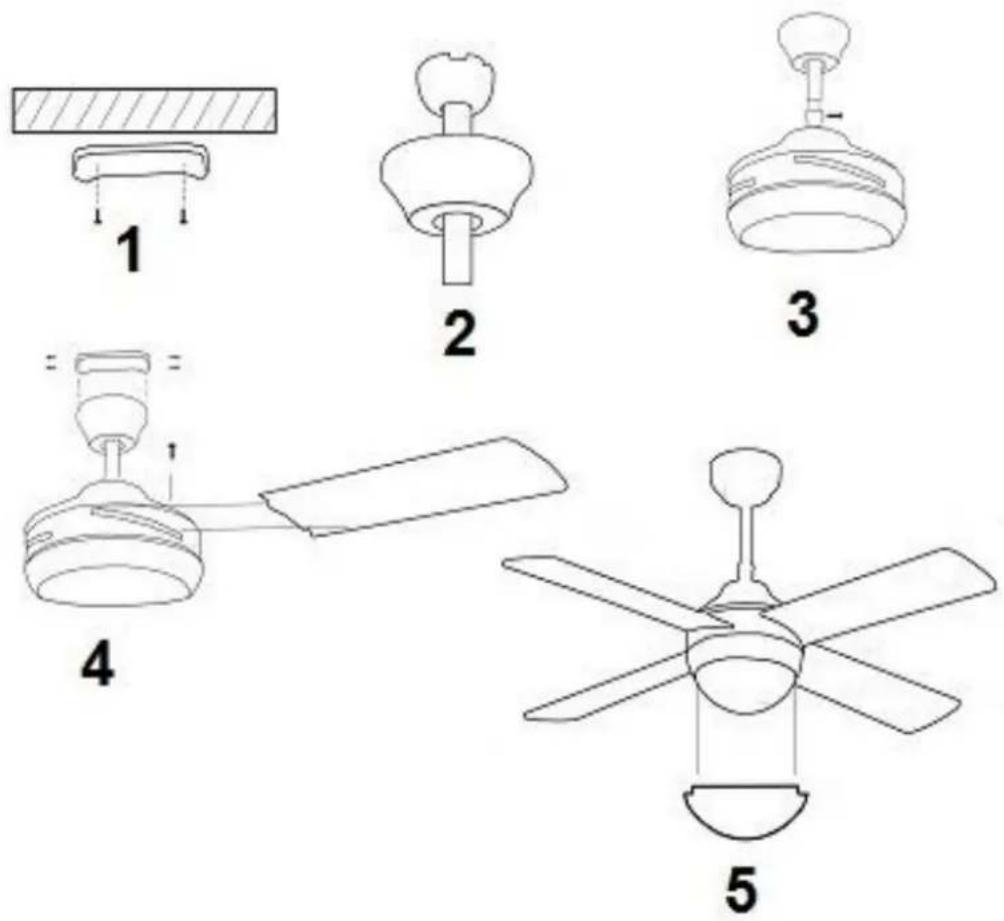

INSTALL THE CEILING FAN

To set up this ceiling fan, you must complete the following steps:

Step 1. Install the mounting bracket by using the screws.

Step 2. Insert the down rod into canopy.

Step 3. Insert the wires trough the down rod, then connect the down rod to motor head by using down rod fix bolt set

Step 4. Screw the blade assembly to motor head by using screws.

Step 5. Install the lampshade

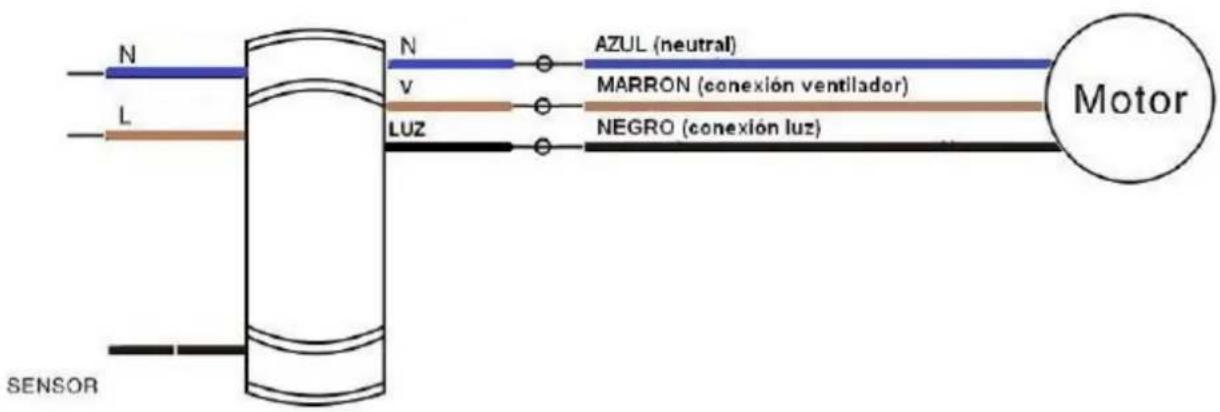

INSTALLING THE REMOTE CONTROL RECEIVER

OPERATING THE FAN

• Select the fan speed by pressing the speed control button n the remote control transmitter:

HI: High Speed MED : Medium Speed LOW : Low Speed OFF : Off

• The switch on motor housing for controlling the fan blades rotating direction controls the direction of air movement.

• Caution: Before using this rotating direction switch, turn OFF the fan and ensure the fan stops rotating to prevent injury to yourself and damage to the moto.

• Cold weather: Push the switch 'UP' so that the blades will bring the warm air trapped near the ceiling fan to move downwards throughout the room.

• Hot weather: Push switch 'DOWN' so that the blades will create a breeze and circulate the air to the room.

• Pressing the 'ON/OFF' light button on the remote control transmitter can control the turning on or off of the light.

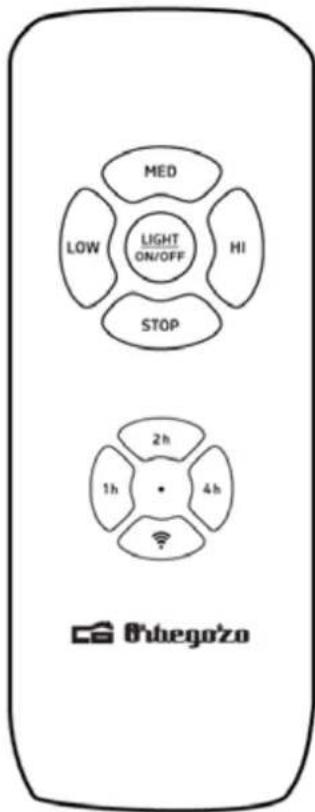

REMOTE CONTROL

• Use the remote control transmitter to change the speed of the fan and to switch the light and fan on or off.
• Replace the batteries by sliding the battery compartment cover on the remote control transmitter in the direction of the arrow, fit 1 x A23 12v battery (Note: Batteries NOT included). Re-assemble the battery compartment cover.
• Always ensure the battery compartment cover is closed properly.
• Don't expose the remote control to direct sunlight.
• Don't attempt to recharge expired batteries. There are special rechargeable batteries, which are clearly marked with.
• Don't dispose of batteries in fire to avoid explosion.

Point the remote at the infrared sensor to power the fan.

HIGH: Drives the fan at high speed.

MEDIUM (med): activates the fan at medium speed.

LOW (low): activates the fan at low speed.

STOP (off): turns off the fan.

LIGHT: on/off: Turns the fan light on or off.

1H, 2H, 4H: programs the operation of the fan (but not the light) for 1 hour, 2 hours and 4 hours respectively. To do this, start the fan and press one of these 3 buttons, and after the selected time the fan will stop working (note: the light cannot be programmed)

press and hold to activate Wi-Fi.

Battery: 2xAAA 1.5V

MAINTENANCE

How to replace a led light

Please contact with you technical service.

CLEANING

Clean with a soft, dry cloth. Never use scouring pads, abrasive or chemical cleaners. Do not

allow condensation to come in contact with the electrical components.

Disposal of old electrical appliances.

The European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they

contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

CONTROL WIFI:

The Orbegozo CPW series can be controlled via Wi-Fi through our ORBEGOZO APP, available for download on Google Play and the App Store. With it, you can access all the functions of your device from your mobile phone in a simple and intuitive way.

To review all the features of this and any other Orbegozo device, as well as to access an explanatory video about configuring the fan with our APP, go to www.orbegozo.com and search for your model or scan the following QR code:

CPW 02120

CPW 03120

Information on how to use the application

This device allows you to use the device through your home WIFI network. A prerequisite is a permanent WIFI connection to your router and the free application "Orbegozo APP".

Commissioning via app

1. Install the "Orbegozo APP" application. Create a user account.
2. Activate the WIFI function on your mobile and connect to the wireless network.
3. Long press the wifi activation button
4. Enter the app and select "Add device".
5. Select the device in the list or let the app detect the fan by itself.
6. The application will be linked with the device and you can control it from your mobile.
