58010 - Rice cooker KORONA - Free user manual and instructions

Brand	Korona
Model	58010
Product type	2-in-1 rice cooker and steamer
Power supply	220-240 V ~ 50/60 Hz
Rated power	500 W
Protection class	I
Maximum rice capacity	8 measuring cups (160 ml per cup)
Maximum water capacity	1.5 L
Bowl material	Removable graduated aluminum
Lid material	Glass
Housing material	Plastic
Included accessories	Steaming basket, measuring cup, rice spatula
Functions	Automatic cooking and keep warm
Safety	Automatic shut-off in case of dry boiling, switch to keep warm mode
Care and cleaning	Clean by hand with mild detergent; do not put in dishwasher
Repairability	Repair by qualified professional only; do not open housing
Warranty	2 years
Dimensions (approx.)	Approximately 25 x 25 x 25 cm
Weight (approx.)	Approximately 1.5 kg

Frequently Asked Questions - 58010 KORONA

What is the maximum rice capacity for this cooker?

The maximum capacity is 8 measuring cups (160 ml per cup), which corresponds to about 1.5 L of water.

Can I steam vegetables at the same time as cooking rice?

Yes, you can insert the supplied steaming basket on the bowl to steam vegetables, fish or meat while the rice is cooking.

How do I measure water for cooking rice?

Use the provided measuring cup and pour water up to the mark corresponding to the number of cups of rice inside the graduated bowl (e.g., 2 cups of water for 2 cups of rice).

What should I do if the COOK indicator does not light up?

Ensure the bowl is correctly inserted into the housing and the appliance is plugged in. First press the On/Off button, then press the selection button to activate cooking mode.

Does the appliance turn off automatically after cooking?

Yes, once cooking is complete, the appliance automatically switches to keep warm mode (WARM indicator on). It does not remain in active cooking.

Can I leave the rice in keep warm mode overnight?

It is recommended not to leave rice in keep warm mode for more than 12 hours for hygiene and quality reasons.

How do I clean the rice cooker?

Unplug the appliance and let it cool. Wash the bowl, lid, steaming basket and accessories by hand with warm water and mild detergent. Never immerse the housing in water and do not put in dishwasher.

What should I do if the appliance heats without water?

The appliance has a safety cut-off that switches it to keep warm mode in case of dry boiling. Turn off immediately, unplug, and let cool for at least 15 minutes before reusing with water.

What types of rice can I use?

Only use loose rice (not in cooking pouches). Rinse the rice several times before placing it in the bowl.

Where can I get spare parts or repair?

Contact Korona customer service at [e-mail] or by phone at 02933 90284-80. Repairs must be carried out by a qualified professional.

USER MANUAL 58010 KORONA

2 in 1 Rice Cooker and steamer

Nederland

Handleiding

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for cooking rice and steaming foods. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

！ 1

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns.

• Your rice cooker is only intended for cooking rice and for the steaming of foods (e.g. vegetables, fish, meat). Never attempt to heat any other liquids or foods in it.
• Place the appliance on an even and heat-resistant surface.
• The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only at its handle if available. Danger of serious burns!
• Never open the lid during operation.
• Never use the appliance without water.

• To prevent the appliance from boiling dry, make sure the liquid level is never below minimum filling marking (cup 2) inside the appliance

• Never exceed the maximum filling level marking (1.5L) inside the appliance to avoid any boiling water from spilling from the appliance. Danger of serious burns!

• The rice bowl should only be used with the appliance.
• Do not move the appliance during operation.
• Let the appliance completely cool down before cleaning.
• The appliance also features a boil-dry cut-out, which will switch to "warm" mode, should it accidentally be operated without liquid. In the event of such a safety cut-out, switch off the appliance immediately, unplug it and let it cool down for at least 15 minutes.

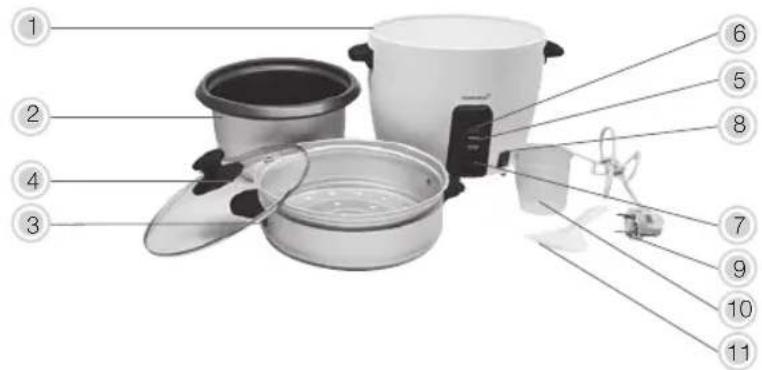

Product Description

1. Housing
2. Removable aluminium rice bowl
3. Steaming tray
4. Glass Lid
5. Indicator light COOK
6. Indicator light "WARM"
7. Selection Button
8. On/Off button
9. Power Cord and Plug
10. Measuring Cup
11. Rice Spatula

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
• Do not use the appliance if it shows any signs of damage.
  Fully unwind the power cord (9).
  Clean the appliance according to "Cleaning and Care".

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away. suffocation.

Operation

The temperature of accessible surfaces may be high during operation. Therefore, do not use the appliance during and/or immediately after operation.

Never operate the appliance without the rice bowl.

Cooking Rice

Note: Only use loose rice and no boil in bag rice!

1. Measure the amount of rice with the measuring cup (10). One cup of rice equals 160ml on the measuring cup. Always rinse the rice several times before adding it into the rice bowl.
2. Add the rice into the rice bowl (2), make sure that it is evenly distributed and add the respective amount of cold water (see level indication inside the rice bowl).

Indication (2-8 cups) for how much water should be used, can be found inside the bowl, e.g. if two measuring cups of rice are used the water level should reach the bottom mark for "2 cups" inside the rice bowl. Max. amount of rice is 8 cups.

OR

Cups of rice 2 3 4 5 6 7 8
(Approx.)Filling level indication (litre)	0.4 0.6	0.8 1 1.2	1.3 1.5

1. Before inserting the rice bowl (2) into the appliance, wipe the outside of the rice bowl (2) in order to make sure than no foreign objects stick to the outside of the rice bowl.

2. Place the rice bowl (2) into the appliance (1) and make sure that it is properly inserted.

Attention: The appliance cannot be switched on if the rice bowl is not inserted!

1. Place the lid (4) onto the appliance.

During use, hot steam might evaporate, therefore never remove the lid during operation.

1. Connect (9) the appliance to a properly installed wall socket.
2. Press the On/Off (1/0) button (8). The "WARM" indicator light (6) lights up.
3. Press down the selection button (7) and the "COOK" indicator light (5) lights up and the cooking process starts.
4. After the cooking process is completed the appliance automatically switches into the "WARM" mode, the "COOK" indicator light (5) goes off and "WARM" indicator light (6) lights up.

Do not keep the cooked rice on "warm" mode for more than 12 hours.

1. Remove the lid (4) and use the spatula (11) to loosen and take out the rice.

Attention: Use pot holder when removing the rice bowl! Risk of burns.

After use, always switch off (8) the appliance and disconnect (9) if from the mains.

Steaming

While cooking rice, you can use the steaming tray (3) to steam vegetables, fish, etc. Just insert the steaming tray (3) on top of the rice bowl (2).

The steaming function will not work under the "warm" mode.

Amount of Rice and Cooking Time

Cups of rice 2-3 3	4 5-6 7-8
Cooking time ca. 20 mins ca. 25 mins		ca. 35 mins ca. 35 mins

Only meant as an indication!

Cleaning and Care

Due to hygienic reasons clean your appliance on a regular basis, best after each use. Not doing so could possibly result in a hazardous situation or could lead to health issues (germ formation).

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it

completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the lid (4), rice bowl (2), steaming tray (3), measuring cup (10) and spatula (11) in warm water using a mild dishwashing detergent. Rinse under running water and dry all parts thoroughly with a dish towel.

Clean the housing of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Make sure that the appliance and all other resp. parts are properly dried.

Never place the appliance and its accessories into the dishwasher - It is not dishwasher

safe! This can damage the appliance and hurt its user!

Cleaning and user maintenance shall not be made by children without supervision.

Storage

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your 2 in 1 Rice Cooker and Steamer 58010 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage:

220-240V\~50/60Hz

Rated power:

500W

Protection class:

1

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
