Reference Premiere RP-500SA II - Speaker KLIPSCH - Free user manual and instructions

Product Type	Dolby Atmos Speaker
Brand	Klipsch
Model	Reference Premiere RP-500SA II
Technology	Alloy horn (horn-loaded)
Impedance	8 ohms
Compatibility	Dolby Atmos
Efficiency	High (extremely efficient)
Recommended placement	On top of or in front of main speakers, 60 cm from walls
Connection type	Screw terminals (speaker wire)
Minimum cable gauge	1.3 mm (16 AWG)
Recommended amplifier	8 ohms, power suitable for listening
Maintenance	Dust with vacuum brush or dry cloth; no abrasive products
Product registration	Online at www.klipsch.com/register
Warranty	Keep receipt for any claims
Safety	Avoid excessive volumes to protect hearing
Repairability	Contact Klipsch customer service

Frequently Asked Questions - Reference Premiere RP-500SA II KLIPSCH

How to install the RP-500SA II for Dolby Atmos effect?

Place the RP-500SA II on top of the front main speakers or directly above them, at an angle of 30° to 50° toward the listening position. Ensure it is stable and connected to the surround or Atmos channel of your amplifier.

What type of cable to use for connection?

Use a speaker cable with at least 1.3 mm² section (16 AWG). Connect the red terminal (+) to the positive output of the amplifier and the black terminal (-) to the negative output.

Can I use the RP-500SA II as a regular surround speaker?

Yes, in addition to the Atmos effect, it can serve as a surround speaker. Place it on the side or rear walls, about 60 cm above the listening position.

What amplifier power is recommended?

The RP-500SA II has an impedance of 8 ohms and high efficiency. It works with most home theater amplifiers. Avoid turning the volume up too high to prevent damage to the speaker or your hearing.

How to clean the speaker?

Dust it regularly with a vacuum brush or dry cloth. Never use abrasive products or solvents.

Can I mount the RP-500SA II on the wall?

Yes, it can be mounted on the wall using wall brackets (not included). Use the mounting hole and threaded insert provided. Do not install it on the ceiling via the keyhole slot.

What to do if sound is distorted?

Check the connections: ensure the polarities (+ and -) are correct and that no bare wire touches another terminal. Lower the volume if the amplifier is clipping.

Is the RP-500SA II compatible with all Atmos amplifiers?

Yes, it is designed to work with any Dolby Atmos compatible amplifier or receiver. Ensure your amplifier has a dedicated output for Atmos speakers.

What accessories are included with the speaker?

The manual does not mention specific accessories. Generally, the speaker is delivered bare. Wall mounts are sold separately.

How to register my Klipsch product?

Go to www.klipsch.com/register and follow the instructions. Keep your receipt for any warranty claims.

USER MANUAL Reference Premiere RP-500SA II KLIPSCH

USER MANUAL

Klipsch®

REFERENCE

PREMIERE

|

一

1

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

|

一

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

—

|

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

REFERENCE (n):

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference Series.

We are the Keepers of the Sound ^® .

ENGLISH

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

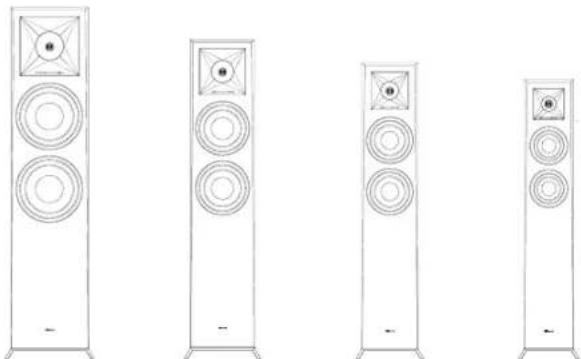

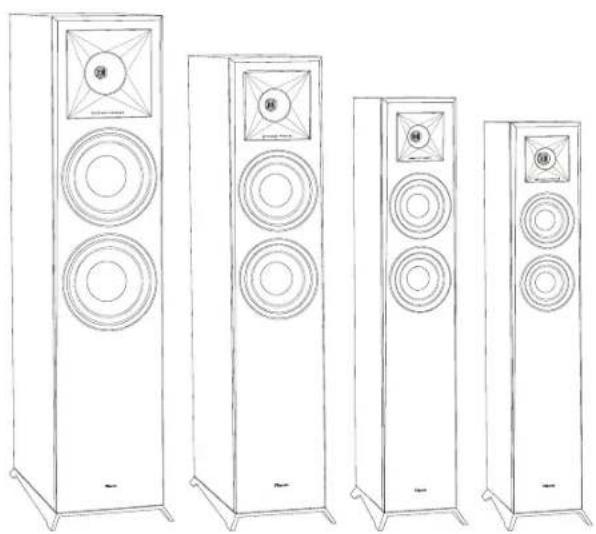

REFERENCE PREMIERE SPEAKERS

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

BEFORE YOU START

Some Klipsch ^® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2, 3 and 4 for installation.

ROOM PLACEMENT

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

CONNECTION

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

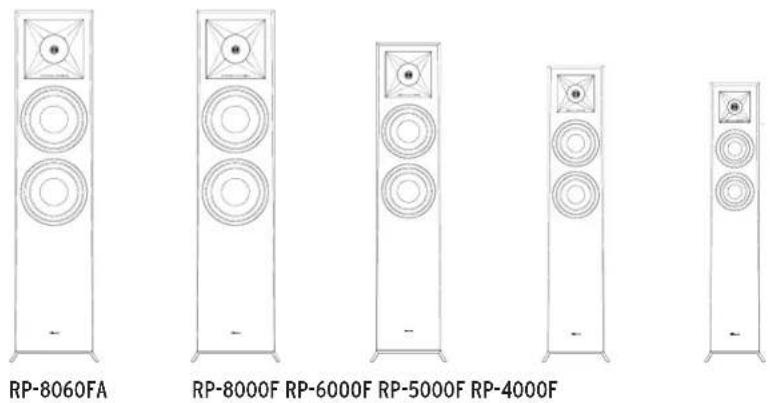

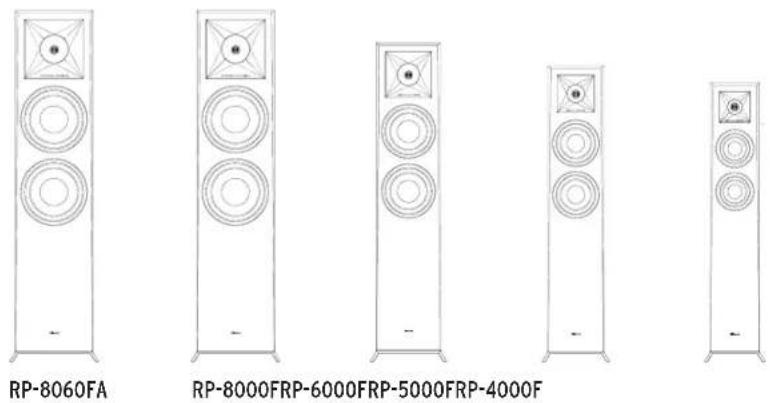

Reference Premiere models RP-8060FA, RP-8000F, RP-6000F, RP-5000F, RP-4000F and RP-160M are equipped with dual binding posts. If single wire connection is used, the terminal connecting bar should remain in place. If Bi-wire or Bi-amp connection is used, the terminal connecting bar must be removed. Please see your receiver's manual for further instructions.

Amplifier Requirements – Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels, Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

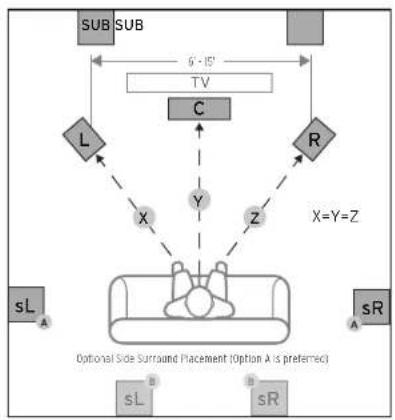

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA
    style_M["sL"] fill:#cff,stroke:#333
    style_N["sR"] fill:#ffc,stroke:#333

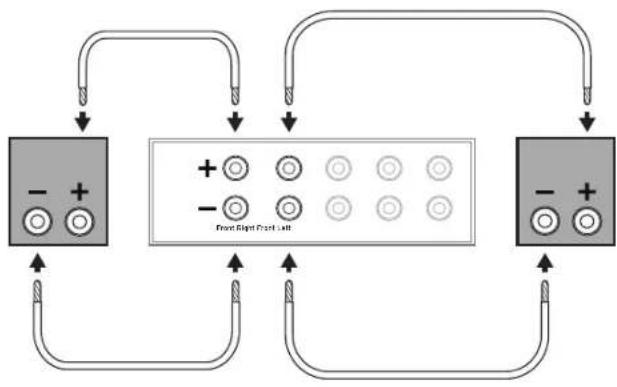

FIGURE 3 STANDARD CONNECTIONS


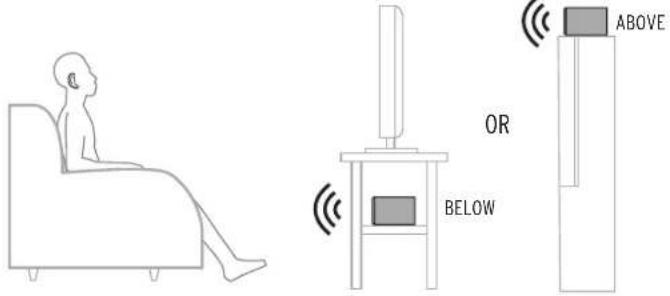

FIGURE 2 CENTER CHANNEL

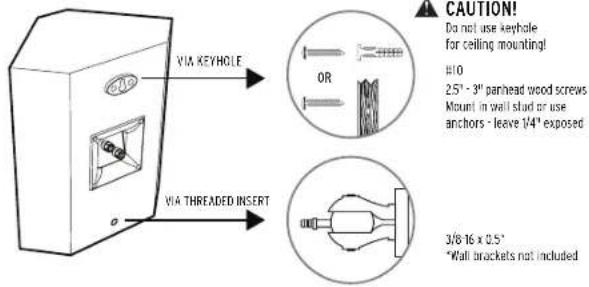

FIGURE 4 WALL MOUNTING

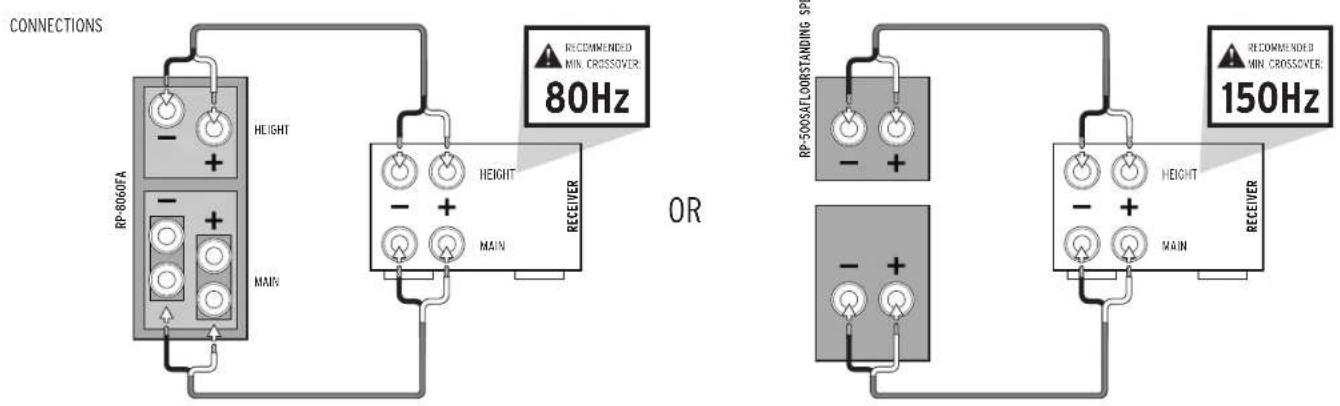

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

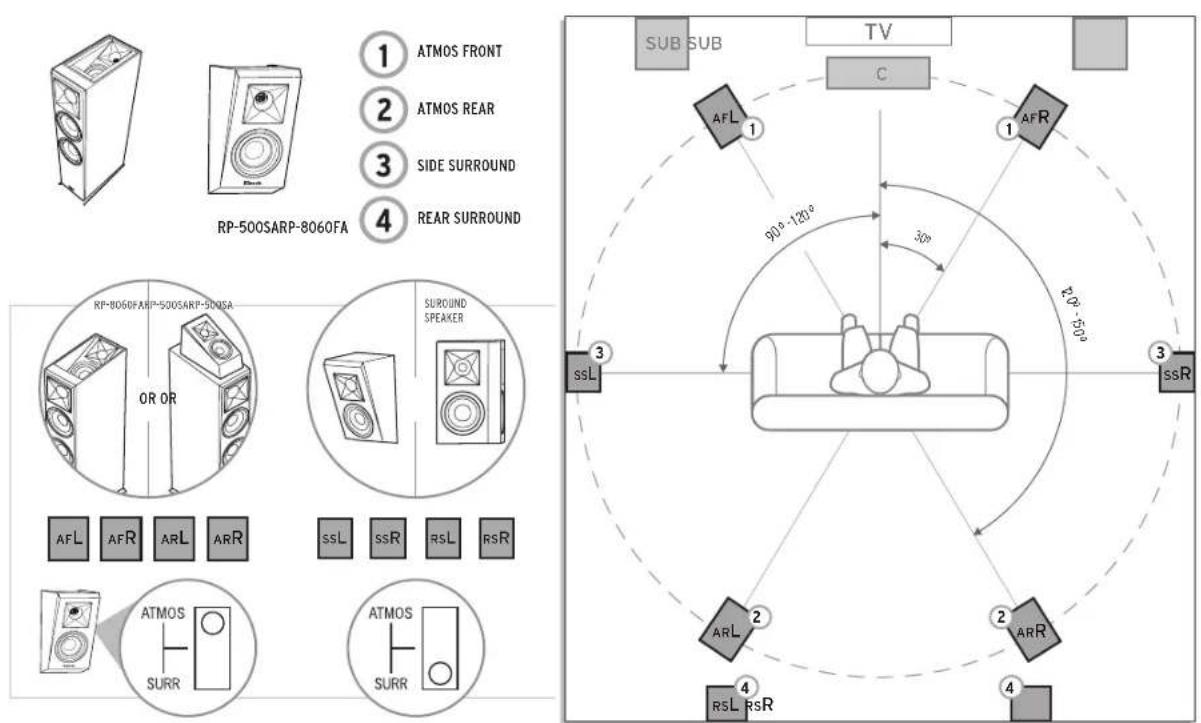

SPEAKER PLACEMENT IN LISTENING AREA

REFERENCE PREMIERE WITH DOLBY ATMOS® TECHNOLOGY

RP-500SAFLOORSTANDING SPEAKER

The RP-500SA can be added to any passive loudspeaker setup.

Line drawing of a speaker with two circular components and a square aperture (no text or symbols)

CAUTION!

Do not use keyhole for ceiling mounting

10

2.5" - 3" panhead wood screws Mount in wall stud or use anchors - leave 1/4" exposed

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

- Keep up-to-date on new products and promotions.

- Your personal information will never be resold.

• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

ENCEINTES REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

AVANT DE COMMENCER

Line drawing of a speaker with two circular components and a star-shaped top (no text or symbols)

MONTAGE MURAL DES ENCEINTES SURROUNDECIENTE D'ÉLÉVATION

ATTENTION!

We are the Keepers of the Sound ^® .

DEUTSCH

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols)

REFERENCE PREMIERE-LAUTSPRECHER

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

ERSTE SCHRITTE

Line drawing of a speaker with two circular components and a star-shaped top panel (no text or symbols)

VORSICHT!

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

ALTAVOCES REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

ANTES DE EMPEZAR

Line drawing of a speaker with two circular components and a star-shaped top (no text or symbols)

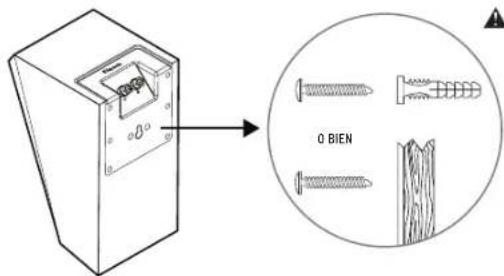

MONTAJE DE LOS ALTAVOCES SURROUND EN LA PAREDALTAVOZ DE ALTURA

PRECAUCIÓN

Somos os Keepers of the Sound ^8 .

PORTUGUÊS

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

CAIXAS ACÚSTICAS REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

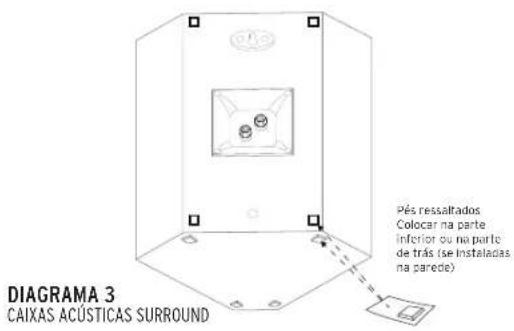

ANTES DE COMEÇAR

DIAGRAMA 2 CANAL CENTRAL

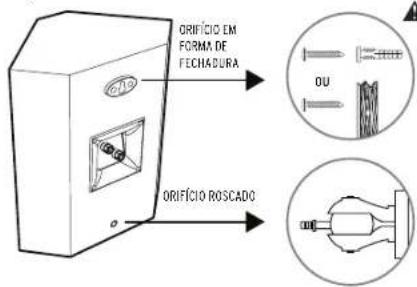

FIGURA 4 INSTALAÇÃO DAS CAIXAS ACÚSTICAS SURROUND EM PAREDE

Line drawing of a speaker with two circular components and a star-shaped top (no text or symbols)

CUIDADO!

Line drawing of five different speaker units in a row, each with two circular speakers and a central screen (no text or symbols present)

ALTOPARLANTI REFERENCE PREMIERE

RP-600M

RP-500M RP-400M RP-502S RP-402S RP-500SA

RP-504C RP-404C RP-600C RP-500C RP-400C

OPERAZIONI PRELIMINARI

Line drawing of a speaker with two circular components and a star symbol on top (no text or labels)

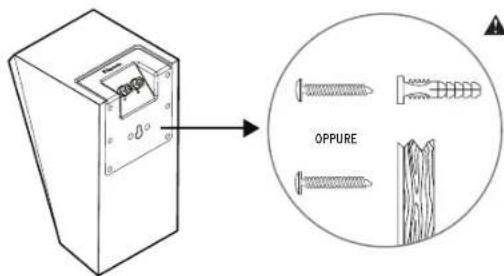

FISSAGGIO A PARETE DEGLI ALTOPARLANTI SURROUNDALTOPARLANTI ELEVATO

ATTENZIONE

Line drawing of five different speaker units in a row, each with two circular speakers and a top panel (no text or symbols)

参考系列扬声器

RP-600M

RP-500MRP-400MRP-502SRP-402SRP-500SA

RP-504CRP-404CRP-600CRP-500CRP-400C

开始使用之前

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

Line drawing of five different speaker units in a row, each with two circular speakers and a top panel (no text or symbols)

Line drawing of a speaker with two circular speakers and a triangular top panel (no text or symbols)

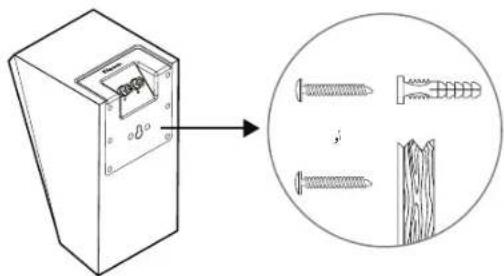

التركيب بالحانط

Diagram showing a small electrical switch connected to a circular inset of three types of screws (wood, metal, and screw), no text or symbols present.

العناية والتنظيف

Klipsch®

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

DOLBY ATMOS

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories

V03-180507

1-800-KLIPSCH ©2015 KLIPSCH GROUP, INC. ALL RIGHTS RESERVED. KLIPSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KLIPSCH GROUP, INC. IN THE USA AND OTHER COUNTRIES: A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION. MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES. DOLBY ATMOS IS A REGISTERED TRADEMARK OF DOLBY LABORATORIES.
