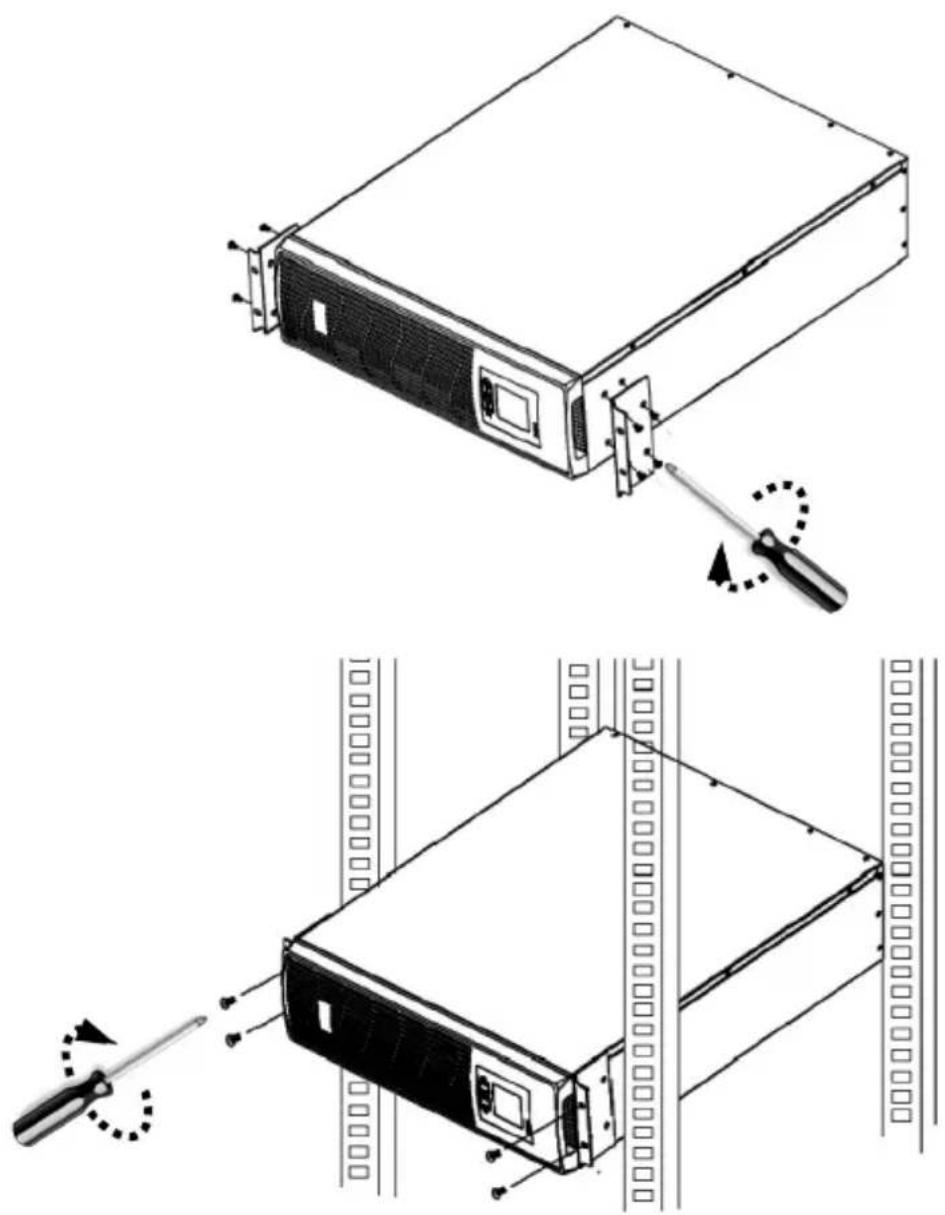

The EG-UPSRACK-13 is designed for a standard 19-inch rack. Use the included mounting brackets. Secure the UPS to the front of the rack with the appropriate screws. Ensure adequate ventilation. Consult the manual for detailed instructions.

How to replace the UPS battery?

The battery of the EG-UPSRACK-13 is replaceable. Disconnect the UPS from the mains and open the front panel. Disconnect the cables of the old battery and install the new battery observing polarity. Only a qualified technician should perform this operation.

What do the beeps emitted by the UPS mean?

A beep every few seconds indicates that the UPS is running on battery (mains failure). Rapid beeps indicate low battery. A continuous beep signals an overload or fault alarm. Refer to the manual for the precise alarm codes.

What is the typical battery lifespan?

The lead-acid battery has a lifespan of 3 to 5 years depending on usage conditions and ambient temperature. High temperature reduces lifespan. It is recommended to test the battery every 6 months.

Can I plug the UPS into a power strip?

It is not recommended to plug the UPS into a power strip, as it can cause interference and overload risks. Plug the UPS directly into a wall outlet. Use a grounded outlet.

How to perform a battery test?

Some models have a test button. Press briefly to simulate a mains failure and check the runtime. Perform this test every 3 months to ensure proper battery operation.

What to do in case of UPS overload?

If the overload alarm sounds, immediately disconnect some devices to reduce the total load below 600 W. Never exceed the rated power of the UPS as it may cause damage.

Where can I download the full user manual?

You can download the free PDF manual on the notice-facile.com website. Go to the EG-UPSRACK-13 page and click the Download button. A translated version can be requested by email.

How to contact EnerGenie technical support?

Technical support is provided by Gembird Europe B.V. You can email [e-mail] or call [phone] (charges according to operator). Keep your proof of purchase for any warranty claims.

USER MANUAL EG-UPSRACK-13 EnerGenie

Black industrial server rack with a tall tower and power unit, no visible text or symbols

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Collection of national flags including the European Union, Germany, Switzerland, Austria, Netherlands, France, Russia, and Ukraine

Features EG-UPSRACK-12 (EG-UPSRACK-13)

• Automatic output voltage regulation (AVR)
- Rack 3.4U metal case
• USB control interface
- LCD display
- Short circuit protection
- Compatible with power generators of any brand
- Surge, spike and lightning protection
• Audible and visual alarms
• Overcharge and overdischarge protection

Specifications EG-UPSRACK-12 (EG-UPSRACK-13)

• UPS type: line interactive, pure sine wave
  • Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
  • Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
  • Output power factor: 0.8
• Inverter output efficiency (resistive load): 85%, any load type is allowed
• Switching time: no more than 10 ms (typically 6 ms)
• Backup time: 8...20 mins (depends on the load)
• Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.3 kg x 3 pcs (4 pcs for EG-UPSRACK-13)
  • Charge time: up to 12 hours
• Sockets: input IEC C14, outputs: Schuko EU type x 1 pc, IEC C13 x 6 pcs
• Operating conditions: 0°C\~40°C, at humidity 10\~90%RH non condensing
  • Noise: < 45 dB (at 1 meter distance)
  • Power: 2000 VA (1200 W) (3000 VA (1800 W) - for EG-UPSRACK-13)
  • Dimensions: 440 x 410 x 132 mm
  • Product weight: 19.8 kg (28.1 kg for EG-UPSRACK-13)

CE ReHS MADE IN CHINA

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

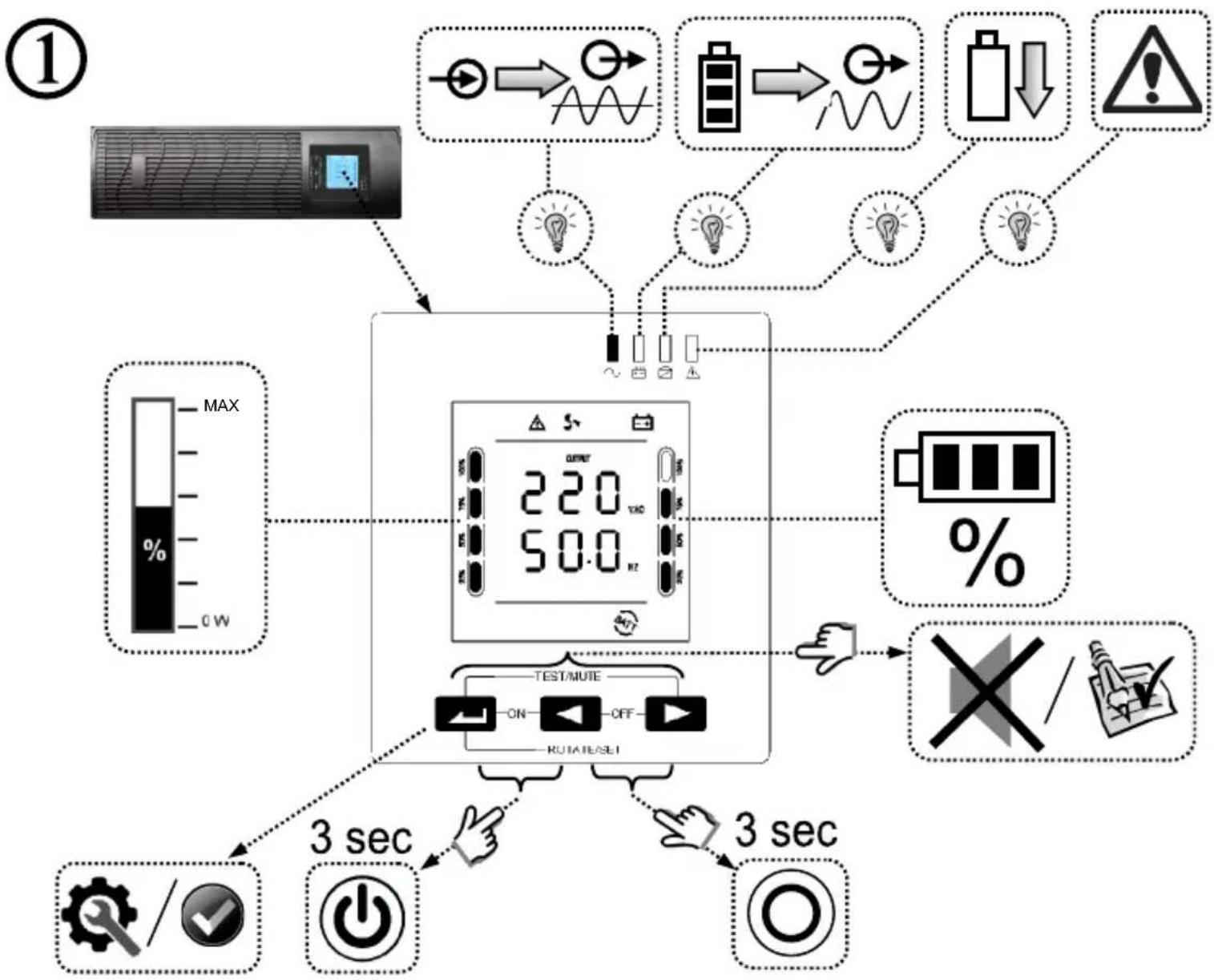


All brands and logos are registered trademarks of their respective owners

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

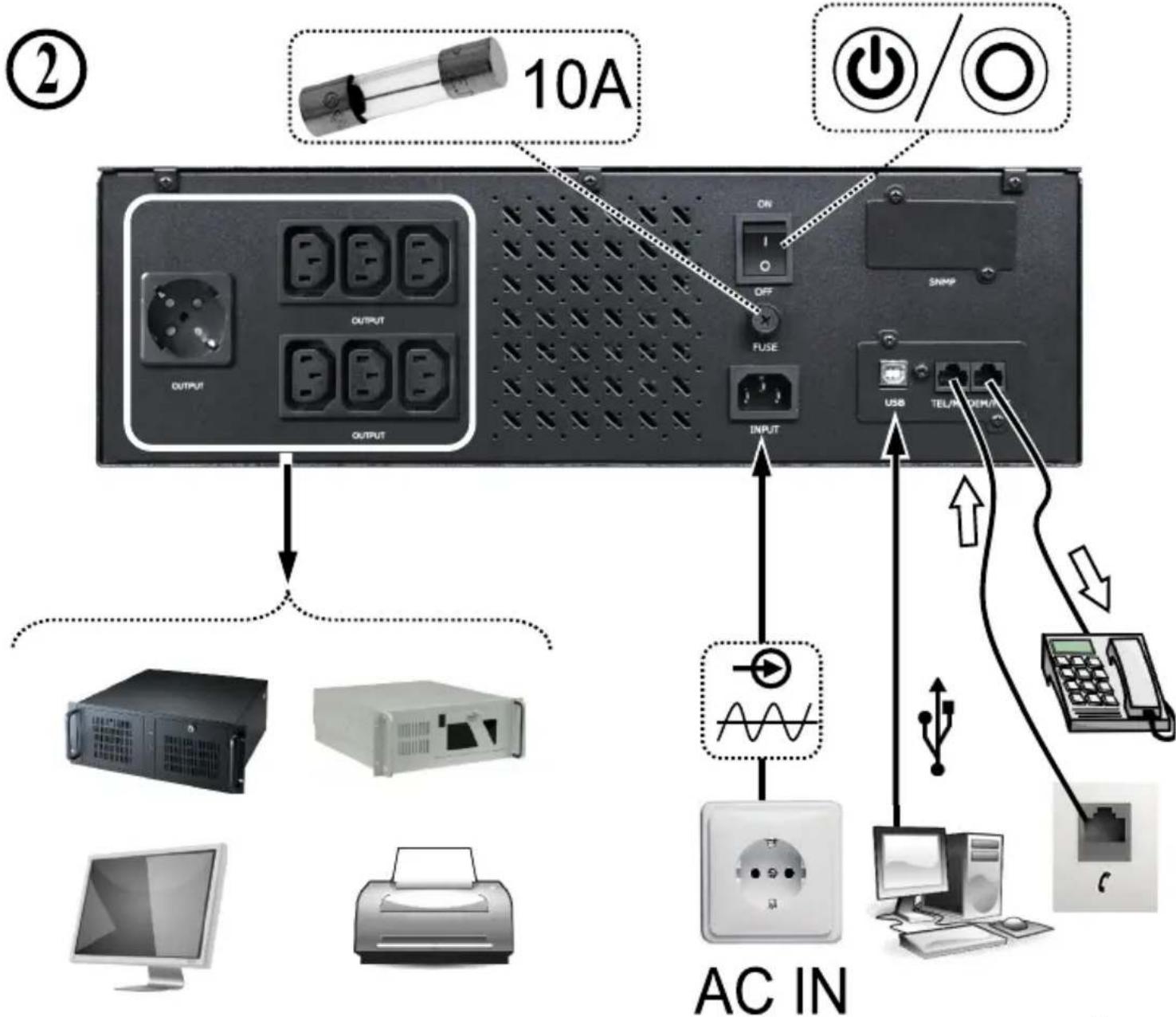


All brands and logos are registered trademarks of their respective owners

energenie

EG-UPSRACK-12 RACK UPS, 2000 VA

EG-UPSRACK-13 RACK UPS, 3000 VA

③

Technical line drawings of a server rack with screwdriver, showing mounting and disassembly steps (no text or symbols)

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Safety warning symbol showing a sun and a person with fever, crossed by a diagonal line indicating no heat.

Hand-drawn sketch of a hand using a tool to cut a screwdriver into a screw, with no text or symbols present.

Simple line drawing of a hand holding a bag with a crossed-out arrow and flag, no text or symbols present.

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
