Product type HDMI splitter
Brand Cablexpert
Model DSP-4PH4-02
Number of inputs 1
Number of outputs 4
Connector type HDMI type A (19 pins)
HDMI version HDMI 1.4 (compatible with all versions)
HDCP support Yes, v1.4
Supported video formats 480p, 576i, 576p, 720p, 1080i, 1080p
Maximum resolution 1920 x 1080 pixels (1080p)
Video bandwidth 225 MHz
Signal amplifier 0.5 to 1.0 Vp-p
3D support Yes
Additional transmission distance Approximately 10 meters
Power supply 5 V DC, 1 A
Housing material Steel
Dimensions (Length x Width x Height) 146 x 73 x 24 mm
Net weight 0.28 kg
Maintenance Clean with a dry, soft cloth. Do not use solvents.
Safety Do not open the device. Avoid moisture and shocks.
Warranty 24 months (according to manufacturer's conditions)

Frequently Asked Questions - DSP-4PH4-02 Cablexpert

How to connect the HDMI splitter?
Connect your HDMI source (Blu-ray player, game console, etc.) to the splitter's input using an HDMI cable. Then connect each of the four outputs to a display (TV, projector, monitor) with HDMI cables. Power on the splitter using the provided power adapter.
What is the maximum supported resolution?
The splitter supports a maximum resolution of 1920 x 1080 pixels (1080p). It is compatible with 480p, 576i, 576p, 720p, and 1080i formats.
Can I use this splitter with a long HDMI cable?
Yes, the built-in amplifier offers a 225 MHz bandwidth, which allows for an additional transmission distance of approximately 10 meters compared to a direct connection, while improving signal quality.
Is the splitter HDCP compatible?
Yes, it supports HDCP version 1.4, making it compatible with most protected sources such as Blu-ray players, game consoles, and set-top boxes.
Does the splitter support 3D?
Yes, the DSP-4PH4-02 supports 3D video signals, provided that your source and displays are also 3D compatible.
What power supply is required?
The device operates with an external power supply of 5 V DC and 1 A. Use only the provided power adapter to avoid damage.
How to clean the splitter?
Unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Never use chemicals, solvents, or liquids.
What to do if no signal appears on the displays?
Check that all HDMI cables are properly connected. Make sure the splitter's power is connected and the indicator light is on. Test each display individually by connecting them directly to the source to rule out a cable or display issue.
What is the warranty for this product?
The splitter comes with a 24-month warranty from the date of purchase, subject to presentation of the receipt. The warranty covers manufacturing defects, but not damage due to misuse or external causes.
Can I use the splitter with a different brand's power adapter?
It is strongly recommended to use only the power adapter provided by the manufacturer. A non-compliant adapter could damage the device or reduce its performance. If you need to replace it, choose a strictly identical adapter (5 V DC, 1 A, positive polarity).

User questions about DSP-4PH4-02 Cablexpert

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Splitter in PDF format for free! Find your manual DSP-4PH4-02 - Cablexpert and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DSP-4PH4-02 by Cablexpert.

USER MANUAL DSP-4PH4-02 Cablexpert

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Features

  • Sends a single HDMI signal to 4 separate monitors, projectors or TV's
  • The digital 225 MHz bandwidth amplifier increases the transmission distance with about 10 meters and also improves signal quality
    • Supports 3D video

Specifications

  • Ports: one input receptacle, 4 output HDMI output receptacles, 19 pin (A)
    • Interface standard: HDMI + HDCP v.1.4 (compatible with all HDMI versions)
    • Video formats: HDMI (480p/576i/576p/720p/1080i/1080P)
    • Maximal single-link range: 1920x1080 pixels, 1080p
    • Video amplifier: 0.5...1.0 Vp-p, up to 225 MHz bandwidth, DDC signal 5 Vp-p
  • Shell material: steel
    • Power adapter: 5 V DC, 1 A
    • Dimensions: 146 x 73 x 24 mm
    • Net weight: 0.28 kg

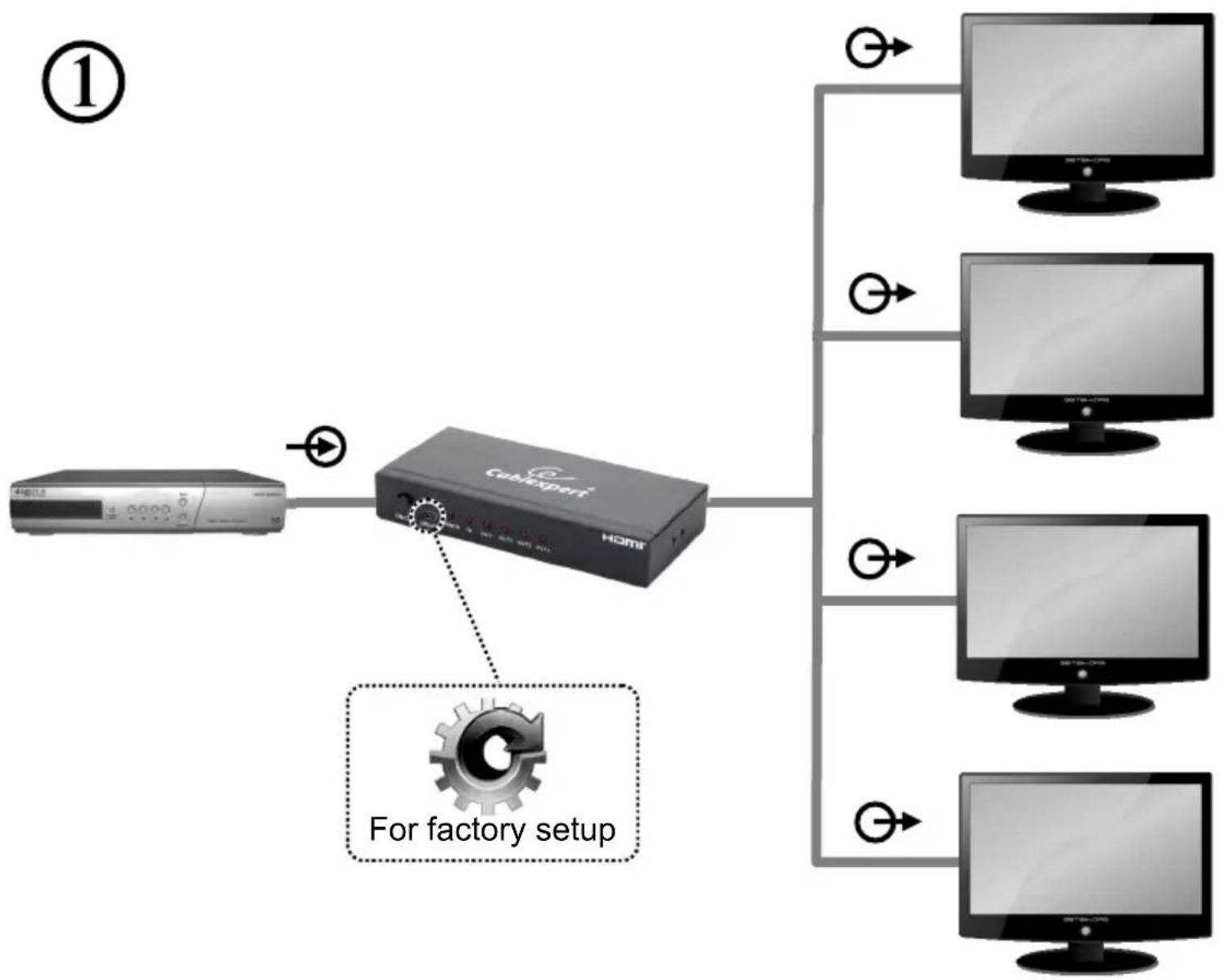

DSP-4PH4-02 HDMI INTERFACE SPLITTER, 4 PORTS

All brands and logos are registered trademarks of their respective owners

Cablexpert®

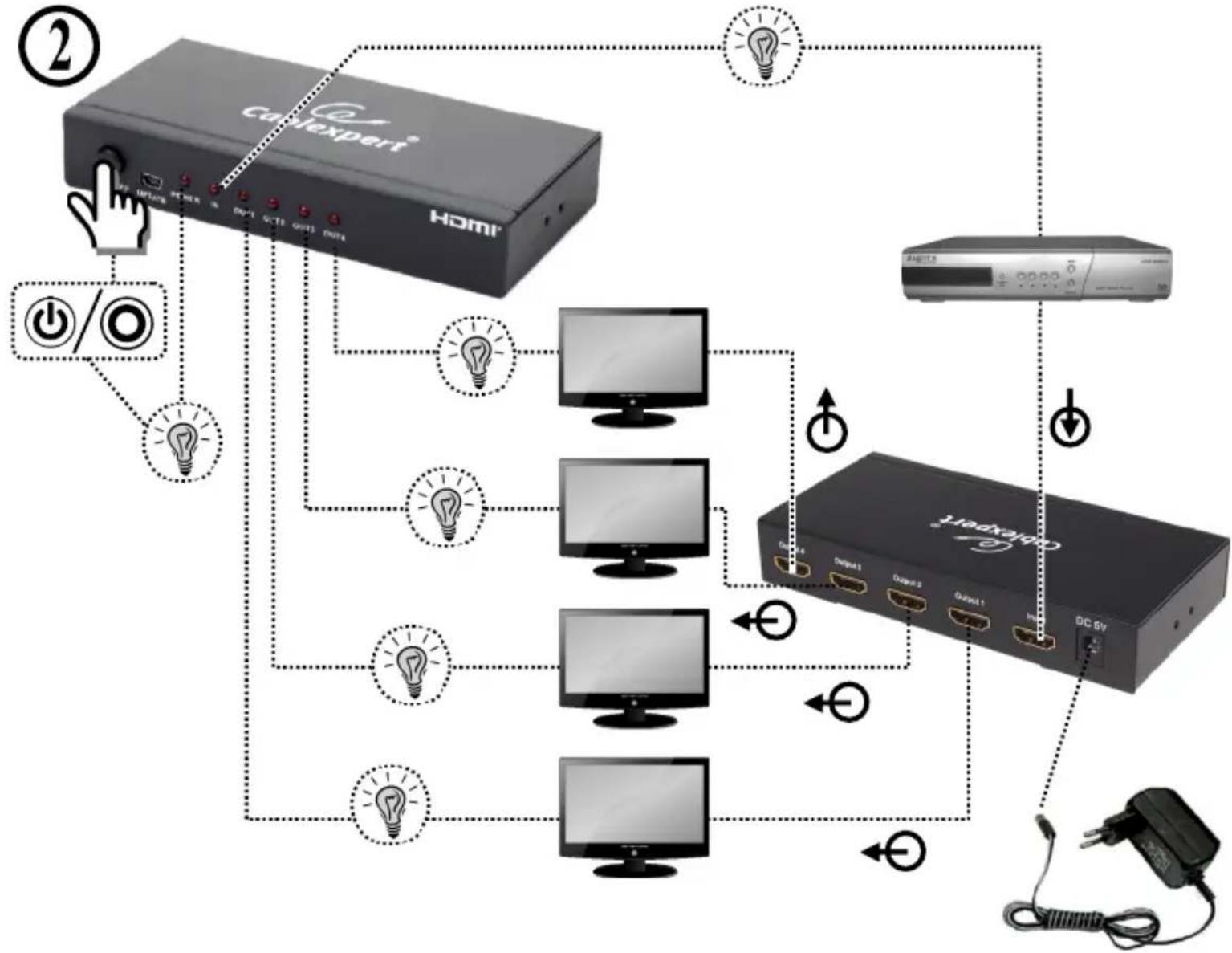

DSP-4PH4-02 HDMI INTERFACE SPLITTER, 4 PORTS

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Safety warning sign showing sun and a person with fever, crossed by a diagonal line

Simple line drawing of a hand using a tool to cut a screwdriver into a screw (no text or symbols)

Simple line drawing of a hand holding a small object with a diagonal line crossing through, no text or symbols present.

All brands and logos are registered trademarks of their respective owners
