Product Type	Splitter
Brand	Cablexpert
Model	GVS122
Category	Splitter
Compatibility	Audio/video devices with suitable connectors
Material	ABS plastic
Color	Black
Power	Passive (no external power required)
Input connectors	1 x female connector
Output connectors	2 x female connectors
Usage	Splits an audio/video signal to two devices
Dimensions (approx.)	6 x 4 x 2 cm
Weight (approx.)	50 g
Operating temperature	0°C to 40°C
Operating humidity	20% to 80% RH (non-condensing)
Maintenance	Clean with a dry, soft cloth. Do not use solvents.
Warranty period	24 months
Repairability	Not user-serviceable. Contact after-sales service.
Safety information	Do not expose to water, shocks or extreme temperatures.

Frequently Asked Questions - GVS122 Cablexpert

What type of splitter is the Cablexpert GVS122?

The Cablexpert GVS122 is an audio/video splitter that splits a source signal to two outputs.

Does the GVS122 require an external power supply?

No, the GVS122 is a passive splitter that requires no external power.

What types of connectors does the GVS122 have?

The splitter is equipped with female connectors: one input and two outputs. The connector type depends on the model (RCA, HDMI, etc.). See the manual for details.

Can I connect the GVS122 to a TV and a projector simultaneously?

Yes, the GVS122 is designed to split the signal and allow connection of two display devices at the same time.

Does the GVS122 work with HD signals?

It depends on the version of the splitter. Generally, passive splitters support signals up to a certain resolution. Check the technical specifications on the packaging.

How to maintain the GVS122?

Clean the splitter with a dry, soft cloth. Avoid moisture and abrasive products.

Is the GVS122 under warranty?

Yes, the warranty is 24 months from the date of purchase, according to Gembird's terms.

What to do if the GVS122 does not work correctly?

Check the connections and ensure the cables are in good condition. If the problem persists, contact Gembird's after-sales service.

Can I connect headphones to the GVS122?

The GVS122 is designed for audio/video signals. Connecting headphones requires a suitable adapter if the splitter does not have a dedicated headphone output.

Where can I find the complete manual for the GVS122?

The manual is available for free download on notice-facile.com or on the Gembird manufacturer's website.

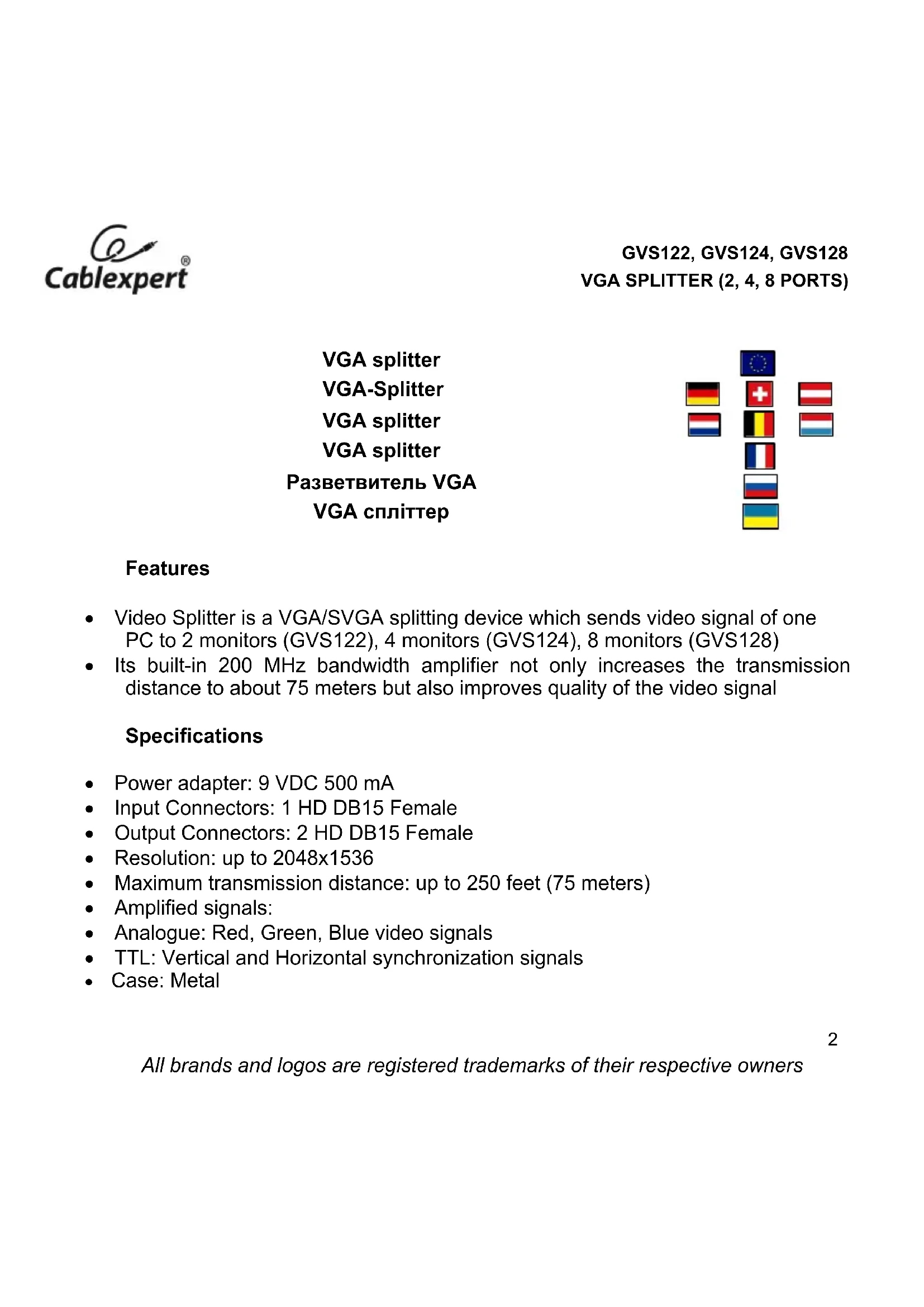

USER MANUAL GVS122 Cablexpert

Video Splitter is a VGA/SVGA splitting device which sends video signal of one PC to 2 monitors (GVS122), 4 monitors (GVS124), 8 monitors (GVS128)
- Its built-in 200 MHz bandwidth amplifier not only increases the transmission distance to about 75 meters but also improves quality of the video signal

Specifications

Power adapter: 9 VDC 500 mA
- Input Connectors: 1 HD DB15 Female
Output Connectors: 2 HD DB15 Female
Resolution: up to 2048x1536
Maximum transmission distance: up to 250 feet (75 meters)
- Amplified signals:
- Analogue: Red, Green, Blue video signals
- TTL: Vertical and Horizontal synchronization signals
Case: Metal

All brands and logos are registered trademarks of their respective owners

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
