| Product type | HDMI splitter 1 input to 4 outputs |
| Brand | Cablexpert |
| Model | DSP-8PH4-03 |
| Number of inputs | 1 |
| Number of outputs | 4 |
| Maximum resolution | 3840 x 2160 (4K @ 60 Hz) |
| Connectors | HDMI female (input and outputs) |
| Power supply | 5 V DC via power adapter (included) or micro USB port |
| Dimensions (L x W x H) | 120 x 65 x 25 mm |
| Weight | 150 g |
| Main features | Splits HDMI signal to 4 screens, supports HDCP 2.2, multichannel audio transmission |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 20 % to 80 % (non-condensing) |
| Housing material | Brushed aluminum |
| Certifications | CE, RoHS |
| Box contents | HDMI splitter, power adapter, micro USB cable, quick start guide |
| Warranty | 2 years |
| Care and cleaning | Unplug before cleaning, use a soft dry cloth, avoid liquids |
| Safety | Do not expose to moisture, do not open the housing, use only the provided adapter |
| Spare parts and repairability | No spare parts available, device not user-repairable |
Frequently Asked Questions - DSP-8PH4-03 Cablexpert
What is the maximum resolution supported by the DSP-8PH4-03?
The DSP-8PH4-03 supports a resolution up to 3840 x 2160 (4K) at 60 Hz with HDCP 2.2 compatibility.
Can I connect HDMI cables of different lengths?
Yes, but for optimal quality, use quality cables and do not exceed 5 meters between the splitter and screens. Beyond that, use repeaters or active cables.
Does the splitter require external power?
Yes, the DSP-8PH4-03 must be powered via the included 5V power adapter or via a micro USB cable connected to a power source. Without power, it will not work.
Is it compatible with game consoles like PS5 or Xbox Series X?
Yes, the splitter is compatible with consoles supporting HDMI 2.0 and HDCP 2.2. For PS5 and Xbox Series X, make sure to enable 4K HDR mode in the settings.
Can I use a single HDMI cable for the input and multiple outputs simultaneously?
Yes, the splitter duplicates the input signal to all 4 outputs at the same time. All screens will display the same image.
Does the DSP-8PH4-03 support multichannel audio (Dolby Atmos, DTS:X)?
Yes, it transmits audio up to 7.1 channels and is compatible with Dolby TrueHD and DTS-HD Master Audio formats. Ensure your source and screens support these formats.
What should I do if the image does not display on one of the screens?
Check that the cable is properly inserted, the screen is on and set to the correct HDMI channel. Try restarting the splitter by unplugging and plugging it back in. If the problem persists, test another cable.
How do I clean the splitter without damaging it?
Always unplug the device before cleaning. Use a soft, dry cloth. Never use liquids or abrasive products. Regular dusting is sufficient.
Can I connect the splitter to an AV receiver?
Yes, connect the source to the splitter input, then connect each output to an AV receiver or directly to a screen. The signal is passive, so the order of devices does not affect quality.
Does the housing heat up during normal operation?
Slight warmth is normal and should not be a concern. Ensure the ventilation openings are not obstructed and the device is placed in a well-ventilated area.
User questions about DSP-8PH4-03 Cablexpert
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Splitter in PDF format for free! Find your manual DSP-8PH4-03 - Cablexpert and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DSP-8PH4-03 by Cablexpert.
USER MANUAL DSP-8PH4-03 Cablexpert
USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
DSP-8PH4-03
Features
- Sends a single HDMI signal to 8 separate monitors, projectors or TV's
- The digital 340 MHz bandwidth amplifier increases the transmission distance
• Supports 3D video
Specifications
- Ports: one input receptacle, 8 output HDMI output receptacles, 19 pin (A)
- Interface standard: HDMI + HDCP v.1.4b (compatible with all HDMI versions)
-
Video formats: HDMI up to 3840*2160/30Hz, 8/10/12 bit color; audio DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
• Maximal single-link range: 1920x1080 pixels, 1080p
• Video amplifier: up to 340 MHz bandwidth, 3.2 Gbps -
Input cable distance: (1080p resolution) ≤15m, (4K resolution) ≤ 12m AWG26 HDMI standard cable
- Output cable distance: (1080p resolution) ≤25m, (4K resolution) ≤ 15m AWG26 HDMI standard cable
- Shell material: steel
• Power adapter: 5 V DC, 3 A
• Power consumption: up to 1.6 A, 5 V DC
• Dimensions: 276 x 136 x 24 mm
• Net weight: 0.66 kg

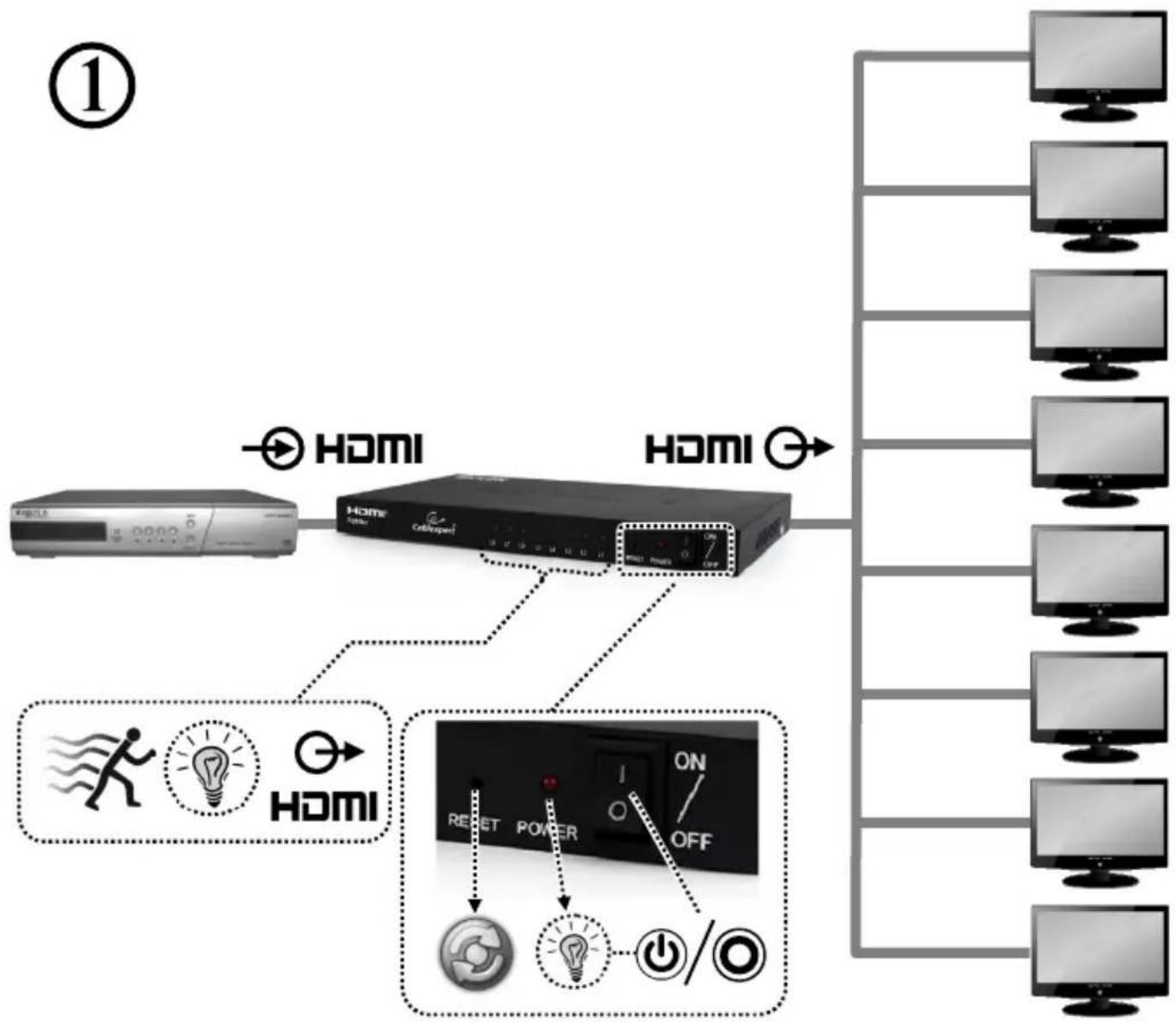

All brands and logos are registered trademarks of their respective owners
