USER MANUAL FM-102DAB Monacor

Digitaler Stereotuner

for the Reception of DAB+ and FM

MONACOR WWW.MONACOR.COM

MONACOR POWER 1 2 3 4 5 SHIFT A 7 B 9 TO RATE ENERGY 50 178.352MHz FM-102DAB MODE MENU INFO SLEEP DOWN UP ENTER FM USE TYPE SENSOR AUTOCAN

FM-102DAB

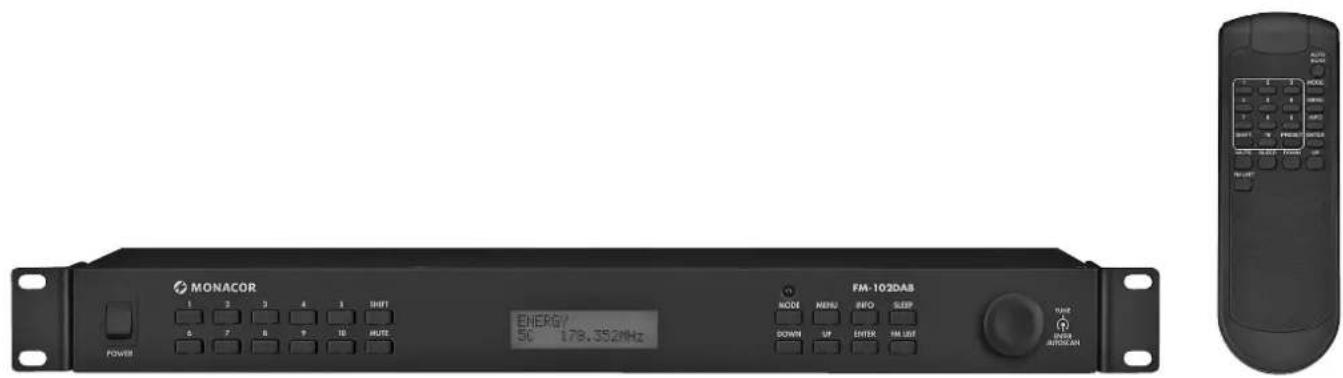

Digital Stereo Tuner for the Reception of DAB+ and FM

These instructions are intended for users without any specific technical knowledge. Please read these instructions carefully prior to operation and keep them for later reference.

1 Applications

The FM-102DAB is used to receive FM stations and the "digital radio" DAB+ (Digital Audio Broadcasting) in the band III (174.928–239.200 MHz). For storing stations, 20 station numbers each are available for FM and DAB reception.

2 Safety Notes

The unit corresponds to all relevant directives of the EU and is therefore marked with C€.

WARNING

The unit uses dangerous mains voltage. Leave servicing to skilled personnel only. Inexpert handling or modification of the unit may result in electric shock.

• The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 – 40 °C).
• Do not place any vessel filled with liquid on the unit, e. g. a drinking glass.
• Do not operate the unit and immediately disconnect the mains plug from the mains socket
• if the unit or the mains cable is visibly damaged,
• if a defect might have occurred after the unit was dropped or suffered a similar accident,
• if malfunctions occur. In any case the unit must be repaired by skilled personnel.

• Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.

• For cleaning only use a dry, soft cloth; never use water or chemicals.

• No guarantee claims for the unit and no liability for any resulting personal damage or material damage will be accepted if the unit is used for other purposes than originally intended, if it not correctly connected or operated or if it is not repaired in an expert way.

If the unit is to be put out of operation definitively, take it to a local recycling plant for a disposal which is not harmful to the environment.

3 Setting Up and Connecting the Unit

The unit can be installed in a rack (482 mm/19") by means of its mounting brackets, but may also be used as a desktop unit. For installation in a rack, one rack space (RS = 44.45 mm) is required.

Prior to making or changing any connections, switch off the tuner and the unit to be connected.

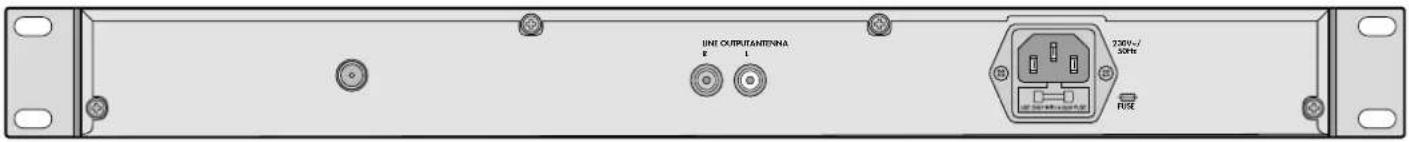

1) Connect the RCA jacks LINE OUTPUT located on the rear side of the unit to the line signal input of an audio unit (amplifier, active speaker system, mixer, audio matrix router, etc.).
2) On the rear side of the unit, the jack ANTENNA is available for antenna connection. The telescopic antenna provided can be connected to this jack and fastened.

To obtain optimal reception of weak stations, align the antenna by means of the signal strength indication. To activate the signal strength indication, press the button INFO repeatedly until a bar graph appears on the lowest display line.

3) For power supply, connect the mains jack to a mains socket (230V/50Hz) using the mains cable provided.

4 Operation

4.1 Remote control

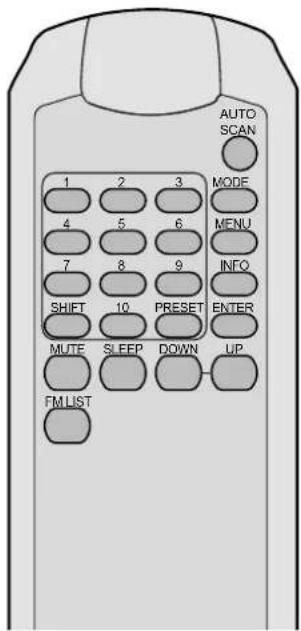

1) To insert the batteries (2 × 1.5 V, size AAA), remove the battery compartment cover on the rear side of the remote control. Insert the batteries as indicated in the battery compartment. Close the battery compartment with the cover.
If the remote control is not to be used for a longer period of time, remove the batteries to prevent any damage due to battery leakage.
2) When pressing a button, point the remote control at the sensor "IR". Make sure that there are no obstacles between the remote control and the sensor.
3) If the range of the remote control decreases, the batteries are discharged and must be replaced.

Discharged batteries must not be placed in the household waste; always take them to a special waste disposal, e. g. collection container at your retailer.

4.2 Tuner

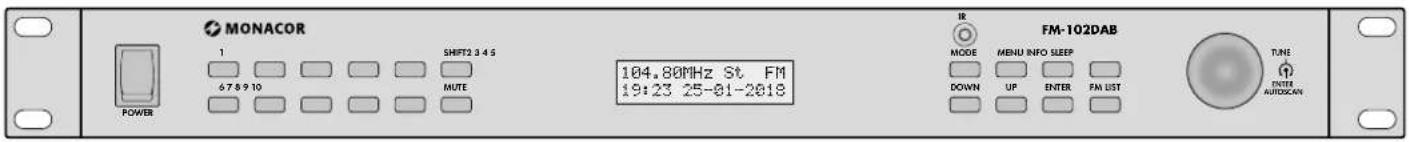

1) Switch on the unit with the POWER switch. Welcome!/Digital Radio will be appear on the display; then the station most recently selected will be indicated.
2) The operation options are listed in the table to the right. Some settings can alternatively also be made via a menu. Other settings can only be made via the menu. Please refer to pages 10 and 11 for the menu structure. To call up the menu, press the button MENU. All the other steps are given in the figure.
The display will return from some menu items to the indication of the station set if none of the buttons MENU, DOWN, UP or ENTER is pressed within a time period of approx. 5 seconds.
3) During initial operation, first store the stations that can be received at where you are located. 20 station numbers each are available for FM and DAB+ reception.

AUTO SCAN 1 2 3 MODE 4 5 6 MENU 7 8 9 INFO SHIFT 10 PRESET ENTER MUTE SLEEP DOWN UP FM LIST

5 Specifications

DAB+

Frequency received: .....174.928 MHz to 239.200 MHz

Selectivity

to adjacent channel: ....≥ 31 dB

to more remote

channels: ....≥ 49 dB

Sensitivity: ....-97 dB

FM

Frequency received: .....87.5–108 MHz

Tuning increment:....50 kHz

Sensitivity: 10 V

Output

Output level:....0.4 V

Connection: ....RCA

General information

Power supply: 230V/50Hz

Power consumption:....50 VA max.

Ambient temperature: ....0-40°C

Dimensions (W × H × D): .482 × 44 × 210 mm, 1 RS (rack space)

Weight: 2.15 kg

Subject to technical modification.

All rights reserved by MONACOR® INTERNATIONAL GmbH & Co. KG. No part of this instruction manual may be reproduced in any form or by any means for any commercial use.

Button			Function
on the remote control ↓
on the unit ↓
MODE × ×			To switch between:— FM reception (FM appears on the upper right of the display)— DAB+ reception (FM disappears)
Storing DAB+ stations
AUTO SCAN × ×			To scan all stations and store them automatically in a list:Keep the button / knob pressed for 2 seconds until Scanning appears on the display. All stations are stored when the display indicates the first station from the list.
TUNEDOWN UP	××	×	To call up a station from the list:Turn the knob TUNE and press the button ENTER* orpress the button DOWN or UP (repeatedly) and press the button ENTER*.
PRESET ×			To assign a station number (1 – 20) to the station set:1. Press the button PRESET.2. Use the button DOWN or UP to select the station number desired.3. Keep the button ENTER pressed for 2 secondsuntil PRESET ... saved appears on the display.
Storing FM stations
AUTO SCAN × ×			To scan all stations and store them automatically in a list:Keep the button / knob pressed for 2 seconds until Scanning appears on the display. All stations are stored when the display indicates the first station from the list.
FM LIST × ×			To call up a station from the list:1. Press the button FM LIST: FM Station List appears on the display.2. Turn the knob TUNE or press the button DOWN orUP to select the station.3. Press the button ENTER* to call up the station.
DOWN UP × ×			To start the station scan:Keep the button pressed until the figures start to appear on the frequency indication.Fine tuning by 0.05 MHz increments:Briefy press the button (repeatedly).
TUNE	×		To set stations manually: Turn the knob.
PRESET ×			To assign a station number (1 – 20) to the station set:1. Press the button PRESET.2. Use the button DOWN or UP to select the station number desired.3. Keep the button ENTER pressed for 2 secondsuntil PRESET ... saved appears on the display.
Calling up saved stations
1...10,SHIFT	× ×		No. Buttons4 410 1018 SHIFT, 820 SHIFT, 10
TUNE	×		Turn the knob TUNE.For DAB+: Select a station from the list andcall it up with the button ENTER*.For FM: Manually tune the receiving range by 0.05 MHz increments.
PRESET ×			To call up the previous / next station:1. Press the button PRESET.2. Press the button DOWN or UP (repeatedly). A station number whereno station is stored will be indicated by Preset . empty.3. Press the button ENTER*.
Additional functions
MUTE	× ×		To mute and unmute the sound.
INFO	× ×		To view additional information forDAB+ RDS (radio data system for FM, None appears when no information isavailable)× × Information on title/programme......[ABBA - Mama Mia ]× × Genre ......[Pop Music ]× - Name of the broadcasting station......[BBC digital ]× × Time/Date ......[15:29 16-81-2018]× - Channel and frequency......[5C i78.352NHZ ]× - Data rate, mono/stereo ......[72kbps Stereo ]× × Signal strength ......[■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■□
SLEEP	× ×		To switch off the tuner automatically:1. Press the button SLEEP so that Sleep off appears on the display.2. Use the button DOWN or UP or the knob TUNE to set the time in minutes that isto elapse until the tuner is switched off.3. Press the button ENTER*.4. To show / hide the remaining time to elapse, use the button SLEEP. When theremaining time is shown on the display, the function can be switched off again(Sleep off).5. When the time set has elapsed, the tuner will switch off automatically.However, any button can be pressed to briefly switch on the display illuminationand to read the time and the date.6. To activate the function again, press the button SLEEP.The switch-off time can also be set via the menu.
* Instead of the button ENTER, the rotary knob TUNE – ENTER /AUTOSCAN can bebriefly pressed. (However, this is not possible when the button ENTER must bepressed for 2 seconds to store a station.)

Menu structure


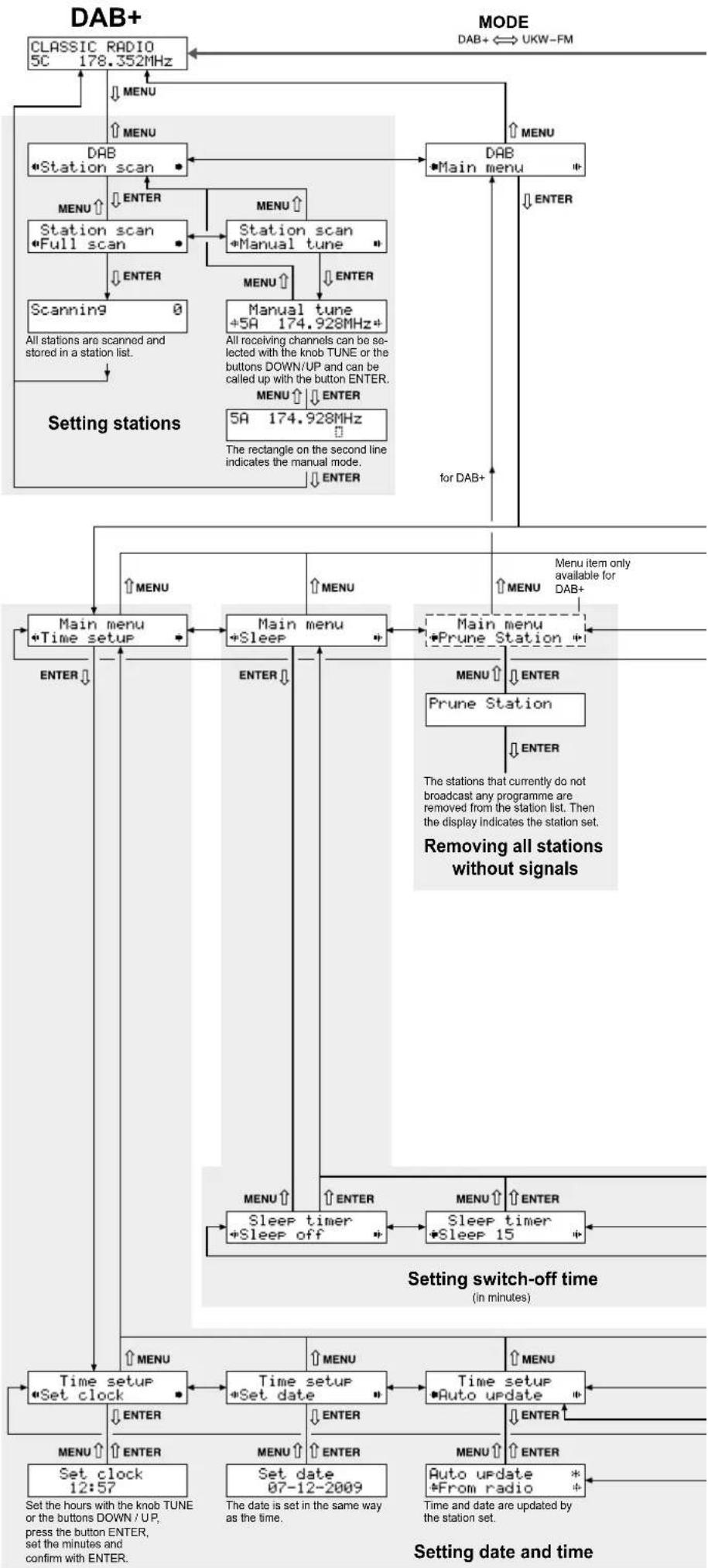

    A["CLASSIC RADIO 5C 178.352MHz"] --> B["DAB Station scan"]
    B --> C["Station scan Full scan"]
    C --> D["Scanning 0"]
    D --> E["Setting stations"]
    E --> F["Main menu +Time setup"]
    F --> G["Main menu +Sleep"]
    G --> H["Main menu +Prune Station"]
    H --> I["Sleep timer +Sleep off"]
    I --> J["Time setup"]
    J --> K["Set clock 12:57"]
    K --> L["Set date 07-12-2009"]
    L --> M["Time setup +Set date"]
    M --> N["Time setup Auto update"]
    N --> O["Auto update *From radio"]
    O --> P["Setting switch-off time (in minutes)"]
    P --> Q["Menu item only available for DAB+"]
    Q --> R["Main menu"]
    R --> S["Main menu +Manual tune"]
    S --> T["Main menu +Station scan"]
    T --> U["Main menu +Station scan"]
    U --> V["Main menu +Station scan"]
    V --> W["Main menu +Station scan"]
    W --> X["Main menu +Station scan"]
    X --> Y["Main menu +Station scan"]
    Y --> Z["Main menu +Station scan"]
    Z --> AA["Main menu +Station scan"]
    AA --> AB["Main menu +Station scan"]
    AB --> AC["Main menu +Station scan"]
    AC --> AD["Main menu +Station scan"]
    AD --> AE["Main menu +Station scan"]
    AE --> AF["Main menu +Station scan"]
    AF --> AG["Main menu +Station scan"]
    AG --> AH["Main menu +Station scan"]
    AH --> AI["Main menu +Station scan"]
    AI --> AJ["Main menu +Station scan"]
    AJ --> AK["Main menu +Station scan"]
    AK --> AL["Main menu +Station scan"]
    AL --> AM["Main menu +Station scan"]
    AM --> AN["Main menu +Station scan"]
    AN --> AO["Main menu +Station scan"]
    AO --> AP["Main menu +Station scan"]
    AP --> AQ["Main menu +Station scan"]
    AQ --> AR["Main menu +Station scan"]
    AR --> AS["Main menu +Station scan"]
    AS --> AT["Main menu +Station scan"]
    AT --> AU["Main menu +Station scan"]
    AU --> AV["Main menu +Station scan"]
    AV --> AW["Main menu +Station scan"]
    AW --> AX["Main menu +Station scan"]
    AX --> AY["Main menu +Station scan"]

Use the button MENU to exit a menu item without saving any settings you may have made. Use the button ENTER to save a setting.


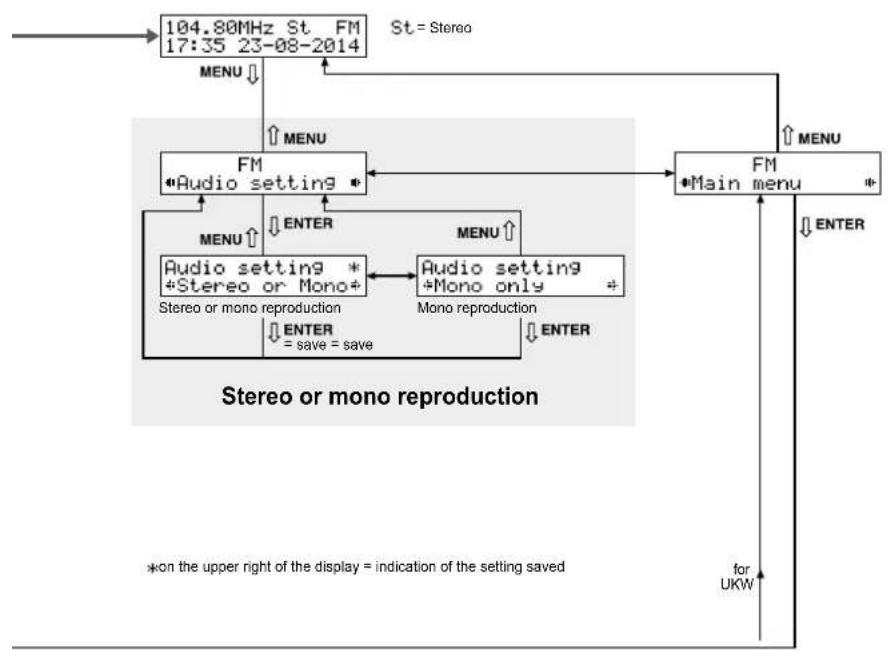

    A["104.80MHz St FM\n17:35 23-08-2014"] --> B["FM\n*Audio setting *"]
    B --> C["FM\n*Main menu *"]
    C --> D["FM\n*Main menu *"]
    D --> E["FM\n*Main menu *"]
    E --> F["FM\n*Main menu *"]
    F --> G["FM\n*Main menu *"]
    G --> H["FM\n*Main menu *"]
    H --> I["FM\n*Main menu *"]
    I --> J["FM\n*Main menu *"]
    J --> K["FM\n*Main menu *"]
    K --> L["FM\n*Main menu *"]
    L --> M["FM\n*Main menu *"]
    M --> N["FM\n*Main menu *"]
    N --> O["FM\n*Main menu *"]
    O --> P["FM\n*Main menu *"]
    P --> Q["FM\n*Main menu *"]
    Q --> R["FM\n*Main menu *"]
    R --> S["FM\n*Main menu *"]
    S --> T["FM\n*Main menu *"]
    T --> U["FM\n*Main menu *"]
    U --> V["FM\n*Main menu *"]
    V --> W["FM\n*Main menu *"]
    W --> X["FM\n*Main menu *"]
    X --> Y["FM\n*Main menu *"]
    Y --> Z["FM\n*Main menu *"]
    Z --> AA["FM\n*Main menu *"]
    AA --> AB["FM\n*Main menu *"]
    AB --> AC["FM\n*Main menu *"]
    AC --> AD["FM\n*Main menu *"]
    AD --> AE["FM\n*Main menu *"]
    AE --> AF["FM\n*Main menu *"]
    AF --> AG["FM\n*Main menu *"]
    AG --> AH["FM\n*Main menu *"]
    AH --> AI["FM\n*Main menu *"]
    AI --> AJ["FM\n*Main menu *"]
    AJ --> AK["FM\n*Main menu *"]
    AK --> AL["FM\n*Main menu *"]
    AL --> AM["FM\n*Main menu *"]
    AM --> AN["FM\n*Main menu *"]
    AN --> AO["FM\n*Main menu *"]
    AO --> AP["FM\n*Main menu *"]
    AP --> AQ["FM\n*Main menu *"]
    AQ --> AR["FM\n*Main menu *"]
    AR --> AS["FM\n*Main menu *"]
    AS --> AT["FM\n*Main menu *"]
    AT --> AU["FM\n*Main menu *"]
    AU --> AV["FM\n*Main menu *"]
    AV --> AW["FM\n*Main menu *"]
    AW --> AX["FM\n*Main menu *"]
    AX --> AY["FM\n*Main menu *"]
    AY --> AZ["FM\n*Main menu *"]
    AZ --> BA["FM\n*Main menu *"]
    BA --> BB["FM\n*Main menu *"]
    BB --> BC["FM\n*Main menu *"]
    BC --> BD["FM\n*Main menu *"]
    BD --> BE["FM\n*Main menu *"]
    BE --> BF["FM\n*Main menu *"]
    BF --> BG["FM\n*Main menu *"]
    BG --> BH["FM\n*Main menu *"]
    BH --> BI["FM\n*Main menu *"]
    BI --> BJ["FM\n*Main menu *"]
    BJ --> BK["FM\n*Main menu *"]
    BK --> BL["FM\n*Main menu *"]
    BL --> BM["FM\n*Main menu *"]
    BM --> BN["FM\n*Main menu *"]
    BN --> BO["FM\n*Main menu *"]
    BO --> BP["FM\n*Main menu *"]
    BP --> BQ["FM\n*Main menu *"]
    BQ --> BR["FM\n*Main menu *"]
    BR --> BS["FM\n*Main menu *"]
    BS --> BT["FM\n*Main menu *"]
    BT --> BU["FM\n*Main menu *"]
    BU --> BV["FM\n*Main menu *"]
    BV --> BW["FM\n*Main menu *"]
    BW --> BX["FM\n*Main menu *"]
    BX --> BY["FM\n*Main menu *"]
    BY --> BZ["FM\n*Main menu *"]
    BZ --> CA["FM\n*Main menu *"]
    CA --> CB["FM\n*Main menu *"]
    CB --> CC["FM\n*Main menu *"]
    CC --> CD["FM\n*Main menu *"]
    CD --> CE["FM\n*Main menu *"]
    CE --> CF["FM\n*Main menu *"]
    CF --> CG["FM\n*Main menu *"]
    CG --> CH["FM\n*Main menu *"]
    CH --> CI["FM\n*Main menu *"]
    CI --> CJ["FM\n*Main menu *"]
    CJ --> CK["FM\n*Main menu *"]


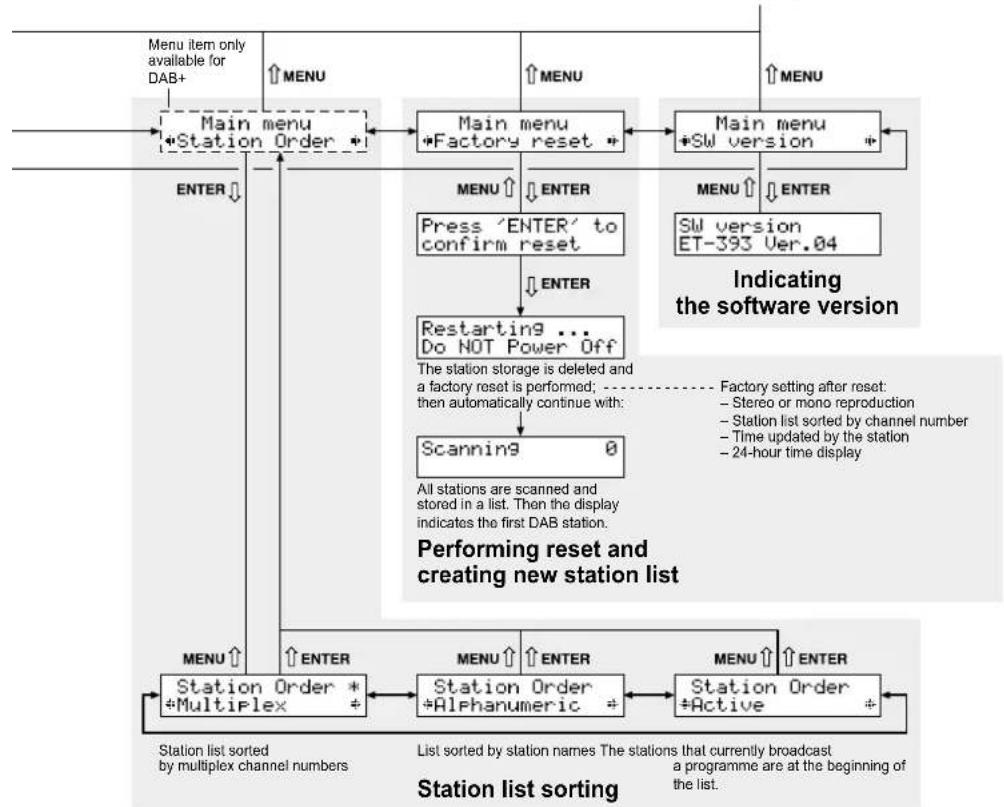

    A["Menu item only available for DAB+"] --> B["Main menu +Station Order +"]
    B --> C["Main menu +Factory reset +"]
    C --> D["Main menu +SW version +"]
    D --> E["Main menu +SW version ET-393 Ver.04"]
    E --> F["Press 'ENTER' to confirm reset"]
    F --> G["Restarting ... Do NOT Power Off"]
    G --> H["Scanning 0"]
    H --> I["All stations are scanned and stored in a list. Then the display indicates the first DAB station."]
    I --> J["Station Order +Multiplex +"]
    J --> K["Station Order +Alphanumeric +"]
    K --> L["Station Order +Active +"]
    L --> M["Menu ↑"]
    M --> N["Enter"]
    N --> O["Menu ↑"]
    O --> P["Enter"]
    P --> Q["Menu ↑"]
    Q --> R["Enter"]
    R --> S["Menu ↑"]
    S --> T["Enter"]
    T --> U["Menu ↑"]
    U --> V["Enter"]
    V --> W["Menu ↑"]
    W --> X["Enter"]
    X --> Y["Menu ↑"]
    Y --> Z["Enter"]
    Z --> AA["Menu ↑"]
    AA --> AB["Enter"]
    AB --> AC["Menu ↑"]
    AC --> AD["Enter"]
    AD --> AE["Menu ↑"]
    AE --> AF["Enter"]
    AF --> AG["Menu ↑"]
    AG --> AH["Enter"]
    AH --> AI["Menu ↑"]
    AI --> AJ["Enter"]
    AJ --> AK["Menu ↑"]
    AK --> AL["Enter"]
    AL --> AM["Menu ↑"]
    AM --> AN["Enter"]
    AN --> AO["Menu ↑"]
    AO --> AP["Enter"]
    AP --> AQ["Menu ↑"]
    AQ --> AR["Enter"]
    AR --> AS["Menu ↑"]
    AS --> AT["Enter"]
    AT --> AU["Menu ↑"]
    AU --> AV["Enter"]
    AV --> AW["Menu ↑"]
    AW --> AX["Enter"]
    AX --> AY["Menu ↑"]

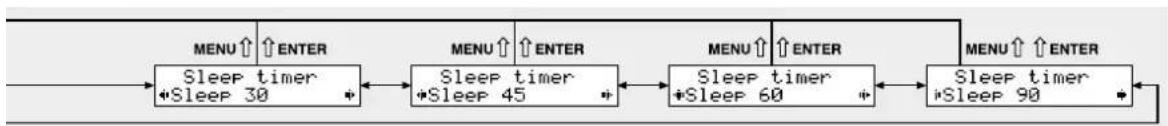


To activate the tuner again, press the button SLEEP.


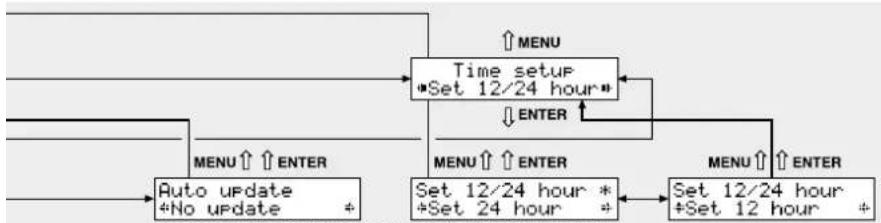

    A["Time setup\n*Set 12/24 hour"] --> B["MENU ↑ ↗ ENTER"]
    A --> C["MENU ↑ ↗ ENTER"]
    A --> D["MENU ↑ ↗ ENTER"]
    A --> E["MENU ↑ ↗ ENTER"]
    A --> F["Auto update\n*No update +"]
    A --> G["Set 12/24 hour *\n+Set 24 hour +"]
    A --> H["Set 12/24 hour\n+Set 12 hour +"]

Time and date are not updated. 24-hour time display 12-hour time display

MONACOR 1 SHIFT2 3.45 678910 MUTE POWER 104.80MHz St FM 19:23 25-01-2018 FM-102DAB MODE MENU INFO SLEEP DOWN UP ENTER FM UST TUNE ENTER AUTOCAN

LINE OUTPUTANTENNA E L 120V/-/ 30Hz FUSE

Alimentation: .....230 V/50 Hz
