Thank you for purchasing this Tanny in-wall Monitor System product. Tanny in-wall speaker systems are monitor-quality speaker systems based on the company's expertise in the manufacture of premium quality cabinet loudspeakers and studio monitors. Exclusive drive unit designs and wide bandwidth technology ensure that these in wall loudspeakers deliver the performance that is essential for applications such as multi-room distributed audio installations, home theatre systems and discrete audio systems, as well as in the many other applications where space is at a premium but ultimate sound quality is still paramount. The speaker construction is based around a rigid mounted ABS battle with excellent structural integrity; this, when combined with the secure polycarbonate clamp mounting system (patient applied for .0158592), ensures a performance-enhancing rigid acoustic coupling with the wall surface, and an immensely stable platform for the drivers to deliver optimum performance. Complementing any style of decor, the perforated metal grille and low profile mounting frame can be painted to blend in seamlessly with the domestic environment. The result is a system offering audible quality sound with minimal invasion of the living space.

Unpacking

Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain all shipping materials as your dealer may require return shipment.

Safety Notices

Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

Product Feature Identification

Common Features on all models

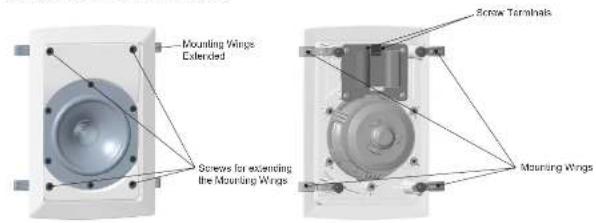

Mounting Wings Extended Screw for extending the Mounting Wings Screw Tarsahls Mounting Wings

iW 6DS and iW 62DS LF Adjustment Switch

iW 62S Passive/Active Switch

Passive / Active Switch (W 628 only)

8 W Series Quick Start Guide 9

Product Feature Identification

iW 4DC-WH

2 Way 4" Dual Concentric In-Wall Loudspeaker (White)

Diagram of a speaker assembly showing components from an open source to a speaker, with no visible text or symbols.

iW 6DS-WH

2 Way 6' In-Wall Loudspeaker (White)

Exploded view diagram of a speaker assembly showing sound waves, microphone, and speaker components (no text or labels)

iW 62DS-WH

3 Way 6' In Wall Loudspeaker (White)

Diagram of a speaker system with two speakers and an output unit, showing sound wave propagation (no text or labels)

iW 625-WH

2 x 6' In-Wall Subwoofer (White)

Diagram showing sound wave propagation through a speaker system with two speakers and a speaker tower (no text or symbols)

iW62 Backcan

Optional pre-install backcan for IW 62DS-WH and IW 62S-WH models. The backcan comes with its own installation instructions.

Accessories

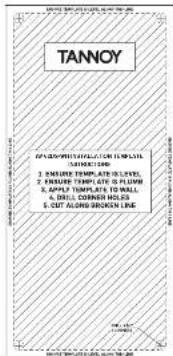

Installation Templates (supplied)

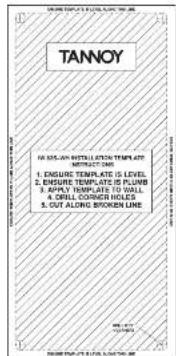

TANNOY 1. ENBRIDGE TEMPERATURE (TEMPLE) 2. ENBRIDGE TEMPERATURE (TEMPLE) 3. ENBRIDGE TEMPERATURE (TEMPLE) 4. ENBRIDGE TEMPERATURE (TEMPLE) 5. ENBRIDGE TEMPERATURE (TEMPLE) 6. ENBRIDGE TEMPERATURE (TEMPLE) 7. ENBRIDGE TEMPERATURE (TEMPLE) 8. ENBRIDGE TEMPERATURE (TEMPLE)

TANNOY 10.025-AN BOTTLE LYNTH TEMPLET MATERIALS 1. ENSURE TEMPLTD IS LEVEL 2. ENSURE TEMPLTD IS PLUMB 3. 握头 TEMPLTD IS WALL 4. DRILL CORNER HOLES 5. CUT ALONG BROKEN LINE

Wiring and Setting Up

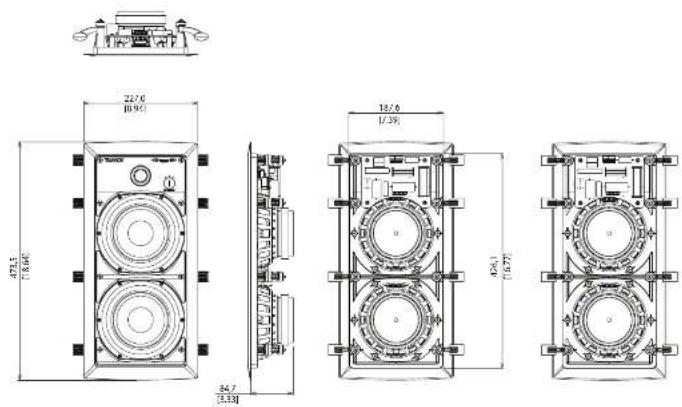

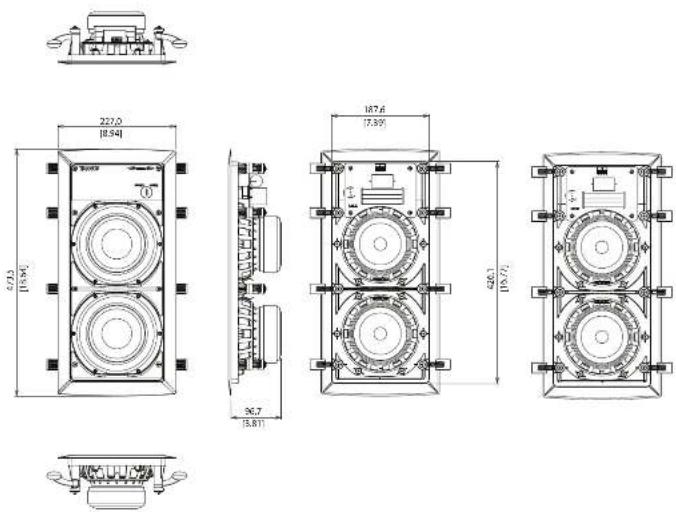

Fig. 1 IW 4DC Fig. 2 IW 6DS Fig. 3 IW 62DS Fig. 4 IW 62S

Terminal Panel Connections and Driver Earthing

1. WARNING: To avoid potential damage to your loudspeaker, ensure that the amplifier is switched OFF prior to connecting or disconnecting any cables.
2. Before switching the amplifier ON, double check that all connections are secure and that the polarity is correct.

Connection in Single Wire Mode

The screw terminals are designed to take loudspeaker cable of AWG24 to AWG12 in size.

1. Strip off approximately 8 mm (34") of the outer protective layer and twist the inner cores together. Insert the core and use a small flat screwdriver to secure, ensuring that correct polarity is maintained see Figs 1 to 3.
2. On the IW SZDS, optimum performance in single wire mode will be achieved if loudspeaker cable connections from the amplifier are made to the high frequency (HF) terminals of the loudspeaker see Fig 3.

Connection in Bi-Wire Mode - iW 62DS

1. Two sets of cabling are required for each speaker: one for the LF (low frequency), connection and one for the HF (high frequency) connection.

2. Please note in bi-wire mode that the link wires must be cut.

3. If your amplifier is not equipped with separate output terminals for bars and trebe information then, at the amplifier end of the cables, twist the LF1 (positive) and the HF + (positive) together.

4. Connect these to the amplifier channel positive terminal marked + (plus) or coloured red.
5. Twist the LF (negative) and the HF (negative) cables together and connect them to the amplifier channel negative terminal marked - (minus) or coloured black.
6. At the loudspeaker end, connect the LF and LF cables to the loudspeaker LF terminals, ensuring that you note the polarity markings on the cable sheathing.
7. Then proceed to connect the HF + and HF- to the HF terminals on the same loudspeaker: see Fig 3.

Connection of Earth or Ground Lead - iW 6DS and iW 62DS

1. The RV 60S and RV 620S models have an extra terminal designed to optimise performance further by taking advantage of the driver earthing facility. Use a shielded or screened loudspeaker cable; connecting the screening termination to the earth or ground (green) terminal on the loudspeaker and to the ground or earth connection on the amplifier.
2. Alternatively if you are not using a screened loudspeaker cable but wish to utilise the earthing facility, run a single cable between the earth or ground [green] terminal on the loudspeaker to the earth [ground] connection on the amplifier.
3. Switch the amplifier on with the volume control set at its lowest setting. Select a favourite source and slowly turn up the volume to a low level. Check that bass and treble information is being reproduced from the speaker. If not, switch off the amplifier and recheck the connections.

Bi-Amping iW 62DS

1. Bi-amping extends the principle of bi-wiring one stage further. In this connection option, separate power amplifiers are used for bass and treble signals in each loudspeaker.
2. Ensure that the link cables have been cut and that correct polarity is maintained throughout.
3. If two stereo amplifiers are used, it is recommended that one supplies bass information to the loudspeakers and the other, the treble information - see Fig 3.

Connecting the iW 62S

1. The iW 625 may be operated in either passive or active mode.
2. In passive mode, the internal low pass filters provide the transition to the main speakers.
3. In active mode the internal low pass filters are bypassed, to allow the use of an external controller and power amplifier. This mode of operation is preferred for optimum performance, as it allows low frequency extension and equalization to be applied, and the low pass crossover to be optimally configured to the main speaker setup and room characteristics.
4. Passive or active operation can be set by the front baffle switch, behind the grille.
5. Run cabling from one pair of speaker terminals, back to the amplifier, ensuring the correct polarity. The other set of terminals are a link that can be run to another speaker.

Installation Guide

Wall Clamp Mechanism

A unique damping mechanism has been designed to provide an acoustically optimum bond to the wall surface without risk of distortion to the loudspeaker frattle.

The IW 4DC has four mounting clamps and screws, the IW 6DS has six, and the IW 62DS and IW 62S have eight. As these screws are tightened, the immensely strong polycarbonate clamping arms will automatically swing round into the locking position, locating securely to the inside of the wall surface.

The design also allows for simple removal or reorientation of the loudspeaker.

The spring-loaded clamp mechanism ensures that as the screws loosened (turned anti-clockwise), the clamp arm travels along its guide before turning itself into the rest position. The captive locking system ensures that the clamp arm cannot drop off the end of the screw to be lost in the wall cavity.

IMPORTANT

Get all the clamps in the rest position by loosening all screws before attempting to remove the speaker from the wall.

Installation

WARNING: If adding new speakers to an existing installation, or simply replacing old ones, you must ensure that the amplifier driving the system is switched OFF.

WARNING: Price to proceeding with the installation, ensure that you accurately determine the position of electrical cabling, pipe work and wall studs. Having selected a wall location clear of any obstruction, measure carefully to ensure the correct placement.

Painting

Before proceeding with the installation, the grille and baffle panel can be painted to blend with the surrounding decor.

When painting the barrel, be sure to carefully mask off the driver assemblies. It is important to ensure that paint does not come into contact with the cone, roll surround or HF unit. It is strongly recommended that the metal perforated grille is sprayed as this will avoid clogging of the holes. If painting with a brush is the only option, then several thin coats of paint will provide a superior finish to that achieved by one applied too thickly.

The speaker is supplied with a sheet of acoustically transparent protective foam fixed to the inside of the grille. Having painted the grille to match the room decor please remove the original foam and replace with the spare sheet supplied in the accessory pack. It is important that this replacement foam is bonded to the grille over it's entire area, using a suitable spray adhesive. Failure to do so will result in audible resonance.

Overview

Tannoy in-wall loudspeakers have been designed for installation into standard stud partition wall systems constructed with 102 by 51 mm (4" by 2") timber at 406 mm (16") centres, however, it is envisaged that they will generally be used in cavity wall installations constructed with standard thickness plasterboard. These are guidelines and therefore do not preclude use of the Tannoy in-wall products in different locations and a wide range of other wall construction types, as long as they have a secure clamping surface up to maximum thickness of 25.4 mm (1").

Driver cone movement at low frequencies may become excessive unless steps are taken in the wall cavity void behind the loudspeaker to provide a well sealed and accurately controlled near 'enclosure' volume. This will effectively act as an enclosure behind the speaker (see Speaker Loading Volume section in this manual), failure to ensure this, will affect the loss and midrange performance unfavourably.

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols visible)

Fig. 6 Clamps in the install position

12 IV Series Quick Start Guide 13

Positioning

There is a great deal of mounting location flexibility with these models when used in home cinema or multi channel systems. In particular, please note that due to the unique point source symmetrical dispersion properties of the Tannoy Dual Concentric drive unit, the model (W/DC and W-6DS can be mounted in either portrait (in stud partition wall situations) or landscape positions, where sufficient space exists behind the wall surface.

To achieve the optimum spectral and stereo performance select your mounting location as follows:

Vertical plane

Align the front baffle centres at the intended listening height, usually dictated by the normal seated listening position. For audio use, when positioned in front of the listener, this will usually be in the height range of 1700 mm to 1700 mm (43° to 67°). For use as home cinema rear effects speakers mounted on the rear walls of the mom, the mounting height range is 1530 mm to 2140 mm (60° to 84°).

Horizontal plane

The loudspeakers should be located between 1500 mm to 4500 mm (60" to 180") apart. The room size and shape will dictate the final mounting location, but generally the listening position, when used as a stereo pair, should be set slightly further away than the speakers are apart.

When used as rear effects speakers in a home cinema system, the ideal viewing point will establish the distance from the rear wall to the listening position. Avoid positioning the loudspeakers in corners of the room, as this will have a negative effect on performance; maintain a distance of 1 m (39°) away from a corner.

Speaker Fitting

Remember .... Measure twice - cut once!

1. Once the mounting location has been selected, use the template provided to mark out the area of wall material to be cut out. Carefully remove the waste, checking again that there are no interferences from studs/wire/pipes etc.

2. Install the loudspeaker ceiling ensuring that the wiring route is laid clear of all screws and nails that could potentially damage the cable insulation. Allow sufficient cable length at the speaker end to allow for an unrestricted connection.

3. It is necessary to block off the void behind the speaker by suitable means (insulation material or foam) to create an "enclosure" area. This will offer the speaker the required loading volume as detailed in the specification section of this manual.

4. It is important to provide some acoustic damping between the speaker and the near wall surface. We recommend use of a BAF sheet (Bonded Acrylic Fibre). Ensure that all materials used comply with local fire and building regulations.

5. Strip B mm (16 inch) of shielding from the end of the speaker cables in preparation for connection to the terminals on the rear of speaker.

6. Check that the clamping arms are aligned as shown prior to insertion in the wall.

7. Connect the speaker cable observing the correct wiring polarity. The positive terminal (marked + and coloured red) should receive the positive cable (usually marked with a repeated stamped name, line or raised rib) and the negative terminal (marked - and coloured black) the negative cable.

8. Insert the baffle into the pre-prepared hole in the wall, ensuring that the speaker wire is located securely away from the driver, as contact with the driver cone will cause annoying buzzes.

9. Each of the clamp screws can now be tightened (clockwise). Starting at one corner then move to the opposite corner, tightening sufficiently to check for visual orientation, before proceeding to tighten the other two corners.

10. Finish off by tightening the middle clamps.

WARNING: Do not over tighten the screws - this is unnecessary to achieve a strong acoustic seal to the wall, and risks damaging the wall surface

1. Repeat the installation procedure for the other loudspeakers and complete the connection process to the amplifier.

2. Once again ensure that correct cable polarity is observed.

3. Switch on the amplifier with the volume control at its lowest setting. Select a signal source and slowly turn up the volume to a low level. Check that bass and treble information comes from both speakers - if not, switch off the amplifier and recheck the connections.

4. Carefully check the area surrounding the installation and ensure that there are no buzzes or rattles that could potentially impair enjoyment of the system. If there are, then locate and silence the causes using cable ties or suitable packing material.

5. Optimum performance will be assisted by the use of silicone sealant to seal gaps between the studs and the wallboard material. This cavity sealing will help to create a near airlight seal. Do not silicone the taffle to the wall as the clamping mechanism creates an effective bond.

Technical diagram of a mechanical assembly with central disc and surrounding components (no visible text or labels)

Fig. 7 Changes in the pre-install position (W-ADC shown)

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

Fig. 8 Clamps in the install position (W4DC)

Grille Fitting and Removal

The grille should be carefully fitted to the front grille aperture, by lining up the edges of the grille carefully with the grille. To avoid indentation damage, do not press the centre of the grille; apply even pressure to the corner as it is pressed firmly into position.

To remove the grille, loop an opened paper clip or similar length of firm wire, through two holes near a corner and pull gently. The grille is intended to be a light fit, so insert the wire at each corner in turn, pulling carefully to avoid distortion of the mesh.

Speaker Loading Volume

There are two simple approaches to achieve a sealed 'enclosure' to provide the correct driver loading area behind the speaker.

The chosen method will depend on whether the wall is under construction, as in a new building project, or an existing wall where access is limited.

Option 1

Stud partition walls under construction, with 102 mm by 51 mm (4 by 2 inch) timber at 406 mm (16 inch) centres.

1. Block off the cavity, above and below the intended speaker opening, with the same framing timber. The distance between these two internal barriers should be as shown in this table:

Model Distance

Iw4 DC 410 mm (16")

Iw 6DS 550 mm (21.5")

Iw 62DS 825 mm (32.5")

Iw 62S 825 mm (32.5")

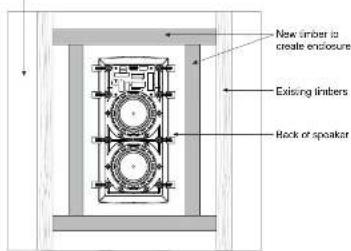

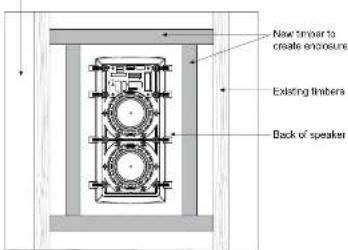

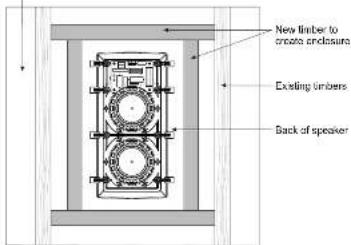

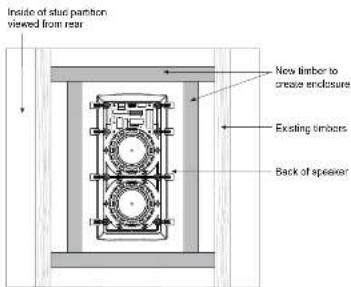

Inside of stud partition viewed from rear

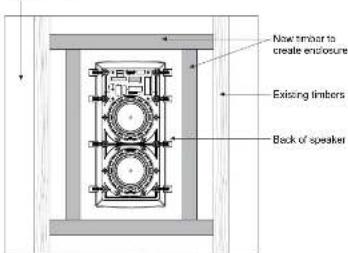

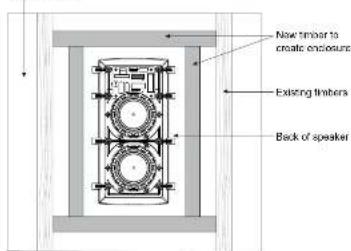

New timber to create enclosure Existing timbers Back of speaker

Fig 10. Stud partition under construction - 15" timber centers

Exterior view of a white rectangular appliance with black buttons at corners (no text or symbols visible)

Fig. 8 IW 62DS and IW 62S Grille Detail

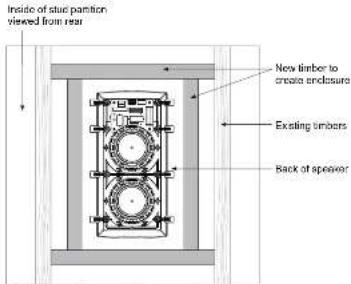

Inside of stud partition viewed from rear

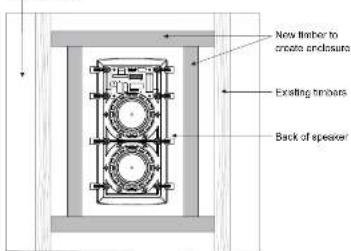

New trimbar to create enclosure Existing limiters Back of speaker

Fig 11. Stud partition under construction - limber centers over 16"

Speaker Loading Volume (continued)

Option 2

Existing timber stud partition, or any other wall type constructed with a 102 mm (4 inch) cavity depth.

1. Many professional installers use a "boughnut" of compliant material, which can be inserted as a tight fit between the two surfaces of the partition or into the wall cavity. The length of the internal surface of the strip of material determines the 'enclosure' volume. For each model, cut the strips into lengths listed in the table below, insert into the cavity, and join to form a ring that will ensure the correct volume - see Fig. 12

Model Length

IW DC 1380 mm (54")

IW 6DS 1570 mm (62")

IW 62DS 1920 mm (75 12 ")

IW 62S 1920 mm (75 12 ")

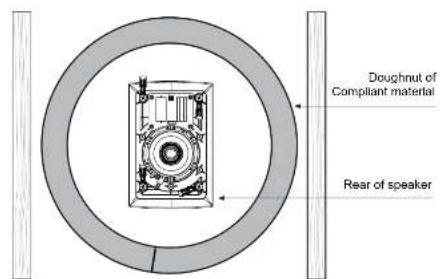

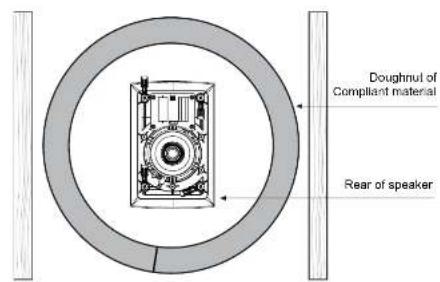

Inside wall, viewed from rear

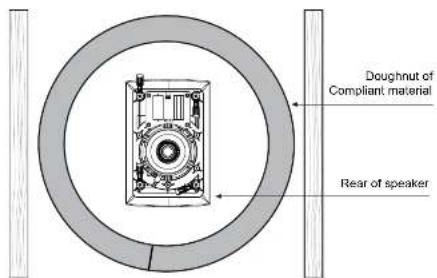

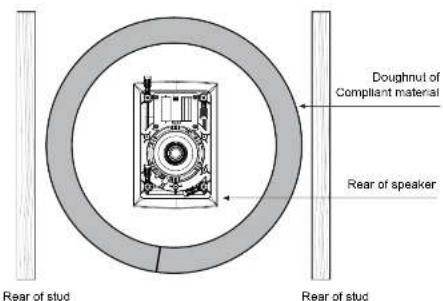

Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud

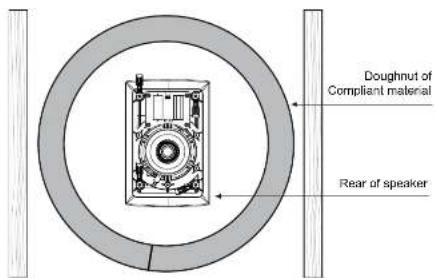

Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a light seal

Introducción

MOUNTING WINGS Extended Screws for extending the Mounting Wings Screw Terminals Mounting Wings

Interruptor de ajuste LF de iW 6DS y iW 62DS

Interruptor pasivo/activo iW 62S

Passive / Active Switch (79 625 only)

Quick Star Guide

17

Diagram showing a speaker assembly with components and sound waves, no text or symbols present

iW 6DS-WH

Exploded view diagram of a speaker assembly showing sound waves, speaker, and speaker components (no text or labels)

iW 62DS-WH

Exploded view diagram of a multi-tiered speaker system with speaker modules and sound output (no text or labels)

iW 62S-WH

2 subwoofers de pared de 6" (blanco)

Diagram showing sound wave propagation through a speaker system with two speakers and a blue flag marker (no text or symbols)

18 TV Series

Quick Star Guide

19

Caja trasera iW62

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols visible)

Fig. 6 Clamps in the install position
Fig. 6 Clamps in the install position

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Technical diagram of a mechanical assembly with central rotating component and surrounding components (no visible text or labels)

Fig. 7 Camps in the pre-meal position (W 4DC show)

Mechanical assembly diagram showing a rotating component with mounting flanges and a central hub (no text or symbols visible)

Fig. 8 Clamps in the install position (W 4DC)

22 IV Series Quick Start Guide 23

Exterior view of a white rectangular appliance with black buttons at corners (no text or symbols visible)

Fig. 9 IW 62DS and IW 62S Grile Detail

Inside of stud partition viewed from rear

New timber to create enclosure Existing timbers Back of speaker

Fig 10: Stud partition under construction - 16 timber centers

Inside of stud partition viewed from rear New trimber to create enclosure Existing trimbers Back of spear

Fig 11: Stud partition under construction – timber centers over 15"

Inside wall, viewed from rear Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud
Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a light seal

24 PG Series Quick Start Guide- 25

Introduction

Mounting Wings Extended Screw for extending the Mounting Wings Screw Terminals Mounting Wings

Passive / Active Switch (IN 628 only)

26 PG Series Quick Start Guide-27

Diagram showing a speaker assembly with lens, frame, and components (no text or labels)

iW 6DS-WH

Exploded view diagram of a speaker assembly showing sound waves, speaker chamber, and speaker base (no text or labels)

iW 62DS-WH

Diagram of a multi-tiered speaker system with visible sound waves and components (no text or labels)

iW 62S-WH

Diagram showing sound wave propagation from speaker to speaker array (no text or symbols)

iW62 Backcan

Close-up of a mechanical assembly with cylindrical components and a threaded rod (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols visible)

Fig. 6 Clamps in the install position

Positionnement

Technical diagram of a mechanical assembly with no visible text or symbols

Fig. 7 Clamps in the pre-install position (IN ADC shown)

3D rendering of a mechanical component with concentric rings and mounting holes (no visible text or symbols)

Fig. 8 Clamps in the install position (W 4DC)

Exterior view of a white rectangular appliance with black mounting holes (no text or symbols visible)

Fig. 8 IW 62DS and IW 62S Grille Detail

Inside of stud partition viewed from rear

New trimar to create enclosure Existing limbs Back of speaker

Fig 10: Stud partition under construction - 16* timber centers

Inside of stud partition viewed from rear

New trimbar to create enclosure Existing limbs Back of speaker

Fig 11: Stud partition under construction – limber centers over 16°

Inside wall, viewed from rear

Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud

Fig 12: Slud partition or wall cavity, using compliant material of appropriate thickness to create a tight seal

Einführung

Mounting Wings Extended Screen for extending the Mounting Wings Screen Terminals Mounting Wings

Passive / Active Switch (79 625 only)

Quick Star Guide

Exploded view diagram of a speaker assembly showing internal components and sound waves (no text or labels)

iW 6DS-WH

Exploded view diagram of a speaker assembly showing sound waves, speaker blades, and speaker base (no text or labels)

iW 62DS-WH

Exploded view diagram of a speaker system showing front, side, and back views with no visible text or labels

iW 62S-WH

Diagram showing sound wave propagation through a speaker array with two speakers and a blue flag marker (no text or symbols)

iW62 Rückwand

Installationshandbuch

Wandklemmmechanismus

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols visible)

Fig. 6 Clamps in the install position

Positionierung

Technical diagram of a mechanical assembly with central disc and surrounding components (no visible text or labels)

Fig. 7 Camps in the pre-install position (W 4DC shown)

3D mechanical assembly diagram showing a central rotating component with surrounding components (no text or symbols visible)

Fig. 9 Clamps in the install position (M 4DC)

Exterior view of a white rectangular wall-mounted device with black square buttons on both sides (no text or symbols visible)

Fig. 9 IW 62DS and IW 62S Grile Detail

Inside of stud partition viewed from rear

New limber to create enclosure Existing limbs Rack of spewer

Fig 10: Stud partition under construction - 16" timber centers

Inside of stud partition viewed from rear

New limber to create enclosure Existing limbs Back of spewer

Fig 11: Stud partition under construction – timber centers over 16°

Inside wall, viewed from rear

Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud
Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a tight seal

Introdução

Mounting Wings Extended Screw for extending the Mounting Wings Screw Tarsahls Mounting Wings

Chave de ajuste iW 6DS e iW 62DS LF

Interruptor passivo/ativo iW 625

Passive / Active Switch (MW 628 only)

Exploded view diagram of a speaker assembly showing internal components and sound wave propagation (no text or labels)

iW 6DS-WH

Alto falante de parede de 2 vias e 6° [franco]

Exploded view diagram of a speaker assembly showing sound waves, speaker chamber, and speaker base (no text or labels)

iW 62DS-WH

Diagram of a multi-tiered speaker system with visible sound waves and components (no text or labels)

iW 62S-WH

Subwoofer de parade 2 x 6" (branco)

Diagram showing sound wave propagation from speaker to speaker array (no text or symbols)

Backcan iW62

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and pivot (no text or symbols)

Fig. 6 Clamps in the install position

Posicionamento

Technical diagram of a mechanical assembly with central rotating component and surrounding components (no visible text or labels)

Fig. 7 Clamps in the pre-install position (HV 4DC shown)

3D mechanical assembly diagram showing a central rotating component with surrounding components (no text or symbols visible)

Fig. 8 Clamps in the install position (W4DC)

Exterior view of a beige rectangular wall-mounted device with black square buttons at corners (no text or symbols visible)

Fig. 8 IW 62DS and IW 62S Grille Detail

Inside of stud partition

viewed from rear

New timber to create enclosure Existing limbs Back of speaker

Fig 10: Stud partition under construction - 16* timber centers

Inside of stud partition

viewed from rear

New trimbar to create enclosure Existing trimbers Back of speaker

Fig 11: Stud partition under construction – limber centers over 16°

Inside wall, viewed from rear

Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud
Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a light seal

Introduzione

Mounting Wings Excluded Screws for extending the Mounting Wings Screw Terminals Mounting Wings

Passive / Active Switch (79 625 only)

Quick Star Guide

53

Exploded view diagram of a speaker assembly showing internal components and sound waves (no text or labels)

Modello iW 6DS-WH

Exploded view diagram of a speaker into an open chamber with sound waves and components (no text or labels)

iW 62DS-WH

Diagram of a multi-tiered speaker system with visible sound waves and components (no text or labels)

iW 62S-WH

Subwoofer a parete 2 x 6" (bianco)

Diagram showing sound wave propagation from a speaker into a multi-noise chamber, with no visible text or symbols.

iW62 Backcan

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols visible)

Fig. 6 Clamps in the install position

Technical diagram of a mechanical assembly with central rotating component and surrounding components (no visible text or labels)

Fig. 7 Camps in the pre-most position (pW ≤ DC shown)

3D mechanical assembly diagram showing a central rotating component with surrounding components (no text or symbols visible)

Fig. 8 Clamps in the install position (W 4DC)

Exterior view of a white rectangular appliance with black mounting brackets (no text or symbols visible)

Fig. 9 IW 62DS and IW 62S Grile Detail

Inside of stud partition viewed from rear

New timber to create enclosure Existing trimbers Back of speaker

Fig 10: Stud partition under construction - 16' timber centers

Inside of stud partition viewed from rear

New limber to create enclosure Existing timbers Back of repeaver

Fig 11. Stud partition under construction - timber centers over 16°

Inside wall, viewed from rear Doughnut of Compliant material Rear of speaker Rear of stud Rear of stud

Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a light seal

Invoering

Mounting Wings Extended Screw for extending the Mounting Wings Screw Tarsahls Mounting Wings

iW 6DS en iW 62DS LF-instelschakelaar

Passive / Active Switch (MW 628 only)

Exploded view diagram of a speaker system showing sound wave, microphone, and speaker components (no text or labels)

iW 62S-WH

Diagram showing sound wave propagation from speaker to speaker array (no text or symbols)

iW62 Backcan

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols)

Fig. 6 Clamps in the install position

Positionering

Technical diagram of a mechanical assembly with central rotating component and surrounding components (no visible text or labels)

Fig. 7 Clamps in the pre-install position (in 4DC shown)

3D mechanical assembly diagram showing a central rotating component with surrounding components (no text or symbols visible)

Fig. 6 Clamps in the install position (W 4DC)

Exterior view of a rectangular wall-mounted device with mounting holes (no text or symbols visible)

Fig. 8 IW 62DS and IW 62S Grille Detail

Inside of stud partition viewed from rear

New limber to create enclosure Existing limbs Back of speaker

Fig 10: Stud partition under construction - 16" timber centers

Inside of stud partition viewed from rear

New timber to create enclosure Existing limiters Back of speaker

Fig 11: Stud partition under construction - timber centers over 16°

Inside wall, viewed from rear

Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud
Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a light seal

Introduktion

Mounting Wings Excluded Screws for extending the Mounting Wings Screw Terminals Mounting Wings

Passive / Active Switch (W 625 only)

Quick Star Guide

71

Diagram of a speaker assembly showing components from an open case to a speaker, with no visible text or symbols.

iW 6DS-WH
2 Way 6" In-Wall Högtalare (vit)

Diagram showing sound wave propagation from a speaker into an outdoor device, with no visible text or symbols.

Diagram of a speaker system with multiple speakers and sound waves, showing internal components without any text or labels.

iW 625-WH
2 x 6" In-Wall Subwoofer (wt)

Diagram showing sound wave propagation through a speaker system with two speakers and a blue flag marker (no text or symbols)

iW62 Backcan

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols visible)

Fig. 6 Clamps in the install position

Positionering

Technical diagram of a mechanical assembly with central disc and surrounding components (no visible text or labels)

Fig. 7 Camps in the pre-mid position (W4DC shown)

3D rendering of a mechanical assembly with central rotating component and surrounding components (no visible text or symbols)

Fig. 8 Clamps at the inset position (W-4BC)

Exterior view of a white rectangular wall-mounted device with black square buttons at corners (no text or symbols visible)

Fig. 9 IW 62DS and IW 62S Grile Detail

Inside of stud partition

Venus 100 fear

New limber to create enclosure Existing limbs Back of speaker

Fig 10: Stud partition under construction - 16 timber centers

Inside of stud partition

viewed from rear

New limber to create enclosure Existing simbers Back of speaker

Fig 11: Stud partition under contraction – timber centers over 18°

Inside wall, viewed from rear

Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud
Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a light seal

Wstep

Mounting Wings Extended Screw for extending the Mounting Wings Screw Tarsahls Mounting Wings

Passive / Active Switch (JW 628 only)

IV Series

Quick Star Guide

81

Diagram of a speaker assembly showing components from front to side view (no text or labels)

iW 6DS-WH

Exploded view diagram of a speaker assembly showing sound waves, microphone, and speaker components (no text or labels)

iW 62DS-WH

Diagram of a speaker system showing front, side, and back views with sound waves and components (no text or labels)

iW 625-WH

Subwoofer scenny 2 x 6" (bially)

Diagram showing sound wave propagation from speaker to speaker array (no text or symbols)

iW62 Backcan

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols)

Fig. 6 Clamps in the install position

Pozycjonowanie

Technical diagram of a mechanical assembly with central disc and surrounding components (no visible text or labels)

Fig. 7 Changes in the pre-install position (W-ADC shown)

Technical diagram of a mechanical assembly with a central rotating component and surrounding components (no visible text or symbols)

Fig. 8 Clamps in the install position (W4DC)

Inside of stud partition viewed from rear

New timber to create enclosure Existing limbs Back of speaker

Fig 10: Stud partition under construction - 16* timber centers

Exterior view of a rectangular wall-mounted device with mounting holes (no text or symbols visible)

Fig. 8 IW 62DS and IW 62S Grille Detail

Inside of stud partition viewed from rear

New trimbar to create enclosure Existing trimbers Back of speaker

Fig 11: Stud partition under contraction – timber centers over 16°

Inside wall, viewed from rear

Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud
Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a light seal

導入

Mounting Wings Extended Screes for extending the Mounting Wings Screw Terminals Mounting Wings

Passive / Active Switch (79 625 only)

Quick Star Guide 89

製品機能の識別

IW 4DC-WH

Exploded view diagram of a speaker assembly showing components like lens, frame, and speaker (no text or labels)

iW 6DS-WH

Exploded view diagram of a speaker system showing sound wave, screen, and speaker components (no text or labels)

iW 62DS-WH

Diagram of a speaker system with two speakers and a multi-noise speaker, showing sound wave propagation (no text or labels)

iW62S-WH について

Diagram showing sound wave propagation through a speaker array with two speakers and a blue flag marker (no text or symbols)

90 IV Series

Quick Star Guide 91

iW62 バックカン

Close-up of a mechanical assembly with cylindrical components and a base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

インストール

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols)

Fig. 6 Clamps in the install position

绘画

Technical diagram of a mechanical assembly with central rotating component and surrounding components (no visible text or labels)

Fig. 7 Clampa in the pre-install position (W 4DC shown)

Diagram of a mechanical or electronic component with a central circular housing and surrounding components (no visible text or symbols)

Fig. 8 Clamps in the install position (W 4DC)

グリルの取り付けと取り外し

viewed from rear New timber to create enclosure Existing trimbers Back of speaker

Fig 10: Stud partition under construction - 16 timber centers

Inside of stub partition viewed from rear New trimber to create enclosure Existing trimbers Back of spewer

Fig 11: Stud partition under construction – timber centers over 16"

スピーカー負荷音 量 (続き)

オプション2

Inside wall, viewed from rear

Doughnut of Compliant material Rear of speaker Rear of stud Rear of stud

Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a tight seal

介绍

Mounting Wings Extended Screw for extending the Mounting Wings Screw Terminals Mounting Wings

Passive / Active Switch (JW 628 only)

98 TV Series

Quick Star Guide 99

产品特征识别

iW 4DC-WH

2路4英寸双同心入墙式扬声器 白色）

Diagram showing exploded view of a speaker assembly with components and sound waves (no text or labels)

iW 62DS-WH

1路6英寸入墙式扬声器 白色

Exploded view diagram of a speaker assembly showing sound waves, speaker chamber, and speaker base (no text or labels)

iW 625-WH

2×6英寸入墙式低音炮 白色）

Diagram of a speaker system showing sound wave propagation through an optical lens and two speakers (no text or labels)

iW 62S-WH

2×6英寸入墙式低青炮 白色）

Diagram showing sound wave propagation from speaker to speaker array (no text or symbols)

iW62 后盖

Close-up of a mechanical assembly with cylindrical components and mounting base (no visible text or symbols)

Fig. 5 Clamps in the pre-install position (rest)

Mechanical assembly diagram showing a lever and shaft assembly (no text or symbols visible)

Fig. 6 Clamps in the install position

102 W/ Series Quick Start Guide 103

定位

Technical diagram of a mechanical assembly with central disc and surrounding components (no visible text or labels)

Fig. 7 Claims in the pre-install position (in ADC shown)

3D mechanical assembly diagram showing a central rotating component with surrounding components (no text or symbols visible)

Fig. 8 Clamps in the install position (W4DC)

格栅安装与拆卸

New trimber to create enclosure Existing limbs Back of speaker

Fig 10: Stud partition under construction - 16" limber centers

White rectangular wall-mounted device with black square buttons on both sides (no text or symbols visible)

Fig. 8 IW 62DS and IW 62S Grille Detail

Inside of stud partition

viewed from rear

New trimbar to create exposure Existing limiters Back of speaker

Fig 11: Stud partition under construction - limber centers over 16"

104 P/W Series Quick Start Guide 105

扬声器负载音量 续）

选项2

Inside wall, viewed from rear Doughnut of Compliant material Rear of speaker

Rear of stud Rear of stud
Fig 12: Stud partition or wall cavity, using compliant material of appropriate thickness to create a tight seal

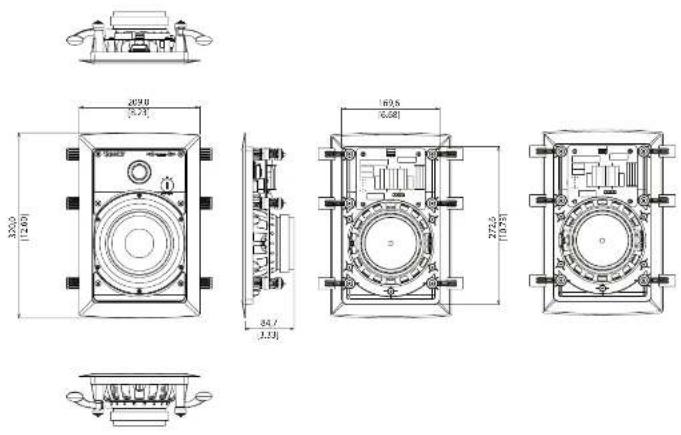

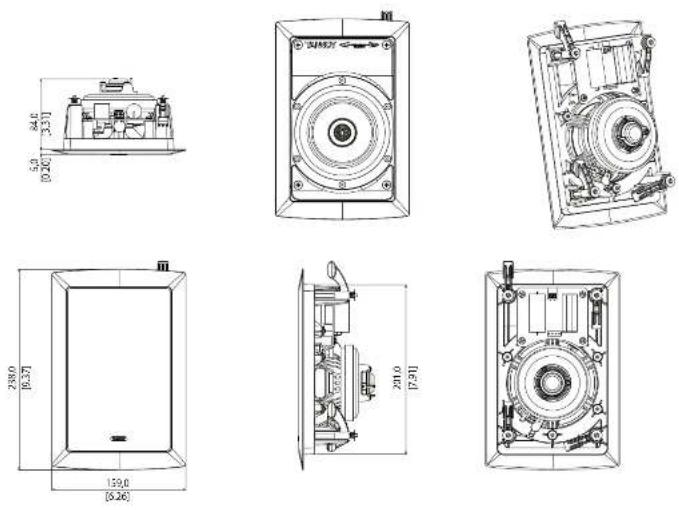

iW4 DC Model Dimensions

106 IW Series Quick Start Guide 107

iW 6DS Model Dimensions

iW 62DS Model Dimensions

EN

108 IW Series Quick Start Guide 109

iW 625 Model Dimensions

Technical Specifications

EN

	MW 625-WH	MW 620S-VH	MW 60S-VH	MW 40C-VH	MW 62 BACKCAN
Performance
Frequency response(≥3 dB) (see note 3)	Passive: 29 Hz - 110 Hz;Actuar determinedby controller	70 Hz - 20 kHz /5 Hz	20 kHz 83 Hz - 51 kHz
Frequency response(-10 dB)		34 Hz - 30 kHz / 36 Hz	20 kHz 73 Hz - 54 kHz
Low frequencyalignment (-6 dB)	25 Hz -34 Hz 36 Hz /3 Hz
Power handling(see note 1)	162 W continuous,640 V peak	80 V continuous,320 V peak	70 V continuous,280 V peak	62 W continuous,240 W peak
Recommendedamplifier power	100~320 W (total: 20~	160 V @ 8.20 - 140 V @ 8.0	20~120 V @ 8.0
System sensitivity(see note 2)	94 db (2.83 V @ 1 m)	32 db (2.83 V @ 1 m)	89 db (2.83 V @ 1 m)	88 db (2.83 V @ 1 m)
Nominal Impedance	4.0	8.0
Rated maximum SPL	116 dB continuous,122 dB peak	111 dB continuous,117 dB peak	107 dB continuous,113 dB peak	106 dB continuous,112 dB peak
Crossover	Passive, 2nd orderlow pass	Passive, 2nd order LF, 1stand 2nd order hand-passmid, 2nd order HF	Passive, 2nd order LF,2nd order HF	Passive, 2nd order LF,2nd order HF
Crossover point	Passive: 110 Hz; Actuar:determined by controller	500 Hz, 1.5 kHz	1.7 MHz	1.7 MHz
Crossover HFadjustment	NA +15 dB	+15 dB	NA

Transducers
High frequency		25 mm (1.5" 25-meter stairium dome, nocyrium magnet system)	19 mm (0.75" stairium dome, nocyrium magnet system
Low frequency	2 x 165 mm (8.5") multifibre paper pulp cone	165 mm (8.5") multifibre paper pulp cone	100 mm (4.0") multifibre paper pulp and bass cone
Wiring	Positive, positive 2,negative 1,negative 2	Positive 1F, positive 1F,negative 1F, negative 1F, ground	Positive, negative, ground	Positive, negative

Physical
Dimensions HWD	473.5 x 227 x 110.5 mm(18.3 x 8.9 x 6.4")	473.5 x 227 x 92 mm(18.6 x 8.9 x 3.6")	320 x 209 x 90 mm(12.6 x 8.2 x 3.5")	238 x 159 x91mm (5.4 x 6.3 x 3.6")	1300 x 451 x 97 mm(47.2 x 17.8 x 3.8")
Mounting depth	102 mm (ft)	99 mm (3.5")		88 mm (3.4")
Net weight	5.8 kg (7.3 lb)	4.2 kg (9.3 lb)	7.3 kg (4.9 lb)	1.3 kg (2.9 lb)	8.6 kg (9.0 lb)
Construction	Baffle panel moulded UV Resistant ABS, Clamp: moulded polycarbonate				Cabinet panel: SICC
Finish	White paintable
Grille	Powder coated perforated steel

Notes:

1. Long-term power handling capacity as defined in IC standard EC261-5
2. Averaged over-specified bandwidth for half-space environment. For arachial conditions the figure is to be deceased by 3 dB
3. +308, measured at 1 metre in anchor chamber in critically tuned enclosure.
4. Remove links after be-amping at bi-airing
5. Remote links in stereo operation

110 W/ Series Quick Scan Guide 111

技术规格

Other important information

Important information

1. Register online. Please register your new Music Tribe equipment right after you purchase it by visiting muscthe.com. Registering your purchase using our simple online team helps us to process your repair claims more quickly and efficiently. Also, read the terms and conditions of our warranty, if applicable.
2. Malfunction. Should your Music Tribe Authorized Seller not be located in your vicinity, you may contact the Music Tribe Authorized Fuller for your country listed under "Support" at musictribe.com. Should your country not be listed, please check if your problem can be dealt with by our "Online Support" which may also be found under "Support" at musictribe.com. Alternatively, please submit an online warranty claim at musictribe.com BEFORE returning the product.
3. Power Connections. Before plugging the unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and using without exception.

Other important information

Responsible Party Name: Music Tribe Commercial NV Inc. Address: 122 E. 42nd St.1,

8th Floor NY, NY 10168, United States

Email Address: [e-mail]

iW Series

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can receive radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Important information:

Changes or modifications to the equipment not expressly approved by Music Tribe can void the user's authority to use the equipment.

CE

Hereby, Music Tribe declares that this product is in compliance with General Product Safety Regulation (EU) 2003/988, Directive 2011/05/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 BLACH/SWHC and Directive 1957/2006/EU, and this passive product is not applicable to EMK Directive 2014/30/EU, LV Directive 2014/35/EU.

Full test of EU DoC is available at https://community.munitribe.com/

EU Representative: Music Tribe Brands DK A/S Address: Gammel Strand 44, DK-1202 Kebenhawn K, Denmark

UK Representative: Music Tribe Brands UK Ltd. Address: 8th Floor, 20 Farrington Street London EC46 44B, United Kingdom

Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEF). The mishuffling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEF. At the same

time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.
