USER MANUAL KD-43X73K SONY

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

• Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press the HELP button on the remote control and select Help Guide.

• You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

Setting menus are subject to change without notice.

IMPORTANT - Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https://www.sony.net/tv-software-licenses3/) or on your product screen. Press Quick Settings) on the remote control and select [Settings] [Device Preferences] [About] [Legal information] [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "x"/'xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month)* and Power Supply rating are located on the rear of the TV or package.

• Only on limited region/country/TV model.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-50X72K, KD-50X73K, KD-43X72K, KD-43X73K are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Hereby, Sony Corporation declares that the radio equipment types KD-50X72K, KD-50X73K, KD-43X72K, KD-43X73K are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://compliance.sony.co.uk

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more persons are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

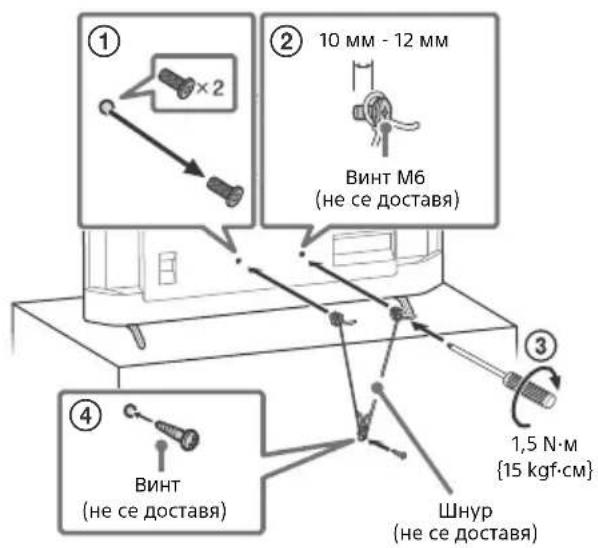

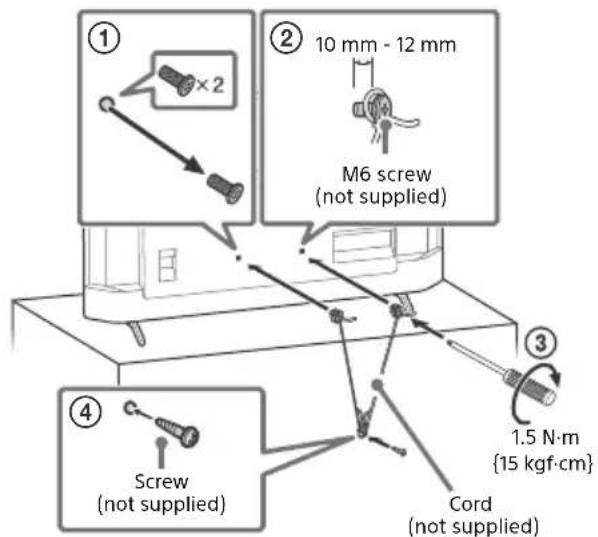

Topple prevention

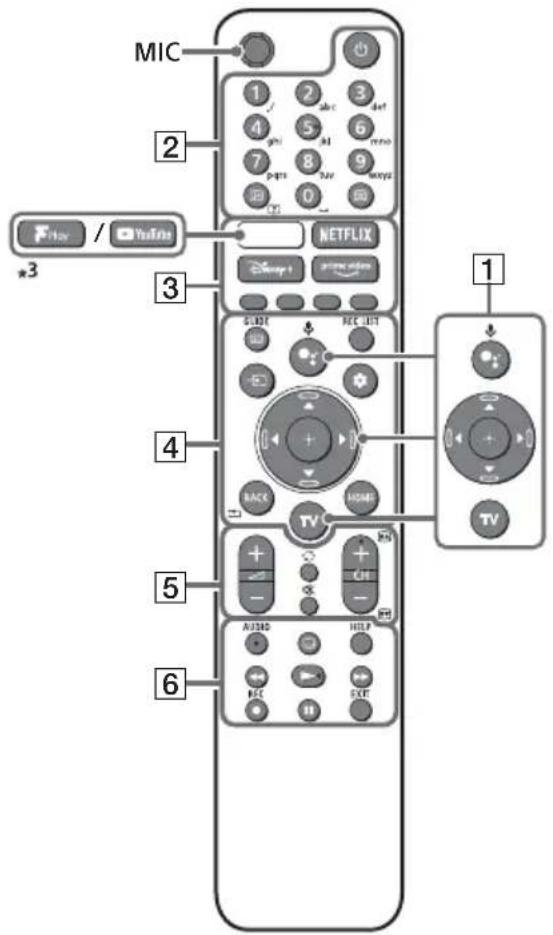

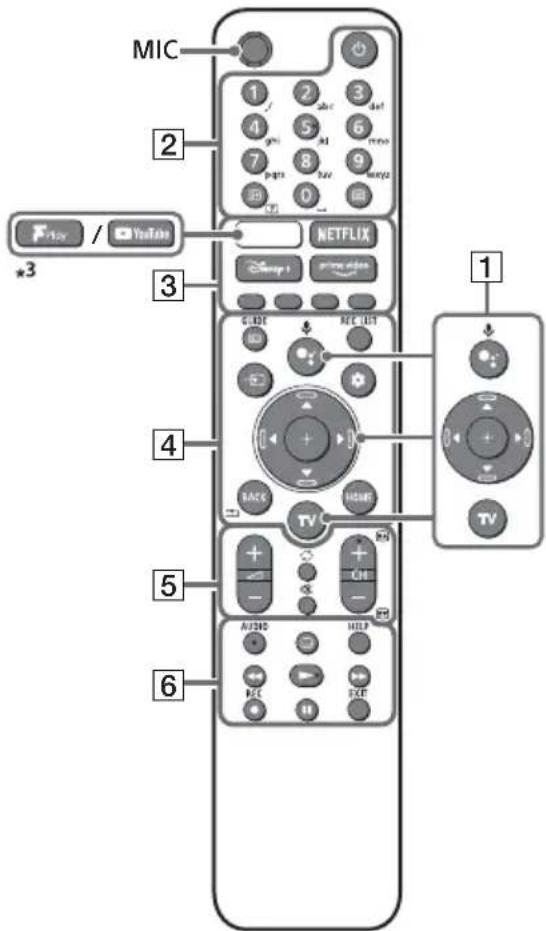

Remote Control and TV

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings.

GB

1 (Microphone) / Google Assistant):

Use Google Assistant*1*2 or voice search*2. For hints on how to control your TV, press the microphone button on the remote control and say "voice hints".*1

/ / / / : On screen menu navigation and selection.

TV: Switch to input.

2 (Power)

Number buttons

i+/? (Info/Display x t re v information.

(Text): Display text information.

3 (YouTube™/Freeview Play)*³/ NETFLIX / Disney+ / Prime Video / Colour buttons

4 GUIDE:Display the digital programme guide of TV.

REC LIST: Display the Rec list of USB HDD.

• (Input select): Display and select the input source, etc.

Quick settings): Display Quick Settings.

BACK/

HOME

5 +/-(Volume)

一 (Jump)

(Mute)

CH + / - / 1/0: Select the channel, or next

(）/previous（）page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

<</>>/11

REC: Record the currently viewed programme on USB HDD.

EXIT

7 (Power)
Remote Control sensor / LED

1 Only on limited region/country/TV model/language.
2 Google Assistant or voice search requires an Internet connection.
*3 Feature support depends on region/country/TV model.

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL450)* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.

https://www.sony.eu/support

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including: —Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.
• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
• Only on limited region/country/TV model.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead then press the power button on the TV and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the TV for about 40 seconds until the TV turns off.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

• Replace the batteries.

The parental lock password has been forgotten.

• Enter 9999 for the PIN and enter the new PIN.

For more information on troubleshooting, refer to the Help Guide.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight

TV system: Depend on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Colour system: PAL/SECAM

Channel coverage: Depend on your country/ area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: IF Frequency 950-2150 MHz

Sound output: 10W + 10W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 5.1

Frequency band(s)

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 23.0 dBm
5470-5725 MHz	< 30.0 dBm
5725-5875 MHz	< 13.98 dBm
Bluetooth® (TV)
2400-2483.5 MHz < 10.0 dBm
Bluetooth® (Remote control)
2400-2483.5 MHz < 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

HDMI IN 1/2/3/4 (HDCP 1.4 / 2.2 compatible)

Video:

HDMI video format:

640× 480p (60 Hz), 720× 480i (60 Hz), 720×

576i (50 Hz), 720 × 480p (60 Hz), 720 × 576p

(50Hz) 1280× 720p (60Hz,50Hz) 1920×

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

HDMI PC supported format:

640 × 480 @ 60, 800 × 600 @ 60,

1024× 768@60,1280× 720@60,

1920× 1080@60,1920× 1200@60,

2560 × 1440 @ 59.95, 3840 × 2160 @ 60

Audio:

PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby

Audio

ARC (Audio Return Channel) (HDMI port 1 only)* In ARC mode

Two channel linear PCM: 48 kHz 16 bits, Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio)

(Stereo mini jack)

Headphone

1, 2

(HDD

REC)

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports High Speed USB (USB 2.0)

M (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220V-240VAC,50Hz

Screen size (measured diagonally) (Approx.)

KD-43X7xK: 108 cm / 43 inches

KD-50X7xK: 126 cm / 50 inches

Power consumption*2

In [Standard] mode

KD-43X7xK:118W

KD-50X7xK:138W

Standby power consumption25*6

0.50 W (10 W in software/EPG update mode)

Display resolution (horizontal × vertical) (pixels)

3840 × 2160

Output rating

500 mA (for USB1 and USB2)

Dimensions (Approx.) (w× h× d) (cm)

With Table-Top Stand

KD-43X7xK: 97.0 × 61.7 × 20.9

KD-50X7xK: 112.7 × 70.8 × 23.1

Without Table-Top Stand

KD-43X7xK: 97.0 × 56.7 × 8.4

KD-50X7xK: 112.7 × 65.8 × 8.6

Mass (Approx.) (kg)

With Table-Top Stand

KD-43X7xK:9.1

KD-50X7xK: 12.4

Without Table-Top Stand

KD-43X7xK:8.9

KD-50X7xK: 12.2

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Screw diameter and length:

Operating temperature: 0^ - 40^

Operating humidity: 10% -80% RH (noncondensing)

1 Connect your audio system to the HDMI IN 1 to route TV audio to your audio system.
2 This information is for EU and other countries whose relevant regulation is based on EU energy labelling regulation.
3 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
4 Energy consumption in kWh per year, based on the power consumption of the television operating 8 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
5 Specified standby power is reached after the TV finishes necessary internal processes.
6 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant.
• Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.
• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC CODECs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
• Google TV and related logos are trademarks of Google LLC.
• Netflix is a registered trademark of Netflix, Inc.
• DiSEqCTM is a trademark of EUTELSAT.

This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• All other trademarks are the property of their respective owners.

Product registration number

(COMMISSION DELEGATED REGULATION (EU)

2019/2013)

KD-43X72K: (1020103),

KD-43X73K: (1020117),

KD-50X72K: (1020119),

KD-50X73K: (1020120)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

1 (Microphone) / Assistant Google):

https://www.sony.eu/support

—Support de fixation murale SU-WL450

Analogue: B/G, D/K, I

Satellite:DVB-S/DVB-S2

Analogue: UHF/VHF/Cable

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

Format compatible PC HDMI :

640 × 480 @ 60, 800 × 600 @ 60,

1024× 768@60,1280× 720@60,

1920× 1080@60,1920× 1200@60,

2560 × 1440 @ 59,95,3840 × 2160 @ 60

Audio :

PCM: 32/44,1/48 kHz 16/20/24 bits, Dolby Audio

ARC (Audio Return Channel) (Port HDMI 1

uniquement)*1

En mode ARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

https://www.sony.eu/support

Digital: UHF/VHF/Cable

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

Formato compatible con PC HDMI:

640 × 480 @ 60, 800 × 600 @ 60,

1024× 768@60,1280× 720@60,

1920 × 1080 @60, 1920 × 1200 @60,

2560 × 1440@59,95,3840 × 2160@60

Audio:

PCM: 32/44,1/48 kHz 16/20/24 bits, Dolby Audio

ARC (Audio Return Channel) (Solo puerto HDMI 1)*1

En el modo ARC

PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

Toma digital optica (PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio)

(imitoma estereo)

Auricular

1,2(HDDREC)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

https://www.sony.eu/support

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

PCM: 32/44,1/48 kHz 16/20/24 bits, Dolby

Audio

ARC (Audio Return Channel) (Alleen

HDMI-poort 1)*1

In ARC-modus

Tweekanaals lineaire PCM: 48 kHz 16 bits, Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

PCM: 32/44,1/48 kHz 16/20/24 Bit, Dolby Audio

ARC (Audio Return Channel) (Nur HDMI-

Buchse 1)*1

ImARC-Modus

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

PCM: 32/44,1/48 kHz 16/20/24 bits, Dolby

Audio

ARC (Audio Return Channel) (Porta HDMI 1

apenas)*1

No modo ARC

PCM linear de doit canais: 48 kHz 16 bits,

Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital otica (PCM linear deinous

canais: 48 kHz 16 bits, Dolby Audio)

(Mini-tomada estereo)

Auscultador

1,2(HDDREC)

A porta USB 1 suporta High Speed USB

(USB 2.0)

A porta USB 2 suporta High Speed USB

(USB 2.0)

Ranhura CAM (Modulo de Accesso Condiencial)

LAN

Conector 10BASE-T/100BASE-TX (Dependondo ambiente de operacao da rede, a

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

https://www.sony.eu/support

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

PCM: 32/44,1/48 kHz 16/20/24 bit, Dolby

Audio

ARC (Audio Return Channel) (Solo porta

HDMI 1)*†

In modalità ARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

programguiden for TV.

REC LIST: Visa Rec-listan for USB HDD.

Se Hjalpguiden for mer information.

Installationsinformation for Vaggfaste

For instruktioner om installation av Vaggfaste, se installationsinformationen (Vaggfaste) på Produktsidan for din TV-modell. https://www.sony.eu/support

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

HDMI PC-stott format:

640 × 480 @ 60, 800 × 600 @ 60,

1024 × 768 @ 60, 1280 × 720 @ 60,

1920× 1080@60,1920× 1200@60,

2560 × 1440@59,95,3840 × 2160@60

Ljud:

PCM: 32/44,1/48 kHz 16/20/24-bitars, Dolby

Audio

ARC (Audio Return Channel) (HDMI port 1, endast)*1

IARC-lage

Tvakanalig linjär PCM: 48 kHz 16-bitars,

Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

https://www.sony.eu/support

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

HDMI pc understottet format:

640 × 480 @ 60, 800 × 600 @ 60,

1024 × 768 @ 60, 1280 × 720 @ 60,

1920× 1080@60,1920× 1200@60,

2560 × 1440@59,95,3840 × 2160@60

Lyd:

PCM: 32/44,1/48 kHz 16/20/24 bit, Dolby

Audio

ARC (Audio Return Channel) (Kun HDMI port 1)*

IARC-tilstand

To-kanals linear PCM: 48 kHz 16 bit, Dolby

Audio

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals linear PCM:

48 kHz 16 bit, Dolby Audio)

(Stereo-minijack)

Hovedtelefoner

1.2 (HDDREC)

USB-port 1 understotter High Speed USB (USB 2.0)

USB-port 2 understotter High Speed USB

(USB 2.0)

M (Conditional Access Module)-holder

LAN

10BASE-T/100BASE-TX-stik

I [Standard] tilstand

KD-43X7xK:118 W

KD-50X7xK:138W

Strømforbrug i standby*2*5*6

0,50 W (10 W i software-

EPG-odateringstilstand)

Skaermoplosning (vandret × lodret) (pixels)

3840 × 2160

Udgangseffekt

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

Innstillingsmenyer kan endres uten varsel.

(Hurtiginnstilling): Vis hurtiginnstilling.

BACK/ HOME

5 +/-(Volum)

(Hopp)

(Demp)

CH + / - / /Velgkanal,ellerneste (三) / forrige (三) side.

6 AUDIO: Velg lyd for flerspraklig kilde aller flerspraklig lyd (avhengig av programkilden).

(Teksting-innstilling)

HELP: Vis Hjelp-menyen.

https://www.sony.eu/support

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

PCM: 32/44,1/48 kHz 16/20/24 biter, Dolby

Audio

ARC (Audio Return Channel) (Kun HDMI-port 1)*

IARC-modus

Tokenals lineaer PCM: 48 kHz 16 biter, Dolby

Audio

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokenans lineer PCM:

48 kHz 16 biter, Dolby Audio)

(1) (minijack, stereo)

Hodetelefon

1,2(HDDREC)

USB-port 1 stotter hoyhastighets USB (USB 2.0)

USB-port 2 stotter hoyhastighets USB (USB 2.0)

CAM-spor (Conditional Access Module)

10BASE-T/100BASE-TX-kontakt

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

https://www.sony.eu/support

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

Obstugiwany format HDMI PC:

640 × 480 @ 60, 800 × 600 @ 60,

1024× 768@60,1280× 720@60,

1920× 1080@60,1920× 1200@60,

2560 × 1440 @ 59,95,3840 × 2160 @ 60

Audio:

PCM: 32/44,1/48 kHz 16/20/24 bity, Dolby

Audio

ARC (Audio Return Channel) (Tylko port

HDMI 1)*1

W trybie ARC

DIGITAL AUDIO OUT (OPTICAL)

Port USB 1 obslugue standard High Speed USB

(USB 2.0)

Port USB 2 obslugue standard High Speed

USB (USB 2.0)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

https://www.sony.eu/support

PCM: 32/44,1/48 kHz 16/20/24 bit u , Dolby Audio

ARC (Audio Return Channel) (Pouze 1 port HDMI)*1

V rezimu ARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

Nastavenia ponuk sa mozu zmenit bez oznamenia.

DOLEZITE -Pred pouzitim vyrobku Sony si precitajte licencnu zmluvu tykajucu sa softveru koncoveho pouzivatela. Pouzivanie vašho vyrobku znamena, ze suhlasite s licencnou zmluvou tykajucu sa softveru koncoveho pouzivatela. Licencná zmlvu vykajúca sa softveru medzi vami a spolocnosti Sony je k disposizii online na webovej stranke spolocnosti Sony (https://www.sony.net/tv-software-licenses3/) alebo na obrazovke vašho vyrobku. Stlačte tlacidlo (Rychle nastavenia) na dialkovom ovladaci a vyberte polozky [Nastavenia] [Predvolby zariadenia] [Informácie] [Pravne informácie] [Upozernenia a licencie].

Poznámka

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

HDMI formatting podporovany PC:

640× 480@60,800× 600@60,

1024× 768@60,1280× 720@60,

1920× 1080@60,1920× 1200@60,

2560 × 1440@59,95,3840 × 2160@60

Audio:

PCM: 32/44,1/48 kHz 16/20/24 bitov, Dolby

Audio

ARC (Audio Return Channel) (Iba port HDMI 1)*¹

V rezime ARC

Dvojkanálovy lineárny PCM: 48 kHz 16 bitov,

Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

https://www.sony.eu/support

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

PCM: 32/44,1/48 kHz 16/20/24 bit, Dolby Audio

ARC (Audio Return Channel) (Csak az 1. HDMI port)*1

ARC üzemmodban

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

Meniurile de setari se pot modifica fara notificare prealabila.

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satelit: DVB-S/DVB-S2

Sistem culoare: PAL/SECAM

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit: Frecventa IF 950-2150 MHz

lesire audio: 10W + 10W

Tecnologie wireless

Protocol IEEE 802.11a/b/g/n/ac

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

Format acceptat PC HDMI:

640 × 480 @ 60, 800 × 600 @ 60,

1024× 768@60,1280× 720@60,

1920× 1080@60,1920× 1200@60,

2560 × 1440 @ 59,95,3840 × 2160 @ 60

Audio:

PCM: 32/44,1/48 kHz 16/20/24 biti, Dolby

Audio

ARC (Audio Return Channel) (1 singur port HDMI)*1

In modul ARC

PCM liniar pe doua canale: 48 kHz 16 biti,

Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

MeHOTata 3a HAcTpoKn noDJIeXaT Ha npOMHa 6e3 npEdupeXeDeHne.

BAXKHO -PpeHn Da n3noJ3BaTe BaWn npOpyKT Sony, npoYeTe IuueH3NOHHOTc cnopa3ymHe 3a coOfTyep c KpaHn noTpe6nten. H3non3BaHeTo Ha BaWn npOdyKT O3HaayBa, Ye pneMeTa IuueH3NOHHOTc cnopa3ymHe 3a coOfTyep c KpaHn noTpe6nten. JIuceH3NOHHOTc cnopa3ymHe 3a coOfTyep MeKdy Bac n Sony e DocbNHO OHnHa yEcbaHa Sony (https://www.sony.net/ tv-software-licenses3/) n nn Ha ekpHa BA Wn npOyKT. Hatnche Bbp3n HactpoKn) Ha nctAunOHHTO ynpaBHeHn n36peTe [HactpoKn] [PpeNoHTaHn 3a yCtpoCTBOTo] [HhOpMaun] [PpaBHa HhOpMaun] [YBeOMJeHn nIuenceH3].

3a6eJekka

-Ппдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徴а.Ta 6e3onacHocT.
-Пючete ДдЕнТа ДOKУМЕТАЦЯ 3a 6e3ОпАСHOCТЗ a DonbHNTENn CBeDEHn 3a 6e3OнACHOCTT.
1306paekehnra Hnnoctpaunnte, n3non3BaHn B PbkOBOCTBOTO 3a HAcTPOKa N B TOBa pbKOBODCTBO, Ca CaMO 3a CnpBaKa N MoKe Da ce pa3nHaBaT OT DeNCTBNTENHn npoDyKT.
3HaKbT“/”xx”，KOITOCENOBRABUMETO HAMOEJa，CBOTBeCTBaHAmOeP，CBp3aHCIN3aHa，UBeTaNIMCCTemataHaTeNEBn3opa.

MaToHaIeHTnΦKaUHnEeTKeT

EtKeTte 3a HOpem Ha Moeena, data Ha npOn3BODCTBO (roDHa/ Meceu) nKlaC Ha 3axpaHbHe, ca pa3nOJoxEHN Ha Tbp6a Ha TeLeBn3opa nn OnaKOBkata.

* Camo 3a onpeJeHn perNoH/ctpaHn/MoJIeN TeJeBn3Opn.

BAKHA 3A6EJIEXKA

3a6eJekka 3a paIIO o6OpyDbaHe

C hactoio Sony Corporation deknapa, ye Tnobete paoooopyaBae KD-507X2K, KD-507X3K, KD-43X72K, KD-43X73K cbotBeCTBaT ha DnpkeTna 2014/53/EC. IIOCTHnT aTEKT HA EC deknapaunaa 3a cboTBeCTBne Moke da ce Hamep n Ha CneHnIHnTePHeT aDpec: https://compliance.sony.eu

3a ToBa paAno obOpyDbaHe BaxKaT cIeHnTe OrpaHnYeHn 3a BBbExdaneB E KcNNoataun nn 3a pAspeWeHne 3a yOnTpBeBA AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kocobo:

5150 - 5350 MHz yectota e orpaHnueHa cmo 3a pa6oTa Ha 3aKpIto.

HΦopMaζη 3a 6e3oanchoCT

Ppehahe

-ПпддмecTNTe TeneBn3opa,ИЗКЛHQuTe BCnUKN Ka6eNt OTHero.
Heo6xoJIMn caIbe nnn noBuee Iuca 3a TpaHcnpTnpaHe Ha rOJAM TEJIeBUN3Op.
Korato MeCTHTE TENEBU3Opa Ha pbue,dpbXTe ro,KaKTo e noka3aHO no-dony.He HATnCKaIe LCD naHeia npamkata OKoNo ekpHa.

Korato noBnirate nIIM MeCTNTe TeneBn3opa, ro npbXTe 3dpaboOTdoNy.

• Pn npnehahe He n3laarate Te TeneBn3opa Ha cbTpceHna nnnpekaneHN Bn6paun.
  Korato npehacate TeeneBn3opa npnpemOH nI npn cmaHa Ha KINuueTo, naKeTupaTe ro, KaTO n3NO3BaTe opnHahHaHata onakOBka mATEpnaJI 3a naKeTupaHe.

PpeoTbpaTaBaHeHa napaHe

Дистанционуypаьлень Teileвзор

Pa3noJoxeHneTo,ΦopMaTa,HaJIuHOCCTTaN ΦyHKUInTe Ha 6byoHTe Ha IINCTaHcUHOHHOT OynpaBHeHne Morat Da ce pa3JNUaBaT B 3aBnCmOcT OT perNoHa/DbpxKaBaTa/MoJeNa Ha TeJeBn3Opa/HaCTpoKNe TaTeJeBn3Opa.

1 (MnKpOfoH)/ (Google AcnCTeHT):

N3noJ3BaIte Google AcnCTeHT*2 nJn
rJacoBO TbpceHe*.3a cBBeTu KaK Da
KOHTpOJIpaTe TeJeBn3Opa Cn,HaTNCHeTe
6yToHa Ha MmKpoΦoHa Ha IInCTaHcNoHHOTO
ynpabJIeHne N KaxKeTe "rJacoBN CbBetu".

/ / / HabiracnaBekpaHHOTMeHIO n36Op.

TV:Ппевключы KBМ Вьвжданe.

2 (3axpaHbaHe)

ByToHc uΦpN

E/（Mnfo/Noka3BaHe Ha TeKCT):

Ioka3Ba nHΦopMaun.

(TeKCT): Noka3Ba TEKCTOBA INHΦOPMaçua.

3 (YouTubeTM/Freeview Play)3/ NETFLIX/ Disney+ / Prime Video / ΚνβεΤΗ 6υτόη
GUIDE ToKa3Ba LNoΦpOBnTeJeBn3NoHeH CnpaBOuHnK Ha npOrpaMnte.

https://www.sony.eu/support

CneDbaiTe HNCTpyKUInTe, npedocTaBeHc KOn30Jata 3a 3akpenBaHe KbM cTeHa 3a BaWnMoJeI. 3a MOHTaxKa Ha To3n TeLeBn3Op ce n3NCKBa 3HaunTeJenOH ONIT, Oco6eHo 3a onpeJeJHe Ha 3dpaBnHaTa Ha CTehata, KOrTO Tp86Ba Da n3dbpxn TeXecTTa Ha TeLeBn3Opa.
- Sony He Hocn OTROBOPHOCT 3a NOBpeu nn HapaHbAHn, npuHHeHn OT He npabHn MaHnylaun nn MOHTax.
- MoHTaXbT Ha yCTpoiCTBOTO KbM CTeHaTa TpIbBa Da ce n3BbPun Camo OT KBaJIuΦnUpaH NepcoHaJ.
- 3a no-rolma 6e30nacHOCT Bn прелорьамедаингл3BaTe opuHHaJIHHTe akcecoapnHa Sony,ВКЛочnteHNo: -KoH3OJa 3a 3akpenBaHe KbM CTeHa SU-WL450

Ha BcraKa ueHa n3noJ3BaIte BnHTOBeTe npInOKeHn KbM KoH3oJaTa 3a 3akpeBnBeKbM CTeHa, KOraTo 3aKaUaTe KoH3oJaTa 3a 3akpeBnBeKbM CTeHa KbM TeJeBu3Opa. PInIOxKeHnte BnHTObe ca npoeKTnpaHn KaKTo e NOKa3aHO Ha NJIocTpaunraTa, N3MepBaHeto e HAnpaBeHo cnpraMo 3aKaUBaJtA IOBbPxHOCT Ha KoH3oJaTa 3a AkpeBnBe KbM CTeHa.

ДиametbpbT NдьлжнHa Ta Ha BnHTOBeTe ce pa3IuYaBaT B 3aBnCmOCT OT MoJeNa Ha Koh3oJata 3a 3akpenBaHe KbM CteHa.

N3noJ3BaHeTo Ha BnHTOBe, pa3JIuHn OT Te3N B KOMnIeKTa Ha KOH30JaTa, MOKe Ja DOBeJe Do BbTpeuHn NOBpeuHa TeJeBn3Opa NIn Da CTaHe npuHa 3a NaDaHeTO My NT.H.

3ana3eOpunHaHnTe BnHTOBe n NoCTaBkata 3a Maca Ha cnpypHO MrcTo, BCnya,ye XeJaTe OTHOB da 3akuHte NoCTaBkata 3a Maca. DpbXTe BnHTOBete HactpaH NT MaJKN Deua.
* Camo 3a onpeelenen pernoHn/ctpaHn/MoJeN TeJeBu3Opn.

Отстара на несниравно

3aOTCTpaHЯBaHe Ha 06UH Heu3npaBHOCTn KaTO:YepeH ekpaH,JIINca Ha 3ByK,3aMp3HaJa KapTInHa,6JIOkpAHe Ha TeJeBn3Op INI 3aRy6a Ha MPeKa, N3NbJHHeTe CneJHnTe CTbKN.

1 PecTapTpaIte BaIaIy TeIeBn3Op Upe3 HATNcKaH e Ha 6yToHa 3a 3axpaHbAhe Ha INCTaHIOHOHTO ynpaBHeHne 3a OKoI0 net Cekyn. TeIeBn3OpBT uce ce pectapTnpa. Ako TeIeBn3OpBT He pa6OTn, ONITaIte Da I3BaInte 3axpaHbAun Ka6eI, cIeI TOBa HATNCHete 6yToHa 3a BkIIOUvBaHne Ha TeIeBn3Opa n ro npChete. N3uKaaIte DBe MInHyTu BkIOUchTe 3axpaHbAun Ka6eI. IIn HAtncHete 6yToHa 3a BkIOUvBaHne Ha TeIeBn3Opa 3a OKoI0 40 CekynDn, DOKaTO TeIeBn3OpBT Ce N3KJIQUH.
2 BuxTe IomOuHOTo pBKOBOCTBO Upe3 HATnCKaHe Ha HELP Ha DnCTaHcNoHHOTO ynpabVeHne.
3 CbpxeTe CBOr TeIeBn3Op C nHTepHETn HnpaBeTe aKtyaIIN3aIuHa coOfTyepa. Sony npenopbUba Da noDlbpxKeTe coOfTyepa Ha TeIeBn3Opa cn aKtyaJIeH. AktyaIIN3aIuNTe Ha coOfTyepa npedocTABT HOBn FyHKuNn I NOdo6peHnHa npOn3BOdntEJIHOCTTa.
4 NoceteTe ye6caTata 3a noDpBxka Ha Sony (HnΦopMaunraTa e npedocTaBeHa B KpaHa TOBa pkoBOdCTBO).

Korato BKJIOUHTe 3axpaHBaunKa6eHa TeLEBn3Opa,ToIMoKe Da He Ce BKLIOUH BeDHarA,ApN aKO HATNCHe 6yTOHa 3a BKJIOUcBAHe Ha DCtAHCuOHHO ToYnpabLeHne IIN TELEBn3Opa.

HnuaJn3npaHeTo Ha cnteMaTa OTHeMa BpeMe.
N3uKaaiTe 3a OKoI0 eHa MNHyTa n ONiTaNTE
OTHOBO.

DnctaHcnoHHoTo ynpabJeHne He pa60tN.

• CmeHete 6aTeepnnte.
  3a6paBHe napoIa 3a poNDTeNcKo 3aKJIIOUvBaHe.
  BbBeTe 99993a INH KOda n BbBeTe HOBn INH KOd.

3a noBee HnΦopMaun OTHOCHOOTcPaHReBaHe Ha npo6IeMn, BIXTe IMOUHOTO pkoBOdCTBO.

Cneunkaaun

CnCTema

CnCTemaHa nane:LCD（TeuHokpncTaJeH nucne）naHe,LEDnoDCBeTka

TB CnCTema: B 3aBncmOcT OT BaUata TaNbPkaBa/u36Op Ha 3oHa/MoJeH a

TeIeBn3Opa

AhaIorOB:B/G,D/K,I

LHΦρOB:DVB-T/DVB-C/DVB-T2

CareNet: DVB-S/DVB-S2

LBeTOba CnCTema: PAL/SECAM

Poknne Ha KaHajnte: B 3aBncmocT ot

BaWata Dbpxkaba/n36Op Ha 30Ha/MoJeN Ha

TeleBn3opa

AhaIorOB: UHF/VHF/ka6eJ

UHF/VHF/ka6eJ

CateiNt:IFyecToTa950-2150MHz

3BykoB u3xoJ: 10 W + 10 W

БeЗкунаТexHoJIoNЯ

IEEE 802.11a/b/g/n/ac npotokon

Bluetooth® Bercn 5.1

YecToTHa(n)JeHTa(n)

Чебтын обхвац范围内 Чебargoуten LAN (Телевизор) 2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 23,0 dBm
5470-5725 MHz	< 30,0 dBm
5725-5875 MHz	< 13,98 dBm
Bluetooth® (Телевизор) 2400-2483,5 MHz < 10,0 dBm
Bluetooth® (Дистанцюно упавлие) 2400-2483,5 MHz < 10,0 dBm

BxOJHO/n3XoHN JkaKOBe

AHTeHa/ka6eJ

75 OMa BbHWeH TepMHaJ 3a VHF/UHF

CateJInTHa aHTeHa

KoHeKTop TUn F, XeHcKn, 75 oMa.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz TOH,

PazpejeJne no 1 ka6eJ EN50494.

HDMI IN 1/2/3/4 (CbbMecTm c HDCP 1.4 / 2.2)

Bnupeo:

HDMI Bnideo fopMaT:

640× 480p (60Hz) 720× 480i (60Hz) 720× 576i (50Hz) 720× 480p (60Hz) 720× 576p

(50Hz) 1280× 720p (60Hz,50Hz) 1920×

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p (60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

IopdbpxkAn oopMaT HDMI PC:

640 × 480 @ 60, 800 × 600 @ 60,

1024× 768@60,1280× 720@60,

1920× 1080@60,1920× 1200@60,

2560 × 1440@59,95,3840 × 2160@60

Aydno:

PCM: 32/44,1/48 kHz 16/20/24 6nTa, Dolby Audio

ARC (Audio Return Channel)

(Camo HDMI nopT 1)*1

BpekmARC

Дыкален Ли老人家 PCM: 48 kHz 16 mbTa, Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

(B 3aBNCIMOCT OT yCNOBnTa Ha pa6oTa Ha MPexKaTAt, CKOPoCTTa Ha npeHoc Ha daHHInTe

MOKeJa ce pa3nUaBa.KanaunTeTbT n KaueCTBOTO Ha KOMyHnKaUraTa He ca rapaHTnpaHn.)

3axpaHbAHe, HnHa npOdykTa n dpyrN

U3nCKBaHna 3a 3axpaHbAHeTo

220V-240VAC,50Hz

Pa60Tha BnaxKHOCT: OTHOCHTeJHa BnaxKHOCT

10% - 80% (6e3 06pa3yBaHe Ha KOHDeH3)

^*1 CbpxKeTe ayDnO cnCTemTa cn KbM HDMl IN 1, 3a Da HaCOUHTe TeJeBn3NoHHnay AyDnO cnHajl KbM BaWata ayDnO cnCTema.

*2 Ta3n INHΦopMaζηce OTHac 3a cTpaHn OT EC nДpyrN CTpaHn, YHNTO CbOTBeTHn pa3nopeiδn Ce OCHOBaBAT Ha peIaMeHTa Ha EC 3a eHeprrnHoto etIKKeTIpaHe.

^*3 Гошинта Консу мацянаесяргьв кWh e 6a3ираHA Na KOHcymaцяпа на TeJebu3Op,КоТо pa6OTn 4Ча саHa DeH,365dH.ДeИCTBNTeJIHaTa KOHcymaцянаесяргьзabucn OT TOBA KAK ce nI3ПОЛ3Вa TeJebu3Opa.

^4 Гошнота Консmaцянаеheprnв кWh e 6a3npaHa Na KOHcmaцяпа Na TeLEBn3Op, KoTo pa60Tu 8 yaca Ha DeH, 365 dH. DeiCTbnteJIHaTa KOHcymaцянаеheprnna 3aBnCn OT TOBa KaK ce n3noJ3Ba TeLEBn3Opa.
5 Yka3aHata KOHCyMaunHa eHeprna B pexnM FTOBHOCT Ce IOCTnra CneI KaTTo TEeBN3OpbT npNKIOUHy Heo6xOdMNITe BbTpseHN IpOuecn.
^*6 KoHcyMaIaIraHa eHepnB R pexm rTOBHOCT Ie ce yBeJIuN, KOrato BaIaRrTeJIeBn3Op e Cbbp3aH KbM MpeXa.

3a6eJekka

HaIINuHrTo Ha IOnbIHNHTeHN aKCECoApn 3aBNCu OT DbpXkBaTa/perNoHa/MoJena Ha TeJeBu3Opa N HAnuHOCTTa.
-ДиЗайНБТИСпeциФиКaциNTe NOДнжAT Ha npOMЯнб6e3npeDyUpexKdEHNe.
- Moxe da ce u3nCKBaT abOHaMeHTn 3a yCnyu n npInIOxKeHnry mOraT da ce npInaRat DOnbHnTeJIHn cPOKOb, ycNoBnry n/uIu TaKcN npn n3nOJ3BaHe Ha Google AcnCTeHT.
-ПюдуктobигТФИВTOBA pБКОВОДСТВО e 3a ДЕЛЕЦРАН PEGIAMEHT (EC) 1062/2010 HA KOMUCNЯТA. ВжTe ye6caɪta 3a Инфорmaцья OTHOCHO (EC) 2019/2013.

3a6eJekka 3a cnΦpoBaTa ΦyHKnHa TaTeIeBn3opa

LnΦpoBaTeIeBn3n（DVBHa3emHo， caTeJIHTHO nKa6eJIHO），HHTepaKTbHNuycnyr n MpeXOBn FyHKUIMoKe Da He ca DOCTbHNn BvB BCNUCKn CTpaHn Nn paNoHn. HAKOn FyHKUIMoKe Da He ca AKTbNpuHn Nn MoKe Da He pa6OTnPpABUNHO C HAKOIN DOCTaBuNc n MpeXOBn CpeDi. HAKOn DOCTaBuNc Ha TeJIeBUNOHn ycLyrnn MoKe Da NaHCJBAt TaKca 3a ycLyrnte cn.
To3n TeIeBn3Op noIdbpKa uNΦpOBo npedabAHe, n3noJI3BaJKN MPEG-2, H.264 / MPEG-4AVC n H.265/HEVC KoJeu, Ho He MoKe Da 6bJe rapaHTnpaHa cBbMeCTUMOCTTa C BCNUKn CnHaN Ha OnepaTopu/YcNyR, KOINTo MoKe Da ce npomeHrT C TeueHne Ha BpeMeTO.

HΦopMaζηa 3a TbpbroBcKn MapKn

• TepMNHTeHDMI n INTeppeic 3a MyIIMeDnC BnCOka pa3deJIteHa cnoc6HocrHDMI (HDMI-High-Definition Multimedia Interface), kakTo n Ioroto HDMl ca 3anaeHn MapKn Ha HDMl Licensing Administrator, Inc. B CbeDInHeHt e qatn n npyn DpbxabN.
• ПразиЗБeДЕНО NO ЛицЕн3 Ha Dolby Laboratories. Dolby, Dolby Audio и симвовьт Ha Двоино "D" ca ТьрвСк МарКи Ha Dolby Laboratories Licensing Corporation.
• Google TV i Cbvp3aHnte JIora ca TbproBcKn MapKn Ha Google LLC.
• Netflix é perínctpupaHa TbproBcka Mapka Ha, Netflix, Inc.

DiSEqCTM eTbproBkaMaMapKaHaEUTELSAT.

To3n TeIeBn3Op noIbpxka DiSEqC 1.0.To3n TeIeBn3Op He e npedHa3Naueh 3a ynpabJIeHne Ha aHTeHi C MOTop.

TUXERA e pernctpupaHa TbproBcKa MapKa Ha Tuxera Inc. B CAU, n npyn ctpaHn.
- BCnukn npyrn TbproBckn Mapkn ca npntexaHne Ha CbOTBeTHnte IM CO6CTBEHnU.

Perictpaunohen Homep Ha npodykta (DEJIETPAH PEGIAMEHT (EC) 2019/2013 HA KOMNCSYTA)

KD-43X72K: (1020103),
KD-43X73K: (1020117),
KD-50X72K: (1020119),
KD-50X73K: (1020120)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

Ynooortpizouevn nopfnHDMI yia PC:

640× 480@60,800× 600@60,

1024× 768@60,1280× 720@60,

1920× 1080@60,1920× 1200@60,

2560 × 1440@59,95,3840 × 2160@60

Hxoc:

PCM: 32/44,1/48 kHz 16/20/24 bit, Dolby

Audio

ARC (Audio Return Channel) (Móvo Úpα

HDMI 1)*†

1eIoupyiaARC

P C M 8o kavaiv: 48 kHz 16 bit,

Dolby Audio

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/ tv/jaepm2/h_aep/

Dijital: UHF/VHF/Kablolu

Uydu:IFFrekansi950-2150MHz

Ses ciksi: 10 W + 10 W

1080i (60 Hz, 50 Hz), 1920 × 1080p (60 Hz,

50 Hz, 30 Hz, 25 Hz, 24 Hz), 3840 × 2160p

(60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)

HDMI bilgisayar desteklenen format:

640 × 480 @ 60, 800 × 600 @ 60,

1024× 768@60,1280× 720@60,

1920 × 1080 @60, 1920 × 1200 @60,

2560 × 1440@59,95,3840 × 2160@60

Ses:

PCM: 32/44,1/48 kHz 16/20/24 bit, Dolby

Audio

ARC (Audio Return Channel) (Sadece HDMI

baŋlanti noktas1)

ARC modunda

Iki kanal dogrusal PCM: 48 kHz 16 bit, Dolby

Audio

DIGITAL AUDIO OUT (OPTICAL)

Dijital optik jak (iki kanalogrusal PCM: 48 kHz

16 bit, Dolby Audio)

(Stereo Mini Jak)

Kulaklik

1,2(HDDREC)

1 USB portu High Speed USB'yi (USB 2.0)

destekler

2 USB portu High Speed USB'yi (USB 2.0)

destekler

CAM (Kosullu Erisim Modulu) yuvasi

LAN

https://www.保养.eu/support
