USER MANUAL CTPS64SCTTWIFI CANDY

Pure geometric diagram with lines and circles, no text or symbols present

THANK YOU FOR PURCHASING THE CANDY INDUCTION HOB. PLEASEISREAD INSTRUCTION MANUAL CAREFULLY BEFORE USING THE HOB AND KEEPSAFE IN A PLACE FOR FUTUREFERENCE.

Hereby, Candy Hoover Group Srl declares the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market). The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

Safety Warnings

Your safety is important to us. Please read information before using your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying any work or maintenance on it.
• Connection to a good earth wiring system essential and mandatory.
  • Alterations to the domestic wiring system only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in inju cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard appliance must be installed according to these instructions installation.
• This appliance is to be properly installed earthed only by a suitably qualified person
• This appliance should be connected circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly c invalidate any warranty or liability claims.

Operation and maintenance Electrical Shock Hazard

- Do not cook on a broken or cracked co the cooktop surface should break or crack, swit the appliance offmediately at the mains power

supply (wall switch) and contact a qualified technician.

• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnet safety standards.
• However, persons with cardiac pacemakers other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that non-paints will not be affected by the electromagnetic fiel

- Failure to follow this advice may result in Hot Surface Hazard

- During use, accessible parts of this appliance will become hot enough to cause burns. - Do not let your body, clothing or any item than suitable cookware contact the Inductible glass until the surface is cool.

- Metallic objects such as knives, forks, spots and lids should not be placed hot surface since they can get hot

- Keep children away. - Handles of saucepans may be hot to touch. Check saucepan handles do overhang other cooking zones that are on. Keep handles reach of children.

- Failure to follow this advice could result burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scrap exposed when the safety cover is retracted. with extreme care and always store safely out of reach of children.
• Failure to use caution could result in inju cuts.

Important safety instructions

- Never leave the appliance unattended when use. Boilover causes smoking and greasy spillovers that may ignite.

- Never use your appliance as a work or surface.

- Never leave any objects or utensils on t appliance.

- Do not place or leave any magnetisable (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near appliance, as they may be affected by its electromagnetic field.

- Never use your appliance for warming or heating the room.

- After use, always turn off the cooking zo and the cooktop as described in this manual by using the touch controls). Do not rely on pan detection feature to turn off the cooking zones when you remove the pans.

- Do not allow children to play with the a or sit, stand, or climb on it.

- Do not store items of interest to children cabinets above the appliance. Children climb on the cooktop could be seriously injured.

- Do not leave children alone or unattended the area where the appliance is in use.

- Children or persons with a disability w limits their ability to use the appliance show have a responsible and competent person to instruct them in its use. The instructor shows satisfied that they can use the appliance w danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended the manual. All other servicing should be done qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on cooktop.

- Do not stand on your cooktop.

- Do not use pans with hedged drag pans across the Induction glass surface as this scratch the glass.

- Do not use scourers or another abrasive cleaning agents to clean your cook as these can scratch the Induction glass.

- If the supply cord is damaged, it must replaced by the manufacturer, its service ag or similarly qualified persons in order to av hazard.

•This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and working environments; -farm houses; -by clients in hotels, motels and other resident type environments; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching head elements.

Children less than 8 years of age shall be away unless continuously supervised.

- This appliance can be used by children ag from 8 years and above and persons with reduced physical, sensory or mental capability or lack of experience and knowledge if they been given supervision instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Unattended cooking on a hob w fat or oil cardangerous and may result in fir NEVER try to extinguish a fire with water, switch off appliance and then cover flame e with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items the cooking surfaces.

- Warning: If the surface is cracked, switch the appliance to avoid the possibility of ele

shock, for hob surfaces of glass-ceramic or similar material which protect live parts

•A steam cleaner is not to be used.

- The appliance is not intended to be operational means of an external timer or separate remote-control system.

CAUTION: The cooking process has to be supervised. A short term cooking process has be supervised continuously.

WARNING: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.

WARNING: Use only hob guards designed by manufacturer of the cooking appliance or indicated by the manufacture of the appliance, the instruction for use as suitable or hob (incorporated in the appliance. The use of inappropriate guards can cause accidents.

This appliance incorporates an earth connecti for functional purposes only.

Congratulations on the purchase of your new Induction Hob.

We recommend that you spend some time to read this Instruction / Ins Manual in order to fully understand how to install correctly and operate For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction Manual for future reference.

Product Overview

Top View

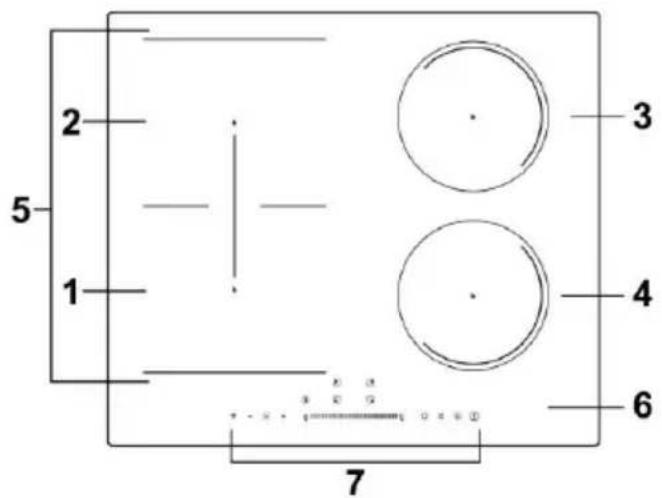

2 5 1 3 4 6 7

1.2000 W zone, boost to 2600W
2.1500 W zone, boost to 2000W
3.2000 W zone, boost to 2600W
4.1500 W zone, boost to 2000W
5. Flex zone, 2800w boost to |3500
6. Glass plate
7. Control panel

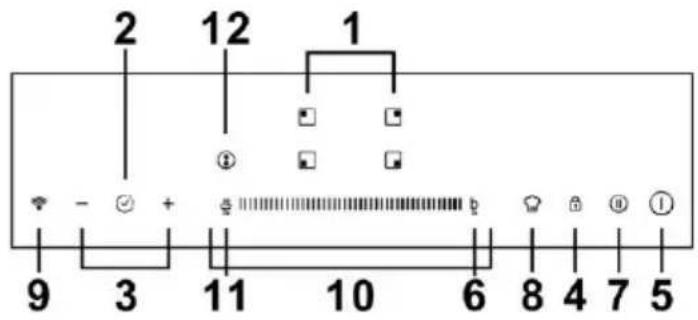

Control Panel

2 12 1 - + # # # # 9 3 11 10 6 8 4 7 5

1. Heating zone selection controls
2. Timer control
3. Timer regulating key
4. keylock control
5. ON/OFF control
6. Boost function control
7. Pause function
8. Direct cook button
9. WiFi button
10. Power regulating key
11. Keep warm function control

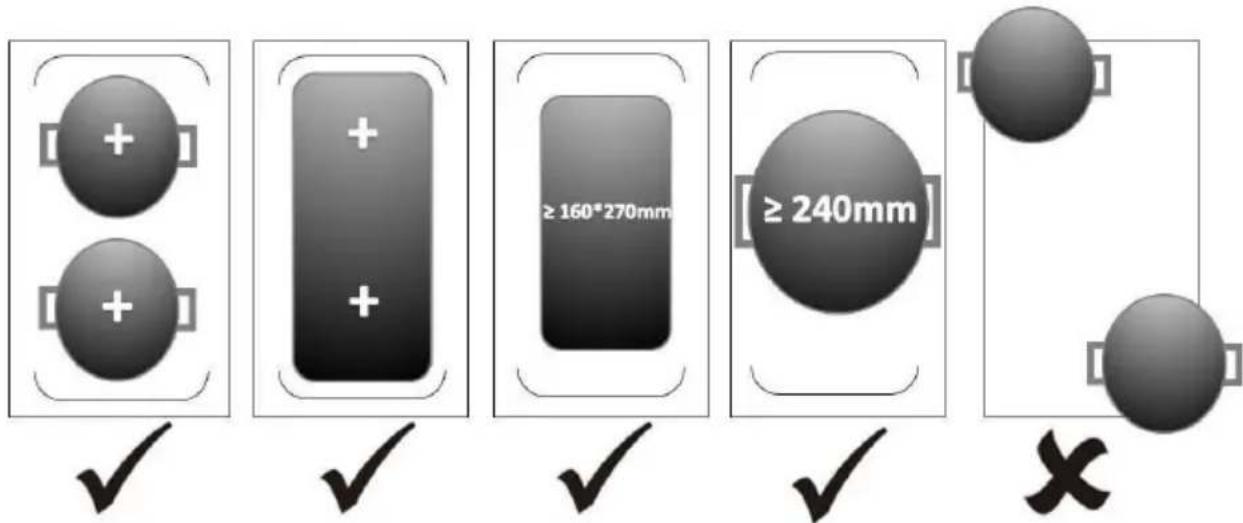

12. Flex zone

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass I hot only because the pan eventually warms it up.

Diagram of a steam locomotive with wheels and exhaust lines, no text or symbols present

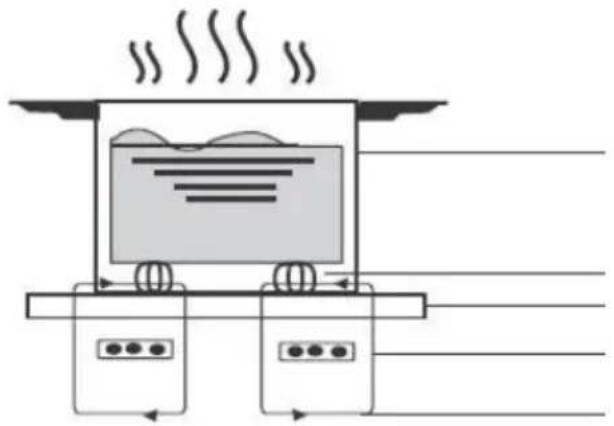

iron pot magnetic circuit ceramic glass plate induction coil induced currents

Before using your New Induction Hob

- Read this guide, taking special note of the 'Safety section.

- Remove any protective film that may still binductiondurb.

Using the Touch Controls

- The controls respond to touch, so you don't need to apply any press

• Use the ball of your finger, not its tip.

- You will hear a beep each time a touch is registered.

- Make sure the controls are always clean, dry, and that there is no utensil or a cloth) covering them. Even a thin film of water may ma controls difficult to operate.

Diagram showing two hand positions with check and cross symbols, likely illustrating correct and incorrect movement.

Choosing the right Cookware

- Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

- You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

• If you do not have a magnet:

1. Put some water in the pan you want to check.

2. If does not flash in the display and the water is heating, the pan is suitable.

- Cookware made from the following materials is not suitable: pure stainless steel, alum copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

g out n. If it

Do not use cookware with jagged edges or a curved base.

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Make sure that the base of your pan is smooth, sits flat against the same size as the cooking zone. Use pans whose diameter is as large graphic of the zone selected. Using a pot a slightly wider energy will be maximum efficiency. If you smaller pot efficiency could be less than expected.

Always centre your pan on the cooking zone.

Simple line drawing of a cooking pot with crossed-out X symbol (no text or labels)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Always lift pans off the Induction hob - do not slide, or they may scr

Pure diagram of a tank with crossed arrows indicating pressure or flow, no text or symbols present

Pan dimensions

The cooking zones are up to a limit, automatically adapted to the diam pan. However the bottom of this pan must have a minimum of diameter to the corresponding cooking zone. To obtain the best efficiency of your please place the pan in the centre of the cooking zone.

The base diameter of induction cookware

Cooking zone	Minimum (mm)
1,2,3,4 (180mm)	120
Flex zone	240 or 160*270

The above may vary according to the quality of the pan used.

Using your Induction Hob

To start cooking

1. Touch the ON/OFF control.

After power on, the buzzer beeps once, all displays show " - " or " - - ", indicating that the induction hob has entered the state of standby mode.

1. Place a suitable pan on the cooking zone that you wish to use.

- Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

1. Touching the heating zone selection, and a indicator next to the key will flash.

I how ) has enter

Line drawing of a cooking pot on a stand (no text or symbols)

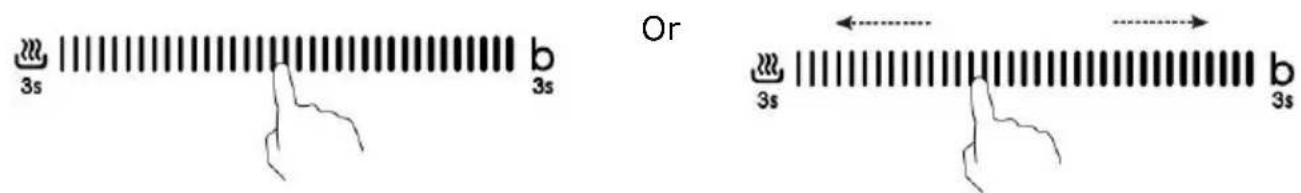

1. Select one heating zone and set a power level by touching slide along the “—” control, or just touch any point of the “—”,

Or b 3s 3s 3s b 3s

a. If you don't select a heat zone within 1 minute, the ceramic hob automatically switch off. You will need to start again at step b. You can modify the heat setting at any time during cooking. c. If slide along the “—”, power will vary from stage 2 to stage 8. Press “-”, power will decrease by one stage each time till stage 0. Press “+”, power will increase by one stage each time till stage9.

If the display flashes alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or,
• the pan you're using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking. The display wailtomatically turn off after 1 minutes if no suitable pan is placed on it.

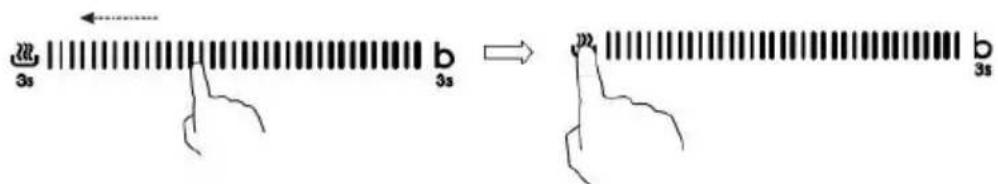

When you have finished cooking

1. Touching the heating zone selection control that to you will switch off.

1. Turn the cooking zone off by slide along the “—” to the left point, for 1 second.

3s b 3s b 3s

Make sure the power display shows "0", then shows "H".

0 □ and then H □

1. Turn the whole cooktop touching the ON/OFF control.

2. Beware of hot surfaces

'H' will show which cooking zone is hot to touch. It will disappear with surface has cooled down to a safe temperature. It can also be used energy saving function if you want to heat further pans, use the hot that is still hot.

Using the Power Management

Using power management you can set the total power to 2.5kW/ 3.0kW 6.5kW and 7.4kW. The default total power setting is the power level

Setting the total power level to fit your requirem

1. Make sure the cooktop is turned off.

Note: you can only set power management when the cooktop is turned

1. Touch the button "pause function" and hold for 5 seconds. You can hear the buzzer beeps one time.

2. After you hear the beep, touch "+" and "-" but terminate the and hold for 3 second, the timer indicator will show flashing previous to level, e.g. '2.5'. Touch and hold "+" and "-" for 1 second again to power level, for example 3.0. When the power that you want is flashing button "pause function" and hold for 5 seconds. The buzzer will beep 1 means you have finished the setting.

Note:

1. After step 2, you must touch the "+" and "-" within 3 seconds at the beep. Otherwise you will need to start again from step 2.
2. Once finisetting, wait till the end beeps. Do not touch any button during this period. Otherwise the setting will be invalid.

Power management Rules

If total power exceeds the limitation of 2.5kw, 3.0kw, 4.5kw, 6.5kw (depon which level you've set), you are not able to increase power stage of. If you increase it by touching '+', the cooktop will beep 3 times and show a flashing 'Pn'. Thus you need to decrease power stage of other increasing the power of objective zone.

Direct Cook

First, download the hOn App and install to your portable device. Then e induction hob.

Switch on the hob, touch the WiFi button and hold for 3 seconds, the display 'rr', and the Indicator light with flash, then you start the enrollment.

Once the WIFI module connects the router successfully, the WiFi indicator will be on all the time. Otherwise the WiFi indicator keep flashing.

How to set

Set the direct cook procedure on hOn App, recommend to the hob, you will hear two beeps and the dot of the timer display will flash. Then the Direct cook button, you will hear one beep and the dot of the timer fixed. The hob will work following the setting on App and the selected show "A.". On the App you will have access to 15 assisted cooking red together with some special functions: Keep warm, Melting, Boiling, Simmer and Frying.

Attention:

There is a special case. If all the zone indicator lights went out when cooking recipes on App, you'll need to touch On/off button before touch cook button. Once all indicator lights went out, within 10 minutes you finish the cooking recipe setting. Otherwise you will need to connect the and set the recipe again.

a. WIRELESS PARAMETERS

Technology	Wi-Fi	BLE
Standard	802.11 b/g/n	v4.2 BR/EDR &BLE
Frequency Band(s) [MHz	2400 ~ 2500	2400 ~ 2500
Maximum Power [mW]	100	8

b. PRODUCT INFORMATION FOR NETWORKED EQUIPMENT

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	N/A
How to activate wireless network port:	For WiFi activation, press seconds the WiFi button
How to deactivate wireless network po	For WiFi de-activation, press seconds the WIFI button

Using the Boost

Boost is the function that one zone rising to a larger power in one setting lasting for 5 minutes. Thus you can get a more powerful and faster cc

Using the Boost to get larger power

1. Touch the heating zone selection button that you will boost, an indicator next to the key will flash.

2. Touch the "b" button and hold 3 second, the heating zone will begin to boost mode. The power display will show "P" to indicate that the zo boosting.

3s b P

1. The Boost power will last for 5 minutes and then the zone will go

power stage 9.

1. If you want to cancel the Boost during this 5 minutes, touch the "twice." The heating zone will go back to "9" power stage. Or slide along the left point, the heating zone will go back to the power stage in which touched.

3s b Or 3s b 3s

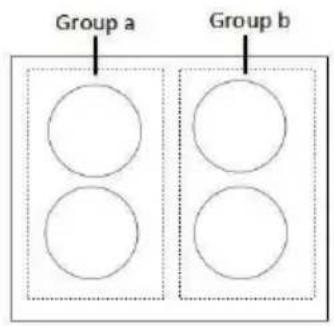

Restrictions when using

The four zones were divided into two groups. In one group, if use boo zone, first make sure that the other zone is working on/below power le

Group a Group b

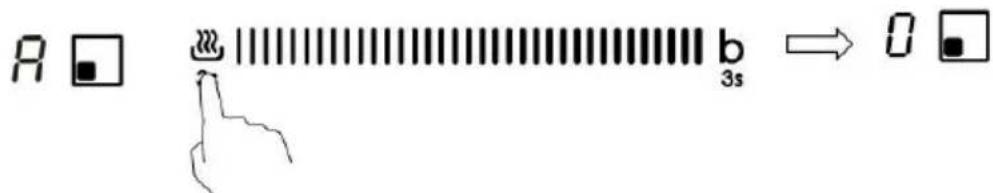

Using the Keep warm

Keep warm function is suitable for keeping food warm.

Using the Keep warm to get stable temperature

1. Touch the heating zone selection button that to you will use keep warm, an indicator next to the key will f

1. Touch the buttons, then hold 3 seconds, cooking zone indicator will display "A".

6 □ b 3s → R □

1. If you want to cancel the keep warm, touch the heating zon button, and then touch the button for 3 second. The heating zor will go back to "0" power stage.

R □ b 3s → 0 □

Using the Pause function

Pause function can be used at any time during cooking. It allows to st induction cooktop and come back to it.

1. Make sure the cook zone is working.

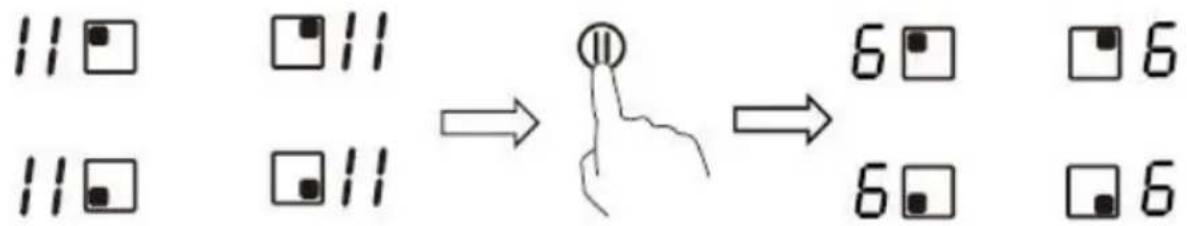

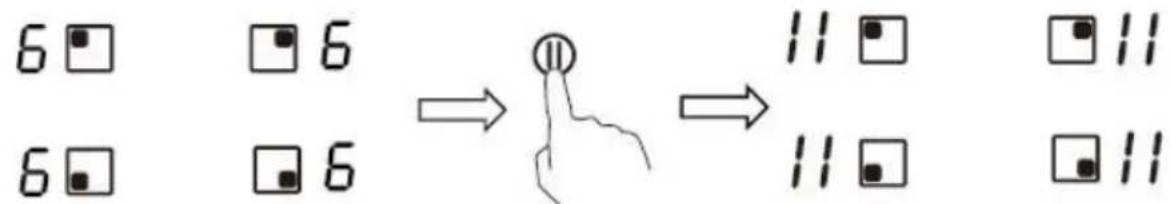

2. Touch the button pause function, the cooking zone indicator will show And then the operation of the induction cooktop void deactivate within shape of all cooking zones, except the pause function, on/off and lock keys.

6□ 6□ 6□ 6 → 11□ 11□ 11□ 11□

EN-17

1. To cancel the pause status, touch the button pause function in the zone will go back to the power stage which you set before.

11□ □11 11□ □11 → ⑪ 6□ □6 6□ □6

Flexible area

• This area can be used as a single zone or as two different zones, the cooking needs anytime.
• Flexible area is made of two independent inductors et controlled by separately.
• Important: Make sure to place the cookwares centered on the single cooking zone. In case of big pot, oval, rectangular and elongated pans make su the pans centered on the cooking zone covering both cross.

Examples for good and bad pot placements:

≥160°270mm ≥240mm

As big zone

1. Touch the flex zone selection button to activate the flexible area as zone, the indicator will show .

1. Touch one of the heating selection button, the hide along the “—” control, or just touch any point of the “—” to adjust the power level.

As two independent zones

1. If you want to cancel the flex zone, just touch the button, the indicator next to the flex zone button will disappear.

Diagram showing a hand pointing to an icon with an arrow, next to an exclamation mark symbol

Locking the Controls

• You can lock the controls to prevent unintended use (for example chi accidentally turning the cooking zones on).
• When the controls are locked, all the controls except control/NOFF disabled.

To lock the controls

Touch the keylock control. The timer indicator will show "Lo"

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for a while
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disable except to you can always turn the induction hob off with the ON/OFF control in an but you shall unlock the hob first in the next operation.

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the In hob. When an excessive temperature is monitored, the Induction hob will operation automatically.

Over-spillage Protection

Over-spillage protection is a safety protection function. It switch off the automatically within 10s if the water flow to the control panel, while but beep 1 second.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some

small item (e.g. knife, fork, key) has been left on the hob, the hob a go on to standby in 1 minute. The fan will keep cooking down the in a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. I automatically if ever you forget to turn off your cooking. The default work for various power levels are shown in the below table:

Power level	1	2	3	4	5	6	7	8	9	A	II
Default working timer (hour)	8	8	8	4	4	4	2	2	2	1	2

When the pot is removed, the induction hob can stop heating immediate hob automatically switch off after 2 minutes.

People with a heart pace maker should consider doctor before using this unit.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is
• You can set the timer up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting any cooking one.

1. Touch timer control, the minder indicator will start flashing and "30"

will show in the timer display.

1. Set the time by touching the “-” or “+” control

Hint: Touch the "-" or "+" control once to decrease or increase by 1 Hold the "-" or "+" control of the timer to decrease or increase minutes.

1. Cancel the time by touching the timer control and the "00" the will show minute display and then "--".

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

2. Buzzer will bips for 30 seconds and the timer indicator shows “- - ” when the setting time finished.

Setting the timer to turn one cooking zone off

Cooking zones set for this feature will:

1. Touching the heating zone selection control that you want to set the timer for. (e.g. zone 1#)

2. Touch timer control, The minder indicator will start flashing and "00" will show in the timer display.

3. Set the time by touching the "-" or "+" control.

6 00

Hint: Touch the “-” or “+” control once will decrease or increase by Touch and hold the “-” or “+” control, the timer will decrease by 10 minutes.

If the setting time exceeds 99 minutes, the timer will automatic return to 0 minute.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flashseconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

1. To cancel the timer, touch the heating zone selection control, and the "-" of timer and scrolling down to "0", the timer is cancelled, and show in the minute display, and then "--".

1. When cooking timer expires, the corresponding cooking zone will be automatically switch off drshow "H".

Other cooking zone will keep operating if they are previously.

Setting the timer to turn more than one cooking off

1. If use this function more than one heating zone, the timer indicator will the shortest time.

(e.g. zone 1# setting time of 2 minutes, zone 2# setting time of ! the timer indicator shows "2".)

NOTE: The flashing red dot next to power level indicator means the indicator is showing time of the heating zone.

If you want to check the set time of other heating zone, touch the zone selection control. The timer will indicate its set time.

(set to 5 minutes)

(set to 2 minutes)

1. When cooking timer expires, the corresponding heating zone will be automatically switch off and show "H".

NOTE: If you want to change the time after the timer is set, you h from step 1

Care and Cleaning

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still w (but not hot!)3. Rinse and wipe dry with clean cloth or paper towel4. Switch the power to the cooktop back on.	·When the power to the cooktop switched off, there will be no surface' indication but the cooki zone may still be hot! Take e care.·Heavy-duty scourers, some nylo scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scoure suitable.·Never leave cleaning residue o cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills o the glass	Remove these immediately with a fish slice, palette kr razor blade scraper suitable Induction glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utens 30° angle and scrape the soiling or spill to a cool of the cooktop.3. Clean the soiling or spill with a dish cloth or pap towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	·Remove stains left by melts a sugary food or spillovers as so as possible. If left to cool on glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety is retracted, the blade in a so is razor-sharp. Use with extrem care and always store safely a out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control with a clean damp spong cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	·The cooktop may beep and tu itself off, and the touch contro may not function while there is liquid on them. Make sure you the touch control area dry before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The induction hob cannot be turned or	No power.	Make sure the induction hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. I you've checked everything and the problem persists, call a qualified technician.
The touch controls a unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your induction cooktop' for instructions.
The touch controls a difficult to operate.	There may be a slight film water over the controls or may be using the tip of yo finger when touching the controls.	Make sure the touch control are dry and use the ball of your fi when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer of cleaning products being used.	Use cookware with flat and smo bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a lowhumming noise when used on a high heat setting.	This is caused by the techn of induction cooking.	This is normal, but the noise sh quieten down or disappear completely when you decrease th heat setting.
Fan noise coming from the induction hob.	A cooling fan built into you induction hob has come on prevent the electronics from overheating. It may continue run even after you've turned induction hob off.	This is normal and needs no ad Do not switch the power to the induction hob off at the wall wh fan is running.
Pans do not become hot and appears in display.	The induction hob cannot detect the pan because it is suitable for induction cooking.The induction hob cannot de the pan because it is too s for the cooking zone or not properly centred on it.	Use cookware suitable for inducti cooking. See section 'Choosing th right cookware'.Centre the pan and make sure base matches the size of the co zone.
The induction hob or cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two dig in the cooking timer display).	Technical fault. Please note	down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

Failure Display and Inspection

If an abnormality comes up, the induction hob will enter the protective automatically and display corresponding protective codes:

Problem	Possible causes	What to do
F3/F4	Temperature sensor of the induction coil failure	Please contact the supplier
F9/FA	Temperature sensor of the IG failure.	Please contact the supplier
E1/E2	Abnormal supply voltage	Please inspect whether power supply is normal.Power on after the power supply is normal.
E3	High temperature of the induced coil temperature sensor	Please contact the supplier
E5	High temperature of the IGBT temperature sensor	Please restart after the hot cools down.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and to the induction hob.

Technical Specification

Cooking Hob	CTPS64SCTTWIFI
Cooking Zones	4 Zones
Supply Voltage	220-240V~, 50-60Hz
Installed Electric Power	2.5kw:2250-2750W or3.0 kw:2700-3300W or4.5kw:4050-4950W or6.5kw:5850-7150W or7.4kw:6600-7400W
Product Size L×W×H(mm)	590×520×60
Building-in Dimensions A×B (mn)	560×490

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without notice.

Installation

Selection of installation equipment

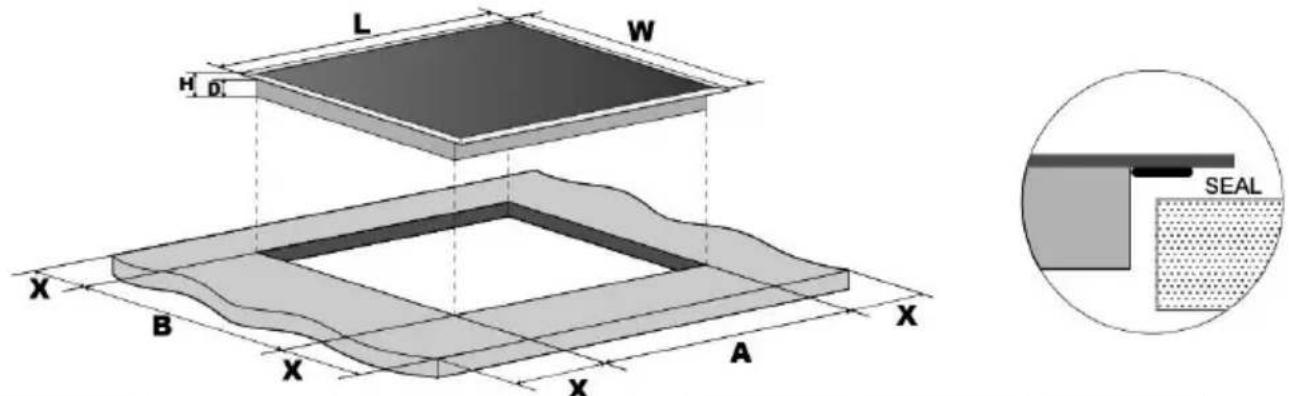

Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space share preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please se resistant work surface material to avoid larger deformation caused by the radiation from the hotplate. As shown below:

L W H D X B X A X SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	60	56	560_+5	490_+5	50 mini

Under any circumstances, make sure the Induction cooker hob is well ve and the air inlet and outlet are not blocked. Ensure the Induction cooker good work state. As shown below

Note: The safety distance between the hotplate and the cupboard the hotplate should be at least 760mm.

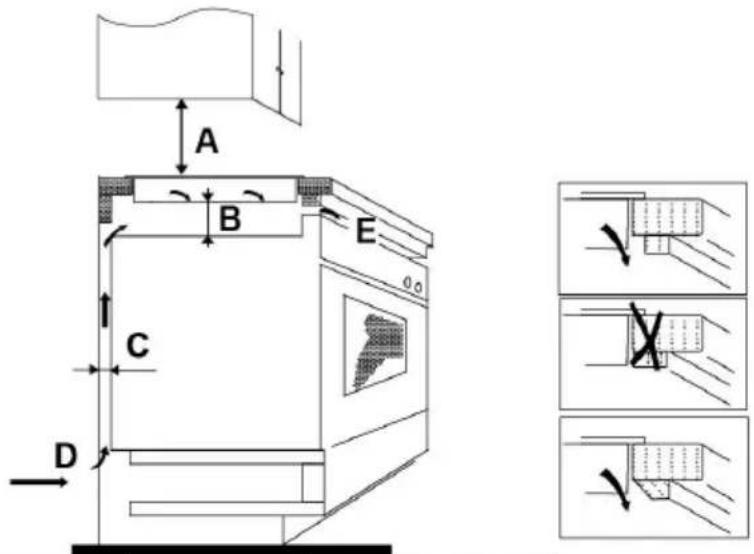

A B E C D

Before you install the hob, make sure that

• the work surface is square and level, and no structural reference exists space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven doading built-in
• the installation will comply with all clearance requirements and applicab standards and regulations
• a suitable isolating switch providing full disconnection mfoins power supply is incorporated in the permanent wiring, mounted and positioned comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 m contact separation in all poles (or in all active [phase] conductors if t wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with t installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard awarders
• there is adequate flow of fresh air from outside the cabinetry to the hob
• if the hob is installed above a drawer or cupboard space, a thermal barrier is installed below the base of the hob
  • the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unshould be placed on a statheth surface (use Packaging). Do not apply force onto the controls protruding from the hob.

Adjusting the bracket position

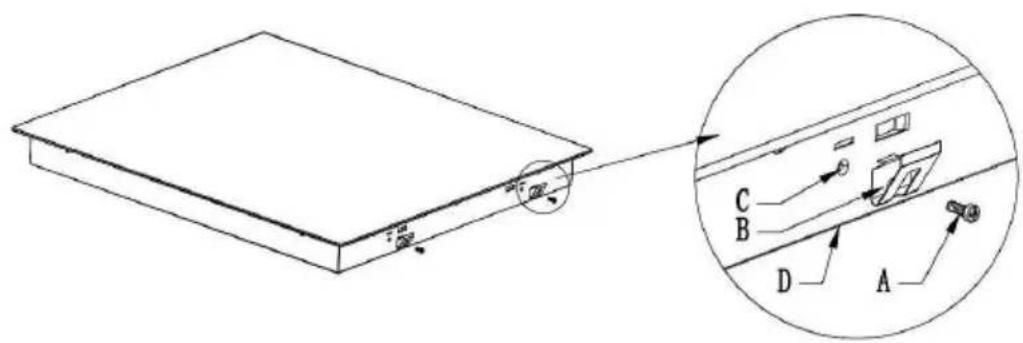

Fix the hob on the work surface by screw 4 brackets on the bottom (see picture) after installation.

Technical diagram of a CD-ROM drive with labeled components A, B, C, D and an inset view showing internal components.

A	B	C	D
Screw	Bracket	Screw hole	Bottom case

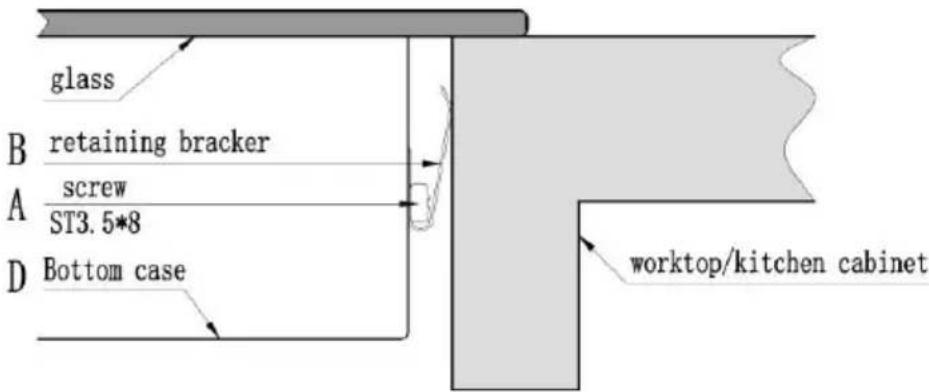

glass B retaining bracker A screw ST3.5*8 D Bottom case worktop/kitchen cabinet

Cautions

1. The induction hotplate must be installed by qualified personnel or tecl We have professionals at your service. Please never conduct the opera yourself.

2. The hob will not be installed directly above a dishwasher, fridge, free washing machine or clothes dryer, as the humidity may damage the electronics

3. The induction hotplate shall be installed such that better heat radiation ensured to enhance its reliability.
4. The wall induced heatingone above the table shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resist heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably quali. Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating. To connect the hob to the mains power supply, do not use adapters, reducers, devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned at temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without a Any alterations must only be made by a qualified electrician.

The power supply should be connected in compliance with the relevant s or a single-pole circuit breaker. The method of connection is shown belo

Input 220-240V~ L N Black Brown Grey Buy Blue Yellow/Green Input 220-240V~ 220-240V~ L1 L2 N1 N2 Black Brown Grey Buy Blue Yellow/Green Power Cord Input 220-240V~ 400V~ L1 L2 N Black Brown Grey Buy Blue Yellow/Green Power Cord Input 400V~ L1 L2 Black Brown Grey Buy Blue Yellow/Green Power Cord

• If the cable is damaged or to be replaced, the operation must be c by after-sale agent with dedicated tools to avoid any accidents.

• If the appliance is being connected directly to the mains an omnipola circuit-breaker must be installed with a minimum opening of 3mm betw contacts.

• The installer must ensure that the correct electrical connection made as b and that it is compliant with safety regulations.

• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised techn only.

This appliance is labelled in accordance with European Directive 2012/19/E regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) base elements (that can be reused). It is important that the WEEE under specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; It is essential follow a few basic rules:

-the WEEE should not be treated as domestic waste;

-the WEEE should be taken to dedicated collection areas managed by the town council registered company.

In many countries, domestic collections may be available for large WEEEs. When you new appliance, the old one can be returned to the vendor who must accept it free a one-off, as long as the appliance is of an equivalent type and has the same fund purchased appliance.

Product Information for Domestic Electric Hobs Compliant to Commission Regulatio 66/2014
		Position	Symbol	Value	Unit
Model identification				CTPS64SCTTWIFI
Type of hob:				Electric Hob
Number of cooki zones and/or are	zones			4
	areas
Heating technoloq (induction cookin zones and cooki areas, radiant cooking zones, solid plates)	Induction cooking zones			X
	Induction cooking cooking areas
	radiant cooking zones
	solid plates
For circular cooking zones or a diameter of useful surface area electric heated cooking zone, rou to the nearest 5mm		Rear left	∅	-	cm
		Rear centra	∅	-	cm
		Rear right	∅	18,0	cm
		Central left	∅	-	cm
		Central central	∅	-	cm
		Central right	∅	-	cm
		Front left	∅	-	cm
		Front centra	∅	-	cm
		Front right	∅	18,0	cm
For non-circular cooking zones areas: length and width of us surface area per electric heated zone or area, rounded to the 5mm		Rear left	LW	21,020,0	cm
		Rear centra	LW	-	cm
		Rear right	LW	-	cm
	Central left	LW	-	cm
	Central central	LW	-	cm
	Central right	LW	-	cm
	Front left	LW	21,020,0	cm
	Front centra	LW	-	cm
	Front right	LW	-	cm
Energy consumption for cooking or area calculated per kg	Rear left	ECElectric cooking	186,5	Wh/kg
	Rear central	ECElectric cooking	-	Wh/kg
	Rear right	ECElectric cooking	197,2	Wh/kg
	Central left	ECElectric cooking	-	Wh/kg
	Central central	ECElectric cooking	-	Wh/kg
	Central right	ECElectric cooking	-	Wh/kg
	Front left	ECElectric cooking	187,3	Wh/kg
	Front centra	ECElectric cooking	-	Wh/kg
	Front right	ECElectric cooking	195,6	Wh/kg
Energy consumption for the ho calculated per kg		ECElectric hol	191,7	Wh/kg
Standard applied : EN 60350-2 Household electric cooking appliances - Part 2: H measuring performance
Suggestions for Energy Saving:Toobtain the best efficiency of your hob, please place the pan in the centreUsing a lid will reduce cooking times and save energy by retaining the heat.Minimise the amount of liquid or fat to reduce cooking times.Start cooking on a high setting and reduce the setting when the food has hUse pans whose diameter is as large as the graphic of the zone selected.

Diagram of a steam heating machine with cooling unit and two-mounted appliances (no text or symbols)

marmite en fer

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand movement.

Three identical cooking pots with crossed-out X symbols, no text or labels present

Four identical cooking pots with crossed-out X marks, shown in a row (no text or symbols)

Two cooking pots with crossed arrows indicating pressure, one with cross symbol and the other with bidirectional arrows (no text or labels)

Line drawing of a cooking pot on a stand (no text or symbols)

3s b 3s → b 3s

3s b 3s Ou

3s b 3s

6 □ b 3s → A □

R □ b 3s → 0 □

+ + ≥ 16 0*270mm ≥240mm ✓ ✓ ✓ ✓ ✓

Diagram showing a hand pointing to an icon with an arrow, indicating direction or transformation.

Protection anti-débordement

L W H D' X B X A X X A JOINT

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	60	56	560_+5	490_+5	50 mini

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal component.

Pure electrical circuit lines without any symbols

Diagram of a steam locomotive with wheels and air flow indicators (no text or symbols)

pentola in acciaio

circuito magnetico

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect positioning.

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X symbols, no text or labels present

Two cooking pots with directional arrows indicating heating or cooling (no text or symbols)

Simple line drawing of a cooking pot on a stand (no text or symbols)

3s b 3s b 3s

6 □ b 3s → R □

A □ b 3s → 0 □

Diagram showing a hand pointing to an icon with an exclamation mark, followed by an arrow pointing to an exclamation mark and three vertically aligned symbols.

Diagram showing a hand pointing to an icon with a minus sign and an arrow, next to an exclamation mark symbol.

Blocco dei comandi

L W H D' X B X A X X X GUARNIZIONE

L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	60	56	560_+5	490_+5	Min 50

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal component.

Pure electrical circuit lines without any symbols

Diagram of a steam heating machine with cooling unit and two control panels (no text or symbols)

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand movement.

Three identical cooking pots with crossed-out X marks on their bases, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Two cooking pots with crossed arrows indicating heating or cooling conditions (no text or symbols)

Rozměry nádoby

Nebo 3s 3s b 3s

3s b 3s b 3s

A □ b 3s → 0 □

6□ 6□ 6□ → 11□ 11□ 11□ 11□ 11□

≥ 160*270mm ≥ 240mm ✓ ✓ ✓ ✓ ✓

Jako velká zóna

Diagram showing a hand pointing to an icon with an exclamation mark, followed by an arrow pointing to a minus sign and three dots.

Diagram showing a hand pointing to an information symbol with an arrow indicating direction, next to an exclamation mark.

Zablokováníovládání

L W H D X B X A X SEAL

D (mm)	Š (mm)	V (mm)	H (mm)	A (mm)	B (mm)	X (mm)
590	520	60	56	560_+5	490_+5	50 mini

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal structure.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple line drawing of a steaming machine with heat dissipation, no text or symbols present

Diagram showing correct and incorrect hand positions on a line, with checkmark and cross symbols indicating correct and incorrect states.

Simple line drawing of a cooking pot with a U-shaped magnet (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed arrows indicating pressure or heat (no text or symbols)

Диаметры конфорок

3s b 3s b 3s

A □ b 3s → 0 □

Diagram illustrating five different physical configurations with plus symbols and dimensional tolerances, including checkmarks and X marks.

Diagram showing a hand pointing at an icon with an arrow, next to an exclamation mark and a small circle symbol.

L W H D X B X A X SEAL

L (MM)	W (MM)	H (MM)	D (MM)	A (MM)	B (MM)	X (MM)
590	520	60	56	560+5	490+5	МИН. 50

Technical diagram showing a rectangular device with labeled components and an inset view of its internal components.

2 12 1 - + # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

Simple line drawing of a steaming machine with heat dissipation, no text or symbols present

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect movement.

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Two cooking pots with crossed handles and directional arrows indicating pressure or movement (no text or symbols)

Rozmery hrnca

Alebo 3s b 3s 3s

3s b 3s b 3s

÷2.5→-÷3.0+

Poznámka:

3s Alebo 3s 3s

A □ b 3s → 0 □

Diagram showing a branching structure with an exclamation mark and a rightward arrow pointing to a series of symbols.

Diagram showing a hand pointing at an icon with an arrow indicating direction, next to an exclamation mark symbol.

30 00 -- ✓

L W H D' X B X A X SEAL

D (mm)	Š (mm)	V (mm)	H (mm)	A (mm)	B (mm)	X (mm)
590	520	60	56	560+5	490+5	50 mini

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal structure.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Diagram of a steam locomotive with wheels and air flow indicators (no text or symbols)

Eisentopf

Magnetkreis

Keramikglasplatte

Induktionsspule

induzierte Ströme

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

Three identical cooking pots with crossed X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating heating or cooling conditions, one crossed over the other.

Topfgröße

3s b 3s → b 3s

3s b 3s Oder 3s b 3s

R □ b 3s → 0 □

6□ 6□ 6□ 6 → 11□ 11□ 11□ 11□ 11□

+ + + ≥ 160°270mm ≥ 240mm ✓ ✓ ✓ ✓ X

Als große Zone

Diagram showing a hand pointing to an icon with an exclamation mark, followed by a rightward arrow and a series of symbols.

Diagram showing a hand pointing to an icon with an arrow, indicating direction or transformation.

Tastensperre

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal structure.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Diagram of a steam locomotive with wheels and exhaust lines, no text or symbols present

żelazny garnek

Two hand-drawn diagrams showing a shoe being checked and crossed, with checkmark and cross symbols (no text or labels)

Three identical cooking pots with crossed-out X marks on their bases, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Two cooking pots with crossed arrows indicating opposing pressure, one with a cross symbol and the other with a double-headed arrow (no text or labels)

Wymiary patelni

3s b 3s → b 3s

Two identical empty circles with dashed borders, each with a vertical line above (no text or symbols)

Hand-drawn diagram showing a finger pointing to a numbered circle with 'II' and an arrow indicating direction.

Diagram showing transformation of a square to a circle with an arrow indicating direction

+ + ≥ 160*270mm ≥ 240mm ✓ ✓ ✓ ✓ X

Jako duża strefa

Diagram showing a hand pointing to an icon with an arrow, followed by a minus sign symbol

Diagram showing a hand pointing to an icon with an arrow, indicating direction or transformation.

Technical diagram showing a device with labeled components A, B, C, D and an inset view of the internal component.
