USER MANUAL AG-UCK20G PANASONIC

3D rendering of a cylindrical device with a rectangular cutout and mounting holes (no text or symbols)

AVCHD™

Progressive

DOLBY AUDIO

保証書付き

Before operating this product, please read the instructions carefully and save this manual for future use.

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.

CAUTION!

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not place sources of naked flames, such as lighted candles, on this unit.

CAUTION:

Do not lift the unit while the tripod is attached.

When the tripod is attached, its weight will also affect the unit, possibly causing the unit to break and hurting the user. To carry the unit while the tripod is attached, take hold of the tripod.

CAUTION:

Do not leave the unit in direct contact with the skin when in use.

- Low temperature burns may result if the skin is left in direct contact with the high temperature parts of the unit or heated air from the ventilation openings of the unit. Use a support such as a tripod when using the unit for long periods.

indicates safety information.

■ Product identification marking

Product Identification Marking is located on the bottom of the unit.

This unit is intended for use in moderate and tropical climates. (Southeast Asia, Middle East only) This unit is intended for use in moderate climates. (Except Southeast Asia, Middle East)

■ IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use

Silhouette of a person pushing a ladder inside a circle (no text or symbols)

caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC NOTICE (USA)

Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza Newark NJ07102

Support contact: 1-800-524-1448

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To assure continued compliance, follow the attached installation instructions and do not make any unauthorized modifications.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. The user may find the booklet “Something About Interference” available from FCC local regional offices helpful.

Any unauthorized changes or modifications to this equipment could void the user's authority to operate this device.

NOTIFICATION (Canada)

CAN ICES-3(B)/NMB-3(B)

indicates safety information.

Manufactured by: Panasonic Corporation, Osaka, Japan Importer's name and address of pursuant to EU rules: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany

This camera head is for use with the AG-UMR20 memory card portable recorder only. It cannot be connected to any device other than the AG-UMR20.

- Refer to the Operating Instructions of the AG-UMR20 memory card portable recorder and the leaflet supplied with it for information about how to use the Camera Head and the Recorder.

Note concerning illustrations in these instructions

- The illustrations in these instructions may differ from the actual product.

Wiring, attaching and detaching require technical skills and experience. To ensure safety, ask the dealer from whom you purchased the product to perform these tasks.

Also, make sure the camera head option cable is securely connected.

For details, please refer to the Operating Instructions for the AG-UMR20 memory card portable recorder.

Contents

Information for Your Safety....3

Operating precautions 7

Accessories....8

Description of parts 9

About copyright 10

Specifications 11

Operating precautions

The camera head becomes warm during usage. This is not a defect.

Do not allow any water to get into the unit when using it in the rain or snow or at the beach.

- Failure to heed this caution will cause the unit to malfunction (and may result in irreparable damage).

Keep this unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).

• If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be disrupted by electromagnetic wave radiation.
• Do not use this unit near cell phones because doing so may result in noise adversely affecting the pictures and/or sound.
• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields created by speakers or large motors.
• Electromagnetic wave radiation generated by microprocessors may adversely affect this unit, disturbing the pictures and/or sound.
• If the camera head is so adversely affected that it does not operate normally, remove the recorder battery and AC adaptor, reconnect them and turn the power on again.

Do not use this unit near radio transmitters or high-voltage lines.

- If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound may be adversely affected.

Connection to the dedicated recorder AG-UMR20

- Always use a genuine Panasonic Camera head option cable (AG-C20003G (3 m (118-1/8 ")), AG-C20020G (20 m (787-3/8 ")): optional).

If using the unit at the beach or any place that is sandy or dusty, take care that sand and dust do not get inside the unit or on its terminals. Do not allow the unit to get wet with salt water, etc.

• Sand and dust can damage the unit.
• If the unit has come in contact with salt water, wipe with a cloth that has been well wrung out, then wipe with a dry cloth.

While the camera head and recorder are connected, do not carry them by holding only the camera head or cable.

- A strong load may be applied to the camera head or cable, resulting in damage.

If insect sprays or other volatile substances are being used in the area, take care that they do not come in contact with the unit.

• These can warp the unit or cause the finish to come off.
• Do not leave the unit in contact with rubber or PVC products for extended periods of time.

After use, turn off the power of the recorder, and then remove the camera head option cable.

Do not aim the lens at the sun or strong light.

- Doing so may cause your camera head to malfunction.

Caution regarding laser beams

- The image sensor may be damaged if it is subjected to light from a laser beam. When using the unit in locations where laser irradiation equipment is used, be careful not to allow the laser beam to shine directly on the lens.

Cleaning

When cleaning, do not use benzine or thinner.

• Using benzine or paint thinners may deform the camera head and/or cause the surface finish to peel off.
• Before proceeding with maintenance, disconnect the camera head option cable from the camera head.
• Use a soft, clean cloth to wipe the camera head. To remove stubborn dirt, wipe the camera head with a cloth moistened with kitchen detergent that has been diluted with water and then use a dry cloth to take up the remaining moisture.

Accessories

- Lens cap

(attached to the camera head)

Description of parts

1 2 3 3

Technical line drawing of a cylindrical device with a labeled component (3), no text or symbols present.

4 5

Technical line drawing of a mechanical component with no visible text or symbols

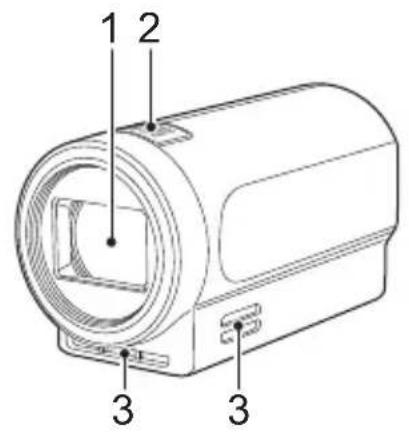

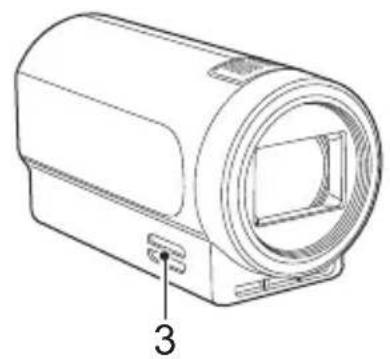

1 Lens
2 Built-in microphone
3 Air inlet
4 Camera head option cable connector
5 Air outlet

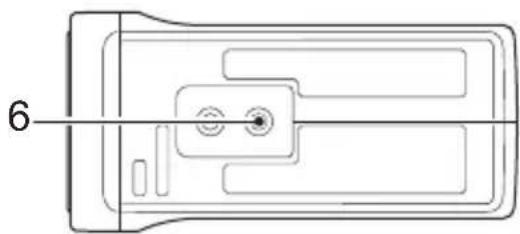

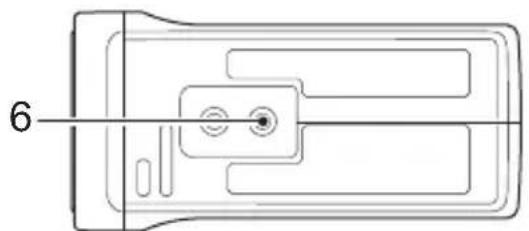

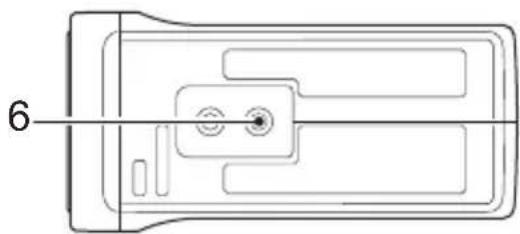

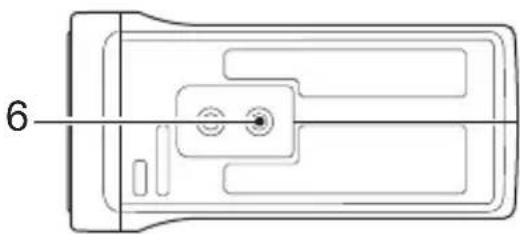

6 Tripod mounting hole

• There are tripod mounting hole that are compatible with 1/4-20UNC screws. Use the size that matches the diameter of the tripod's fixing screw.
• Attaching a tripod with a screw length of 6 mm (0.24") or more may damage the unit.

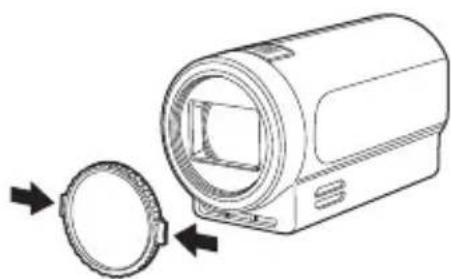

■ Attaching/removing the lens cap

Protect the lens surface with the lens cap while the unit is not used.

- Place your fingers in the recesses on the lens cap to hold it when attaching or removing it.

Technical line drawing of a camera module with an open lid and directional arrows indicating assembly (no text or symbols)

About copyright

■ Carefully observe copyright laws

IMPORTANT

"Unauthorized recording of copyrighted television programs, video tapes and other materials may infringe the right of copyright owners and be contrary to copyright laws."

Licenses

• “AVCHD”, “AVCHD Progressive” and the “AVCHD Progressive” logo are trademarks of Panasonic Corporation and Sony Corporation.
• Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
• Other names of systems and products mentioned in these instructions are usually the registered trademarks or trademarks of the manufacturers who developed the system or product concerned.

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

For details refer to the license conditions that can be displayed by following the method described in "Set from Web screen" → "Maintenance screen [Maintenance]" → "■ Product information tab [Product info.]" → "[OSS license display]" of the Operating Instructions (PDF format) for the AG-UMR20 memory card portable recorder.

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0 or LGPL V2.1, as well as the respective copyright notice thereof.

Contact Information:

[e-mail]

The source code and the copyright notice are also available for free in our website below.

https://panasonic.net/cns/oss/index.html

Specifications

Compact Camera Head

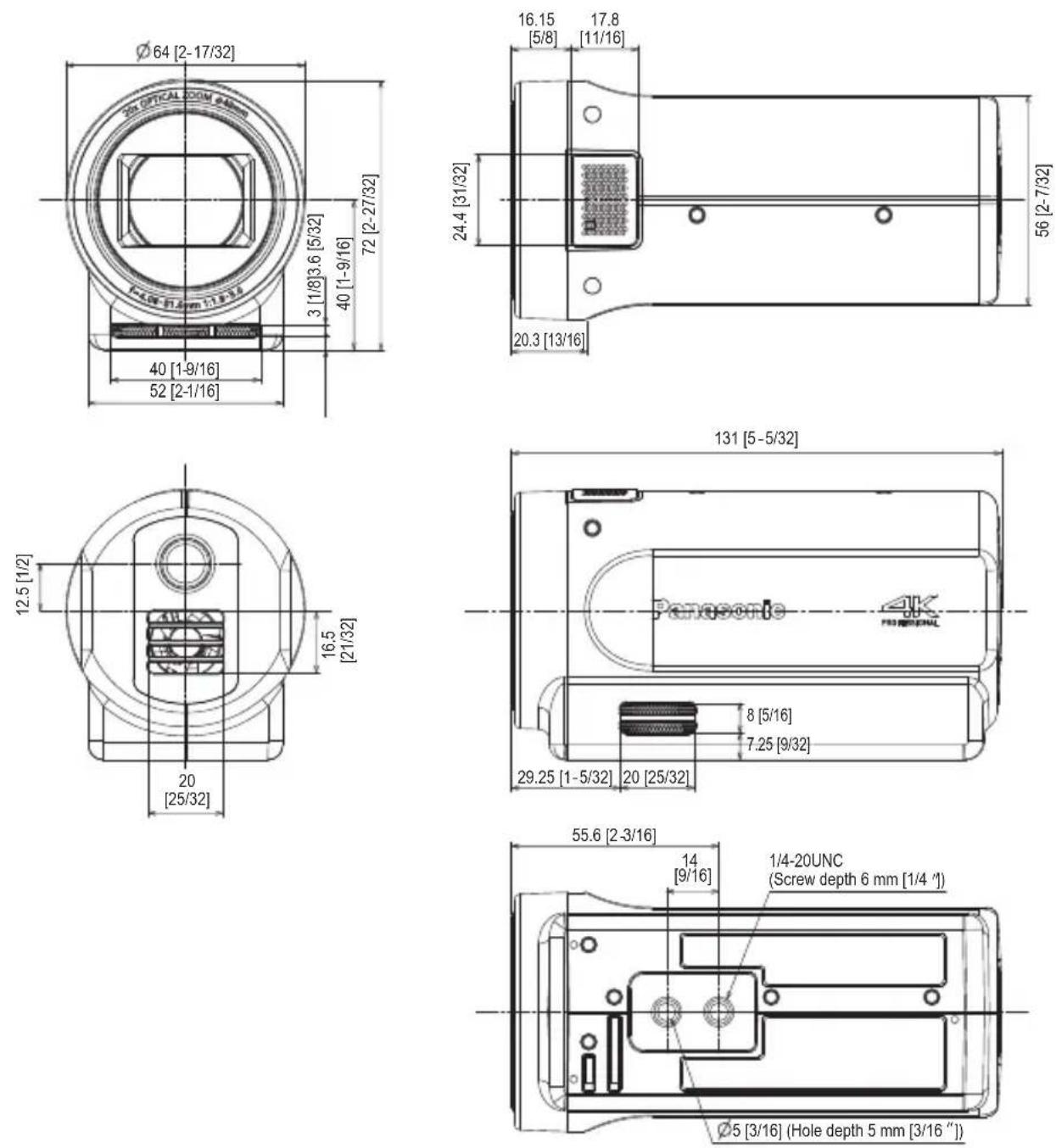

Appearance (Unit: mm [inch])

General

(When connected to AG-UMR20)

Supply voltage:

DC 9 V (unit: supplied by AG-UMR20)

Current consumption:

0.6 A

indicates safety information.

Ambient operating temperature:

0 °C to 40 °C (32 °F to 104 °F)

Ambient operating humidity:

10%RH to 80%RH (no condensation)

Mass (Weight):

Approx. 325g [Approx. 0.717 lbs.]

Dimensions (W×H×D):

64 mm×72 mm×131 mm

[2-17/32 "×2-27/32 "×5-5/32"]

(excluding projecting parts)

Camera unit (when controlled with the dedicated recorder AG-UMR20)

Pickup device:

1/2.3-type MOS solid state image sensor

Number of pixels:

Total number of pixels;

4168×3062 (approx. 12760000 pixels)

Lens:

Optical image stabilizer lens, optical 20× motorized zoom

F value (focal length)

F1.8 to F3.6 (f=4.08 mm to 81.6 mm)

[5/32 " to 3-7/32 " ]

35 mm conversion

29.5 mm to 612.0 mm ^*1

[1-5/32 " to 24-3/32 " ]

Filter diameter; 49 mm

ND filter (built-in); CLEAR, 1/4, 1/16, 1/64

Minimum recording distance;

Entire zoom range; 1.5 m [4.9 feet],

Wide end; 3 cm [0.1 feet]

IR blocking filter;

Provided with the IR blocking filter on/off function

*1 When [HYBRID O.I.S. MODE] is set to [OFF]

Gain setting:

Auto ^*2 , 0 dB to 30 dB (in 1 dB steps, Manual), 33 dB or 36 dB (with Super Gain)

*2 When Auto is set, a value between 3 dB and 30 dB (in 3 dB steps) can be selected in [AGC LIMIT]

White Balance:

ATW, ATW LOCK, AWB A, AWB B, P3200K, P5600K, VAR (2000K to 15000K)

Shutter speed:

When [SYSTEM FREQ] = [59.94Hz]

- 59.94i/59.94p mode; 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

- 29.97p mode; 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

- 23.98p mode; 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

When [SYSTEM FREQ] = [50.00Hz]

- 50.00i/50.00p mode; 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

- 25.00p mode; 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

Slow shutter speed:

When [SYSTEM FREQ] = [59.94Hz]

- 59.94i/59.94p mode; 1/2, 1/4, 1/8, 1/15, 1/30 sec.

- 29.97p mode; 1/2, 1/4, 1/8, 1/15 sec.

- 23.98p mode; 1/2, 1/3, 1/6, 1/12 sec.

When [SYSTEM FREQ] = [50.00Hz]

- 50.00i/50.00p mode; 1/2, 1/3, 1/6, 1/12, 1/25 sec.

- 25.00p mode; 1/2, 1/3, 1/6, 1/12 sec.

Synchro scan shutter:

When [SYSTEM FREQ] = [59.94Hz]

• 59.94i/59.94p mode; 1/60.0 to 1/285.6 sec.
  • 29.97p mode; 1/30.0 to 1/206.5 sec.
  • 23.98p mode; 1/24.0 to 1/280.1 sec.

When [SYSTEM FREQ] = [50.00Hz]

• 50.00i/50.00p mode; 1/50.0 to 1/209.2 sec.
• 25.00p mode; 1/25.0 to 1/224.3 sec.

Minimum subject illumination:

Approx. 0.2 lx (Slow Shutter; 1/2, Gain; 36 dB)

Horizontal resolution

(typical value for the center area):

1300 TV lines (HDMI output; 2160/29.97p,

25.00p, during playback)

1000 TV lines (HDMI output; 1080/59.94p,

50.00p, during playback)

Zoom:

i.Zoom; 30x (HD)/22x (4K)

Digital zoom; 1.4x/2x/4x/6x/8x

Image Stabilizers:

O.I.S.(high-definition, 4K) / 5-Axis Hybrid

Image Stabilizer (high-definition)

Input/output

Audio:

Input; Built-in microphone (2ch)

External terminal:

Connection terminal (for connection to the dedicated recorder AG-UMR20);

Dedicated 20-pin interface

The symbols on this product represent the following:

DC

Disposal of Old Equipment Only for European Union and countries with recycling systems

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment,

recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality, dealer or supplier.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

WARNUNG:

Technical line drawing of a cylindrical device with a labeled component (3), no text or symbols present.

4 5

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical device with a circular component inserted, showing directional arrows (no text or symbols)

ATW, ATW LOCK, AWB A, AWB B, P3200K,

P5600K, VAR (2000K bis 15000K)

Verschlusszeit:

Wenn [SYSTEM FREQ] = [59.94Hz]

- 59.94i/59.94p-Modus; 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 s.

- 29.97p-Modus; 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 s.

- 23.98p-Modus; 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 s.

Wenn [SYSTEM FREQ] = [50.00Hz]

- 50.00i/50.00p-Modus; 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 s.

- 25.00p-Modus; 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 s.

Wenn [SYSTEM FREQ] = [59.94Hz]

- 59.94i/59.94p-Modus; 1/2, 1/4, 1/8, 1/15, 1/30 s.

- 29.97p-Modus; 1/2, 1/4, 1/8, 1/15 s.

• 23.98p-Modus; 1/2, 1/3, 1/6, 1/12 s.

Wenn [SYSTEM FREQ] = [50.00Hz]

- 50.00i/50.00p-Modus; 1/2, 1/3, 1/6, 1/12, 1/25 s.

- 25.00p-Modus; 1/2, 1/3, 1/6, 1/12 s.

Wenn [SYSTEM FREQ] = [59.94Hz]

i.Zoom; 30x (High Definition)/22x (4K) Digitalzoom; 1.4x/2x/4x/6x/8x

Bildstabilisatoren:

O.I.S. (High Definition, 4K) / 5-Achsen-Hybrid-Bildstabilisator (High Definition)

Eingang/Ausgang

Audio:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Allemagne

Technical line drawing of a cylindrical device with a circular component inserted, showing directional arrows (no text or symbols)

Current consumption :

0,6 A

[2-17/32 "×2-27/32 "×5-5/32"]

Lorsque [SYSTEM FREQ] = [59.94Hz]

- Mode 59.94i/59.94p; 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

- Mode 29.97p; 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

- Mode 23.98p; 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

Lorsque [SYSTEM FREQ] = [50.00Hz]

- Mode 50.00i/50.00p; 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

- Mode 25.00p; 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

Lorsque [SYSTEM FREQ] = [59.94Hz]

- Mode 59.94i/59.94p; 1/2, 1/4, 1/8, 1/15, 1/30 sec.

- Mode 29.97p; 1/2, 1/4, 1/8, 1/15 sec.

- Mode 23.98p; 1/2, 1/3, 1/6, 1/12 sec.

Lorsque [SYSTEM FREQ] = [50.00Hz]

- Mode 50.00i/50.00p; 1/2, 1/3, 1/6, 1/12, 1/25 sec.

- Mode 25.00p; 1/2, 1/3, 1/6, 1/12 sec.

Obturation balayage synchro :

Lorsque [SYSTEM FREQ] = [59.94Hz]

• Mode 59.94i/59.94p; 1/60.0 à 1/285.6 sec.
• Mode 29.97p; 1/30.0 à 1/206.5 sec.
• Mode 23.98p; 1/24.0 à 1/280.1 sec.

Lorsque [SYSTEM FREQ] = [50.00Hz]

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germania

Technical line drawing of a cylindrical mechanical component with mounting bracket and labeled part (3), no text or symbols present.

4 5

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a camera module with a circular component inserted, showing directional arrows (no text or symbols)

ATW, ATW LOCK, AWB A, AWB B, P3200K, P5600K, VAR (da 2000K a 15000K)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbolic icon of a person climbing a ladder inside a circle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with mounting bracket and labeled part (3), no text or symbols present.

4 5

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical device with a circular component inserted, showing directional arrows (no text or symbols)

[2-17/32 "×2-27/32 "×5-5/32 "]

[1-5/32 " a 24-3/32 " ]

Cuando [SYSTEM FREQ] = [59.94Hz]

- Modo 59.94i/59.94p; 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 seg.

- Modo 29.97p; 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 seg.

- Modo 23.98p; 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 seg.

Cuando [SYSTEM FREQ] = [50.00Hz]

- Modo 50.00i/50.00p; 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 seg.

- Modo 25.00p; 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 seg.

Cuando [SYSTEM FREQ] = [59.94Hz]

• Modo 59.94i/59.94p; 1/2, 1/4, 1/8, 1/15, 1/30 seg.
• Modo 29.97p; 1/2, 1/4, 1/8, 1/15 seg.

- Modo 23.98p; 1/2, 1/3, 1/6, 1/12 seg.

Cuando [SYSTEM FREQ] = [50.00Hz]

• Modo 50.00i/50.00p; 1/2, 1/3, 1/6, 1/12, 1/25 seg.
• Modo 25.00p; 1/2, 1/3, 1/6, 1/12 seg.

Cuando [SYSTEM FREQ] = [59.94Hz]

- Modo 59.94i/59.94p; 1/60.0 a 1/285.6 seg.

- Modo 29.97p; 1/30.0 a 1/206.5 seg.

- Modo 23.98p; 1/24.0 a 1/280.1 seg.

Cuando [SYSTEM FREQ] = [50.00Hz]

- Modo 50.00i/50.00p; 1/50.0 a 1/209.2 seg.

- Modo 25.00p; 1/25.0 a 1/224.3 seg.

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Technical line drawing of a cylindrical device with labeled component '3' (no text or symbols beyond label)

4 5

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a cylindrical device with a circular component inserted, showing directional arrows (no text or symbols)

著作権について

i.Zoom ; 30 倍 (HD) /22 倍 (4K)

©Panasonic Corporation 2017

<無料修理規定>

※This warranty is valid only in Japan.

Panasonic

持込修理

コンパクトカメラヘッド保証書
