USER MANUAL LC3760N HP

HP LC3760N 37-Inch (94-Centimeter) LCD High-Definition Television

invent

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of HP.

Hewlett-Packard Company

P.O. Box 4010

Cupertino, CA 95015-4010

USA

Copyright © 2006 Hewlett-Packard Development Company, L.P.

May be licensed in the United States by one or both of U.S. Patents Nos. 4,930,158 and 4,930,160 until August 28, 2008.

Manufactured under license from Dolby Laboratories. Dolby, and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HP supports lawful use of technology and does not endorse or encourage the use of our products for purposes other than those permitted by copyright law.

The information in this document is subject to change without notice.

Text set off in this manner indicates information you need.

Text set off in this manner indicates important information you need.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

WARNING: This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGEROUS VOLTAGE: Text set off in this manner indicates the presence of uninsulated voltages within the product enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

Important Safeguards

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: RISK OF ELECTRICAL SHOCK ⚠️! DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGES" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRICAL SHOCK TO PERSONS. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

CAUTION: TO PREVENT ELECTRICAL SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

CAUTION: TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE OR PLUG TO WIDE SLOT, AND FULLY INSERT.

CAUTION: DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for help.

Closed caption notice

This television receiver provides display of television closed captioning in accordance with § 15.119 of the FCC Rules.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard Company may void the authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.

RESPONSIBLE PARTY:

Hewlett-Packard Company

Attn: Product Regulations Manager

10955 Tantau Avenue

Building 45NL

Cupertino, CA 95014 USA

Important Safety Instructions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating, and cleaning the product. To ensure your safety and prolong the service life of your television, please read the following precautions carefully before using the product.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 Power sources — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

16 Overloading — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17 Replacement parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

18 Safety check — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

19 The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

20 WARNING: Plug the power cord into a power outlet where access to the power cord connector is readily accessible in case power disconnection is required.

21 Servicing: The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

■ Water and moisture — Do not use this product near water; for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
■ Stand — Do not place the product on an unstable cart, stand, tripod, or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
■ Selecting the location — Select a place with no direct sunlight and good ventilation.
■ Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug, or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
■ The display panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.
■ Heat — The product should be situated away from heat sources such as fireplaces, chimneys, radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
■ Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green, or red. Please note that this does not affect the performance of your product.

■Cautions regarding use in high- and low-temperature environments:

When the unit is used in low-temperature space (e.g., room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the display panel to malfunction. Storage temperature: -4^ F to +140^ F ( -20^ C to +60^ C).

■ Precautions when transporting the TV — When transporting the TV, be sure to always carry the TV by two people holding it with two hands — one hand on each side of the Display.
■ Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.
■ Power lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

■Outdoor antenna grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

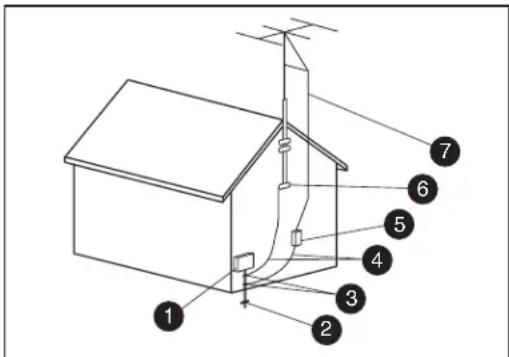

Technical diagram of a house structure with numbered components for identification

Antenna Grounding

Antenna Grounding

Reference	Grounding Component
1	Electric Service Equipment
2	Power Service Grounding Electrode System (NEC Art 250, Part H)
3	Ground Clamps
4	Grounding Conductors (NEC Section 810-21)
5	Antenna Discharge Unit (NEC Section 810-20)
6	Ground Clamp
7	Antenna Lead in Wire

■ To prevent fire, never place any type of candle or flames on the top or near the TV set.
■ To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects filled with liquids, such as vases, should be placed on the product.
■ To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.
■ Turn off the main power and unplug the AC cord from the wall outlet before handling.
■ Use a soft cloth and gently wipe the surface of the TV panel. Using a hard cloth may scratch the panel surface.
■ Use a soft damp cloth to gently wipe the panel when it is really dirty. (It may scratch the panel surface when wiped strongly.)
■ If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.
■ To protect the panel, do not use a dirty cloth, liquid cleaners, or chemical cloth to clean it; such materials may damage the panel surface.

Important Information

The TV must be serviced by an authorized service technician. The TV is not user serviceable.

Changes can damage your TV and void your warranty. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Recycling Information

For information about how to recycle this product through HP, see:

http://www.hp.com/recycle

Other recycling options may also be available in your area. If located within the U.S. and Canada, you may also call (1) [phone].

Materials disposal

This HP product contains the following materials that might require special handling at end-of-life:

■Mercury in the fluorescent lamp in the LCD.

Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (EIA) (http://www.eia.org).

Cleaning precautions

Unplug the TV before cleaning the screen.

Using solvents, such as alcohol, or abrasive material, such as a premoistened or chemically treated towel, may affect the TV or bezel paint.

Do not expose the product to volatile gas or fluid such as a pesticide.

Do not put the TV in contact with vinyl or rubber products for a long period of time. Extended contact may result in the removal of or degradation of the surface.

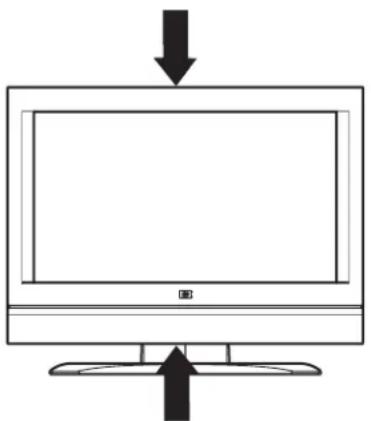

Lifting precautions

The TV is heavy; be sure to use ergonomically correct lifting procedures when moving the TV.

Due to the size and weight of the TV, it is recommended that a minimum of two people move it.

For transport, grasp the display in the area under and above the screen.

Never place the display with the glass screen facing downward, unless it is protected with pads.

Table of Contents

Important Safeguards...... iii

Modifications iv

Cables ......iv

Important Safety Instructions......v

Important Information ......viii

Getting to Know Your TV...... 1

Identifying Items in the Box 2

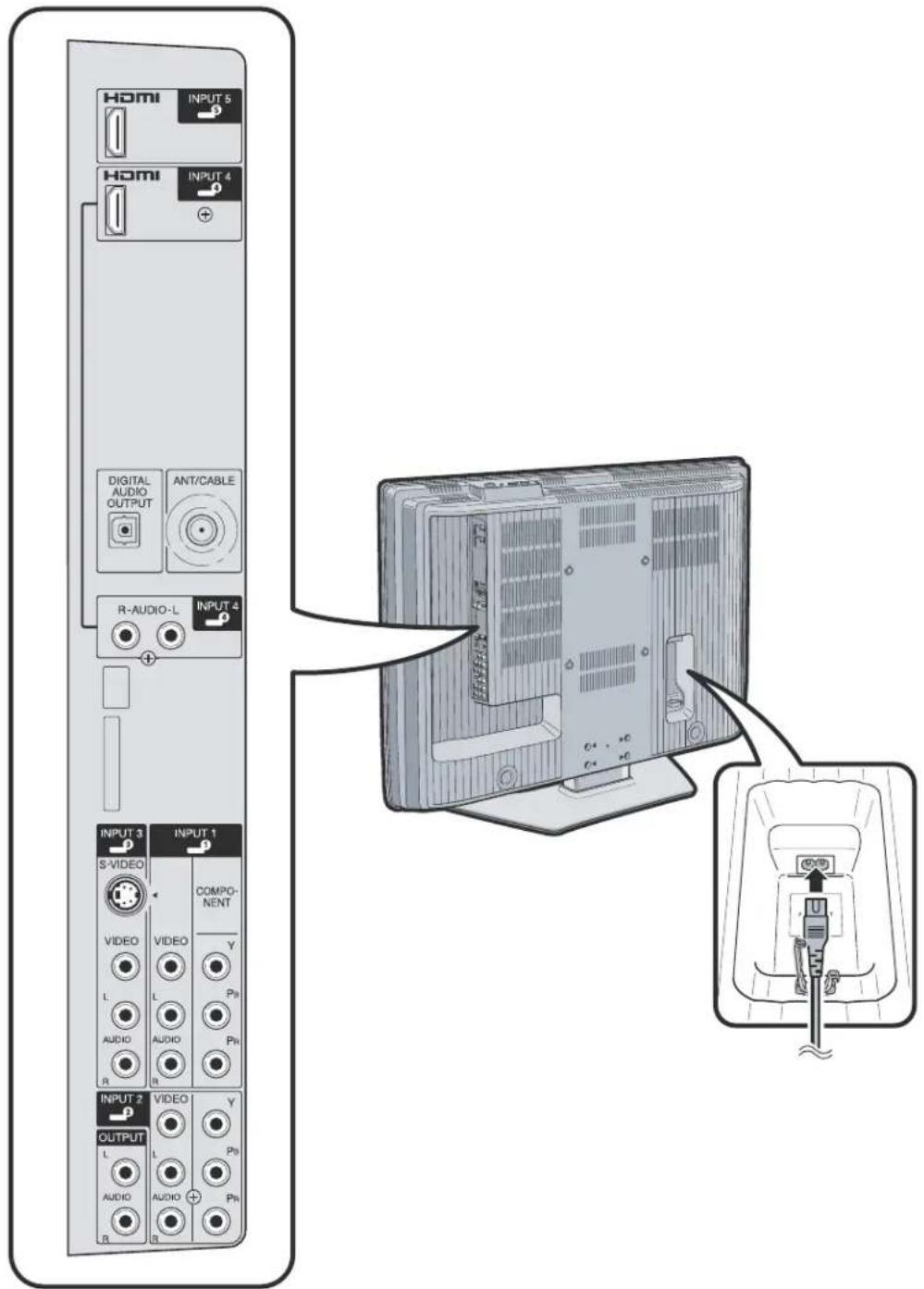

Locating TV Buttons and Connectors.... 2

Cleaning 6

Cleaning precautions 6

Cleaning the TV....6

Setting Up....7

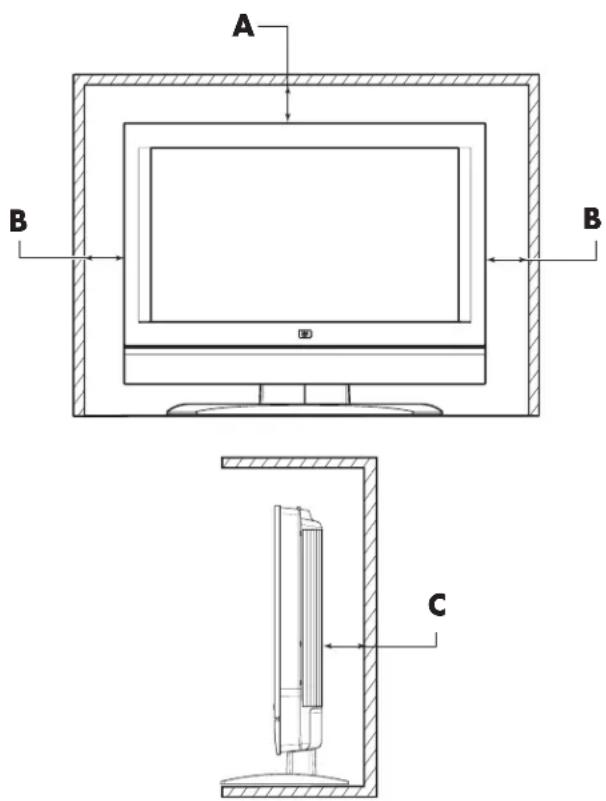

Selecting a Good Location....7

Unpacking....8

Lifting the TV 8

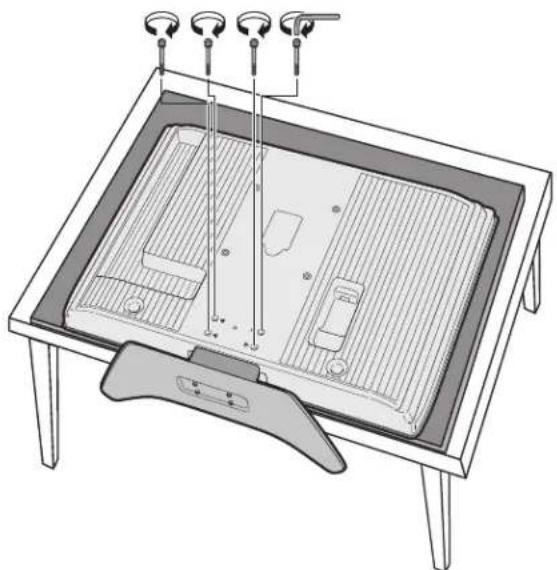

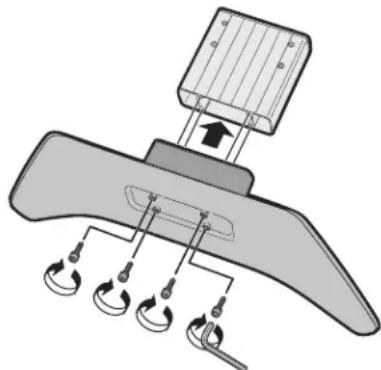

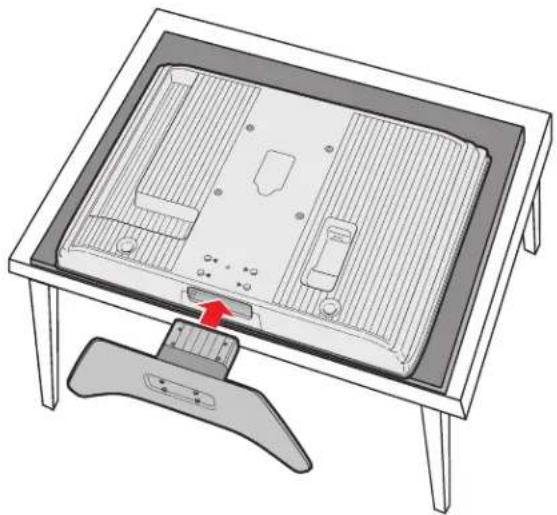

Attaching or removing the stand 8

Setting Up the TV....9

Connecting the TV signal source.... 9

Connecting the cable TV or the air antenna.... 10

Connecting cable or satellite with a set-top box.... 10

Connecting a DVD player, VCR, DVR, game console, or camcorder....11

Connecting a VCR for recording.... 15

Connecting an external sound system.... 15

Connecting power to the TV.... 16

Turning On the TV......17

Turning the TV On and Off (Standby) 17

Using the First-Time Setup Wizard....19

Initial Setup....19

Using the Remote Control ......21

Operating the TV....21

Using universal remote controls....21

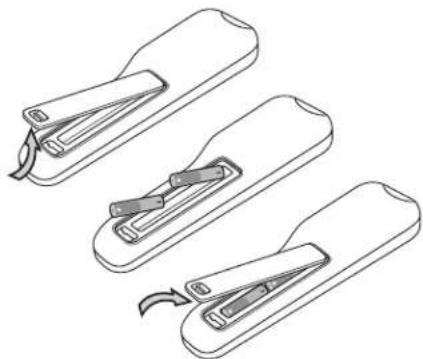

Installing or replacing remote control batteries....21

Identifying the remote control buttons....22

Adjusting the Volume 24

Muting the sound 24

Changing the Picture Mode....24

Changing Channels 24

Selecting the last channel....24

Displaying program information....25

Selecting the Input Source....25

Changing the View with the Aspect Button .....25

Turning On Captions....25

Setting SAP/MTS stereo mode....26

Changing Audio Mode....26

Setting the Sleep Timer 26

Adjusting TV Settings....26

Opening and exiting the OSD 26

Changing the TV Settings......27

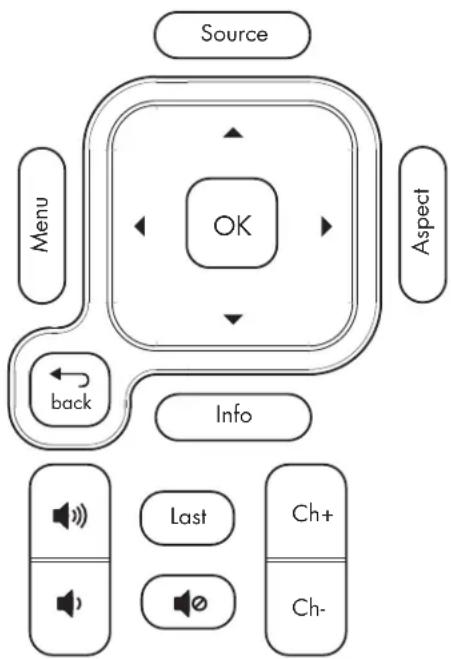

Using the OSD Menus.... 27

Using the Picture Menu.... 28

Adjusting the picture settings.... 28

Using the Audio Menu 29

Adjusting the audio.... 29

Using the Power Control Menu.... 29

Using the Setup Menu 30

Starting EZ Setup.... 30

Using CH Setup.... 30

Using Antenna Setup — Digital 31

Using Parental CTRL.... 31

Setting Input Skip.... 31

Setting Position.... 31

Setting Input Label 31

Setting Picture Flip 31

Setting Standby Mode.... 32

Setting Language.... 32

Using Reset.... 32

Using the Option Menu 32

Using the Digital Setup Menu.... 33

Using Audio Setup.... 33

Selecting the view aspect 33

Using Closed Caption.... 34

Selecting closed caption options.... 35

Using Parental Controls 35

Secret number setting for parental control..... 35

Setting the parental control V-Chip level 36

How to temporarily release a blocked program.... 40

Reactivating parental controls after a temporary release.... 40

Finding Answers to Questions ..... 41

Understanding TV Terms....41

What are analog TV, digital TV, and high-definition (HDTV)?......41

What is the difference between progressive and interlaced signal formats for digital TVs? ...41

What is variable aspect ratio?......41

What is HDMI?......42

Identifying Cable Usage 42

Specifications...... 45

Troubleshooting 49

Getting to Know Your TV

Thank you for purchasing an HP LCD High-Definition Television. HP's array of high-definition televisions delivers a world-class picture in a design that is sleek and stylish.

Features:

■Premium LCD panel technology that delivers a contrast ratio of up to 1,200:1 for rich detail, and as fast as 6 ms response time for no-smear motion video and ultra wide viewing angles with a minimum of color shift. HP LCD TVs deliver the detail and color that HP is known for.
■Fantastic sound that emanates from the integrated speaker design, which provides 20 watts of power. HP's high-fidelity speaker system is complemented by 3D surround sound audio technology, which emulates a 5.1-channel surround sound system for an enhanced home theater experience.
■A comprehensive array of digital and analog inputs, including an integrated HDTV tuner, two HDMI, and two component video ports. Analog and digital audio output connectors enable seamless connectivity to external audio speakers or an audio receiver.
■ Dolby Digital 5.1 channel digital audio output that enables a full home theater sound experience when attached to an external Dolby Digital decoder and a multi-channel amplifier.

■A classic black-finish panel that blends with any décor. The tabletop stand is sleek, stylish, and detachable.
■3D color enrichment system that reproduces vibrant colors and natural skin tones.
■Photorealistic sharpness enhancement that yields crystal-clear and sharp pictures.
■HP Visual Fidelity technologies combine scene-by-scene contrast adaptation with information about your room's ambient lighting to deliver an optimum picture.
■Motion adaptive noise reduction, which greatly reduces visual noise without reducing detail.
■Advanced scaling and film-processing technology, which enables enjoyment of DVDs and standard-definition TV on a big screen.
■Integrated digital HDTV/analog tuner — for HD shows from cable or off-the-air sources.
■Two HDMI ports that provide digital video and audio through a single cable.
■Ultra-long-life panel that provides up to 60,000 hours of operation.

All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

The panel life is determined as the time at which luminance is 50% compared to that of initial value at the typical lamp current on condition of continuous operation at 25 + / -^ C. 60,000 hours equates to more than twenty-three years at seven hours a day viewing.

Identifying Items in the Box

	Television (with stand detached)
	TV stand (two pieces) with mounting hardware and tool
	Remote control unit
	AC cord
	Cable clamp
	Cable tie
	Documentation

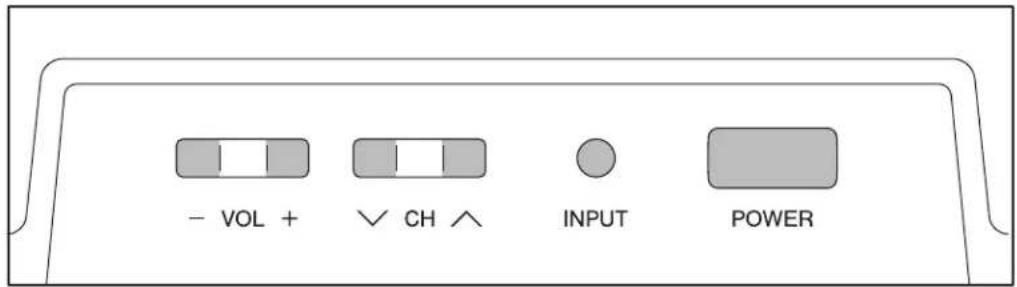

Locating TV Buttons and Connectors

The TV contains controls, indicators, and connectors. The TV indicators are located on the front of the TV, and the controls are located on the top.

TV Front

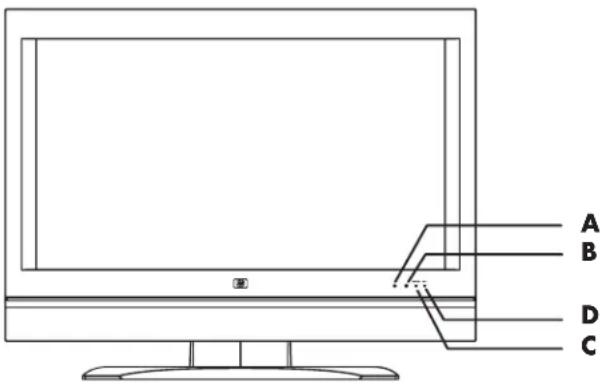

A B D C

TV front Description
A: Remote control sensor	Remote control sensor is the location where to point the remote control unit.
B: OPC sensor	Optical picture control (OPC) sensor senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.
C: Power indicator	Power indicator light is green when TV is on and is off when TV is in off/standby mode.
D: OPC indicator	OPC indicator indicates status when the OPC is on. For information on the OPC, refer to “Turning On the TV” on page 17.

Top TV controls

- VOL + ✓ CH ∧ INPUT POWER

TV top control Description
Vol Volume lowers or	raises the sound level.
CH Channel selects the next lower or higher channel.
Input Input selects the TV input source.
Power Power turns on the TV or places it in standby mode.

Rear TV connectors

The connectors are located on the rear of the TV.

HDMI INPUT 5 HDMI INPUT 4 DIGITAL AUDIO OUTPUT ANT/CABLE R-AUDIO-L INPUT 4 S-VIDEO S-VIDEO VIDEO L AUDIO R INPUT 3 INPUT 1 VIDEO L AUDIO R COMPONENT Y Pb Pb R OUTPUT L AUDIO R VIDEO L AUDIO R Y Pb Pb OUTPUT

4 HP LCD HDTV User's Guide

TV (rear)connector Item name Description
■HDMI■HDMI	■Input 5HDMI■Input 4HDMI	Input 5 or Input 4, HDMI in: Connect an HDMI cable from optional digital, high-definition equipment.Use Input 4 audio R and L only when using an DVI-to-HDMI converter at HDMI Input 4.
Digital Audio Output	■Optical digital audio output	Digital audio output, optical: Connect an optical cable for digital sound out to an optional external digital audio system.
Ant/Cable	■TV signal input	Antenna or cable in: Connect a coaxial cable from an air antenna or a cable signal source.
Input 4 (audio)	■Input 4 audio	Input 4 audio in: Connect left and right audio cables only when using a DVI-to-HDMI converter at HDMI Input 4.
Input 3:■S-video■Video■Audio L/R	■Input 3	Input 3 audiovisual in:■Connect an S-video cable and left and right audio cables from optional equipment.Or■ Connect a composite video cable and left and right audio cables from optional equipment.(Audio connectors are shared.)
Input 1:■Component■Video■Audio L/ROrInput 2:■Component■Video■Audio L/R	■Input 1■Input 2	Input 1 or Input 2 in:■ Connect a component video cable and left and right audio cables from optional equipment. Supports standard inputs 480i, 480p, 720p, and 1080i. Some set-top boxes must be set for a specific resolution.Or■ Connect a composite video cable and left and right audio cables from optional equipment.(Audio connectors are shared.)
Audio Output	■Audio output, analog	Audio output, analog: Connect left and right audio cables for analog stereo sound out to an optional external audio system. Use the left (white) connector for mono sound (single cable).
AC In	■AC power	AC power: Connect the included power cord. NOTE: Use only the provided power cord.

Cleaning

Cleaning precautions

Unplug the TV before cleaning the screen.

A special antiglare coating is applied to the screen of your TV. Using solvents, such as alcohol, or abrasive material, such as a premoistened or chemically treated towel, may affect the screen coating or bezel paint.

Do not expose the product to volatile gas or fluid such as a pesticide.

Do not put the TV in contact with vinyl or rubber products for a long period of time. Extended contact may result in the removal of the coating or degradation of the surface.

Cleaning the TV

Clean the screen by spraying a soft lint-free cloth with water to lightly moisten it. Gently wipe the screen, and avoid pressing on the screen.

To clean the outer cabinet, use the same method.

Do not use liquid or aerosol cleaners.

Setting Up

HP recommends professional installation from an authorized installer to ensure maximum enjoyment of your HP LCD HDTV. Be sure to read all the safety information and precautions before starting installation. See these topics:

■"Important Safeguards" on page iii.
■"Important Safety Instructions" on page v.

■"Important Information" on page viii.

Selecting a Good Location

Select the location for your HP LCD HDTV. Consider the following situations when positioning the TV:

■Power cord length: Choose a location with easy access to an AC power outlet.
■Cable lengths and distances to attached units: Check that cables can reach the TV.
■Do not install the TV on an unstable cart or stand; the unit may fall over and cause injury.
■Do not install the TV where it has a protruding edge, such as on a small table where the display overhangs the table surface.
■Do not hang the TV from the ceiling; the unit may fall and cause injury.
- Avoid direct sunlight that may damage the display or interfere with the operation of the remote control.
■Avoid areas of high humidity or damp conditions that may cause fire or electrical shock.
■Do not install TV near appliances, such as a microwave, or near a heat source, such as a fireplace or radiator.
■Provide adequate ventilation clearance around the TV.

A B B C

A 1.4 in. (3.5 cm) minimum above TV

B 1.4 in. (3.5 cm) minimum at sides

C 1.4 in. (3.5 cm) minimum behind TV

Unpacking

Be sure to read through "Lifting the TV" for important information.

Unpack the TV and put it on a stable surface:

1 Use the cardboard holders on either side of the TV to remove it from the box.
2 Remove the cardboard; however, keep the wrapping on the TV to protect it while moving.
3 Lift the TV onto the installation location.

Lifting the TV

The TV is heavy; be sure to use ergonomically correct lifting procedures when moving the TV.

Due to the size and weight of the TV, it is recommended that a minimum of two people move it.

To transport the TV, grasp the display in the area under and above the screen.

Simple line drawing of a monitor with an arrow pointing downward and upward, no text or symbols present.

Move the product gently. Never place the TV with the glass screen facing downward, unless it is protected with pads.

Attaching or removing the stand

Your TV comes with a stand that must be attached to the display. Reverse these steps to remove the stand.

CAUTION: Use two people to assemble the TV.

Before attaching the stand, unplug the AC cord from the AC input.

1 Locate the TV stand (two pieces), eight screws of mounting hardware, and tool from the box.
2 Place the base onto the pedestal, insert four short screws, and tighten using the provided tool.

Technical illustration of multiple screw and nut components with a separate right-angle pipe detail (no text or symbols)

Diagram of a mechanical device with lever and adjustment knobs (no text or symbols)

3 Carefully place the TV panel with the glass screen facing downward on a padded, stable table. Position the bottom of the TV near the edge of the table.

WARNING: Do not drop the stand onto the TV.

4 Insert the assembled stand into the opening on the bottom of the TV.

Diagram of a flat-screen monitor with internal components and a red arrow pointing to a handle (no text or symbols)

5 Insert four long screws into the holes on the back of the TV and tighten using the provided tool.

Technical line drawing of a flat-screen TV with visible internal components and mounting feet (no text or symbols)

6 Carefully lift the TV and set it upright.

Setting Up the TV

Set up the TV by connecting cables and connecting the power cord.

Connecting the TV signal source

WARNING: Before connecting the TV to any other electronic device, unplug the TV and electronic device AC cords from the AC input.

The following is an explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna/cable terminal at the rear of the TV set.

■A 75-ohm system is generally a round cable with an F-type connector that can easily be attached to a terminal without tools (sold separately).

■A 300-ohm system is a flat, twin-lead cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (sold separately).

An F-type connector should be finger-tightened only. When connecting the RF cable to the TV set, do not use tools to tighten the F-type connector, as it may cause damage to your TV set.

A C

A: 75-ohm coaxial cable, round

B: 300-ohm twin-lead cable, flat

C: F-type connector

Connect the input source to the TV according to the type of connection:

■Antenna or basic cable (TV cable or satellite) without using a set-top box; see "Connecting the cable TV or the air antenna" on page 10.
- Cable or satellite with a separate set-top box; see "Connecting cable or satellite with a set-top box" on page 10.

■To connect an external sound system, see "Connecting an external sound system" on page 15.

■To connect a device that records TV, see "Connecting a VCR for recording" on page 15.

About the Emergency Alert System (EAS)

In the case of a national emergency, natural disaster, or other emergency situation, an EAS message broadcasts. When this unit receives an EAS message, if the level of emergency is comparatively low, an alert text message displays on screen. If the level of emergency is high, the receiver is forced-tuned to a details channel.
■Alert text messages display, and forced tuning occurs, even during paid programming. Even when forced tuning is active, the user can still change the channel.
■If the unit is forced-tuned to a channel that has been blocked by Parental Control, the Parental Control setting is given priority, and the EAS message is not broadcast.
■EAS messages may be broadcast not only through digital cable, but also through analog cable or over-the-air analog transmission. EAS alert messages broadcasted through cable are not received on this TV.

Connecting the cable TV or the air antenna

Use standard 75-ohm coaxial cable to connect a ground antenna or cable TV input source to the TV. Use shielded coaxial cable to reduce radio frequency (RF) interference.

Optional equipment, cable TV service, and all cables are sold separately.

CAUTION: Unplug power for the TV and all connected components before connecting the antenna or cable.

1 Connect the input source coaxial cable to the Ant/Cable connector on the back of the TV.

2 Connect power to the TV; see "Connecting power to the TV" on page 16.

3 Turn on the TV; see "Turning the TV On and Off (Standby)" on page 17.

Connecting cable or satellite with a set-top box

Connecting your TV directly to the audio and video output of your set-top box assures a more vivid picture and enhances your viewing enjoyment.

Optional equipment and all cables are sold separately.

You can connect a digital TV set-top box (air or cable) and other audiovisual equipment by using:

■Component video and audio cables connected to Input 1 or Input 2 connectors on the TV.
■S-video and audio cables connected to Input 3 connectors on the TV.

■Video (composite) and audio cables connected to Input 1, 2, or 3 connectors on the TV.
■HDMI cable connected to Input 4 or 5 connectors on the TV.
■DVI video cable with a DVI-to-HDMI converter and audio cables connected to the Input 4 (HDMI) and audio connectors on the TV.

CAUTION: Unplug power for the TV and all connected components before connecting the set-top box.

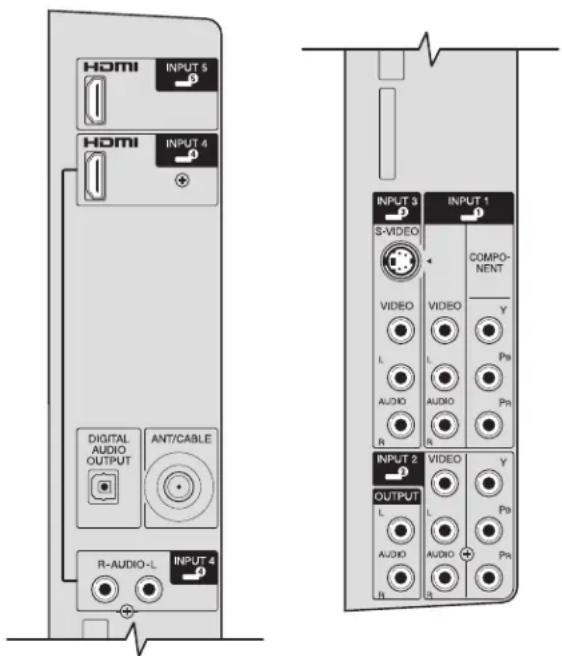

1 Connect the set-top box input source cable(s) to the back of the TV using one of the connector sets.

HOMI INPUT 5 HOMI INPUT 4 DIGITAL AUDIO OUTPUT ANT/CABLE R-AUDIO-L INPUT 4 INPUT 3 S-VIDEO VIDEO L AUDIO R INPUT 1 COMPONENT VIDEO L AUDIO R Y Pb Pb Y Pb Pb INPUT 2 OUTPUT L AUDIO R VIDEO L AUDIO R Y Pb Pb

■Component video and audio cables connected to Input 1 or Input 2 connectors on the TV.
■S-video and audio cables connected to Input 3 connectors on the TV.
■Video (composite) and audio cables connected to Input 1, 2, or 3 connectors on the TV.

■HDMI cable connected to Input 4 or 5 connectors on the TV.
■DVI video cable with a DVI-to-HDMI converter and audio cables connected to the Input 4 (HDMI) and audio connectors on the TV.

The Video (composite) connector in each of the Inputs 1, 2, and 3 connector sets shares audio connectors with the Component or the S-video connector in the set. If cables are connected to both video connectors in a set, the Component or S-video connector has priority over the Video connector.

2 Connect the cables to the set-top box.
3 Turn on the set-top box.
4 Connect power to the TV; see "Connecting power to the TV" on page 16.
5 Turn on the TV; see "Turning the TV On and Off (Standby)" on page 17.
6 Open the OSD and specify settings as needed; see "Changing the TV Settings" on page 27.

Connecting a DVD player, VCR, DVR, game console, or camcorder

You can connect optional equipment (sold separately), such as a DVD player, VCR, DVR, and so on to the TV by using the AV input connectors.

Optional equipment, including an external sound system, and all cables are sold separately.

You can connect a DVD by using:

■Component video and audio cables connected to Input 1 or Input 2 connectors on the TV.
■S-video and audio cables connected to Input 3 connectors on the TV.
■Video (composite) and audio cables connected to Input 1, 2, or 3 connectors on the TV.

■HDMI cable connected to Input 4 or 5 connectors on the TV.
■DVI video cable with a DVI-to-HDMI converter and audio cables connected to the Input 4 (HDMI) and audio connectors on the TV.

You can connect a VCR by using Input 3 terminals with either S-video or composite video connections for playback. To connect a VCR for recording, see

"Connecting a VCR for recording" on page 15.

You can connect a game console, camcorder, and some other AV equipment by using Input 3 terminals with either S-video or composite video connections.

You can connect HDMI equipment by using Input 4 or Input 5 terminal with an HDMI connection.

You can connect DVI equipment by using a DVI video cable with a DVI-to-HDMI converter and audio cables connected to the Input 4 (HDMI) and audio connectors on the TV.

Choosing the AV connection to use

When connecting optional equipment as signal sources, the connectors on the equipment may limit the type of connection you can use.

When your optional equipment has more than one type of output connector, choose the connection that provides the best-quality playback image.

For best results, choose the best-quality connection type that is supported by your optional equipment.

AV connection to use, listed from best to good video playback
Connection description	Connector types on optional equipment Cable plug
HDMI transmits an all-digital signal and is the recommended choice for playback from a digital DVD or DVR.
DVI transmits an all-digital video signal for playback from a digital DVD or DVR.(At the TV, use a DVI video cable with a DVI-to-HDMI converter and audio cables connected to the Input 4 HDMI and audio connectors.)
Component (Y, Pb, Pr) transmits video as separate red, green, and blue signals. Use this connection for high-definition video signals in 480i, 480p, 720p, or 1080i format from a progressive scan DVD or other equipment.
S-video transmits video in separate color and black-and-white image signals and delivers a sharper image than a composite video connection.
Composite video transmits video as a single signal.

The procedures that follow, presented in the order listed in the table, describe connecting optional equipment, including the audio connections when applicable.

CAUTION: Unplug power for the TV and all connected components before connecting optional equipment. Ensure that the optional equipment is powered off.

Connecting an HDMI device

This is the recommended connection for video and audio. The HDMI cable is sold separately.

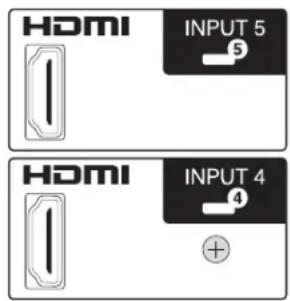

1 Connect the HDMI cable to Input 4 or Input 5. (There are no separate audio inputs for HDMI.)

HDMI INPUT 5 HDMI INPUT 4 +

2 Connect the cable to the HDMI device.
3 Turn on the device, and start play.
4 Connect power to the TV; see "Connecting power to the TV" on page 16.
5 Turn on the TV; see "Turning the TV On and Off (Standby)" on page 17.
6 Define the HDMI Setup items in the Option menu; refer to "Using the Option Menu" on page 32.

Connecting a DVI device

The DVI cable, DVI-to-HDMI converter, and audio cables are sold separately.

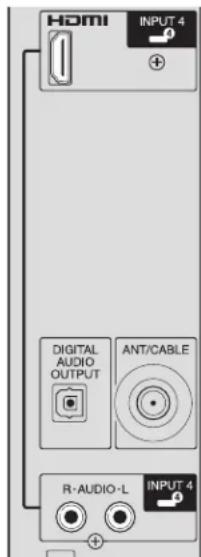

1 Connect the DVI video cable with a DVI-to-HDMI converter and the audio cables to the DVI equipment.
2 Connect the HDMI end of the converter to Input 4 on the TV. Connect the audio cables to the audio connectors for Input 4 on the TV.

HDMI INPUT 4 + DIGITAL AUDIO OUTPUT ANT/CABLE R-AUDIO-L INPUT 4

3 Turn on the DVI device, and start play.
4 Connect power to the TV; see "Connecting power to the TV" on page 16.
5 Turn on the TV; see "Turning the TV On and Off (Standby)" on page 17.
6 Define the HDMI Setup items in the Option menu; refer to "Using the Option Menu" on page 32.

Connecting a component device

Cables are sold separately.

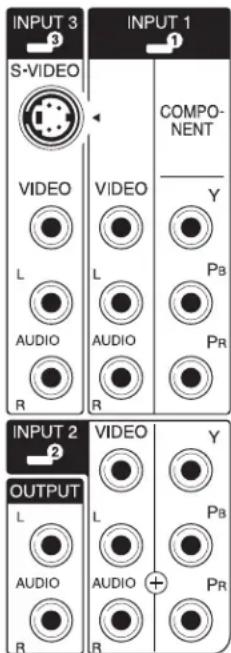

Input 1 and 2 each have both Component and Video connectors, which share L/R audio connectors. Connect only one video input for each input set.

1 Connect the component cable to the Component (Y, Pb, Pr) connectors. There are two sets of Component connectors you can use: Input 1 or Input 2.

INPUT 3 S-VIDEO VIDEO L AUDIO R INPUT 1 COMPONENT VIDEO L AUDIO R Y Pb Pr INPUT 2 OUTPUT L AUDIO R VIDEO L AUDIO R Y Pb Pr

2 Connect the component audio cable to the L/R audio connectors for Input 1 or Input 2.
3 Connect the cables to the component device.
4 Turn on the device, and start play.
5 Connect power to the TV; see "Connecting power to the TV" on page 16.

6 Turn on the TV; see "Turning the TV On and Off (Standby)" on page 17.
7 Define the Input Select for the connector in the Option menu; refer to "Using the Option Menu" on page 32.

Connecting an S-video or video device

A VCR, game console, camcorder, or some other audiovisual equipment can be connected using Input 3 terminals.

Input 3 has both S-video and Video connectors, which share L/R audio connectors. Connect only one video input for Input 3.

Cables are sold separately.

1 Connect the video equipment to the Input 3 connectors:

■For a VCR, DVR, or other device that has an S-video connector, use an S-video cable and the S-video connector.
Or
■For a VCR, DVR, or other device that has a composite video connector, use a composite video cable and the Video connector.

2 Connect the audio cable connectors to the left and right audio connectors for Input 3.
3 Connect the cables to the device.
4 Turn on the device, and start play.
5 Connect power to the TV; see "Connecting power to the TV" on page 16.
6 Turn on the TV; see "Turning the TV On and Off (Standby)" on page 17.

Connecting a VCR for recording

The TV does not output a signal for recording.

Connect a VCR or other device for recording to the signal source (antenna or cable), and then connect the device to the Ant/Cable connector on the TV. See "Connecting the cable TV or the air antenna" on page 10. Use the recording device to tune to the channel you want to record.

Connecting an external sound system

You can connect an external sound system to the TV using a digital audio or an analog audio signal:

■Use the Digital Audio Out connector on the back of the TV to provide a digital audio signal to an optional external sound system, such as a digital receiver or a surround sound system.
■Use the Audio Out left and right connectors on the back of the TV to provide an analog audio signal to an optional external sound system, such as an analog amplifier or stereo system.

Cables are sold separately.

CAUTION: Unplug power for the TV and all connected components before connecting an external sound system. Ensure that the external sound system is powered off.

1 Connect the external sound system to the TV:

■For a digital audio connection, connect an optical cable to the Digital Audio Out connector on the back of the TV and to an external sound system.

Or

■For an analog connection, connect audio cables to the Audio Out left and right connectors on the back of the TV and to an external sound system.

OUTPUT L AUDIO R

2 Connect power to the TV; see "Connecting power to the TV" on page 16.
3 Turn on the TV; see "Turning the TV On and Off (Standby)" on page 17.
4 Connect power and turn on the external sound system.
5 Define the digital audio format in the Option menu; refer to "Using the Option Menu" on page 32.

Connecting power to the TV

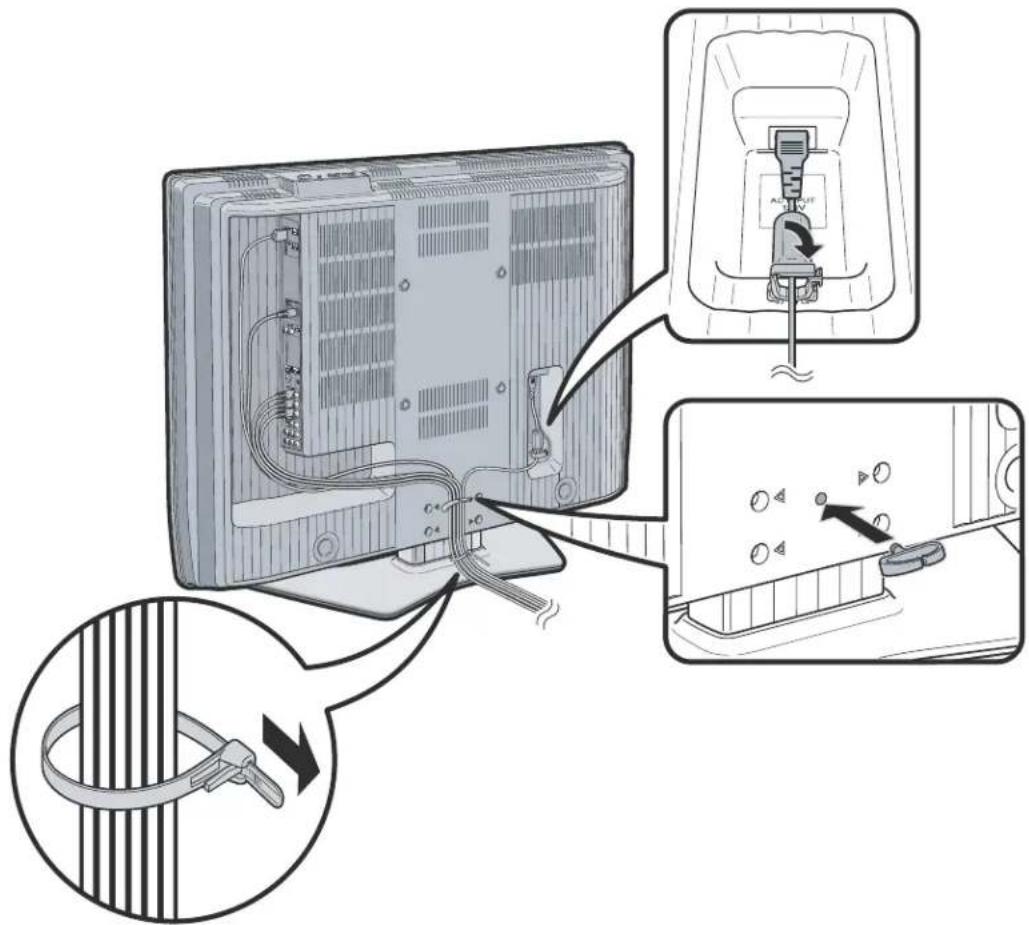

Use these steps to attach the cable clamp, bundle cords with the cable clamp and the cable tie, and connect the AC power cord.

1 Connect the power cord to the connector on the back of the TV, and secure it in the clamp.
2 Insert the cable clamp from the box into the hole on the back of the TV.
3 Route the cords through the cable clamp, and bundle the cords in the cable tie from the box.
4 Connect the power cord to the AC power outlet.

Diagram illustrating cable connection to a TV monitor, showing cable routing and component disassembly steps

Turning On the TV

Turning the TV On and Off (Standby)

The TV has a Power button on the top of the display. You can also use the remote control Power button to turn on the TV.

Pressing the Power button either turns the TV on or places it into standby, which is a reduced power state.

- VOL + ✓ CH ∧ INPUT POWER

The Power indicator light on the front of the TV shows the power status of the TV.

A B D C

A: Remote control sensor

B: OPC sensor

C: Power indicator

D: OPC indicator

Power indicator Power status
Off Standby (off)
Lights green Ready (on)

If the TV is not used for an extended period of time, press the Power button to place the TV into standby, and then unplug the power cord.

The optical picture control (OPC) indicator on the front of the display shows the TV OPC status for backlight brightness control.

OPC indicator TV	OPC status
Off OPC disabled (Off)
Lights green OPC enabled (On or On:Display)

When enabled, the OPC sensor on the front of the TV senses the surrounding light and automatically adjusts the backlight brightness. For more information, see "Choosing OPC" on page 28.

Using the TV buttons

1 Press the Power button on the top of the TV.

The TV is on or in standby.

2 Press the Input button as needed to select the TV input source to view.

Using the remote control buttons

1 Point the remote control at the remote control sensor on the display, and press the remote control Power button.

The TV is on or in standby.

2 Press the Source button as needed to select the TV input source to view.

Source

The initial setup starts when the TV powers on for the first time. If the TV has been turned on before, the EZ setup does not start. See "Using the First-Time Setup Wizard" on page 19.

Using the First-Time Setup Wizard

Initial Setup

When turning on the TV for the first time, it automatically memorizes the channels where you live. Perform the following steps before you press TV Power on the remote control unit:

1 Insert the batteries into the remote control unit.
2 Connect the antenna cable to the TV.
3 Plug in the AC cord to the AC outlet.

Language setting

Select from among three languages: English, French, or Spanish:

1 Press the up arrow and down arrow buttons on the remote control to select the desired language listed on the screen.
2 Press OK.

Standby mode setting

1 Select the standby mode setting. The default setting is Mode 2.

■Mode 1: Starting TV is quick from standby.
■Mode 2: Power consumption is low when in standby.

Language Standby Mode Air/Cable CH Search Mode 1 Mode 2

2 Press OK.

Antenna setting

1 Press the left arrow and right arrow buttons on the remote control to select Air or Cable.
2 Press OK.

Channel search

Channel search automatically searches for a signal from all available channels:

1 Press the left arrow and right arrow buttons on the remote control to select Yes or No for Air Analog & Digital, and then press the down button to move down.
2 Press the left arrow and right arrow buttons on the remote control to select Yes or No for Cable Analog, and then press the down button to move down.
3 Press the left arrow and right arrow buttons on the remote control to select Yes or No for Cable Analog & Digital, and then press the down button to move down.
4 Select Search Start, and then press OK.

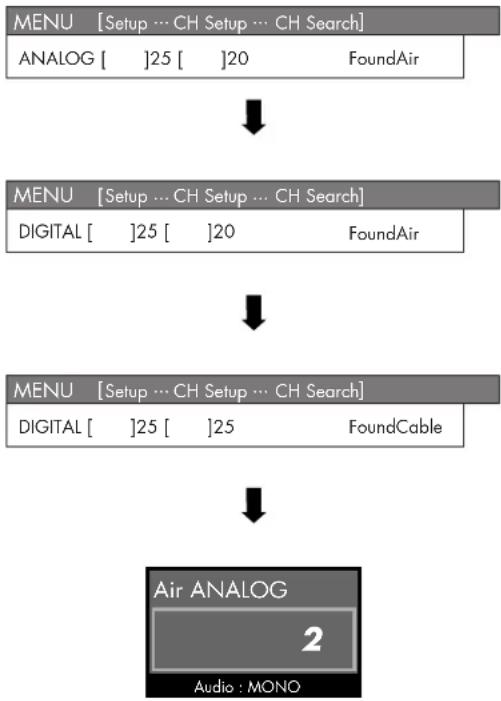

Example

If no channel is found, check the input connection to your TV, and run the EZ setup again using the Setup menu; see "Starting EZ Setup" on page 30.

Using the Remote Control

Operating the TV

The remote control operates the TV. To use the remote control, point the remote control at the remote control sensor on the display.

5m 30°

Use the remote control within a distance of 16.4 feet (5 meters) from the front of the TV remote control sensor window and at the maximum horizontal and vertical angles of 30 degrees.

Using universal remote controls

When you want to program a universal remote control to operate your HP TV, if HP is not listed in the supported brand codes, use a Philips TV code. The HP remote control transmits Philips-licensed remote control codes.

After programming your universal remote control with a Philips TV code, it can operate your HP TV functions for volume, mute, power, and input source.

Installing or replacing remote control batteries

Insert two AAA non-rechargeable batteries into the remote control, ensuring that you place them with the proper polarity.

1 Press and open the cover on the back of the remote control.

2 Insert the batteries into the remote control, and make sure that you match polarities.

3 Close the cover.

Line drawing of three different types of medical or mechanical devices, possibly surgical or medical instruments, with no visible text or symbols.

Do not mix different types of batteries together (for example, alkaline and carbon-zinc) or old batteries with fresh ones.

Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

When not using the remote for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

Do not try to recharge batteries that are not intended to be recharged; they can overheat and rupture. Follow the battery manufacturer's directions for the batteries you are using.

Always remove batteries as soon as they become weak. Weak batteries can leak and severely damage the unit. The battery life depends on how much the remote control is used. Replace batteries when remote control operation becomes erratic.

Do not take apart the batteries, heat them, or throw them into a fire.

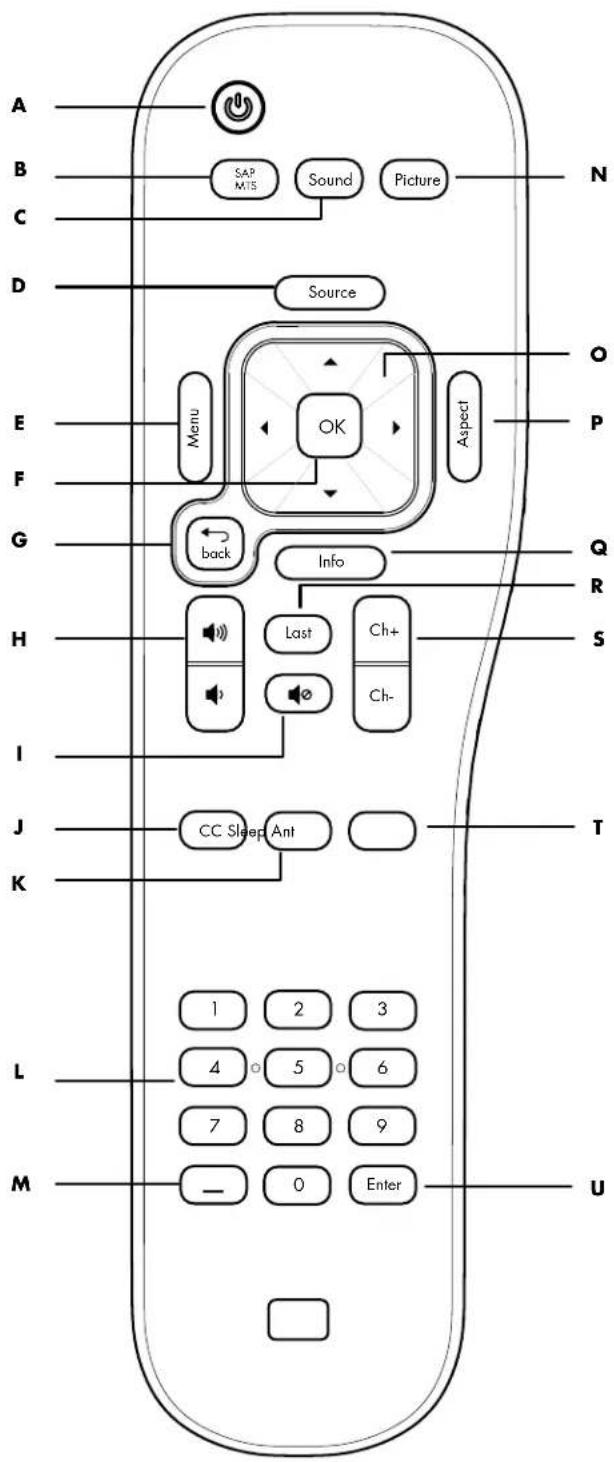

Identifying the remote control buttons

A B C D Source SAP MIS Sound Picture N O E Menu OK Aspect P F G back Info Q R H Last Ch+ S I J CC Sleep Ant T K 1 2 3 4 5 6 7 8 9 M — 0 Enter U

Name Description Icon
A Pow	er Press Power to turn the TV on or off.
B SAP	/ MTS Press select an available secondary audio program.	SAP/MTS to
C Sou	n d Press Sound to select an audio mode.	Sound
D Sou	r ce Press Source to open the input source list. Press Source again as needed to select the desired input source.	Source
E Men	u Press Menu to the onscreen display (OSD).Press Menu again to exit the menu and return to your TV display.	openMenu
F OK	Press OK to choose the current menu option.
G Back	Press Back to go back one level within a menu.
H Vo I	Press a Volume button to raise (or lower) the sound.
I Mute	Press Mute to turn sound off or on.

Name Description(Continued)		Icon
J C C	Press CC to select a closed caption mode.
K S I e	e p Press Sleep to the timer; press Sleep again as needed to set the time: Off, 30, 60, 90, or 120 minutes.
L N u m	b e r Press number buttons(0-9) to directly select the channel, and then press Enter.
M - (D a s h )a dash for a subchannel number of a digital channel. For example, channel 14-2.		r
N P i c t	u r e Press Picture as needed to select the AV mode: Standard, Movie, Game, User, Dynamic (fixed) or Dynamic.
O Up/down/left/right arrows	Press the arrow keys to move the cursor in the menu screens.

Name Description(Continued)		Icon
P A s p	e c t Press Aspchange the dimensions of your picture image. The options depend on the current input source.
Q l n f o	Press Info to view channel banner containing information on your current program. Press Info again to see more information.
R L as t	Press Last to recall previous channel you were viewing.
S Ch+Ch-	Press Ch+ (or Ch-) to select the next higher (or lower) channel.
T A nt	Press Ant to view TV i currently viewing DVD or other input source.
U Enter	Press Enter after entering a channel number.

Adjusting the Volume

Press the volume buttons on the remote control to increase or decrease the sound. The indicator bar on the TV shows the increase or decrease.

Muting the sound

1 Press the Mute button to temporarily turn off the sound.
2 Press the Mute button again to restore the sound back to the previous level.

Changing the Picture Mode

Pressing the Picture button displays the AV Mode currently selected. Keep pressing the Picture button to change the video mode until you reach a desired picture.

■Standard: Good for normal viewing conditions with normal room lighting.
■Movie: Good for watching movies in a darkened room.
■Game: Good for playing games: Lowers image brightness for easier viewing.
■User: Displays the custom settings you configure in the OSD. For more information on defining the picture settings, see "Using the Picture Menu" on page 28.
■ Dynamic (fixed): Uses factory preset values for image and sound settings. Allows no adjustments.
■Dynamic: Enhances contrast and sharpness for a clear image in a well-lit room, useful for viewing sports.

Changing Channels

Press the Ch+ or Ch- buttons on the remote control to change the channel up or down. The TV allows you to select up to 135 channels (1 to 135). To select a channel, enter a one-digit, two-digit, or three-digit number, or use the channel up or down buttons.

To select a channel number (for example, channel 25):

Complete the following procedure within 4 seconds.

1 Press the 2 button on the remote control.
2 Press the 5 button.
3 Press Enter.

To select a subchannel number, such as 14–2, complete the following procedure within 4 seconds:

1 Press the 1 button on the remote control.
2 Press the 4 button.
3 Press the - (dash) button.
4 Press the 2 button.
5 Press Enter.

Selecting the last channel

Press the Last button on your remote control to view the previous channel you were viewing.

Displaying program information

Pressing the Info button displays a banner with information about the current program you are viewing.

Sometimes the name of the program is not included in the broadcast. In that case, the program name is not displayed.

Selecting the Input Source

1 Pressing the Source button displays the input source.
2 Press the Source button as needed to select the desired input source.

Changing the View with the Aspect Button

Pressing the Aspect button scrolls through the Aspect modes. The options depend on the current input source.

■Side Bar: Shows the standard 4:3 ratio picture image in the center of the TV with dark bars on the left and right.

■Smart Stretch (S.Stretch): Horizontally stretches the TV picture, if necessary, to fill the screen; the center of the screen has aspect correction. Suitable for stretching normal 4:3 programs to fill the screen.

■ Zoom: Proportionally stretches the TV picture, but clips the top and bottom of the image to fit the screen. Eliminates black bars.

■Stretch: Shows high-definition TV in its normal format, and standard-definition TV at full-screen without aspect correction applied to the center of the screen. Recommended for anamorphic pictures.

Turning On Captions

Pressing the CC button scrolls through the closed caption modes. With the desired option selected, press Menu to close the menu.

To assign your preferences for captions, see "Selecting closed caption options" on page 35.

Setting SAP/MTS stereo mode

Pressing the SAP/MTS button scrolls through the available Secondary Audio Programs (SAP)/Multi-channel Television Sound (MTS) features: STR (stereo), SAP, or Mono.

SAP receives mono sound, stereo sound, and Secondary Audio Programs. The MTS feature allows a TV station to broadcast other information, such as another language or weather information.

You can enjoy hi-fi stereo sound or SAP broadcasts where available.

■Stereo broadcasts

Hear programs such as live sporting events, shows, and concerts in dynamic stereo sound.

■SAP broadcasts

Select to hear either Main or SAP sound.

Main sound: The normal program soundtrack (either in mono or stereo).

SAP sound: Listen to second language, supplementary commentary, and other information. (SAP is mono sound.)

If stereo sound is difficult to hear, obtain a clearer sound by manually switching to fixed mono-sound mode.

MTS operates only while in TV mode.

Changing Audio Mode

Pressing the Sound button displays the Audio menu. Select Surround to enjoy surround sound. For more information, see "Adjusting the audio" on page 29.

Setting the Sleep Timer

Press the Sleep button to start a timer for the TV to automatically turn off. Press Sleep again as needed to set the time before sleep: 30, 60, 90, or 120 minutes. Setting the Sleep Timer to 30 means your TV automatically turns off in 30 minutes.

To clear the timer, set the time to Off.

Adjusting TV Settings

Use the onscreen display to adjust your picture, audio, and other settings. For more information, see "Using the OSD Menus" on page 27.

Opening and exiting the OSD

Pressing Menu displays the OSD menu. Pressing the Menu button again leaves the current menu and returns you to the TV display. Pressing Back within a submenu takes you back one menu level.

Changing the TV Settings

Change the TV settings by using the onscreen display (OSD) menus.

Using the OSD Menus

Operate the OSD menus using the buttons on the remote control to highlight, adjust, and enter items as described here.

1 Press the Source button as needed to select the input signal source for the TV. The OSD menus and options you see depend on the type of input selected.
2 Open the OSD by pressing the Menu button. The available menus appear as a list.
3 Press the direction buttons to highlight the menu you want, and then press the OK button to move to it.

Remote control Description
Menu Menu	(Exit) displays (or closes) the OSD.
OK OK selects highlighted item in the OSD.
Arrow buttons	The Direction buttons move right, left, up, or down in the menu or adjusts an item.
Source Source	selects the input source.Choose the input source before displaying the OSD.
Back Back	moves up (back) one item or menu level.

4 Press the direction buttons to move within the menu and highlight an option, and then press the OK button to move into the option.
5 Continue using the direction buttons to highlight and adjust an item and the OK button to enter the change. You can press the Back button to move out of an option or to move up one menu level.
6 When you are finished, press the Menu button to close the menu.

The OSD menus are:

■Picture
■Audio
■Power Control
■Setup (includes EZ Setup, channel setup, and parental controls setup)
■Option
■Digital Setup

In the following section, a table lists each menu and the available options.

Using the Picture Menu

The Picture menu controls the look of the image on the screen for the selected picture mode. For example, when you adjust Brightness, the screen image changes as you adjust the scale.

Because the Picture menu maintains settings for each input, select (view) the input source, and then make Picture menu changes. The following table shows the Picture menu.

Picture menu Options
OPC (optical picture control)	Off/On/On:Display
Backlight [scale]
Contrast [scale]
Brightness [scale]
Color [scale]
Tint [scale]
Sharpness [scale]
Advanced Color Temp	Black3D-Y/CMonochromeFilm ModeRange of OPC
Reset No/Yes

Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

Adjusting the picture settings

Choosing OPC

The optical picture control (OPC) adjusts the overall brightness of the screen.

With OPC set to Off, the brightness is fixed at the value set in Backlight. With OPC set to On or On:Display, the OPC sensor on the front of the TV senses the surrounding light and automatically adjusts the backlight brightness. On:Display also causes a label to appear on the screen while the OPC is adjusting the screen brightness.

Adjusting the image

These settings adjust the image you are watching, so select the correct input source before adjusting values.

■Backlight sets the overall screen brightness when OPC is off.
■Contrast sets the image contrast.
■Brightness sets the image brightness.
■Color sets the image color intensity.
■ Tint sets tones; decrease to make skin tones more purple, or increase to make skin tones more green.
■Sharpness sets the image sharpness.
■Advanced are individual settings; see the following section.

Adjusting Advanced settings

The Advanced options depend on the input source.

■Color Temp sets the white balance in increments from High to Low; choose High for white with blue tones and Low for white with red tones.
■Black sets the viewing depth automatically by adjusting the dark portion of an image; set to On for high detail in black portions of the image.
■3D-Y/C sets the response for minimal dot crawl and cross-color noise for video input signals from Composite Video or Analog In. Choose Standard for normal adjustment, Fast for a movie image, or Slow for a still image.
■Monochrome sets color to monochrome for viewing video without color. Set to On for monochrome.
■Film mode automatically detects a film-based source (originally encoded at 24 frames per second), analyzes, and then recreates each still film frame for high-definition picture quality. Set to On for automatic conversion of a film source.
■Range of OPC selects the image brightness minimum and maximum range for the OPC sensor automatic adjustments. OPC must be set to On.

Using Reset

To return all adjustment options to the factory preset values, highlight Reset and press OK, and then highlight Yes and press OK.

Using the Audio Menu

The Audio menu sets the sound levels and the option for the Surround Sound setting.

The Audio menu is not selectable when the Output Select option in the Option menu is set to Variable.

Audio menu Options
Treble [scale]
Bass [scale]
Balance [scale]
Surround Off/On
Reset Yes/No

Adjusting the audio

In the Audio menu, select an item and adjust the scale for Treble, Bass, or Balance. These options are not selectable when Surround is set to On.

Set Surround to On to enjoy surround sound.

To control the audio output, including muting the speakers, refer to the Output Select option in "Using the Option Menu" on page 32.

Using Reset

To return all adjustment options to the factory preset values, highlight Reset and press OK, and then highlight Yes and press OK.

Using the Power Control Menu

The Power Control menu sets options to allow you to save energy by choosing to turn off the TV:

■When there is no signal for 15 minutes.
■When there is no operation for 3 hours.

Power control menu Options
No Signal Off Disable/Enable
No Operation Off	Disable/Enable

Using the Setup Menu

The Setup menu options depend on the current input source; items appear that apply for the selected input.

For example, Parental CTRL (used to select a secret number and set the values for parental controls by TV rating, TV content, and movie ratings) does not appear when the selected input is Input 4 or 5 (HDMI).

Setup menu Description
EZ Setup Starts guided setup.
CH Setup Scans for channels.
Antenna Setup — Digital	Displays air-broadcasted digital TV signal and channel strength.
Parental CTRL Enables and defines parental controls for TV and movies.
Input Skip Sets the	TV to skip the HDMI connectors (Input 4 or Input 5) when selecting the input source.
Position Adjusts image position on the screen.
Input Label Selects	a name (from a list) for the input source.
Picture Flip Sets the	orientation of the picture.
Standby Mode Sets	the TV mode for standby.
Language Sets the	OSD language.
Reset Sets Setup options to the factory preset values. Does not change the Channel Setup, Parental CTRL password, or Language settings.

Starting EZ Setup

Select EZ Setup to start the first-time setup wizard.

To start EZ Setup:

1 Press Menu on the remote control.
2 Press the up or down arrow buttons to highlight Setup. Press OK.
3 Highlight EZ Setup, and then press OK.
4 If you set the Secret No., enter your 4-digit secret number. See "Secret number setting for parental control" on page 35.
5 Follow the setup wizard instructions. For more information, refer to "Using the First-Time Setup Wizard" on page 19.

Using CH Setup

If the initial setup does not find all the channels, use CH Setup to manually select the antenna and search for each missing channel.

Setting the antenna using the Air/Cable option

The Air/Cable option defines what type of antenna or cable is connected to the TV input.

If channels are missing, or no channels are found after running CH Search, check your antenna connection, and then perform CH Setup again.

Scanning for channels using the CH Search option

The CH Search option makes the TV look for all channels viewable from the signal cable connected to the TV input.

1 In the CH Search menu, highlight Yes for Air Analog & Digital, Cable Analog, or Cable Analog & Digital.

2 Highlight Search Start, and press OK.

The scan automatically searches the selected inputs for channels.

Removing channels using the CH Memory option

Use the CH Memory option to remove channels from the list of found channels. The removed channel does not appear when using the Channel buttons.

1 Highlight CH Memory, and press OK.
2 Highlight Analog (Air), Analog (Cable), Digital (Air), or Digital (Cable), and then press OK.
3 Highlight the channel, and press OK.
4 Select Skip, highlight On, and press OK.

■On skips the channel.
■Off does not skip the channel.

Using Antenna Setup — Digital

To receive air-broadcasted digital television signals, you need a digital antenna. You can set the antenna configuration through the Antenna Setting screen. Adjust for digital TV signal and channel strength using the Antenna Setup — Digital option.

■Signal Strength shows the current and maximum signal strength.

■ Channel Strength, available for Digital (Air) channels only, helps you adjust the direction of the digital antenna.

Using the Channel Strength option

1 With the Antenna set (refer to "Setting the antenna using the Air/Cable option" in the previous topic), view the digital channel on the TV.
2 Press Menu on the remote control, and select Channel Strength in the Setup/Antenna Setup — Digital menu. Press OK.
3 Move or adjust the direction of the digital antenna until you obtain the maximum signal strength. Press OK.

Using Parental CTRL

This option defines settings for Parental Control, including setting the Secret Number (Secret No.); refer to "Using Parental Controls" on page 35.

Setting Input Skip

This option sets the TV to skip the HDMI connectors (Input 4 or Input 5) when selecting the input source.

Setting Position

Use this Setup menu option to position the image on the screen by setting horizontal and vertical values. Settings depend on the input source; this option is for AV inputs only.

Select (view) the input source before selecting the menu option and adjusting the image position.

Setting Input Label

This option selects a name (from a list) for the input source. You cannot change the TV label.

Setting Picture Flip

This Setup option sets the orientation of the picture. Select (view) the input prior to setting the Picture Flip mode.

Picture Flip mode Example
Standard (normal image)	ABC
Mirror (mirror image)	DBA
Upside Down (upside down image)	VBC
Rotate (rotated image)	DCA

Setting Standby Mode

This option sets the TV mode for standby.

Standby Mode may be set to Mode 1, which starts the TV quickly from standby, or to Mode 2, which conserves energy while on standby.

Setting Language

This option sets the OSD language; choose English, French, or Spanish.

Using Reset

To return Setup options to the factory preset values, highlight Reset and press OK, and then highlight Yes and press OK.

Using Reset does not change the Channel Setup, the Parental CTRL password, or the Language settings.

Using the Option Menu

The Option menu items shown depend on the current input source:

■HDMI Setup sets options for the device connected to Input 4 and Input 5: Signal Type, Audio Select, and Auto View.

HDMI Setup Selectable items
Signal Type	RGB/YCbCr 4:4:4/YCbCr 4:2:2Select the signal type from an HDMI terminal.
Auto View	Enable/DisableSet whether or not to use Aspect based on signal recognition, including an HDMI signal.
Audio Select	Digital (HDMI)/Analog (R and L audio)This setting applies to Input 4 only.

■Audio Only, when set to On, turns off the video to the display and only audio is output. Use this setting to hear audio only when listening to music from a music program.

■ Digital Noise Reduction, when set to High or Low, minimizes analog noise or interference on an analog channel.
■ Input Select sets the default type of signal or connectors for the device connected to Input 1 or Input 2.

For Input 1 and Input 2, you can select Auto, Component, or Video.

■Output Select selects what controls the audio output:

Fixed, the default setting, provides a constant volume level to the Audio Out terminals, and the speakers adjust using the Volume buttons.

Variable provides a volume level to the Audio Out terminals controlled by the TV volume; as you adjust the TV volume, the volume level to the external system also adjusts. Speakers are muted.

■Quick Shoot, when set to On, provides a clearer image for fast-action video. If video noise occurs, set the function to Off.
■Caption Setup selects options for Closed Caption; refer to "Using Closed Caption" on page 34.
■ Color System, selects the optimum color system: Auto, NTSC, PAL-M, or PAL-N. Choose the video signal system compatible with your equipment.
■Title Display Type, when set to No, does not show program information when you change the channel.

Using the Digital Setup Menu

This menu allows you to set the Audio Setup for the Digital Audio Output connector.

Digital Setup menu Description

Audio Setup Sets the Digital Audio Output mode.

Using Audio Setup

The TV provides digital audio output for an AV amplifier or similar device connected to the Digital Audio Output terminal on the TV. Select an audio output format compatible with the audio format of the program you are watching and the connected equipment.

Audio Setup menu Description
PCM The optical	output terminal outputs audio signal in PCM form. Choose this option when your digital audio system does not support Dolby Digital, or when the source is analog, such as from an analog channel.
Dolby Digital	The optical output terminal outputs audio signal in Dolby Digital form from digital programming.

Selecting the view aspect

For non-tuner input sources, select how the picture appears by choosing the Aspect option. You use this menu by pressing the Aspect button on the remote control to change the dimensions of the picture image. The options depend on the current input source.

■ Side Bar — shows the standard 4:3 ratio picture image in the center of the TV with dark bars on the left and right.

■ Smart Stretch (S.Stretch) — horizontally stretches the TV picture, if necessary, to fill the screen; the center of the screen has aspect correction. Suitable for stretching normal 4:3 programs to fill the screen.

■ Zoom — proportionally stretches the TV picture, but clips the top and bottom of the image to fit the screen. Eliminates black bars.

■ Stretch — shows high-definition TV in its normal format, and standard-definition TV at full-screen without aspect correction applied to the center of the screen. Recommended for anamorphic pictures.

Using Closed Caption

Your TV is equipped with an internal closed caption decoder. It allows you to view conversations, narration, and sound effects as subtitles on your TV. Closed captions are available on some TV programs and on some VHS home videotapes, at the election of the program provider.

Digital Closed Caption service is a caption service available only on digital TV programs (also at the election of the service provider). It is a more flexible system than the original closed caption system, because it allows a variety of caption sizes and font styles. When the Digital Closed Caption service is in use, it is indicated by a three-letter abbreviation that also indicates the language of the Digital Closed Captions: ENG (English), SPA (Spanish), FRA (French), and so on.

Not all programs and VHS videotapes offer closed captioning. Look for the symbol to ensure that captions appear.

When you have the signal source equipment connected using an HDMI or a component video connection, closed caption information may not always be available because the source equipment may not pass the information to the TV across these connectors.

In the closed caption system, there can be more than one caption service provided. Each is identified by its own number. CC1 and CC2 services display subtitles of TV programs superimposed over the program picture.

In the closed caption system, the Text1 or Text2 services display text that is unrelated to the program being viewed, such as weather or news. These services are also superimposed over the program currently being viewed.

■Depending on the number of caption services in the signal being received, you see information such as 1/2 or 1/4 displayed. 1/2 means "the first of two services."
■Example: If a program has three services (Digital CC (ENG), CC1, and Text1), the closed caption display toggles in sequence.
■The CC button keeps a record of the last service selected in its memory. If the last closed caption mode you selected is not available for the next program, or on another channel, the closed caption service that is available is automatically selected, and this service appears in parentheses. Closed caption services that appear in parentheses are not retained in the CC button memory as your last selected service. Only services that you have selected with the CC button are retained.

When the program contains no closed caption, "--" displays in the closed caption information.

If the language code, such as ENG, is not found on digital TV programs, "--" is shown.

All types of closed caption service (CC1, Text1, and so on) are potentially available, but a broadcast may contain none or only some of these services, at the election of the program provider.

The defaults for CC may be specified by the broadcasting station.

Selecting closed caption options

In the Option menu, select Caption Setup and press OK. Select an option to adjust:

■Caption Size selects a caption size.
■Font Style selects a font style.

Font style Description

Default The font specified by the broadcasting station or default font.

Type 0 Proportional font used in the Menu screen.

Type 1 Monospaced with serifs.

Type 2 Proportionally spaced with serifs.

Type 3 Monospaced without serifs.

Type 4 Proportionally spaced without serifs.

Type 5 Casual font type.

Type 6 Cursive font type.

Type 7 Small capitals.

■Foreground Color selects a character foreground color.
■Foreground Opacity selects a foreground opacity value.
■Background Color selects a character background color.
■Background Opacity selects a background opacity value.
■Character Edge selects a character edge.

Using Parental Controls

Secret number setting for parental control

Allows you to use a secret number to protect certain settings from being accidentally changed.

!

IMPORTANT: Three conditions must be met to enable V-Chip parental controls:

■Secret number is entered.
■V-Chip settings have been made.
■Parental Control Status is set to On.

Setting a secret number

In the Setup menu, select Parental CTRL, Secret No., and then enter the new 4-digit secret number by using the 0–9 buttons on the remote control. Enter the same digits for Reconfirm, and then press OK.

!

IMPORTANT: As a precautionary measure, write down your secret number.

Setting parental control status

Status is used to enable or disable the parental control function. Select On to enable and Off to disable parental control.

!

IMPORTANT: If the TV is forced-tuned to a channel that has been blocked by Parental Control, the Parental Control setting is given priority, and the EAS message is not broadcast.

Changing the secret number

New Secret No. in the Secret No. menu allows you to change your current secret number.

Clearing the secret number

Secret No. Clear in the Secret No. menu allows you to clear your secret number.

As a precautionary measure, make a note of your secret number and keep it in a familiar place.

If you lose or forget your secret number, do these steps to clear the secret number:

a) Press Menu on the remote control to open the OSD.
b) Press the up or down arrow buttons to highlight Setup. Press OK.
c) Press the up or down arrow buttons to highlight Parental CTRL, and then press OK. (You can select EZ Setup, CH Setup, or Reset instead of Parental CTRL.) The Secret No. window displays.
d) On the top of the TV, press and hold at the same time both the CH^ (Channel Up) and VOL+ (Volume Up) buttons until a message appears on the screen.

If the secret number is cleared, the Status setting automatically sets to Off. V-Chip and Status are not selectable from the menu.

Setting the parental control V-Chip level

V-Chip is an electronic filtering device built into your TV. This tool gives parents a great degree of control over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing while blocking ones judged not suitable. It does so automatically once you activate the V-Chip feature in your television.

V-Chip and Status are not selectable from the menu if you do not first configure your secret number.

The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings.

■TV Parental Guidelines work in conjunction with the V-Chip to help parents screen out inappropriate television shows from their children.
■Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television. The V-Chip can also be set to block MPAA-rated movies.
■The "V-Chip (DTV only)" will only be selectable when a new rating system can be downloaded via digital broadcasting in the U.S.

Voluntary movie rating system (MPAA)

To select MPAA ratings:

Select V-Chip in the Parental CTRL menu, and press OK. Then highlight MPAA, and press OK. Adjust the item.

The setting automatically enters Block for any ratings below your selection.

Example: If you select PG-13, this automatically blocks the higher ratings R, NC-17, and X.

Voluntary movie rating system (MPAA)

MPAA rating Description
Age	G General audiences. All ages admitted.
	PG	Parental guidance suggested. Some material may not be suitable for children.
	PG-13	Parents strongly cautioned. Some material may be inappropriate for children under 13.
	R	Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions).
	NC-17 No one 17 and under admitted.
	X	X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

Voluntary movie rating system only uses an age-based rating.

TV Parental Guidelines (TV Guidelines)

To select TV Guidelines:

Select V-Chip in the Parental CTRL menu, press OK, highlight TV Guidelines, and then press OK. Adjust the item.

The setting automatically enters Block for any ratings below your selection.

You can set an individual content-based rating item.

TV Parental Guidelines

TV Guidelines rating		Content
		FV (Fantasy violence)	V (Violence)	S (Sexual situation)	L (Adult language)	D (Sexually suggestive dialog)
Suggested Age	TV-Y (All Children)
	TV-Y7 (Directed to older children)	Rating can be set
	TV-G (General Audience)
	TV-PG (Parental Guidance suggested)		Rating can be set	Rating can be set	Rating can be set	Rating can be set
	TV-14 (Parents strongly cautioned)		Rating can be set	Rating can be set	Rating can be set	Rating can be set
	TV-MA (Mature audience only)		Rating can be set	Rating can be set	Rating can be set

Canadian rating systems

The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming.

While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality, and mature themes.

When setting the V-Chip on the Canadian system, you can choose either the Canadian English ratings or the Canadian French ratings.

Canadian English ratings

CE rating Description
Age	E	Exempt: Includes news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.
	C	Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being.
	C8+	Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourages children to imitate dangerous acts which they may see on the screen.
	G	General: Considered acceptable for all age groups. Appropriate viewing for the entire family; contains very little violence — physical, verbal, or emotional.
	PG	Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues.
	14+	Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme.
	18+	Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character, or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity.

Canadian French ratings

CF rating Description
Age	E Exempt programming.
	G	General: All ages and children; contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner.
	8ans +	General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent.
	13ans +	Over 13 years: Could contain frequent violent scenes and therefore recommended for viewing with parent.
	16ans +	Over 16 years: Could contain frequent violent scenes and intense violence.
	18ans +	Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

How to temporarily release a blocked program

When the parental controls rating censors a broadcast, a message displays.

1 Press OK, and then the secret number setting menu displays.
2 Enter your 4-digit secret number to temporarily release the program block.

Reactivating parental controls after a temporary release

You can reactivate parental controls for a temporarily released program.

■Select a status setting from the Parental CTRL menu.
■Select a V-Chip setting (MPAA, TV Guidelines, Can. English Ratings, or Can. French Ratings) from the Parental CTRL menu.
■Switch off the TV power.

Finding Answers to Questions

Understanding TV Terms

What are analog TV, digital TV, and high-definition (HDTV)?

Devices such as monitors, tuners, and integrated monitor/tuner combinations are designed to handle any of the 18 formats officially sanctioned by the industry-led standard setting, Advanced Television Systems Committee (ATSC), for the digital transmission of video signals. There are three subgroups of digital televisions depending on their capabilities: High-definition (HDTV), enhanced-definition (EDTV), and standard-definition (SDTV).

In contrast, U.S. analog television has been available for over 50 years in the single National Television Standards Committee (NTSC) format. This is the signal that has been broadcast over the air and through cable systems. NTSC television offers slightly more than 480 interlaced lines of resolution.

What is the difference between progressive and interlaced signal formats for digital TVs?

There are 18 standard digital TV signal formats. Each one provides a different picture quality. Digital TV formats are named using a number followed by either progressive (p) or interlaced (i). The letter refers to the way the TV uses the signals to create the picture:

■Progressive (p) scanning presents all the horizontal lines of the picture in one frame. This provides a sharper picture to the eye and looks much better than an interlaced image of the same resolution.

■Interlaced (i) means that the picture appears in two segments: every other horizontal line of the picture is displayed in one frame, and the other half of the horizontal lines are drawn in the next frame of the picture. This works because it happens so fast that the eye is deceived into believing that only one picture is being shown.

The number refers to the number of lines of resolution, and generally the higher the number, the better the picture. For example, with digital TV (DTV) there are two progressive formats for broadcasters to choose from: 480p and 720p. A 480p image is much sharper than a regular TV broadcast, although it is only considered a DTV signal and not a true high-definition signal. 720p has 720 horizontal scan lines and is considered to be true HDTV. 720p can rival a 1080i picture, which is 1,080 horizontal scan lines displayed as an interlaced image. This is because of the sharper and more accurate (progressive) 720p picture, even though a 1080i picture has many more scan lines and a much higher resolution.

What is variable aspect ratio?

The aspect ratio describes the relationship of screen width to screen height. Standard TV signals are based on the aspect ratio of 4:3 (four units wide by three units high). HDTV signals are based on the aspect ratio of 16:9, making the image 33 percent wider than a normal TV and allowing viewing TV and movies as if you were watching them in a theater.

In addition, many DVDs look better on the widescreen display because most movies made in the last 50 years were filmed in an aspect ratio of either 1.85:1 (very close to 16:9, which is equal to 1.78:1) or 2.35:1 (even wider than 16:9).

Variable aspect ratio support enables scaling of 4:3 and anamorphic video to fill the screen.

What is HDMI?

High-Definition Multimedia Interface (HDMI) is the first industry-supported, uncompressed, all-digital audio/video interface. HDMI components can transmit both digital audio and video over a single cable with improved quality over traditional analog connections due to an all-digital transmission. Transferring digital sources to display, such as DVDs and HDTV programming, can now be done without analog conversions that can degrade the original signal.

Identifying Cable Usage

The following section lists all of the cable types available for the TV. It shows a side view of each with its respective connector.

Cable type/connection Description
RCA	Red and white audio connectors connect to the red and white (L and R) audio inputs.
HDMI	HDMI is capable of transmitting both uncompressed digital audio and digital video signals because it has video, audio, and control signals.
Coaxial antenna	RF used mainly for antennas. Often used with cable TV, or a cable or satellite decoder set-top box. May be used with set-top boxes if no other choice is available.
Cable type/connection Description	(Continued)
S-video[IMAGE]	Used with equipment such as DVD players, VCRs, cable or satellite tuners or decoders, camcorders, and digital cable boxes.
Power cord Connects the TV to the power outlet.
Composite	Used with equipment such as a VCR or DVD. Cable plugs into AV input or output.
Component	Three- or five-headed cable: One red for Pr signal, one green for Y signal, and one blue for Pb signal. Some component cables also come with red and white audio cables attached. Used for HDTV receivers, DVD players, and other devices equipped with a YPbPr component output connector.

Specifications

HP LC3760N 37-Inch (94-Centimeter) LCD High-Definition Television

Display
LCD panel 37 in. Advanced Super View and Black TFT LCD
Dimensions with stand (h x w x d)	28.6 in. (72.6 cm) x 37.3 in. (94.7 cm) x 12.0 in. (30.4 cm)
Dimensions without stand (h x w x d)	26.3 in. (66.7 cm) x 37.3 in. (94.7 cm) x 4.7 in. (12.0 cm)
Number of pixels Up to 1,049,088 color pixels
Picture resolution 1366 x 768
Brightness Up to 450 cd/m	2
Backlight life	Up to 60,000 hours (at backlight standard position)
Viewing angles H: 176	°V: 176°
Audio out 20 W
OSD language English/French/Spanish
Power requirement AC 120 V, 60 Hz
Power consumption 186 W
Ventilation clearance requirements	1.4 in. (3.5 cm)
TV function
TV standard (CCIR) American TV Standard ATSC/NTSC system
Receiving channel VHF: 2–13	UHF: 14–69CATV: 1–135Digital Terrestrial Broadcast (8VSB): 2–69Digital cable (64/256 Clear-QAM): 1–135
Audio multiplex BTSC system

Rear connectors

Input 1 Component and Video input with share left and right audio

Input 2 Component and Video input with share left and right audio

Input 3 S-video and Video input with share left and right audio

Input 4 HDMI input (Type A) with HDCP, and left and right audio for DVI-to-HDMI converter use

Input 5 HDMI input (Type A) with HDCP

Audio Out Analog left and right audio output

Digital Audio Output (optical) Digital audio optical output (PCM/Dolby Digital)

ANT (Ant/Cable) 75-ohm unbalance, F-type for antenna or cable VHF/UHF/CATV input signals

Weight
TV (no stand) 47.18 lb. (21.4 kg)
TV with stand 52.91 lb. (24.0 kg)
Accessories
In the box Documentation, remote control unit, AC cord, cable clamp, cable tie
Recommended solution additions HP Digital Entertainment CenterHP Media Center PCHP Media Center Extender
Certification and compliance UL, C-UL, FCC, BETS-7
Warranty 1 year, parts and labor

All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

The panel life is determined as the time at which luminance is 50% compared to that of initial value at the typical lamp current on condition of continuous operation at 25 +/-° C. 60,000 hours equates to more than twenty-three years at seven hours a day viewing.

Troubleshooting

Refer to this section if you have viewing, picture, sound, remote, or startup problems with your TV.

Startup questions

Symptom Remedy
I do not hear sound at power-on even though there is an image.	■Is the volume too low? Press the Volume button.■Is mute turned on? Press the Mute button or the Volume button.■Is an external sound system connected and turned on? Are the speakers turned off in the OSD Option menu? (See the Output Select option in "Using the Option Menu" on page 32.)
I do not see an image at power-on.	■Are the connections to the input signal source component correct? Double-check that the cables are properly inserted in the color-coded connectors.■Is the input source powered on? Turn on the set-top box, DVD player, or other component you are trying to view.■ Is the correct input signal source selected? Press the Source button on the remote control and confirm the source is selected.■Press the Menu button on the remote control:■If the OSD appears, check the cables to the input source, and press the Source button on the remote control to choose the input source.■If the OSD does not display, see the next symptom, "There is no power."
There is no power.	■Press the Power button on the remote control unit.■If the indicator on the TV is off, press the Power button on the TV.■ Is the AC cord disconnected? Make sure both ends of the power cord are plugged in.■Is there power coming from the outlet? Plug in a functional lamp or other electrical device into the same outlet as the TV to make sure there is power coming from the outlet.■If using a power strip, make sure it is turned on.
Symptom (Continued) Remedy
The unit cannot be operated.	■External influences such as lightning and static electricity may cause improper operation. In this case, operate the unit after first turning on the power of the TV or unplugging the AC cord and replugging it in after 1 or 2 minutes.
The color is strange, faded, or misaligned.	■Adjust the picture tone.■ Is the room too bright? The picture may look dark in a room that is too bright.■Check the input signal setting.■ If watching a component device, make sure the red, blue, and green cables are fully inserted into the proper connectors on both ends.
The power suddenly turned off.	■Is the sleep timer set?■Check the power control settings.■The unit's internal temperature has increased. Remove any objects blocking the vent, or clean the vent.

Viewing questions

Symptom Remedy
I get a poor picture with video signal input.	Check the following: Improper control setting. Local interference. Cable interconnections. Adjust picture control as needed. Try another location for the TV. Be sure that all connections are secure.
There is no picture or a black screen, and I have an external device controlling the TV.	■Press the Source button on the remote control, and confirm the source is selected.■Verify that the external device power is turned on.■Check to see whether the source component is connected.■Check the power management function. Is it in standby mode?■Connect the source to the TV. Operate the external device.
The picture, with a component input source connected, is too red, blue, or green.	■Check to make sure each cable is plugged into the correct color-coded connector on the TV connectors and input source connectors.■Make sure the cables are plugged in all the way.

Picture quality questions

Symptom Remedy
Part of my picture is cut off, or the picture is not centered.	Check the position adjustment settings, and adjust the screen settings accordingly.
My picture image is too large or too small.	Press the Aspect button on the remote control, and adjust properly.
My picture is unstable. Verify that the external device resolution setting is correct. Adjust to the appropriate resolution.
There are bright spots on my screen.	In some cases, an LCD panel may have pixels that do not operate properly. This is common to all LCD displays used in products supplied by all vendors and is not specific to this product.

Remote control questions

Symptom Remedy
The remote control does not work. Check the following, and try the proposed solution:■Batteries are inserted with polarity aligned.■ Make sure the remote control batteries are fresh. If they are worn out, replace the batteries with new batteries.■ Make sure the remote control is within correct operating range.■Make sure the remote sensor window is not under too much light, direct sunlight, or strong artificial light.■Make sure there are no obstacles; check that there is nothing between the remote control and the sensor window on the display.■ Make sure the remote control is aimed at your TV and is not farther than 16.4 feet (5 meters) away.
The remote control does not control other home entertainment equipment.	This is not a universal remote control. It only works with your HP television.
My universal remote control does not find an HP TV code.	When you want to program a universal remote control to operate your HP TV, if HP is not listed in the supported brand codes, use a Philips TV code. The HP remote control transmits Philips-licensed remote control codes.After you program your universal remote control with a Philips TV code, it can operate your HP TV functions for volume, mute, power, and input source.

Copyright © 2006 Hewlett-Packard Development Company, L.P.

Attn : Product Regulations Manager

10955 Tantau Avenue

Building 45NL

Technical diagram of a house with numbered components, likely illustrating a roof or ventilation system layout.

http://www.hp.com/recycle

Simple line drawing of a monitor with an arrow pointing downward and upward, no text or symbols present.

Technical illustration of multiple screw and pin assemblies with a separate L-shaped bracket (no text or symbols)

Diagram of a mechanical device with attached components and directional arrows (no text or symbols)

Diagram of a flat-screen monitor with ventilation grilles and a play button, showing no text or symbols.

Technical line drawing of a flat-screen TV with visible internal components and mounting feet (no text or symbols)

HDMI INPUT 4 + DIGITAL AUDIO OUTPUT ANT/CABLE R-AUDIO-L INPUT 4

OUTPUT L AUDIO R

Diagram illustrating cable connection to a monitor, showing cable routing and device insertion steps

Line drawing of three different types of clipers or tools, shown in open and closed states (no text or symbols)

A B C D E F G H I J K L M SAP MTS Sound Picture Source Menu OK Back Info Last Ch+ Ch- CC Sleep Ant 1 2 3 4 5 6 7 8 9 — 0 Enter N O P Q R S T U

Copyright © 2006 Hewlett-Packard Development Company, L.P.

ENTIDAD RESPONSABLE:

Hewlett-Packard Company

Technical diagram of a house structure with numbered components for identification

http://www.hp.com/recycle

Simple line drawing of a monitor with an arrow pointing downward and an upward arrow pointing up, no text or symbols present.

Technical illustration of multiple screw and pin components with a separate L-shaped bracket (no text or symbols)

Mechanical device with lever and handle assembly (no text or symbols visible)

Diagram of a flat-screen monitor with ventilation grilles and a play button, showing no text or symbols.

Technical line drawing of a flat-screen TV with visible internal components and mounting feet (no text or symbols)

A: Cable coaxial de 75 ohmios (redondo)

B: Cable bifilar de 300 ohmios (plano)

C: Conector tipo F

HDMI INPUT 4 DIGITAL AUDIO OUTPUT ANT/CABLE R-AUDIO-L INPUT 4

OUTPUT L AUDIO R

Diagram illustrating cable connection to a TV monitor, showing cable routing and control panel with directional arrows.

Line drawing of three different types of medical or surgical tools with no visible text or symbols

A B C D E F G H I J K L M SAP MTS Sound Picture Source Menu OK back Info Last Ch+ Ch- CC Sleep Ant 1 2 3 4 5 6 7 8 9 — 0 Enter N O P Aspect Q R S T U
