n220 - Iron Wëasy - Free user manual and instructions

Product type	Iron (steam generator)
Brand	Wëasy
Model	n220
Power	2400 W (estimated)
Supply voltage	230 V
Frequency	50 Hz
Water tank capacity	1.2 L (estimated)
Weight	1.5 kg (estimated)
Functions	Continuous steam, steam burst, anti-drip, automatic shut-off, self-cleaning
Soleplate	Ceramic (assumed)
Cord length	2 m (estimated)
Automatic shut-off	Yes, after 10 minutes of inactivity
Anti-drip	Yes
Self-cleaning	Every 25 operating hours
Warranty	2 years
Recommended use	Distilled or demineralized water for hard water
Included accessories	Base, tank, cap

Frequently Asked Questions - n220 Wëasy

How to fill the water tank?

Unplug the appliance, remove the cap, fill up to the MAX level with tap or demineralized water, then replace the cap. Do not use chemically softened or scented water.

How to use the continuous steam function?

After the iron has heated up and the temperature has stabilized, use the steam control to select maximum power or ECO. Both positions can be selected at any time.

Why is my iron not producing steam?

Check that the tank has enough water and that the steam control is not set to 0. Make sure the iron is hot enough (the indicator light stops flashing). If the tank is empty, the pump stops automatically.

How to perform self-cleaning?

Make sure there is enough water in the tank. Place the iron on a stable surface. Once hot, press the cleaning switch for 3 seconds. The appliance will emit 3 beeps, then 2 minutes later 3 beeps to indicate the end of cleaning.

What to do if the iron does not heat up?

Check that the iron is plugged into a 230 V outlet and that it is turned on. If the problem persists, contact customer service.

Why is water leaking from the soleplate?

The anti-drip function may be delayed if the iron is not hot enough. Let the iron heat until the indicator light stops flashing. If the problem persists, check that the steam control is not set too high when cold.

How does the automatic shut-off work?

The iron automatically turns off after 10 minutes of inactivity (idle). A beep of 6 beeps sounds and the indicator light flashes. To reactivate, press the steam control.

Can I use scented water or additives?

No, do not use chemical additives, scented substances, or descaling agents. This voids the warranty.

What to do if the iron emits an odor or smoke during first use?

This is normal. Manufacturing oils burn off and the smell disappears after about 10 minutes of use. Run the iron over a regular cloth before first use.

How to maintain the soleplate?

Clean the soleplate with a soft cloth. Avoid running it over metal objects (buttons, zippers) to prevent damage. Do not use abrasive products.

USER MANUAL n220 Wëasy

Blue and white steam iron with 'weasy' branding, no visible text or symbols on the device itself.

steam station

centrale vapeur

dampfbügeleisen

stoomstrijkijzer

plancha al vapor de mesa

IMPORTANT SAFETY INSTRUCTIONS

When using your flatiron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to “min”, before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair.
   Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.

8. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.

9. If the malfunction indicator goes on, the flatiron is not operating normally. Disconnect from the power supply and have the flatiron serviced by qualified service personnel.

10. The iron must be used and rested on a stable surface.

11. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

12. This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

13. Children should be supervised to ensure that they do not play with appliance.

14. The iron must not be left unattended while it is connected to the supply mains;

15. The plug must be removed from the socked-outlet before the water reservoir is filled with water;

16. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable;

17. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

18. If the supply cord is damaged, it must be replaced by the manufacturer. its service agent or similarly qualified persons in order to avoid a hazard.

19. Symbol “△” means that surfaces are liable to get hot during use

20. This appliance may be used by children of at least 8 years of age, as long as they are supervised and have

been given instructions about using the appliance safely and are fully aware of the dangers involved.

1. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
2. Keep the appliance and its power cord out of reach of children under 8 years of age.
3. The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
4. When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

Your appliance has been designed for domestic use only.

It is not intended for use in the following situations which are not covered by the warranty:

• in staff kitchen areas in shops, offices and other professional environments,
• in farm hostels,
• by guests in hotels, motels and other residential environments,
• in bed and breakfast type environments.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to

arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

More specifically:

DO NOT let children or untrained persons use the appliance without supervision.

NEVER immerse the iron, cable or plug in any liquid.

DO NOT leave the hot iron touching fabrics or very inflammable surfaces.

DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.

NEVER touch the appliance with wet or damp hands.

DO NOT use the power cord or the appliance in order to pull the plug out of the socket.

DO NOT leave the appliance exposed to the weather (rain, sun, etc.).

DO NOT leave the iron without supervision when it is connected to the power supply.

DO NOT fill the reservoir with water before removing the plug from the socket.

PLEASE NOTE!

Do not use chemical additive, scented substances or decalcifiers. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

DESCRIPTION OF DEVI

GENERAL INSTRUCTIONS

When using the iron for the first time, you may notice a slight emission of smoke and hear some sounds made by the expanding plastics. This is quite normal and it stops after a short time. We also recommend passing the iron over an ordinary cloth before using it for the first time.

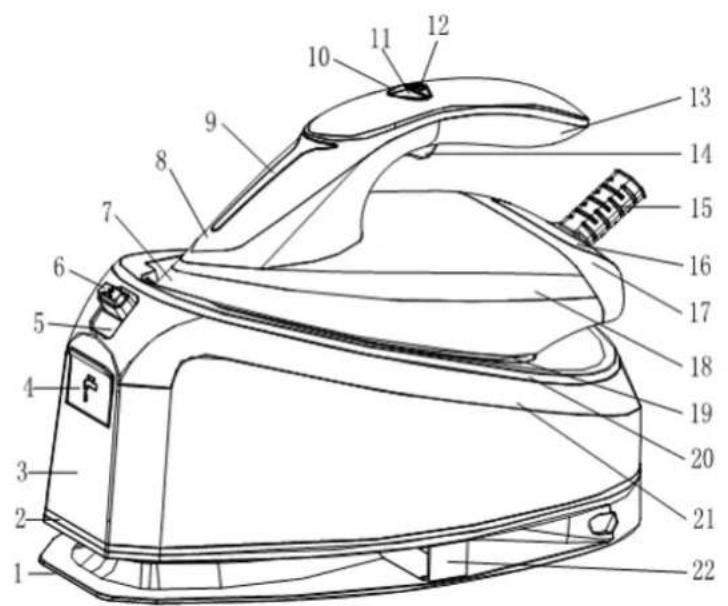

Technical diagram of a steam iron with numbered parts for identification

1. Base

2. Tank base

3. Tank

4. Cap

5. Lock

6. Unlocking

7. Flange

8. Iron

9. Indicator

10. Steam

11. Cleaning

12. Switch 13. Handle 14. Steam control 15. Cord 16. Connection 17. Cover 18. Shell 19. Sole

13. Face-plate 21. Central 22. Cord slot

1 2 3 4 5 ECO

1. Cleaning tips 2. No water in the tank. 3. Big gear steam 4. Automatic power failure prompt 5. Energy saving steam

Suggestions before using the iron for the first time

1. Certain parts of the iron have been lightly greased therefore the iron could give off a little smoke when plugged in for the first time. This will cease after a short while.

2. Before using the iron for the first time, remove the plastic protector from the base (if it has one) clean the base with a soft cloth.

3. Keep the base very smooth. Do not run it over metal objects (such as against the ironing board, buttons, zips, etc.)

4. Pure wool fibres (100% wool) can be ironed with the appliance in the steam position .by preference ,select a high steam position and use a dry ironing cloth.

Steady temperature

1. Check the ironing instructions on the garment to be ironed.
2. Electronic temperature control, no need to manually adjust temperature

How to fill the water tank.

1. Disconnect iron power supply

2. Open the water cap

3. Fill the water tank to the MAX water level and close the cap

4. If you have hard water, it is advisable to use only distilled or demineralized water.

-do not use chemically de-limed water or perfumed

Steam ironing

1. Fill the iron as described in the section "how to fill the water tank".

2. Plug the iron into the mains.

3.Steam ironing is possible only when heating is complete. Otherwise, water may escape through the soleplate.

1. Wait until the indicator does not flicker to prove that the bottom plate has been heated.

2. Press Steam switch to realize Steam ironing.

3. When the iron is finished, place the iron in an upright position or on the base when the iron is interrupted

7.Disconnect the iron from the mains supply. Pour of any remaining water and leave the iron to cool off.

Continuous steam

1. Heating completed, temperature stabilized
2. Start steam switch, can choose large steam or ECO steam at the same time, the two stalls can be switched at any time

Explosion steam

• When the heating is completed, the temperature is stable.
• Press the steam in two seconds quickly, and the steam will start to explode in two seconds, while the steam will flash for 2 seconds.

Cleaning

1. Please make sure there is enough water in the tank before cleaning
2. When the pump works for 25 hours, it will prompt the product to be cleaned.
3. Please put the iron in a safe position before cleaning to prevent people from being injured by hot water during cleaning
4. After the heating is complete, the long press the cleaning switch for 3 seconds, and the iron enters the cleaning mode. The display on the screen flashes and goes with the 3 sound of bees.
5. Two minutes later, the buzzer rang three times, indicating that the cleaning was complete.

Auto shut off

1. When the iron is stationary for more than 10 minutes, the iron goes out of power mode
2. The power-off sign flashed on the display, accompanied by six buzzing sounds
3. Press the steam switch to restore the power
4. Irons will not be cut off during steam discharge

Anti drip

This iron is equipped with a drip stop function: the iron automatically stops steaming when the temperature is too low to prevent water from dripping out of the soleplate.

Anhydrous detection

In the course of working, if there is no water in the water tank, the pump will automatically stop working to protect the life of the pump

Defects and repairs

Do not attempt to replace a defective mains lead. The appliance has to be returned to an authorized service centre for repair.

Faults-reasons and solutions

Iron emits an odor or smoke

Iron gives off an odor when turned on for the first time. Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear.

Iron does not heat

The iron should be plugged into a 230 Volt, Whether the power switch is turned on

Iron does not steam

The water tank many be empty. Turn the steam valve to "0" and add water. Allow the iron to heat, and then set the steam dial to the steam setting.

"how to fill the water tank".

Iron is leaking

The variable steam dial must be set on" 0",until the iron is hot. The temperature setting is too low to produce steam. Shot of steam used too much, allow iron to re-heat.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages,

troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*).

- Normal maintenance of the device.

- All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.

- Damage of external origin: fire, water damage, electrical surge, etc.

- Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).

- The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.

- The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONNEMENT

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - [e-mail] - [e-mail] - Tél : [phone]
