USER MANUAL H55K800UX HAIER

Please READ this manual carefully before operating your TV, and retain it for future reference

IMPORTANT SAFETY INSTRUCTION

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
20) Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN! CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Illustration of a computer monitor with arrows indicating signal flow and a crossed-out hand symbol (no text or labels)

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Illustration of a TV with a cross symbol crossed out, next to a rope tied to a bag (no text or symbols present)

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen TV with stand (no text or symbols)

Do not trap the power supply cord under the television receiver.

Cartoon illustration showing a person on a computer screen with a crossed-out 'No' symbol, indicating no change or absence of change.

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame, no text or symbols present.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

Illustration of a person reacting to a computer screen with a magnifying glass (no text or symbols present)

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Warning symbol showing a computer monitor crossed out with a 'X' and a warning bell icon, indicating no text or symbols beyond the warning.

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

Minimum distances 10cm 20cm 10cm 5cm

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Main features

① Used as Television, display terminal;
② High luminance, wide viewing angle;
③ Can store Air and Cable TV programs;
④ HDMI interface;
⑤ Multi-Media player (USB);

Accessories

Remote Controller....2

User's Manual....1

Main parameter

Viewing Picture Size (Diagonal)	43 inch	50 inch	55 inch 65 inch
Resolution	3840x21603840x2160		3840x2160 3840x2160
Aspect Ratio	16:9
TV System	PAL-B/G, SECAM-B/G, DVB-T, DVB-C, DVB-T2,DVB-S2
Video Signal System	PAL/NTSC/SECAM
Receiving Channel	DVB-T2:1000, DVB-C:1000, ATV:99
Input Power Voltage	100-240V~50/60Hz
Power consumption	100W	120W	150W 170W
Audio Output Power (THD 5%)	2 x8W	2 x10W
Signal input/output	High-Definition Multimedia Interface( HDMI) x 4Composite Video Input x 1Audio Input x 1LAN Input x 1USB x 2OPTICAL OUTPUT x 1HEADPHONE OUTPUT x 1RF x 1LNB IN x 1CI x 1
Horizontal definition (TV line)	Composite Video input >=350

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

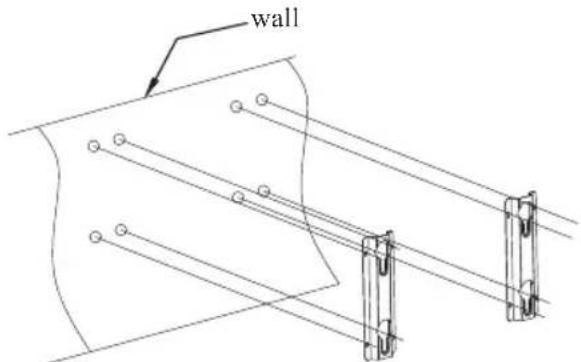

Step One: Use the expansion bolts(4*36PWA) to fix the wall mount brackets into the wall.

wall

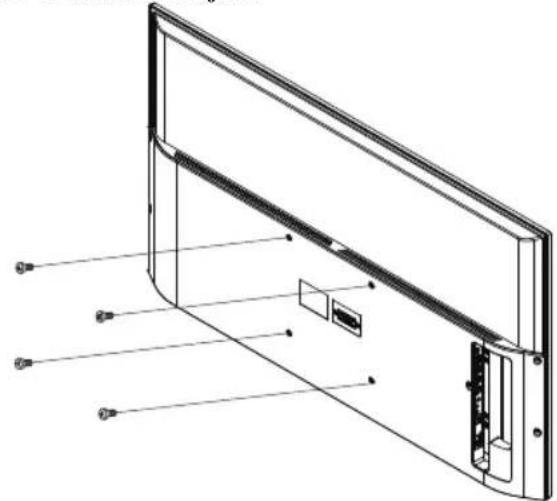

Step Two: Fix the wall mount screws (43":M6x8mm, 50":M6x12mm,55"/65":M6x16mm/4pcs) into the rear side of the LCD TV, using the tongue of 8kgf.cm.

* The TV appearance subject to material object.

Technical line drawing of a device rear panel with labeled components (no text or symbols present)

Step Three: Put the LCD TV with wall mount screws onto the wall mount brackets.

Warning: the angle between the TV and wall must not be bigger than 3^ .

wall 3°

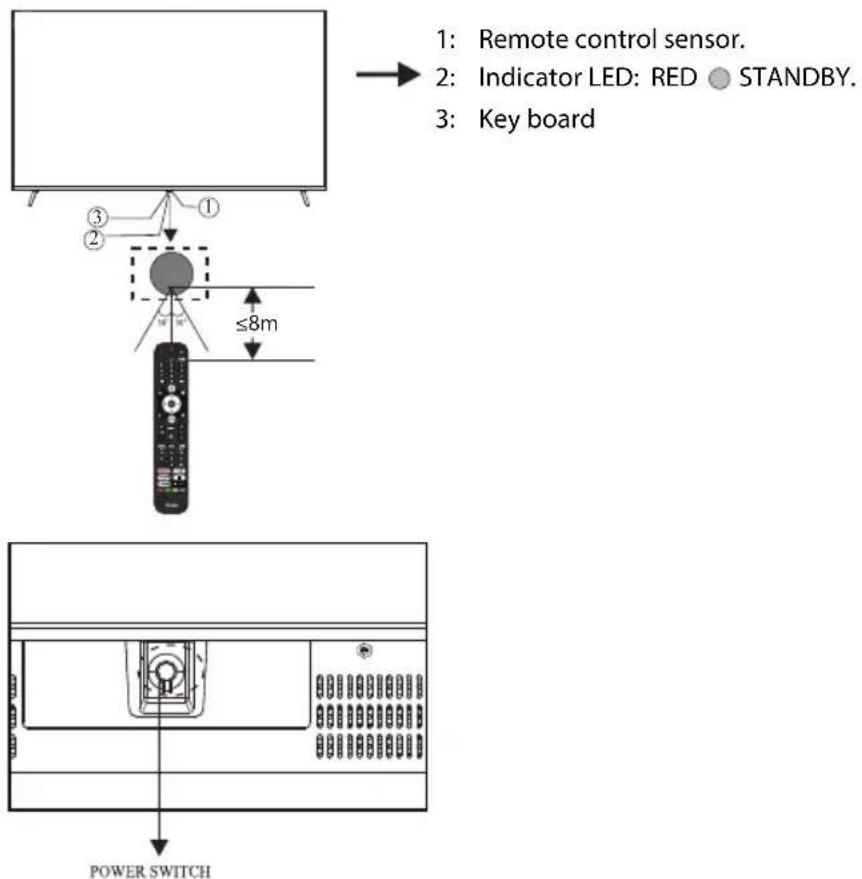

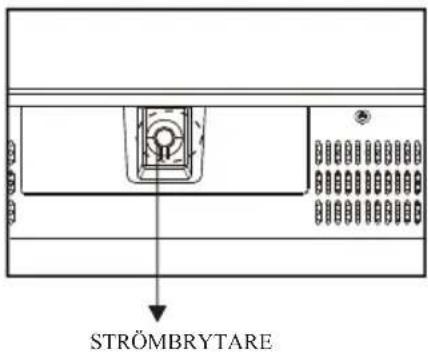

Front panel

1: Remote control sensor. 2: Indicator LED: RED • STANDBY. 3: Key board ≤8m POWER SWITCH

(1) In the standby mode - Press the button to start the TV.

(2) In the boot state - Press the button to shut down.

REAR AV Connections (SIDE)

HDMI (HS/CAR) SATELLITE ANT/CABLE USB COMMON INTERFACE(C) 12/18V 0.40mA 5.0V 50mA Ω

All the terminals are (from left to right): HDMI1(eARC/ARC), LNB IN, ANT IN, USB, CI, EARNPHONE output.

REAR AV Connections

LAN OPTICAL VIDEO L - IN - R HDMI HDMI HDMI

All the terminals are (from left to right): RJ45, OPTICAL output, VIDEO, AUDIO input(L/R), HDMI14, HDMI13, HDMI12.

Note: When HDMI port get DVI signal, the audio signal receives from the AV Audio channel.

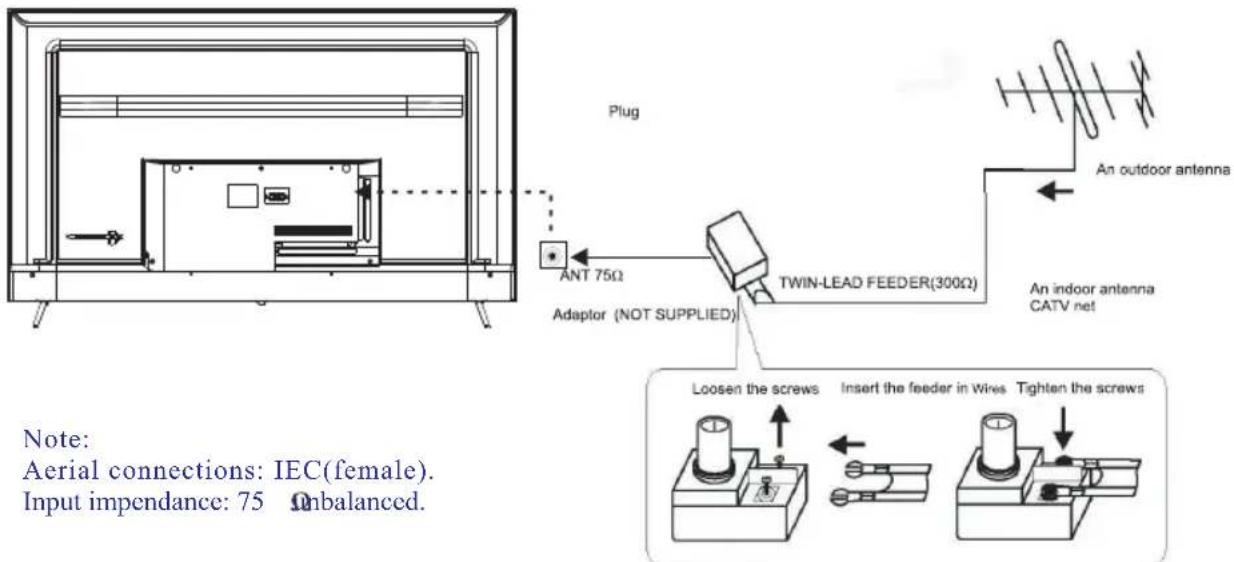

ANTENNA

Plug ANT 75Ω Adaptor (NOT SUPPLIED) TWIN-LEAD FEEDER(300Ω) An outdoor antenna An indoor antenna CATV net Note: Aerial connections: IEC(female). Input impendance: 75 Ωbalanced.

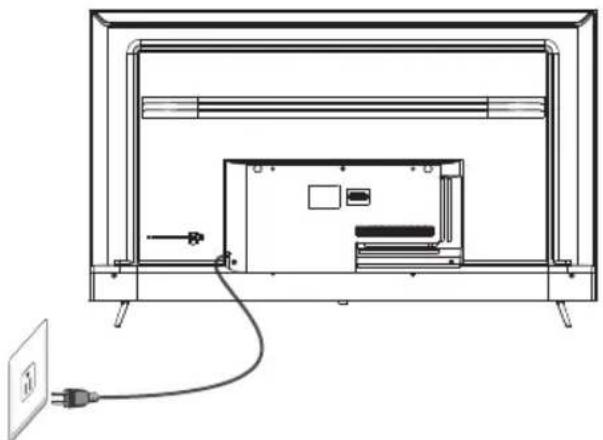

Line drawing of a TV setup with an open box, cable, and power outlet (no text or symbols)

PRESET MODE (HDMI)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

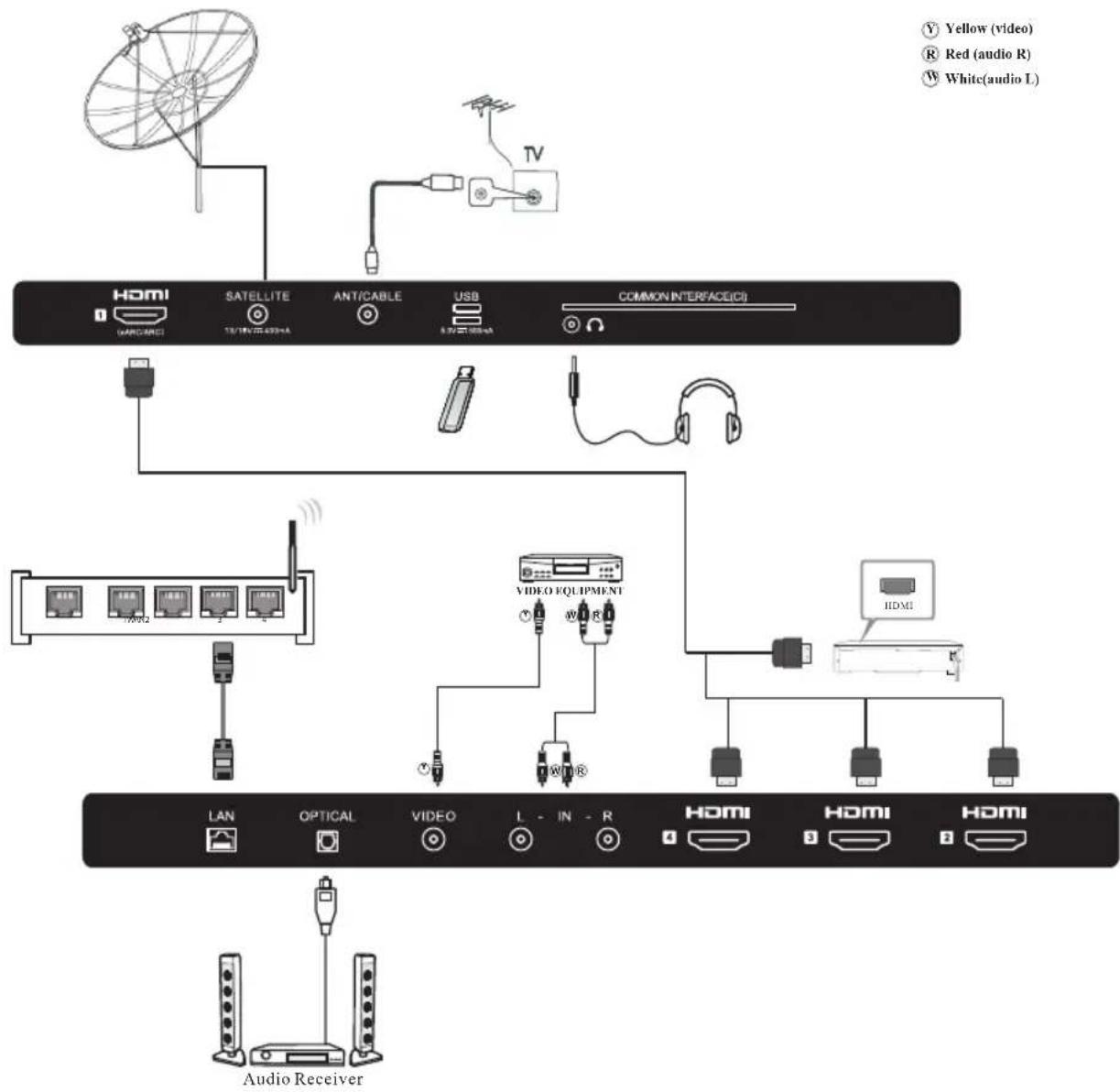

AV EQUIPMENT

This TV provides one group of AV for convenient connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.

Yellow (video) Red (audio R) White(audio L) HOMI SATELLITE ANT/CABLE USB COMMON INTERFACE(CI) HOMI TV HOMI2 VIDEO EQUIPMENT LAN OPTICAL VIDEO L - IN - R HOMI HOMI Audio Receiver

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc.....

Note:

1. When HDMI port get DVI signal, the "Audio" channel is changed to receive the audio for HDMI port.
2. Sometimes it will not support in different device because the device supplies nonstandard signal.

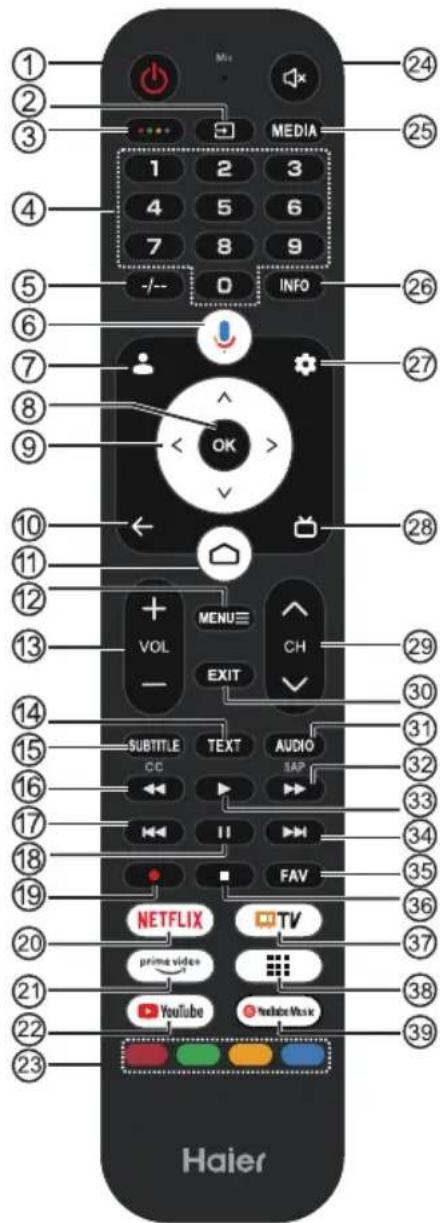

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ VOL MENU EXIT CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL illegal/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/White/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/white/ white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / white / Haier

#	Item	Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2		Press to open the input source list.
3		Press to open Soft Keyboard.
4	0~9 number	Press to enter a TV channel number.
5	-/--	It depends on the actual function.
6		Press to open the Google Assistant.
7		Choose or add an account.
8	OK	Enter the selected option or perform the selected operation.

#	Item	Descriptions
9	▲▼◀▶	Press to navigate the on-screen menu.
10	←	Return to the previous menu.
11		Press to open the Home Page.
12	MENU≡	Press to open or close the on-screen menu.
13	VOL+/VOL-	Press VOL+ or VOL- to adjust volume level.
14	TEXT	Press to select the teletext mode.
15	SUBTITLE	Open or close subtitle.
16		Press to reverse playback in multimedia & Timeshift mode.
17		Previous track.
18	II	Press to pause in multimedia mode & Timeshift Mode.
19		Press to record the TV program you are watching in DTV mode.
20	NETFLIX	Press to open the NETFLIX.
21	prime video	Press to prime vido for viewing online TV shows and flms (internet connection required).
22	YouTube	Press to open the YouTube.
23	Coloured buttons	Implement the relevant operations according to the prompt at the bottom of the menu in the text.
24		Press to open the mute.
25	MEDIA	Press to open the multimedia player.
26	INFO	Press to display the channel information.
27		Press to open the settings menu.
28		Press to display electronic programme guide in TV mode.
29	CH^ /CH√	Press CH^ or CH√ to change TV channels.
30	EXIT	It depends on the actual function.
31	AUDIO	Switch the soundtrack.
32		Press to fast forward in multimedia &Timeshift mode.
33		Press to play in multimedia mode &Timeshift Mode.
34		Next track
35	FAV	Press to select or remove your favorite channel.
36		Press to stop multimedia playback, REC &Timeshift Mode.
37		Press to open the Live TV.
38		Press to open the all apps pages.
39	YouTube Music	Press to open the YouTube Music.

Remove the cover of the battery compartment. Insert the 2 supplied batteries (Type AAA 1.5V).

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please according to the Text Tip to First Time Setup.

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

Language English (United States) Afrikaame Azarkaycan Bosanoki Cataik Čelstine

Press ▲/▼ to select the system language and press OK to confirm the language.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Press ▲/▼ to select the region/country of your device and press OK to confirm.

Google TV With basic TV, you will get Sign in with your Google Account to get! • Movies and TV shows from your favorite streaming app • Personalized recommendations • Google Assistant Search and control your TV with your voice • Live TV • General devices (e.g. HDMI) Set up Google TV Set up basic TV

Press ▲/▼ to select the "Set up basic TV" of your device and press OK to complete the setup.

Select your Wi-Fi network WiFi HKC_CSR TP-LINK_0024 WMS Other network... Skip

Press ▲/▼ to select the wifi to connect, press OK and enter the password to confirm the Connection is successful.

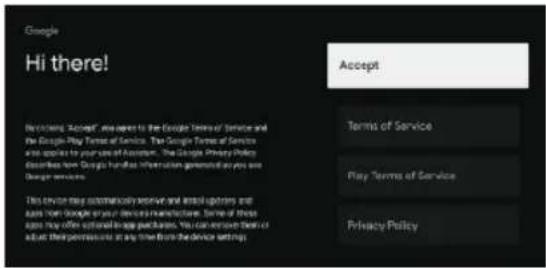

Google Hi there! Accept Terms of Service Play Terms of Service Privacy Policy Which the Google Policy provides information generated as you are George services. This device may automatically update and install updates and lasts from Google's your devices manufactured. Some of these actions may offer additional log purchases. You can provide them of about their permissions at any time from the device setup

By accepting the Google Terms of Service to improve the product experience, select "Accept" to accept this condition.

Password Please set password, 0007 is invalid. Input Password

Used to set your device's password to ensure security and privacy.

Input Password New Password --1 1 2 3 4 5 6 0 7 8 9 ✓

Press OK to pop up the soft keyboard, and use the remote control to enter the 4-digit password automatically jump to the next interface.

Confirm Password -1 1 2 3 4 5 6 0 7 8 9 ✓

Confirm the password again and keep it consistent Use the remote control to enter the password and complete the password.

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Realt' mode is optimized to store demo with fixed settings.

For selecting the mode, press ▲/▼ key to select Home mode and press "Yes".

Energy Options Saving Mode How much power can be replaced when you are not using this device Chromester Built-in Make this device available to Google. Get even in standby mode Wake on Network Only Make this device available to Google. Get even in standby mode

Select"Saving Mode" and proceed to the next step.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cabin: 0 Takeable: 0 Antenna Cable Satellite Next Step

To select the Tuner mode for searching, press to select and press OK to confirm.

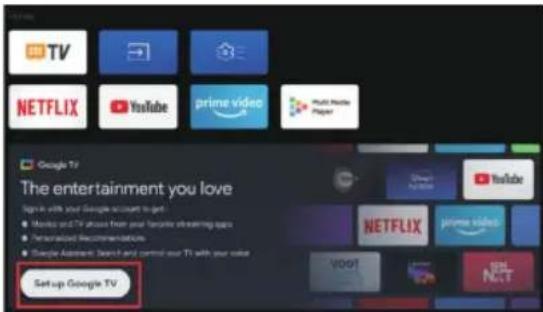

TV NETFLIX YouTube prime videos Google TV The entertainment you love Signs with your Google accounts to get: • Movies and TV shows from your favorite streaming apps • Personalized recommendations • Google Apps Search and control your TV with your video Setup Google TV

- Once in the user interface, you can switch from basic TV to Google TV settings

Set up Google TV to use apps Sign in with your Google account to get! ■ Movies and TV drivers from your favorite streaming apps ■ Personalized Recommendation ■ Google Assistant Search and control your TV with your video Set up Google TV Cancel

Press ▲/▼ to select the "Set up Google TV" of your device and press OK to complete the setup.

Google Sign in Use your Google Account Small or place ! Forgot email? Create account Next

Use your Google Account Sign in. Follow the Google Guide.

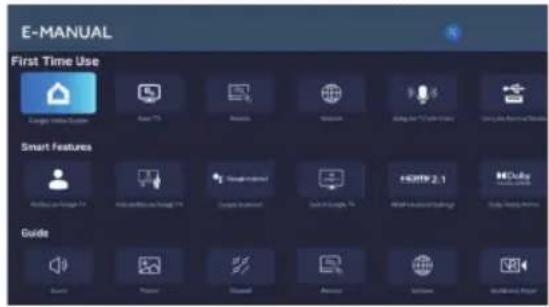

E-Manual

E-Manual is built into your TV and can be displayed on the screen. To learn more about your TV features, access your E-Manual by referring to the following. E-Manual may be available depending on the region or model.

1. Press HOME button to access the home page.
2. Press UP/DONW/LEFT/RIGHT and OK button to select and enter "E-Manual" in "Apps".

E-MANUAL First Time Use Smart Features Guide

Note: The picture is only for reference.

Haier

Haier

MANUAL DEL

USUARIO DEL TELEVISOR LED LCD

MODELO: H43K800UX

H50K800UX

H55K800UX

H65K800UX

Haier

Illustration of a computer monitor with warning symbols and a crossed-out cable, no text or labels present.

Simple line drawing of a window with a diagonal X mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol on its screen, surrounded by stars (no text or symbols)

Simple line drawing of a computer monitor with a fan, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand (no text or symbols)

Cartoon illustration of a person climbing a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric object with crosshairs and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular diagram with a document (no text or symbols present)

Simple line drawing of a monitor with a cross symbol crossed out, next to a warning light (no text or symbols)

Technical diagram of a front panel with labeled components, showing internal structure and numbered annotations.

① ② ③ ≤8m

1: Sensor de control remote.
2: Indicator LED:ROJO ESPERA
3: Teclado

Diagram of a device rear panel with a central connector and control buttons (no text or symbols)

INTERRUPT OR DE ENCENDIDO

Line drawing of a TV setup with an open box, cable, and power outlet (no text or symbols)

PREAJUSTADO (HDMI)

	RESOLUCIÓN	V.Frec.(Hz)	H.Frec.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

EQUIPOS AV

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ VOL MENU EXIT CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Sign in with your Google Accounts get: • Movies and TV allows from your favorite streaming app • Personalized recommendations • Google Assistant Search and content your TV will your voice • Live TV • External devices (e.g. HDMI) Set up Google TV Set up basic TV

Select your Wi-Fi network WINS HRC_CSR SP-LINK_0804 WINS Other network... Skip

Google Hi there! Accepting Accept, you agree to the Google Terms of Service and the Google Play Terms of Service. The Google Terms of Service who applies to your use of Adobe.com. The Google Privacy Policy describes from Google handles other information generated as you see Google services. Terms of Service Play Terms of Service Privacy Policy This device may commercially serve and install updates and app from Google by your device manufactured. Some of these assets may offer optional app purchases. You can remove them or adjust their permission at any time from the device setup.

Password Please set password. 2007 is invalid. Input Password

Input Password New Password [phone] ✓

Confirm Password 1 2 3 4 5 6 0 7 8 9 ✓

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Total' mode is optimized to store demo with fixed settings Home Retail

Renew Energy Options Saving Mode Includes power (carbohydrated) white (red and green) using this division Chromecast Built-in Wales only, which are available to Google. Next even to share the website Wales on Network Only Wales only, which are available to Google. Next even to share the website

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Next Step

TV NETFLIX YouTube prime video Multi Media Player Google TV The entertainment you love Sign in with your Google account to get • Movies and TV shows from your Facebook streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your value Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: ● Movies and TV shows from your favorite streaming apps ● Personalized recommendations ● Google Assistant Search and control your TV with your video Set up Google TV Cancel

Google Sign in Use your Google Account! Send to show 1 Forgot result? Create account Next

Illustration of a computer monitor with an electrical circuit and a crossed-out cable (no text or symbols)

Illustration of a TV screen with a black X mark and a cloth, no text or symbols present

Simple line drawing of a monitor with a cross symbol and stars, no text or labels present.

Simple line drawing of a computer monitor with a curved top and base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Cartoon illustration showing a person on a computer screen with a crossed-out X symbol, indicating no change or prohibition.

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a woman running away from a computer screen next to a CD with a small object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a speaker emitting sound waves (no text or symbols)

Technical diagram of a display panel with labeled components and directional arrows indicating assembly or assembly.

① ② ③ ≤8m

Diagram of a computer monitor with an internal keyhole and control panel (no text or symbols)

All the terminals are (from left to right):

RJ45, SORTIE OPTIQUE, VIDEO, entrée audio(L/R), HDMI4, HDMI3, HDMI2.

Line drawing of a TV setup with an attached cable and power outlet (no text or symbols)

MODE SUPPORTÉ (HDMI)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

ÉQUIPEMENT AV

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Set up Google TV Set up basic TV Sign in with your Google Account to get: • Music and TV shows how your favorite streaming app • Personalized accommodation • Google Assistant Search and Control your TV with your video • Unit TV • External devices (e.g. HDMI)

Select your Wi-Fi network Windows HXC_CSR FTP-LIME_OEOR WMS Other network... Skip

Google Hi there! Accept Deciding "Ricard" we want to the Google Terms of Service and the Google Play Terms of Service. The Google Terms of Service also applies to your use of Account. The Google Privacy Policy describes new Google families information generated as you are design services. Terms of Service Play Terms of Service Privacy Policy This device may automatically receive and install options and assess from Google about your devices manufactured. Some of these such items may offer online package packages. You can review them or adjust their permissions at any time from the device setting.

Password Please set password. 10007 is invalid. Input Password

Input Password New Password =1 1 2 3 ✕ 4 5 6 0 7 8 9 ✓

Confirm Password -1 1 2 3 4 5 6 0 7 8 9 ✓

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized to store zoom with fixed settings.

Energy Options Saving Mode Reduced power consumption from 10kV, and cut using the electric Chromecast Built-in Make this device available to Google. Can even be installed mode Wides on Network Grey Make this device available to Google. Can even be installed mode

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Solder: 0 Antenna Cable Satellite Next Stop

TV NETFLIX YouTube prime video Pubs Media Player Google TV The entertainment you love Sign in with your Google document to get: • YouTube on TV allowed from your Security streaming apps • Personalized Streaming services • Google Assistant Search and control your TV with your video Set up Google TV

Set up Google TV to use apps Sign in with user Google account target ■ Movies and TV shows from your favorite streaming apps ■ Personalized recommendations ■ Google Assistant Search and control your TV with user voice Set up Google TV Cancel

Google Sign in Use your Google Account Initial place ! Prompt email? Create account Next

Illustration of a computer monitor with arrows indicating motion and a hand holding a device (no text or symbols present)

Simple line drawing of a window with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a roof and legs, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Cartoon illustration of a person on a computer monitor with a crossed-out 'X' symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a person reacting to a computer screen with a falling object (no text or symbols present)

Warning symbol showing a computer monitor crossed out with a 'X' and a warning light icon

Technical line drawing of a flat-screen monitor with internal components and connectors (no text or symbols)

① ② ③ ≤8m

Diagram of a device rear panel with a central illuminated component and control buttons (no text or symbols)

NETZSCHALTER

Line drawing of a TV set with cable and power outlet, no text or symbols present

Diagram showing the step-by-step installation of a cylindrical device, illustrating battery assembly and charging process.

Diagram showing the step-by-step installation of a cylindrical device, with hand positions and battery components.

ERSTELLUNG

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English (United States) Afrihuano Azerbaycan Bosanski Canalk Çelktime

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Set up Google TV Set up basic TV Signs with your Google Accounts to get: • Movies and TV shows that your favorite streaming app • Personalized recommendations • Google Assistant Search and control your TV with your value • Live TV • External devices (e.g. HDMI)

Select your Wi-Fi network WNTS HKC_CSR SP-UNW_0804 WNTS Other network... Skip

Google Hi there! Accept By clicking "Accept", you agree to the Google Terms of Service and the Google Play Terms of Service. The Google Terms of Service you apply to your use of Association. The Google Privacy Policy describes how Google handles information generated any you use Google services. This device may automatically receive and update updates, and appoints more Google on your devices manufactured. Some of these apps may offer optional in app purchases. You can receive them or adjust their permissions at any time from the device settings. Terms of Service Play Terms of Service Privacy Policy

Password Please set password: 0007 to invalid. Input Password

Input Password New Password =1 1 2 3 4 5 6 0 7 8 9 ✓

Confirm Password [phone] ✓

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Retail' mode is optimized to store demo with fixed settings.

PUBM Energy Options Saving Mode The value phone can be used to: where you are not using this remote. Chromecast Built-in Make this choice as available to Google. Can even in share by mode. Water on Network Only Make this choice as available only to Water on Networks in share by mode.

Tuner Tuner Mode Please select your tuner mode: Analog 0 Antenna 0 Cabinet 0 Satellite 0 Antenna Cable Satellite Next Step

Google TV The entertainment you love Click in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and Behind your TV with your video Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get! ● Movies and TV shows from your favorite streaming apps ● Translated Recommendation ● Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Shell or phone ! Forgot email? Create account Next

Illustration of a computer monitor with a hand holding a device and a crossed-out X (no text or symbols)

Simple line drawing of a monitor with a cross mark and a curtain in the background (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars, no text or labels present.

Simple line drawing of a computer monitor with a roof, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Cartoon illustration showing a person holding a crossed-out monitor with a 'X' symbol, symbolizing blocked or invalid behavior.

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen with a bomb and a circular object nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit fuse and a lamp (no text or symbols)

Technical line drawing of a computer monitor with labeled components (no text or symbols present)

① ② ③ ≤8m

ВЫКЛЮЧАТЕЛЬ

Line drawing of a TV setup with an attached cable and power outlet (no text or symbols)

Diagram showing battery charging process with hand positions and component states

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Up (with your Google Account to get) • Movies and TV shows how your favorite streaming app • Personalized recommendations • Google Independent. Search and control plus TV with your user • Live TV • External devices (e.g. HDMI) Set up Google TV Set up basic TV

Select your Wi-Fi network HIFS MAC_CSR TP-LINK_OD04 WMS Other networks... Skip

Google Hi there! Accept Terms of Service Play Terms of Service Privacy Policy By (Drilling Access), we agree to the Google Terms of Service and the Google Prime Terms of Service. The Google Terms of Service also applies to your use of Asistors. The Google Privacy Policy does this new Google frameworks. Information generated as you are Google services. This checking is automatically review and install options and save from Google or your devices manufacture. Some of these app may offer optional app purchase. You can remove them or adapt their permissions at any time from the device settings.

Password Please set password: 0007 is model. Input Password

Input Password New Password -1 1 2 3 4 5 6 0 7 8 9 ✓

Confirm Password 1 2 3 4 5 6 0 7 8 9 ✓

Select TV mode Home Home* mode is optimized for efficient energy usage for home use. Retail Retail* mode is optimized to store demo with fixed settings

Hyper Energy Options Saving Mode NetEase power consumption when you are sick using this device Chromecast Built-in Make this device is available to Google Cast even in standby mode Walks on Network Only Make this device is available only in Wear on Network to standby mode

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Next Step

TV NETFLIX YouTube prime video Multi Media Paper Google TV The entertainment you love Sign in with your Google screen to get! • Videos and TV allows from your resorts shooting apps • Personalized recommendations • Google Assistant Search and click your TV with your value Set up Google TV

• User ID: 101234567 • User ID: 101234567 • User ID: 101234567 • User ID: 101234567 • User ID: 101234567 GETS No. of access required to buy or sell any other items. GETS will be used to access your own IP address. GETS will be used to access your own IP address. GETS will be used to access your own IP address. GETS will be used to access your own IP address. GETS will be used to access your own IP address. GETS will be used to access your own IP address. GETS will be used to access your own IP address. GETS will be used to access your own IP address. GETS will be used to access your own IP address. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items. GETS would not use any other items.

Google Sign in Use profile profile account Email: glnve 1 Target account? Create account Next

Illustration of a computer monitor with a hand holding a device and a crossed-out X symbol (no text or labels)

Simple line drawing of a window with a cross mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a cloud cover (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Cartoon illustration showing a person using a computer with a crossed-out 'X' symbol, symbolizing no usage or prohibition.

Simple line drawing of a geometric shape with intersecting lines and a horizontal base (no text or symbols)

Illustration of a person running away from a computer screen with a broken phone to the left (no text or symbols present)

Warning symbol with crossed-out monitor and alarm clock icon, indicating no warning or caution

Minimum distances 10cm 20cm 50cm 10cm

Technical line drawing of a computer monitor with labeled components (no text or symbols present)

① ② ③ ≤8m

Diagram of a device rear panel with a central button and control buttons, no text or symbols present

INTERRUTTORE DI POTENZA

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English (United States) Afri-Basans Azarbaydan Bosanski Catala Čestine

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Sign in with your Google Accounts to get: • Online and TV shows from your basic Streaming app • Personal/Get recommendations • Online Assistant: Search and Control your TV with your vision • Use TV • External Devices (e.g. HDMI)

Google Hi there! Accept Terms of Service Play Terms of Service Privacy Policy This option may automatically remove and install updates and apply from Google on your device manufacturers. Some of these options may offer optimal applications. You can review them of adjust their permissions at any time from the device settings

Password Please set password: 0007 to invalid Input Password

Input Password New Password =1 1 2 3 4 5 6 0 7 8 9 ✓

Confirm Password -1 1 2 3 4 5 6 0 7 8 9 ✓

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Retail' mode is optimized to store demo with fixed settings Home Retail

Energy Options Saving Mode Reduced power consumption when this is not using the devices. Chromecast Built-in Make this device available to Google Cast even in standby mode. Wake on Network Only Make this drive available only to Windows on Networks in standby mode.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cabin: 0 Satellite: 0 Antenna Cable Satellite Next Step

TV NETFLIX YouTube primer video Multi Media Player Google TV The entertainment you love Sign in with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Awards Search and control your TV with your notes Setup Google TV

Set up Google TV to use apps Sign in with your Google account to get ● Movies and TV shows from your favorite streaming apps ● Transaction recommendations ● Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Google plus 1 Forget email? Create account Next

Illustration of a computer monitor with a hand holding a device and a crossed-out X (no text or symbols)

Simple line drawing of a monitor with a cross mark and a curtain, no text or symbols present

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a cloth cover (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Cartoon illustration of a person holding a crossed-out monitor with a crossed-out box, symbolizing no change or suppression (no text present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen with a broken phone nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit lamp (no text or symbols)

Technical line drawing of a flat-screen monitor with internal components and labeled ports (no text or symbols present)

① ② ③ ≤8m

ПЕРЕМИКАЧ ЖИВЛЕННЯ

Technical line drawing of a flat-screen TV unit with cable and power outlet (no text or symbols)

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ VOL MENU EXIT CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC NBC

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English (United States) Abitibiens Azerbaijan Bosaniki Catalia Caledina

Select your region or country India Pakistan Russia Kapazakhstan Urzbekistan Ukraine

Google TV With basic TV, you will get Sign in with your Google Account to get • Wireless TV shows how your favorite streaming app • Personalized recommendations • Google-based Search and control your TV with your value • Live TV • External devices (e.g. HDMI) Set up Google TV Set up basic TV

Select your Wi-Fi network MSC_CSR SP-LINKarı WMS Other network... → Ship

Google Hi there! Accept Terms of Service Play Terms of Service Privacy Policy

Password Input Password Please set password: 100% is invalid

Input Password New Password *7 1 2 3 4 5 6 0 7 8 9 ✓

Confirm Password 1 2 3 4 5 6 0 7 8 9 ✓

Select TV mode Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized to store demo with fixed settings.

HOME Energy Options Saving Mode Beware about chromosome when you want to change the genome Chromosome Built-in Made the device available to Google Cloud even in usage mode Wake on Network Only Make this device available only to Wake on Network by operating system

Home Tuner Mode Please select your tuner mode: Analog 0 Antenna 0 Cable 0 Satellite 0 Antenna Cable Satellite Next Stop

TV NETFLIX YouTube prime video Multi-Video Paper Google TV The entertainment you love Sign in with your Google user to get • Media and TV screenshot from your latest streaming apps • International e-commerce • Google Internet. Search any control your TV with other apps Set up Google TV

Set up Google TV to use apps Sign In with your Google account to get! Movies and TV draws from your favorite creating apps Personalized recommendations Google Baseball: Search and control your TV with your video Set up Google TV Cancel

Google Sign in Use your Google Account: Create Store 1 Target email? Create account Next

Illustration of a computer monitor with arrows indicating motion and a hand holding a device (no text or symbols present)

Simple line drawing of a window with a diagonal X mark and a hanging cloth, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and stars above (no text or labels)

Simple line drawing of a computer monitor with a roof, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular frame, no text or symbols present.

Illustration of a person running away from a computer screen with a magnifying glass (no text or symbols)

Warning symbol showing a computer monitor crossed out with a 'X' and a warning bell icon

Technical line drawing of a flat-screen monitor with labeled ports and connectors (no text or symbols present)

① ② ③ ≤8m

Line drawing of a TV setup with an open box, cable, and power outlet (no text or symbols)

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ⑴ ⑵ ㉆ ⑷ ㉧ ㉨ ㉩ ㉪ ㉫ ㉜ ㉝ ㉞ ㉟ ㉳ ㉻ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟A ㉟B ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟C ㉟O ㉟P10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Diagram showing battery charging process with hand positions and component states

ПЪРВОНАЧАЛНИ НАСТРОЙКИ

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Set up Google TV Set up basic TV Sign in with your Google Accounts to get: • Websites and TV drive from your Favorite streaming apps • Personalized recommendations • Google ecosystem: Search and control your TV with your user • Use TV • External devices (e.g. >USB)

Select your Wi-Fi network Network WiFi HKC_CSR TP-LINK_DSD4 WMS Other network... Skip

Google Hi there! Accept By clicking "Accept", you approve to the Google Terms of Service and the Google Map Terms of Service. The Google Terms of Service and you apply to your use of services. The Google Privacy Policy describes how Google facilitates information generated as you use Google services. Terms of Service Play Terms of Service Privacy Policy You focus on may communicate to receive and install updates and install them Google or your devices manufactures. Some of these spots may allow additional applications. You can remove them or adjust their permissions at any time from the device settings.

Password Please set password. 1000* is invalid. Input Password

Input Password New Password ←1 1 2 3 ✕ 4 5 6 0 7 8 9 ✓

Confirm Password -1 1 2 3 4 4 5 6 0 7 8 9 ✓

Select TV mode "Home" mode is optimized for efficient energy usage for home use "Retail" mode is optimized to store demo with fixed settings Home Retail

Energy Options Saving Mode We have given a small grid where you are not using the services Chromecast Built-in Make this device available to Google Clouders in standard format Wake on Network Only Make this device available so Wake on Network-up Monday route

Tuner Mode Please select your tuner mode: Analog: 1 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Next Stop

Google TV The entertainment you love Sign in with your Google content program • Movies and TV shows from your Security Streaming apps • Personalized Recommendations • Google News: Search and content your TV with your video Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV allows from your favorite streaming apps • Personal recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in User your Google Account Small in play 1 Forgot result? Create account Next

Illustration of a computer monitor with an electrical circuit and a crossed-out resistor (no text or symbols)

Diagram showing a monitor with a cross symbol crossed out, next to a hanging bag and rope (no text or symbols present)

Simple line drawing of a computer monitor with a cross symbol on the screen (no text or labels)

Simple line drawing of a computer monitor with a roof and side panel, emitting steam (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with crosshairs and a vertical line, no text or symbols present.

Illustration of a person running away from a computer screen with a magnifying glass (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to an alarm clock emitting sound waves (no text or symbols)

Technical line drawing of a flat-screen monitor with labeled ports and connectors (no text or symbols present)

① ② ③ ≤8m

1: Fjernbetjeningssensor.
2: Indikator-LED: R∅D ● STANDBY.
3: Tastatur

STRÖMKONTAKT

Line drawing of a flat-screen TV unit with cable and power outlet, no text or symbols present

FORUDINDSTILLET TILSTAND (HDMI)

	OPL∅SNING	V. Frekv. (Hz)	H. Frekv. (KHz)
1	800 * 600	60	37,88
2	1024 * 768	60	48,36
3	1360 * 768	60	47,7
4	1280 * 768	60	47,3
5	1920 * 1080	60	67,5
6	3840 * 2160	30	67,5
7	3840 * 2160	50	112,5
8	3840 * 2160	60	135

AV-UDSTYR

Diagram showing battery charging process with hand positions and component states

INDLEDENDE OPSÄETNING

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Set up Google TV Set up basic TV Sign in with your Google account to get • Minutes and TV doses from your favorite streaming app • Personalized recommendations • Google Assistant Search and Control your TV with your voice • Live TV • External Review (e.g. HDMI)

Select your Wi-Fi network WiFi Wi-Fi_CSR IP-LINK_GEDI4 Wi-Fi Other network... Skip

Google Hi there! Accept Terms of Service Play Terms of Service Privacy Policy By (click) "Accept", you agree to the Google Terms of Service and the Google Play Terms of Service. The Google Times of Service also express your use of Apparists. The Google Privacy Policy describes how Google handles information generated as you can Google services. This device may automatically receive and install options and access them Google's your service manufacturers. Some of these items may offer optional http purchases. You can remove them or adjust their permissions at any times from the device settings.

Password Please set password. 0007 is invalid. Input Password

Input Password New Password =1 1 2 3 4 5 6 0 7 8 9 ✓

Confirm Password 1 2 3 4 5 6 7 8 9 ✓

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Retail' mode is optimized to store demo with fixed settings.

Energy Options Saving Mode Recognize power, understanding the ways they may not using their services. Chromecast Built-In Make this device to available on Google's Cart when in standby mode. Wake on Networks Only Make this device to available every in "Wake me Networked in standby mode"

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 5 Cable: 0 Satellite: 0 Antenna Cable Satellite Next Step

TV NETFLIX YouTube private video Multi-Video Papien Google TV The entertainment you love Sign in your Google account to get • Videos and TV shows from your favorite streaming apps • Personalized Home screen videos • Google Assistant Search and control your TV with your video Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get! ■ Movies and TV shows from your favorite instanting apps ■ Personalized recommendations ■ Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Email or phone: 1 Forgot email? Create account Next

Illustration of a computer monitor with arrows indicating motion and a crossed-out hand gesture (no text or symbols)

Simple line drawing of a window frame with a diagonal X mark and a hanging curtain (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a base, emitting steam (no text or symbols)

Simple line drawing of a flat-screen TV with stand (no text or symbols)

Cartoon showing a person on a computer screen with a crossed-out 'No' symbol, indicating no change or absence of any other issue.

Simple line drawing of a geometric shape with intersecting lines and a right-angle bracket, no text or symbols present.

Illustration of a person running away from a computer screen with a magnifying glass showing a small icon (no text or symbols present)

Simple line drawing of a computer monitor with a 'X' symbol crossed out, next to a warning light emitting sound waves (no text or symbols)

Technical diagram of a front panel with labeled components, showing internal structure and mounting points.

① ② ③ ≤8m

Line drawing of a flat-screen TV unit with cable and power outlet, no text or symbols present

ESIASETUSTILASSA (HDMI)

	päätõslauselma	V.Freq.(Hz)	H.Freq.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

LAITTEISTO AV

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Google TV With basic TV, you will get Set up Google TV Set up basic TV Sign in will your Google account to get • Microsoft and TV shows from your health something open • Personalized recommendations • Google Assistant Search and control your TV with your name • Live TV • External devices (e.g. <6M)

Paina ▲/▼ valitse "Set up basic

Select your Wi-Fi network

Google Hi there! Accept By (https: Access) we agree to the Google Terms of Service and the Google Plus Times of Service - The Google Times of Service, when agree to your use of Facebook. The Google Privacy Policy demon how Google handles if then your permission is you can Google services. This device may manufacture new and install updates and apply from Google's your services manufactures. Some of these after may offer optional applications. You can remove them or adjust their permissions at any time from the device settings. Terms of Service Play Terms of Service Privacy Policy

Password Please set password: 0000 is email. Input Password

Confirm Password 1 2 3 4 5 6 7 8 9 ✓

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Realt' mode is optimized to store demo with Fixed settings.

Valitse tila painamalla ▲/▼-painiketta valitaksesi Kotitila ja paina "Yes".

Power Energy Options Saving Mode Reduce power consumption when you are not using this device. Chemecast Built-in Make the information available to Google Card when it is available inside. Wake on Network Only Make the data available only in Waste on Network for platform inside.

Tuner Mode Please insert your tuner mode Cable Analog: 0 Satellite: 0 Satellite: 0 Satellite Next Drop

TV NETFLIX YouTube prime video HOTATO TV Google TV The entertainment you love Begin in touch your Google account to get! • Windows and TV will have your Security Advertising apps • For applications recommendations • Google Paramount Search and common past TV with your video Set up Google TV

Set up Google TV to use apps Sign in with new Google account to get. ■ Movies and TV shows that your favorite streaming apps ■ Populations, News, and TV ■ Google-based Search and Control your TV with user voice Set up Google TV Cancel

Paina ▲/▼ valitaksesi “Set up Google TV” laitteessasi ja viimeistele asetus painamalla OK.

Google Sign in Use your Google Account Final access: ! FNG need? Create account Next

Illustration of a computer monitor with a hand holding a device and a crossed-out black symbol (no text or labels)

Simple line drawing of a window with a diagonal X mark and a cloth hanging nearby (no text or symbols)

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a roof, emitting steam (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a person running away from a computer screen with a circular object nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol and a megaphone emitting smoke (no text or symbols)

Technical line drawing of a front panel with labeled components (no text or symbols present)

HDMI1(eARC/ARC), LNB IN, ANT IN, USB, CI, ieşire CĂŞTI.

Line drawing of a flat-screen TV with cable and indicator lights, no text or symbols present

MOD PRESETAT (HDMI)

	REZOLUTIE	V.Freq.(Hz)	H.Freq.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

ECHIPARE AV

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Sign in with your Google Account to get • Movies and TV allows from your favorite streaming apps • Personal recommendations • Google Assistant Search and control your TV with your voice • Live TV • External devices (e.g. 1066) Set up Google TV Set up basic TV

Select your Wi-Fi network HiFi Wi-Fi HKC_CSR IP-LINK_GS04 Wi-Fi Other network... Skip

Google Hi there! Accept By clicking "Accept" you agree to the Google Terms of Service and the Google Play Terms of Service. The Google Terms of Service are appara to your use of Associate. The Google Privacy Policy does have from Google handle other types generated as you use design services. Terms of Service Play Terms of Service This device may automatically receive and install updates and save from Google or your devices manufacture. Some of these options may offer optional in app purchases. You can remove them or reduce these permissions at any time from the device settings. Privacy Policy

Password Please set password. 10:00' is invalid. Input Password

Input Password New Password =1 1 2 3 4 5 6 0 7 8 9 ✓

Confirm Password [phone] ✓

Select TV mode Home 'Home' mode is optimized for efficient energy stage for home use. 'Retail' mode is optimized to store demo with fixed settings.

Energy Options Saving Mode The last power consumption of this key and not using this driver Chromecast Built-in Make this device available to Google. Can even be installed mode Wales on Network Only Made in the next 100% platform only by Water on Wasteless by availability mode

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cube: 0 Satellite: 0 Antenna Cable Satellite Next Shop

TV NETFLIX YouTube prime video Multi Media Player Google TV The entertainment you love Sign in with your Google account to get: ● Markets and TV shows how your favorite streaming apps ● Personalized Recommendations ○ Google Assessment Search and control your TV with your video Setup Google TV

Set up Google TV to use apps Sign to with your Google account to get ■ Movies and TV shows from your favorite streaming apps ■ Personal recommendations ■ Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Draft in place 1 Forgot result? Create account! Next!

Illustration of a computer monitor with arrows indicating motion and a crossed-out hand gesture (no text or symbols)

Simple line drawing of a window frame with a diagonal X mark and a cloth hanging nearby (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol crossed out, surrounded by stars (no text or symbols)

Simple line drawing of a computer monitor with a steaming roof (no text or symbols)

Simple line drawing of a flat-screen TV with a stand (no text or symbols)

Ikke klem strømledningen under TV-mottakeren.

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Stå aldri, len deg på eller skyv TVen eller stativet plutselig. Du bør være spesielt oppmerksom på barn. Alvorlig skade kan oppstå hvis du mister den.

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame, no text or symbols present.

Ikke plasser TV-en på en ustabil vogn, stativ, hylle eller bord. Alvorlig personskade og skade på TV-en hvis den mistes.

Illustration of a person running away from a computer screen with a magnifying glass (no text or symbols)

Warning symbol showing a computer monitor crossed out with a 'X' and a warning light icon, indicating no text or symbols beyond the graphic.

Technical line drawing of a rear panel with labeled components (no text or symbols present)

3: Tastatur ① ② ③ ≤8m

1: Sensor for fjernkontroll.

2: LED-indikator: R∅D ● STANDBY.

Diagram of a device panel with an internal component and control buttons, no text or symbols present

STRÖMBRYTER

Line drawing of a flat-screen TV unit with cable and indicator lights, no text or symbols present

FORHÅNDSINNSTILT MODUS (HDMI)

	RESOLUSJON	V.Frek.(Hz)	H.Frek.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

AV-UTSTYR

Diagram illustrating the step-by-step installation of a cylindrical battery, showing hand positioning and battery release process.

INNLEDENDE OPPSETT

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Sign needs your Simple installed to get • Movies and TV shows from your favorite streaming apps • Personalized entertainment • Google Assistant Search and Control your TV with your video • Live TV • External devices (e.g HDMI) Set up Google TV Set up basic TV

Select your Wi-Fi network Wi-Fi Wi-Fi Wi-Fi_CSR IP-LINK_GES4 Wi-Fi5 Other network... Skip

Google Hi there! Accept Terms of Service Play Terms of Service Privacy Policy This system may successfully drive and update operations and access how Google's your device manufacturer, some of these users may offer optimal setup packages. You can receive them or adjust their permissions at any time the device settings.

Password Please set password, $0007 to invalid. Input Password

Confirm Password [phone] ✓

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized to store demo with fixed settings Home Retail

Energy Options Saving Mode Create general customer types when they are not using their devices Chromecast Built-in Make this device available to Google. Cost even in Identity model Make on Network Only Make this device available only to Google as Networks is displayed model

Tuner Mode Please select your tuner mode: Analog 0 Antenna 0 Cable 0 Satellite 0 Antenna Cable Satellite Next Step

TV NETFLIX YouTube prime video Google TV The entertainment you love Sign in with your Google account to get: ● Movies and TV shows how your favorite streaming apps ● Personalized Recommendations ● Google Assistant Search and control your TV with your video Setup Google TV

Set up Google TV to use apps Sign In with your Google account to get! ● Home and TV shows from your favorite streaming apps ● Personalized recommendations ● Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account! Online store 1 Forgot email! Create account Next

Illustration of a computer monitor connected to a cable with a crossed-out hand gesture (no text or symbols)

Simple line drawing of a monitor with a cross mark and a hanging garment, no text or symbols present

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a base, emitting exhaust smoke (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Cartoon illustration showing a person on a computer screen with a crossed-out X symbol, indicating no change or prohibition.

Simple line drawing of a geometric structure with crosshairs and a vertical line, no text or symbols present

Illustration of a person running away from a computer screen with a broken phone and a bag nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a warning light (no text or symbols)

Minimum distances 10cm 20cm 40cm 5cm

Technical line drawing of a flat-screen monitor with labeled ports and panel (no text or symbols present)

① ② ③ ≤8m

1: Sensor de controle remoto.

2: Indicator LED: VERMELHO ● ESPERA

3:Teclado

Diagram of a device rear panel with a central button and control buttons, showing no text or symbols.

Technical line drawing of a device setup with a cable and power outlet, no visible text or symbols

PREDEFINIÇÃO (HDMI)

	RESOLUÇÃO	V.Frec.(Hz)	H.Frec.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

EQUIPAMENTOS AV

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Set up Google TV Set up basic TV Signs with save Google Netflix for get • Movies and TV shows from your favorite interacting app • Personalized recommendations • Google Awards! Search and control your TV with your own • Live TV • Selected Devices (e.g. HDMI)

Select your Wi-Fi network WPG PAC_CSR IP-CRR_WG34 WPG Other network... → Skip

Google Hi there! Accept Terms of Service Play Terms of Service Privacy Policy

Password Please set password, 0007 is healthy Input Password

Input Password New Password =1 1 2 3 4 5 6 0 7 8 9 ✓

Confirm Password -1 1 2 3 ✓ 4 5 6 0 7 8 9 ✓

Select TV mode "Home" mode is optimized for efficient energy usage for store use. "Retail" mode is optimized to store demo with fixed settings.

Insider Energy Options Saving Mode Reduce power consumption when you are not using this mode. Chromecast Built-in Make this device available to Google Card ever in standalone mode. Winds on Network Only Make this device available using the Web as Network in standalone mode.

Tuner Mode Please select your tuned mode. Aristing: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Next Stop

TV NETFLIX YouTube prime video PUDI Media Playt Google TV The entertainment you love Click in with your Google account to get. • Windows and TV allows press your favorite streaming apps • Transaction recommendations • Google Assistant Search and command your TV with your note Set up Google TV

Set up Google TV to use apps Sign In with your Google account to get! ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Assistant Search and control your TV with your notes Set up Google TV Cancel

Google Sign in Use your Google Account Create group 1 Forgot email? Create account Next

Illustration of a computer monitor with arrows indicating sound waves, and a hand holding a device with a crossed-out black 'X' symbol (no text or labels)

Illustration of a TV screen with a black X symbol and a hanging cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a roof and legs, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a vertical line (no text or symbols)

Illustration of a woman running away from a computer screen next to a broken circular object with a small symbol (no text or labels)

Simple line drawing of a monitor with a cross symbol crossed out, next to a ringing bell icon (no text or symbols)

Technical line drawing of a flat-screen monitor with internal components and labeled parts (no text or symbols present)

① ② ③ ≤8m

1: Fjärrkontrollsensor.
2: Indikator-LED: RÖD ● STANDBY.
3: Tangentbord

STRÖMBRYTARE

HDMI1(eARC/ARC), LNB IN, ANT IN, USB, CI, HÖRLURSUTGÅNG.

AV-anslutningar BAKSIDAN

LAN OPTICAL VIDEO L - IN - R HDMI HDMI HDMI

Line drawing of an open TV case with cable and power outlet, no text or symbols present

FÖRINSTÄLLT LÄGE (HDMI)

	UPPLÖSNING	V.Frekv.(Hz)	H.Frekv.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

AV-UTRUSTNING

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English (United States) Afrikaans Azerbaijan Bosamiki Catala Çaldina

Select your region or country India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Google TV With basic TV, you will get Design with your Google Amounts to get! ■ Home TV shows from your favorite streaming apps ■ Personal recommendation ■ Google Available: Search and control your TV with your own ■ Live TV ■ External devices (e.g. HDMI) Set up Google TV Set up basic TV

Select your Wi-Fi network Wi-Fi Wi-Fi HKC_CSR IP-LINK_DE14 Wi-Fi Other network... Skip

Google Hi there! Accept Terms of Service Play Terms of Service Privacy Policy In sticking "Accept" are signed to the Google Terms of Service and the Google Play Terms of Service. The Google Terms of Service who applies to your use of Assistant...The Google Privacy Policy describes new Google handles information generated as you are design services. To offer my automatically interview the initial updates and since You Google is your device manufacturers. Some of these options may offer optional app purchases. You can remove them or adjust their permissions at any time from the device settings.

Password Please set password. 100% is valid. Input Password

Confirm Password 1 2 3 4 5 6 7 8 9 ✓

Select TV mode 'Home' mode is optimized for efficient energy usage for home use 'Retail' mode is optimized to store demo with feed settings.

Energy Options Saving Mode Product power consumption and other energy and out-of-use devices Chemocast Built-in Make this device available to Google Cloud even in monthly mode Wake on Network Only Make this device available as up or down on quarterly monthly mode

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Next Step

TV NETFLIX YouTube prime videos Google TV The entertainment you love Sign in with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized recommendations • Google News search and control your TV with your video Set up Google TV

Set up Google TV to use apps Start in with your Google accounted to get: • Movies and TV knows from your videos incoming apps • Personalized Recommendations • Google Award: Search and control your TV with your video Set up Google TV Cancel

Google Sign in Use your Google Account Email or share 1 Target asset? Create account Start
