USER MANUAL U442-DOCK40-6 Tripp Lite

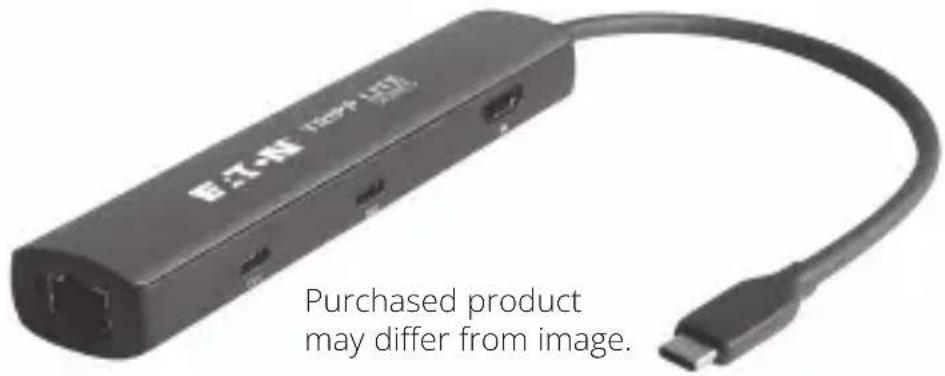

USB-C® Mobile Dock and Multiport Adapter, 8K HDMI, 100W USB Charging, Gb Ethernet

Model: U442-DOCK40-6

USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum

E:\T-N\162P-152I Purchased product may differ from image.

Español 9 Français 16 Deutsch 23 Italiano 30

EAT·N

Powering Business Worldwide

PRODUCT REGISTRATION

Register your product today for a chance to win an ISOBAR® surge protector in our monthly drawing!

Tripplite.Eaton.com/warranty

Product Features

• Transmit up to 8K video to an HDMI display from a USB-C host, connect and charge USB peripherals and charge the host PC via a 100W PD Charging port
• Compatible with laptops, computers and other USB Type-C host devices that support DisplayPort Alternate Mode
• HDMI port supports video resolutions up to 7680 x 4320 (8K) @ 30 Hz with High Dynamic Range (HDR10+) and HDCP 2.3 and below
  • USB-A and USB-C data ports support USB 3.2 Gen 2 data transfer rates up to 10 Gbps
• One USB-A port and one USB-C port provide up to 5V 1.5A (7.5W) of power while the remaining USB-A port provides 5V 0.9A (4.5W) to connected devices
• USB-C PD charging port supports PD 3.0 (100W), with 15W dedicated to powering the unit and the other 85W allocated to charging the host device
• Connect to a wired Gigabit Ethernet via the dock's RJ45 port
• RJ45 port supports Wake-on-LAN and full duplex control network features

Product Features

• All USB ports support over-current and short circuit protection
• Thin profile design fits easily inside a small bag, purse or pocket

Package Includes

• U442-DOCK40-6
- Owner's Manual

Optional Accessories

• U040-C03-C – USB 2.0 Type-C to Type-C Cable, 3A, USB-IF Certified, 3 ft. (0.9 m)
  • U038-010-GY-MAX – USB 2.0 Type-A to Type-C Cable, UHMWPE and Aramid Fibers, 10 ft. (3 m)
  • P568-XXX-8K6 - 8K HDMI Cables
  • N201-Series Cat6 Gigabit Snagless Network Cables

Instructions

1. Plug the dock's USB-C connector into the USB-C port of a compatible laptop, PC or other host device.
   Note: The host device must support DisplayPort Alt Mode to transmit video via the HDMI port.
2. Connect the HDMI port on the dock to the HDMI port on a display using an HDMI cable (such as the P568-XXX-8K6 Series, sold separately).
3. Connect and/or charge a device such as a mouse, keyboard, mobile phone etc. to the USB-A ports on the dock.
4. Charge the host device by connecting a USB-C cable to the USB-C PD charging port on the dock and into a USB-C power adapter.
5. Connect to a wired Gigabit Ethernet network by connecting a Cat6 Ethernet cable (such as the N201-Series, sold separately) to the RJ45 port on the dock.
6. Turn on the power to all connected devices. Video from the USB-C source should begin transmitting on the connected display.

Specifications

Connectors
Input USB-C (Male)
Output 1 USB-C (Female)
Output 2 USB-C (Female)
Output 3 USB-A (Female)
Output 4 USB-A (Female)
Output 5 HDMI (Female)
Output 6 RJ45 (Female)
Charging
USB-C (PD 3.0 port) PD 3.0 (100W: 15W dedicated to powering unit and remaining 85W to host device)
USB-C (x1) 5V 1.5A (7.5W)
USB-A (x1) 5V 1.5A (7.5W)
USB-A (x1) 5V 0.9A (4.5W)
Video
HDMI 7680 x 4320 @ 30 Hz
Physical
Unit Dimensions (L * W * H) 5.59 x 1.2 x 0.71 inches(1.42 x 3.05 x 1.8 cm)
Operating Temperature Range	32 to 113°F (0 to 45°C)
Storage Temperature Range 50	to 158°F (-10 to 70°C)
Operating Humidity Range 10%	to 85% RH
Storage Humidity Range 5% to 90% RH

Warranty and Product Registration

1-Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BELIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Product Registration

Visit Tripplite.Eaton.com/warranty today to register your new product. You'll be automatically entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Warranty and Product Registration

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Warranty and Product Registration

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Eaton

1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com

© 2024 Eaton All Rights Reserved Publication No. 24-08-018 / 93-46AF_RevA August 2024

Eaton is a registered trademark.

All trademarks are property of their respective owners.
