USER MANUAL DO244SV DOMO

Exterior view of a black and silver vacuum cleaner with blue control panel (no text or symbols visible)

DO244SV

Handleiding Steelstofzuiger

Mode d'emploi Aspirateur-balai

Gebrauchsanleitung Handstaubsauger

Instruction booklet Stick vacuum cleaner

Manual de instrucciones Aspirador escoba

Istruzioni per l'uso Scopa elettrica

Návod k použití Tyčový vysavač 2v1

Návod na použitie Tyčový vysávač 2v1

Two symbolic icons: a triangular warning sign with an exclamation mark and a blank open book (no text or symbols present)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Technical line drawing of a mechanical assembly with an arrow indicating transformation (no text or symbols present)

De steelstofzuiger

Technical line drawing of a mechanical assembly with three sequential stages (no text or symbols)

Product photo of a black handheld spray gun with attached stand (no visible text or symbols)

Two black rubber heat exchangers with labeled parts (1 and 2), no text or symbols present.

REINIGING EN ONDERHOUD

HET TOESTEL PROPER MAKEN

Two black and blue handheld hair pushers with blue filter bands, shown from different angles (no text or symbols visible)

Line drawing of a spray gun pouring liquid into a container (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols)

Three technical line drawings of mechanical components, no text or symbols present

PROBLEEM EN OPLOSSING

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Technical line drawing of a mechanical assembly with an arrow indicating transformation (no text or symbols present)

L'aspirateur-balai

Diagram showing a mechanical assembly with two stages: one before and after, and another after, with no visible text or symbols.

Exterior view of a black vacuum cleaner with attached mechanical bracket (no text or symbols visible)

Two black mechanical components labeled 1 and 2, shown from different angles (no text or symbols on the parts themselves)

NETTOYAGE ET ENTRETIEN

NETTOYER L'APPAREIL

Close-up of a black and blue handheld vacuum cleaner (no visible text or symbols)

Close-up of a black vacuum cleaner with blue filter bands and cylindrical body (no text or symbols visible)

Technical line drawings of a cleaning or cleaning device with exploded view, showing internal components and assembly (no text or symbols)

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

BATTERIE AMOVIBLE

Technical line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating transformation (no text or symbols present)

Diagram showing a mechanical assembly with two stages: one before and after, and another after, with no visible text or symbols.

Product photo of a black vacuum cleaner with attached bracket and side arm (no visible text or symbols)

Two black industrial vacuum cleaner components labeled 1 and 2, shown from different angles (no text or symbols on the component itself)

Two black electric vacuum cleaner units with blue insulation, shown from different angles (no text or symbols visible)

Technical line drawings of a cleaning or packaging device, showing internal components and assembly (no text or symbols)

Diagram of a trash bin with crossed and unbroken lines indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing waste sorting or disposal (no text or labels)

HERAUSNEHMBARE BATTERIE

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

· If the instructions in this manual have not been followed.
· In case of incorrect connection, e.g. electrical voltage that is too high.
· In case of incorrect, rough or abnormal use.
· In case of insufficient or incorrect maintenance.
· In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
· bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  · Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Using the appliance incorrectly may cause an injury. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “o” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• To avoid danger, do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

· Do not place near flammable materials, gases or explosives.
· Do not use or store this appliance outdoors.
· Always use the appliance on a steady, dry and level surface.
- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
• Make sure that the air intake or the floor suction opening do not become blocked.
• Make sure that the machine does not come into contact with liquids.
• First charge a new battery up completely.
• Pull the plug from the outlet when the vacuum cleaner is fully charged.
• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.
  · Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.
• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.
• Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.
• Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.
• Never use the appliance without filters. This will damage the motor and render it unusable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

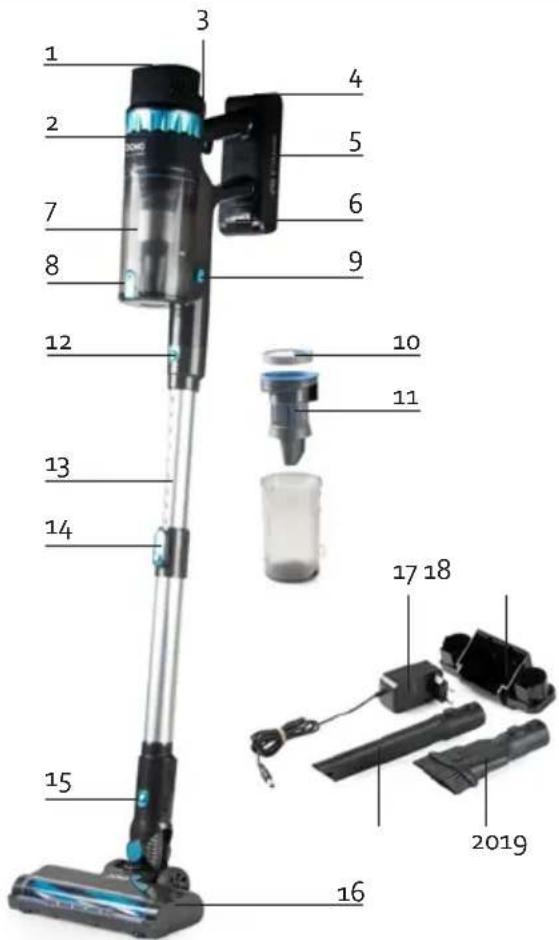

PARTS

1. Control panel

2. Motor

3. On-off button

4. Adapter connection

5. Battery

6. Release the battery

7. Dust reservoir

8. Button to open dust reservoir

9. Unlock button for dust reservoir

10. Round filter

11. Coarse dirt filter

12. Handle release button

13. Telescopic tube

14. Button for tube length

15. Release button floor nozzle

16. Floor nozzle with rotating floor brush

17. Adapter

18. Wall fixing (screws and plugs included)

19. Crevice vacuum cleaner

20. Dust brush

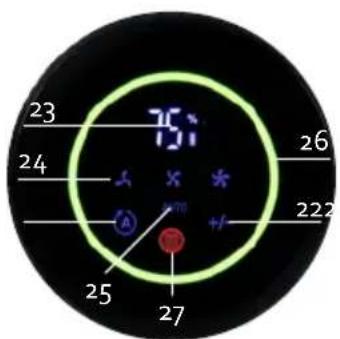

CONTROL PANEL

1. Automatic mode

2. Adjust suction power

3. Battery level indicator

4. Suction power indicator

5. Automatic mode indicator

6. Light ring indicator

7. Full dust container indicator

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 2019

23 7:51 24 26 22 25 27

BEFORE THE FIRST USE

ASSEMBLY

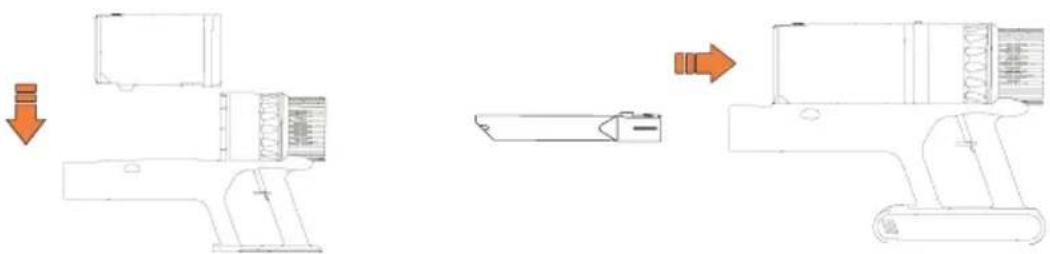

The handheld vacuum

1. Attach the dust container to the motor unit. To do this, first place the top of the reservoir into the motor unit. Then click the bottom of the dust container onto the motor unit.

2. Click the motorised floor brush, the dust brush or the crevice tool into the opening at the front of the appliance.

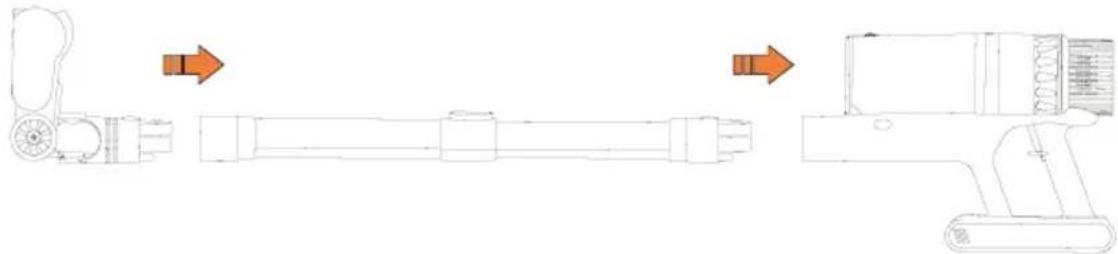

The stick vacuum cleaner

1. Attach the dust container to the motor unit. To do this, first place the top of the reservoir into the motor unit. Then click the bottom of the dust container onto the motor unit.
2. Click the vacuum wand into the suction opening at the front of the appliance. Adjust the telescopic wand to your desired length. To do this, press the button on the wand and pull the upper part to extend it. Then release the button to let the wand click into place.
3. Click the motorised floor brush, the dust brush or the crevice tool into the vacuum wand.

Diagram showing a mechanical assembly with three sequential steps, no text or symbols present

To disassemble the appliance, remove the following parts one by one: The floor brush (or the crevice tool or dusting brush), the wand and the dust container. To do this, press the release button and remove the relevant part by pulling firmly.

WALL MOUNT

Please follow below instructions to fix the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of the wall mount. Please ensure the distance between the power socket and the drill holes is no more than 1.3 metres. The minimum height for wall mounting is 1.2 metres.

2. Insert the supplied plugs into the wall.

3. Fix the wall mount using the supplied screws.

4. To store the device, simply hang it on the wall mount.

Product photo of a black vacuum cleaner with attached stand and side arm (no visible text or symbols)

Please note: A mounting plate is included with the wall mount. This is so you can stick the wall mount to a wall or cupboard without the need for drilling holes. The mounting plate has a self-adhesive panel so that one side adheres to the wall mount and the other side adheres to a wall or cupboard.

1. First remove the film from one side of the mounting plate and then stick this part to the back of the wall mount. Press firmly.
2. Ensure the floor nozzle is attached to the appliance and place it in the wall mount. Allow the floor nozzle to rest on the floor.
3. Then remove the film from the other side
4. and stick the wall mount to the wall.

CHARGING

• Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery. The appliance should be charged for 4-5 hours afterwards.
• First, place the device into the wall mount and connect the adapter to the device's port, before plugging the adapter into the wall socket.
• To extend the life of the battery, the appliance should be fully charged regularly and the battery should be allowed to drain.
  · The appliance will warm up slightly when charging; this is normal.
• The battery symbol will flash on and off while charging. The battery percentage will increase by 5% increments until fully charged at 100%. The green circle will also gradually complete as the device charges. When fully charged, the battery symbol will stop flashing and remain lit.
• If you remove the battery from the device to charge it by pressing the battery release button and sliding it off, you will see a red indicator light flashing on and off on the battery during charging. When the battery is fully charged, this light turns blue.
• The appliance cannot be used while charging.

USE

• Press the on/off button to turn the device on. The device will start in automatic mode, meaning the sensors in the motor section will automatically detect the amount of dust to adjust the suction power accordingly. The suction power is indicated by different colours on the control panel.
• Press the +/- on the control panel to adjust the suction power/speed. A lower suction power means a longer operating time.

You can choose between the following speeds: low, medium, high.

• Press the symbol to switch from any set suction power/speed to automatic mode.
• The selected setting is always clearly visible on the control panel.

- When the battery is low, the battery symbol will flash on and off on the display. The device will then switch itself off.

• The autonomy depends on the type of surface. It will work for less time on carpets than on a hard surface.
  · While vacuuming, warm air will come out of the motor compartment. This is normal.

- This appliance must only be used on a dry surface. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up. Dirt will collect in the container.

Be careful not to suck up large pieces of dirt, as this could block the suction opening and damage the appliance.

- The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press the on/off button once more.

For the best results, clean the dust reservoir and the filters after each use. This is better for the suction power and the life span of the machine. Make sure that the dust in the dust reservoir does not exceed the maximum level.

ACCESSORIES

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...
2. Dusting brush: for vacuuming delicate and fragile surfaces such as lampshades, bookshelves, window frames, curtains, etc.

Two black plastic components with textured surfaces, labeled 1 and 2 (no text or symbols on the objects themselves)

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.
2. Slide the lock on the side of the brush upwards to remove the floor brush.
3. Remove the rotating floor brush from the floor nozzle.
4. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.
5. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.
6. Place the floor brush back into the floor nozzle when it is clean. You will hear a click when the brush is back in place.
7. Push the nozzle back onto the stick. The machine is now again ready for use.

Close-up of a black handheld vacuum cleaner with blue internal blades (no text or symbols visible)

Close-up of a black vacuum cleaner with blue cable connectors (no text or symbols visible)

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

THE TUBE

Remove the tube and check it for blockages.

THE DUST RESERVOIR

Regularly clean the dust container. The full dust container symbol will light up on the display to indicate that you need to empty and clean the dust container.

1. Never exceed the maximum indicator on the dust container. Remove the wand. Empty the dust container by pressing the button at the bottom of the dust container. The dust container falls open and you can then remove the coarse dirt.

2. Press the dust container release to detach it from the motor section. The dust container contains the following parts:

3. Round filter: this dust filter captures the small dust particles.

4. Coarse debris filter: this ensures that the large dust particles remain in the dirt receptacle.

5. Dirt receptacle: this is where all large dirt particles are collected.

6. Remove the round filter from the coarse dirt filter.

7. Remove the coarse filter from the dust container.
8. You can now clean all the parts separately. We recommend you do this with compressed air. If you do not have compressed air, you can wash out the filters. Make sure they are completely dry before using them again.
9. Reinsert the round filter into the coarse dirt filter.
10. Put the filters back in the dirt receptacle.
11. Put the dirt receptacle back on the motor section. A click will be heard when the dust container is in place.

Line drawing of a spray gun pouring liquid into a container (no text or symbols)

Technical line drawing of a mechanical assembly with an orange arrow indicating upward motion (no text or symbols)

Three technical line drawings of mechanical components or parts, no text or symbols present

We advise replacing the filters regularly to ensure an optimal operation of the machine. Dirty filters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the filters to extend the life span of your machine.

ERROR CODES

The following error messages may be displayed on the screen:

• Full dust container: If this symbol lights up on the display, you need to empty the dust container, clean the dust container and filters, and check for any blockages.
• E1: You have attempted to charge the device with an incompatible adapter (>37V output voltage). Only use the supplied adapter to charge the appliance.
  E4: A short circuit has occurred in the floor brush. Replace the floor brush or have it repaired.
  · E3: The motor is blocked. Have this checked/ repaired.

PROBLEM AND SOLUTION

PROBLEM SOLUTION
The machine does not start up. The battery is empty.	Charge the machine.
The appliance has stopped working. · The appliance	has overheated. Allow the appliance to cool down and clean the appliance. · Check if an error code appears on the display and resolve the issue (see 'error codes').
The appliance stopped working and the lights on the appliance flashed for 10 seconds.	If the wand or filters are blocked, the appliance switches to safety mode and the lights of the appliance will flash. Check and clean the wand and filters.
The machine does not vacuum. · The filters are dirty.	· The dust container is full. · The floor brush is blocked. · The suction opening is blocked. · Clean the appliance as described in this manual.
Suction power is reduced significantly. We recommend that you thoroughly clean the filter as well as the dust container and the accessories as described in this manual. If the filters are saturated, they can be reordered.
The display does not light up while charging. · There is no proper contact. · Make sure the adapter is connected properly.
The operating time of the appliance is getting shorter and shorter.	The battery is broken. Contact our customer service. Charge the appliance for a full day and try again. We also recommend that you regularly allow the battery to drain and recharge it fully. The operating life of the appliance will be longer on flat surfaces than on carpets.
Device not charging. Check that the plug is properly inserted. Ensure the correct supplied adapter is used.
Automatic dust detection not working. Check if the stick vacuum cleaner is in automatic mode (see 'usage').

ENVIRONMENTAL GUIDELINES

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed out by diagonal lines, representing waste sorting or disposal (no text or labels)

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this

manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

Battery leakage may occur under extreme conditions. If the liquid from the battery comes into contact with the skin, immediately wash it off with soap and water or neutralise it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them abundantly with water for at least 10 minutes and contact a doctor.

GARANTIA

Technical line drawing of a mechanical assembly with an arrow indicating transformation (no text or symbols present)

El aspirador de manija

Diagram showing a mechanical assembly with three sequential steps, no text or symbols present

Product photo of a black vacuum cleaner with attached bracket and side-mounted clip (no visible text or symbols)

Two black industrial vacuum cleaner components labeled 1 and 2, shown from different angles (no text or symbols on the device itself)

LIMPIEZAY MANTENIMIENTO

LIMPIAR EL APARATO DE POLVO

Two black and blue handheld vacuum cleaner units shown from different angles (no text or symbols visible)

Line drawing of a handwashing a container with liquid, no text or symbols present

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

BATERÍA EXTRAÍBLE

Technical line drawing of a mechanical assembly with an arrow indicating transformation (no text or symbols present)

La scopa elettrica

Diagram showing a mechanical assembly with two sequential steps, one before and one after, indicated by arrows (no text or symbols present)

Product photo of a black vacuum cleaner with attached mechanical bracket (no visible text or symbols)

Two black mechanical components with labeled parts, no visible text or symbols

Close-up of a black and blue handheld vacuum cleaner (no visible text or symbols)

Close-up of a black vacuum cleaner with blue cable, no visible text or symbols

Technical line drawings of a cleaning or packaging device, showing components like a spray gun, fan, and door (no text or symbols)

Symbol of a trash bin crossed with no visible text or numbers, enclosed in a rounded square frame (no text or numbers present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

BATTERIA RIMOVIBILE

Technical line drawing of a mechanical device before and after assembly, showing internal components and a final assembled view (no text or symbols)

Tyčový vysavač

Diagram showing a vehicle chassis with two directional arrows indicating movement or assembly (no text or symbols present)

Product photo of a black vacuum cleaner with attached stand and side arm (no visible text or symbols)

Two black industrial vacuum cleaner components labeled 1 and 2, shown from different angles (no text or symbols on the device itself)

ČIŠTĚNÍ A ÚDRŽBA

ČIŠTĚNÍ PŘÍSTROJE

Two black and blue handheld hair pushers with blue filter bands, shown against white background (no text or symbols)

Technical line drawings of a cleaning or assembly process, showing exploded and assembled views with no visible text or symbols.

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Symbol of a trash bin crossed with no visible text or numbers, enclosed in a rounded square frame (no text or numbers present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

VYJÍMATELNÉ/VYMĚNITELNÉ BATERIE

23 24 25 26 27 22 A X Y Zm

PRED PRVÝM POUŽITÍM

ZLOŽIŤ, ZLOŽENIE

Ručný vysávač

Technical line drawing of a mechanical device before and after assembly, showing internal components and a final assembly (no text or symbols)

Tyčový vysávač

Diagram showing a mechanical assembly with two stages of motion, one before and one after an orange arrow indicating direction (no text or symbols present)

Product photo of a black vacuum cleaner with attached mechanical bracket (no visible text or symbols)

Two black plastic components with textured surfaces, labeled 1 and 2 (no text or symbols on the parts themselves)

ČISTENIE A ÚDRŽBA

ČISTENIE PRÍSTROJA

Two black electric vacuum cleaner units with blue internal blades, shown from different angles (no text or symbols visible)

Simple line drawing of a spray gun pouring liquid into a container (no text or symbols)

Technical line drawing of a mechanical assembly with an orange arrow indicating direction (no text or symbols)

Diagram of a waste bin with crossed lines indicating no waste, and a black rectangle below it.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, enclosed in a rounded square (no text or numbers present)

VYBERATEL'NÉ/VYMENITEL'NÉ BATÉRIE

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a small circular object on top (no visible text or symbols)

Close-up of two white plastic electrical connectors (no text or symbols visible)

White ceramic bowl with black interior (no text or symbols visible)

Black and white photo of a clear glass coffee maker with handle and lid (no text or symbols visible)
