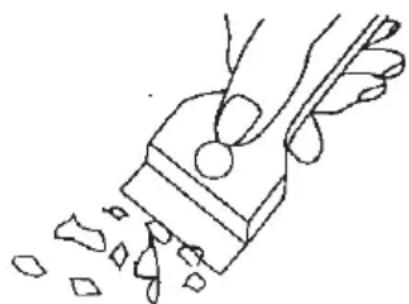

Line drawing of a hand using a tool to cut or spread material into fragments (no text or symbols)

Technical line drawing of a rectangular electronic device casing with internal components and a labeled component (no text or symbols present)

Lampe du four

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a rectangular electronic component with mounting flanges and a separate panel below showing internal structure (no text or symbols)

NETTOYAGE ET ENTRETIEN DE LA CUISINIÈRE

The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy.

Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Caution!

Do not use the cooker until you have read this instruction manual.

The cooker is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

Information about the product concerning Regulation (EU) No 65/2014 and Regulation (EU) No 66/2014, can be found on the last pages of the user manual or in other printed documents provided with the product.

Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Warning: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Warning: Danger of fire: do not store items on the cooking surfaces.

Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Accessible parts may become hot during use. Young children should be kept away.

Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

You should not use steam cleaning devices to clean the appliance.

Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.

● Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
- Ensure that small items of household equipment, including connection leads, do not touch the hot oven or the hob as the insulation material of this equipment is usually not resistant to high temperatures.
- Do not leave the cooker unattended when frying. Oils and fats may catch fire due to overheating or boiling over.
- Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface of the hob. This refers in particular to sugar which can react with the ceramic hob and cause irreversible damage. Any spillages should be cleaned up as they happen.
- Do not place pans with a wet bottom on the warmed up heating zones as this can cause irreversible changes to the hob (irremovable stains).
- Use pans that are specified by the manufacturer as designed for use with a ceramic hob.
- If any defects, deep scratches, cracks or chips appear on the ceramic hob, stop using the cooker immediately and contact the service centre.
- Do not switch on the hob until a pan has been placed on it.
- Do not use pans with sharp edges that may cause damage to the ceramic hob.
- Do not look directly at the halogen heating zones (not covered by a pan) when they are warming up.
- Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25 kg on the hob.
- Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
- Do not use the cooker in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.
- In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
- The rules and provisions contained in this instruction manual should be strictly observed. Do not allow anybody who is not familiar with the contents of this instruction manual to operate the cooker.
- The appliance has been designed only for cooking. Any other use (for example for heating) does not comply with its operating profile and may cause danger.

Simple black-and-white line drawing of a cloud with two wavy lines at the base (no text or symbols)

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

- Use proper pans for cooking.

Pans with thick, flat bases can save up to 1/3 on electric energy. Remember to cover pans if possible otherwise you will use four times as much energy!

- Match the size of the saucepan to the surface of the heating zone.

A saucepan should never be smaller than a heating zone.

- Ensure heating zones and pan bases are clean.

Soils can prevent heat transfer – and repeatedly burnt-on spillages can often only be removed by products which cause damage to the environment.

- Do not uncover the pan too often (a watched pot never boils!).

Do not open the oven door unnecessarily often.

Switch off the oven in good time and make use of residual heat.

For long cooking times, switch off heating zones 5 to 10 minutes before finishing cooking. This saves up to 20% on energy.

Only use the oven when cooking larger dishes.

Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob.

● Make use of residual heat from the oven. If the cooking time is greater than 40 minutes switch off the oven 10 minutes before the end time.

Important! When using the timer, set appropriately shorter cooking times according to the dish being prepared.

●Only grill with the ultrafan after closing the oven door.

●Make sure the oven door is properly closed.

Heat can leak through spillages on the door seals. Clean up any spillages immediately.

- Do not install the cooker in the direct vicinity of refrigerators/freezers.

Otherwise energy consumption increases unnecessarily.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the pakkaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

DESCRIPTION OF THE APPLIANCE

11 7 8 3, 4 5, 6 1 2 9 10

1 Temperature control knob
2 Oven function selection knob
3, 4, 5, 6 Heating zone control knobs
7 Temperatureregulatorsignal light L
8 Cooker operation signal light R
9 Oven door handle
10 Drawer
11 Ceramic hob

Ceramic hob:

Four empty gray circles arranged in a 2x2 grid on a dark background (no text or symbols)

Cooker fittings:

Line drawing of a square frame with rounded corners and a small central cutout (no text or symbols)

Baking tray*

Isometric line drawing of a rectangular metal grate or rack structure with no text or symbols

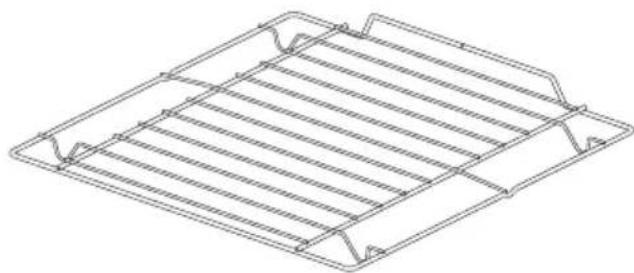

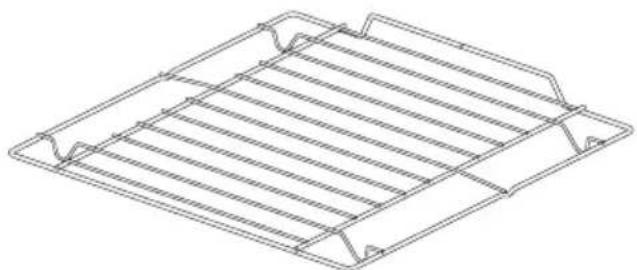

Grill grate (drying rack)

Line drawing of a rectangular tray with a recessed slot (no text or symbols)

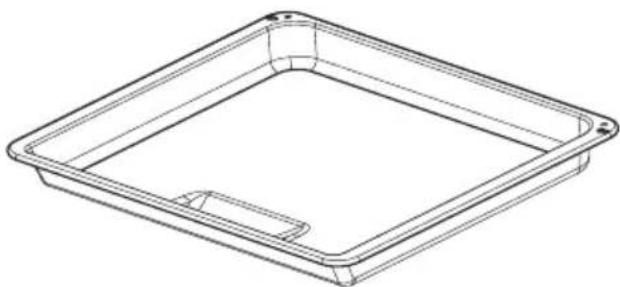

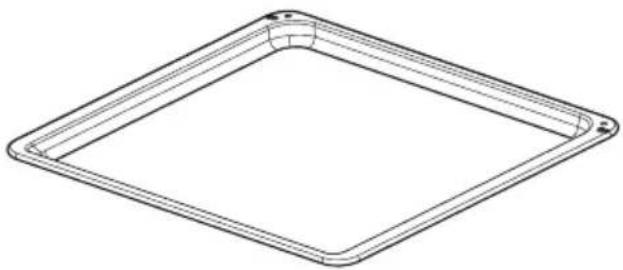

Roasting tray*

*optional

Installing the cooker

• The kitchen should be dry and airy and have effective ventilation according to the existing technical provisions.
• The room should be equipped with a ventilation system that pipes away exhaust fumes created during combustion. This system should consist of a ventilation grid or hood. Hoods should be installed according to the manufacturer's instructions. The cooker should be placed so as to ensure free access to all control elements.
• Coating or veneer used on fitted furniture must be applied with a heat resistant adhesive (100°C). This prevents surface deformation or detachment of the coating. If you are unsure of your furniture's heat resistance, you should leave approximately 2 cm of free space around the cooker. The wall behind the cooker should be resistant to high temperatures. During operation, its back side can warm up to around 50°C above the ambient temperature.
• The cooker should stand on a hard, even floor (do not put it on a base).
• Before you start using the cooker it should be leveled, which is particularly important for fat distribution in a frying pan. To this purpose, adjustable feet are accessible after removal of the drawer. The adjustment range is +/- 5 mm.

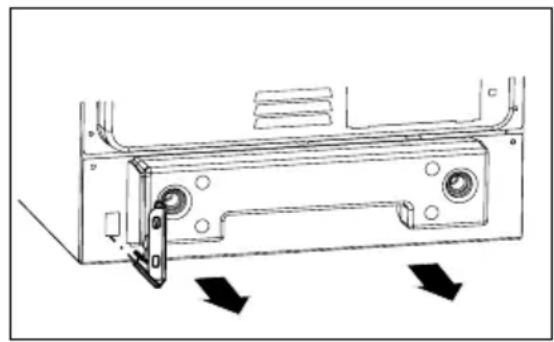

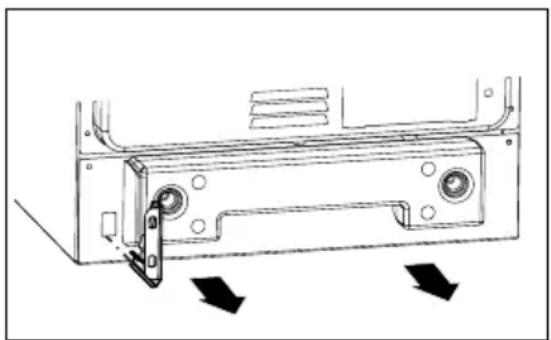

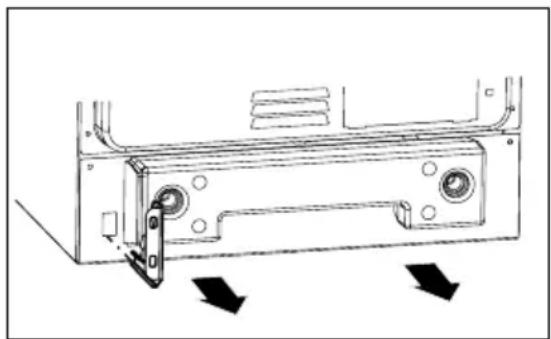

Mounting the overturning prevention bracket.

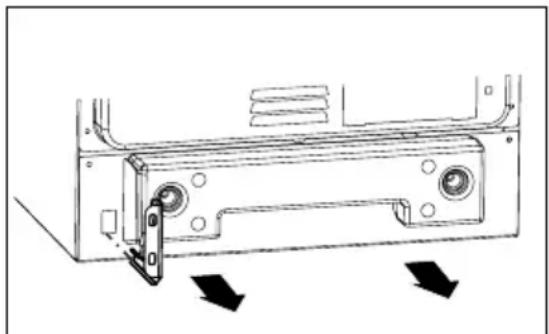

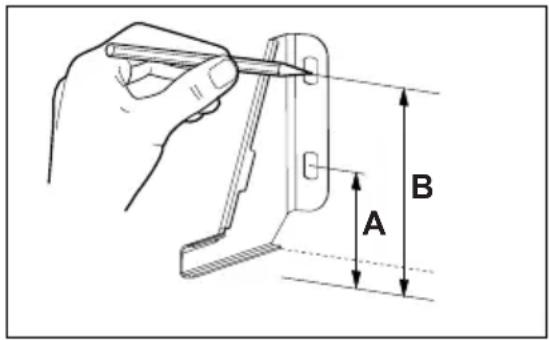

The bracket is mounted to prevent overturning of the cooker. When the overturning prevention bracket is installed, a child who climbs on the oven door will not overturn the appliance.

Technical diagram showing a hand holding a tool interacting with a bracket, labeled with dimensions A and B.

Technical line drawing of a mechanical clamp or bracket with spring scale (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Cooker, height 850 mm

A=60 mm

B=103 mm

Cooker, height 900 mm

A=104 mm

B=147 mm

Electrical connection

Warning!

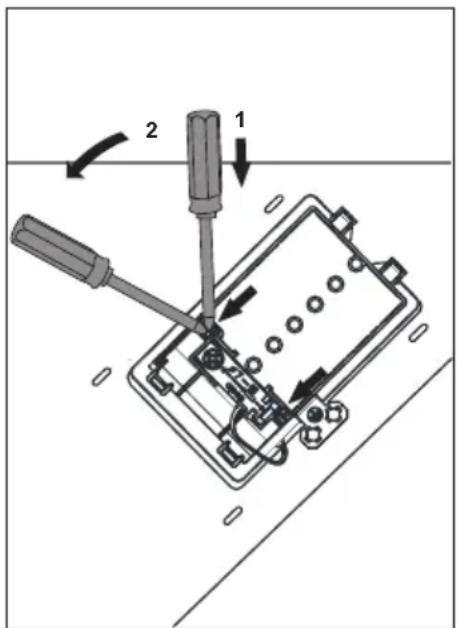

All electrical work should be carried out by a suitably qualified and authorised electrician. No alterations or wilful changes in the electricity supply should be carried out.

Fitting guidelines

The cooker is manufactured to work with three-phase alternating current (400V 3N\~50Hz). The voltage rating of the cooker heating elements is 230V. Adapting the cooker to operate with one-phase current is possible by appropriate bridging in the connection box according to the connection diagram below. The connection diagram is also found on the cover of the connection box. Remember that the connection wire should match the connection type and the power rating of the cooker.

The connection cable must be secured in a strain-relief clamp.

Warning!

Remember to connect the safety circuit to the connection box terminal marked with ⏚. The electricity supply for the cooker must have a safety switch which enables the power to be cut off in case of emergency. The distance between the working contacts of the safety switch must be at least 3 mm.

Before connecting the cooker to the power supply it is important to read the information on the data plate and the connection diagram.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

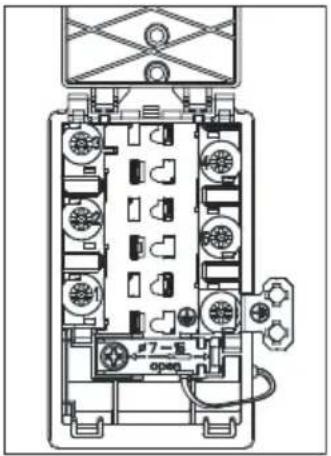

CONNECTION DIAGRAMCaution! Voltage of heating elements 230V						Recommended type of connection lead
1 F	For 230 V earthed one-phase connection, bridges connect 1-2-3 terminals and 4-5 terminals, safety wire to [IMAGE]					H05VV-F3G4
2 F	For 400/230 V earthed two-phase connection, bridges connect 2-3 terminals and 4-5 terminals, the safety wire to [IMAGE]					H05VV-F4G4
3 F	For 400/230V earthed three-phase connection, bridges connect 4-5 terminals, phases in succession 1,2 and 3, earth to 4-5, the safety wire to [IMAGE]					H05VV-F5G1,5
L1=R, L2=S, L3=T, N=earth terminal, PE= safety wire terminal

Before first use

• Remove packaging, empty the drawer, clean the interior of the oven and the hob.
• Take out and wash the oven fittings with warm water and a little washing-up liquid.
• Switch on the ventilation in the room or open a window.
• Heat the oven (to a temperature of 250^ , for approx. 30 min.), remove any stains and wash carefully; the heating zones of the hob should be heated for around 4 min. without a pan.

Controlling the heating zones of the ceramic hob.

Choice of cookware

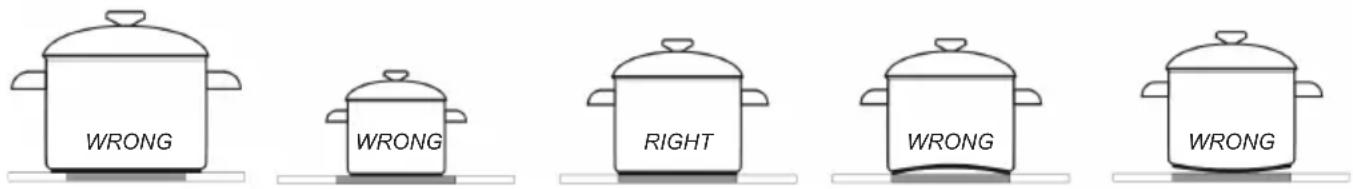

Choose a pan with a diameter that is at least as large as the heating zone. For roasting tins there is a special widened heating zone of 140x250. Do not use pans with a concave or convex base. Always remember to put a proper cover on the pan. We recommend the use of pans with thick, even bases.

If the heating zones and pans are solied it is impossible to make full use of the heat.

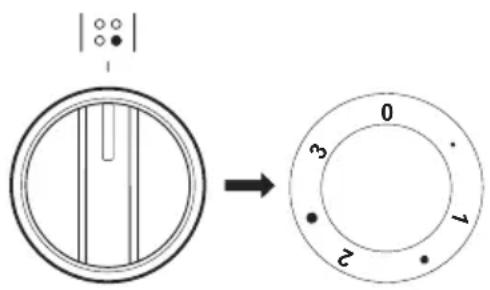

Heat level selection

The heating zones have different levels of heat. The level of heat can be adjusted gradually by turning the appropriate knob to the right or left.

0 Switch off

- MIN. Warming up

1 Stewing vegetables, slow cooking

• Cooking soups, larger dishes

2 Slow frying

- Grilling meat, fish

3 MAX. Fast heating up, fast cooking, frying

Diagram showing a circular component before and after transformation, with numbered parts labeled 0 to 3.

Zone heating indicator

If the temperature of a heating zone exceeds 50^ C this is signalled by an indicator which lights up for that zone.

When the heating indicator lights up it warns the person using the cooker against touching a hot heating zone.

For about 5 to 10 minutes after a heating zone is switched off it will still have residual heat that can be used, for example to warm up or keep dishes warm without switching on another heating zone.

Four empty circles arranged in a 2x2 grid on a gray background, with a small symbol at the bottom right corner (no text or labels)

Zone heating indicator

Oven functions and operation.

Oven with conventional heating (including top + bottom heaters)

The oven can be warmed up using the bottom and top heaters, as well as the grill. Operation of the oven is controlled by the oven function knob – to set a required function you should turn the knob to the selected position,

Diagram showing a circular component with internal structure before and after rotation, labeled with '0' and directional arrows.

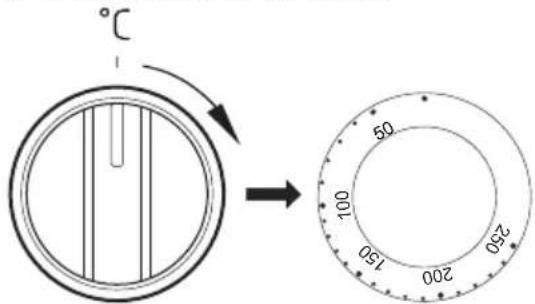

as well as the temperature regulator knob – to set a required function you should turn the knob to the selected position.

3°C → 50 100 0 150 200 250

The oven can be switched off by setting both of these knobs to the position “●”/“0”.

Possible settings of the oven function knob

0 Oven is off

Grill heater on

Setting the knob to this position allows dishes to be grilled on the grate.

Top heater on

Setting the knob to this position allows the oven to be heated only with the top heater switched on, e.g. use for final baking from above.

Bottom heater on

When the knob is set to this position the oven is heated using only the bottom heater. Use for e.g. final baking from the bottom.

Bottom and top heaters on

Setting the knob to this position allows the oven to be heated conventionally.

Separate oven lighting

By setting the knob to this position the lighting inside the oven is switched on, e.g. use when washing the oven chamber.

ECO Heating

This is an optimised heating function designed to save energy when preparing food. At this knob position, the oven lighting is off.

L R |℃| |=1

Switching on the oven is indicated by two signal lights, R, L, turning on. The R light turned on means the oven is working. If the L light goes out, it means the oven has reached the set temperature. If a recipe recommends placing dishes in a warmed-up oven, this should be not done before the L light goes out for the first time. When baking, the L light will temporarily come on and go out (to maintain the temperature inside the oven). The R signal light may also turn on at the knob position of "oven chamber lighting".

Use of the grill

The grilling process operates through infrared rays emitted onto the dish by the incandescent grill heater.

In order to switch on the grill you need to:

• Set the oven knob to the position marked grill ,
• Heat the oven for approx. 5 minutes (with the oven door shut).
• Insert a tray with a dish onto the appropriate cooking level; and if you are grilling on the grate insert a tray for dripping on the level immediately below (under the grate).
• Close the oven door.

For grilling with the function grill and combined grill the temperature must be set to 210^ C ( 200^ C*), but for the function fan and grill it must be set to a maximum of 190^ C.

* oven door with two glass panels

Warning!

When using function grill it is recommended that the oven door is closed. When the grill is in use accessible parts can become hot.

It is best to keep children away from the oven.

Baking

• we recommend using the baking trays which were provided with your cooker;
• it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;
  ● shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters), use of such tins can result in undercooking the base of cakes;
• when using the ultra-fan function it is not necessary to initially heat up the oven chamber, for other types of heating you should warm up the oven chamber before the cake is inserted;
• before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready the stick should come out dry and clean after being inserted into the cake);
  ● after switching off the oven it is advisable to leave the cake inside for about 5 min.;
• temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees lower than in normal baking (using top and bottom heaters);
• the baking parameters given in Table are approximate and can be corrected based on your own experience and cooking preferences;
• if information given in recipe books is significantly different from the values included in this instruction manual, please apply the instructions from the manual.

Roasting meat

• cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the gas burners.
• use heatproof ovenware for roasting, with handles that are also resistant to high temperatures;
• when roasting on the drying rack or the grate we recommend that you place a baking tray with a small amount of water on the lowest level of the oven;
• it is advisable to turn the meat over at least once during the roasting time and during roasting you should also baste the meat with its juices or with hot salty water – do not pour cold water over the meat.

ECO Heating

• ECO Heating an optimised heating function designed to save energy when preparing food.
• You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended.
• Do not change the temperature setting and do not open the oven door during cooking.

Recommended setting for ECO Heating

Type of dish	Oven functions	Temperature (°C)	Level Time	in minutes
Sponge cake 180	-200 2 -3 25 -40			1)
Muffins 180	-200 2 -3 25 -40			1)
Fish 190 - 210	2 - 3 25 -100			2)
Beef 200 - 220	2 90 -120			2)
Pork 200 - 220	2 90 -160			2)
Chicken 180 - 200	2 80 -100			2)

^1) Recommended for baking under 40 minutes.

^2) Recommended for baking more than 1 kg of meat.

Oven with conventional heating (including top + bottom heaters)

Type of dish	Type of heating	Temperature (°C)	Level Time	(min.)
Sponge cake 160 - 200 2 [3] 30 - 50
Muffins 160 - 170		1)	3 25 - 40	2)
Pizza 220 - 240		1)	2 15 - 25
Fish 210 - 220 2 45 -
Beef 225 - 250 2 120 50
Pork 160 - 230 2 90 . 0
Chicken 160 - 180 2 4: 50
Vegetables 190 - 210 2 50

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

^1) Preheat

^2) Baking smaller items

Note: The figures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.

TEST DISHES. According to standard EN 60350-1.

Baking

Type of dish Accessory Level Type			of heating	Temperature (°C)	Baking time 2) (min.)
Small cakes	Baking tray 3	160 - 170		1)	25 - 40 2)
	Baking tray 3	155 - 170		1)	25 - 40 2)
	Baking tray 3	155 - 170		1)	25 - 40 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		155 - 170 1)	25 - 50 2)
Shortbread	Baking tray 3	150 - 160	[238Z]	1)	30 - 40 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray	[05K5]	160 - 175 1)	25 - 35 2)
Fatless sponge cake	Wire rack + black baking tin diameter 26cm	3 170 - 180		1)	30 - 45 2)
Apple pie	Wire rack + 2 black baking tins diameter 20cm	2black baking tins placed after the diagonal, back right, front left	[K3HS]	180 - 200 1)	50 - 70 2)

^1) Preheat, do not use Rapid preheat function.
^2) The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

TEST DISHES. According to standard EN 60350-1.

Grilling

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
White bread toast	Wire rack 4 2	10 (200*)	[DBTH]	1)	1,5 - 2,5
	Wire rack 4 2	10 (200*)		2)	2 - 3
Beef burgers	Wire rack + roasting tray (to gather drops)	4 - wire rack 3 - roasting tray	[DSCH]	210 (200*) 1)	1st side 10 - 152nd side 8 - 13

* oven door with two glass panels
^1) Preheat for 5 minutes, do not use Rapid preheat function.
^2) Preheat for 8 minutes, do not use Rapid preheat function.

Roasting

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
Whole chicken	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 70	- 90
	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 80	- 100

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

By ensuring proper cleaning and maintenance of your cooker you can have a significant influence on the continuing fault-free operation of your appliance.

Before you start cleaning, the cooker must be switched off and you should ensure that all knobs are set to the “●”/“0” position. Do not start cleaning until the cooker has completely cooled.

Ceramic hob

• The hob should be cleaned regularly after each use. If possible, it is recommended that the hob is washed while still warm (after the heating zone indicator goes off). Do not allow the hob to get heavily stained; particularly from burnt-on spillages from boiled over liquids.
• When cleaning do not use cleaning agents with a strong abrasive effect, such as e.g. scouring powders containing an abrasive, abrasive compounds, abrasive stones, pumice stones, wire brushes and so on. They may scratch the hob surface, causing irreversible damage.
• Large spillages that are firmly stuck to the hob can be removed by a special scraper; but be careful not to damage the ceramic hob frame when doing this.

Simple line drawing of a hand using a tool to cut or spread material from a rectangular block (no text or symbols)

Scraper for cleaning the hob

Caution! The sharp blade should always be protected by adjusting the cover (just push it with your thumb). Injuries are possible so be careful when using this instrument – keep out of reach of children.

- Appropriate light cleaning or washing products are recommended, such as e.g. any kind of liquids or emulsions for fat removal. If the recommended products are not available, it is advisable to use a solution of warm water with a little washing-up liquid or cleaning products for stainless steel sinks.

Oven

• The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better.
• The oven chamber should only be washed with warm water and a small amount of washing-up liquid.
• Steam cleaning:

- pour 250ml of water (1 glass) into a bowl placed in the oven on the first level from the bottom,

• close the oven door,

• set the temperature knob to 50^ C, and the function knob to the bottom heater position ☐

• heat the oven chamber for approximately 30 minutes,

• open the oven door, wipe the chamber inside with a cloth or sponge and wash using warm water with washing-up liquid.

Caution! Possible moisture or water residues under the cooker can result from steam cleaning.

- After cleaning the oven chamber wipe it dry.

Caution!

Do not use cleaning products containing abrasive materials for the cleaning and maintenance of the glass front panel.

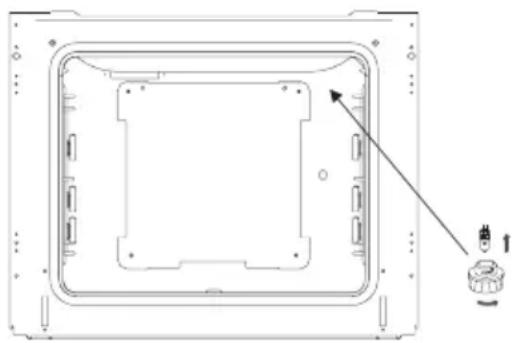

Replacing the halogen bulb in the oven

Before replacing the halogen bulb, make sure the appliance is disconnected from the electric mains to avoid a possible electric shock.

• Set all control knobs to the position “●”/“0” and disconnect the mains plug,
• Unscrew and wash the lamp cover and then wipe it dry.

• Pull the halogen bulb out using a cloth or paper. If necessary, replace the halogen bulb with a new one.

• voltage 230V

• power 25W

• G9

• Replace the halogen bulb in its socket.

• Screw in the lamp cover.

Technical line drawing of a rectangular electronic device casing with internal components and a small component on the right side (no text or symbols)

Oven lighting

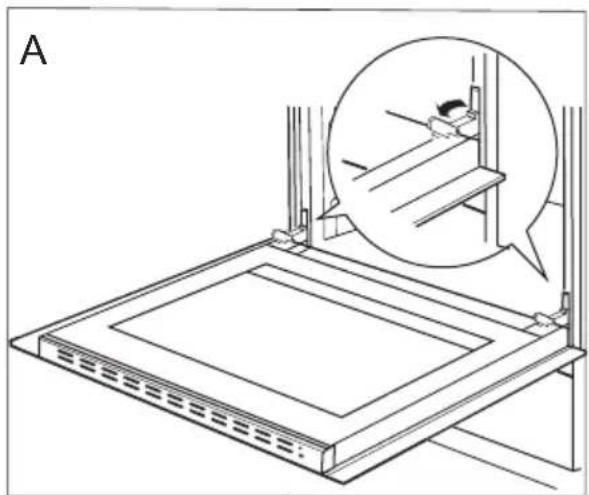

Door removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (fig. A). Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the cooker, do the inverse. When fitting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder. After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Tilting the hinge safety catches

Removing the inner panel

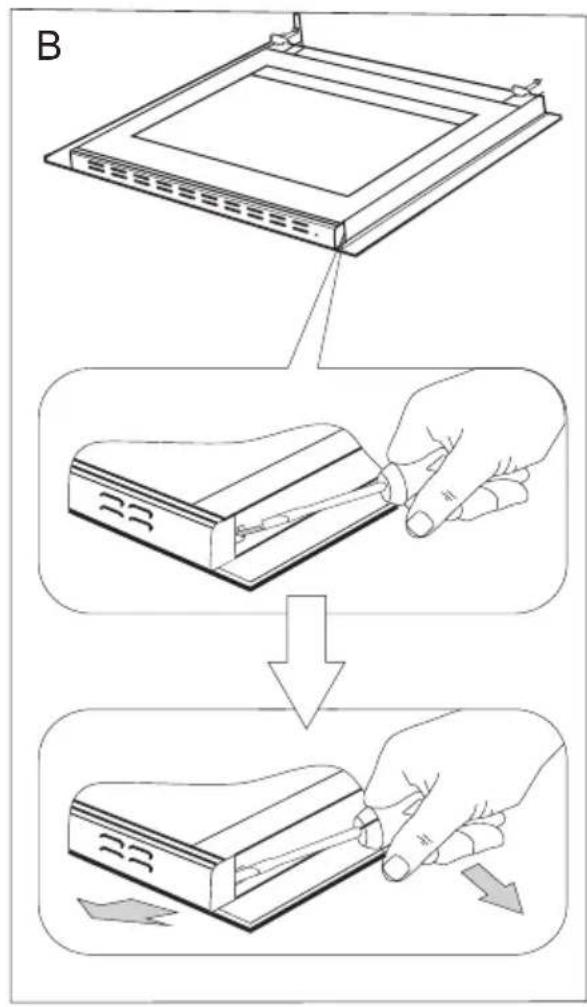

1. Using a flat screwdriver unhook the upper door slat, prying it gently on the sides (fig. B).

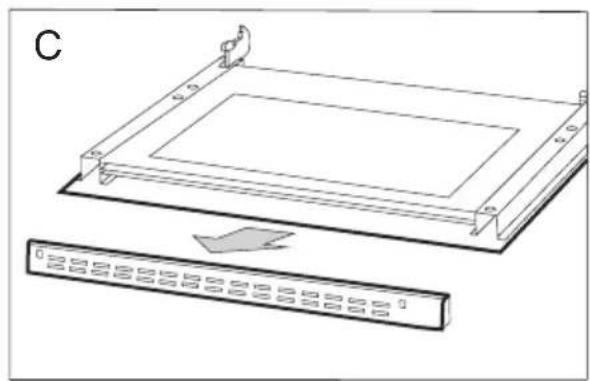

2. Pull the upper door slat loose. (fig. B, C)

B

Technical line drawing of a rectangular electronic component with mounting brackets and a small inset showing a grid layout (no text or symbols)

1. Pull the inner glass panel from its seat (in the lower section of the door).

fig. D, D1.

Note! Risk of damage to glass panel mounting. Do not lift the glass panel up but pull it out.

1. Clean the panel with warm water with some cleaning agent added.

Carry out the same in reverse order to reassemble the inner glass panel. Its smooth surface shall be pointed upwards.

Important! Do not force the upper strip in on both sides of the door at the same time. In order to correctly fit the top door strip, first put the left end of the strip on the door and then press the right end in until you hear a "click".

Then press the left end in until you hear a "click". D

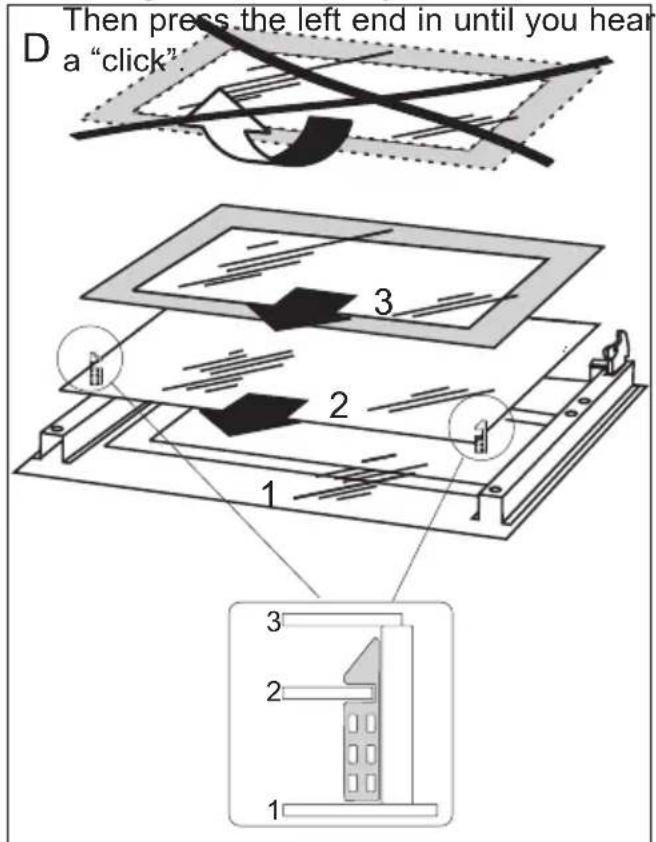

Removal of the internal glass panel. 3 glass panel.

D1 1 2 2 1

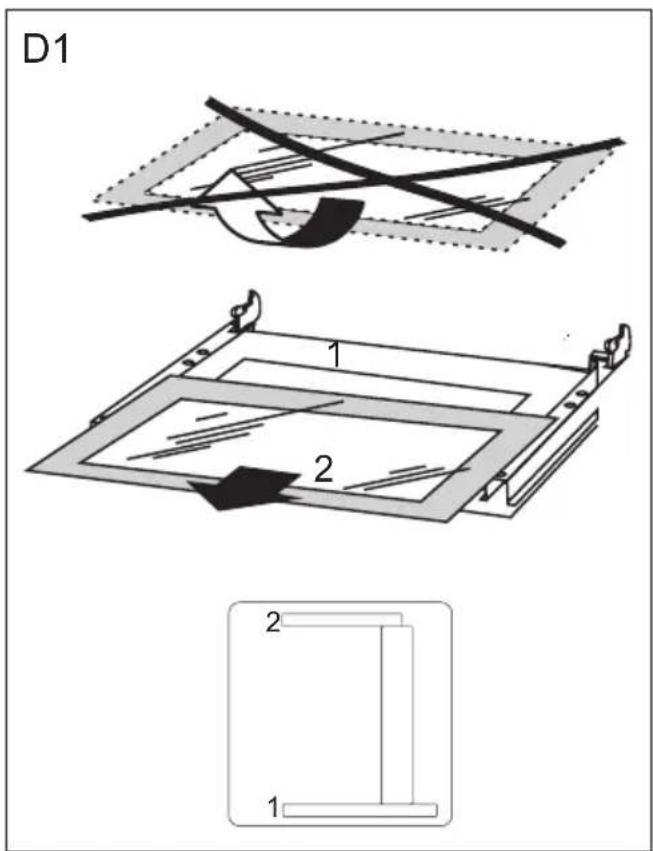

Removal of the internal glass panel. 2 glass panel.

Regular inspections

Besides keeping the cooker clean, you should:

- carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years,

• fix any operational faults,
  ● carry out periodical maintenance of the cooking units of the cooker.

Caution!

All repairs and regulatory activities should be carried out by the appropriate service centre or by an appropriately authorised fitter.

OPERATION IN CASE OF EMERGENCY

In the event of an emergency, you should:

• switch off all working units of the cooker
• disconnect the mains plug
• call the service centre
• some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.

PROBLEM REASON ACTION
1. The appliance does not work.	Break in power supply. Check the household fuse box; if there is a blown fuse replace it with a new one.
2. The oven lighting does not work.	The bulb is loose or damaged. Tighten up or replace the blown bulb (see ‘Cleaning and Maintenance’).

Voltage rating 230/400V ~ 50 Hz
Power rating 7,8 kW
Cooker dimensions H/W/D 85 x 50 x 60 cm

The product meets the requirements of European standards EN 60335-1; EN60335-2-6.

The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1. These values are defined with a standard workload a with the functions active: bottom and top heaters (conventional heating) and fan assisted heating (forced air heating), if these functions are available.

The energy efficiency class was assigned depending on the function available in the product in accordance with the priority below:

Forced air circulation ECO (ring heater + fan)
Forced air circulation ECO (bottom heater + top + roaster + fan)
Conventional mode ECO (bottom heater + top)

During energy consumption test, remove the telescopic runners (if the product is fitted with any).

Certificate of compliance CE

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives:

● The Low Voltage Directive 2014/35/EC,
● Electromagnetic Compatibility Directive 2014/30/EC,
● ErP Directive 2009/125/EC,

and therefore the product has been marked with the symbol and the Declaration of Conformity has been issued to the manufacturer and is available to the competent authorities regulating the market.

Simple black-and-white line drawing of a cloud with two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Four empty gray circles arranged in a 2x2 grid on a dark background (no text or symbols)

Line drawing of a square frame with rounded corners and a small circular hole at the top (no text or symbols)

Technical line drawing of a rectangular metal grate or rack structure (no text or symbols)

Line drawing of a rectangular tray with a recessed slot (no text or symbols)

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

Diagram showing a circular component before and after transformation, with numbered parts labeled 0 to 3.

Four simple gray circles arranged in a 2x2 grid on a dark background, with no text or symbols present.

Diagram showing a circular component being rotated to a ring with labeled components and directional arrows

Line drawing of a hand using a tool to cut or spread material from a block (no text or symbols)

Technical line drawing of a rectangular electronic device casing with internal components and a small component on the right side (no text or symbols)

Ovenverlichting

Wegnemen van de deur

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Wegnemen van de deur

Technical line drawing of a rectangular electronic component with mounting brackets and a separate panel below showing internal structure (no text or symbols)

REINIGING EN ONDERHOUD VAN HET FORNUIS
