Product Type	Double Jogging Stroller
Brand	BOB Gear
Model	Revolution Flex 3.0 Duallie
Maximum Weight Capacity (Total)	45.4 kg (100 lb)
Weight Capacity Per Seat	22.7 kg (50 lb)
Maximum Child Height	112 cm (44 in)
Recommended Age for Walking	0 to 8 months (with or without car seat)
Recommended Age for Jogging	From 8 months to 5 years
Stroller Weight	Approximately 13 kg (depending on configuration)
Folded Dimensions (without wheels)	Approximately 90 x 60 x 40 cm
Wheel Type	Swivel or lockable front wheels, fixed rear wheels
Maximum Tire Pressure	30 psi (2.1 bar)
Frame Material	Aluminum
Key Features	Compact fold, adjustable handlebar, adjustable suspension, parking brake, extendable canopy with pocket, 5-point harness, wrist strap
Storage Pockets	Seat back pocket (1 kg max), canopy pocket (0.45 kg), cargo basket (4.5 kg)
Care and Cleaning	Spot clean with mild soap and cold water (max 38°C), air dry. Do not use abrasive detergents or pressure washing.
Safety	5-point harness, parking brake, wrist strap, front wheel lock for jogging mode, do not use on slopes
Spare Parts and Repairability	Parts available through BOB Gear customer service. Warranty: frame 5 years, components and fabrics 1 year.
General Information	Product registration recommended at bobgear.com/registration. Serial number located on the right swivel arm.

Frequently Asked Questions - Revolution Flex 3.0 Duallie BOB Gear

How to install the rear wheels?

First unlock the brake. Insert the rear wheel axle into the rear leg hole until you hear a click. Pull on the wheel to make sure it is securely attached.

What is the maximum allowed weight in the stroller?

The total weight (child + cargo) must not exceed 45.4 kg (100 lb). Each seat supports up to 22.7 kg (50 lb).

How to switch between strolling mode and jogging mode?

For strolling mode, slide the pivot button up and to the left. For jogging mode, slide the button up and to the right until it clicks forward. Never run or jog in strolling mode.

How to adjust the suspension?

Press the suspension adjustment button on the back of the seat and slide it to the desired position: position 1 (soft, for children up to 22.7 kg) or position 2 (firm, for 22.8-45.4 kg). The suspension defaults to position 1 after each fold.

How to fold the stroller?

First lock the brake, remove the child and empty the pockets. Unbuckle the seat retention strap. Press both handlebar release levers and lower it. Lift the red unlock handle firmly. Use the wrist strap to keep the stroller folded. To reduce size, remove the wheels.

How to clean the stroller fabric?

Use a sponge with a solution of mild soap and cold water (max 38°C). Rinse thoroughly with clean water and air dry. Do not use abrasive detergents or pressure washing.

Can I use a car seat with this stroller?

Yes, for infants 0 to 8 weeks, use an infant car seat with a BOB adapter. Never jog with a car seat. Refer to the adapter guide for weight limits.

How to adjust the brake?

To lock, press the pedal until the pin engages with the disc. Check by pushing the stroller. To unlock, lift the pedal with your foot to the high position. The brake is designed for parking on flat surfaces only.

What is the warranty on the stroller?

The frame is warranted for 5 years and components/fabrics for 1 year against manufacturing defects. Normal wear, tires, and inner tubes are not covered. The warranty applies to the original purchaser with proof of purchase.

How to adjust the handlebar height?

Press both handlebar release buttons simultaneously and hold while lifting or lowering the handlebar to the desired position. Release the buttons to lock.

USER MANUAL Revolution Flex 3.0 Duallie BOB Gear

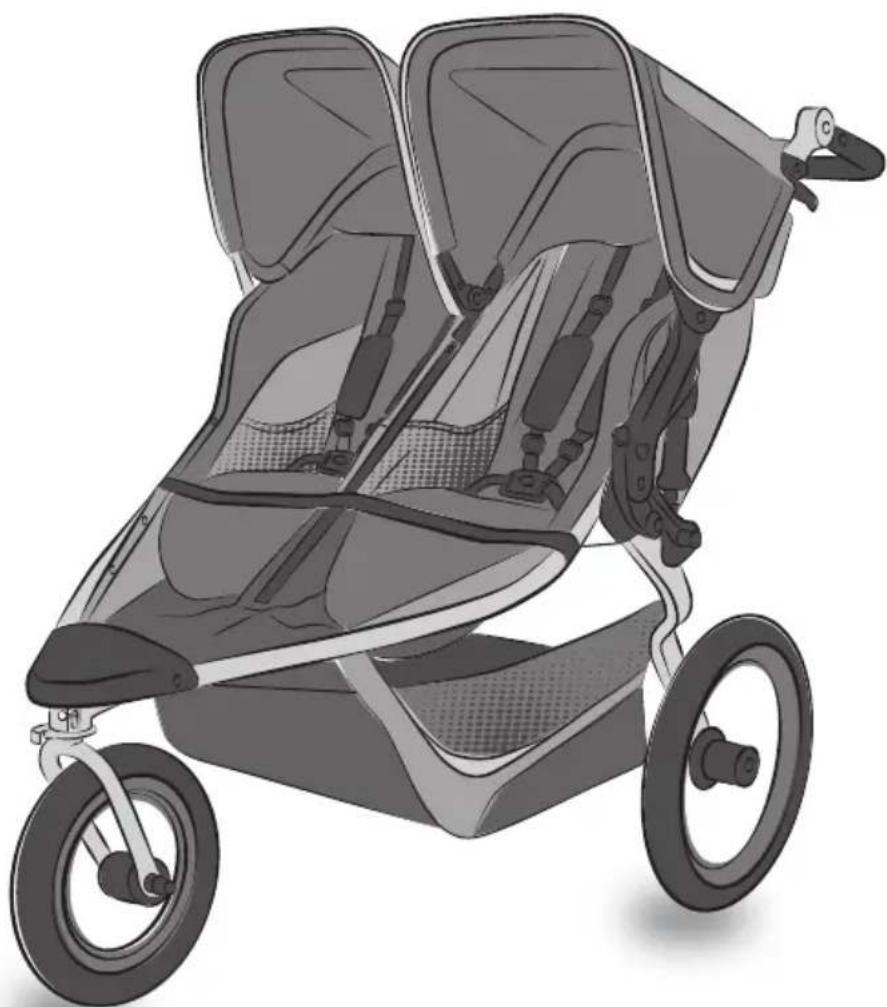

REVOLUTION® FLEX 3.0 DUALLIE®

Illustration of a two-wheeled baby stroller with front seats and wheels (no text or symbols)

User Guide

BOB Gear® recommends that you register your stroller at bobgear.com/registration. This will allow us to notify you directly if there are any product recalls.

For updates to this user guide, warranty and other recent product notifications, please visit bobgear.com periodically or any time before making approved changes or adding approved equipment to your stroller.

Contents

Safety Information....2

Warnings 2

Important Notes....3

Stroller Features ....4

Age Guidelines....5

Stroller Assembly ....5

Unpacking the Stroller 5

Stroller Wheels....5

Stroller Operation....7

Unfolding and Folding....7

Choosing Walk or Jog Mode 9

Checking Tire Pressure....9

Adjusting the Tracking....9

Adjusting the Shock Setting 10

Setting the Parking Brake 11

Securing the Child in the Seat 11

Using the Wrist Strap....12

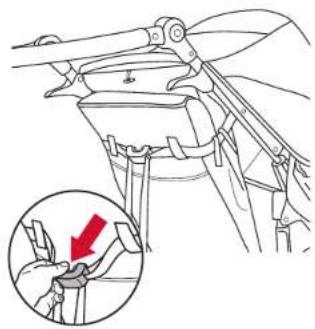

Reclining the Seat....12

Positioning the Canopy....13

Adjusting Handle Position....13

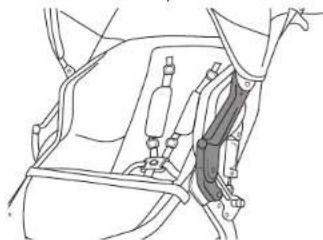

Using the Accessory Adapter 13

Care and Maintenance....14

Regular Inspections....14

Cleaning....14

Limited Warranty ....14

Safety Information

WARNING!

Failure to follow all warnings and instructions

could result in SERIOUS INJURY or DEATH.

Read these instructions carefully before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often.

• Never leave child unattended.
• The maximum weight capacity of the stroller (child plus luggage weight) is 100 lbs (45.4 kg). Maximum child weight is 50 lbs (22.7 kg) per seat. Maximum child height is 44 inches (112 cm). DO NOT exceed the maximum weight or height, as stroller will become unstable and tip resulting in serious injury.
• Avoid serious injury from falling or sliding out. Always use seat harness.
• Avoid finger entrapment or injury. Always ensure any child occupants or bystanders are away from the stroller while folding or unfolding.
• Do not attach parcels or bags to the handlebar or frame of stroller except those recommended by BOB Gears, as stroller can become unstable and tip over.
• Child may slip into leg openings and strangle. Never use in reclined carriage position unless child is harnessed.
• Do not overload the seat back pockets. Maximum weight is 2 lbs (1 kg). Overloading the seat back pocket may cause the stroller to become unstable and tip over.
• Do not overload the canopy pocket. Maximum weight is 1 lb (0.45 kg). Overloading the canopy pocket may cause the stroller to become unstable and tip over.
• Do not overload the low boy cargo basket. Maximum weight is 10 lbs (4.5 kg). Overloading the basket may cause the stroller to become unstable and tip over.
• FALL HAZARD - Wheel can detach and cause tip over. Pull on the wheel to assure it is securely attached.
• FALL HAZARD from tip over - Before running, jogging, or walking fast, LOCK the front wheel from swiveling.
• Do not park on inclines. The parking brake is intended to park the stroller on flat surfaces only. Parking on inclines may result in tip over or runaway stroller.
• The parking brake is not designed as a stopping brake. The parking brake should not be used to slow or stop the stroller because doing so could cause the stroller to stop abruptly, resulting in loss of control.

• Always set the parking brake when stroller is not moving. Never load or unload the stroller without the parking brake set.

• Never use with low tire pressure or deflated tires as this could result in loss of control. Inflating tires above the maximum inflation pressure embossed on the tire can damage the rim and/or tire, resulting in loss of control and injury.

• Use extreme caution when using stroller on uneven and/or unpaved, wet, or slick surfaces, as these conditions create additional hazards and can lead to a loss of stability, resulting in serious injury.
• Do not use stroller on stairs, escalators, moving vehicles, or steep inclines. Stroller can tip over.
• Do not wear roller skates or inline skates while pushing stroller.
• Always jog with the stroller seat in the fully upright position. Jogging with the seat in reclined positions may result in a loss of stability. Never jog with infant car seat attached.
• When seat is fully reclined, backward tip-over is more likely, and may result in injury to stroller occupant.
  • Always use wrist strap to prevent being separated from stroller.
• Never allow child to stand in stroller.
• Do not modify the stroller or any labels. Doing so voids the warranty and could lead to a dangerous condition.
• Do not place sharp objects in any seat pocket. Leaning against sharp objects in pockets can result in injury to occupant.
• Always make certain that the stroller is fully open and locked before use.
• Assembly of this stroller must be performed only by an adult.
• Only use manufacturer approved accessories and replacement parts with this stroller.
• Do not allow children to climb on or play with the stroller.
• Do not exceed the manufacturer's maximum weight limit when using an infant car seat with this product (see page 5). See infant car seat adapter and infant car seat user guides for maximum occupant weight and other instructions.
• Failure to regularly inspect this product and its components to make sure they are in good condition and good working order can result in injury. Discontinue use of stroller if damaged or any parts are missing.

Important Notes

• Before and during use, always make sure the child's hands and feet are away from wheels.
• Never pull stroller backward up stairs. Doing so could damage the suspension system, leading to frame failure.
• Protect stroller when transporting or shipping to prevent damage to stroller and stroller components. Check closely for damage after transporting or shipping.
• It is best to store your stroller indoors when it is not in use. Extended exposure to rain or the sun's ultraviolet rays can fade and damage the fabric, tires, and plastic parts.

BOBGear REVOLUTION FLEX 3.0 DUALLIE User Guide

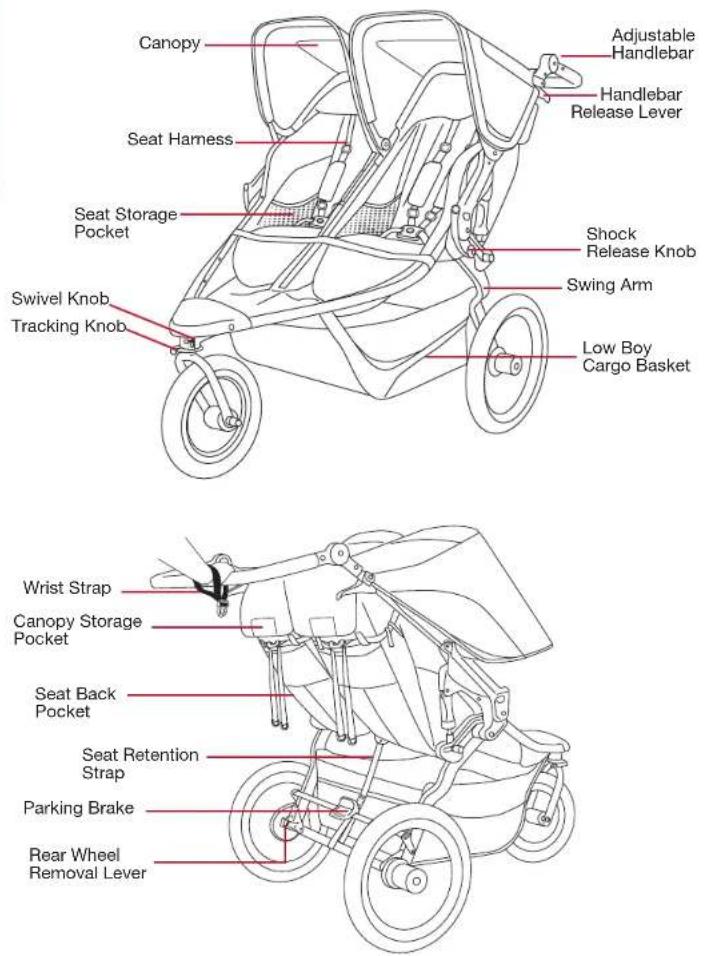

Stroller Features

Canopy Adjustable Handlebar Handlebar Release Lever Seat Harness Seat Storage Pocket Shock Release Knob Swing Arm Low Boy Cargo Basket Swivel Knob Tracking Knob Wrist Strap Canopy Storage Pocket Seat Back Pocket Seat Retention Strap Parking Brake Rear Wheel Removal Lever

Actual product may vary from images

Age Guidelines

Prior to first use, consult with your pediatrician regarding suitability of stroller use with your child.

Please note that infants incapable of holding their head up must have additional head and neck support to ride safely and comfortably. From 0-8 weeks, or as recommended by your pediatrician, the use of an infant car seat and adapter is encouraged.

Children are unique and develop at different rates. Most may not have the neck strength for jogging or off-road motion until 8 months of age. For jogging or off-road stroller use, BOB Gear recommends you limit use of this stroller to children over the age of 8 months.

Please refer to the below table for age/use guidelines:

RECOMMENDED STROLLER USE

0 - 8 Weeks Walk Only with Infant Car Seat & Adapter *

8 Weeks - 8 Months Walk Only

8 Months - 5 Years Jogging/Off-Road

* See BOB Infant Car Seat Adapter User Guide for maximum occupant weight.

WARNING!

Never jog with infant car seat attached.

Stroller Assembly

Unpacking the Stroller

WARNING!

Remove all packaging materials and discard to avoid choking and suffocation hazards.

Stroller Wheels

Rear Wheel Installation

1. Unlock Parking Brake Prior to installing the rear wheels, position the parking brake in the unlocked position.

1. Insert Rear Wheel Stub Axle Insert the rear wheel's stub axle into the hole in the rear dropout until a "click" is heard.

Mechanical assembly diagram showing a wheel with attached components and a red arrow indicating motion direction (no text or symbols)

IMPORTANT: If no click is heard, the wheel may not be secure in the attachment bracket and may detach during operation. Pull on wheel to ensure proper installation.

BOBGear REVOLUTION FLEX 3.0 DUALLIE User Guide

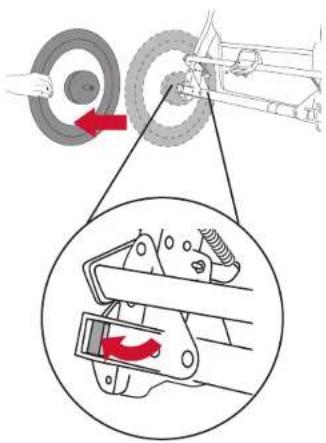

Rear Wheel Removal

1. Unlock Parking Brake Prior to removing the rear wheels, position the parking brake in the unlocked position.
2. Remove Wheel Raise the wheel a few inches off the ground, pull the release lever, and pull the wheel out of the rear wheel attachment bracket.

Diagram illustrating vehicle wheel assembly with red directional arrows indicating rotation or movement, showing mechanical components and a close-up of the component.

Front Wheel Installation

1. Remove Through-Axle and Hex Wrench From Storage Bag Remove nut from through-axle.

1. Rotate Front Fork Into Jog Mode Rotate the front fork until it locks into jog mode. See page 9.
2. Insert Front Wheel When facing the front of the stroller, insert the wheel between the fork and align the wheel hub with the holes in the fork blades.

1. Insert Through-Axle Insert the through-axle into the fork and through the wheel hub, then install the nut to the opposite side.

1. Tighten Through-Axle Hold the nut in place, and use the hex wrench provided to fully tighten the through-axle. Pull on wheel to check that it is securely installed and does not wobble.

WARNING!

Check the front wheel before each use of the stroller to ensure it is properly secured. Failure to secure the front wheel can cause the wheel to vibrate, wobble, or become detached from the stroller.

FALL HAZARD - Wheel can detach and cause tip over. Pull on the wheel to assure it is securely attached.

Front Wheel Removal

1. Rotate Front Fork Into Jog Mode Rotate the front fork until it locks into jog mode. See page 9.
2. Remove Through-Axle Hold the nut in place and use the hex wrench to loosen the through-axle. Then remove the through-axle from the front wheel and fork.
3. Remove Front Wheel Raise the front wheel a few inches off the ground and pull wheel down to remove.

Diagram of a mechanical linkage system with a wheel and ring components, showing a downward red arrow indicating motion (no text or symbols)

IMPORTANT: Secure and safely store all small parts.

Stroller Operation

Unfolding and Folding

Unfolding the Stroller

1. Lift Red Frame Release Handle Keep tires on ground as stroller swing arm begins to swing open.

NOTE: Stroller swing arm will swing open and snap into an open and locked position.

Rotate Handlakes

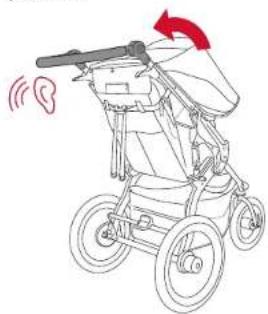

1. Rotate Handlebar Lift handlebar up and back until it snaps into locked and upright position.

Line drawing of a stroller with a red arrow indicating clockwise motion (no text or symbols)

BOBGear REVOLUTION FLEX 3.0 DUALLIE User Guide

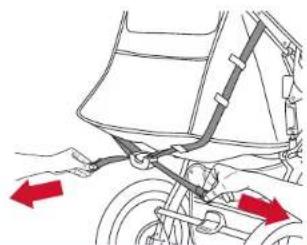

1. Attach seat retention strap Loop seat retention strap around cross tube and secure with buckle.

Brake Bar

Correctly Attached Seat Retention Strap

IMPORTANT: Do not loop seat retention strap around or over brake bar.

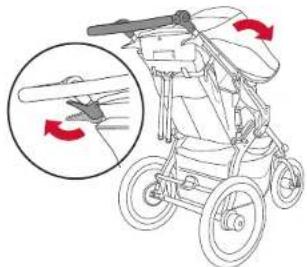

1. Rotate Handlebar Squeeze both handlebar release levers simultaneously. Rotate handlebar forward onto seat.

Illustration of a stroller with red directional arrows indicating motion or movement (no text or symbols)

1. Lift Red Frame Release Handle Using a short, quick tug, lift red frame release handle up. Keep tires on ground as stroller collapses toward front wheel.

Line drawing of a hand pulling a stroller with red directional arrows indicating motion (no text or symbols)

Folding the Stroller

1. Lock Parking Brake Set parking brake in locked position.
2. Remove Child From Seat
3. Empty Stroller Remove contents from low boy cargo basket and pockets.
4. Unhook Seat Retention Strap

Diagram showing a red belt switch mechanism with directional arrows indicating motion or force directions.

1. Lay Stroller Flat


Line drawing of a hand using a tool to cut a car wheel (no text or symbols)

1. Secure Folded Stroller Use wrist strap buckle to secure stroller in folded position.

Handlebar

1. Make It Smaller Take off the front and rear wheels to make it even smaller. See Rear Wheel Removal on page 6 and Front Wheel Removal on page 7.

NOTE: Ensure the handle is positioned parallel to the ground before folding.

Choosing Walk or Jog Mode
Walk Mode Jog Mode

Two cartoon mushroom-shaped objects with arrows indicating motion or movement, no text or symbols present

Walk Mode

Slide swivel knob up and to the left. Fork will now rotate 360 degrees.

NOTE: Stroller is shipped in walk mode.

Jog Mode (Jogging/Off-Road)

Slide swivel knob upward and to the right. Knob will slide into downward position. Rotate fork/wheel until it snaps into forward position.

If the front fork is in jog mode, it will be locked and will not swivel left or right as it does in walk mode.

IMPORTANT: Never run, jog, or walk fast with the stroller in walk mode. Doing so could result in loss of control and serious injury.

Checking Tire Pressure

Plastic wheels are rated to a maximum tire inflation pressure of 30 pounds per square inch (psi). The maximum inflation pressure is embossed on the wheel next to the valve stem.

Adjusting the Tracking

If stroller pulls left or right when the front wheel is in jog mode and stroller is on flat terrain, adjust tracking as outlined in the following steps.

1. Empty Stroller Remove contents from low boy cargo basket and pockets.
2. Check Tire Pressure
3. Set Stroller to Jog Mode Slide swivel knob to right. Knob will slide into downward position. Rotate fork/wheel until it snaps into forward position. See Choosing Walk or Jog Mode on page 9.
4. Place Stroller On Level Ground Find a stretch of level ground about 16 feet (4.9 m) long.

1. Align Rear Wheel Axles Align stroller so rear wheel axles are perpendicular to a straight line.

BOBGear REVOLUTION FLEX 3.0 DUALLIE User Guide

6. Test Alignment

Push stroller straight forward and release to see if stroller veers right or left. Repeat push test several times.

If stroller consistently pulls to left or right, see Fine Tuning the Tracking.

Fine Tuning the Tracking

If Stroller Pulls LEFT

If your stroller pulls LEFT, turn tracking knob counterclockwise up to one half turn.

Tracking Knob

If Stroller Pulls RIGHT

If your stroller pulls RIGHT, turn tracking knob clockwise up to one half turn.

REPEAT roll test and adjust as needed until stroller rolls straight.

Tracking Knob

10 11

WARNING!

Do not roll test with a child or any occupant in the stroller.

Adjusting the Shock Setting

1. Remove Child From Seat
2. Set Shock Setting

Depress shock release knob and simultaneously pull toward back of stroller, sliding knob into preferred position. Knob will snap into place when in correct position.

Position 1 is a SOFTER shock setting recommended for children 50 pounds (22.7 kg) or less.

Position 2 is a FIRMER shock setting recommended for children weighing 51 to 100 lbs (22.8 - 45.4 kg)

NOTE: Every time stroller is folded, stroller shocks default to position 1.

1. REPEAT on opposite side.

Setting the Parking Brake

The parking brake prevents the stroller from moving while loading and unloading. The parking brake is not designed as a stopping brake.

To set the parking brake, press down on the foot pedal – making sure the locking pin fully engages the locking disk.

LOCKED POSITION

To ensure the brake is set properly, attempt to roll the stroller forward and backward after setting the brake. If the stroller will not roll, the brake is set properly.

To release the parking brake, lift up on the foot pedal with your foot until the brake bar springs up into the fully unlocked position.

UNLOCKED POSITION

WARNING!

Do not park on inclines. The parking brake is intended to park the stroller on flat surfaces only. Parking on inclines may result in tip over or runaway stroller.

Securing the Child in the Seat

Before each use, check the harness and its components to make sure they are in good condition and good working order.

1. Set Parking Brake

Rotate parking brake down into locked position.

NOTE: Rear wheels should not rotate when parking brake is set.

1. Place Child In Seat

Slip one shoulder strap over each shoulder. Position buckle strap between legs.

Shoulder Strap Buckle Strap

1. Fasten Shoulder Straps Insert both shoulder strap tongues into the buckle.

NOTE: Buckle strap should be adjusted to have a snug fit.

1. Adjust Shoulder Strap Height Adjust height of shoulder strap to fit just above child shoulder height.

BOBGear REVOLUTION FLEX 3.0 DUALLIE User Guide

5. Adjust Shoulder Straps

Open pads with hook and loop fasteners. Slide buckle up or down to adjust straps. Seat harness should fit snug and be comfortable.

Diagram of a belt buckle with red directional arrows indicating movement (no text or symbols)

6. Tighten Lap Strap

Adjust lap strap to fit snug and be comfortable.

Illustration of hands adjusting a mechanical component with red directional arrows indicating movement (no text or symbols)

Lap Strap

WARNING!

Avoid serious injury from falling or sliding out. Always use harness to secure child.

Using the Wrist Strap

1. Slip Loop of Strap Securely Onto Wrist

The wrist strap is designed to help prevent the stroller from rolling away should you lose your grip on the stroller. When using the stroller, make sure the strap is securely looped over your wrist.

Technical line drawing of a mechanical assembly with no visible text or symbols

Reclining the Seat

IMPORTANT: Set parking brake before making any seat adjustments.

1. Recline Seat

Squeeze the recline button and pull the seat back down into the desired position.

Technical line drawing of a mechanical assembly with an inset showing a red arrow pointing to a component (no text or symbols present)

2. Return To Upright Position

Grab the rings on either side of the recline button and pull the straps out to the sides to raise the seat.

Diagram of a bicycle suspension system with red arrows indicating direction (no text or labels)

WARNING!

When seat is fully reclined, backward tip-over is more likely, and may result in injury to stroller occupant.

Positioning the Canopy

1. Extend Canopy

Rotate canopy away from handlebar for additional shade.

Illustration of a person wearing a seatbelt with a red arrow indicating rotation (no text or symbols)

2. Retract Canopy

Push canopy toward handlebar.

Illustration of a person wearing a seatbelt with a red arrow indicating rotation (no text or symbols)

Adjusting Handle Position

To adjust the handle position, depress and hold the two release buttons on the inside of the handle assembly while raising or lowering the handle to one of the individual positions.

Illustration of hands using a tool to lift a small object, with red arrows indicating motion direction (no text or symbols)

Using the Accessory Adapter

This BOB stroller is equipped with an accessory adapter providing easy attachment for BOB Stroller accessories like the snack tray or infant car seat adapter.

Technical line drawing of a mechanical assembly with no visible text or symbols

BOBGear REVOLUTION FLEX 3.0 DUALLIE User Guide

Care and Maintenance

Check tire pressure before every use.

Regular Inspections

Before each use, check this stroller and its components to make sure they are in good condition and good working order.

• Verify tire pressure.
• Verify all screws, attachment points and fasteners are tight
• Check all wheels to be sure they are secure.
• Check for tears or excessive wear in the fabric.

Cleaning

The fabric has a stain resistant treatment that makes most cleanups easy.

• Use a sponge with a solution of mild soap and cold water (maximum temperature of 100^ / 38^ ).
• Rinse thoroughly with clean water to remove soap, then air dry.
• Do not use detergent or abrasive cleansers.
• Do not pressure wash.

Limited Warranty

We take pride in the workmanship of BOB Gear and strive to manufacture the best products possible.

Therefore, we warranty our strollers against defects in material and workmanship for the periods and parts set forth below, subject to the conditions listed below. Since no product is indestructible, it does not cover defects attributable to or resulting from normal wear, abuse or alteration.

Frame and Components

The frame is warranted for five years. Components and fabric are warranted for one year. Warranty is only valid for the original purchaser. Proof of purchase is required to exercise this warranty. Labor and freight charges are not included. BOB Gear reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. BOB Gear products purchased from unauthorized retailers, online auction sites, or as second hand items are not covered under warranty.

Normal Wear

Normal wear, corrosion, neglect, abuse, accidents, improper assembly or maintenance, or the installation of parts or accessories not compatible with the original intended use of the stroller, as sold, are not covered by this warranty. Tires and tubes are not covered under the limited warranty.

Warranty Claims

Warranty claims must be made through BOB Gear customer service. This warranty is limited to the repair or replacement of the defective part. BOB Gear shall in no event be responsible for consequential or special damages.

To the extent allowed by law, this limited warranty is the only express or implied warranty applicable to this BOB Gear product and is warranted by Britax Child Safety, Inc. Any implied warranties, including warranties of merchantability and fitness shall be limited in scope and duration in accordance with this limited warranty.

Product Registration

Visit bobgear.com/registration to register your stroller.

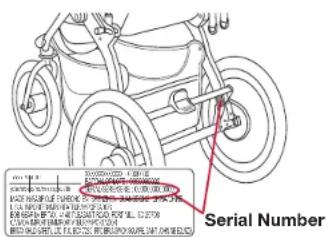

Serial Number

Open the stroller. From the back of stroller, look on the inside of the right swing arm.

Mechanical assembly diagram showing a wheel with attached components and a red arrow indicating direction (no text or symbols)

Diagram illustrating vehicle wheel assembly and steering wheel movement, showing gear shift and gear positioning with red arrows indicating rotational direction.

Mechanical diagram showing a linkage mechanism with a wheel and a separate ring, no text or symbols present.

Diagram illustrating a hand operating a bicycle with red arrows indicating motion and sound waves, likely illustrating a physical or safety concept.

Line drawing of a stroller with a red arrow indicating clockwise motion (no text or symbols)

Diagram showing a car's seatbelt mechanism with red and black buttons, indicating left and right movement directions.

Diagram of a stroller with red directional arrows indicating motion or force (no text or symbols present)

Diagram of a hand operating a wheeled cart with red directional arrows indicating motion (no text or symbols)

Line drawing of a hand using a tool to cut a vehicle chassis, with a red downward arrow indicating the motion (no text or symbols present)

Two cartoon mushroom-shaped objects with arrows indicating movement or interaction, no text or symbols present

Mode jogging (jogging/hors route)

Illustration of a medical procedure with a red arrow indicating direction (no text or symbols)

Diagram of a belt buckle buckle with red directional arrow indicating compression (no text or symbols)

Illustration of hands adjusting a belt buckle with red directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with an inset showing a red arrow pointing to a component (no text or symbols present)

Diagram of a bicycle steering wheel with red directional arrows indicating motion (no text or symbols)

MISE EN GARDE!

Diagram of a vehicle climbing structure with a red arrow indicating rotation (no text or symbols)

Line drawing of a person wearing a seatbelt, with a red arrow indicating rotation (no text or symbols)

Illustration of hands performing a belt drive operation with red arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

14 15

Mechanical assembly diagram showing a wheel and attached components with a red arrow indicating motion direction (no text or symbols)

Diagram illustrating tire wheel assembly with red directional arrows indicating motion, showing mechanical components and component placement.

Instalar la rueda delantera

Diagram of a mechanical linkage system with two pulleys and a wheel, showing a red downward arrow indicating motion (no text or symbols)

Diagram illustrating a person using a bicycle with red directional arrows indicating motion or vibration, showing head and wheel positions.

Line drawing of a wheeled cart with a red arrow indicating clockwise motion (no text or symbols)

BOBGear Guía del usuario REVOLUTION FLEX 3.0

Diagram showing a car steering wheel with red belt and two arrows indicating left and right motion directions.

1. Girar la manija

Diagram of a small wheeled vehicle with red directional arrows indicating rotation or movement (no text or symbols present)

Diagram of a hand operating a wheeled cart with red directional arrows indicating motion (no text or symbols)

Diagram of a hand using a tool to adjust or install a vehicle wheel (no text or symbols present)

Two cartoon mushroom-shaped objects with arrows indicating movement or interaction, no text or symbols present

Modo paseo

Diagram of a mechanical joint or connector with red arrows indicating direction (no text or symbols present)

Hebilla

Illustration of a medical device with red directional arrows indicating movement or force (no text or symbols)

Illustration of hands adjusting a mechanical component with red arrows indicating direction (no text or symbols)

Correas de la hebilla

ADVERTENCIA

Line drawing of a motorcycle's front wheel assembly (no text or symbols)

Reclinar el asiento

Technical line drawing of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

Diagram of a bicycle's wheel assembly with red directional arrows indicating motion (no text or symbols)

ADVERTENCIA

Diagram of a vehicle seatbelt with a red arrow indicating rotation (no text or symbols)

BOBGear Guía del usuario REVOLUTION FLEX 3.0

Diagram of a person wearing a helmet and harness, with a red arrow indicating rotation (no text or symbols)

Illustration of hands adjusting a cable buckle with red directional arrows indicating movement (no text or symbols)

Technical line drawing of a vehicle's internal components (no text or symbols)

© 2019 Britax Child Safety, Inc.

[phone]

[phone]

bobgear.com

All rights reserved. Printed in China. This product and its components are subject to change without notice.
