Product Type	Managed Industrial Network Switch
Brand	Intellinet
Model	508834
Number of RJ45 Ports	8 Gigabit Ports (10/100/1000 Mbps)
Number of SFP Ports	2 SFP Ports (Gigabit)
Switching Capacity	20 Gbps
Housing Material	Metal, IP30 rating
Operating Temperature Range	-40°C to +85°C
Power Supply	Dual DC 44-57 V input via screw terminal
Typical Power Consumption	15 W
Dimensions (W x D x H)	145 x 110 x 45 mm
Weight	800 g
Mounting	DIN Rail or Desktop
Management Functions	Web Interface, VLAN, QoS, IGMP Snooping, etc.
Maintenance and Cleaning	Clean with a dry, non-abrasive cloth. Do not use liquids. Ensure adequate ventilation.
Safety	Disconnect power before any intervention. Follow grounding instructions.
Spare Parts and Repairability	No user-serviceable parts. In case of failure, contact customer service.

Frequently Asked Questions - 508834 Intellinet

How to connect power to the Intellinet 508834 switch?

Use the provided screw terminal. Make sure the power is off. Strip the wires about 7 mm, insert the positive wire into the terminal marked '+' and the negative wire into the terminal marked '-'. Tighten the screws to secure the wires. Repeat for the second redundant power supply if needed. Reconnect the terminal to the switch and screw it in.

How to access the web management interface?

Open a web browser and enter the default IP address 192.168.2.1. You will be prompted to enter a username (admin) and a password (the serial number located on the switch label). Click 'OK' to access the management interface.

How to reset the switch to factory defaults?

Press the reset button on the front panel using a pointed object (like a paperclip) for about 10 seconds. The LEDs will blink to indicate reset. The device will restart with default settings (IP address 192.168.2.1, username admin, password = serial number).

What to do if the LINK/ACT LED does not light up?

Check that the Ethernet cable is properly connected at both ends. Ensure the cable is Category 5e or higher. If the connection is at 1000 Mbps, the LINK/ACT LED remains off, but the SPEED LED (green) should be on. Otherwise, test the cable with another device.

Can I use Cat5e cables with this switch?

Yes, Cat5e, Cat6, or Cat6a UTP/STP cables are recommended for optimal performance. The switch automatically adapts to 10, 100, or 1000 Mbps depending on the cable and connected device.

How to mount the switch on a DIN rail?

Attach the provided DIN rail mounting bracket to the back of the switch using the screws. Align the bracket with the DIN rail and push the switch upward until it clicks into place. To remove, pull the bracket tab downward while lifting the switch.

What is the required input voltage?

The switch accepts DC power input from 44 to 57 V. It has two redundant inputs via the terminal block. Use a suitable power source (e.g., 48 V DC).

How to connect an SFP module?

Insert the compatible SFP module into the SFP slot of the switch until it clicks. Connect the fiber optic or copper cable to the module. The corresponding SFP LED will light up green if the connection is established. To remove, pull the module's tab.

How to configure a VLAN via the web interface?

Log into the web interface. Go to 'VLAN' > '802.1Q VLAN'. Create a new VLAN with an ID and name. Assign the desired ports to the VLAN as 'Tagged' or 'Untagged' according to your needs. Click 'Apply' to save.

How to update the switch firmware?

Download the latest firmware from Intellinet's website (intellinetnetwork.com). In the web interface, go to 'Maintenance' > 'Firmware Upgrade'. Select the downloaded file and click 'Upgrade'. Do not turn off the power during the update.

USER MANUAL 508834 Intellinet

Managed Industrial Switch

with 2 SFP Ports Instructions

Model 508834 (IIS-8G02M)

INTELLINET®

NETWORK SOLUTIONS

Important: Read before use. • Importante: Leer antes de usar.

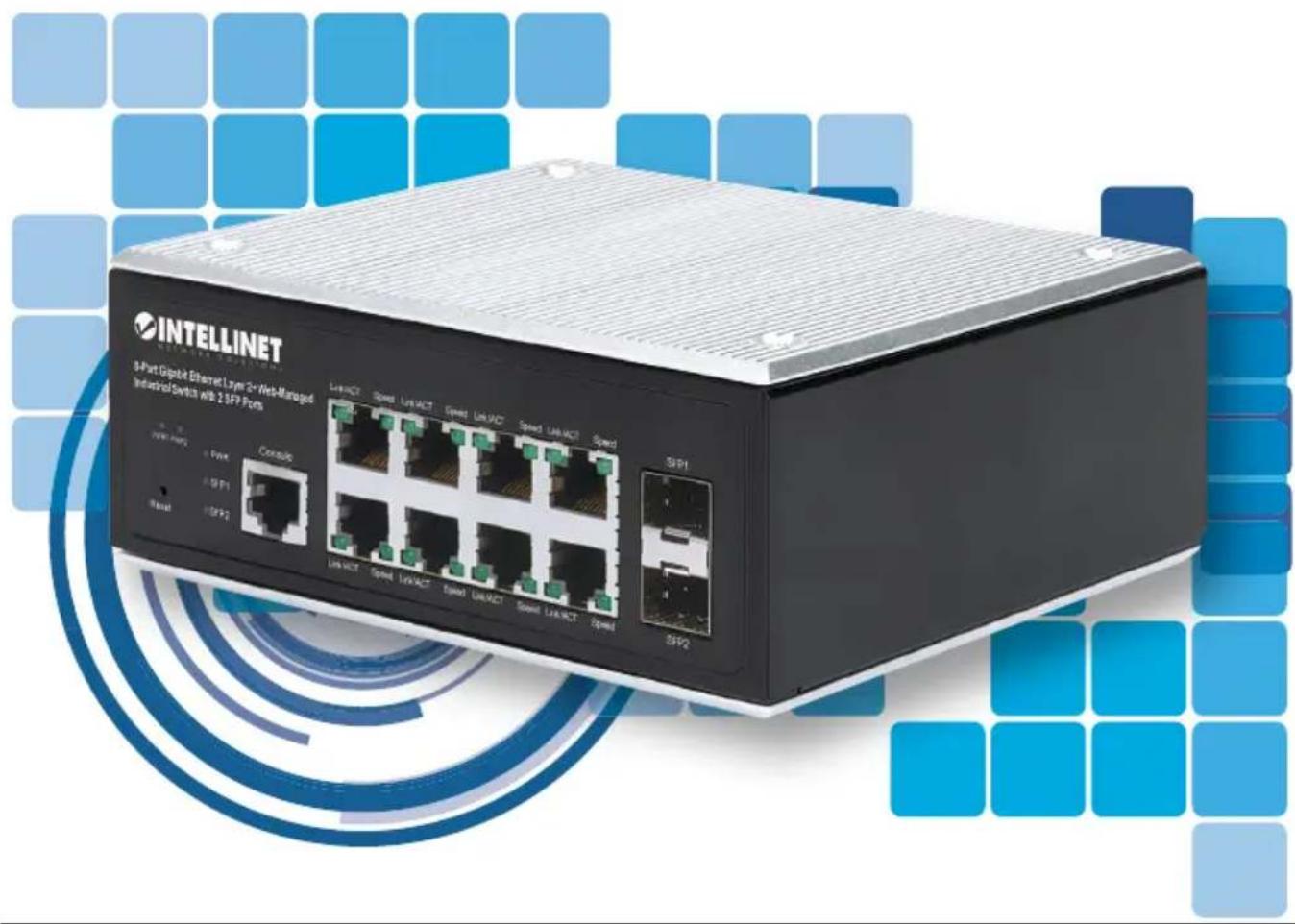

Exterior view of a INTELLINET network switch with 2 SFP ports and Ethernet ports (no signage or text overlays)

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/508834

The Intellinet 8-Port Gigabit Ethernet Layer 2+ Web-Managed Industrial Switch with 2 SFP Ports offers an array of time-saving, cost-effective features while providing superior network throughput.

Features

• Provides RJ45 data connections for up to eight network devices
• IP30 slim-type metal housing to withstand harsh industrial conditions
• Wide operating temperature: -40 – 85°C (-40 – 185°F)
• Option for DIN-rail installation
• Two small form-factor pluggable GBIC module slots (SFP)
• Two redundant DC inputs (44 – 57 V) with I/O terminal block

With a backplane speed of 20 Gbps, plenty of performance is available for your computers, servers and other networking devices. Each of the ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance.

For the user manual and specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/508834 or scan the QR code on the cover.

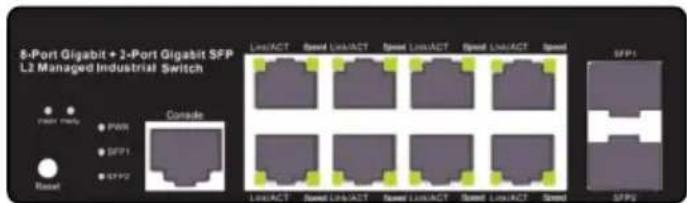

LEDs

LED Color Status Status Description
PWR Green		On Power on
		Off Power off; abnormal power
PWR1 & PWR 2	Green	On PWR input has power
		Off Power is off or is working abnormally
Link/ACT 1 – 8	Green(10/100 Mbps)	On Valid port connection (10/100 Mbps)
		Blinking Sending or receiving data
		Off No link established or port is connected at 1000 Mbps speed
Speed	Green(1000 Mbps)	On Valid port connection (1000 Mbps)
		Off No link established or port is connected at 10/100 Mbps speed
SFP 1 & 2	Green	On Valid port connection
		Blinking Sending or receiving data
		Off No link established

Cat5e/6/6a UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.

Power

Terminal Block Installation

NOTE: Ensure all power is off/disconnected before beginning!

1 Loosen appropriate screws.
2 Insert bare power-supply wires into appropriate terminal slots (positive wire into positive slot; negative wire into negative slot).
3 Tighten appropriate screws to secure wires. (If desired, repeat steps 1 – 3 on second input pair.)
4 Install block into the device and tighten screws.

1

2

3

4

Pure electrical connector diagram without any text, numbers, or symbols

Power Off Alarm

You can choose whether to connect the power failure warning device to the connecting terminal marked "Fault" according to your requirements. When using power redundancy, if one power source fails, a fault alarm will be generated.

Chassis Ground Column

Located on the side of the power supply connector, a grounding terminal connector is used to provide proper grounding for your Intellinet Network Solutions switch. If you use the chassis grounding screw, it should be wired to an object that provides earth ground.

Placement

Desktop Installation

Prior to use, place/position the switch:

• on a level surface that can support the weight of the switch and that offers at least 25 mm (approx. 1") of clearance for ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers;
• within 100 m (approx. 328') of network devices it's to be connected to.

DIN-Rail Installation

1 With DIN-rail bracket attached to device with screws, angle bracket onto DIN rail.
2 Push device in till it clicks into place.

1

Simple line drawing of a door with a handle and mounting holes, no text or symbols present

2

Simple line drawing of a rectangular device with a vertical handle and mounting holes, no text or symbols present.

Basic Web-Based Browser Management

1 Open your Web browser.
2 Enter http:// and the IP address of the switch in the Address field. The default management IP address is 192.168.2.1.
3 Press Enter to display the login screen. In the Username field, enter admin; in the Password field, enter the serial number on the bottom of the switch. Click OK.

2

3

4

Pure electrical circuit lines without any symbols

Simple line drawing of a door with a handle and mounting holes, no text or symbols present

2

Simple line drawing of a rectangular box with a vertical arrow and mounting holes, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a door with a handle and mounting bracket, no text or symbols present

2

Simple line drawing of a door with a handle and arrow, no text or symbols present

Technical line drawing of a mechanical component with red and black lines indicating assembly or connection (no text or symbols)

Simple line drawing of a door with handle and mounting points, no text or symbols present

2

Simple line drawing of a door with a handle and lock, no text or symbols present

Base de la gestion Web

Diagram of a mechanical component with red and black lines indicating internal components (no text or symbols)

Alarm braku zasilania

Simple line drawing of a door with a handle and mounting holes, no text or symbols present

2

Simple line drawing of a rectangular device with a vertical arrow and mounting holes, no text or symbols present.

4

Pure electrical circuit lines without any symbols

Simple line drawing of a blank rectangular object with a handle and arrow, no text or symbols present.

2

Simple line drawing of a white rectangular object with a gray vertical bar and a small arrow on the left side (no text or symbols)

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its

packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE

ENGLISH: This device complies with the requirements of CE 2014/30/EU and / or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/508834
