Product Type	Gigabit Ethernet Network Switch
Brand	Intellinet
Model	561815
Number of Ports	16 RJ-45 ports 10/100/1000 Mbit/s
Switching Capacity	32 Gbit/s
Power Supply	100 – 240 V AC, 50/60 Hz
Main Functions	Plug & Play, Auto MDI/MDIX, Extend mode (250 m at 10 Mbit/s), VLAN, Flow Control, IEEE 802.3az energy saving
Mounting	Desktop or 19-inch rack (mounting brackets included)
LED Indicators	Power (green), Link/Act/Speed (green/orange/off)
Cleaning and Maintenance	Clean with a dry, soft cloth. Do not use chemicals. Disconnect before cleaning.
Safety	Do not expose to moisture or liquids. Ensure adequate ventilation (minimum clearance of 25 mm).
Spare Parts and Repairability	No user-serviceable parts. In case of malfunction, contact technical support.
General Information	Compliant with CE standards (2014/30/EU, 2014/35/EU). WEEE symbols. Product registration possible via QR code.

Frequently Asked Questions - 561815 Intellinet

How to install the Intellinet 561815 switch?

The switch is Plug & Play: plug in the power, connect your network devices with RJ-45 cables, and it works immediately without configuration.

What do the LED indicators mean?

The Power LED lights green if the device is powered. The Link/Act/Speed LEDs are off if no cable is connected, orange for a 10/100 Mbit/s link, green for 1000 Mbit/s, and blink during activity.

How to use Extend mode?

Slide the switch to the Extend position. Ports 1 to 8 can then reach up to 250 meters at a reduced speed of 10 Mbit/s.

How to isolate ports with the VLAN function?

Set the switch to VLAN. Ports 1 to 14 are isolated from each other but can communicate with ports 15 and 16. This reduces broadcast storms.

What does the Flow Control function do?

In Flow Control mode, flow control is disabled. Use Normal mode for standard communication.

How to save energy with this switch?

The switch supports IEEE 802.3az (Green Ethernet): it reduces power consumption on inactive ports and adjusts power based on cable length.

Can I mount the switch in a rack?

Yes, the switch comes with mounting brackets for a 19-inch rack. Attach them to the sides, then screw the switch into the rack.

What if a port does not work?

Check the cable, the Link/Act LED (should be on). Try another port or cable. If the problem persists, the port may be defective – contact support.

What is the warranty for this switch?

The warranty is not specified in the manual. Check the Intellinet website or retailer for exact terms.

How to register my product?

Go to register.intellinet-network.com/r/561815 or scan the QR code on the manual cover.

USER MANUAL 561815 Intellinet

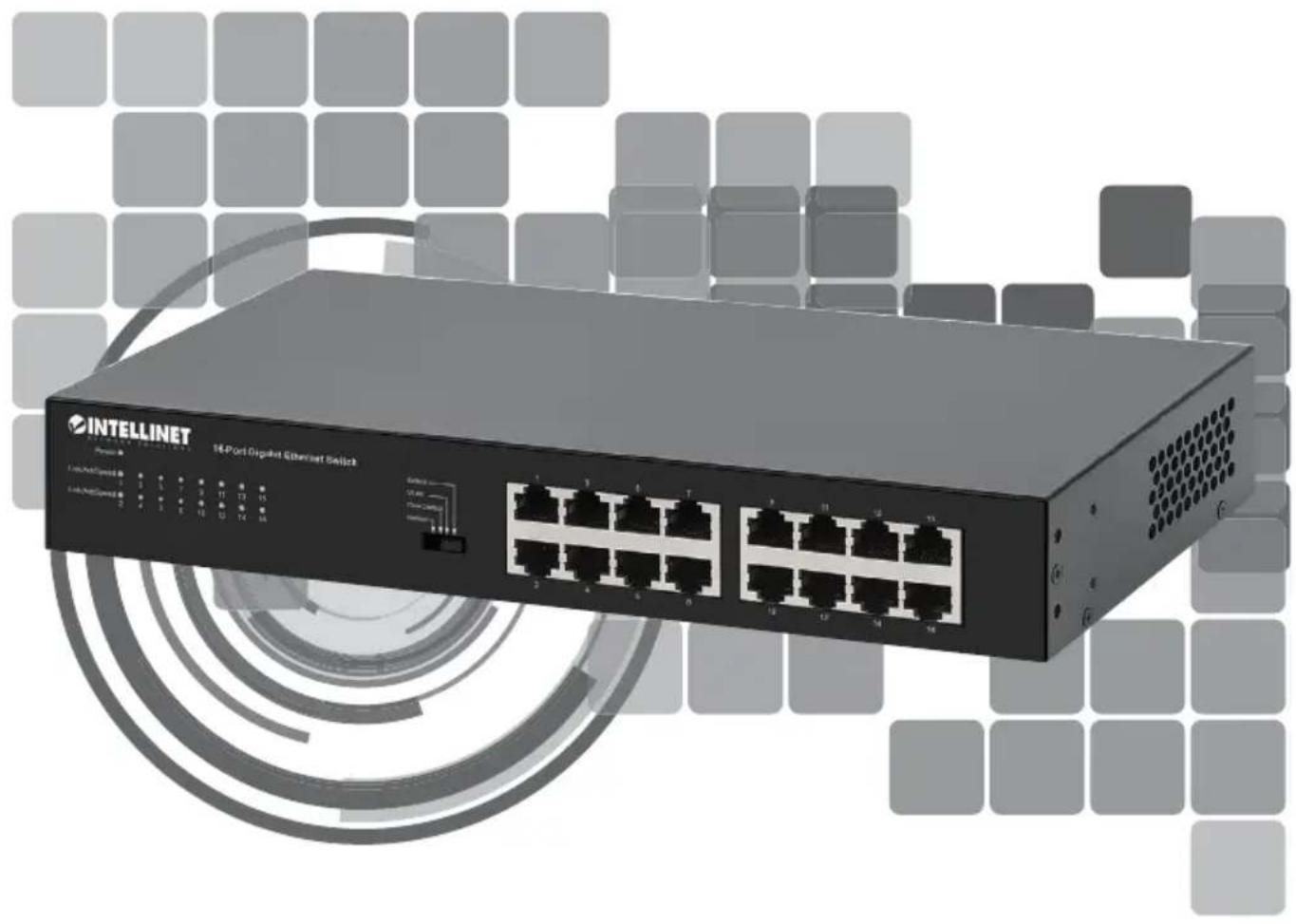

16-Port Gigabit Ethernet Switch Instructions

Model 561815(IES-16GDB)

Important: Read before use. • Importante: Leer antes de usar.

Exterior view of a Siemens SE-Port Gigaset Ethernet switch (no signage or text overlays)

INTELLINET®

NETWORK SOLUTIONS

For additional benefits:

Scan to register your product warranty

QR code image containing encoded data, no visible human-readable text

or go to: register.intellinet-network.com/r/561815

The Intellinet Network Solutions 16-Port Gigabit Ethernet Switch offers an array of time-saving, cost-effective features while providing superior network throughput. No configuration is required and installation is plug and play. Thanks to its optional desktop and 19" rackmount design, superior performance and value, the switch is the perfect choice for your small office or home network. With a backplane speed of 32 Gbps, plenty of performance is available for your computers, servers and other networking devices. Each of the ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance.

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561815 or scan the QR code on the cover.

Green Ethernet Technology

More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network-connected device is powered down, the switch continues to consume the same amount of power as if the port were still active. Now, thanks to the new, energy efficient IEEE 802.3az technology, this Intellinet Network Solutions switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the switch can adjust the level of power output based on the length of the network cable connected to a particular port. This feature allows for the enjoyment of maximum network performance, and when things slow down, it automatically scales back power usage to conserve energy and save money.

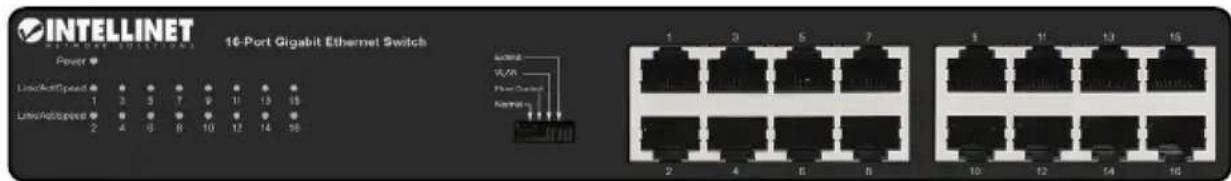

Front Panel

INTELLINET 16-Port Gigabit Ethernet Switch Power Line/OffSpeed 1 Line/OffSpeed 2 Line/OffSpeed VLAN Power/Control Network 1 3 5 7 9 11 13 15 12 14 16 2 4 6 8 10 12 14 16 5 11 13 15 10 12 14 16

LED COLOR STATUS STATUS DESCRIPTION
Power		Off Power Off.
	Green On Power On.
Link/Act/Speed		Off No device is connected to the port.
	Orange On A device is connected to the port at 10/100 Mbps speeds.
	Green On A device is connected to the port at 1000 Mbps speeds.
		Flashing Sending or receiving data.

Slide Switch

Extend VLAN Flow Control Normal

• Normal: default mode; allows normal communication between ports 1 – 16.
• Flow Control: disables the switch's flow-control function.
• VLAN: isolates ports 1 – 14 from each other while allowing them to connect to ports 15 and 16; increases the forwarding rate when broadcast storms occur.
• Extend: allows ports 1 – 8 to achieve transmission distances up to 250 m (820 ft.) at a reduced speed of 10 Mbps.

Rear Panel

Power

Use the included power cord to connect the device (on the rear panel) to an AC outlet. The device supports AC 100 – 240 V, 50/60 Hz.

Chassis Ground Column

Located on the side of the power supply connector, a grounding terminal connector is used to provide proper grounding for your Intellinet Network Solutions switch. If you use the chassis grounding screw, it should be wired to an object that provides earth ground. In rackmount installations, grounding is typically provided by the metal frame of the mounting rack.

Placement

Desktop Installation

Prior to use, it is recommended that the switch be placed/positioned on a level surface that can support the weight of the switch (and possibly other objects) with at least 25 mm (approx. 1") of clearance for ventilation; away from sources of electrical noise: radios, transmitters, broadband amplifiers within 100 m (approx. 328') of network devices it's to be connected to. Attach the rubber feet to the bottom of each corner of the switch to increase stability.

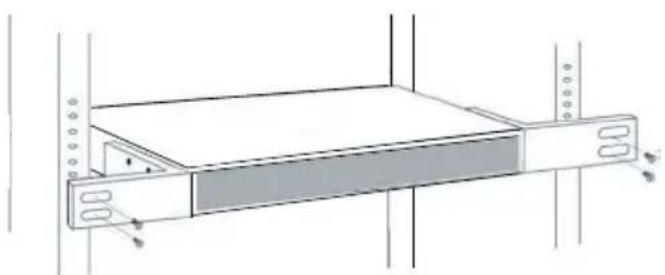

Rackmount Installation

The switch can be mounted in an EIA standard-sized, 19-inch rack. Attach the mounting brackets on the switch's side panels (one on each side) and secure them with the screws provided.

Diagram of a device with two rectangular units and a connecting rod, showing internal components and sound waves (no text or symbols)

Use the screws provided with the equipment rack to mount the Intellinet Network Solutions data switch on the rack.

Technical line drawing of a server rack with ventilation slots and a central drive (no text or symbols)

Diagram of a device with two panels and a central screen, showing internal components and motion lines (no text or symbols)

Technical line drawing of a rack-mounted device with mounting holes and a central panel (no text or symbols)

INTELLINET 16-Port Gigabit Ethernet Switch Power Link/Act/Speed ● ● ● ● ● ● ● ● ● ● 1 3 5 7 9 13 15 16 Link/Act/Speed ● ● ● ● ● ● ● ● ● ● 2 4 6 8 10 12 14 16 Schematic VLAN Phone Control External 1 3 5 7 9 13 15 2 4 6 8 10 12 14 16 9 11 13 15 10 12 14 16

Extend VLAN Flow-Control Normal

Diagram of a device with two rectangular units and a connecting rod, showing internal components (no text or symbols)

Diagram of a server rack with drive bays and ventilation slots (no text or labels)

Diagram of a device with two ports and a central panel, showing internal components and sound waves (no text or symbols)

Technical line drawing of a server rack with mounting holes and a central drive (no text or symbols)

Diagram of a device with two rectangular compartments and a central panel, showing internal components and sound waves (no text or symbols)

Technical line drawing of a rack-mounted device with mounting brackets and a central panel (no text or symbols)

Ethernet e Green Technology

Diagram of a device with two rectangular blocks and a smaller adjacent block, showing internal components (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text or symbols

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT

DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its

packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and / or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/561815
