562096 - Network switch Intellinet - Free user manual and instructions

Product Type	Unmanaged Network Switch
Brand	Intellinet
Model	562096
RJ45 Ports	8 ports 10/100/1000 Mbps with Auto-MDI/MDI-X
SFP+ Ports	2 SFP+ slots
Power Supply	External power adapter (5V DC)
LED Indicators	PWR (power), Link/ACT (link/activity), SFP+ (link)
Supported Cables	Cat5e/6/6a UTP/STP (straight-through or crossover cables)
Maximum Distance	100 meters between the switch and network device
Installation	On a flat, stable surface; minimum 25 mm clearance for ventilation
Included Accessories	Rubber feet, power adapter
Grounding	Ground terminal on the rear panel for surge protection
Compliance	CE (2014/30/EU and 2014/35/EU), WEEE Directive (2012/19/EU)
Recycling	Do not dispose of with household waste; return to point of sale or collection point
Product Registration	Available online via QR code or at register.intellinet-network.com

Frequently Asked Questions - 562096 Intellinet

How to connect the Intellinet 562096 switch?

Plug the supplied power adapter into the switch and a power outlet. Use RJ45 cables to connect your devices (PC, router, etc.) to the switch ports. The PWR LED should light up.

What do the LED indicators mean?

The PWR LED indicates that the device is powered on. The Link/ACT LED is lit when a connection is established and flashes during network activity. The SFP+ LED lights up when an SFP+ module is connected and active.

Can I use crossover or straight-through cables?

Yes, all RJ45 ports support Auto-MDI/MDI-X, allowing the use of both straight-through and crossover cables.

What is the maximum distance between the switch and another device?

The recommended maximum distance between the switch and the connected network device is 100 meters.

How to install the rubber feet?

Attach the rubber feet to each of the four corners of the switch to improve stability and prevent slipping.

What is the grounding procedure?

Connect the grounding terminal on the rear of the switch to a grounding object (earth ground) to protect the equipment from external electrical surges.

What type of cable is recommended?

For optimal performance, use Cat5e, Cat6, or Cat6a cables of UTP or STP type.

What to do if the Link/ACT LED does not light up?

Check that the cable is properly plugged in on both ends, that the connected device is powered on, and that the cable is not damaged. Try a different port or a different cable.

How to recycle the switch at end of life?

In accordance with the WEEE directive, do not dispose of the device with household waste. Return it to your point of sale or a local collection point for recycling.

Where to find more technical specifications?

Visit intellinet-network.com or scan the QR code on the cover of the manual. You can also register your product at register.intellinet-network.com/r/562096.

USER MANUAL 562096 Intellinet

Ethernet Ports and 1 SFP+ Uplink Instructions

Model 562096 (IES-08-2.5G01)

Important: Read before use. • Importante: Leer antes de usar.

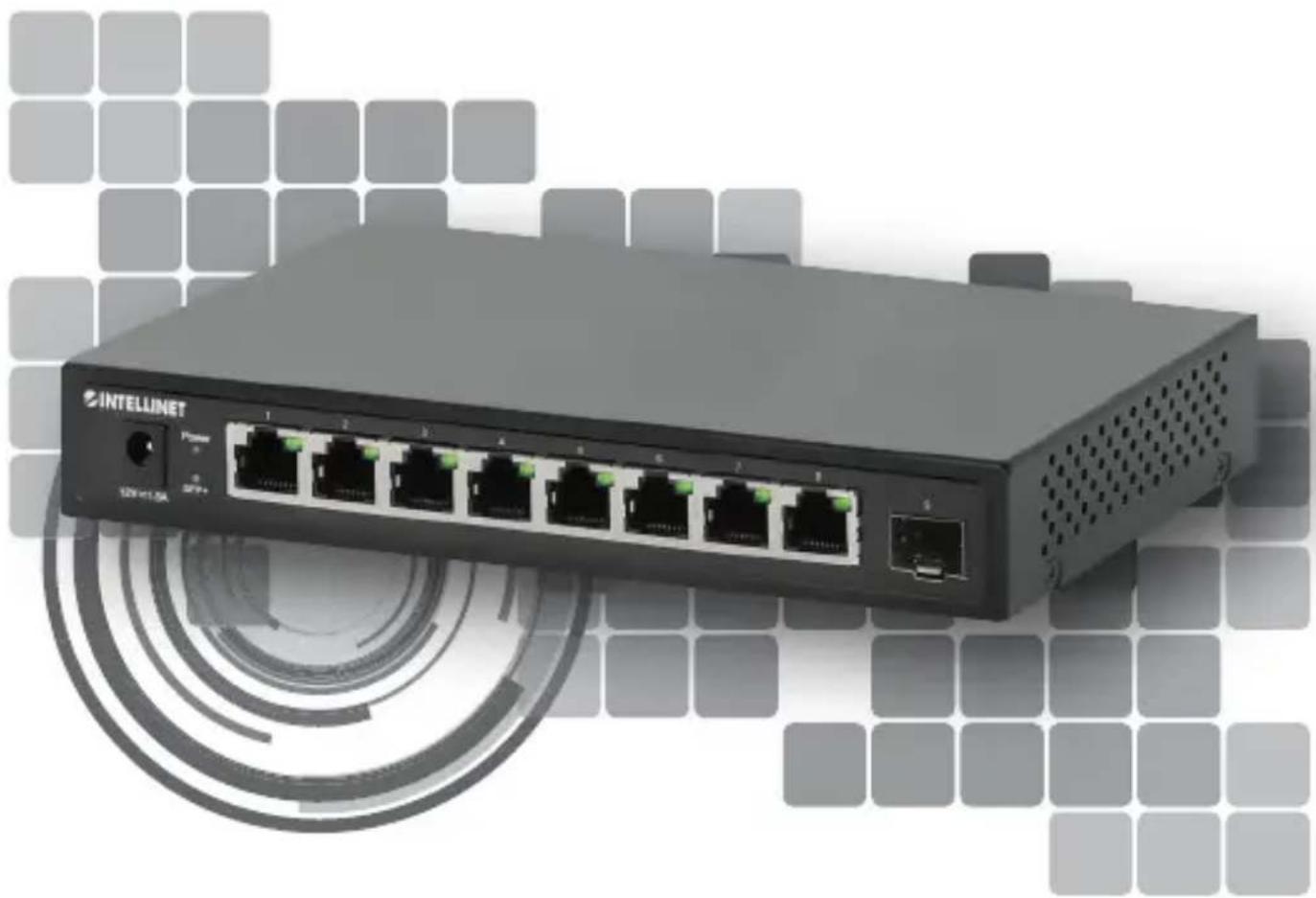

Exterior view of a black INTELLINET network switch with multiple Ethernet ports and a port, shown against a grid background (no text or symbols on the device itself)

For additional benefits:

Scan to register your product warranty

QR code image containing encoded data, no visible human-readable text

or go to: register.intellinet-network.com/r/562096

Connections & Indicators

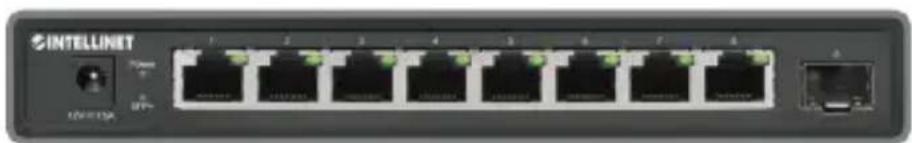

Front view of a network switch device with multiple Ethernet ports and an InTELLINET port (no visible text or labels beyond branding)

LEDs

The LED indicators make it easier to monitor the switch and its connections.

Ports

All RJ45 ports on the switch support Auto-MDI/MDI-X functionality, so you can use straight or crossover UTP/STP cables to connect the RJ45 ports to PCs, routers, hubs, other switches, etc.

LED Color Status Status Description
PWR Green		On Power On
		Off Power Off
Link/ACT	Green	On Valid port connection.
		Flashing Sending or receiving data.
		Off No link established.
SFP+ Green		On Valid port connection.
		Off No link established.

Cat5e/6/6a UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.

Power

Use the included power cord and adapter to connect the device to an AC outlet. Confirm that the Power LED on the front panel is lit.

Installation

Prior to use, it is recommended that the switch be placed/positioned:

• on a level surface
that can support the weight of the switch;
- with at least 25 mm (approx. 1") of clearance for ventilation;
- away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;
- within 100 m (approx. 328') of network devices it's to be connected to.

Attach the rubber feet to the bottom of each corner of the switch to increase stability.

Simple 3D diagram of a rectangular electronic device with mounting holes and directional arrows indicating orientation (no text or symbols)

Chassis Ground Column (Rear Panel)

Wire the grounding terminal to an earth grounding object to protect equipment from external electrical surges.

For specifications, visit intellinet-network.com. Register your product at register.intellinet-network.com/r/562096 or scan the QR code on the cover.

Front view of a network switch device (no visible text or labels on the device body)

LED

Simple 3D diagram of a rectangular electronic device with mounting holes and directional arrows indicating orientation (no text or symbols)

Front view of a network switch device (no visible text or symbols on the main body)

LEDs

Simple 3D diagram of a rectangular block with three circular openings and upward arrows indicating force or movement (no text or symbols)

Front view of a network switch device (no visible text or labels on the device body)

Les DEL

Simple 3D diagram of a rectangular electronic device with mounting holes and directional arrows indicating orientation (no text or symbols)

Front view of a network switch device (no visible text or labels beyond branding)

Diody

Simple 3D diagram of a rectangular electronic device with mounting holes and directional arrows indicating orientation (no text or symbols)

Front view of an Intelnet network switch with multiple Ethernet ports (no visible text or labels beyond branding)

LEDs

Simple 3D diagram of a rectangular electronic device with mounting holes and directional arrows indicating orientation (no text or symbols)

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its

packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio

frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment. CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and/or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/562096
