Product Type	PoE Network Switch
Brand	Intellinet
Model	562027
Number of Ports	10 Ethernet 10/100/1000 Mbps Ports
PoE Ports	8 Ports with PoE Power
Power Supply	Included power cord, AC input
Dimensions (estimated)	200 x 140 x 45 mm
Weight (estimated)	0.8 kg
LED Indicators	Power, Link/Act (per port), PoE (per port)
Network Features	Auto-MDI/MDI-X, Flow Control, Port Isolation (Private VLAN)
Operating Modes	Normal, Flow Control, VLAN (Isolation Ports 1-8 with Uplink 9-10)
Standards	CE 2014/30/EU and 2014/35/EU
Operating Temperature	0°C to 40°C (estimated)
Operating Humidity	10% to 90% non-condensing (estimated)
Recommended Placement	Flat surface, min. 25 mm clearance, away from interference sources
Grounding	Grounding terminal on back panel
Maintenance	Clean with a dry cloth; do not use liquids
Package Contents	Switch, power cord, quick start guide
Warranty	Visit intellinet-network.com
Recycling	Do not dispose of with household waste (WEEE)

Frequently Asked Questions - 562027 Intellinet

How to connect the Intellinet 562027 switch?

Connect the power cord to the rear panel input and then to a power outlet. Connect your network devices to the Ethernet ports using Cat5e/6/6a cables. The PWR LED should light up green.

What do the LED indicators mean?

The green PWR LED indicates power. Solid green Link/Act means connection established, blinking means activity. Solid green PoE indicates the connected device is powered via PoE.

How to isolate ports for a private VLAN?

Set the mode switch to 'VLAN' (see rear panel). Ports 1 to 8 will be isolated from each other but can communicate with ports 9 and 10 (uplink).

Can I use crossover cables?

No, all ports support Auto-MDI/MDI-X, so straight-through cables are sufficient for connecting PCs, routers, etc.

Where to download the full manual?

Visit intellinet-network.com or scan the QR code on the cover. You can also download it from notice-facile.com.

How to ground the switch?

Use the grounding terminal on the rear panel and connect it to a grounded object to protect against voltage spikes.

What to do if a Link/Act LED does not light up?

Check the cable and the connected device. Make sure to use a Cat5e or higher cable. If the problem persists, try another port.

Can I stack multiple switches?

This model is not designed for stacking. You can cascade them by connecting a port to another switch using an Ethernet cable.

Does the switch support flow control?

Yes, in 'Flow Control' mode (middle position of the switch), flow control is enabled while allowing all ports to communicate.

How to clean the switch?

Disconnect the power supply. Use a soft, dry cloth to wipe the surface. Never use liquids or chemicals.

USER MANUAL 562027 Intellinet

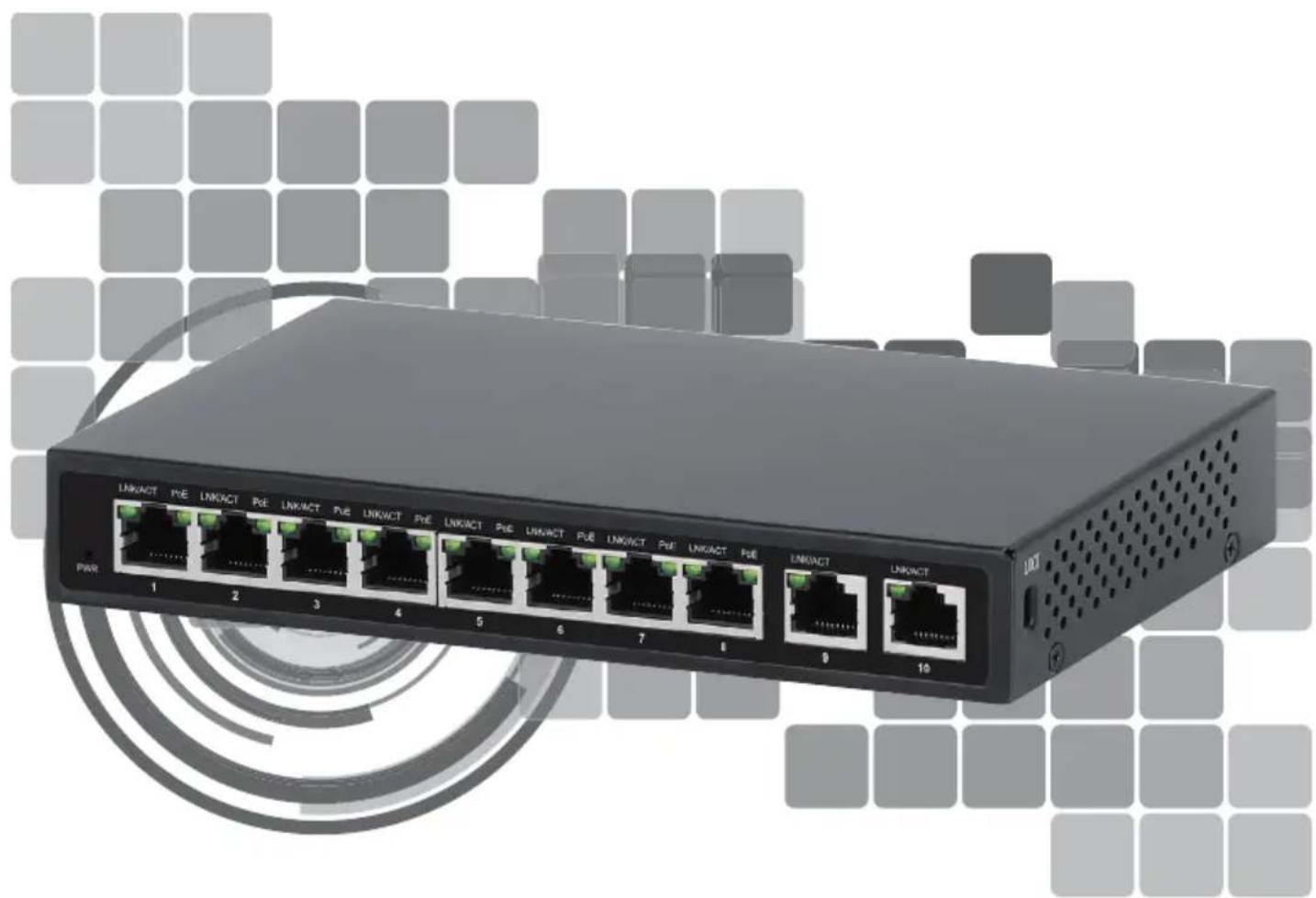

10-Port PoE+ Switch with 8 Gigabit Ethernet Ports and 2 RJ45 Gigabit Uplink Ports

Instructions Model 562027 (IPS-08G02-58W)

Important: Read before use. • Importante: Leer antes de usar.

Front view of a network switch device with 10 ports and labeled ports (no readable text beyond labels)

INTELLINET®

NETWORK SOLUTIONS

For additional benefits:

Scan to register your product warranty

QR code image containing encoded data, no visible human-readable text

or go to: register.intellinet-network.com/r/562027

This guide presents the basic steps to set up and operate this device.

For the user manual and specifications, visit intellinet-network.com.

Register your product at register.intellinet-network.com/r/562027

or scan the QR code on the cover.

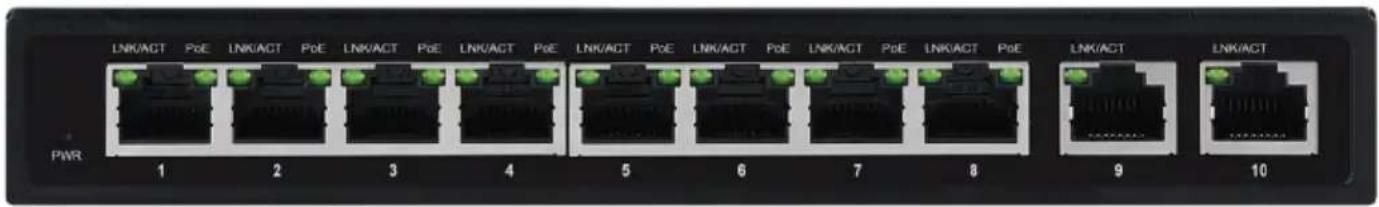

Front Panel

LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT PdE LNK/ACT P dPWR 1 2 3 4 5 6 7 8 9 10

LEDs

The LED indicators make it easier to monitor the switch and its connections.

LED Color Status Operation
PWR Green		On Power On
		Off Power Off
Link/Act	Green	On Valid port connection.
		Flashing Sending or receiving data
		Off No link established.
PoE Green		On The connected powered device is receiving power.
		Off No PSE/PoE device is linked.

Ports

All ports on the switch support Auto-MDI/MDI-X functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers, other switches, etc. Cat5e/6/6a UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link, check the corresponding device for proper setup and operation.

Rear Panel

Power

Use the provided power adapter to plug the back of the switch into a power outlet and make sure the power LED is on.

Chassis Ground Column

Wire the grounding terminal to an earth-grounding object to prevent power spikes.

VLAN Flow Control Normal

VLAN Mode

The Switch features port isolation, also referred to as

"Private VLAN". It isolates all ports from each other and only allows access to the uplink port. This is useful, for example, if a private VLAN is a hotel where each room or apartment has a network port for Internet access. All ports can all access the Internet, but they cannot access each other.

Mode Operation
Normal All ports can communicate with each other
Flow control Disable flow control, all ports can communicate with each other
VLAN	Ports 1 to 8 are isolated from each other but can communicate with ports 9 and 10

Placement

Prior to use, it is recommended that the switch be placed/positioned:

• on a level surface that can support the weight of the switch
  • with a minimum of 25 mm (approx.

1") of clearance on the top and sides for adequate ventilation

• away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.
- where it cannot be affected by excessive moisture

Simple 3D diagram of a rectangular block with upward arrows indicating force or movement (no text or symbols)

VI.AN Flow Control Normal

Simple 3D diagram of a rectangular block with upward arrows indicating force or movement (no text or symbols)

VI AN Flow Control Normal

Simple 3D diagram of a rectangular block with four circular openings, placed on a circular base with upward arrows indicating force or movement (no text or symbols)

3D diagram of a rectangular block with directional arrows indicating upward movement (no text or symbols)

3D diagram of a rectangular electronic component with mounting holes and directional arrows indicating orientation (no text or symbols)

3D diagram of a rectangular electronic device with mounting holes and directional arrows indicating orientation (no text or symbols)

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT

DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE/UKCA

ENGLISH : This device complies with the requirements of CE 2014/30/EU (UKCA Electromagnetic Compatibility Regulations 2016) and / or 2014/35/EU (UKCA Electrical Equipment [Safety] Regulations 2016). The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/562027
