USER MANUAL DW083 DEWALT

English (original instructions) 29

DEWALT >4°

Fig. E

7.5 m (25')

Fig. F

Top-down schematic of a vehicle or car interior with directional arrows indicating movement (no text or symbols)

Fig. G

Top-down line drawing of a car or vehicle chassis (no text or symbols)

Fig. H

Top-down line drawing of a car with a dotted line indicating distance or alignment (no text or symbols)

Fig.1

Top-down line drawing of a car or vehicle casing with no visible text or symbols

Fig. J

Top-down line drawing of a car with no visible text, numbers, or symbols

SELVINDSTILLENDE LASERPOINTER MED 3 STRÅLER DW083/DW083CG

Tillykke!

DW083 3 BEAM LASER POINTER ! SER. NOM NYCE EAC IP54 LASER 2 ≤1 mW @ 630-680 nm IEC 60825-1: 2014 CE Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

DW083CG 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤ 1mW @ 510-530 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

DW083 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤ 1 mW @ 630-680 nm IEC 60825-1: 2014 Comples with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

DW083CG 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤ 1mW @ 510-530 nm IEC 60825-1: 2014 Comples with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical data

	DW083 DW083CG
Voltage V	AC	6	6
Type 1 1
Battery size 4 x LR6 (AA) 4 x LR6 (AA)
Laser power mW < 1.0 < 1.0
Laser class 2 2
Wavelength nm 630 ~ 680 510 ~ 530
Protection class IP54 IP54
Self-leveling range	°	+/- 4 +/- 4
Operating temperature	°C -10-50	-10-50
Receptacle thread		1/4" - 20	1/4" - 20
Weight	kg	0.59 0.59

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

EnGLIsH

Dicates risk of electric shock.

Dicates risk of fire.

Safety Instructions for Lasers

WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

• Do not operate the laser in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Use the laser only with the specifically designated batteries. Use of any other batteries may create a risk of fire.
• Store idle laser out of reach of children and other untrained persons. Lasers are dangerous in the hands of untrained users.
• Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one laser, may create a risk of injury when used on another laser.
• Tool service MUST be performed only by qualified repair personnel. Repairs, service or maintenance performed by unqualified personnel may result in injury. For the location of your nearest authorized DEWALT repair agent, refer to the list of authorized DEWALT repair agents on back of this manual or visit www.2helpU.com on the Internet.
• Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye injury could result.
• Do not place the laser in a position which may cause anyone to intentionally or unintentionally stare into the laser beam. Serious eye injury could result.
• Do not position the laser near a reflective surface which may reflect the laser beam toward anyone's eyes. Serious eye injury could result.
• Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring into the laser beam.
• Do not operate the laser around children or allow children to operate the laser. Serious eye injury may result.
• Do not remove or deface warning labels. If labels are removed user or others may inadvertently expose themselves to radiation.
• Position the laser securely on a level surface. Damage to the laser or serious injury could result if the laser falls.

- Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothing, jewelry or long hair can be caught in moving parts. Air vents often cover moving parts and should also be avoided.

WARNING: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

WARNING! DO NOT DISASSEMBLE THE LASER. There are no user serviceable parts inside. Disassembling the laser will void all warranties on the product.

Do not modify the product in any way. Modifying the tool may result in hazardous laser radiation exposure.

Additional Safety Instructions for Lasers

• This laser complies with class 2 according to IEC/EN 60825-1:2014. Do not replace a laser diode with a different type. If damaged, have the laser repaired by an authorised repair agent.
• Do not use the laser for any purpose other than projecting laser lines. An exposure of the eye to the beam of a class 2 laser is considered safe for a maximum of 0.25 seconds. Eyelid reflexes will normally provide adequate protection.
• Never look into the laser beam directly and intentionally.
• Do not use optical tools to view the laser beam.
• Do not set up the tool at a position where the laser beam can cross any person at head height.
• Do not let children come in contact with the laser.
• When you notice liquid leaking out, proceed as follows:
• Carefully wipe the liquid off using a cloth. Avoid skin or eye contact. Do not swallow.
• In case of skin or eye contact, rinse the liquid off with clean flowing water for at least 10 minutes and contact a doctor.

JING: Fire hazard! Avoid short-circuiting the contacts of a removed battery.

Residual Risks

The following risks are inherent to the use of this device:

- injuries caused by staring into laser beam.

EnGLIsH

Labels on tool

The following pictographs are shown on the tool:

DW083 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤1mW @ 630-680 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 DW083CG 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤1mW @ 510-530 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

Read the instruction manual before use.

Laser warning.

Do not stare into the laser beam.

Splashproof housing.

Date Code Position (Fig. A)

The date code 10, which also includes the year of manufacture, is printed into the housing. Example:

2016 XX XX

Year of Manufacture

Important Safety Instructions for Batteries

WARNING: Batteries can explode, or leak, and can cause injury or fire. To reduce

• Carefully follow all instructions and warnings on the battery label and package.
  • Always insert batteries correctly with regard to polarity (+ and -).
• Do not short battery terminals.
• Do not charge batteries.
• Do not mix old and new batteries. Replace all of them at the same time with new batteries of the same brand and type.
• Remove dead batteries immediately and dispose of per local codes.
• Do not dispose of batteries in fire.
• Keep batteries out of reach of children.
• Remove batteries if the device will not be used for several months.

Batteries

Battery type

The DW083/DW083CG operates on four LR6 (AA-size) batteries.

Package Contents

The package contains:

1 3 beam self-leveling laser pointer
4 LR6 (AA) Batteries
1 Kitbox (K-models only)
1 Instruction manual
- Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (Fig. A, C)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

1 On/off lever
2 Laser aperture-up laser beam
3 Laser aperture-down laser beam
4 Laser aperture–horizontal laser beam

EnGLIsH

5 Low battery indicator
6 Integrated magnetic pivoting bracket
7 Magnets
8 Battery compartment cover
9 Batteries

Intended Use

The DW083/DW083CG 3 beam self-leveling laser pointer is designed for professional leveling applications. The tool can be used both for horizontal (level) and vertical (plumb) alignment.

DO nOT use under wet conditions or in presence of flammable liquids or gases.

This laser is a professional tool. DO nOT let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

- This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

ASSEMBLY AND ADJUSTMENT

WARNING: Do not place the laser in a position which may cause anyone to intentionally or unintentionally stare into laser beam. Serious eye injury may result from staring at the beam.

Replacing Batteries (Fig. C)

The laser uses LR6 (AA-size) batteries.

- Open the battery compartment cover 8.

- Replace the batteries 9. Make sure the new batteries are placed as indicated.

- Close the battery compartment cover.

WARNING: When replacing batteries, always replace the complete set. Do not mix old batteries with new ones. Preferably use alkaline batteries.

OPERATION

Instructions for Use

WARNING: Always observe the safety instructions and applicable regulations.

• Always mark the center of the laser dots.
- Make sure the tool has been set up securely.

• Extreme temperature changes cause movement of internal parts that may affect the accuracy of the tool. Regularly check the accuracy while using the tool under these circumstances.
• Although the tool corrects small out-of-level errors automatically, when it is bumped, re-adjustment to balance or set-up may be required.
• If the tool has been dropped or has tipped over, have the laser head calibrated by a qualified repair agent.

Low Battery Indicator (Fig. B)

The DW083/DW083CG is equipped with a low battery indicator 5, as shown in figure B. The red indicator light is located on top of the tool. When the light flashes, the batteries are low and need to be replaced. The laser may continue to operate for a short time while the batteries continue to drain. After fresh batteries are installed and the laser is turned on again, the red indicator light will stay off. (A flashing laser beam is not caused by low batteries; refer to Out of Tilt Range Indicator.)

Turning the Laser On and Off (Fig. A)

With the laser off, place the tool on a relatively smooth, stable, and level surface.

Turn the laser on by rotating the on/off lever 1 so it points up. It will then project three beams; one up 2, one down 3, and one horizontal 4.

To turn the laser off, rotate the on/off lever 1 down to its horizontal position. Beams will no longer be projected.

Locking Pendulum

The DW083/DW083CG is equipped with a locking pendulum mechanism. This feature is only activated when the laser is switched off. When the on/off lever is rotated to the ON position, the pendulum will be released from the locked position and self-level.

Using the Laser

The beams are level or plumb as long as the calibration has been checked (refer to Field Calibration Check) and the laser beam is not flashing (refer to Out of Tilt Range Indicator).

The tool can be used to transfer points using any combination of the three beams.

Integrated Magnetic Pivoting Bracket (Fig. A)

The DW083/DW083CG has a magnetic pivoting bracket 6 permanently attached to the unit. This bracket allows the unit to be mounted to any upright surface made of steel or iron using the magnets 7 located on the back of the pivoting bracket. Common examples of suitable surfaces include steel framing studs, steel door frames and structural steel beams.

EnGLIsH

Position the laser on a stable surface. Serious personal injury or damage to the laser may result if the laser falls. The pivoting bracket also provides floor clearance of approximately 4.5 cm (1–3/4") which aids in the installation of steel framing track.

Transferring a Position Mark

The tool produces three laser dots (2 plumb and 1 level) to transfer a mark. For plumb use, locate the mark with one beam and transfer the mark with the other. For level use, locate the mark and then transfer it by rotating the laser on the integrated pivot bracket. Level mark can be transferred through 180^ .

Use the one beam to locate the mark and transfer the mark using the opposite laser beam.

Out of Tilt Range Indicator (Fig. D)

The DW083/DW083CG laser is designed to self-level. If the laser has been tilted so much that it cannot level itself ( >4^ tilt), it will flash the laser beam (Fig. D). The flashing beam indicates the tilt range has been exceeded and is not level (or plumb) and should not be used for determining or marking level (or plumb). Try repositioning the laser on a more level surface.

Leveling the Laser

As long as the tool is properly calibrated, this tool is self-leveling. It is calibrated at the factory to find plumb as long as it is positioned on a flat surface within 4^ of level. No manual adjustments must be made.

MAINTENANCE

Your DEWALT laser unit has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper laser care and regular cleaning.

To maintain the accuracy of your work, have the laser checked often to make sure it is properly calibrated. Refer to Field Calibration Check.

Calibration checks and other maintenance repairs may be performed by DEWALT service centers.

When not in use, store the laser in the kit box provided. Do not store your laser at temperatures below -20 ^ ( -5 ^ ) or above 60 ^ ( 140 ^ ).

Do not store your laser in the kit box if the laser is wet. The laser should be dried first with a soft dry cloth.

Field Calibration Check

The field calibration check must be performed securely and accurately to make a correct diagnosis. Whenever an error is registered, have the tool calibrated by a qualified repair agent.

IING: Always have the laser head calibrated by a qualified repair agent.

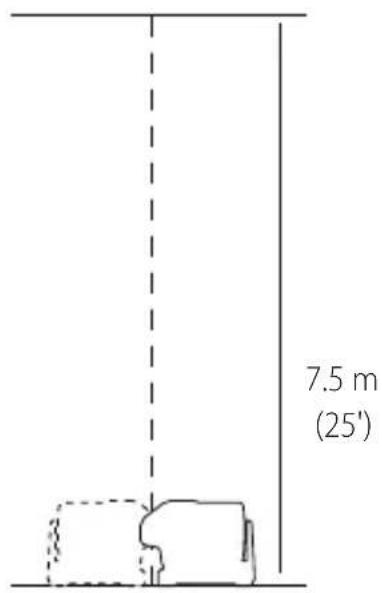

Checking accuracy – Plumb (Fig. E–F)

Checking the plumb calibration of the laser can be most accurately done when there is a substantial amount of vertical height available, ideally 7.5 m (25'), with one person on the floor positioning the laser and another person near a ceiling to mark the dot created by the beam on the ceiling (Fig. E). It is important to conduct a calibration check using a distance no shorter than the distance of the applications for which the tool will be used.

1. Start by marking a point on the floor.
2. Place the laser so that the down beam is centered on the point marked on the floor.
3. Allow time for the laser to settle to plumb and mark the center of the beam created by the up beam.
4. Turn the laser 180^ as shown (Fig. F), making sure that the down beam is still centered on the point previously marked on the floor.
5. Allow time for the laser to settle to plumb and mark the center of the dot created by the up beam.

If the measurement between the two marks is greater than shown below, the laser is no longer in calibration.

Ceiling Height Measurement Between Marks

7.5 m (25') 3 mm (1/8")

3.5 m (12') 1.5 mm (1/16")

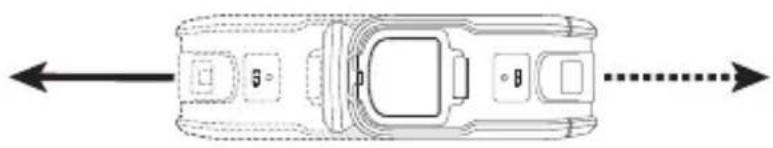

Checking Accuracy - Level (Fig. G–J)

Checking the level calibration of the laser unit requires two parallel walls at least 6 m (20') apart. It is important to conduct a calibration check using a distance no shorter than the distance of the applications for which the tool will be used.

1. Place unit 5–8 cm (2"-3") from first wall, facing the wall (Fig. G).
2. Mark the beam position on the first wall.
3. Turn the unit 180^ , and mark the beam position on the second wall (Fig. H).
4. Place the unit 5–8 cm (2"-3") from the second wall, facing the wall (Fig. I).

ENGLISH

1. Adjust the height of the unit until the beam hits the mark from step 3.
2. Turn the unit 180^ , and aim the beam near the mark on the first wall from step 2 (Fig. J).
3. Measure the vertical distance between the beam and the mark.
4. If the measurement is greater than the values shown below, the laser must be serviced at an authorized service center.

Distance Between Walls Measurement Between Marks

7.5 m (25') 3.0 mm (1/8")

15 m (50') 6.0 mm (1/4")

23 m (75') 9.0 mm (3/8")

Troubleshooting

The laser does not turn on

• Make sure batteries are installed according to (+), (-) markings on battery door.
• Make sure the batteries are in proper working condition. If in doubt, try installing new batteries.
• Make sure that the battery contacts are clean and free of rust or corrosion. Be sure to keep the laser level dry and use only new, high-quality batteries to reduce the chance of battery leakage.
• If the laser has been stored in extremely hot temperatures, allow it to cool.

The laser beams flash

The DW083/DW083CG laser level has been designed to self-level up to 4° in all directions when positioned as shown in figure D. If the laser is tilted so much that internal mechanism cannot plumb itself, it will flash the laser—the tilt range has been exceeded. THE FLASHING BEAMS CREATED BY THE LASER ARE NOT LEVEL OR PLUMB AND SHOULD NOT BE USED FOR DETERMINING OR MARKING LEVEL OR PLUMB. Try repositioning the laser on a more level surface.

The laser beams will not stop moving

The DW083/DW083CG is a precision instrument. Therefore, if it is not positioned on a stable (and motionless) surface, the tool will continue to try to find plumb. If the beam will not stop moving, try placing the tool on a more stable surface. Also, try to make sure that the surface is relatively flat, so that the laser is stable.

Cleaning

- Remove the batteries before cleaning the tool.

• Keep the ventilation slots clear and regularly clean the housing with a soft cloth.
• When necessary, clean the lens using a soft cloth or a cotton bud soaked in alcohol. Do not use any other cleaning agents.

Optional Accessories

The laser is equipped with a 1/4" x 20 female thread on the bottom of the unit. This thread is to accommodate current or future DEWALT accessories. Only use DEWALT accessories specified for use with this product. Follow the directions included with the accessory.

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and

batteries according to local provisions. Further information is available at

www.2helpU.com.

Batteries

When disposing batteries, think of the protection of the environment. Check with your local authorities for an environmentally safe way of battery disposal.

GUARANTEE

DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

• 30 DaY nO RIsk saTlsFaCTION GUaRanTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.

- OnE YEaR FREE sSERVICE COnTRaCT

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, you are entitled to one service free of charge. It will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.

• OnE YEaR FULL WaRRanTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:

• The product has not been misused;
• The product has been subject to fair wear and tear;
• Repairs have not been attempted by unauthorised persons;
• Proof of purchase is produced;
- The product is returned complete with all original components.
If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at:

www.2helpU.com.

PUNTERO LÁSER AUTONIVELANTE DE 3 HACES DW083/DW083CG

¡ Enhorabuena!

DW083 3 BEAM LASER POINTER ! SER. NOM NYCE IP≤4 EAC LASER 2 CE ≤1mW @ 630-680 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

DW083CG 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤ 1mW @ 510-530 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

7,5 m (25') 3,0 mm (1/8")

15 m (50') 6,0 mm (1/4")

23 m (75') 9,0 mm (3/8")

DW083 3 BEAM LASER POINTER ! SER. NOM NYCE EAC IP54 LASER 2 CE ≤1mW @ 630-680 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

DW083CG 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤ 1mW @ 510-530 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

L'emballage contient:

7,5 m (25') 3,0 mm (1/8")

15 m (50') 6,0 mm (1/4")

23 m (75') 9,0 mm (3/8")

Dépannage

DW083 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤1mW @ 630-680 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 DW083CG 3 BEAM LASER POINTER ! SER. NOM NYCE IP54 EAC LASER 2 CE ≤1mW @ 510-530 nm IEC 60825-1: 2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

Distanza tra pareti Misurazione tra indicatori

7,5 m (25') 3,0 mm (1/8")

15 m (50') 6,0 mm (1/4")

23 m (75') 9,0 mm (3/8")

Ricerca guasti
