SERVICE MANUAL
EXM Mobile8
SMT Disclaimer
Due to the complex nature of the use of SMT installed components in Yorkville equipment, we highly caution all service technicians in attempting to repair or replace SMT factory installed components.
Many of these components may be glued prior to initial soldering
Replacing SMT components requires expensive
specialized de-soldering equipment and training.
Yorkville Sound will repair and replace defective SMT components to ensure proper quality assurance and installation is maintained.
IMPORTANT SAFETY INSTRUCTIONS
This lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The DO NOT STACK symbol is inlanded to alert the user that the product shall not be vertically slacked because of the nature of the product.
The excitation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Instructions pertaining to a risk of fire, electric shock, or injury to a person
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS DEVICE IS FOR INDOOR USE ONLY! INSTALLED BATTERY PACKS SHALL NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE, FIRE OR THE LIKE.
Read Instructions: The Owner's Manual should be read and understood before operation of your unit. Please, save these instructions for future reference and head all warnings.
Cleaning: Clean only with dry cloth.
Packaging: Keep the box and packaging materials, in case the unit needs to be returned for service.
Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water!
Warning: When using electric products, basic precautions should always be followed, including the following:
Power Sources
Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated. An apparatus with CLASS I construction shall be connected to a Mains socket outlet with a protective earthing connection. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
Hazards
Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fail, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. Only use attachments/absaccessories specified by the manufacturer.
Equipment that is suspended overhead must use a secondary safeguard to prevent personal injury in the event the primary mounting mechanism fails. Safety eyebolts attached to the equipment and galvanized steel wire can be used together to implement a fallsafe mounting thus ensuring the safety of the equipment and anyone positioned below the equipment.
Improper installation can result in bodily injury or death. If you are not qualified to attempt the installation get help from a professional structural rigger. Notes: Prolonged use of headphones at a high volume may cause health damage to your ears.
The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.
Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.
Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, sloves, or other apparatus (including amplifiers) that produce heat.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Power Cord
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blades or the third prong are provided for your safety. If the provided plug does not fill into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. Protect the power cord from being walked on or pinched particularly at plugs. If the AC supply cord is damaged DO NOT OPERATE THE UNIT. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle. The mains plug of the power supply cord shall remain readily operable.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Service
The unit should be serviced only by qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, requires battery pack replacement or has been dropped. Disconnect power before servicing!
IMPORTANT SAFETY INSTRUCTIONS
The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product
-
Read these instructions.
-
Keep these instructions.
-
Head all warnings.
-
Follow all instructions.
-
Do not use this apparatus near water.
-
Clean only with dry cloth.
-
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
-
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prongs are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
-
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
-
Only use attachments/accessories specified by the manufacturer.
-
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from lip-over.
-
Unplug this apparatus during lightning storms or when unused for long periods of time.
-
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
WARNING:
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
• To completely disconnect this apparatus from the ac mains, disconnect the power supply cord plug from the ac receptacle.
- The mains plug of the power supply cord or appliance coupler shall remain readily accessible.
Program Power (watts) 200 watts program (100 Low, 50 Mid, 50 High)
Max SPL (dB) 117dB Cont, 123dB Peak
Frequency Response (Hz +/- 3dB) 60 - 20K (Hz +/- 3dB)
Power Consumption While Charging 32 watts (battery fully discharged and unit idling)
Speaker Configuration - LF 8 inch Neo
Speaker Configuration - MF/HF 5-inch/1-inch Dome Neo Coaxial Inputs 8
Channel 1 Input XLR / 1/4-inch Combi-jack
Channel 1 Controls Level, Shape, Reverb
Channel 2 Input XLR / 1/4-inch Combi-jack
Channel 2 Controls Level, Shape, Reverb, Acoustic Guitar EQ & Notch
Channel 3 Input 1/8-inch TRS Stereo Jack, XLR / 1/4-inch Combi-jack
Channel 3 Controls Level, Shape
Master Volume Control Yes
Link In/Out (type / configuration) XLR (Male and Female)
LED Indicators Power, Bluetooth™, 4x Battery Level, Charging Status, Guitar /Mic, Limit (CH1, CH2), Clip (CH3),
Dimensions (DWH xbackW, inches) 11.5 x 10.125 x 15.5
Dimensions (DWH xbackW, cm) 29.2 x 25.7 x 39.3
Weight (lbs / kg) 17 / 7.75
Specifications subject to change without notice
Spécifications
Puissance Nominale (watts) 200 watts program (100 Basses, 50 Médiannes, 50 Aigues)
Pression Sonore Max (dB) 117dB Cont, 123dB Pointe
other
MID-Hi-Amp SECTION | Power | Channel | Label | |---|---|---| | MID-Hi-Amp SECTON | Power Management | MID-Hi-Amp SECTON | Channel | Channel | Power Management SECTON | Power | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel | Channel | Power Management SECTON | Channel 1: Mid-Hi-Amp Section | Channel 2: Mid-Hi-Amp Section | Channel 3: Mid-Hi-Amp Section | Channel 4: Mid-Hi-Amp Section | Channel 5: Mid-Hi-Amp Section | Channel 6: Mid-Hi-Amp Section | Channel 7: Mid-Hi-Amp Section | Channel 8: Mid-Hi-Amp Section | Channel 9: Mid-Hi-Amp Section | Channel 10: Mid-Hi-Amp Section | Channel 11: Mid-Hi-Amp Section | Channel 12: Mid-Hi-Amp Section | Channel 13: Mid-Hi-Amp Section | Channel 14: Mid-Hi-Amp Section | Channel 15: Mid-Hi-Amp Section | Channel 16: Mid-Hi-Amp Section | Channel 17: Mid-Hi-Amp Section SPKR SpKR OUT SPKR OUT SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR SPKR
| Product: EXMMobile8 | |||||
| POS# | M2003 9 12 | R### V01P0 | BIL Pass C1 | S### C1 | K |
| Modified: | File 2020Erdfrequency Amo SchDoc | Tnc Pass V031 | |||
| JAN-25-2021 VERSION M2000V01P3 DESCRIPTION OF CHANGE |
| CHANNEL 1 SECTION |
| C2 AND C3 10U REPLACED WITH 1U |
| R1 AND R28 475K REPLACED WITH 2K0 |
| R189 4K99 REPLACED WITH 15K0 |
| CHANNEL 2 SECTION |
| C6 AND C7 10U REPLACED WITH 1U |
| R10 AND R14 475K REPLACED WITH 2K0 |
| R215 3K32 REPLACED WITH 2K0 |
| R228 15K0 REPLACED WITH 10K0 |
| R288 4K99 REPLACED WITH 15K0 |
| CHANNEL 3 SECTION |
| C16 PIN2 DISCONNECTED FROM J11:2 PIN RN CONNECTED TO W3A PIN 2. |
| C17 PIN2 DISCONNECTED FROM J11:2 PIN TN CONNECTED TO W3A PIN 3. |
| R227 4K99 AND C111 10U ADDED BETWEEN TO W3B:PIN 3 AND +Vr . |

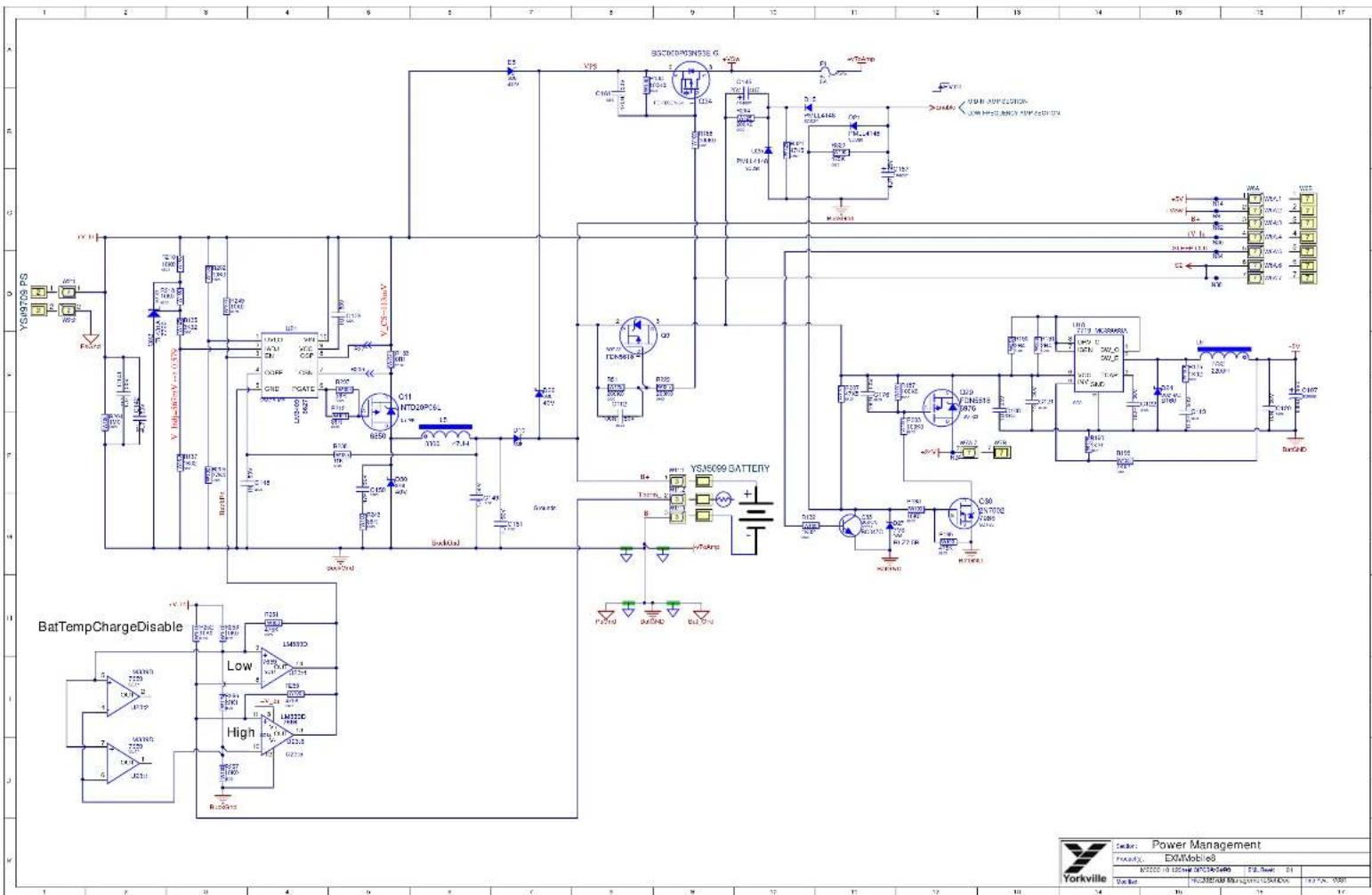

| POWER MANAGEMENT SECTION |
| R294 47K5 REPLACED WITH 200K0. |
| R51,R229 AND R320 100K0 REPLACED WITH TO 200K0. |
| D25 PMLL4148 ADDED IN PARALLEL TO R321. |
| R294 PIN2 AND C145 PIN1 DISCONNECTED FROM +VSw CONNECTED TO Q9 PIN3. |
| DIGITAL EFFECTS SECTION |
| R91AND R113 100K0 REPLACED WITH 475K. |
| D34 PMLL4148 ADDED IN PARALLEL TO R91. |
| BLUETOOTH SECTION |
| UNCONNECTED NODES AND VIAS REMOVED. |
| FEB-16-2021 VERSION M2000V01P4 DESCRIPTION OF CHANGE |
| CHANNEL 1 SECTION |
| R6 AND R7 VALUE CHANGE FROM 4K99 TO 1K02. |
| C139 AND C147 100N ADDED TO U28 PIN 5 AND PIN 3. |
| CHANNEL 2 SECTION |
| R11 AND R15 VALUE CHANGE FROM 4K99 TO 1K02. |
| C155 AND C157 100N ADDED TO U31 PIN 5 AND PIN 3. |
| C62 100N REPLACED WITH 47N / R215 2K0 REPLACED WITH 1K5 / R181 100K0 RELACED WITH 4K99. |
| C168 470N ADDED BETWEEN U32:2 AND S1:1 . |
| C162 470N ADDED BETWEEN U33:1 AND U32:2. |
| CHANNEL 3 SECTION |
| R269 4K99 AND C138 10U ADDED TO PIN6 OF U3:2 . |
| C138 PIN 2 CONNECTED TO DSP-MICROCONTROLLER SECTION U35:1 PIN1. |
| MASTER SECTION |
| R258 AND R268 VALUE CHANGE FROM 100K0 TO 200K0. |
| BLUETOOTH SECTION |
| U12 PADS UPDATED |
| DSP-MICROCONTROLLER SECTION |
| THE FOLLOWING COMPONENTS ARE ADDED TO U35:1 |
| C117.C123 22U C126 1N8 C134 220P R230 2K49 R231 10K0 R234.R240 3K92 R248 20K5. |
| U36 PIN 46 CONNECTED TO C117 PIN 2 AND C33.D13 CONNECTED TO ACND. |
| C93 VALUE CHANGE FROM 10P TO 47P. |
| D18 AND D19 VALUE CHANGE FROM 7V5 TO 4V7. |
| R97 VALUE CHANGE FROM 10K0 TO 4K99. |
| R237 VALUE CHANGE FROM 1M0 TO 475K. |
| R270 100K0 ADDED BETWEEN D18 AND D19. |
| 1/4 INCH HOLE ADDED TO #Z1819 HEATSPREADER FOR SNAP IN SPACER. |
| POWER MANAGEMENT SECTION |
| C161 470N ADDED IN PARALLEL R138. |
| BATTERY STATUS SECTION |
| R166 B998 REPLACED WITH 2K49. |

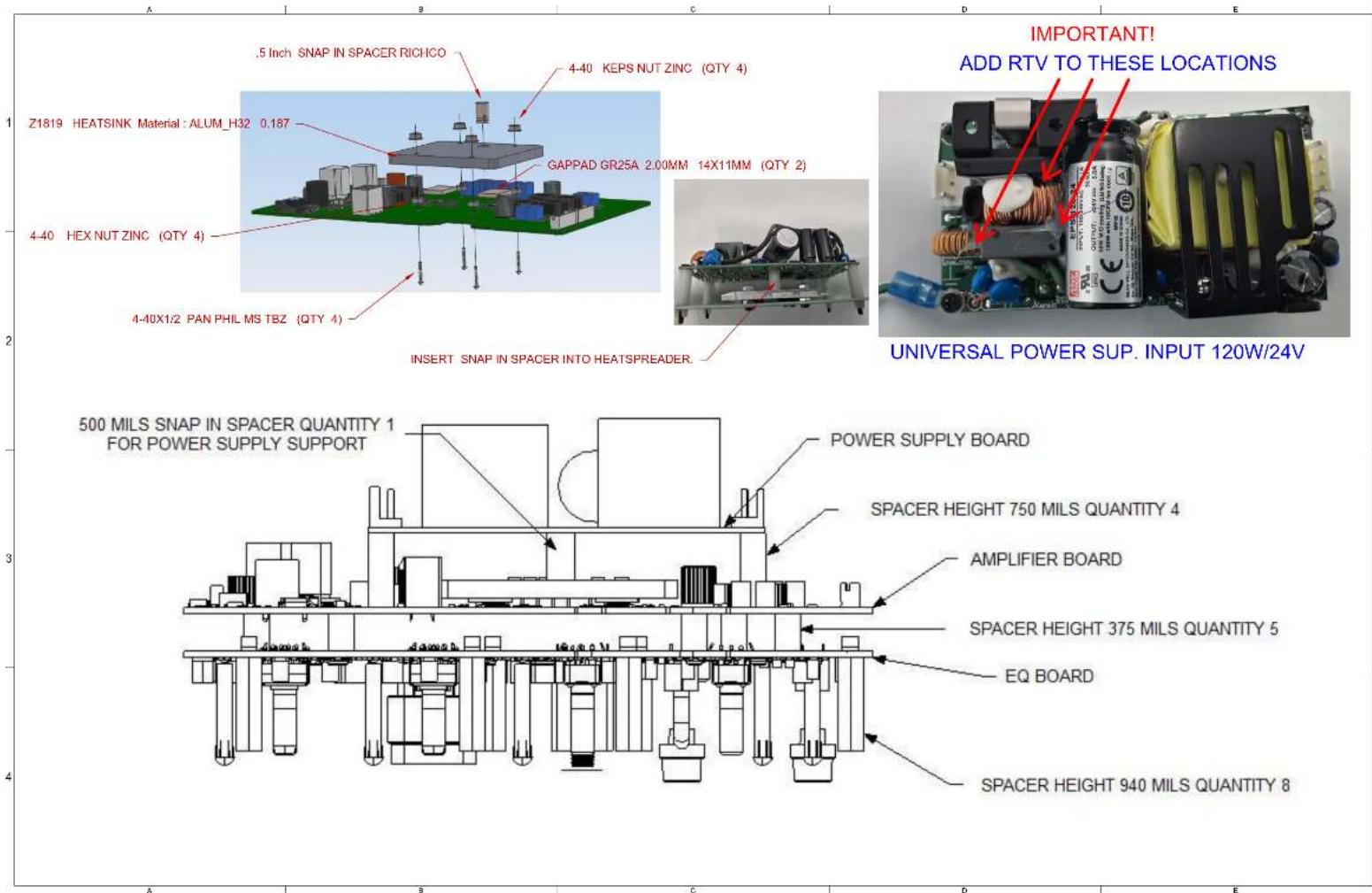

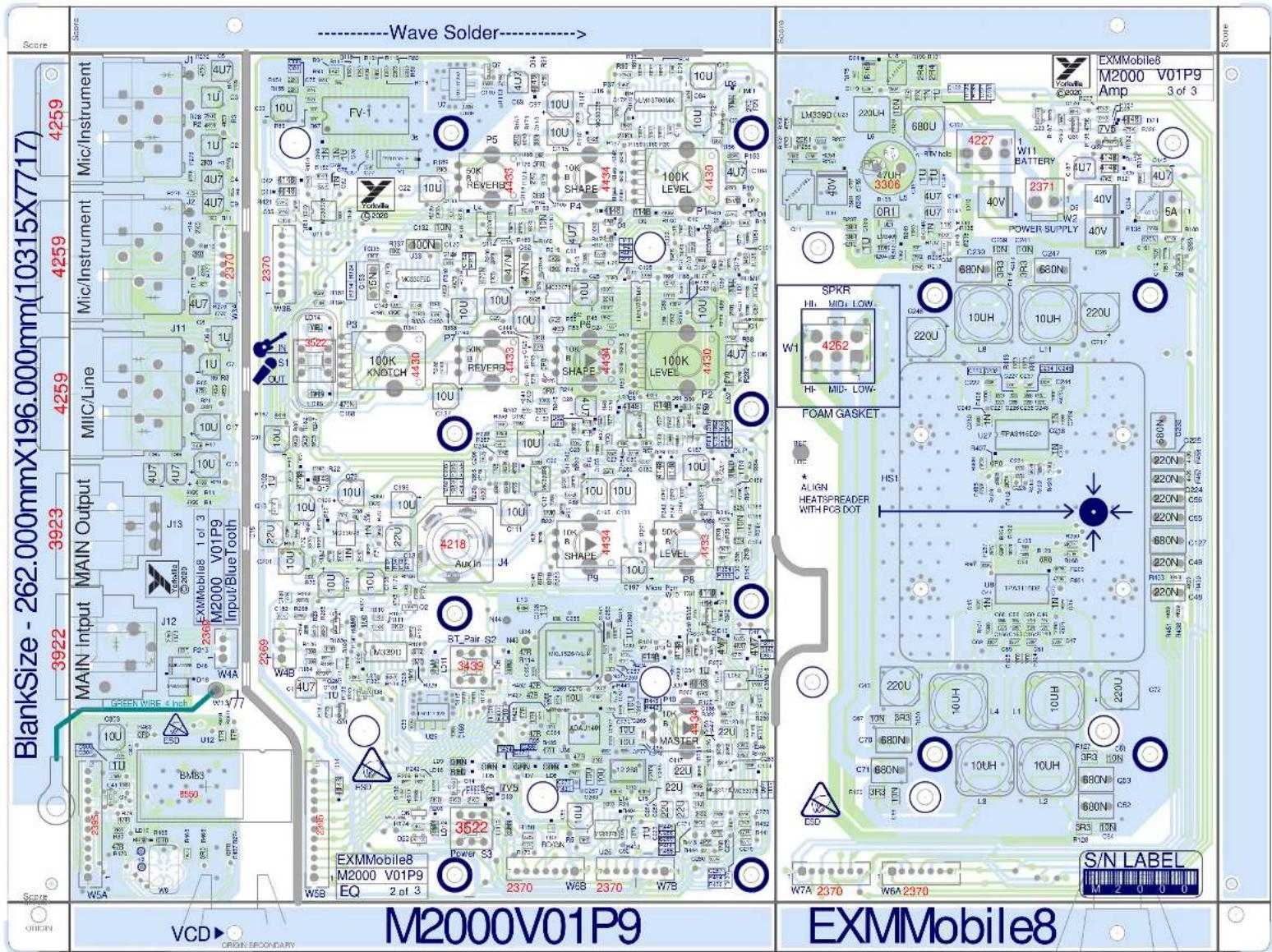

POTENTIOMETERS AND KNOBS
| POTENTIOMETERS/SWITCHES AND KNOBS | ||||
| REF | FUNCTION | POT/SW YS# | STYLE | KNOB# |
| P1 | LEVEL | 4430 | P34 | |
| P2 | LEVEL | 4430 | P34 | |
| P3 | NOTCH | 4430 | P34 | |
| P4 | SHAPE | 4434 | P32 | |
| P5 | REVERB | 4433 | P32 | |
| P6 | SHAPE | 4434 | P32 | |
| P7 | REVERB | 4433 | P32 | |
| P8 | LEVEL | 4433 | P32 | |
| P9 | SHAPE | 4434 | P32 | |
| P10 | MASTER | 4434 | P32 | |
| S1 | MIC/GUTAR | 3522 | ||
| S2 | BT-PAIR | 3439 | ||
| S3 | POWER | 3522 | ||
MARCH-9-2021 VERSION 18302290IPS DESCRIPTION OF CHANGE
M2000V01P5
CHANNEL 2 SECTION
1928-30-PHEPLAEDM17-15K
CHANNEL 3 SECTION
P8 20K REPLACED WITH 50%
SK25 REGISTOR ADDED BETWEEN FIN 1 AND FIN 2 OF PS.
(1)本说明仅供参考。
DSP MICROCONTROLLER SECTION
012 CISCILLATOR REPLACED WITH 12.28%HZ CRYSTAL
2.1 报告期末股东的普通股股东总数
POWER MANAGEMENT SECTION
P300 20K REPLACED WITH 470K / DFT 49T REPLACED WITH 79G
SHE: SS10EPLAGED WITH BHD
2.1.1. 2017年1月1日星期六
SEARCH 15 2021 VERSION M2006AIP6 DESCRIPTION OF CHANGE
M2000V01P6
CLOCT REPLACED WITH FOOTPRINT 1 sec.
25 CHI CHEE 106C 108 CTR 128 CTR 1930-194 ELD WHE HEUWEI (400 X7)
2.1.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100
HW3, HW4, HW5, HW6, HW7, HW8, HW11, HW12, HW17, H=18H=19H=20H=21, HW22, HW23, HW24, HW25, HW26, HW27, HW28, HW29, HW30, HW31, HW32, HW33, HW34, HW35, HW36, HW37, HW38
(1) 20,378.25 REPEATED = THE 120% (NO.) DISCUIT
| NARCH-15-201 - VERSION M2000V07 DESCRIPTION OF CHANGE | |
| WI FOOTPRINT SIZE CHANGED TO 1.2mm^2 4.2mm | M2000V01P7 |
| MAY-5-2021 VERSION M2000MP4 DESCRIPTION OF CHAMT | |
| R25V ANJ/RSW7 = 22K1 | |
| R271 = 3K12 | |
| R392 = 3K20 |
| BING 15-2011 VERSION MINDIGNS DESCRIPTION OF CHANGE: |
| MAYO CHANNEL SECTIONB27 AND 43K PASE ADORTH INPARALTY B28-LAND 62B27- NOD AND DIETHE TWEEN ON AND C. |
| MAYO CHANNEL SECTIONB27 AND 43K PASE ADORTH INPARALTY B28-LAND 62B27- NOD AND DIETHE TWEEN ON AND C. |
| BATTERY STATUS SECTIONCFTI ON ADORTH BETWEEN RING TO $GND |
| Design Information And History | |||
| EXMMobile6 | |||
| SETTOM 12* 3400 | TEN 3500000000 | DATE: 19/07 | 111 |
| Net Ind. | File 200 800-12E-1000 | Trip Fax: 0031 | |
CHANGE HISTORY M2000V01P3
| JAN-25-2021 VERSION M2000V01P3 DESCRIPTION OF CHANGE |
| CHANNEL 1 SECTION |
| C2 AND C3 10U REPLACED WITH 1U |
| R1 AND R28 475K REPLACED WITH 2K0 |
| R189 4K99 REPLACED WITH 15K0 |
| CHANNEL 2 SECTION |
| C6 AND C7 10U REPLACED WITH 1U |
| R10 AND R14 475K REPLACED WITH 2K0 |
| R215 3K32 REPLACED WITH 2K0 |
| R228 15K0 REPLACED WITH 10K0 |
| R288 4K99 REPLACED WITH 15K0 |
| CHANNEL 3 SECTION |
| C16 PIN2 DISCONNECTED FROM J11:2 PIN RN CONNECTED TO W3A PIN 2. |
| C17 PIN2 DISCONNECTED FROM J11:2 PIN TN CONNECTED TO W3A PIN 3. |
| R227 4K99 AND C111 10U ADDED BETWEEN TO W3B:PIN 3 AND +Vr_. |
| POWER MANAGEMENT SECTION |
| R294 47K5 REPLACED WITH 200K0. |
| R51.R229 AND R320 100K0 REPLACED WITH TO 200K0. |
| D25 PMLL4148 ADDED IN PARALLEL TO R321. |
| R294 PIN2 AND C145 PIN1 DISCONNECTED FROM +VSw CONNECTED TO Q9 PIN3. |
| DIGITAL EFFECTS SECTION |
| R91AND R113 100K0 REPLACED WITH 475K. |
| D34 PMLL4148 ADDED IN PARALLEL TO R91. |
| BLUETOOTH SECTION |
| UNCONNECTED NODES AND VIAS REMOVED. |
CHANGE HISTORY M2000V01P4
| FEB-16-2021 VERSION M2000V01P4 DESCRIPTION OF CHANGE |
| CHANNEL 1 SECTION |
| R6 AND R7 VALUE CHANGE FROM 4K99 TO 1K02. |
| C139 AND C147 100N ADDED TO U28 PIN 5 AND PIN 3. |
| CHANNEL 2 SECTION |
| R11 AND R15 VALUE CHANGE FROM 4K99 TO 1K02. |
| C155 AND C157 100N ADDED TO U31 PIN 5 AND PIN 3. |
| C62 100N REPLACED WITH 47N / R215 2K0 REPLACED WITH 1K5 / R181 100K0 RELACED WITH 4K99. |
| C168 470N ADDED BETWEEN U32:2 AND S1:1 . |
| C162 470N ADDED BETWEEN U33:1 AND U32:2. |
| CHANNEL 3 SECTION |
| R269 4K99 AND C138 10U ADDED TO PINS OF U3:2 . |
| C138 PIN 2 CONNECTED TO DSP-MICROCONTROLLER SECTION U35:1 PIN1. |
| MASTER SECTION |
| R258 AND R268 VALUE CHANGE FROM 100K0 TO 200K0. |
| BLUETOOTH SECTION |
| U12 PADS UPDATED |
| DSP-MICROCONTROLLER SECTION |
| THE FOLLOWING COMPONENTS ARE ADDED TO U35:1 |
| C117,C123 22U_C125 1NB_C134 220P_R230 2K49_R231 10K0_R234,R240 3K92_R248 20K5. |
| U36 PIN 46 CONNECTED TO C117 PIN 2 AND C33,D13 CONNECTED TO AGND. |
| C93 VALUE CHANGE FROM 10P TO 47P. |
| D18 AND D19 VALUE CHANGE FROM 7V5 TO 4V7. |
| R97 VALUE CHANGE FROM 10K0 TO 4K99. |
| R237 VALUE CHANGE FROM 1M0 TO 475K. |
| R270 100K0 ADDED BETWEEN D18 AND D19. |
| 1/4 INCH HOLE ADDED TO #Z1819 HEATSPREADER FOR SNAP IN SPACER. |
| POWER MANAGEMENT SECTION |
| C161 470N ADDED IN PARALLEL R138. |
| BATTERY STATUS SECTION |
| R166 6K98 REPLACED WITH 2K49. |
POTENTIOMETERS AND KNOBS
| POTENTIOMETERS/SWITCHES AND KNOBS | ||||
| REF | FUNCTION | POT/SW YS# | STYLE | KNOB# |
| P1 | LEVEL | P34 | 4430 | |
| P2 | LEVEL | 4430 | P34 | - |
| P3 | NOTCH | 4430 | P34 | - |
| P4 | SHAPE | 4434 | P32 | - |
| P5 | REVERB | 4433 | P32 | - |
| P6 | SHAPE | 4434 | P32 | - |
| P7 | REVERB | 4433 | P32 | - |
| P8 | LEVEL | 4433 | P32 | - |
| P9 | SHAPE | 4434 | P32 | - |
| P10 | MASTER | 4434 | P32 | - |
| S1 | MIC/GUITAR | 3522 | - | |
| S2 | BT-PAIR | 3439 | - | |
| S3 | POWER | 3522 | - | |
| MARCH 14-2021 VERSION MARCH 5% DESCRIPTION OF CHANGE | |
| CHANNEL 2 SECTIONR233 10K0 REPLACED WITH 18K0. | |
| CHANNEL 3 SECTIONR233K REPLACED WITH 90K. | |
| DRP MICROCONTROLLER SECTIONQ12 060 LLATOR REPLACED WITH 12,266MHz CRYSTAL | |
| POWER MANAGEMENT SECTIONR233 20K0 REPLACED WITH 47K / 20T 4V7 REPLACED WITH 7V6. | |
| CIN' 12001 REPL ACED WITH 11H5U |
| MARCH-15-2021 VERSION M200V0175 DESCRIPTION OF CHANGE | |
| CLC,CX,CX,REPL ACED WITH FOOTPRINT 4.3mm. | M2000V01P6 |
| C76,C9-,C98,C106,C98,C123,C258,C260 REPLACED WITH FOOTPRINT 0005 XTR. | |
| BW23W24,W28,W29,W30,W31,W38,W39,W40,W41,W42,W43,W44,W45,W46,W47,W48,W49,W50,W51,W52,W53,W54,W55,W56,W57,W58,W59,W60,W61,W62,W63,W64,W65,W66,W67,W68,W69,W70,W71,W72,W73,W74,W75,W76,W77,W78,W79,W80,W81,W82,W83,W84,W85,W86,W87,W88,W89,W90,W91,W92,W93,W94,W95,W96,W97,W98,W99,W100,W101,W102,W103,W104,W105,W106,W107,W108,W109,W110,W111,W112,W113,W114,W115,W116,W117,W118,W119,W120,W121,W122,W123,W124,W125,W126,W127,W128,W129,W130,W131,W132,W133,W134,W135,W136,W137,W138,W139,W140,W141,W142,W143,W144,W145,W146,W147,W148,W149,W150,W151,W152,W153,W154,W155,W156,W157,W158,W159,W160,W161,W162,W163,W164,W165,W166,W167,W168,W169,W170,W171,W172,W173,W174,W175,W176,W177,W178,W179,W180,W181,W182,W183,W184,W185,W186,W187,W188,W189,W190,W191,W192,W193,W194,W195,W196,W197,W198,W199,W200,W201,W202,W203,W204,W205,W206,W207,W208,W209,W210,W211,W212,W213,W214,W215,W216,W217,W218,W219,W220,W221,W222,W223,W224,W225,W226,W227,W228,W229,W230,W231,W232,W233,W234,W235,W236,W237,W238,W239,W240,W241,W242,W243,W244,W245,W246,W247,W248,W249,W250,W251,W252,W253,W254,W255,W256,W257,W258,W259,W260,W261,W262,W263,W264,W265,W266,W267,W268,W269,W270,W271,W272,W273,W274,W275,W276,W277,W278,W279,W280,W281,W282,W283,W284,W285,W286,W287,W288,W289,W290,W291,W292,W293,W294,W295,W296,W297,W298,W299,W300,W301,W302,W303,W304,W305,W306,W307,W308,W309,W310,W311,W312,W313,W314,W315,W316,W317,W318,W319,W320,W321,W322,W323,W324,W325,W326,W327,W328,W329,W330,W331,W332,W333,W334,W335,W336,W337,W338,W339,W340,W341,W342,W343,W344,W345,W346,W347,W348,W349,W350,W351,W352,W353,W354,W355,W356,W357,W358,W359,W360,W361,W362,W363,W364,W365,W366,W367,W368,W369,W370,W371,W372,W373,W374,W375,W376,W377,W378,W379,W380,W381,W382,W383,W384,W385,W386,W387,W388,W389,W390,W391,W392,W393,W394,W395,W396,W397,W398,W399,W400,W401,W402,W403,W404,W405,W406,W407,W408,W409,W410,W411,W412,W413,W414,W415,W416,W417,W418,W419,W420,W421,W422,W423,W424,W425,W426,W427,W428,W429,W430,W431,W432,W433,W434,W435,W436,W437,W438,W439,W440,W441,W442,W443,W444,W445,W446,W447,W448,W449,W450,W451,W452,W453,W454,W455,W456,W457,W458,W459,W460,W461,W462,W463,W464,W465,W466,W467,W468,W469,W470,W471,W472,W473,W474,W475,W476,W477,W478,W479,W480,W481,W482,W483,W484,W485,W486,W487,W488,W489,W490,W491,W492,W493,W494,W495,W496,W497,W498,W499,W500,W501,W502,W503,W504,W505,W506,W507,W508,W509,W510,W511,W512,W513,W514,W515,W516,W517,W518,W519,W520,W521,W522,W523,W524,W525,W526,W527,W528,W529,W530,W531,W532,W533,W534,W535,W536,W537,W538,W539,W540,W541,W542,W543,W544,W545,W546,W547,W548,W549,W550,W551,W552,W553,W554,W555,W556,W557,W558,W559,W560,W561,W562,W563,W564,W565,W566,W567,W568,W569,W570,W571,W572,W573,W574,W575,W576,W577,W578,W579,W580,W581,W582,W583,W584,W585,W586,W587,W588,W589,W590,W591,W592,W593,W594,W595,W596,W597,W598,W599,W600,W601,W602,W603,W604,W605,W606,W607,W608,W609,W610,W611,W612,W613,W614,W615,W616,W617,W618,W619,W620,W621,W622,W623,W624,W625,W626,W627,W628,W629,W630,W631,W632,W633,W634,W635,W636,W637,W638,W639,W640,W641,W642,W643,W644,W645,W646,W647,W648,W649,W650,W651,W652,W653,W654,W655,W656,W657,W658,W659,W660,W661,W662,W663,W664,W665,W666,W667,W668,W669,W670,W671,W672,W673,W674,W675,W676,W677,W678,W679,W680,W681,W682,W683,W684,W685,W686,W687,W688,W689,W690,W691,W692,W693,W694,W695,W696,W697,W698,W699,W700,W701,W702,W703,W704,W705,W706,W707,W708,W709,W710,W711,W712,W713,W714,W715,W716,W717,W718,W719,W720,W721,W722,W723,W724,W725,W726,W727,W728,W729,W730,W731,W732,W733,W734,W735,W736,W737,W738,W739,W740,W741,W742,W743,W744,W745,W746,W747,W748,W749,W750,W751,W752,W753,W754,W755,W756,W757,W758,W759,W760,W761,W762,W763,W764,W765,W766,W767,W768,W769,W770,W771,W772,W773,W774,W775,W776,W777,W778,W779,W780,W781,W782,W783,W784,W785,W786,W787,W788,W789,W790,W791,W792,W793,W794,W795,W796,W797,W798,W799,W800,W801,W802,W803,W804,W805,W806,W807,W808,W809,W810,W811,W812,W813,W814,W815,W816,W817,W818,W819,W820,W821,W822,W823,W824,W825,W826,W827,W828,W829,W830,W831,W832,W833,W834,W835,W836,W837,W838,W839,W840,W841,W842,W843,W844,W845,W846,W847,W848,W849,W850,W851,W852,W853,W854,W855,W856,W857,W858,W859,W860,W861,W862,W863,W864,W865,W866,W867,W868,W869,W870,W871,W872,W873,W874,W875,W876,W877,W878,W879,W880,W881,W882,W883,W884,W885,W886,W887,W888,W889,W890,W891,W892,W893,W894,W895,W896,W897,W898,W899,W900,W901,W902,W903,W904,W905,W906,W907,W908,W909,W910,W911,W912,W913,W914,W915,W916,W917,W918,W919,W920,W921,W922,W923,W924,W925,W926,W927,W928,W929,W930,W931,W932,W933,W934,W935,W936,W937,W938,W939,W940,W941,W942,W943,W944,W945,W946,W947,W948,W949,W950,W951,W952,W953,W954,W955,W956,W957,W958,W959,W960,W961,W962,W963,W964,W965,W966,W967,W968,W969,W970,W971,W972,W973,W974,W975,W976,W977,W978,W979,W980,W981,W982,W983,W984,W985,W986,W987,W988,W989,W990,W991,W992,W993,W994,W995,W996,W997,W998,W999,W1000,W1001,W1002,W1003,W1004,W1005,W1006,W1007,W1008,W1009,W1010,W1011,W1012,W1013,W1014,W1015,W1016,W1017,W1018,W1019,W1020,W1021,W1022,W1023,W1024,W1025,W1026,W1027,W1028,W1029,W1030,W1031,W1032,W1033,W1034,W1035,W1036,W1037,W1038,W1039,W1040,W1041,W1042,W1043,W1044,W1045,W1046,W1047,W1048,W1049,W1050,W1051,W1052,W1053,W1054,W1055,W1056,W1057,W1058,W1059,W1060,W1061,W1062,W1063,W1064,W1065,W1066,W1067,W1068,W1069,W1070,W1071,W1072,W1073,W1074,W1075,W1076,W1077,W1078,W1079,W1080,W1081,W1082,W1083,W1084,W1085,W1086,W1087,W1088,W1089,W1090,W1091,W1092,W1093,W1094,W1095,W1096,W1097,W1098,W1099,W1100,W1101,W1102,W1103,W1104,W1105,W1106,W1107,W1108,W1109,W1200,W1201,W1202,W1203,W1204,W1205,W1206,W1207,W1208,W1209,W1210,W1211,W1212,W1213,W1214,W1215,W1216,W1217,W1218,W1219,W1220,W1221,W1222,W1223,W1224,W1225,W1226,W1227,W1228,W1229,W1230,W1231,W1232,W1233,W1234,W1235,W1236,W1237,W1238,W1239,W1240,W1241,W1242,W1243,W1244,W1245,W1246,W1247,W1248,W1249,W1250,W1251,W1252,W1253,W1254,W1255,W1256,W1257,W1258,W1259,W1260,W1261,W1262,W1263,W1264,W1265,W1266,W1267,W1268,W1269,W1270,W1271,W1272,W1273,W1274,W1275,W1276,W1277,W1278,W1279,W1280,W1281,W1282,W1283,W1284,W1285,W1286,W1287,W1288,W1289,W1290,W1291,W1292,W1293,W1294,W1295,W1296,W1297,W1298,W1299,W1300,W1301,W1302,W1303,W1304,W1305,W1306,W1307,W1308,W1309,W1310,W1311,W1312,W1313,W1314,W1315,W1316,W1317,W1318,W1319,W1320,W1321,W1322,W1323,W1324,W1325,W1326,W1327,W1328,W1329,W1330,W1331,W1332,W1333,W1334,W1335,W1336,W1337,W1338,W1339,W1340,W1341,W1342,W1343,W1344,W1345,W1346,W1347,W1348,W1349,W1350,W1351,W1352,W1353,W1354,W1355,W1356,W1357,W1358,W1359,W1360,W1361,W1362,W1363,W1364,W1365,W1366,W1367,W1368,W1369,W1370,W1371,W1372,W1373,W1374,W1375,W1376,W1377,W1378,W1379,W1380,W1381,W1382,W1383,W1384,W1385,W1386,W1387,W1388,W1389,W1390,W1391,W1392,W1393,W1394,W1395,W1396,W1397,W1398,W1399,W1400,W1401,W1402,W1403,W1404,W1405,W1406,W1407,W1408,W1409,W1410,W1411,W1412,W1413,W1414,W1415,W1416,W1417,W1418,W1419,W1420,W1421,W1422,W1423,W1424,W1425,W1426,W1427,W1428,W1429,W1430,W1431,W1432,W1433,W1434,W1435,W1436,W1437,W1438,W1439,W1440,W1441,W1442,W1443,W1444,W1445,W1446,W1447,W1448,W1449,W1450,W1451,W1452,W1453,W1454,W1455,W1456,W1457,W1458,W1459,W1460,W1461,W1462,W1463,W1464,W1465,W1466,W1467,W1468,W1469,W1470,W1471,W1472,W1473,W1474,W1475,W1476,W1477,W1478,W1479,W1480,W1481,W1482,W1483,W1484,W1485,W1486,W1487,W1488,W1489,W1490,W1491,W1492,W1493,W1494,W1495,W1496,W1497,W1498,W1499,W1500,W1501,W1502,W1503,W1504,W1505,W1506,W1507,W1508,W1509,W1510,W1511,W1512,W1513,W1514,W1515,W1516,W1517,W1518,W1519,W1520,W1521,W1522,W1523,W1524,W1525,W1526,W1527,W1528,W1529,W1530,W1531,W1532,W1533,W1534,W1535,W1536,W1537,W1538,W1539,W1540,W1541,W1542,W1543,W1544,W1545,W1546,W1547,W1548,W1549,W1550,W1551,W1552,W1553,W1554,W1555,W1556,W1557,W1558,W1559,W1560,W1561,W1562,W1563,W1564,W1565,W1566,W1567,W1568,W1569,W1570,W1571,W1572,W1573,W1574,W1575,W1576,W1577,W1578,W1579,W1580,W1581,W1582,W1583,W1584,W1585,W1586,W1587,W1588,W1589,W1590,W1591,W1592,W1593,W1594,W1595,W1596,W1597,W1598,W1599,W1600,W1601,W1602,W1603,W1604,W1605,W1606,W1607,W1608,W1609,W1610,W1611,W1612,W1613,W1614,W1615,W1616,W1617,W1618,W1619,W1620,W1621,W1622,W1623,W1624,W1625,W1626,W1627,W1628,W1629,W1630,W1631,W1632,W1633,W1634,W1635,W1636,W1637,W1638,W1639,W1640,W1641,W1642,W1643,W1644,W1645,W1646,W1647,W1648,W1649,W1650,W1651,W1652,W1653,W1654,W1655,W1656,W1657,W1658,W1659,W1660,W1661,W1662,W1663,W1664,W1665,W1666,W1667,W1668,W1669,W1670,W1671,W1672,W1673,W1674,W1675,W1676,W1677,W1678,W1679,W1680,W1681,W1682,W1683,W1684,W1685,W1686,W1687,W1688,W1689,W1690,W1691,W1692,W1693,W1694,W1695,W1696,W1697,W1698,W1699,W1700,W1701,W1702,W1703,W1704,W1705,W1706,W1707,W1708,W1709,W1710,W1711,W1712,W1713,W1714,W1715,W1716,W1717,W1718,W1719,W1720,W1721,W1722,W1723,W1724,W1725,W1726,W1727,W1728,W1729,W1730,W1731,W1732,W1733,W1734,W1735,W1736,W1737,W1738,W1739,W1740,W1741,W1742,W1743,W1744,W1745,W1746,W1747,W1748,W1749,W1750,W1751,W1752,W1753,W1754,W1755,W1756,W1757,W1758,W1759,W1760,W1761,W1762,W1763,W1764,W1765,W1766,W1767,W1768,W1769,W1770,RW | |
| MARCH 17-2021 VERSION M2000V01P7 DESCRIPTION OF CHANGE WE FOTPRINT SIZE: CHANGED TO =3mm*6.2mm. | M2000V01P7 |
| DAY-5-2021 VERSION M2000V01P8 DESCRIPTION OF CHANGE R209 AND U043 = 2283 R211 = 28.22 R192 = 2100 | M2000V01P8 |
| JUNE-13-2021 VERSION ACCESS NAME DESCRIPTION OF CHANGE |
| SMING CHANNEL SETTION |
| R272 AND R274 495K ADDED IN PARAL LT. TO SQ1 AND SQ2 |
| R274- 23640 ADDED1 BETWEET 24 C4 AND 25. |
| SMOAN CHANNEL SETTION |
| R275 AND R276 495K ADDED IN PARAL LT. TO SQ2 AND SQ3 |
| R277 23640 ADDED2 BETWEET 24 C5 AND U.S. |
| BATTERY STATUS SECTION |
| CTH 100% ADDED1 BETWEET R166 TO R. CND. |
| Vorkuilla | Design Information And History | |||
| Produkt | EXMMobileB | |||
| M2000 12 125h | 4 074389049H | EPL-65F-01 | ||
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 1 | AI-ASSY1 | Auto-Insertion Sub-Assembly | 1 | M2000-59 |
| 2 | BEC1 | Required for VCD and RAD AI placement. | 1 | |
| 3 | C1, C4, C5, C8, C9, C28, C63, C88, C95, C99, C104, C136, C145, C187 | 4U7 25V 20%CAP 4X5.5MM SMT ELE | 14 | 7886 |
| 4 | C2, C3, C6, C7 | 1U 50V 20%CAP 4.3X3.9 SMT ELE | 4 | 7769 |
| 5 | C10, C26, C31, C93, C101, C150 | 47P 50V 5%CAP 0805 SMT NPO | 6 | 7813 |
| 6 | C11, C21, C24, C83, C130, C160 | 100P 50V 10% CAP 0805 SMT NPO | 6 | 7927 |
| 7 | C12, C15, C16, C17, C22, C25, C37, C65, C90, C91, C111, C115, C137, C138, C140, C144, C167, C194, C195, C196, C197 | 10U 25.0V 20% CAP 5X5.4 SMT ELE | 21 | 7916 |
| 8 | C13, C18 | 22U 16V 5%CAP 5X5.5 SMT ELC | 2 | 7697 |
| 9 | C14 | 270P 50V 5%CAP 0805 SMT NPO | 1 | 7931 |
| 10 | C19, C23, C32, C33, C38, C39, C40, C41, C42, C45, C57, C75, C80, C81, C84, C85, C87, C89, C92, C96, C98, C100, C109, C110, C112, C124, C125, C128, C131, C139, C147, C155, C157, C159, C169, C171, C172, C176, C181, C182, C185, C189, C192, C206, C207, C219, C250, C279, C280, C304 | 100N 50V 5%CAP 0805 SMT X7R | 50 | 5979 |
| 11 | C20, C27, C30, C86, C134, C273, C283, C287 | 220P 100V 10% CAP 0805 SMT X7R | 8 | 8272 |
| 12 | C29, C79, C97, C198, C199, C200, C201, C303 | 10U 25V 20%CAP 5X5.4 SMT ELE | 8 | 7916 |
| 13 | C34, C36, C44, C60, C73, C74, C82, C121, C148, C218, C235, C249 | 1N 50V 5%CAP 0805 SMT NPO | 12 | 7693 |
| 14 | C35, C62 | 47N 100V 10%CAP T&R RAD .2inFLM | 2 | 5224 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 15 | C43, C72, C217, C248 | 220U 35V 20%CAP 8X10 SMT ELE | 4 | 8610 |
| 16 | C46, C50, C54, C58, C68, C103,C163, C164, C165, C166, C220,C221, C226, C228, C231, C232,C234, C236, C243, C245 | 150N 25V 20%CAP 0603 SMT X7R | 20 | 8349 |
| 17 | C47, C51, C59, C69, C222, C227,C237, C244 | 330P 50V 5%CAP0805 SMT NPO | 8 | 7602 |
| 18 | C48, C49, C55, C56, C224, C225 | 220N 63V 5%CAP T&R RAD .2inFLM | 6 | 5231 |
| 19 | C52, C53, C70, C71, C127, C230,C233, C247 | 680N 63V 10%CAP T&R RAD .2inFLM | 8 | 5240 |
| 20 | C61, C64, C66, C67, C113, C120,C132, C156, C239, C241 | 10N 50V 5%CAP1206 SMT NPO | 10 | 7874 |
| 21 | C76, C94, C102, C106, C108,C223, C238, C260 | 1U 25V 10%CAP0805 SMT X7R | 8 | 6015 |
| 22 | C77 | 15P 50V 5%CAP0603 SMT NPO | 1 | 7766 |
| 23 | C78, C119 | 150P 50V 5%CAP0805 SMT NPO | 2 | 7692 |
| 24 | C105, C116, C129, C146, C154,C188 | 82N 100V 10%CAP0805 SMT | 6 | 8009 |
| 25 | C107 | 680U 6V3 20%CAP 8X10 SMT ELE | 1 | 7919 |
| 26 | C114, C122, C133, C143, C158,C193 | 180P 50V 5%CAP0805 SMT NPO | 6 | 7604 |
| 27 | C117, C123, C274, C284, C288 | 22U 25V 20%CAP1210 SMT X7R | 5 | 8139 |
| 28 | C118, C152, C190 | 33N 50V 5%CAP0805 SMT X7R | 3 | 7610 |
| 29 | C126, C275, C286, C289 | 1N8 50V 5%CAP0805 SMT COG | 4 | 8277 |
| 30 | C135, C149, C151, C300 | 1U 50V 10%CAP1206 SMT X7R | 4 | 7734 |
| 31 | C141, C142 | 4U7 50V 10%CAP1210 SMT X7R | 2 | 7735 |
| 32 | C153 | 15N 100V 10%CAPT&R RAD .2inFLM | 1 | 5205 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 33 | C161, C162, C168 | 470N 50V 10% CAP 1206 SMT X7R | 3 | 7736 |
| 34 | C170 | 100N 63V 5%CAP T&R RAD .2inFLM | 1 | 5212 |
| 35 | C186 | 10P 50V 10%CAP 0805 SMT NPO | 1 | 7942 |
| 36 | C204, C205 | 1N5 50V 5%CAP 0805 SMT NPO | 2 | 7605 |
| 37 | C253, C254, C255, C256, C257, C259, C261, C262, C264, C265, C266, C268, C269, C272, C277, C281 | 100N 16V 10% CAP 0603 SMT X7R | 16 | 7767 |
| 38 | C263, C267, C270, C276, C278, C282 | 10U 10V 10%CAP 1206 SMT X5R | 6 | 7819 |
| 39 | C271 | 3N3 25V 5%CAP 0805 SMT NPO | 1 | 7694 |
| 40 | C285 | 220N 50V 10% CAP 1206 SMT Z5U | 1 | 7601 |
| 41 | CNR1, CNR2, CNR3, CNR4 | Panel Corner | 4 | |
| 42 | D1, D7, D8, D9, D13, D14, D15, D17, D20, D21, D23, D25, D29, D31, D33, D34, D41, D42, D51 | PMLL4148 75V 0A1 DIO SOD80C SMT | 19 | 7885 |
| 43 | D2, D3, D4, D6, D11, D32, D49, D50 | MM3Z10VT1G 10V0 0W2 5% SMT ZEN | 8 | 7829 |
| 44 | D5, D10, D26, D30 | B340B 40V 3A SCH SMB SMT | 4 | 6565 |
| 45 | D12, D52 | MMSZ15T1G 15V 0W5 5% SMT ZEN | 2 | 8054 |
| 46 | D16, D46 | SMBJ5339B 5V6 5W0 DO214AA SMT ZEN | 2 | 8162 |
| 47 | D18, D19, D38 | MMSZ5230B 4V7 0W5 SOD123 SMT ZEN | 3 | 8169 |
| 48 | D22 | BAT750 SOT-23 SMT SCHTKY | 1 | 9106 |
| 49 | D24 | B160-13-F 60V 1A0 SCH DO214AC SMT | 1 | 6657 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 50 | D27, D43 | RLZ7.5B 7V5 0W56% SMT ZEN | 2 | 8077 |
| 51 | D28 | MMSZ18VT1G18V0 0W2 5%SMT ZEN | 1 | 7832 |
| 52 | F1 | FUSE 5A0 250VTIME DELAY T&R | 1 | 2494 |
| 53 | HS1 | Z1819 HEATSPREADER | 1 | Z1819 |
| 54 | HW1, HW30 | GAPPAD GR25A2.00MM 14X11MM | 2 | 4236 |
| 55 | HW2, HW9, HW35, HW36 | 4-40 KEPS NUTZINC | 4 | 8701 |
| 56 | HW10, HW27, HW33, HW34 | 4-40 KEPS NUTZINC | 4 | 8793 |
| 57 | HW28, HW29, HW31, HW32 | 4-40X1/2 PANPHIL MS TBZ | 4 | 8741 |
| 58 | J1, J2 | 1/4IN & XLR PCBMT HZ COMBONCJ9FI-H | 2 | 4259 |
| 59 | J4 | 3.5mm JCK PCBMT VERT ST 5PIN | 1 | 4218 |
| 60 | J11 | 1/4IN & XLR PCBMT HZ COMBONCJ9FI-H | 1 | 4259 |
| 61 | J12 | XLR FEML PCB MTHORZ THIN SNAP-IN | 1 | 3922 |
| 62 | J13 | XLR MALE PCB MTHORZ MTHOLE-VSNAP | 1 | 3923 |
| 63 | L1, L2, L3, L4, L8, L11 | 10.0UH 20% COIL12MM SMT | 6 | 2911 |
| 64 | L5 | 47UH CHOKE0R08 RAD | 1 | 3306 |
| 65 | L6 | 220UH COILSMT | 1 | 7732 |
| 66 | L13, L14, L15 | FERRITE BEAD600R @100MHz0805 SMT | 3 | 8256 |
| 67 | LD1, LD2 | YEL LED 1V720MA 1206 SMT | 2 | 7032 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 68 | LD3 | RD/GN LED 1V720MA 0606 SMT | 1 | 7036 |
| 69 | LD4 | RED LED 1V520MA 1206 SMT | 1 | 7033 |
| 70 | LD5, LD9, LD15 | GRN LED 2V820MA 1206 SMT | 3 | 7031 |
| 71 | LD6, LD11 | BLU LED 2V820MA 1206 SMT | 2 | 7030 |
| 72 | LD7 | GRN LED 2V820MA 1206 SMT | 1 | 7031 |
| 73 | LD8 | GRN LED 2V820MA 1206 SMT | 1 | 7031 |
| 74 | LD10 | RD/GN LED 2V120MA 0805 SMT | 1 | 5997 |
| 75 | LD12, LD13 | GRN LED 2V820MA 1206 SMT | 2 | 7031 |
| 76 | LD14 | YEL LED 1V720MA 1206 SMT | 1 | 7032 |
| 77 | LD16 | RED LED 1V520MA 1206 SMT | 1 | 7033 |
| 78 | P1, P2, P3 | 100K 4B LIN12MM STEREO P34 | 3 | 4430 |
| 79 | P4, P6, P9, P10 | _10K B LIN 9MM DETENT P32 | 4 | 4434 |
| 80 | P5, P7 | _50K B LIN 9MM P32 | 2 | 4433 |
| 81 | P8 | _50K B LIN 9MM P32 | 1 | 4433 |
| 82 | PCB1 | Bare PC Board | 1 | M2000BLANK |
| 83 | PF1, PF2, PF3, PF4 | 50mil Fiducial | 4 | |
| 84 | Q1, Q3, Q6, Q10, Q15 | MMBT3906LT1SOT-23 PNP TRAN T&R | 5 | 7805 |
| 85 | Q2, Q28, Q31, Q33 | BC847 NPN SOT-23 | 4 | 8074 |
| 86 | Q4 | MMBTA14LTIGNPN DARL SOT-23 SMT | 1 | 7701 |
| 87 | Q5 | MMBT5401 PNP SOT-23 | 1 | 7837 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 88 | Q7, Q14, Q30 | 2N7002SOT-23 NCH FET T&R | 3 | 7986 |
| 89 | Q8, Q32 | TL431A 3 TERM ADJ VREG SOT-23-3 SMT | 2 | 7720 |
| 90 | Q9, Q29 | FDN5618 PCH MFET SOT-23 SMT | 2 | 6976 |
| 91 | Q11 | NTD20P06L PCH MFET D2PAK SMT | 1 | 6850 |
| 92 | Q12 | 12.288MHZ CRYSTAL 4-PIN SMT | 1 | 7894 |
| 93 | Q13 | MMBFJ110 NCH JFET SOT-23 SMT | 1 | 8363 |
| 94 | Q34 | BSC060P03NS3E G PCH MFET PG-TDSON-8-1 SMT | 1 | 7006 |
| 95 | R1, R10, R14, R28, R29, R43, R111, R162, R171, R200, R203, R220, R241, R260, R343, R351 | W100 2K0 1% 0805 SMT RES | 16 | 7676 |
| 96 | R2, R3, R4, R8, R9, R19, R20, R21, R25, R26, R50, R53, R60, R61, R84, R88, R97, R144, R145, R148, R149, R167, R181, R208, R222, R223, R227, R282, R340, R359, R364, R438, R439, R442, R443, R451, R453, R457, R458 | W100 4K99 1% 0805 SMT RES | 39 | 7679 |
| 97 | R5, R13, R17, R18, R24, R39, R47, R49, R59, R64, R80, R106, R109, R116, R117, R118, R119, R142, R152, R156, R161, R163, R178, R193, R202, R210, R217, R218, R231, R245, R249, R252, R253, R257, R314, R324, R333, R336, R337, R338, R342, R344, R354, R420 | W100 10K0 1% 0805 SMT RES | 44 | 7625 |
| 98 | R6, R7, R11, R15, R67, R70, R75, R86, R104, R132, R136, R137, R175, R185, R192, R259, R261, R287, R334, R335, R355, R424, R433, R444 | W100 1K02 1% 0603 SMT RES | 24 | 8222 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 99 | R12, R16, R22, R46, R48, R52, R62, R83, R90, R96, R102, R103, R105, R138, R143, R151, R172, R187, R188, R233, R242, R270, R279, R293, R322, R323, R341, R356, R365, R422, R440 | W100 100K0 1% 0805 SMT RES | 31 | 7626 |
| 100 | R23, R32, R265, R358, R363 | W125 562R0 1% 0805 SMT RES | 5 | 7674 |
| 101 | R30, R34, R45, R266, R445 | W100 18K2 1% 0805 SMT RES | 5 | 7823 |
| 102 | R31, R33, R42, R44, R115, R159, R160, R173, R177, R183, R184, R186, R213, R239, R430 | W100 100R 1% 0805 SMT RES | 15 | 7624 |
| 103 | R35, R40, R65, R73, R150, R154, R155, R157, R256, R269, R347 | W125 22K1 0.1% 0805 SMT RES | 11 | 5066 |
| 104 | R37, R41, R66, R158, R189, R228, R288 | W100 15K0 1% 0805 SMT RES | 7 | 7628 |
| 105 | R38, R51, R153, R229, R258, R268, R274, R277, R294 | W125 200K0 0.1% 0805 SMT RES | 9 | 8362 |
| 106 | R54, R57, R122, R139 | W100 348K 1% 0805 SMT RES | 4 | 7687 |
| 107 | R55, R56, R72, R82, R146, R147, R165, R182, R235, R247, R346, R350 | W125 8K25 1% 0805 SMT RES | 12 | 7681 |
| 108 | R58, R81, R352 | W125 330R 0.5% 0805 SMT RES | 3 | 7897 |
| 109 | R63, R89, R248, R330, R432, R447, R454 | W100 20K5 1% 0805 SMT RES | 7 | 7634 |
| 110 | R68, R112, R179, R180, R421, R431 | W100 475R 1% 0805 SMT RES | 6 | 7673 |
| 111 | R69, R98, R198 | W125 1K21 1% 0805 SMT RES | 3 | 7675 |
| 112 | R71, R74, R77, R78, R123, R134, R141, R199, R234, R240, R436, R437, R449, R450, R455, R456 | W125 3K92 1% 0805 SMT RES | 16 | 7678 |
| 113 | R79, R95, R100, R114, R425, R427, R434, R435, R441, R452, R460, R461, R470 | W125 47R 5% 0805 SMT RES | 13 | 7854 |
| 114 | R85, R87, R91, R113, R169, R196, R221, R236, R237, R251, R255, R272, R273, R275, R276, R320, R348, R405 | W100 475K 1% 0805 SMT RES | 18 | 7645 |
| 115 | R94 | W063 49R9 1% 0603 SMT RES | 1 | 7781 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 116 | R101, R135, R216, R271 | W125 3K32 1%0805 SMT RES | 4 | 7637 |
| 117 | R107 | W125 17K8 1%0805 SMT RES | 1 | 7682 |
| 118 | R108 | W125 39K2 1%0805 SMT RES | 1 | 4967 |
| 119 | R110, R170, R174, R197, R207,R246, R262, R321, R349 | W125 47K5 1%0805 SMT RES | 9 | 7824 |
| 120 | R120, R164, R176, R225, R244,R345, R353, R407, R463, R465,R466, R467 | W125 OR 5%0805 SMT RES | 12 | 7745 |
| 121 | R121, R124, R125, R131, R403,R404, R408, R413, R415, R423 | W125 10R0 1%0805 SMT RES | 10 | 7821 |
| 122 | R126, R209, R406, R414 | W125 5K76 1%0805 SMT RES | 4 | 8192 |
| 123 | R127, R128, R129, R130, R416,R418 | W500 3R3 5%1210 SMT RES | 6 | 7978 |
| 124 | R133 | W750 0R1 5%2010 SMT TR | 1 | 8172 |
| 125 | R140 | W125 4M7 5%0805 SMT RES | 1 | 7688 |
| 126 | R166, R230 | W100 2K49 1%0603 SMT RES | 2 | 8231 |
| 127 | R168, R254, R357, R362, R409 | W125 249R0 1%0805 SMT RES | 5 | 7671 |
| 128 | R190, R191 | W250 2R4 5%1206 SMT RES | 2 | 5078 |
| 129 | R194 | W125 470R 5%0805 SMT RES | 1 | 7856 |
| 130 | R204, R224, R326, R327, R328,R329 | W100 1M0 1%0805 SMT RES | 6 | 7622 |
| 131 | R205 | W100 27K4 1%0805 SMT RES | 1 | 7636 |
| 132 | R212, R243, R297 | W100 39R 5%0805 SMT RES | 3 | 7728 |
| 133 | R215 | W125 1K5 5%0805 SMT RES | 1 | 7858 |
| 134 | R238 | W125 11K0 1%0805 SMT RES | 1 | 8257 |
| 135 | R250, R267, R412 | W100 2K74 1%0805 SMT RES | 3 | 7633 |
| 136 | R290 | W100 6K98 1%0805 SMT RES | 1 | 7680 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 137 | R339, R468 | W100 4K75 1%0805 SMT RES | 2 | 7642 |
| 138 | S1 | DPDT MINI PCVERT SNP ALT | 1 | 3522 |
| 139 | S2 | DPDT MINI PCVERT MOMENTARY | 1 | 3439 |
| 140 | S3 | DPDT MINI PCVERT SNP ALT | 1 | 3522 |
| 141 | SNL1 | 1 MIL POLYIMIDELABEL, 1" X .380" | 1 | 8370 |
| 142 | U2, U3, U4, U11, U13, U16, U26,U28, U31, U32, U35, U37 | MC33078D DUALOPAMP SO-8IC | 12 | 7817 |
| 143 | U5 | FV-1REVERB IC | 1 | 7912 |
| 144 | U7, U29 | LM1117REGULATOR 3V3SOT-223 | 2 | 7818 |
| 145 | U8, U27 | TPA3116D2DADST AMPTSSOP32P IC SMT | 2 | 6690 |
| 146 | U12 | BM83 BLUETOOTH DIGITAL SMT MOD | 1 | 8550 |
| 147 | U15 | TL062 DUALOPAMP LOPWR SMT SO-8 | 1 | 8516 |
| 148 | U18 | MC33063ADRBUCK/BOOST INVIC SO8 | 1 | 7719 |
| 149 | U19, U30 | LM13700MX ICXCONDUCTANCEAMP SMT | 2 | 7828 |
| 150 | U20, U23 | LM339D Quad SScomp SO-14 IC | 2 | 7659 |
| 151 | U21 | LM3409 PFETBUCK SMT ICVSSOP-10P | 1 | 6627 |
| 152 | U33 | MC33079D QUADOPAMP SO14IC | 1 | 7668 |
| 153 | U34 | MKL15Z64VLH448MHZ MCU SMTQFN32 | 1 | 8173 |
Bill Of Materials
| Line # | Designator | Description | Quantity | YsPart |
| 154 | U36 | ADAU1401 2856-Bit DSP 2ADC/4DAC | 1 | 8318 |
| 155 | W1 | 6P VERT HDR 2X3 VAL-U-LOK | 1 | 4262 |
| 156 | W2 | 2 CIR WS-HEADER 0.156 | 1 | 2371 |
| 157 | W3A, W3B, W6A, W6B, W7A, W7B | 7 CIR PH-HEADER 2MM | 6 | 2370 |
| 158 | W4A, W4B | 3 CIR PH-HEADER 2MM | 2 | 2369 |
| 159 | W5A, W5B | 12 CIR PH-HEADER 2MM | 2 | 2395 |
| 160 | W11 | 3 PIN POWER VH MALE .156 10A | 1 | 4227 |
| 161 | Y1 | 32kHz CRYSTAL SMT 4-PIN FSRLF | 1 | 7913 |
Bluetooth®
EXMMobile 8
Bluetooth™
The EXM Mobile8 is capable of streaming audio from Bluetooth™ enabled devices and supports wireless ‘stereo’ pairing between two EXM Mobile8s. In Bluetooth™ stereo mode, the first unit acts as the “Primary,” playing the left audio channel and additional units are “Secondary” (playing the right channel). The audio source needs to be connected to the Primary EXM Mobile8 unit.
Operation: When the EXM Mobile8 is powered on, Bluetooth™ is disabled by default. To turn on Bluetooth™, tap the Bluetooth™ button. If a device has been previously connected, it will attempt to reconnect. If a wireless stereo connection was used, both EXM Mobile8 units will try to re-establish the wireless stereo connection (the same Primary/Secondary roles re-established).
Pairing: Press the Bluetooth™ button down and hold for 4 seconds, then release.
Status: The blue LED indicates the status of the Bluetooth™ connection, please refer to the chart in the Owner's Manual for more detail.
Level: Streamed music's volume can be changed via the connected Bluetooth™ device or channel 3's Level control. Channel 3's Level setting controls the maximum level a connected device can set.
Stereo Mode: Wireless stereo playback is supported between two EXM Mobile8s. One acts as the Primary unit while another acts as a Secondary unit. The Primary unit plays the left audio channel while the Secondary unit plays the right. The source device only connects to the Primary unit, not the Secondary.
To enable Stereo Mode, double tap the Bluetooth™ button on the EXM Mobile8 used as the Primary unit (left), then double tap the Bluetooth™ button on the secondary EXM Mobile8 (right). The first unit double tapped becomes the Primary unit (left).
New devices can still be paired to a Primary unit if it's in Stereo Mode. Pairing a device to an EXM Mobile8 that is in Secondary mode will end the stereo wireless connection.
Button Operation:
Single Tap: Enables Bluetooth™
Double Tap: Enter Stereo Mode
Press and Hold (4 seconds):
Enter Pairing Mode
Press and Hold (8 seconds): Disables Bluetooth™
Range: The EXM's Bluetooth™ operating range is rated for 10 meters (33 feet) line of sight. The link's quality can be affected by excess wireless traffic in the 2.4 GHz bandwidth or structures between the Bluetooth™ unit and the streaming device.
Note: When connected with Bluetooth™, ALL audio is streamed from your device. If you don't want the streaming music to be interrupted, turn off 'notifications' on your device.
Controls & Input/Output
Level: Adjusts the channel's gain, use to adjust the channel's level in the overall mix.
Shape: The response is flat in the center position. Setting towards 'Music' shapes the response suited for prerecorded music and setting towards 'Speech' is best for speech and vocals.
Reverb: This control determines how much Reverb is applied to the corresponding channel.
Master: Used to set the overall level of the EXM Mobile8.
Note: When two systems are linked together, the Master Control only affects the level of the unit on which it is located.
Main Output/Input: Both male and female XLR jacks are wired in parallel to make it easy to 'link' different EXM enclosures together. Use standard XLR patch cables between cabinets.
Battery
Status: A series of four green LEDs indicate the approximate charge level. The topmost green LED illuminates if charged greater than 75%. The red LED indicates if the battery is critically low (approx. 10% remaining). The indicators only operate when the unit is turned on.
Low-Power “Sleep” State: The “Sleep” state is a special feature of the EXM Mobile8, this automatic mode reduces energy consumption when the system is not in use, preserving battery life. This mode is nearly undetectable when configured properly. To ensure the sleep state doesn’t interfere with normal operation, the output level should be controlled with the Master.
Charging Indicator: When AC is connected to the unit, the charging indicator will be enabled. If green, the unit is fully charged. If red, the unit is actively charging.
Charging: Plug it into an AC power source using the included power cord.
The EXM Mobile8 will not charge when the temperature is below 0^ C or above 45^ C.
If the EXM Mobile8 is going to be stored unused for a long period of time (6+ months) it is advisable to periodically plug it in to charge up the battery. If stored for a long period of time unused and it has not been maintained, it is advisable to connect the charger and leave it plugged in for approximately 24 hours.
The EXM Mobile is delivered with 40-50% of the charge capacity. Please charge your unit for 5-hours prior to initial battery operation!
THIS UNIT CAN BE OPERATED WHILE CHARGING!
To get the full Owner's Manual please visit our website at
http://www.yorkville.com/manuals/ or, if you need a printed version call 905-837-8777
REAL Gear.
REAL People.
Canada
Voice: (905) 837-8481
Fax: (905) 837-8746
U.S.A.
Voice: (716) 297-2920
Fax: (716) 297-3689
Yorkville
www.yorkville.com
Yorkville Sound
550 Granite Court
Pickering, Ontario
L1W-3Y8 CANADA
Yorkville Sound Inc.
4625 Witmer Industrial Estate
Niagara Falls, New York
14305 USA
