Product Type	Pneumatic Coil Nailer
Brand	DEWALT
Model	DPN75C-XJ
Power Source	Compressed Air
Recommended Operating Pressure	4.9 - 8.3 bar (71 – 120 psi)
Magazine Capacity	Up to 200 nails in glued strip (coil)
Dimensions (L x W x H)	340 x 100 x 250 mm (est.)
Weight	2.5 kg (without accessories)
Compatible Materials	Wood (wood to wood)
Fastener Type	Flat head nails diameter 2.8 to 4.1 mm
Nail Length	50 to 75 mm
Depth Adjustment	DIAL-A-DEPTH™ system, tool-less adjustment
Exhaust Deflector	360° adjustable, manual adjustment
Belt Hook	Yes, swiveling
Safety	Sequential trigger (safety lock)
Maintenance	Daily lubrication with pneumatic oil
Cleaning	Blow out regularly with dry compressed air
Storage	In a dry and clean place, protected from frost
Spare Parts	Available through DEWALT authorized dealers
Warranty	1 year (or according to local legislation)

Frequently Asked Questions - DPN75C-XJ DEWALT

How to load the coil of nails?

Open the magazine by pulling the lock down, then open the door. Place the coil on the spindle, unroll a few nails and position the first nail into the trigger channel. Close the door until it clicks. Make sure the nail heads are engaged in the nose slot.

How to adjust the driving depth?

Use the DIAL-A-DEPTH™ regulator. Turn the knob to adjust the depth: flush, slight, or deep. First adjust the air pressure for consistent penetration.

What are the essential safety instructions?

Always wear safety glasses. Never point the tool at yourself or others. Do not place your hands in the ejection zone. Disconnect the air supply before any adjustment or cleaning.

Can I use this tool for materials other than wood?

No, this tool is designed exclusively for wood-to-wood applications. Do not use it on hard materials such as metal or concrete, as this could damage the tool and cause injury.

How to clean the nailer?

Disconnect the air supply. Blow out dust with dry compressed air. Do not use solvents that could damage the seals. Lubricate regularly with pneumatic oil.

What to do in case of a jam?

Disconnect the air. Open the magazine and remove the stuck nails. If the jam persists, unscrew the nose cover to access the mechanism. Refer to the manual for details.

How to direct the exhaust air?

Manually turn the adjustable exhaust deflector in the desired direction. No tools are needed. This allows you to direct oil residue away from the user.

What oil to use for lubrication?

Use a light non-detergent pneumatic oil specifically designed for air tools. Apply a few drops into the air fitting before each use.

How to store the tool?

After use, disconnect the air and empty the magazine. Clean the tool. Store it in a dry place protected from frost. Use the belt hook for temporary suspension, but do not attach it to your belt.

Where to find spare parts?

Spare parts are available from DEWALT authorized dealers. Check the DEWALT website to find a dealer near you. Always use original parts to ensure safety.

USER MANUAL DPN75C-XJ DEWALT

English TOOL TECHNICAL DATA (original instructions) 6

Close-up of a DPN9033-XJ DP nail marker with a hand operating it (no visible text or symbols on the device itself)

Close-up of a Denver airkn劲机 with a hand operating it, no visible text or symbols on the device itself.

Hand holding a Diwalt DPN9021PL-XJ DJP feeder (no text or symbols on the device itself)

Close-up of a hand using a Diwali Nivel (no visible text or symbols on the device body)

Hand holding a small electronic device with a black-and-white photo of its base (no visible text or symbols)

Hand holding a GE WALK digital camera with a black connector (no visible text or symbols)

Close-up of a hand gripping a DPN64C-XJDPN connector device (no visible text or symbols on the device itself)

Close-up of hands using a BHWART tool to adjust or install a component, labeled 'FIG 1 F' (no text on diagram)

Close-up of hands using a DHWALI electric drill kit to install a metal fastener (no text or symbols visible)

Close-up of hands operating a D'WALY airknipper (no visible text or symbols)

Close-up of a mechanical assembly with a directional arrow pointing to a component (no text or symbols visible)

Close-up of a mechanical component with three curved arrows indicating rotational motion, labeled 'FIG 5' (no readable text or symbols beyond label)

Close-up of a mechanical component with ribbed structure and mounting bracket (no visible text or symbols)

Mechanical assembly with mechanical components and a labeled section 'FIG 7' (no readable text or symbols on the main structure)

Close-up of hands using a tool to cut a metal ruler and bracket (no visible text or symbols)

Close-up of a mechanical device with an arrow pointing to a component, no visible text or symbols

Close-up of a white deWalt welding torch with a magnified inset showing a bracket detail (no text or symbols on the device itself)

Close-up of a white industrial sewing machine with a black circular annotation highlighting the top component (no visible text or symbols)

PNEUMATIC FRAMING & COIL NAILERS - DPN9033-XJ, DPN9033SM-XJ, DPN9021PL-XJ, DPN9017PL-XJ, DPN90C-XJ, DPN64C-XJ, DPN75C-XJ

Congratulations!

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Safety instructions

⚠️ IMPORTANT READ CAREFULLY: It is important that all operators read and understand all sections of this Tool Technical Data manual and the separate Safety and Operating Instruction Manual which come with this tool. Failure to do so could result in you or others in the working area becoming seriously injured.
⚠ WARNING! Eye protection in accordance with 89/686/EEC, and with equal or greater grade than defined in EN166 should be used. However all aspects of operators work, environment and other type/s of machinery being used, should also be considered when selecting any personal protection equipment.

Note: Non-side shielded spectacles and face shields alone do not provide adequate protection.

⚠ WARNING! To prevent accidental injuries:

● Never place a hand or any other part of the body in fastener discharge area of tool while the air supply is connected.
● Never point the tool at self or at anyone else.
● Never engage in horseplay.
● Never pull the trigger unless the nose is directed towards the work.

● Always handle the tool with care.

- This tool is intended to be used for fastening wood to wood in pallet/crate and construction applications. DO NOT USE for fastening harder materials which could cause buckling of the fasteners and damage to the tool. If you are unsure of the suitability of this tool for certain applications, please contact your local sales office.

●These tools should not be used for anything other than wood to wood applications.

- Do not pull the trigger or depress the trip mechanism whilst loading the tool.

● To prevent accidental actuation and possible injury, always disconnect air supply.

1. Before making adjustments.
2. When servicing the tool.
3. When clearing a jam.
4. When tool is not in use.
5. When moving to a different work area, as accidental actuation may occur, possibly causing injury.

6. During maintenance and cleaning

7. Read the additional Safety & Operating instructions booklet before using tool.
   ● The operation of this tool can cause sparks and act as a source of ignition for flammable fuels and gases.

⚠️ IMPORTANT! Tool Operation:

- To identify the operation type of your model, check the ID label affixed to the tool/ rear of this manual and the corresponding table row L for that model. Read the corresponding section in the Safety & Operating instructions for information of each trip type.

Note: Use only fasteners recommended by DEWALT for use in DEWALT tools or nails which meet DEWALT specifications.

Operating instructions

LOADING THE TOOL

⚠ Warning: When loading the tool 1) Never place a hand or any part of the body in fastener discharge area of the tool; 2) Never point the tool at self or anyone else; 3) Do not pull the trigger or depress the safety yoke as accidental actuation may occur, possibly causing injury.

DPN9033-XJ / DPN9033SM-XJ / DPN9021PL-XJ / DPN9017PL-XJ

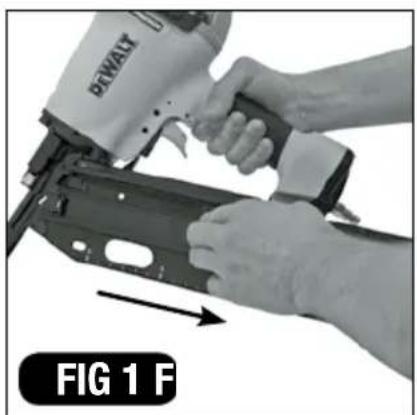

1. Open the magazine: Pull pusher back to engage latch. (Fig. 1)

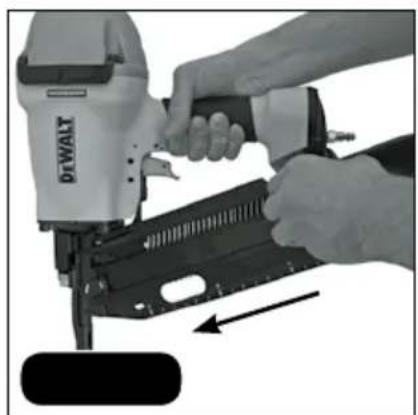

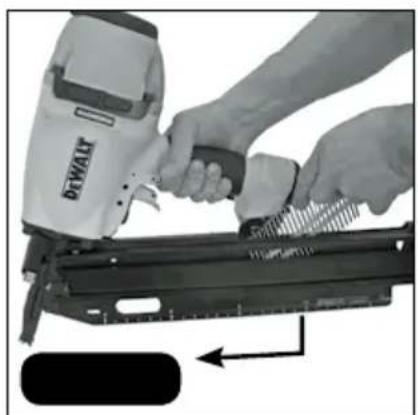

2. Hold nailer down with magazine tilted downwards. Insert sticks of nails. (Fig. 2)

3. Close magazine: Release pusher by first pulling back on the pusher and then pressing the release tab. Slide pusher against the nails. (Fig. 3)

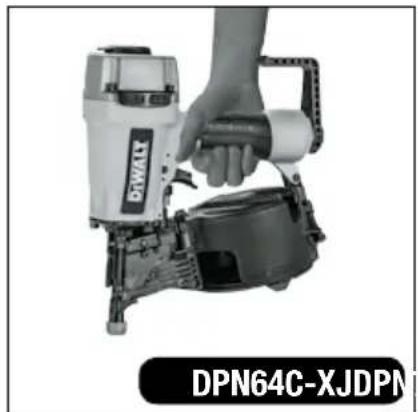

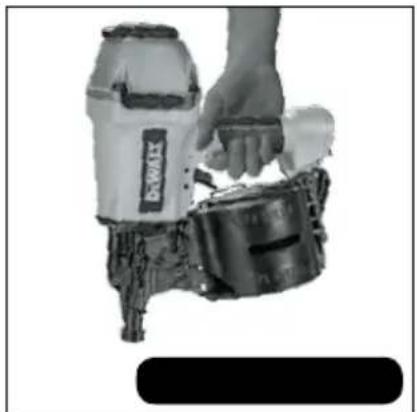

DPN90C-XJ / DPN75C-XJ / DPN64C-XJ

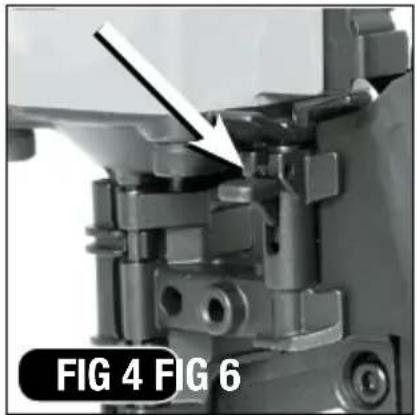

1. Open the magazine: Pull down on the latch and swing the door open. Swing magazine cover open. (Fig. 4)
2. Check adjustment: the nailer must be set for the length of nail to be used. Nails will not feed smoothly if the magazine is not correctly adjusted.

To change the setting:

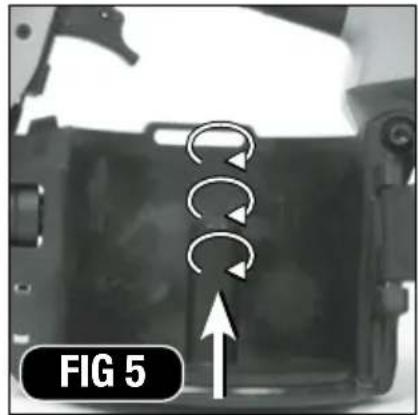

The magazine contains an adjustable nail platform on which the nail coil rests.

The nail platform can be adjusted up and down to three or 4 nail settings. To change settings, pull up on the post and twist to the correct step. (Fig. 5)

Step DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 -- 65-75mm

1. Load the coil of nails: Place the coil of nails over the post in the magazine. Uncoil enough nails to reach the feed pawl. Place the first nail in front of the front tooth on the feed pawl, in the driver channel. The nail heads must be in the slot in the nose. (Fig. 6)
2. Swing the door/magazine cover closed. Check that the latch engages when released. (If it does not engage, check that the nail heads are in the slot in the nose.)

NOTE: DPN64C-XJ / DPN75C-XJ ONLY

Removal of plastic strip: As nails are driven, the plastic strip will feed out of the tool. When sufficient strip has been fed out, it can be torn away by pulling against the tear edge in the nose. (Fig. 7)

REMOVING NAILS

(DPN9033-XJ / DPN9033SM-XJ / DPN9021PL-XJ / DPN9017PL-XJ)

1. Disconnect the tool from the air supply

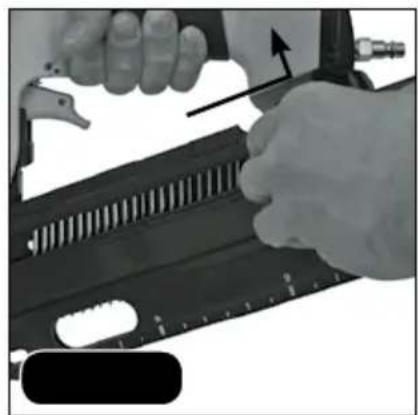

2. Pull pusher back until it is securely engaged (Fig. 8)
3. Slide nails back to opening and push out

CAUTION: The pusher and pusher spring (constant force spring).

Caution must be used when removing nails, as if pusher is disengaged from latch it could spring forward potentially pinching your hand.

Extra caution should be taken when carrying out maintenance on the magazine area of the tool. The spring is wrapped around but not attached to a roller. If the spring is stretched beyond its length, the end will come off the roller and the spring will roll up with a snap, with a chance of pinching your hand. Also the edges of the spring are very thin and could cut your hand. Care must also be taken to insure no permanent kinks are put in the springs as this will reduce the springs force.

GUIDE ROD INSTALLATION AND REMOVAL (DPN9033-XJ / DPN9033SM-XJ / DPN9021PL-XJ / DPN9017PL-XJ)

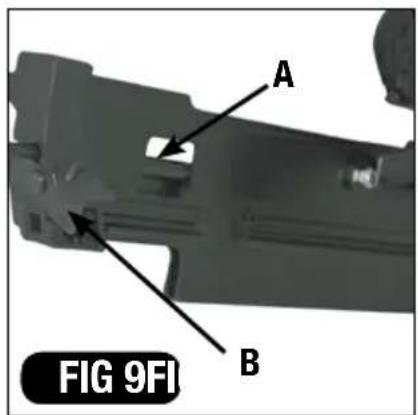

Step 1 (Fig. 9): Locate guide (A); Pull and rotate cover (B).

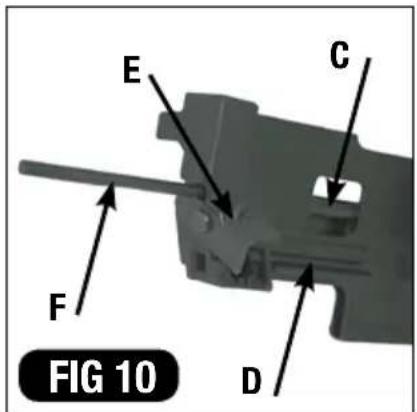

Step 2 (Fig. 10): Locate access windows for installation and removal of guide rod (C); Locate guide rod storage channel (D); Rotate cover open to install or remove guide rod (E); Install or remove guide rod through rear of magazine (F).

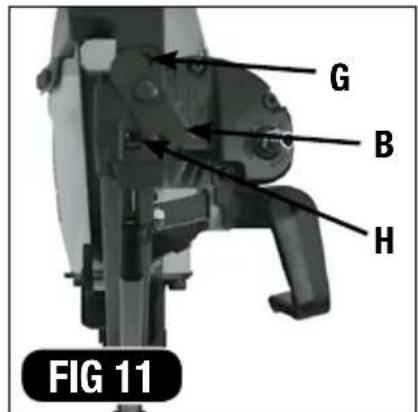

Step 3 (Fig. 11): Install guide rod through (G) for 2.8mm to 3.3mm shank nails. Rotate cover (B) to close; Install guide rod through (H) for 3.3mm to 4.1mm shank nails. Rotate cover (B) to close.

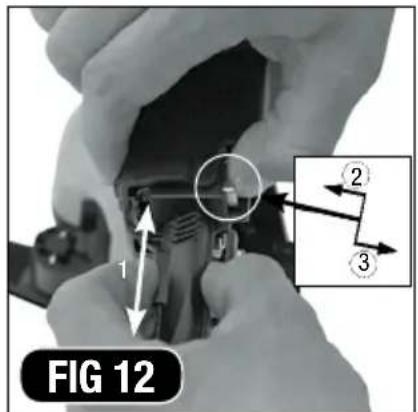

FASTENER DEPTH CONTROL ADJUSTMENT (DPN9033-XJ / DPN9033SM-XJ / DPN9021PL-XJ / DPN9017PL-XJ / DPN90C-XJ) (FIG. 12)

The Fastener Depth Control Adjustment feature provides control of the nail drive depth from flush with or just above the work surface to shallow or deep countersink.

Warning! Disconnect tool from air supply before attempting any parts disassembly and before changing the work contacting element adjustment.

1. Push in Locking Button
2. Adjust contact arm up to increase depth of drive or down to decrease it.
3. Release locking button.

DPN75C-XJ / DPN64C-XJ (Fig. 13)

The DIAL-A-DEPTH™ Fastener Control adjustment feature provides close control of the fastener drive depth; from flush with the work surface to shallow or deep countersink.

First, set the air pressure for consistent drive in the specific work, then use the DIAL-A-DEPTH™ Fastener Control adjustment to give the desired depth of drive.

UTILITY HOOK (Fig. 14 - ALL MODELS)

These tools may include an additional utility hook suitable for storage and temporary hanging of the tool.

⚠ WARNING! Never use the utility hook to hang the tool from the body, clothing or belt.

⚠ WARNING! Never use the utility hook with contact (black) trigger operated tools.

DIRECTIONAL EXHAUST DEFLECTOR (FIG. 15 - ALL MODELS)

The adjustable exhaust deflector can be rotated into any desired position by hand without the use of hands.

CLOUEUSES A CHARPENTE ET A ROULEAUX PNEUMATIQUES - DPN9033-XJ, DPN9033SM-XJ, DPN9021PL-XJ, DPN9017PL-XJ, DPN90C-XJ, DPN64C-XJ, DPN75C-XJ

Félicitations !

Cran DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 38-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Schritt DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Stap DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Trin DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 -- 65-75mm

Vaihe DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Brúμα	DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm	32-40mm	38-40mm
2 70-75mm	45-50mm	45-50mm
3 80-90mm	55-64mm	55-60mm
4 - - 65-75mm

Passo DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 -- 65-75mm

Trinn DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 38-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Passo DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Paso DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Steg DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Krok DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Krok DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

Lépés DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 38-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

treaptă DPN90C-XJ DPN64C-XJ DPN75C-XJ
1 50-65mm 32-40mm 3B-40mm
2 70-75mm 45-50mm 45-50mm
3 80-90mm 55-64mm 55-60mm
4 - - 65-75mm

GB CE DECLARATION OF CONFORMITY

We declare under our sole responsibility that this fastener driving tool as identified above is in conformity with the following standards: EN 792-13:2000+A1:2008 in accordance with regulations 2006/42/EC. Technical construction files for use by authorities are available from the addresses below.
