USER MANUAL B300 Bimar

type B300 (mod. TO-30A-2L)

This symbol tells you to read these instructions carefully before using the appliance, and to inform any third parties if necessary. Keep the instruction booklet for further reference throughout the lifetime of the appliance. If when reading these instructions you find any parts difficult to understand or have any doubts, contact the manufacturer at the address provided on the back page before using the product.

This symbol highlights instructions and precautions for safe use.
Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.

WARNING: hot surfaces.

This symbol warns users that the door and accessible surfaces may be at high temperatures when the appliance is in operation.

SAFETYNOTICES

• This appliance is intended only for household (therefore not professional) use, for cooking, warming, toasting and defrosting foods, as instructed here.

• Take care when cooking foods containing oils and fats, since they may cause fires if overheated. Keep a constant eye on the oven during cooking. If flames are seen coming from foods or other parts, never attempt to put them out with water. Keep

the door closed, and first disconnect the power supply by turning off the control panel switch, and only then remove the plug from the power socket and smother the flames with a damp cloth.

The appliance must only be used indoors, on a stable surface: the oven is not designed for use outdoors, for built-in installation, or for any uses not described here. Never leave the appliance exposed to the weather (sun, rain, etc.).

Any other use constitutes misuse and is hazardous. Examples of household appliances are appliances for typical household functions, used in the home, which may be used for typical household functions even by unskilled staff:

• in shops, offices and other similar workplaces;
• on farms and in similar locations;
• by the customers of hotels, motels and other residential environments;

• in bed and breakfast establishments.

• The manufacturer cannot be held liable for any damage arising from misuse or incorrect or

irresponsible use, and/or from repairs carried out by unqualified persons.

• The user must not leave the appliance unattended when it is connected to the power supply.
• Accessible parts may become very hot during use; keep children well away from the appliance. Never touch the metal parts or the glass of the door; only take hold of the knobs and door handle and wear oven gloves if necessary.
• When the oven is in use, the internal shelf must be kept in place to prevent dropping of items: only remove the container (oven dish or tray) containing the food.
• Never place paper, cardboard, plastic, forks or other utensils in the oven cavity.

• Handle the door with care to ensure that the oven does not tip over:

• never place anything (pans, containers or utensils) on the door or on top of the oven

• do not knock or jolt the oven during use

• do not pour liquids onto or into the oven

• Unplug the appliance from the socket when not in use.

• The power socket must be easily accessible so that the plug can be removed easily in an emergency.
• The appliance must not be placed just below a power socket.
• Never move the appliance when in operation.
• Do not cover the appliance when in use.
• Do not use the appliance as a heater.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or the necessary knowledge providing they are supervised or have been instructed on the safe use of the appliance and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance intended to be carried out by the user should not be done by children unless they are supervised.
• This appliance may be used by children from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and have understood the hazards involved. Children must not play with the appliance. Cleaning and maintenance shall not be made by children unless they are over 8 years old and are supervised.

Keep the appliance and its cord out of reach of children less than 8 years of age.

• Warning: when using electrical appliances, always comply with the basic safety precautions to avoid the risks of fire, electric shock and physical injury.
• Take special care when using the oven in the presence of children, since the metal surfaces and oven door become very hot.
• Do not move the appliance by pulling the cable.
• Do not touch the appliance with wet or damp hands or feet.
• If the appliance is dropped or malfunctions, disconnect the power cord at once. Check all parts

for damage and do not switch it on unless certain it is intact: if in doubt, call in qualified staff.

• To avoid all risk of electric shock, never immerse the plug, the power cord or the appliance in water or any other liquid.
• Do not pull the power cord or the appliance to remove the plug from the power socket.
• If the power cable is damaged, it must be replaced by the manufacturer or its technical support service, or by a person with similar qualifications, to prevent all risks.
• This appliance is not intended for operation by means of an external timer or with a separate remote control system, to avoid the risk of fire if the appliance is covered or not correctly positioned.

INSTALLATION

• After removing the packaging, check that the appliance is intact; if in doubt, do not use it and call in qualified staff. Packaging components (plastic bags, expanded polystyrene, nails, etc.) must not be left within reach of children since they are potentially hazardous; dispose of them in accordance with the current law.

Warning: any stickers or advertising leaflets applied to the door, or protective film, must be removed before the appliance is used.

• Before connecting the appliance, check that the voltage values marked on the nameplate are the same as those of the electrical mains, and that the power socket is properly earthed (the manufacturer declines all responsibility arising from failure to comply with this rule). If the appliance's plug is not compatible with the socket, have the socket replaced with another of suitable type by qualified staff, who must ensure that the socket's wire gauge is suitable for the appliance's power draw. Check that there are no other appliances drawing large amounts

of power on the electrical line, to avoid overloads and fire risks. In general, the use of adapters and/or extension leads is not recommended; if their use is unavoidable, they must comply with current safety regulations and their current rating (amps) must be no lower than the maximum current draw of the appliance.

• Before each use, check that the appliance is in good condition and ensure that the power cord is not damaged and do not switch it on unless certain it is intact: if in doubt, call in qualified staff.

• Place the appliance:

• well away from other heat sources (e.g. other ovens, gas hob, etc.), flammable materials (upholstery, etc.), explosive materials (spray cans) and materials which may warp in heat

• on a firm, horizontal worktop with a heat-resistance, sufficiently strong surface, in a position where it cannot be knocked, and far enough from the edge of the unit to ensure that it cannot fall off

• well away from containers holding liquids, such as sinks, etc. If it accidentally gets wet or is immersed in a liquid, first deactivate the power socket by turning off the switchboard switch, and only then remove the plug from the power socket at once, leave it to cool, dry it carefully and check that the electrical parts are not wet; if in doubt, call in qualified staff at a height of at least 85cm , out of reach of children

• Gaps of at least 35cm above the appliance, 10cm behind it and 20cm at its sides must be ensured.

• Never place anything on top of the oven and do not obstruct the ventilation grilles: obstructing the grilles may cause the appliance to overheat.
  The oven is not made for storing food.
• Make sure that the cable is correctly positioned and is not in contact with hot parts or sharp edges, or wound around the appliance or twisted, and does not become entangled, to prevent the appliance from falling. Check that no-one can trip over it, to avoid accidental falls or injuries.
• In case of a fault or malfunction, switch the appliance off and have it checked by qualified staff.

USE

The appliance has the following regulator devices:

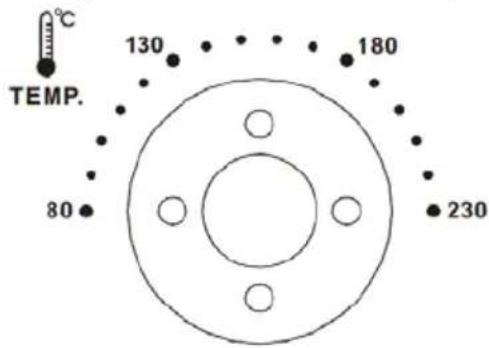

Thermostat knob (1). This sets the temperature inside the oven (max 230^ approx.): turn the knob to the temperature value required and the heating elements will switch on, switching off when the set temperature is reached, and back on again when it decreases.

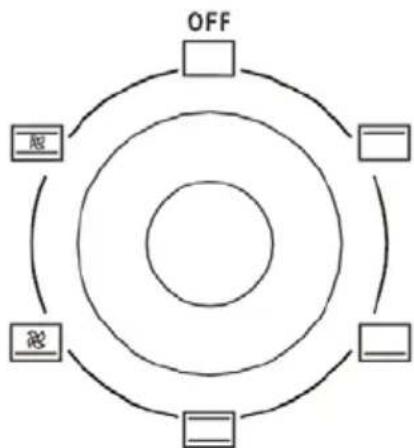

Selector knob (2). This selects the oven's cooking mode and operates the top and/or bottom heating elements or both.

In detail:

OFF

Heating elements: off

Bottom element: cooks foods mainly on the bottom + inside ventilation

Top + bottom element: uniform cooking + inside ventilation

Top element: cooks foods mainly on the top

Bottom element: cooks foods mainly on the bottom

Top + bottom element: uniform cooking

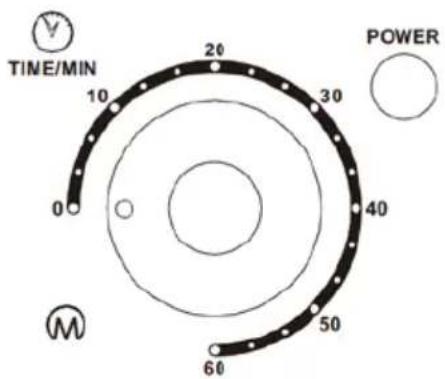

Timer knob (3). This sets the oven's operating time (max 60 minutes). Turn the knob clockwise to the time value required: when the set time ends, the oven switches off, the knob gradually returns to the "0" position (also sounding a beeper) and the internal fan and light also go out. To stop the cycle, simply turn the knob anticlockwise to the "0" setting. The oven will not come on with the knob turned to "0". To use the oven without the timer, turn the timer anticlockwise to the manual

position "t, to switch off the oven, turn the knob to "0" (off).

Internal light and signal lamp: they are always on when the oven is in function

The oven is also complete with the following accessories:

• handle (4) for the oven tray and shelf
• stainless steel shelf (5): fit into the runners at the appropriate height If the shelf is hot, use the handle provided or oven gloves when removing it.
  oven tray (6): fits into the runners; use the handle provided or oven gloves when removing the tray. If containers are used, ensure that they are heat-proof: do not use containers which may become misshapen, catch fire or contaminate foods.
• crumb tray (7): fit this underneath the bottom heating elements; if it is not fitted or incorrectly positioned, the worktop underneath will overheat. This tray collects crumbs or any overflows of liquids. Do not use the oven unless the crumb tray is in place.

First use

Operate the oven empty, to burn off the "new smell" and any oils left by the production process. Wash and dry the shelf, oven tray and crumb tray and fit them in place.

Connect the plug to the power socket and set:

the selector knob on " ", the thermostat knob on "230" and the timer knob on "20". If necessary, repeat this operation a second time. At the end of the operating cycle, before removing the accessories remove the plug from the power socket and wait for the oven to cool.

Use

For some foods, the oven should be preheated to the chosen temperature. Cooking times depend on the type and quantity of foods, their temperature and personal preferences. When cooking frozen foods, refer to the recommended times on the product packs.

• Connect the plug to the power socket.
• Fit the crumb tray in place (underneath the bottom heating elements).
• Fit the shelf onto the runners at the appropriate height.

• Make the following settings:

• turn the thermostat knob to the suitable temperature

• turn the selector knob to the suitable cooking mode
  prepare the foods for cooking in the oven tray, on an oven dish or on the shelf, then, after heating the oven if necessary, place them inside at the appropriate height and close the door.

• turn the timer to the time required: if this is insufficient, reset the timer for the time still needed.

• After cooking, turn the timer knob to "0", thermostat knob to the min. setting (80), and remove the plug from the power socket.

Warning: unplug the oven from the power socket when not in use.

CLEANING AND MAINTENANCE

Warning: before cleaning the appliance, remove the plug from the power socket and wait for it to cool completely. The appliance and all its components in contact with foods (pan, shelf and crumb tray) need thorough cleaning after each use.

• Do not immerse the appliance in water or any other liquid and do not wash it under running water or in a dishwasher.

• Clean the shelf, oven tray and crumb tray using a soft sponge with warm water and ordinary washing-up liquid and then rinse with plenty of water and dry with care. Do not use metal scouring pads or abrasive products.

• The outside surface must be cleaned with a soft cloth. Do not use abrasive cleaners which might damage the surface.

• Never clean the door or the inside of the oven with corrosive products and do not scratch the sides with sharp or pointed objects. Do not use metal scouring pads or abrasive products. Clean with a sponge wet with water and ordinary washing-up liquid. Before using it, check that it is perfectly dry. Do not pour liquids onto the door, especially when it is hot, as this may break the glass.

• When the appliance is out of use, cover it and store it in a dry place. Do not immerse the toaster in water or any other liquid.

• If you decide not to use the appliance any more, it must be rendered unusable by cutting off the power supply cord (first making sure that the plug has been removed from the power socket), and any parts which are hazardous if used as children's playthings must be rendered harmless.

• To replace the lamp, proceed as follows: unscrew the glass cover and then the bulb anticlockwise, replace it with a new one of the same model (type: E14, 220-240V 15W, 300^ C), and then repeat the operations in reverse.

Information for correct disposal of the product under the European Directive directive 2011/65/EU. At the end of its lifetime, the product must not be disposed of with ordinary urban waste.

It can be consigned to the special waste recycling centres provided by local government, or by the retailers who provide this service.

Proper disposal of a household appliance prevents possible detrimental effects on the environment or health arising from its incorrect disposal and allows the recovery of its constituent materials, generating major savings of energy and resources. The product bears the crossed-out symbol of a wheeled rubbish bin to indicate that it must be disposed of separately. Illegal dumping of the product by the user will be subject to prosecution under the relevant law.
