USER MANUAL BEMÖTA 103.923.33 IKEA

Cleaning and maintenance 12

What to do if... 13

Technical data 15

Energy efficiency 16

Environmental aspects 17

IKEA guarantee 18

Safety information

For your own safety and correct operation of the appliance, please read this manual carefully before installation and operation. Always keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users are familiar with all the appliance's operating and safety characteristics.

△ Connection of the wiring must be performed by a specialist technician.

• The manufacturer cannot be held responsible for any damage resulting from incorrect or inadequate installation.
• The minimum safety distance between the cooker hob and the extractor hood is: 500mm for electrical hob and 500mm for gas hob.
• If the gas hob installation instructions specify a distance greater than that indicated above, this must be taken into account.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• The cut-out devices must be installed in the fixed system ac-

ENGLISH 7

cording to the wiring system regulations.

• For Class I appliances, check that the domestic power supply has a suitable earthing connection.
• Connect the hood to the flue with a pipe with a minimum diameter of 120 mm. The fume path must be as short as possible.

- All the regulations regarding air discharge must be complied with.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of ventilation must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electricity, the negative pressure in the room must not exceed 4 Pa mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- The power cord, if damaged, must be replaced by the manufacturer or by a service technician.

- Connect the plug to a socket complying with current regulations, located in an accessible place.

- Regarding the technical and safety measures to be adopted for fume discharging it is important to strictly follow the regulations provided by the local authorities.

⚠ WARNING: Before installing the hood, remove the protective films.

- Use only screws and small parts of a type suitable for the hood.

ENGLISH 8

⚠ WARNING: failure to install the screws or fixing devices in accordance with these instructions may result in electrical hazards.

- Connect the hood to the power supply by means of a bipolar switch with a distance between the contacts of at least 3 mm.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé under the hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lacking in experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance by the user must not be performed by children, unless they are supervised.

- Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lacking in experience and knowledge, unless they have been given supervision or instruction.

The accessible parts may become hot when used with cooking appliances

- Clean and/or replace the filters after the time specified (fire hazard).

- There must be adequate ventilation of the room when the hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- Kitchen hoods and other cooking fume extractors can affect

the safe operation of appliances which burn gas or other fuels (including those in other rooms) due to the backflow of combustion gases. These gases can cause carbon monoxide poisoning. After installing a kitchen extractor hood or any other cooking fume extractor, make sure that the gas appliances are tested by a certified technician to guarantee that there is no backflow of combustion gases.

General information

Use

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• The top of the hood must not to be used as a shelf.
• The extractor hood has been designed exclusively to eliminate cooking smells in domestic use.
• Never use the extractor hood for purposes other than those for which it was designed.
• Never leave high flames under the extractor hood when it is on.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

Installation method

The hood has been designed for installation and use in the "suction version" or in the "air recirculation version".

Extraction version (see symbol in the callation instructions)

Cooking steam is suctioned and channelled outside the house through a discharge duct (not supplied), fitted to the hood steam outlet. Make sure that the outlet duct is properly installed at the air outlet, using a suitable connection system.

Air recirculation version (see symbol in installation instructions)

The air is filtered through one or more carbon filters, and then resent into the room.

Important: Ensure appropriate air circulation around the hood.

Important: If the hood is supplied without carbon filters and installed on recirculation mode, these must be fitted before the hood can be used. The filters are commercially available.

The hood should be installed away from particularly dirty areas, windows, doors and heat sources. Wall mounting accessories are not included as they vary depending on the wall material. Use fixing systems suitable for the walls of your home and for the weight of the appliance. For further details, contact a specialist dealer. Keep this booklet for future consultation.

Filters alarm

The grease filter alarm is active on the hood as standard, for reset see the control panel.

The long-life carbon filter alarm can be activated according to the procedure on the control panel.

When the filter alarm is activated, the following messages will appear over time:

Grease filter cleaning required alarm: button "A" flashes once per second. For

ENGLISH 10

maintenance, see the Maintenance and Cleaning paragraph.

Long-life carbon filter cleaning required alarm: button "A" flashes twice per second.

For maintenance, see the Maintenance and Cleaning paragraph.

Once the filters have been regenerated, reset the alarm signal (see the Control panel paragraph).

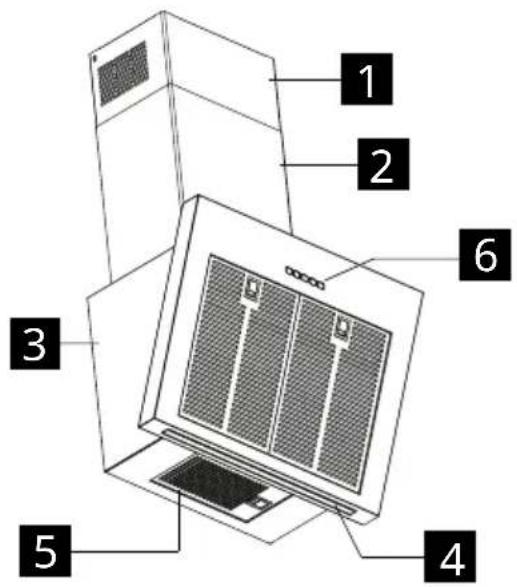

Product description

Diagram of a desktop computer with numbered parts labeled 1 through 6

1 Upper chimney
2 Lower chimney
3 Hood body
4 Lighting
6 Control panel
5 Grease filter

Control panel

BUT-TON	FUNCTION
ASpeed	Turns the motor on/off at speed one.
	Attention: the product starts with the filter alarm disabled.Press and hold the button for approximately 2 seconds, with all loads deactivated (motor+lights), to activate the grease filter alarm. LED (B) flashes twice for confirmation.To turn off the alarm, press the button again and hold it for at least 2 seconds. LED (B) flashes once.
BSpeed	Turns the motor on at speed two / Activates the carbon filter alarm.
	Attention: the product starts with the filter alarm disabled.Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to turn the activated carbon filter alarm on. LED (A) flashes twice to confirm.To turn off the alarm, press the button again and hold it down for at least 2 seconds. LED (A) flashes once. Only for the recirculation mode.
CSpeed	Starts the motor at speed three / Resets the grease filters saturation alarm.
	Press and hold the button for approximately 2 seconds, with all loads deactivated (motor+lights), to reset the filter saturation alarm. LED (A) flashes three times.
DSpeed	Turns the motor on at Booster speed.This speed is timed for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is activated with the motor turned off, it will switch to OFF at the end of the time. To deactivate it, press button D or press button A.
ELight	Press briefly: Turns the lighting system on and off at maximum intensity.Press and hold to change the lighting intensity up or down.

Filters alarm

When the filter alarm is activated, the following messages appear depending on the circumstances:

Grease filter cleaning required alarm: button "A" flashes once per second.

Odour filter cleaning required alarm: button "A" flashes twice per second.

Once the filters have been regenerated reset the alarm signal.

General tips

• Operate the hood at minimum speed at the start of cooking and keep it running for a few minutes after cooking is finished.
• Only increase the speed in the presence of large quantities of smoke and steam and only use the booster speed(s) in extreme situations.
• Replace the filter or carbon filters when ne-

cessary to maintain good odour reduction efficiency.

• Clean the grease filter or filters when necessary to maintain good grease absorption efficiency.
• Use the maximum diameter of the ducting indicated in this manual to optimise efficiency and to minimise noise.

Cleaning and maintenance

Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

IMPORTANT: Clean the hood using a damp cloth and a neutral liquid detergent.

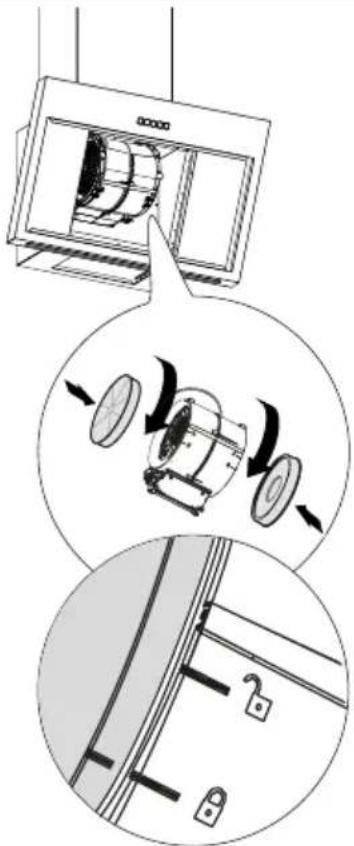

Long-life carbon filter

The odour filter can be washed and regenerated every 3-4 months (or more frequently if the hood is subject to intensive use), up to a maximum of 8 regeneration cycles (in case of particularly intensive use it is recommended that you do not exceed 5 cycles).

Diagram showing mechanical assembly steps with no visible text or symbols

Regeneration procedure

• Wash in the dishwasher at a MAX temperature of 70^ or hand wash in hot water without using abrasive sponges (do not use detergents!).
• Dry in the oven at a MAX temperature of 70^ for 2 hours (it is advisable to carefully read the user manual and the assembly instructions of the oven you own).

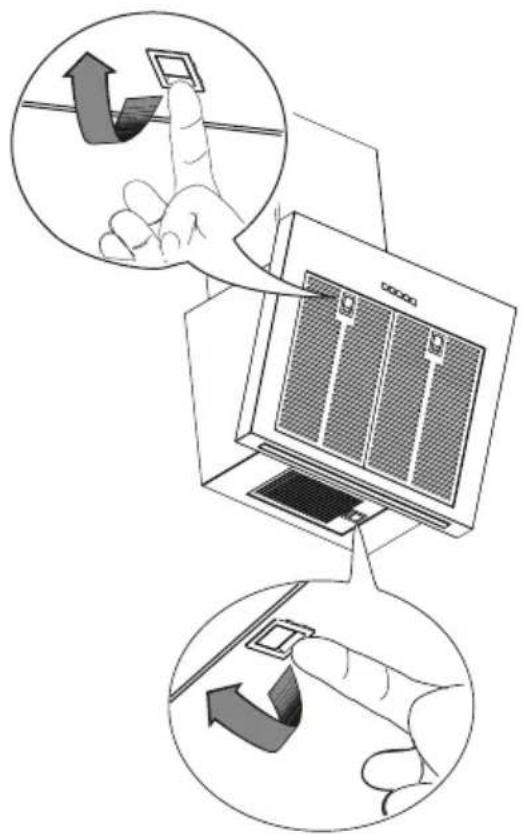

Grease filters

Continue to clean or replace the filters at the scheduled intervals to keep the hood in good working order and avoid the potential risk of

ENGLISH 13

fire due to the excessive build-up of grease. The grease filters must be cleaned after every 2 months of operation or more frequently in the case of very intense use and are dishwasher safe.

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Light replacement

For replacement, contact an Authorised Service Centre.

What to do if...

If there is a fault, first try to find a solution yourself. If you are unable to resolve the problem yourself, contact an authorised service centre.

In the event of improper use of the appliance or installation carried out without respecting the assembly instructions, it may be necessary to pay for the visit of an Authorised Service Centre technician, even during the warranty period.

PROBLEM POSSIBLE CAUSE SOLUTION
The device is not stable.	The appliance has not been installed correctly.	Follow the installation instructions supplied with the appliance.
The appliance is not level.	The appliance has not been installed correctly.	Follow the installation instructions supplied with the appliance.
The performance in terms of grease capture is not satisfactory.	Presence of oil and grease on the metal filters or on the carbon filters.	Observe the cleaning frequency of the filters as described in the user manual.
The appliance does not work.	The device has not been connected correctly.	Check that the mains cable is connected to the motor unit or that the plug is connected to the socket.
The light doesn't work. The LED	is broken. For replacement, contact an	Authorised Service Centre.
The hood is noisier than the customer's expectations.	The diameter of the air vent in the wall is too small and causes the pressure to drop and the motor speed to increase.	Follow the installation instructions supplied with the appliance.
	The product is installed in recirculation mode.	The product in recirculation mode (and with the carbon filter fitted) is noisier than a product in suction mode.
	The ventilation duct has more than one bend.	If the fume evacuation system of the building has multiple bends or covers a long distance, the product may be noisier.
Button A flashes once per second.	Grease filters alarm.	Clean the grease filter and reset the alarm. Consult the care and maintenance guide and the control panel guide to reset the filter alarm.
Button A flashes twice per second.	Activated carbon filters alarm.	Clean the activated carbon filter and reset the alarm. Consult the care and maintenance guide and the control panel guide to reset the filter alarm.

Before contacting the Authorised Service Centre:

Turn the power back on to check whether the problem has disappeared. If this is not the case, turn it off and repeat the operation after one hour. If the appliance still does not work correctly after carrying out the checks listed

in the troubleshooting guide and turning the appliance back on, contact the Authorised Service Centre clearly explaining the problem and specifying:

• the type of fault;
• the model;

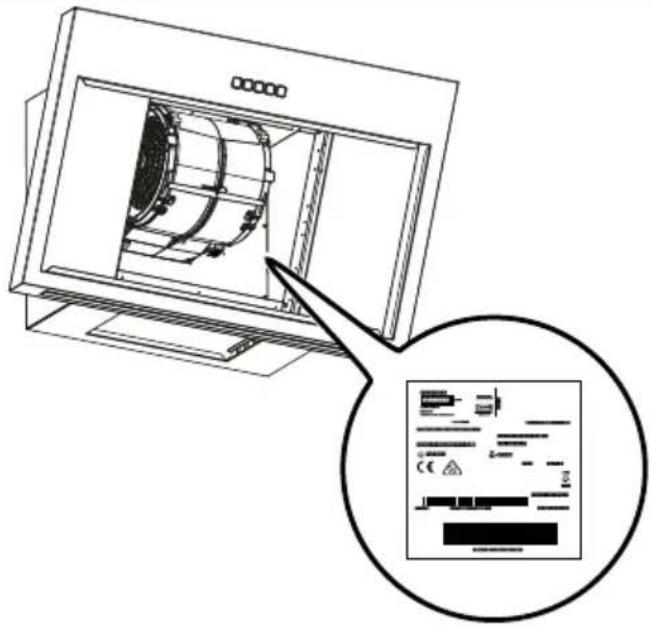

• the type and serial number of the appliance (indicated on the data plate).

Technical data

		Unit Value
Type of product			Wall mounted hood
Dimensions	Width	mm 698
	Depth	mm 381
	Min./max. output height	mm 815 / 1065
	Min./max. recirculation height	mm 912 / 1185
Airflow max* - Exhaust		m3/h 380
Noise max* - Exhaust		dBA 60
Airflow max* - Recirculating		m3/h 365
Noise max* - Recirculating		dBA 78
Total power		W 276
Information on the light	Type		LED BAR
	Number and power		1 x 6W
	Connection		N/A
Minimum installation height - gas hob		mm 500
Minimum installation height - electric hob		mm 500
Net weight		Kg 16,5
* Maximum speed (without booster setting)

This appliance has been designed, manufactured and sold in compliance with the EEC directives

This appliance has been designed, manufactured and marketed in compliance with the directives UK CA

The technical data are shown on the plate applied inside the appliance.

Technical line drawing of a computer monitor with an inset showing internal components and a magnified view of the screen (no text or symbols present)

Energy efficiency

Product information according to EU regulation No. 66/2014	Unit Value
Supplier's name	IKEA
Model id	BEMOTA903.893.36103.923.33603.923.02
Annual energy consumption	kWh/a 34.8
Time increase factor		0.6
Fluid dynamics efficiency		37.6
Energy efficiency index		36.6
Air flow measured at the optimum efficiency point	m^3/h 410
Air pressure measured at the optimum efficiency point	Pa 459
Maximum air flow	m^3/h 700
Electrical power supply measured at the optimum efficiency point	W 139.0
Nominal power of the lighting system	W 6.0
Average illumination of the lighting system on the cooking surface	Lux 350
Currency consumption measured in standby	W N/A
Currency consumption measured when off	W 0.49
Maximum sound level (without booster setting)	dbA 60

Reference standards:

EN/IEC 61591

EN/IEC 60704-1

EN/IEC 60704-2-13

EN/IEC 60704-3

EN 50564

Energy saving

The appliance includes features that help save energy during everyday cooking.

Environmental aspects

Information on disposal

Your obligations as an end-user

This electrical or electronic equipment is marked with a crossed-out wheeled bin. The equipment may therefore only be collected and returned separately from unsorted municipal waste, i.e. it must not be disposed of with household waste. The equipment can be returned, for example, to a municipal collection point or, if applicable, to a distributor (see below for their take-back obligations in Germany). This also applies to all components, subassemblies and consumables of the old equipment to be disposed of.

Before the old equipment may be disposed of all old batteries and old accumulators that are not enclosed by the old equipment must be separated from the old equipment. The same applies to lamps that can be removed from the old equipment without destroying them. The end-user is also responsible for deleting personal data from the old equipment.

Notes on recycling

Help recycle all materials marked with this symbol. Do not dispose of such materials, especially packaging, in the household waste but via the relevant containers provided or the appropriate local collection systems.

Help to protect the environment and human health by recycling including waste of electrical and electronic appliances.

The following additional information applies in Germany.

Take-back obligations of distributors

Anyone who sells electrical and electronic equipment on a sales floor area of at least 400 m^2 or otherwise supplies it to end users on a commercial basis is obliged, when

supplying a new equipment, to take back at the place of supply or in the immediate vicinity thereof free of charge an old equipment belonging to the end user of the same type of equipment which fulfils essentially the same functions as the new equipment. This also applies to distributors of groceries with a total sales area of at least 800 m² who offer electrical and electronic equipment several times a calendar year or on a permanent basis and make it available on the market. In addition, such distributors must, at the request of the end-user, take back in the retail shop or in the immediate vicinity free of charge old equipment that does not exceed 25 cm in any external dimension (small electrical equipment) thereof; in this case, take-back may not be linked to the purchase of an electrical or electronic equipment but may be limited to three old equipment per type of equipment. The place of delivery is also the private household if the new electrical or electronic equipment is delivered; in this case the collection of the old equipment is free of charge for the end user.

The above obligations also apply to distribution using means of distance communication if the distributors maintain storage and dispatch areas for electrical and electronic equipment or total storage and dispatch areas for groceries that correspond to the sales areas mentioned above. However, the free collection of electrical and electronic equipment is then restricted to heat transmitters (e.g. refrigerators), screens, monitors and equipment containing screens with a surface area of more than 100 cm^2 and equipment where at least one of the external dimensions is more than 50 cm. For all other electrical and electronic equipment the distributor must ensure appropriate return facilities within a reasonable distance from the respective end-user; this also applies to

small electrical equipment (see above) that the end-user wishes to return without

purchasing a new equipment.

IKEA guarantee

How long is the IKEA warranty valid for?

This warranty is valid for five (5) years from the original purchase date of the appliance from IKEA. The original receipt is essential as a proof of purchase. Any repairs carried out under warranty do not extend the warranty period for the appliance.

Who provides support?

Customer support will be provided by the service provider appointed by IKEA through its organisation or network of authorised service partners.

What does the warranty cover?

The warranty covers any defects linked to the materials or manufacture of the household appliance and is valid from the purchase date of the household appliance at an IKEA store. The warranty is only valid on household appliances intended for household use. The exceptions are outlined under “What doesn’t the warranty cover”. In the period covered by the warranty, the repair costs (spare parts, labour and travel costs of the technical personnel) will be borne by the support service, provided that access to the appliance to perform the repair work does not entail unforeseen expenses. These conditions comply with the EU directive (No. 99/44/EC) and the applicable local legal provisions. The parts replaced will become the property of IKEA.

How will IKEA intervene to solve the problem?

The service provider, appointed by IKEA, will examine the product and decide, at its sole discretion, whether it is covered by the warranty. If so, the IKEA service provider or its authorised service partner, through its service centres, will, at its sole discretion, either repair the defective product or replace it with a product of the same or equal value.

What doesn't the warranty cover?

• Normal wear.
• Deliberate damage or due to negligence, damage caused by failure to follow the operating instructions, improper installation or connection to the incorrect voltage, damage caused by chemical or electrochemical reactions, rust, corrosion or water damage, including but not limited to damage caused by excessive limescale in the water pipes, and damage caused by weather and natural events.
• Parts subject to wear, e.g. batteries and light bulbs.
• Decorative and non-functional parts which do not affect normal use of the appliance, including scratches and changes in colour.
• Accidental damage caused by substances or foreign bodies and cleaning or releasing filters, drainage systems or detergent drawers.
• Damage to parts such as ceramic hobs, accessories, crockery and cutlery baskets, inlet and outlet pipes, gaskets, bulbs and their covers, screens, knobs, covers and parts of covers, unless it can be demonstrated that said damage was caused by manufacturing defects.
• Cases in which no defects are found during the technician call-out.
• Repairs not carried out by the IKEA-appointed service provider or by an authorised service partner, or repairs where non-original parts have been used.
• Repairs caused by improper installation or installation that does not comply with the specifications.
• Use of the household appliance in non-household settings, e.g. for professional use.
• Damage due to transportation. If the cus-

tomer transports the appliance to his/her home or to another address, IKEA cannot be held responsible for any damage which occurs during transportation. However, if transportation to the customer's address is carried out by IKEA, any damage due to transportation will be covered by this warranty.

- Cost of initial installation of the IKEA appliance. If an IKEA-appointed service provider or its authorised service partner repairs or replaces the equipment under the warranty, in any case the supplier or authorised service partner must also reinstall the repaired appliance or the replacement appliance, where necessary.

These limitations do not apply to work carried out properly by qualified personnel and using original parts to adapt the appliance to the safety standards of another EU country.

Applicability of national laws

The IKEA warranty gives the customer specific legal rights in addition to the statutory rights that vary from country to country. These conditions do not, however, in any way limit the consumer's rights outlined in the local legislation.

Area of validity

For household appliances purchased in an EU country and transferred to another EU country, the services will be provided under the warranty conditions which apply in the new country. The obligation to provide the service under the terms of the warranty only exists if the appliance is compliant and installed in accordance with the:

• technical specifications of the country in which the application of the warranty is requested;
• safety information outlined in the user manual.

After-sales service for IKEA appliances:

Do not hesitate to contact the IKEA after-sales service to:

1. request support under the warranty;

2. ask for clarification on the installation of IKEA appliances in specific IKEA kitchen cabinets. The service will not provide support or clarifications about:

3. the installation of complete IKEA kitchens;
   • electrical connections (if the appliance is supplied without cables and plugs), hydraulic connections and connections to the gas supply that must be carried out by an authorised service technician.

4. ask for clarification on the contents of the user manual and specifications of the IKEA appliance.

To ensure the best possible assistance, please read the assembly instructions and/or user manual carefully before contacting us.

How to contact us if you need our intervention

IKEA

Consult the complete list of IKEA service providers and relevant local phone numbers on the last page of this manual.

Important! To ensure faster service, we recommend that you use the telephone numbers listed at the end of this manual. To request support, always refer to the specific appliance codes indicated in this manual. Before contacting us, make sure you know the IKEA product code (8 digits) of the appliance for which you are requesting support.

Important! KEEP THE RECEIPT!

It is your proof of purchase and it must be produced to allow you to make use of the warranty. The receipt also indicates the name

ENGLISH 20

and code (8-digit) of each IKEA appliance you have purchased.

Do you need any more help?

For any other questions not related to the after-sales service on the appliance, please contact the nearest IKEA store. Please read the documentation about the appliance carefully before contacting us.

Inhalt

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Diagram showing mechanical assembly steps with arrows indicating motion (no text or symbols)

Diagram illustrating the process of inserting a component into a device, with magnified views showing the step and rotation direction.

Diagram of a desktop computer with numbered parts labeled 1 through 6

1 ∅vre kanal
2 Nedre kanal
3 /ventilatorhus
4 Belysning
6 Betjeningspanel
5 Fettfilter

Betjeningspanel

KNA PP	FUNKSJON
A Has-tig-het	Slår motoren på og av med den første hastigheten.
	OBS! Produktet starter opp med filteralar-men deaktivert.Trykk og hold inne knappen i cirka 2 sekunder, med all last deaktivert (motor+lys) for å aktivere alarmen til fettfilteret. LED-lampen (B) blinker to ganger for å bekrefte.Trykk og hold inne knappen igjen i minst 2 sekunder for å slå av alarmen. LED-lampen (B) blinker en gang.
B Has-tig-het	Slår på motoren med den andre hastighe-ten / Aktiverer alarmen for kullfilteret.
	OBS! Produktet starter opp med filteralar-men deaktivert.Hvis du trykker på knappen i ca. 2 sekunder med all last deaktivert (motor+lys), aktiveres alarmen for aktivt karbonfilter. LED-lampen (A) blinker to ganger for å bekrefte.Trykk på knappen igjen i minst 2 sekunder for å slå av alarmen. LED-lampen (A) blinker en gang. Kun for resirkuleringsmodus.
C Has-tig-het	Slår på motoren ved den tredje hastighe-ten / Tilbakestiller alarmen for filtermetning.
	Hvis du trykker på knappen i ca. 2 sekunder med all last deaktivert (motor+lys), tilba-kestilles alarmen for filtermetning. LED-lam-pen (A) blinker tre ganger.
D Has-tig-het	Slår på motoren med den Intensive hastigheten.Denne hastigheten er tidsstyrt til 6 minut-ter. Når den innstilte tiden er utløpt, går systemet automatisk tilbake til den tidligere innstilte hastigheten. Hvis den aktiveres mens motoren er slått av, går systemet til-bake til innstillingen Slått av når den innstil-te tiden er utløpt. Trykk på knappen D eller knappen A for å deaktivere den.
E Lam-per	Trykk raskt: Slår belysningen på og av med maks styrke.Hvis du holder knappen inne, økes eller re-duseres lysstyrken.

Filteralarm

Diagram showing mechanical assembly steps with no visible text or symbols

Regenereringsprosedyre

Diagram illustrating the process of inserting a component into a device, with magnified views showing the step and rotation direction.

Diagram of a desktop computer with numbered parts labeled 1 through 6

Diagram showing mechanical assembly steps with no visible text or symbols

Regenerointimenettely

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Lamppujen vaihto

Diagram of a desktop computer with numbered parts labeled 1 through 6

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Utbyte av lampor

Diagram of a desktop computer with numbered parts labeled 1 through 6

Diagram showing a refrigerator interior with mechanical components and hand gestures, no text or symbols present

Endurnýtingarferli

Diagram illustrating a hand inserting a component into a device, with magnified insets showing the process.

Skipti á ljósum

Technical line drawing of a computer monitor with an inset showing internal components and a magnified view of the screen (no text or symbols present)

Orkunýtni

Diagram of a computer tower with numbered components for identification

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating the process of inserting a component into a device, with magnified views showing the step and rotation direction.

Diagram of a desktop computer with numbered parts labeled 1 through 6

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Diagram of a desktop computer with numbered parts labeled 1 through 6

Technical diagram showing mechanical assembly with circular views of components (no text or symbols)

Diagram illustrating the process of inserting a component into a device, with magnified views showing the step and rotation direction.

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Vervanging lampen

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component on a device, with magnified views showing the process and directional arrows.

Wymiana żarówek

Diagram showing a refrigerator interior with hand gestures and close-ups of mechanical parts (no text or symbols)

Yenileme prosedürü

Diagram illustrating a hand inserting a component into a device, with magnified insets showing the process.

Diagram showing mechanical assembly steps with no visible text or symbols

Postup regenerácie

Diagram illustrating the process of inserting a component into a device, with magnified views showing the step and rotation direction.

Výmena žiaroviek

Diagram showing three steps of a refrigerator interior with mechanical components and lock mechanism (no text or labels)

Postupak regeneriranja

• Operite u perilici posuđa na MAX temperaturi od 70° ili ručno operite vrućom vodom bez upotrebe abrazivnih spužvi (nemojte koristiti deterdžente!).
• Osušite u pećnici na MAX temperaturi od 70° tijekom 2 sata (preporučujemo da pažljivo pročitate korisnički priručnik i upute za montažu pećnice).

Filtar za masnoću

Diagram illustrating a hand inserting a component into a device, with magnified insets showing the process.

Zamjena lampica

Za zamjenu kontaktirajte ovlašteni centar za pomoć.

Što učiniti ako...

Diagram of a desktop computer with numbered parts labeled 1 through 6

Diagram showing a refrigerator interior with mechanical components and lock mechanism, no text or symbols present

Postopek regeneracije

Diagram illustrating a hand inserting a component into a device, with magnified insets showing the process.

Zamenjava luči

Diagram of a desktop computer with numbered parts labeled 1 through 6

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Замена сијалица

Diagram of a computer tower with numbered components for identification

Diagram showing three steps of a refrigerator interior with mechanical components and lock mechanism (no text or labels)

Postup regenerace

Diagram illustrating a hand inserting a component into a device, with magnified insets showing the process.

Výměna žárovek

Diagram showing mechanical assembly steps with no visible text or symbols

Regeneráló eljárás

Diagram illustrating a hand inserting a component into a device, with magnified views showing the process.

Lámpák cseréje

Diagram of a desktop computer with numbered parts labeled 1 through 6

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand pressing a component into a device, with magnified views showing the process and directional arrows.

Заменете лампите

Diagram of a desktop computer with numbered parts labeled 1 through 6

Diagram illustrating the installation of a refrigerator with labeled parts and directional arrows indicating motion.

Diagram illustrating a hand inserting a component into a device, with magnified insets showing the process.

Important! PĂSTRATI BONUL FISCAL!

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand inserting a component into a device, with magnified views showing the process.

Lampu nomaina

Lai veiktu nomainu, sazinieties ar pilnvarotu servisa centru.

Ko darīt, ja...

Diagram showing mechanical assembly steps with no visible text or symbols

Diagram illustrating a hand inserting a component into a device, with magnified views showing the process.

Lempučių keitimas

Diagram illustrating the installation of a refrigerator with labeled parts and directional arrows indicating motion.

Diagram illustrating a hand inserting a small component into a device, with magnified insets showing the process.

Lambi vahetus
