USER MANUAL TD 204 THORENS

text_image THORENS TP 120 START STOP THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THORENESTOP

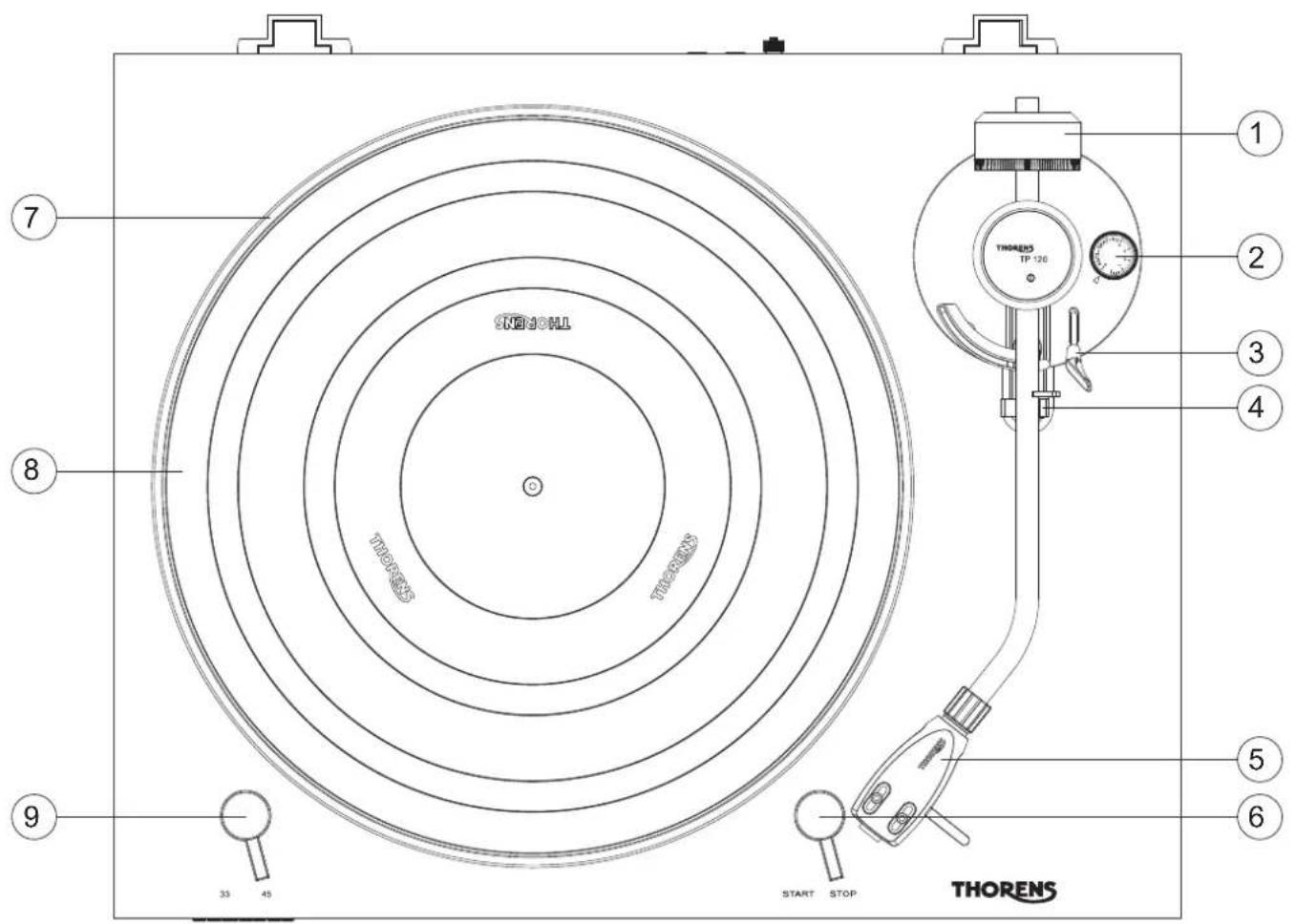

01. Gegengewicht

natural_image Technical line drawing of a circular mechanical component with radial slots and mounting holes (no text or symbols)
natural_image Line drawing of a vintage rotary dial with a circular head and handle (no text or symbols)
natural_image Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

INSTALLATION DER STAUBSCHUTZHAUBE

text_image THORENS TP 120 START STOP THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THORENESTOP

01. Counterweight

The counterweight is used for precise adjustment of the stylus pressure on the vinyl, to properly balance the tonearm.

02. Anti-Skating Control

To set the anti-skating force of the tonearm.

03. Tone arm Lever

Use this lever to lower and raise the tonearm.

04. Tone arm Lock (arm rest)

To lock the tone arm in place when not in use.

05. Headshell

This holds the needle in place and provide needle protection

06. START/STOP switch

To switch to "START" to start the playing or switch to "STOP" to stop the playing

07. Platter

Place the record here when playing.

08. Rubber Mat

To provide floor protection, anti-slip safety and comfort

09. 33 / 45 RPM Switch

Select 33 or 45 rpm for playing a vinyl

17 FEATURES / TOP PANEL

THORENS TD 204 - FEATURES / TOP PANEL - 1

text_image AUTO OUTPUT MODE AMP OFF ON DC R-12V POWER + + + POWER + + + + 1011121413

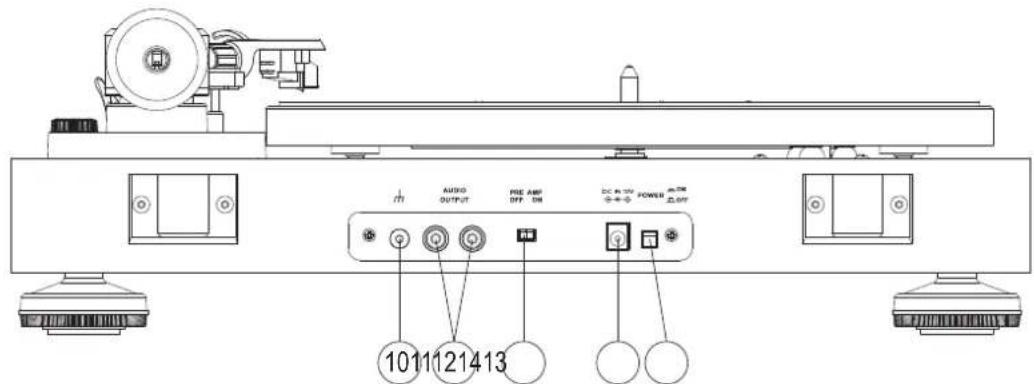

10. Grounding terminal

A direct electrical connection to the earth

11. RCA JACKS selector

Plug in the RCA cable, and connect the cable to the audio amplifier

12. Pre Amp ON/OFF selector

ON: Connect the RCA cable to the LINE-IN terminal of the amplifier.

OFF: to stop the LINE-IN terminal of the amplifier.

13. Power Supply Jack

To connect the power cable for power supply

14. Power Switch

To turn the unit On/Off

HOW TO INSTALL A DRIVE BELT ON THE TURNTABLE

THORENS TD 204 - HOW TO INSTALL A DRIVE BELT ON THE TURNTABLE - 1

natural_image Technical line drawing of a circular mechanical component with radial slots and mounting holes (no text or symbols)

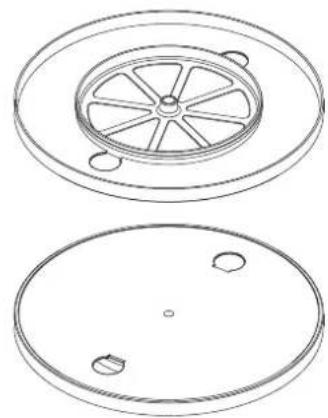

The drive belt is already on the underside of the turntable.

Place the platter on the platter axle and use your finger to grasp the drive belt through one of the holes in the platter, near the motor.

THORENS TD 204 - HOW TO INSTALL A DRIVE BELT ON THE TURNTABLE - 2

natural_image Line drawing of a vintage rotary dial with a circular top and handle (no text or symbols)

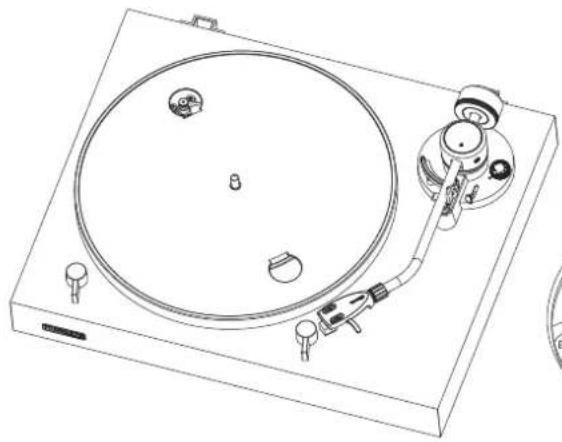

Pull the belt on the motor pulley and then spin the platter so the belt can run over the motor pulley.

THORENS TD 204 - HOW TO INSTALL A DRIVE BELT ON THE TURNTABLE - 3

natural_image Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

19 FEATURES / HOW TO INSTALL A DRIVE BELT ON THE TURNTABLE

DUST COVER INSTALLATION

  1. Unwrap the two hinges and the dustcover.
  2. Note that the hinges have a clamp side and a tab side.
  3. Note that the dustcover has two spots on its rear edge shaped to accept the clamps.
  4. Carefully push the clamps onto the dustcover in these locations
  5. Now snap the two clamps into the areas indicated at the back of the turntable to accept them.

MOUNT AND ADJUST

  1. Place the aluminum turntable platter over the center spindle. Place your fingers through one of the access holes and grab the rubber belt and stretch it over the motor pulley. Be sure the belt is not twisted.
    Spin the platter a few times to be sure the belt runs smoothly. Now place the rubber platter mat on top of the platter so the ribbed sections point upward
  2. Insert the headshell into the tone arm and fix it by turning the collar.
  3. Insert the counterweight on the end of the tone arm, rotating it until it threads into place.
  4. Rotate the antiskating knob counterclockwise until it is set to "0". Make sure the gauge is pointing in your direction
  5. Place the lever for the tone arm lift in the front position so that the lift bank lowers.
  6. Open the tone arm lock. Seize the handle of the tone arm and move it just outside the edge of the platter so that it can float up and down. Remove the protective cap from the stylus. (Be careful not to hit the stylus against anything.)
  7. Turn the counterweight until the tone arm floats level. If the tone arm moves up: Turn the counterweight counter-clockwise. If the tone arm moves down: Turn the counterweight clockwise
  8. Put the tone arm back onto the arm rest and lock it.

  9. The counterweight has a rotary ring with a scale. Without turning the counterweight, only turn the ring until the zero "0" aligns with the indicator line.

  10. The scale indicates the stylus pressure in grams. The pressure of the cartridge supplied with this turntable is 2g, turn the entire counterweight counter-clockwise to "2g" and the anti-skating to "2g". If a different cartridge is used, adjust the stylus pressure and the antiskating indicated to the corresponding specifications.

MAINS CONNECTION

An external switching power adaptor is supplied with this turntable.

There are the RCA jack on the rear panel of the turntable. You can use it to connect to your amplifier. You also could switch the selector to "ON" or "OFF", and connect the RCA plug to the "LINE" input of your amplifier.

  1. Place the record on the turntable. If it is a 45 rpm, you need to place the adaptor on the record spindle.
  2. Choose the playing speed.
  3. Release the pick-up arm clip.
  4. Place the cartridge vertically over the first track of the record the turntable starts turning.
  5. Lower the cue lever to place the stylus in the groove
  6. When playback is complete, push the cue lever to lift the tone arm and move it back to the arm rest.
  7. If you want to pause the playback, switch the knob to "off", and switch it to 33 or 45 to continue the playback.
  8. After finish the playback, please switch off the power to save energy.

TO REPLACE THE STYLUS

  • Put the rest clip on the pick-up arm.
  • Remove the protective cap from the stylus.
  • Pull the stylus to the lower front and remove it.
  • Put in the new stylus following the reverse procedure.
  • Replace the protective cap on the stylus.

TO REMOVE THE CARTRIDGE

  • Put the rest clip on the pick-up arm.
  • Remove the stylus to prevent damage.
  • Remove the two cartridge fixing screws.
  • Disconnect the four link wires at the back of the cartridge.

TO INSTALL NEW CARTRIDGE

  • Connect the four link wires.
    • Take care of the receptacle's colors.
    • Install the cartridge in the head shell.
    • Install the two cartridge fixing screws.
  • Re-install the stylus.
  • Replace the protective cap on the stylus.

IMPORTANT RECOMMENDATIONS

We advise you to clean your records using a rag impregnate with an antistatic product for maximum enjoyment of your records and also to make them last.

We would also point out that for the same reason your stylus should be replaced periodically (approximately every 250 hours). Dust the stylus from time to time using a very soft brush dipped in alcohol (brushing from back to front of the cartridge).

WHEN TRANSPORTING YOUR RECORD PLAYER DO NOT FORGET TO:

Replace the protective cap on the stylus. Disconnect the drive belt by stretching it over the motor pulley, and allow it to wrap back around the inner drive area and then remove the platter by pulling it straight up off the spindle. Put the rest clip into the pick-up arm.

Turntable section

Drive System Belt Drive

Motor DC Motor

Speed 33 1/3 RPM, 45 RPM

Rotation Speed Variation + / - 2%

Wow and Flutter 0.2%

Platter Aluminum Die-cast

Diameter of Platter 12", 300mm

Tonearm section Alumi tube

Type Static Balance, J Type

Effective Arm Length 9", 232,8 mm

Stylus Pressure Range 0 to 4g

Supported Cartridge Weight 3.5 bis 6.0g

Overhang 17,8 mm

Anti-skating Adjustment Supported

Cartridge section

Type MM type (Audio-Technica AT 95 E)

Stylus Construction Bonded Diamond

Frequency Response 20Hz to 20kHz

Channel Balance 20 dB

Output balance 2 dB

Vertical Tracking Angle 20 degrees

Supported Load Impedance 47k ohms

Output Voltage 3.5 mV (1kHz, 3.54 cm/sec.)

Stylus Pressure 2 g

Cartridge Weight 5,7 g

Head-shell Weight 10g (including Screws, Nuts and Wires)

Analog Output

Connector RCA Pin jack (Gold-plated)

Power AC 100 to 240V, 50/60Hz

Power Consumption 1.5W (less than 0.5W at Standby)

Overall Dimensions (W x D x H) 420 x 355x 121mm

Weight Approx. 4.8 kg

THORENS TD 204 - Analog Output - 1

bar | Period | Value | |---|---| | 2023Q1 | 1.0 | | 2023Q2 | 1.0 | | 2023Q3 | 1.0 | | 2023Q4 | 1.0 | | 2024Q1 | 1.0 | | 2024Q2 | 1.0 | | 2024Q3 | 1.0 | | 2024Q4 | 1.0 | | 2025Q1 | 1.0 | | 2025Q2 | 1.0 | | 2025Q3 | 1.0 | | 2025Q4 | 1.0 | | 2026Q1 | 1.0 | | 2026Q2 | 1.0 | | 2026Q3 | 1.0 | | 2026Q4 | 1.0 | | 2027Q1 | 1.0 | | 2027Q2 | 1.0 | | 2027Q3 | 1.0 | | 2027Q4 | 1.0 | | 2028Q1 | 1.0 | | 2028Q2 | 1.0 | | 2028Q3 | 1.0 | | 2028Q4 | 1.0 | | 2029Q1 | 1.0 | | 2029Q2 | 1.0 | | 2029Q3 | 1.0 | | 2029Q4 | 1.0 | | 2030Q1 | 1.0 | | 2030Q2 | 1.0 | | 2030Q3 | 1.0 | | 2030Q4 | 1.0 | | 2031Q1 | 1.0 | | 2031Q2 | 1.0 | | 2031Q3 | 1.0 | | 2031Q4 | 1.0 | | 2032Q1 | 1.0 | | 2032Q2 | 1.0 | | 2032Q3 | 1.0 | | 2032Q4 | 1.0 | | 2033Q1 | 1.0 | | 2033Q2 | 1.0 | | 2033Q3 | 1.0 | | 2033Q4 | 1.0 | | 2034Q1 | 1.0 | | 2034Q2 | 1.0 | | 2034Q3 | 1.0 | | 2034Q4 | 1.0 | | 2035Q1 | 1.0 | | 2035Q2 | 1.0 | | 2035Q3 | 1.0 | | 2035Q4 | 1.0 | | 2036Q1 | 1.0 | | 2036Q2 | 1.0 | | 2036Q3 | 1.0 | | 2036Q4 | 1.0 | | 2037Q1 | 1.0 | | 2037Q2 | 1.0 | | 2037Q3 | 1.0 | | 2037Q4 | 1.0 | | 2038Q1 | 1.0 | | 2038Q2 | 1.0 | | 2038Q3 | 1.0 | | 2038Q4 | 1.0 | | 2039Q1 | 1.0 | | 2039Q2 | 1.0 | | 2039Q3 | 1.0 | | 2039Q4 | 1.0 | | 2040Q1 | 1.0 | | 2040Q2 | 1.0 | | 2040Q3 | 1.0 | | 2040Q4 | 1.0 | | 2041Q1 | 1.0 | | 2041Q2 | 1.0 | | 2041Q3 | 1.0 | | 2041Q4 | 1.0 | | 2042Q1 | 1.0 | | 2042Q2 | 1.0 | | 2042Q3 | 1.0 | | 2042Q4 | 1.0 | | 2043Q1 | 1.0 | | 2043Q2 | 1.0 | | 2043Q3 | 1.0 | | 2043Q4 | 1.0 | | 2044Q1 | 1.0 | | 2044Q2 | 1.0 | | 2044Q3 | 1.0 | | 2044Q4 | 1.0 | | 2045Q1 | 1.0 | | 2045Q2 | 1.0 | | 2045Q3 | 1.0 | | 2045Q4 | 1.0 | | 2046Q1 | 1.0 | | 2046Q2 | 1.0 | | 2046Q3 | 1.0 | | 2046Q4 | 1.0 | | 2047Q1 | 1.0 | | 2047Q2 | 1.0 | | 2047Q3 | 1.0 | | 2047Q4 | 1.0 | | 2048Q1 | 1.0 | | 2048Q2 | 1.0 | | 2048Q3 | 1.0 | | 2048Q4 | 1.0 | | 2049Q1 | 1.0 | | 2049Q2 | 1.0 | | 2049Q3 | 1.0 | | 2049Q4 | 1.0 | | 2050Q1 | 1.0 | | 2050Q2 | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | - | - | | QTY-5/EBITDA (Millions of Dollars) + QTY-EBITDA (Millions of Dollars) (Millions of Dollars) + QTY-EBITDA (Millions of Dollars) (Millions of Dollars) + QTY-EBITDA (Millions of Dollars) (Millions of Dollars) + QTY-EBITDA (Millions of Dollars) (Millions of Dollars) + QTY-EBITDA (Millions of Dollars) (Millions of Dollars) + QTY-EBITDA (Millions of Dollars) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions in %) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY-EBITDA (Millions of Units) (Millions of Units) + QTY/EBITDA (Millions of Units) (Millions of Units) + QTY/EBITDA (Millions of Units) (Millions of Units) + QTY/EBITDA (Millions of Units) (Millions of Units) + QTY/EBITDA (Millions of Units) (Millions of Units) + QTY/EBITDA (Millions of Units) (Millions of Units) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) and QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTY/EBITDA (MILs in %) + QTI/EBITDA (MILs in %) + QTI/EBITDA (MILs in %) + QTI/EBITDA (MILs in %) + QTI/EBITDA (MILs in %) + QTI/EBITDA (MILs in %) + QTI/EBITDA (MILs in %) + QTI/EBITDA (MILs in %) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + QTI/ERB (%) + Total Revenue ($ Million) from FYE to FYE+/- Total Revenue (Million) from FYE to FYE+/-5,559 Total Revenue (Million) from FYE to FYE+/-5,559 Total Revenue (Million) from FYE to FYE+/-5,559 Total Revenue (Million) from FYE to FYE+/-5,559 Total Revenue (Million) from FYE to FYE+/-5,559 Total Revenue ($ Million), net of revenue for the year ended September Revenue ($ Million), net of revenue for the year ended September Revenue ($ Million), net of revenue for the year ended September Revenue ($ Million), net of revenue for the year ended September Revenue ($ Million), net of revenue for the year ended September Revenue ($ Million), net of revenue for the year ended September Revenue ($ Million), net of revenue for the year ended September Revenue ($ Million), Net of revenue for the year ended September Revenue ($ Million), Net of revenue for the year ended September Revenue ($ Million), Net of revenue for the year ended September Revenue ($ Million), Net of revenue for the year ended September Revenue ($ Million), Net of revenue for the year ended September Revenue ($ Million), Net of revenue for the year ended September Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter: Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter Revenue ($ Million), Net of revenue for each quarter

TD 204

BEDIENUNGSANLEITUNG

USER GUIDE

MANUEL D'UTILISATION

使用手册

29 MANUEL D'UTILISATION

THORENS TD 204 - TD 204 - 1

text_image THORENS TP 120 START STOP THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THORENS THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THOREN THORENESTOP
  1. Contrepoids :
natural_image Technical line drawing of a circular mechanical component with radial slots and mounting holes (no text or symbols)
natural_image Line drawing of a vintage rotary dial with a circular top and handle (no text or symbols)
natural_image Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

33 COMMENT INSTALLER UNE COURROIE D'ENTRAÎNEMENT SUR LA PLATINE

INSTALLATION DU CAPOT :

Ajustement Anti-skating Permis

Section Cellule

Type MM type (Audio-Technica AT 95 E)

Dimensions (I x H x P) 420 x 355 x 140 mm

Poids Approx. 4.8 kg
