USER MANUAL 304697 Bearware

Thank you for choosing a Bearware product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Alarm clock
• User manual

2. Technical data

Power supply	5V DC/2A; 9V DC / 2 A (via USB Type C)3 V DC (1 backup "CR2032" battery)
Transmitting power -20dBm
Ambient temperature	+ 0-3°C until 35-40°C
Frequency range 110 MHz - 205 kHz
Features	USB charging port12/24-hour displaytwo alarm settingsSnooze functionWireless charging (QI)RGB light

3. Product details

12:00 1 2 3

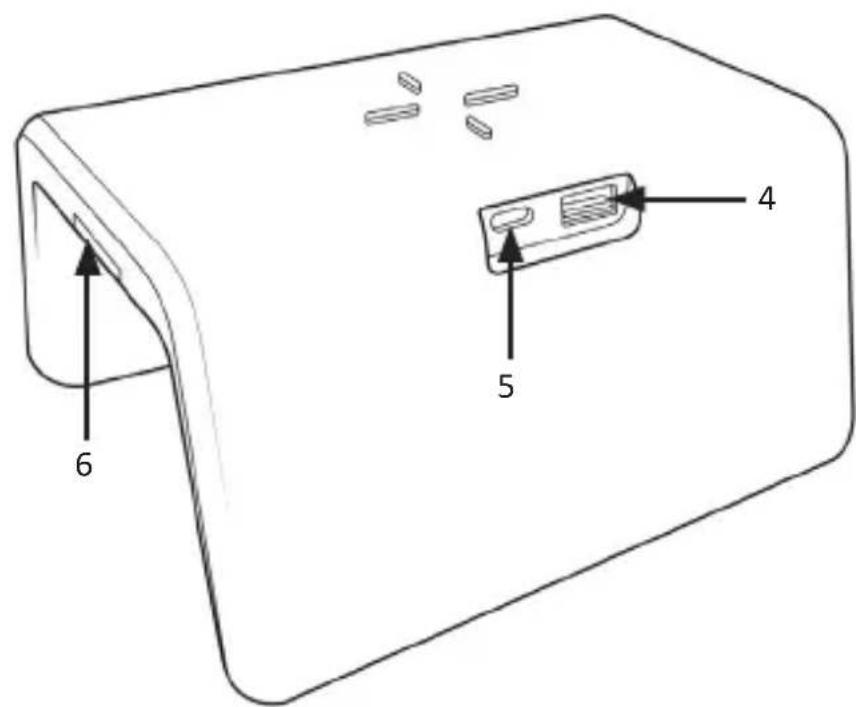

6 4 5

12 English

Number Name
1 Wireless charging area
2 Operating controls
3 Display
4 USB charging output
5 USB Type C power port
6 Backup battery compartment

Display and Controls

controls 8 → ⬤ 9 ↓ 10 ↓ ← 11

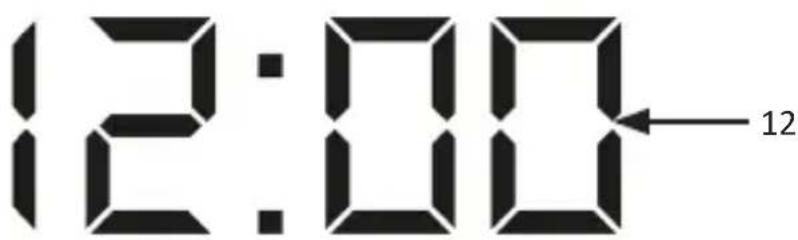

12:00 12

Number Name
7 Alarm display 1 and 2
8 Light button
9 SET button
10 “+” button
11 “-” button
12 Time display

4. Initial use

Take the device out of the package and remove all the packaging material. Insert a "CR2032" battery (not included in the scope of supply) into the battery compartment (6) at the side. Pay attention to the correct polarity of the contacts. This battery is used for saving a backup of the time and alarm.

Then connect the alarm clock using the supplied USB-A to USB-Type-C cable to a suitable mains adapter such as the mains adapter of a smartphone. Please pay attention to the necessary specifications.

To use the device without restrictions, we recommend a mains adapter that supports Quickcharge 2.0 or higher.

5. Setting the time

Once the device is connected to an properly installed socket, press and hold the "SET" (9) button briefly to adjust the time. Use the "+" (10) and "-" (11) buttons to increase or decrease the values. Press "SET" (9) once again to continue with the settings. The setting cycle is as follows:

1. Minute

2. Hour

To switch between the 12-hour and 24-hour display, press the "SET" button twice in quick succession.

6. Setting the alarm

Press and hold the "SET" (9) button for 3 about seconds. The alarm time 1 is shown on the display and the minute display flashes. To do this, once again press the "+" (10) and "-" (11) buttons to set the alarm. Confirm your entry using the "SET" (9) button. The setting cycle is as follows:

1. Alarm 1 Minute
2. Alarm 1 hour
3. Alarm 2 Minute
4. Alarm 2 hour

7. Alarm

Turning on the alarm

Turning on alarm 1: Press and hold the "+" (10) button until the alarm symbol 1 appears in the display.

Turning on alarm 2: Press and hold the "-" (11) button until the alarm symbol 2 appears in the display.

Turning off the alarm

The alarm turns off automatically after 3 minutes and goes off again the next day.

Turning off alarm 1: Press and hold the "+" (10) button until the alarm symbol 1 disappears from the display.

Turning off alarm 2: Press and hold the "-" (11) button until the alarm symbol 2 disappears from the display.

8. Snooze function

As soon as the alarm goes off, press any button to postpone the alarm to a later time. The alarm goes off again.

The duration of the snooze function is about 5 minutes. The alarm symbol flashes in the display.

9. Light function

You can adjust the light of the alarm clock in 9 different colours and one RGB (Red-Green-Blue) colour change.

Press the "Light" button (8) to turn on the light and to change the light colour. The setting cycle is as follows:

Off -> white -> RGB colour change -> Stop RGB colour change -> red -> orange -> yellow -> green -> turquoise -> purple -> pink -> Off

10. Charging port

A Type-A USB charging port is provided at the back of the clock next to the USB type C port.

You can use this charging port, for example, to connect the charging cable of your smartphone and charge it.

Please note that only the Type-A USB port is intended as a charging port and the USB type C port is used only to supply power to the alarm clock.

11. Additional safety guidelines for this device

• Do not place any open flames such as candles on the device.
• Do not place the product in a closed bookshelf without adequate ventilation.
• The device should neither be exposed to dripping or splashing water nor to other fluids and never immersed.
• The product should not be exposed to direct sunlight.
• Do not use any aggressive cleaning agents or solvents for cleaning. Wipe the device using a clean and soft cloth.
• Please pull out the mains plug before cleaning.
• Never try to insert wires, pins or other similar objects into the venting slits or openings of the device.

12. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims.

The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

13. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

14. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304697 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover; http://downloads.ganzeinfach.de/search/model/304697
