USER MANUAL 305745 Arendo

Thank you for choosing an Bearware product. Please read the following user manual carefully so that you can get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Energy cost meter
• User manual

2. Technical data

Electric supply 180-250 V AC; 47-63 Hz
Maximum current 16 A
Maximum power 3680 W
Power supply data storage	Ni-MH 3.6 V 20 mAh (included in the scope of delivery)
Storage system Works on battery in case of power failure
Ambient temperature 0-40°C

3. Display/Measuring range

Voltage 0.0 V - 9999 V
Current 0.000 A - 65.00 A
Power 0.0 W - 9999 W
Frequency 0-9999 Hz
Power factor 000 - 1.00
Consumption 0.000 KWh - 9999 KWh
Price	0.00 - 99.99

4. Initial use

Check if the product and the components are intact and if the device is working properly when using it for the first time. Remove the product from the packing and remove the plastic strip, which is protruding out of the battery compartment on the back side of the energy cost meter.

Connect the electrical devices, whose energy consumption has to be recorded, to the meter. Then plug the energy cost meter into a properly installed earthed socket.

The device is now ready for use. Detailed information regarding the operation and settings is given in the following sections in this user manual.

Caution! The time measurement stops when the consumption value is below 2 W.

If the energy cost meter cannot be put into operation, press the "Reset" button for a few seconds

5. Displays and controls

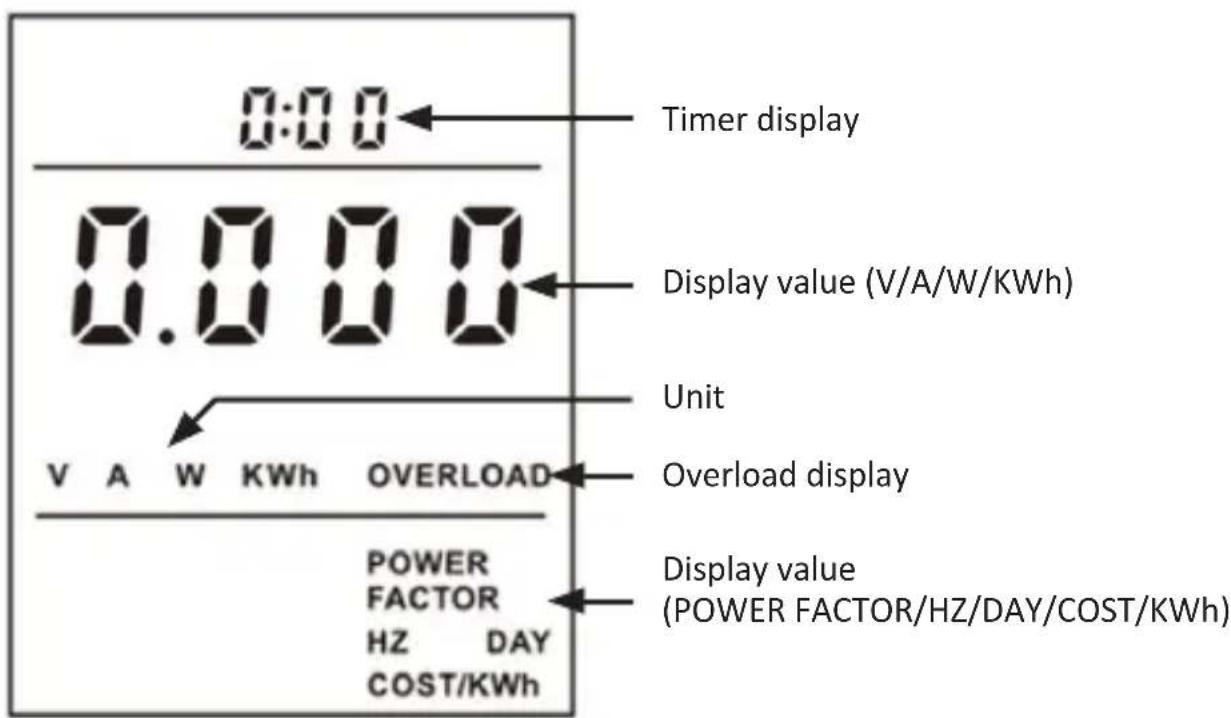

0:00 Timer display 0.000 Display value (V/A/W/KWh) Unit V A W KWh OVERLOAD Overload display POWER FACTOR HZ DAY COST/KWh Display value (POWER FACTOR/HZ/DAY/COST/KWh)

12 English

Display Displayed value
V Electrical voltage
A Current
Hz Frequency
POWER FACTOR Power factor
OVERLOAD Overload limit
W Power
KW/h Kilowatt hours
COST/kWh Price per kilowatt hour
Day	Time (in days), during which the energy was consumed; the value is incremented by 1 once the reading counts 24 hours

5.1 Timer display

The timer display shows the duration in which the power was consumed. The following points should be noted:

• The display is reset after 24 hours. The "Day" value of the COST display is incremented by 1 in this case.
• The power consumption of the connected device must be at least 2 W for the time measurement to continue.

5.2 Scrolling through the displays

Using the "FUNC" button, you can change the display and scroll through the various modes. The following figures show the different display modes that you can scroll through as per the sequence.

123

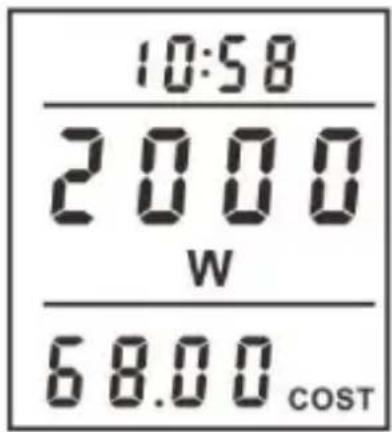

10:58 2000 W 68.00 COST

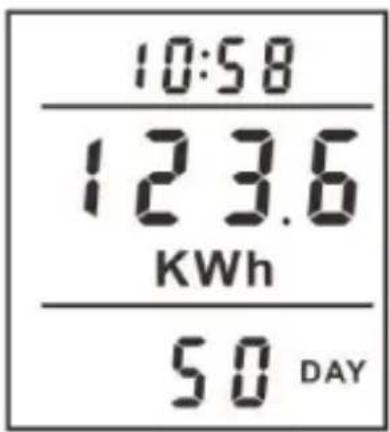

10:58 123.6 KWh 50 DAY

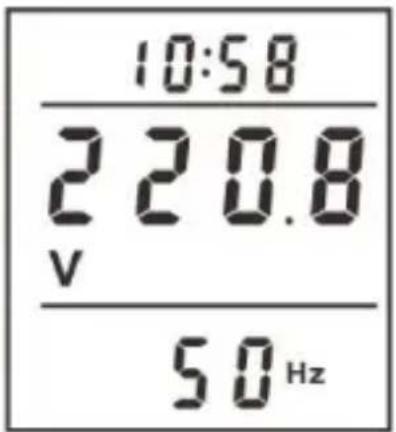

10:58 220.8 v 50 Hz

456

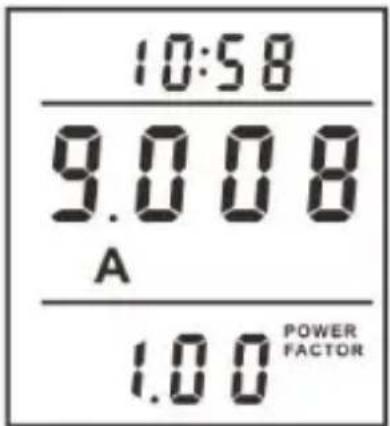

10:58 9.008 A POWER FACTOR 1.00

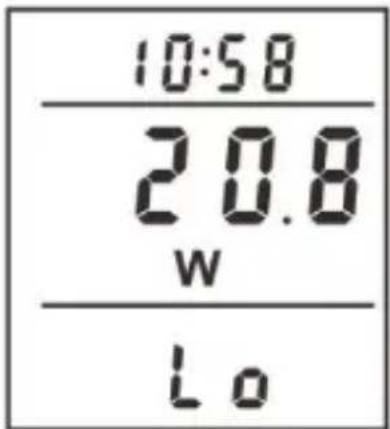

10:58 20.8 w Lo

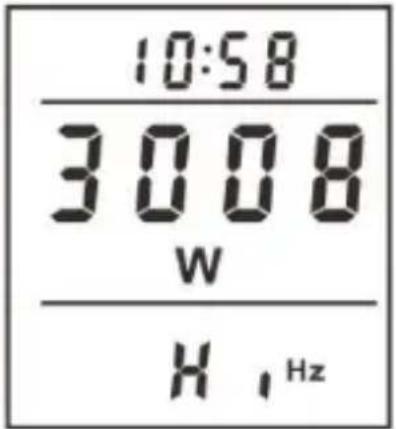

10:58 3008 W H Hz

7

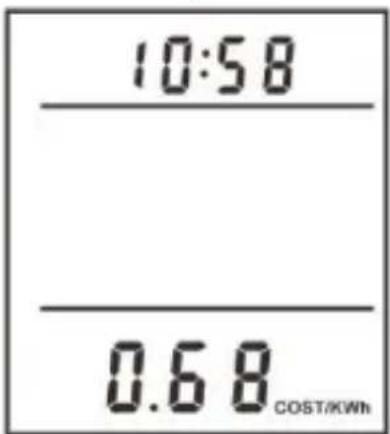

10:58 0.68 COST/KWh

1 Power display (W) + Cost display (COST)

2 Kilowatt hours (KWh) + Day display (DAY)

3 Voltage display (V) + Frequency display (Hz)

4 Current (A) + Power factor (POWER FACTOR)

5 Minimum measured power (W)

6 Maximum measured power (W)

7 Price per kWh

6. Entering the energy price

• Before using the energy cost meter for the first time and once in 3 months, please connect it to the power supply for approx. 24 hours to charge the internal battery.
• Press the "COST" button briefly until the price per KWh is shown on the display.
• Press and hold the "Cost" button for about 5 seconds to enter your actual power price for one kilowatt hour.
• Using the "FUNC" button, you can select the desired digit that you want to set. The corresponding digit starts flashing.
• Set the digits to the desired values using the "UP" and "DOWN" buttons. Press the :COST" button to confirm the setting.

6.1 Overload limit

Note: The energy cost meter is designed for a maximum power of 3680 watts. Do not set the overload limit above this value and do not connect any devices whose energy consumption is more than 3680 watts.

If the energy consumption exceeds the overload limit, then this is indicated by a flashing "OVERLOAD" in the energy display.

7. Warranty declaration

The manufacturer provides a warranty of 2 years for this product with respect to workmanship and material. Warranty repairs should only be carried out by an authorized customer service centre. The original sales document should be enclosed as proof.

The following are excluded from warranty: normal wear and tear, modifications, reworks, damage caused by carelessness, external influences, applications for which the product was not designed or products dismantled completely or partially.

8. Important tips

• The meter is only suitable for indoor use.
• Please do not connect in series.
• Disconnected only when the plug is removed.
• Use the meter only in dry condition.
• The specified maximum electric power should not be exceeded.
• There are no special ventilation requirements for this product.
  Ensure that the product is not covered by a blanket etc. when it is being used for safety reasons.
• If the device is not used for a long period of time or if the readings are incorrect, the batteries may be empty. Replace them in such cases.

CAUTION!

9. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the product away from high temperatures. Do not expose the product to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The product should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and

restrictions. Do not use the product for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the product, which is not carried out by the original supplier, will void any warranty and guarantee claims. The product should only be used by those who have read and understood this user manual. The specifications of the product may be changed without any special prior notification.

ATTENTION!

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic products to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment.

11. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of appliances that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the product 305745 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
