305377 - Juicer Arendo - Free user manual and instructions

Product type	Juice extractor (electric citrus juicer)
Brand	Arendo
Model	305377
Power supply	220-240 V ~ 50-60 Hz
Power consumption	100 W
Protection class	II
Protection type	IP20
Juice container capacity	500 ml
Noise level	50 dBA
Cable length	Approx. 1 m
Operating ambient temperature	0-45 °C
Main functions	Citrus pressing, automatic cone rotation, drip-free protection
Items supplied	Base unit, motor shaft, juice container, filter sieve, small and large pressing cones, lid
Care and cleaning	Base cleanable with damp cloth; other parts dishwasher-safe
Safety	Thermal fuse (overheat protection), automatic shutdown if excessive pressure
Spare parts and repairability	Repairs by specialists only; original accessories recommended
General information	CE compliant, WEEE directive 2012/19/EU, WEEE registration number: DE 67896761

Frequently Asked Questions - 305377 Arendo

How to assemble the Arendo 305377 juice extractor?

To assemble the appliance, push the motor shaft onto the base unit until it stops. Then place the juice container on the base unit, insert the filter sieve, then choose the appropriate pressing cone (small or large) and place it on the shaft. Finally, close the lid.

How to use the citrus juicer?

Cut the citrus fruit in half. Plug in the appliance, place a glass under the spout, then open the spout by pushing the outlet opening downwards. Hold the fruit with one hand and press it onto the cone. The cone rotates automatically. Do not press too hard, as the machine stops if the pressure is too high.

How to clean the juice extractor?

Always unplug the appliance before cleaning. Never immerse the base unit in water; clean it with a slightly damp soft cloth. The other parts (juice container, sieve, cones, lid) can be washed in the dishwasher or with soapy water. Let all parts dry before reassembling.

What is the capacity of the juice container?

The juice container has a capacity of 500 ml. It is recommended not to store the juice for more than one day and not to use metal containers as the juice acid can affect the flavor.

The appliance stops by itself, what should I do?

The juice extractor has overload protection: if you press too hard on the cone, the motor stops automatically. Reduce the pressure and release, the appliance will restart. If the problem persists, check that the sieve is not clogged.

Can I use the juice extractor for fruits other than citrus?

This appliance is designed exclusively for citrus fruits (oranges, lemons, grapefruits, etc.). Do not attempt to press other hard fruits or vegetables, as this could damage the motor or the sieve.

How to close the spout to avoid drips?

After use, push the outlet opening upwards to close the spout. This prevents juice from flowing when removing the glass or container.

What accessories are supplied with the extractor?

The appliance is supplied with: base unit (motor), shaft, 500 ml juice container, a filter sieve, two pressing cones (small and large), a lid, and the instruction manual. Only original accessories should be used.

What to do if the power cable is damaged?

If the power cable is damaged, do not use the appliance. Contact the manufacturer (WD Plus GmbH) or a qualified repairer. Never attempt to repair the cable yourself.

How to store the juice extractor?

Store the appliance with the lid closed to protect it from dust. If you do not use it for a long period, keep it in its original packaging, in a dry place at room temperature (0-45°C).

USER MANUAL 305377 Arendo

Citrus Fruit Squeezer

User Manual

⚠️ Usage and safety instructions

• Read the user manual completely before using this product! Keep it for future reference.
• Before using the appliance, check whether the voltage indicated on the rating plate matches that of your mains supply!

- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!

- Disconnect the plug from the power source if the appliance is not being used! Do not leave the product unattended!

- This appliance is intended for personal use only!

- Cleaning and maintenance should not be carried out by children.

- This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and they understand the resultant dangers.

- Never immerse it in water for cleaning. Wipe the body with a dry cloth.

- Use the product only on a flat surface.

- Disconnect the appliance from the mains when it is not being used or during cleaning.

- Ensure that the cable does not come into contact with any hot or moist surfaces.

- Do not turn on the appliance if you find a defect in the power cord. Con-

tact the manufacturer of the product in such cases.

• Never move the appliance during operation.
• The product should be opened or repaired only by qualified technicians!
• Remove the packaging material and check if the appliance is in proper working condition before using it.
• Ensure that children do not play with the appliance or the packaging material!
• In the interest of child safety, do not leave any packaging components (plastic bags, cardboard, polystyrene, etc.) lying around.
  • This product is not a toy!
• Close supervision is required if the product is used by or near children or frail persons.

- Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.

- Ensure that the appliance is switched off before disconnecting the mains cable. If you touch it, make sure that your hands are dry so as to avoid electric shock.

- This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.

- Never connect the appliance to an extension cable or power strip!

- Do not use the citrus fruit squeezer outdoors!

- Use the product only as described in

this manual. Using the appliance for any other purpose which is not recommended by the manufacturer may cause fire, electric shock or physical injury and void the guarantee.

• Never operate the appliance unsupervised. Always switch off the appliance if you leave the room. Disconnect the plug from the mains socket.
• Only use original spare accessories.
• Warning! Do not allow small children to play with the foil. Danger of suffocation!

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Citrus fruit squeezer
- User manual

2. Technical data

Power supply 220-240V ~50-60Hz
Power consumption 100W
Protection class II
Protection code IP20
Capacity 500ml
Noise emission 50dBA
Cable length ~ 1m
Features • Thermal fuse (overheating protection)• Stainless steel drip guard
Ambient temperature 0-45°C

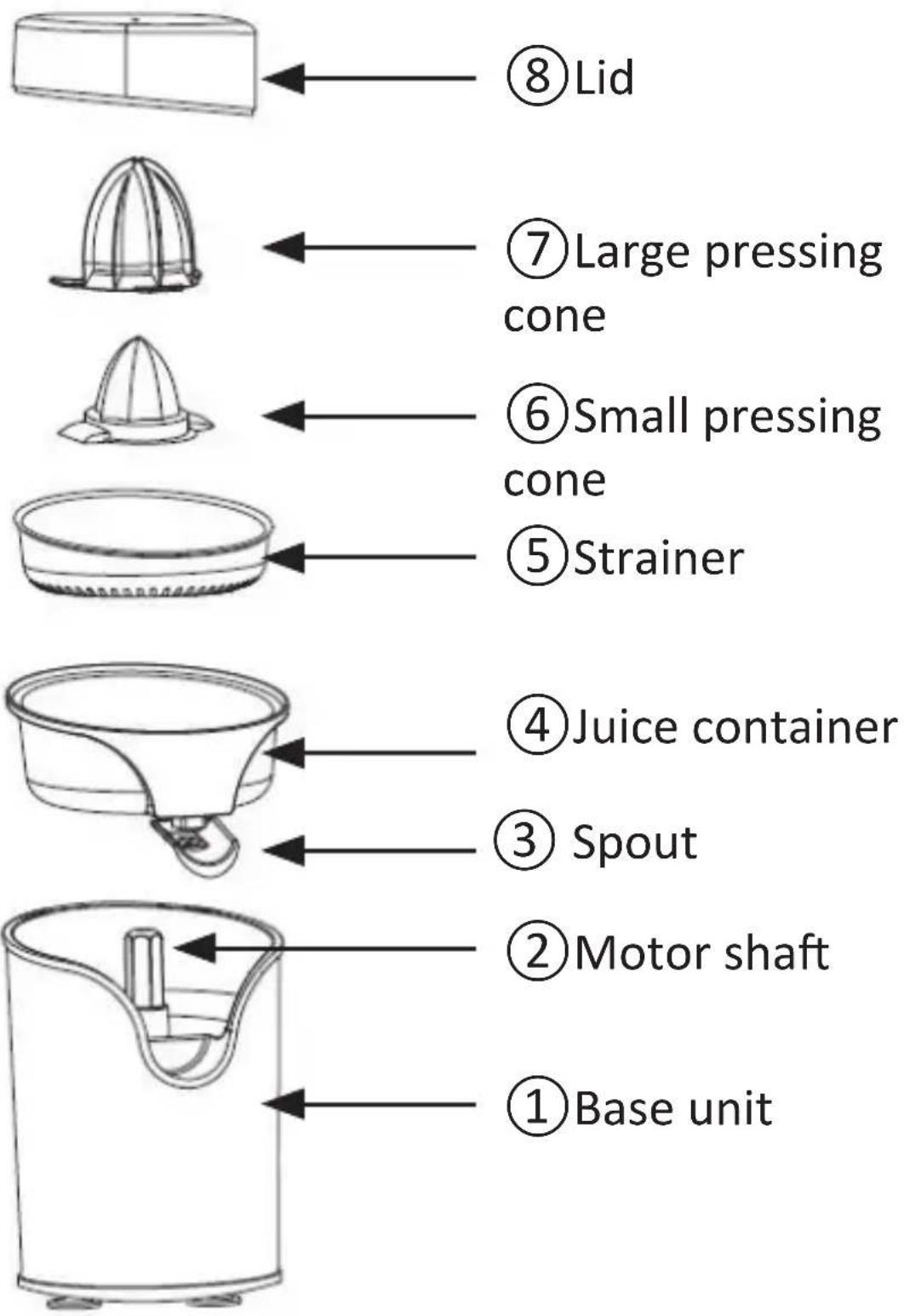

3. Product details

Number Description

1 Base unit/motor housing

2 Motor shaft

3 Spout

4 Juice container

5 Strainer

6 Pressing cone (small)

7 Pressing cone (large)

8 Lid

⑧Lid

⑦ Large pressing cone

⑥ Small pressing cone

⑤Strainer

④ Juice container

③ Spout

②Motor shaft

① Base unit

4. Assembly

① Press the motor shaft (2) as far as it goes into the base unit.
② Place the juice container (4) on the base unit (1).
③ Then insert the strainer (5).
④ Place the desired pressing cone on the motor shaft (2).

5. Usage

Take the appliance out of the package and remove all the packaging material. Place it on a flat and firm surface.

• Connect the plug to a properly installed socket.
• Place the desired container under the spout of the juice container.
• Press the spout (3) downwards or upwards to open or close the spout.
• Cut the desired citrus fruit into two parts before squeezing them.
• Hold the citrus fruit with one hand and the squeezer with the other hand while pushing down on the pressing cone with half the citrus fruit.

Note: The pressing cone starts to turn automatically. Do not press too hard on the cone because the appliance stops if the pressure is too much.

• Before removing the container, press the spout upwards to close the outlet and prevent the juice from flowing out.
  • After usage, remove the power cord from the socket and then clean the appliance.

Note: Ensure that you refrigerate the juice after extraction. Remember that the juice should not be stored for more than one day. Do not keep the juice in metal containers because the acid in the juice may affect the surface and impair the taste.

6. Cleaning and Care

Disconnect the plug of the appliance from the mains socket before cleaning. Never immerse the base unit along with the motor in water!

Never use scouring or aggressive cleaning agents to clean the appliance. We recommend that you clean the citrus squeezer after each use.

• Clean the base unit with a slightly dampened cloth.
• The other components of the appliance can be cleaned with water and a mild cleaning agent.
• All parts can be cleaned in a dishwasher except the base unit (1). Ensure that you do not use too much cleaning agent.
• Allow the parts to dry adequately before assembling the appliance again.

Store the citrus squeezer with the lid in place to protect the components from dust. Store the appliance in the original packaging, if you do not want to use it for a long period.

7. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it.

The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without special prior notice.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the device 303323/305377 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
