Brand	CSL
Model	301303
Category	Measuring equipment
Product type	RJ45/RJ11 network cable tester
Functions	Continuity test of network and ISDN cables, verification of wiring and shielding
Testable connectors	RJ45, RJ12/RJ11
Test speeds	Normal (ON) and slow (S)
Indication	LED for each wire (1-8) and shielding (G)
Power supply	9V battery (not included)
Package contents	Main tester, remote tester, wire stripper, crimping tool, LSA punch-down tool, user manual
Safety instructions	Do not open, avoid contact with mains voltage, use in dry indoor environment, protect from moisture, do not expose to high temperatures
Intended use	Indoor only, dry
Recycling	Compliant with WEEE, eco-participation, collection point
Certification	WEEE Directive 2012/19/EU, registration number DE: 67896761
Declaration of conformity	Available on request from WD Plus GmbH

Frequently Asked Questions - 301303 CSL

How to use the CSL 301303 cable tester?

Connect the cable to be tested to the main tester and the remote tester. Set the selector to ON for normal test or S for slow test. The LEDs light up for each connected wire (1-8) and for shielding (G). If an LED does not light up, the cable is defective.

What types of cables can I test with this tester?

This tester supports RJ45 (network) and RJ12/RJ11 (telephone/ISDN) cables. It tests continuity and shielding.

What battery should I use for the CSL 301303 tester?

The device operates with a 9V battery (type 6LR61 or 6F22). Insert it into the compartment on the back of the main tester.

What should I do if an LED does not light up during the test?

This indicates that the corresponding wire is cut or poorly connected. Check the wiring and connectors. If several LEDs are missing, the cable may be damaged.

Can I use this tester outdoors?

No, the device is designed for indoor dry use. Protect it from moisture, rain, and snow.

How do I open the battery compartment?

The compartment is located on the back of the main tester. Slide the cover or remove the screw depending on the model. Connect the clip to the 9V battery before closing.

What does the delivery of the CSL 301303 tester include?

The delivery includes: main tester, remote tester, a wire stripper, a crimping tool, an LSA punch-down tool, and the user manual.

How to test the shielding of a cable?

Ensure the cable is shielded and the connector is properly grounded. The LED marked G should light up if the shielding is continuous.

What should I do if the tester does not turn on?

First check the battery: make sure it is properly connected and charged. If the problem persists, contact customer service.

How to recycle the CSL 301303 tester?

This device is subject to the WEEE directive. Do not dispose of it with household waste. Take it to a collection point (store, recycling center) or consult www.quefairedemesdechets.fr to find the nearest point.

USER MANUAL 301303 CSL

CSL Network Kit with RJ45/RJ11 Cable Tester

Mod.-Nr.: 301303

Table of contents

1. Deutsch....3
2. English....6
3. Français....9
4. Español 13
5. Italiano.... 16

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing a CSL product. Please read the following user manual carefully to have an enjoyable experience with your purchased product. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of supply

• RJ45 / RJ11 network cable tester
- Stripper
- Crimping tool
- LSA insertion tool
- User manual for the cable tester

2. Function

You can check whether your network cable or ISDN cable is working using the cable tester. The cable tester allows you to test the pin assignment and the cable shielding easily.

3. Initial use

Take the device out of the package and remove all the packaging material. Open the battery compartment located at the rear of the main unit. Connect a 9V battery to the battery clip and insert it into the battery compartment. Then close the cover of the battery compartment.

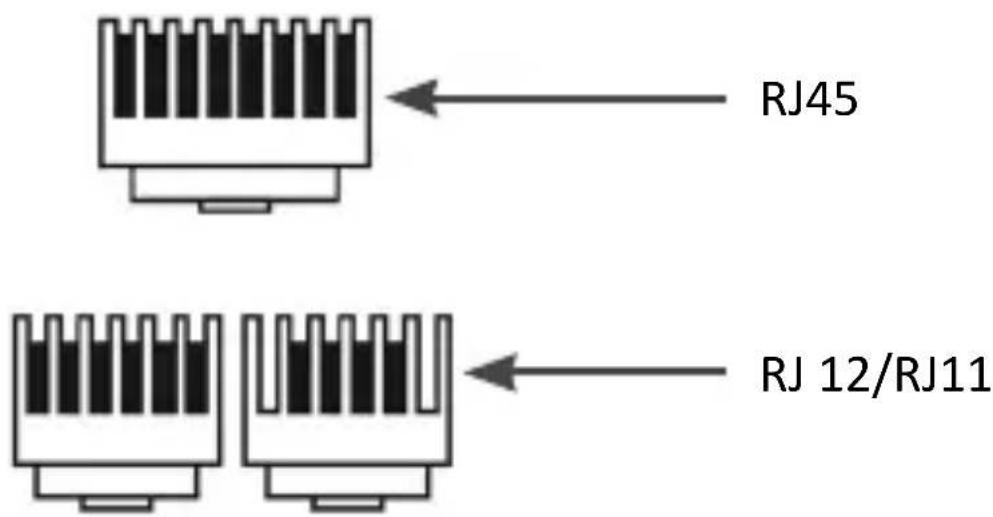

The following figure shows the cables that can be tested:

Connect the cable to the main unit and to the remote unit and then switch on the device. You can select between two different speeds for the cable test. To test a cable test in normal speed, put the selector switch to "ON" position. If you put the selector switch to "S" (slow), the cable test is carried out at reduced speed. The "OFF" position switches the device off.

The measurement result is displayed simultaneously on the main unit as well as the remote unit during the cable test. During the measurement process, the network cable tester continuously tests the wires 1-8, and "G" additionally in case of shielded cables, and indicates whether the respective wires have contact between the connected wire ends and whether the signal is being conducted further.

In case of a fully allocated cable with standard pin assignment and shielded connectors, all the LED pairs should glow one after the other. If any wire is faulty, then the corresponding LED pair does not glow.

4. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

5. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD-Plus GmbH, herewith declares that this product 301303 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD-Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
