USER MANUAL 306637 CSL

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing a CSL product. Please read the following user manual carefully to have an enjoyable experience with your purchased product. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of supply

• CSL RJ45 / RJ11 network cable tester
- User manual

2. Function

You can check whether your network cable or ISDN cable is working using the cable tester. The cable tester allows you to test the pin assignment and the cable shielding easily.

3. Initial use

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Take the device out of the package and remove all the packaging material. Open the battery compartment located at the rear of the main unit. Connect a 9V battery to the battery clip and insert it into the battery compartment. Then close the cover of the battery compartment.

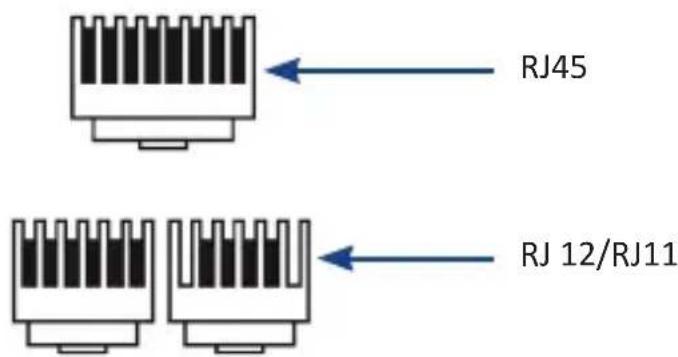

The following figure shows the cables that can be tested:

RJ45 RJ 12/RJ11

Connect the cable to the main unit and to the remote unit and then switch on the device. You can select between two different speeds for the cable test. To test a cable test in normal speed, put the selector switch to "ON" position. If you put the selector switch to "S" (slow), the cable test is carried out at reduced speed. The "OFF" position switches the device off.

The measurement result is displayed simultaneously on the main unit as well as the remote unit during the cable test. During the measurement process, the network cable tester continuously tests the wires 1-8, and "G" additionally in case of shielded cables, and indicates whether the respective wires have contact between the connected wire ends and whether the signal is being conducted further.

In case of a fully allocated cable with standard pin assignment and shielded connectors, all the LED pairs should glow one after the other. If any wire is faulty, then the corresponding LED pair does not glow.

4. Safety instructions and liability disclaimer

Voltage higher than 60V DC or 40V AC would damage the device!

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

5. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH herewith declares that this product 306637 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179Hanover
