USER MANUAL 302371 CSL

Line drawing of a mechanical component with no visible text or symbols

Wireless Mouse, 2.4G

Thank you for having chosen this product from CSL and for placing your trust in our company. Before using the ergonomic vertical mouse for the first time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• Ergonomic vertical mouse
  • 2,4GHz USB receiver
• User manual

2 Technical specifications

Polling rate	800 / 1600 / 3200dpi (selectable)
Sensor	optical
Connection	USB via 2,4GHz receiver
Features	5 buttonsscroll wheel
Power supply	1x AA batterie (not included in the scope of delivery)
Features	On/Off button

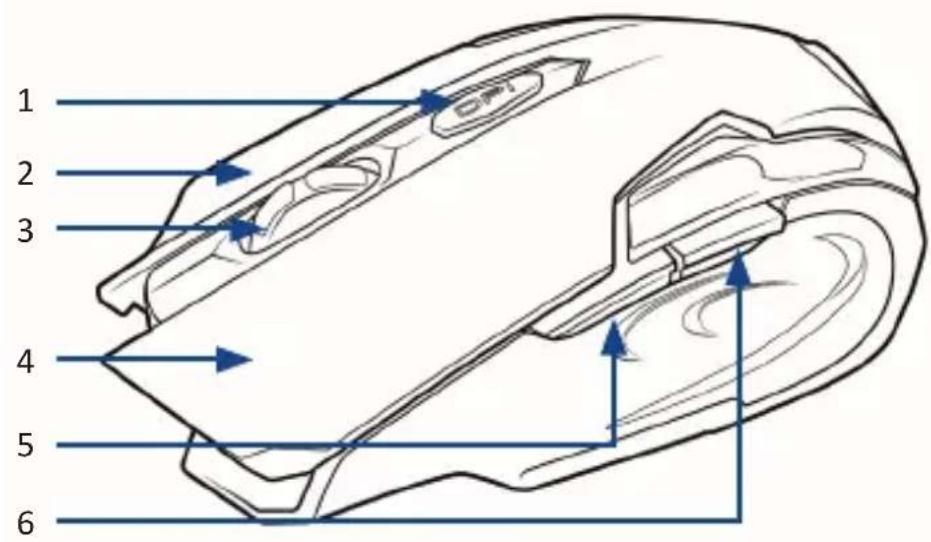

3 Product details

1 2 3 4 5 6

1	Dpi select button
2	Right mouse button
3	Vertical scroll wheel/ middle mouse button
4	Left mouse button
5	High navigation button „next page“
6	High navigation button „previous page“

4 Getting started

Remove the mouse and the 2,4 GHz USB receiver from the packing and connect the USB receiver stick to your computer. The USB 2,4GHz dongle is situated on the bottom side of the mouse in the small transport slot. Put it into a free USB port of your computer.

A manual driver installation is not required.

Now take the mouse and open the battery compartment on the bottom side and insert 1x new 1,5V AAA batterie into the provided holder. Please be sure to observe the correct polarity of the contacts when inserting the batterie.

Information concerning the use of batteries:

Due to the lower battery- voltage of 1,2V, the function of the mouse cannot be guaranteed for each type of battery. Moreover, it is possible that malfunctions like mouse pointer jumps or reduced battery life can occur. For that reason, we recommend the use of 1,5V alkaline batteries.

Close the battery compartment and switch the slider to position „ON“.

The vertical mouse is now ready to operate.

5 Functions

Because of the ergonomic shape, this mouse is suited for right-handed use. It is only partially suitable for left-handed use.

By using the dpi-button on the upper side of the device, you can select one of the following 3 sampling rates of 800, 1600 and 3200dpi.

Additionally, this device offers high-navigation buttons („Previous Page“ and „Next Page“), which are thumb operated and can easily be reached.

6 Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. Please avoid any contact to the electric current. This product is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit.

Check this product for signs of damage before putting it in operation.

In case the device received any damage, it should not be used. Please contact our customer support.

Please observe the relevant national provisions and legal restrictions.

Do not use this product for anything other than intended and as described in the manual.

Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims.

Persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention may only use the mouse.

This unit is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly.

The technical specifications of this product may change without prior notice.

7 Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous

12 English

substances could cause enduring damage to the environment if disposed of incorrectly.

As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

8 Disposal of batteries

In connection with the distribution of batteries or with the delivery of the devices which contain batteries the supplier is obliged to point out the customer to the following: The customer is obliged to return used batteries legally. He is able to return old batteries which the supplier leads as new batteries in the assortment or has led free of charge to the delivery camp (delivery address) of the supplier.

The symbols illustrated on the batteries have the following meaning:

Pb = battery includes more than 0,004 mass percent of lead,

CD = battery contains more than 0,002 mass percent of cadmium,

Hg = battery includes more than 0.0005 mass percent of mercury.

The symbol of the crossed garbage can means that the battery must not be given in the domestic waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 51282/20170214SZ136 conforms to the principle requirements and other relevant stipulations of Directive 1999/5/EG. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
