301418 - Mouse CSL - Free user manual and instructions

Product type	Bluetooth Mouse
Brand	CSL
Model	301418
Connection	Bluetooth V3.0
Sensor technology	Optical
Resolution	1000 DPI
Number of buttons	2 (left, right) + 1 clickable scroll wheel
Scroll wheel	Vertical scrolling
Power supply	1 AA 1.5V battery
Rechargeable batteries	Not recommended (1.2V, risk of malfunctions)
On/off switch	Yes, on the bottom
Pairing button	Yes, on the bottom
Pairing code	0000
Package contents	Mouse, user manual
Compatibility	Devices with Bluetooth
Care	Clean with a dry cloth, avoid harsh chemicals
Safety	Do not open, avoid moisture and extreme temperatures
Recycling	Do not dispose of with household waste, comply with WEEE (2012/19/EU)
Battery recycling	Used batteries must be returned, crossed-out wheelie bin symbol

Frequently Asked Questions - 301418 CSL

How to connect the mouse via Bluetooth?

Make sure the mouse is off, then turn the switch to 'on'. Press the pairing button until the blue LED flashes. Enable Bluetooth on your device and search for 'CSL-45642'. If a code is requested, enter 0000.

What if Bluetooth cannot find the mouse?

Check that the mouse is on and in pairing mode (flashing blue LED). If the connection fails, pairing mode turns off after a few minutes; repeat the procedure by pressing the pairing button again.

What type of battery should I use?

Use a new AA 1.5V battery. Rechargeable batteries (1.2V) are not recommended as they may cause pointer jumps or reduced battery life.

How to change the battery?

Turn off the mouse with the switch. Open the battery compartment by pressing the 'Push' button on the bottom. Replace the battery observing the indicated polarity.

What if the mouse does not work after turning on?

Check that the switch is in the 'on' position. Ensure the battery is correctly installed and not discharged. If the problem persists, reset the Bluetooth connection.

How to clean the mouse?

Use a soft, dry cloth. Do not use harsh chemicals or abrasives. Avoid moisture inside the mouse.

What if the pointer jumps or is unstable?

This may be due to using rechargeable batteries (1.2V) or an unsuitable surface. Use a new alkaline 1.5V battery and a flat, non-reflective surface.

Is the mouse compatible with all devices?

It is compatible with any device with a Bluetooth receiver. Ensure the device supports Bluetooth V3.0 or later.

How to recycle the mouse at end of life?

Do not throw the mouse in household waste. According to the WEEE directive (2012/19/EU), return it to a collection point or the manufacturer. Used batteries must be disposed of separately.

What if the LED does not light up during pairing?

Check that the battery is good and correctly installed. Ensure the switch is in the 'on' position. If the LED still does not light up, the battery may be dead or the mouse may be defective.

USER MANUAL 301418 CSL

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• Bluetooth Mouse
• User manual

2 Technical specifications

Polling rate	1000 DPI
Sensor	optical
Port	Bluetooth V3.0
Features	2 buttons1 button scroll wheelVertical scroll wheel
Power supply	1x AA battery

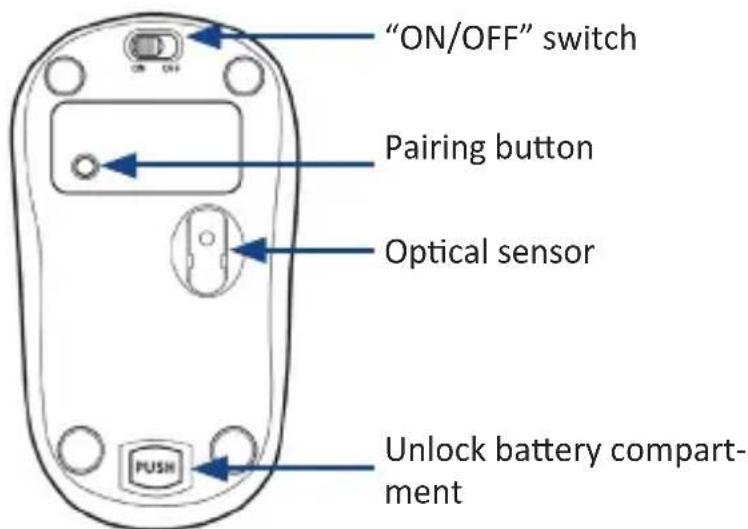

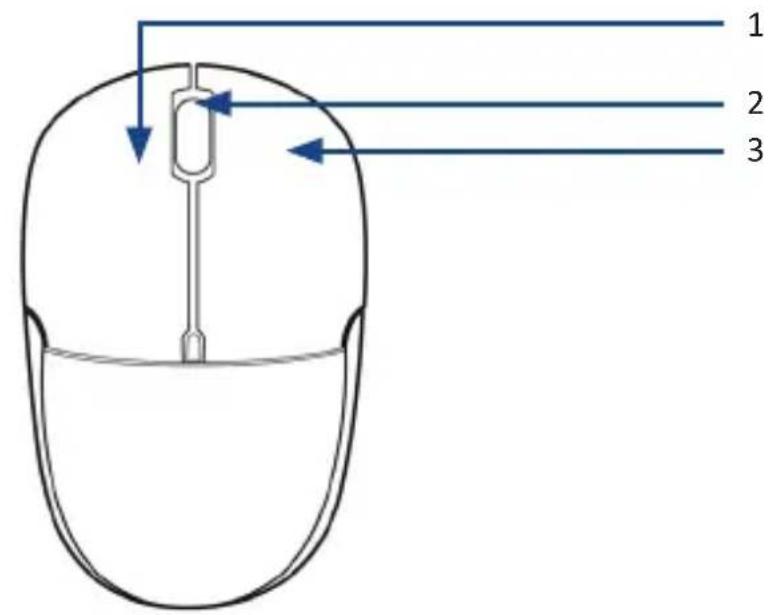

3 Product details

1 Left mouse button

2 Vertical scroll wheel / middle mouse button

3 Right mouse button

4 Getting started

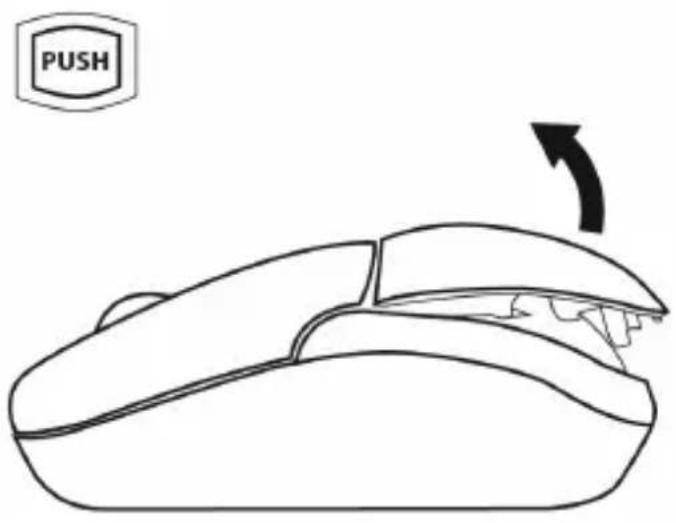

Remove the mouse from the packing. Now take the mouse and open the battery compartment on the bottom side by pressing the “Push” button. Insert one new 1,5V AA battery into the provided holder. Please be sure to observe the correct polarity. Connect the mouse via Bluetooth with your desired device. More about connecting via Bluetooth is to be found in the 5th chapter. A symbol illustration on the bottom of the tray displays the correct polarity.

It may happen that a code is queried. In this case, the pairing code is „0000“.

Important Information concerning use of batteries:

Due to the lower battery- voltage of 1,2V, the function of the mouse cannot be guaranteed for each type of battery. Moreover, it is possible that malfunctions like mouse pointer jumps or reduced battery life can occur. For that reason, we recommend the use of 1,5V alkaline batteries.

Close the battery compartment and switch the slider to position „ON“ on the reverse side. The mouse is now ready to use.

5 Connecting via Bluetooth

First ensure that the device is switched off. Hold the on/off button to position “on”. Then you need tp push the pairing button on the reverse side until the blue LED starts to blink at the front. Activate Bluetooth on the device that you want to link with the mouse. Perform a search and connect to device “CSL-45642”.

Note: The Bluetooth pairing mode is deactivated for safety reasons when no connection has been established after several minutes. Please repeat the steps described above when pairing has failed.

6 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

8 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU

WEEE DE 94495668

WD Plus GmbH, herewith declares that this product 45642/20170406DG017 conforms to the principle requirements and other relevant stipulations of Directive 1999/5/EG. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
